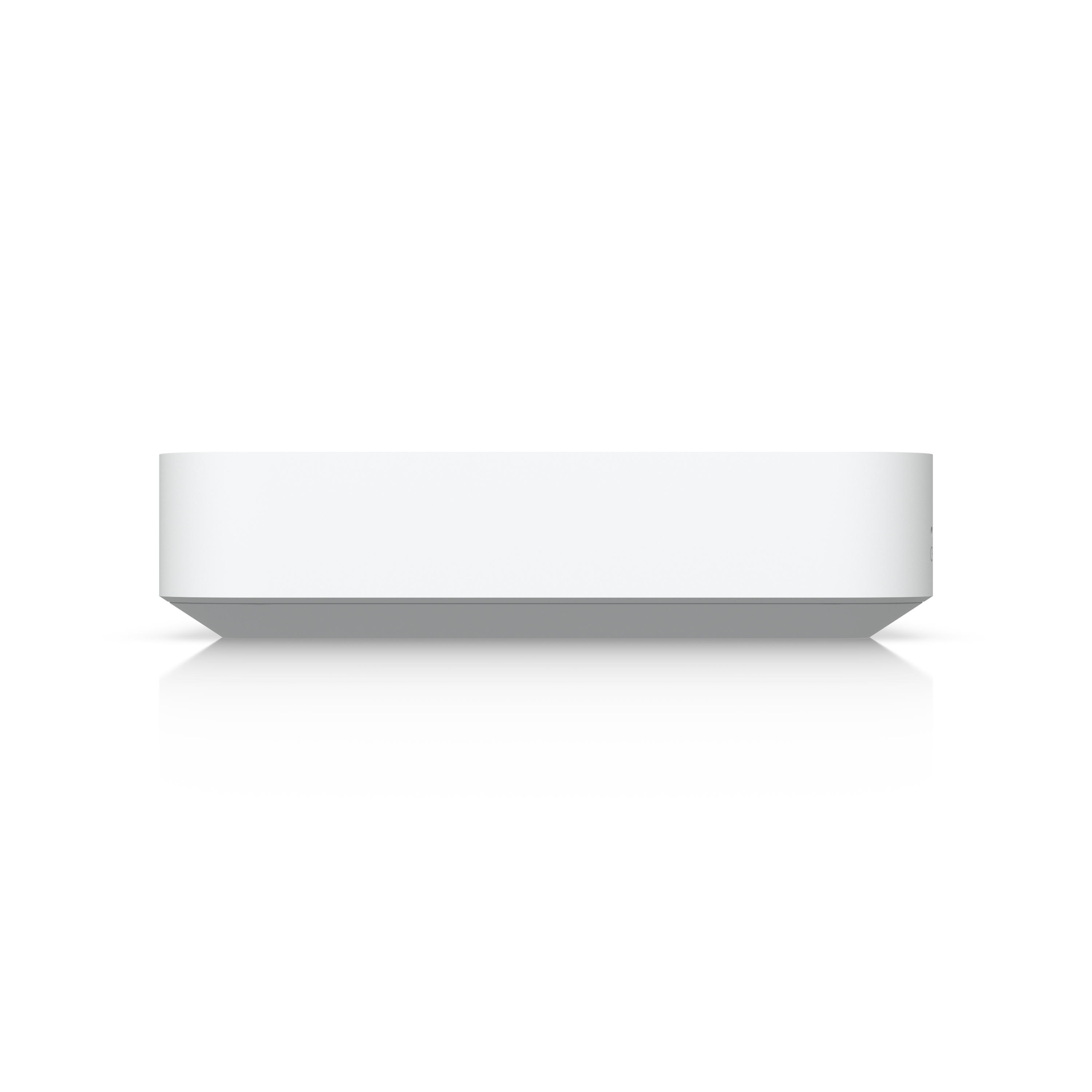

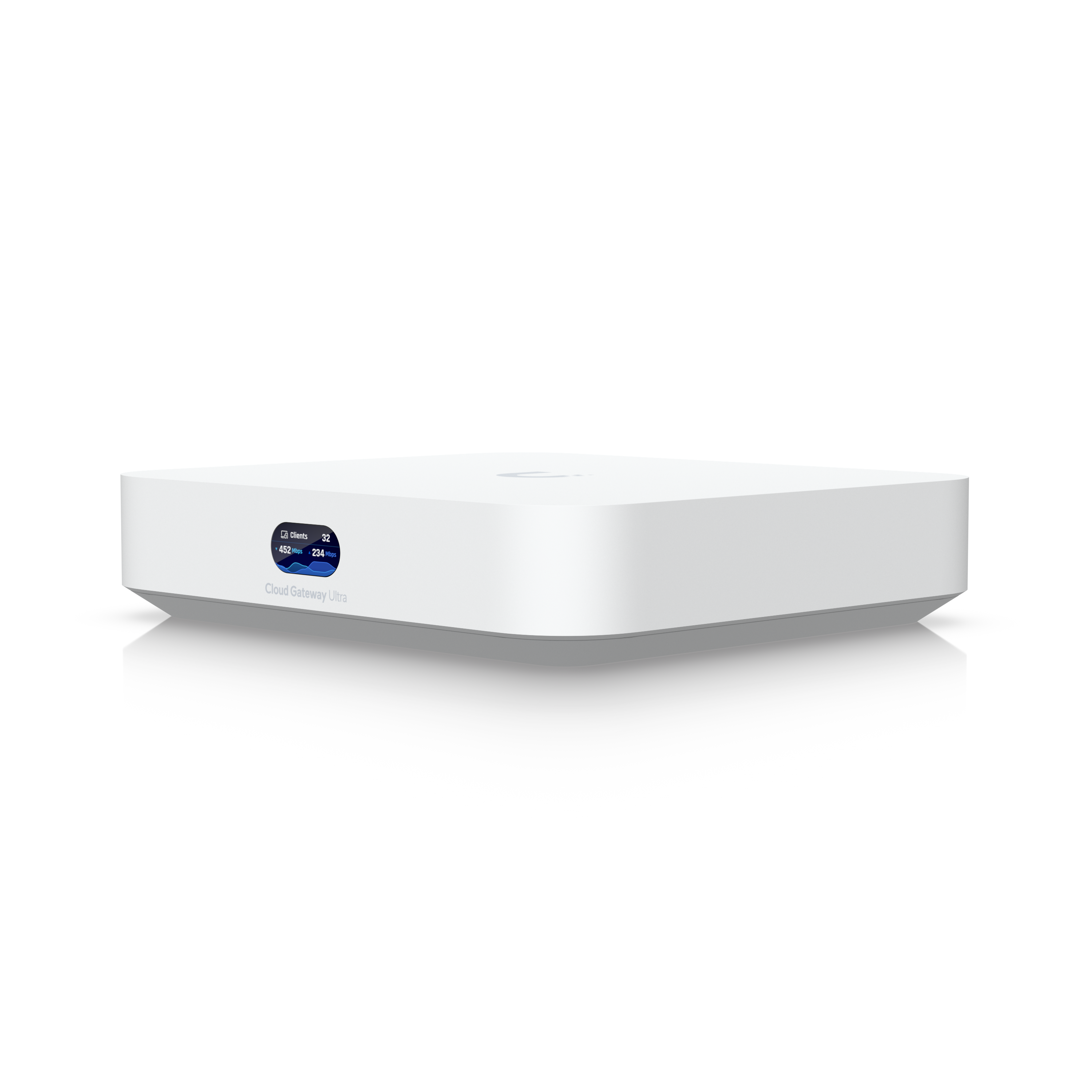

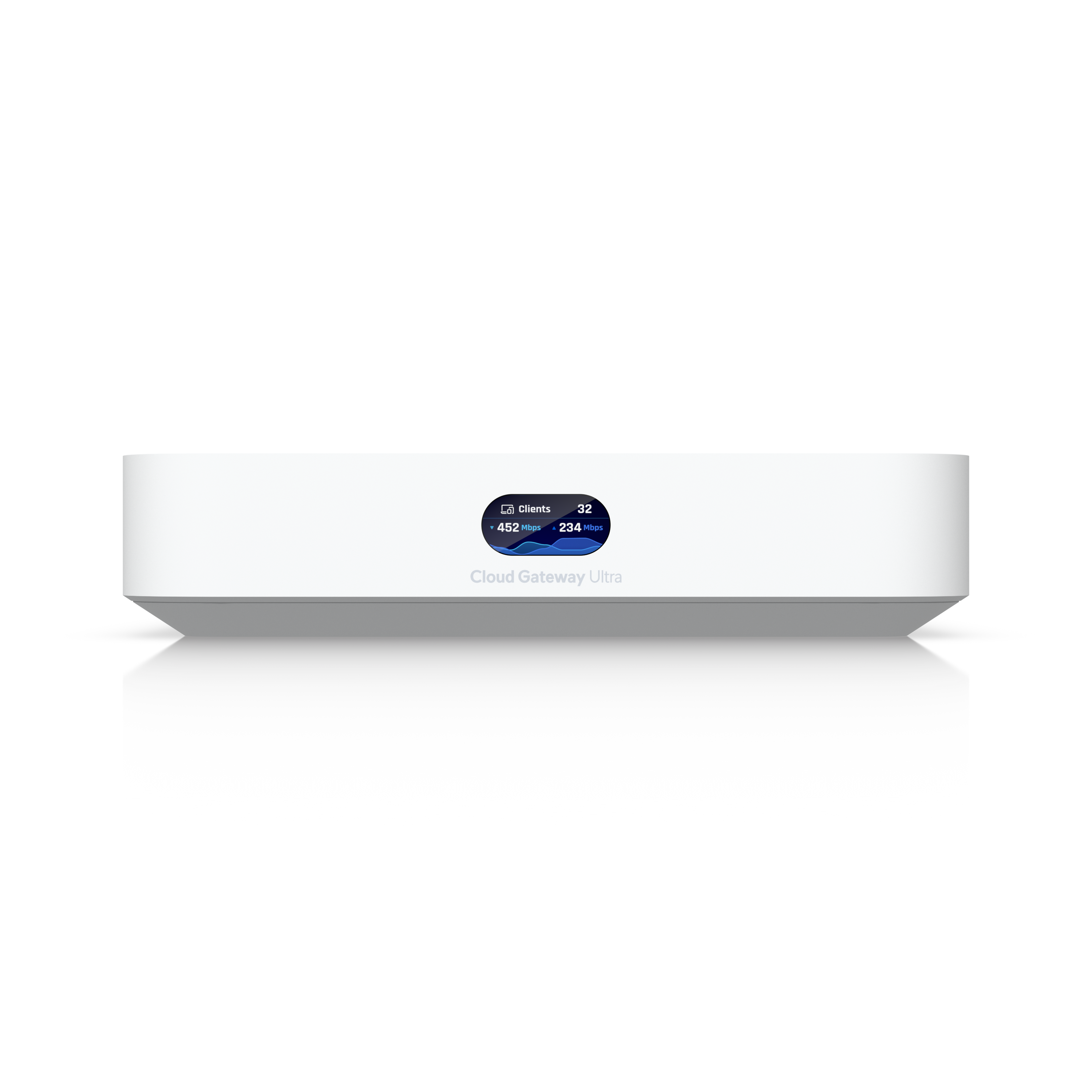

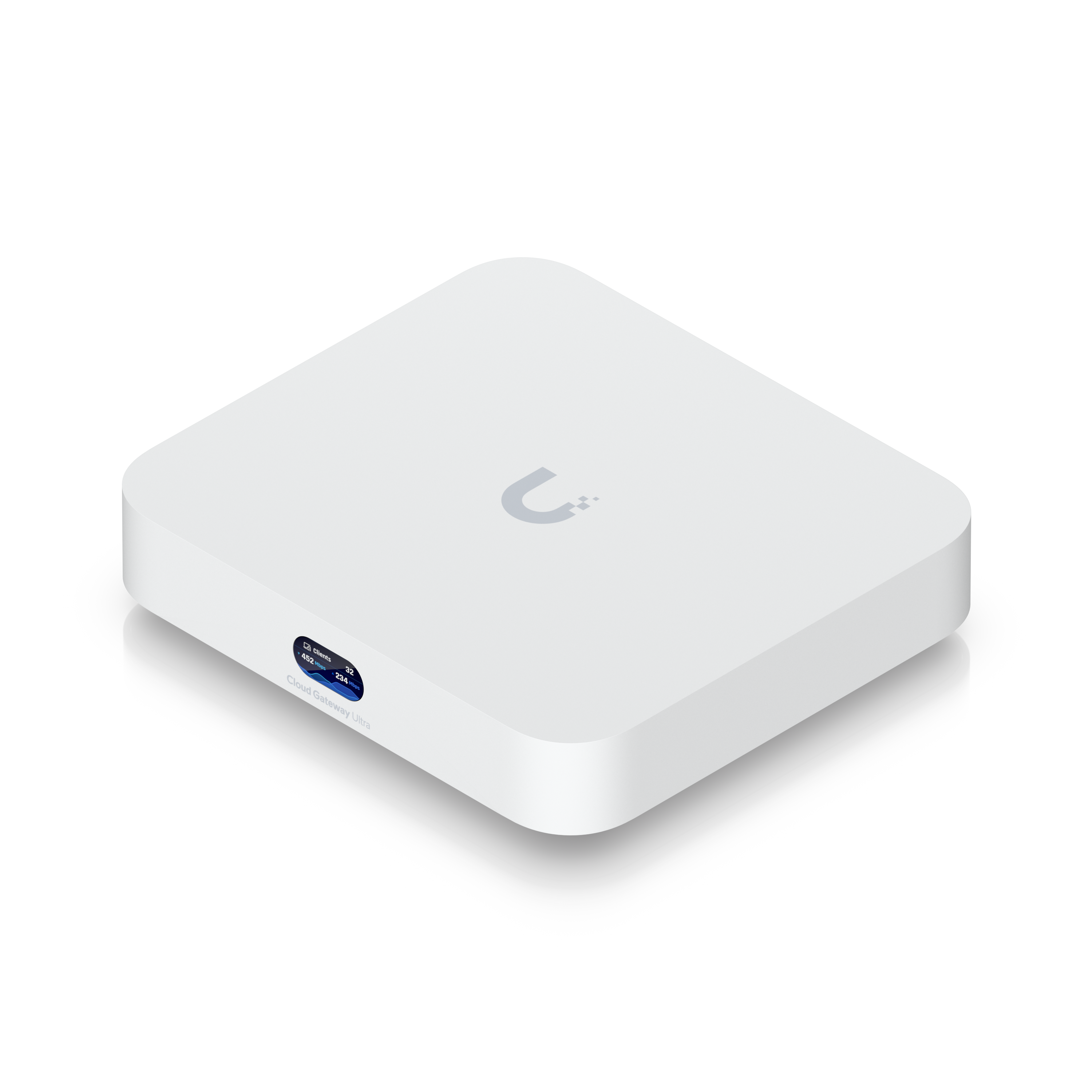

UniFi Cloud Gateway Ultra
Samhæft Cloud Gateway sem styður 30+ UniFi tæki / 300+ biðlara, 1 Gbps IPS beinavinnslu og álagsjöfnun á mörgum WAN tengingum.
- Keyrir UniFi Network fyrir fullkomna netkerfisstjórnun
- Hefur umsjón með 30+ UniFi Network tækjum og 300+ biðlurum
- 1 Gbps beining með IDS/IPS
- Álagsjöfnun á mörgum WAN tengingum
- 0.96" LCM stöðuskjár
- Knúið með USB-C (millistykki fylgir með)
Þrívídd og myndbönd
Tækni
Tæknilegir eiginleikar
Upplýsingar úr ETIM gögnum framleiðanda. Vantar þig meira? Hafðu samband við tækniráðgjöf okkar.
| Dimensions | 141.8 x 127.6 x 30 mm (5.6 x 5 x 1.2") |
|---|---|
| UniFi Application Suite: Network | Yes |
| Managed UniFi Devices | 30+ |
| Simultaneous Users Connected | 300+ |
| Max. WAN Port Count | 4 |
| Default WAN Ports | (1) 2.5 GbE RJ45 |

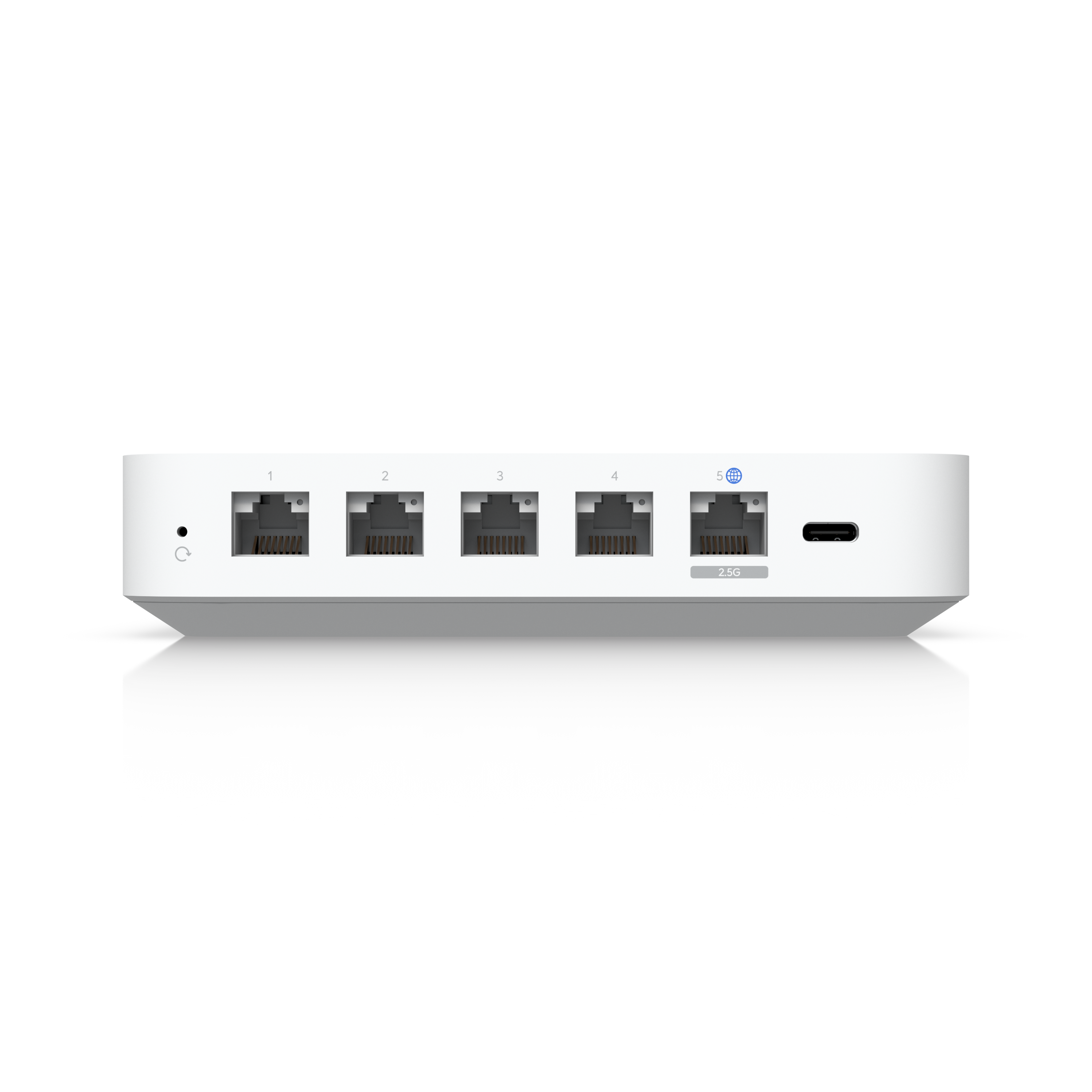

| Port Layout: 1 GbE RJ45 | 4 (1G/100M/10M) |
| Port Layout: 2.5 GbE RJ45 | 1 (2.5G/1G/100M/10M) |
| IDS/IPS Throughput | 1 Gbps |
| Form Factor | Compact desktop |
| Stateful Firewall | Yes |
| Application-Aware Layer 7 Firewall | Yes |
| DPI & Traffic Identification | Yes |
| Zone-Based Firewall Advanced Filtering (Regions, Domains, Apps) | Yes |
| Content Filtering | Yes |
| Intrusion Prevention (IPS/IDS) | Yes |
| Ad Blocking | Yes |
| IDS/IPS Signatures | 55,000+ with CyberSecure |
| VLAN/Subnet-based Traffic Segmentation | Yes |
| License-Free SD-WAN | Yes |
| Site-to-Site VPN: Site Magic | Yes |
| Site-to-Site VPN: IPsec | Yes |
| Site-to-Site VPN: OpenVPN | Yes |
| VPN Server: Identity Endpoint One-Click VPN | Yes |
| VPN Server: Teleport Zero-Configuration VPN | Yes |
| VPN Server: WireGuard | Yes |
| VPN Server: OpenVPN | Yes |
| VPN Server: L2TP | Yes |
| VPN Client: OpenVPN | Yes |
| VPN Client: WireGuard | Yes |
| Multi-WAN Load Balancing | Yes |
| Dynamic Routing: OSPF | Yes |
| Dynamic Routing: BGP | Yes |
| Advanced QoS | Yes |
| Multicast DNS (mDNS) | Yes |
| Advanced NAT (SNAT / DNAT / Masquerade / NAT Pooling / 1-to-1 NAT) | Yes |
| Integrated RADIUS Server | Yes |
| RADIUS over TLS (RadSec) | Yes |
| Additional Internet Failover with UniFi LTE Backup | Yes |
| Internet Quality and Outage Reporting | Yes |
| MAC Address Table Size | 2,000 |
| Policy-based WAN and VPN Routing | Yes |
| Customizable DHCP Server | Yes |
| IPv6 ISP Support | Yes |
| IGMP Proxy | Yes |
| Virtual Network Override | Yes |
| Max. Power Consumption | 6.2W |
| Power Method | USB type C (5V DC/3A) |
| Power Supply | USB type C (5V DC/3A) (Adapter included) |
| Supported Voltage Range | 100–240V AC |
| Heat Dissipation | 21 BTU/hr |
| Processor | Quad-core ARM® Cortex®-A53 at 1.5 GHz |
| System Memory | 3 GB |
| On-board Storage | 16 GB |
| Weight | 520 g (1.1 lb) |
| Enclosure Material | Polycarbonate |
| LCM Display | 0.96" status display |
| Management | Ethernet Bluetooth |
| LEDs: Ethernet | Yes |
| Button | (1) Factory reset |
| Ambient Operating Temperature | -10 to 40° C (14 to 104° F) |
| Ambient Operating Humidity | 5 to 95% noncondensing |
| NDAA Compliant | Yes |
| Certifications | CE, FCC, IC, Anatel: 04653-24-08356, SRRC |
| Application Requirements: Mobile App | UniFi iOS™: Version 10.12.0 and later UniFi Android™: Version 10.11.2 and later |
