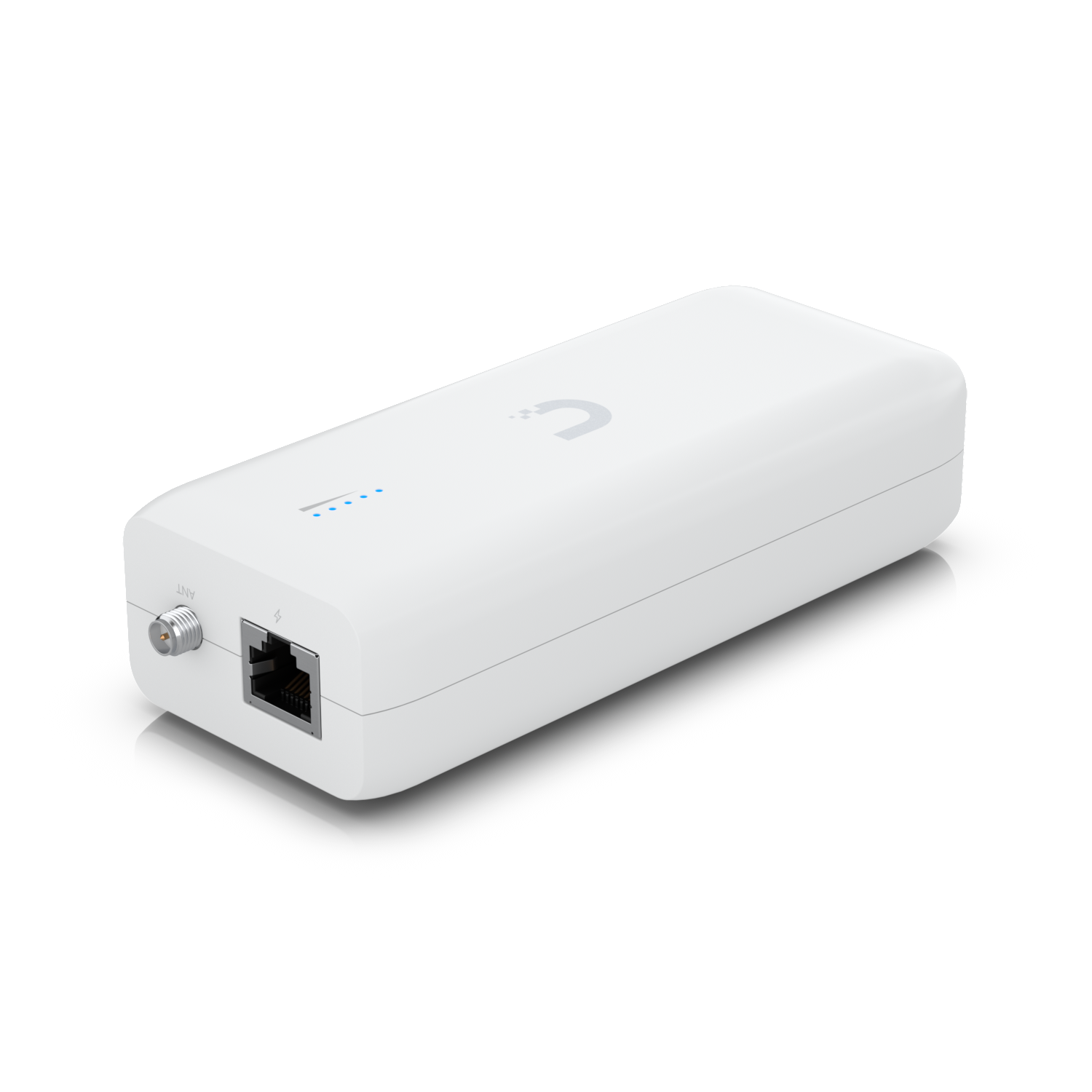

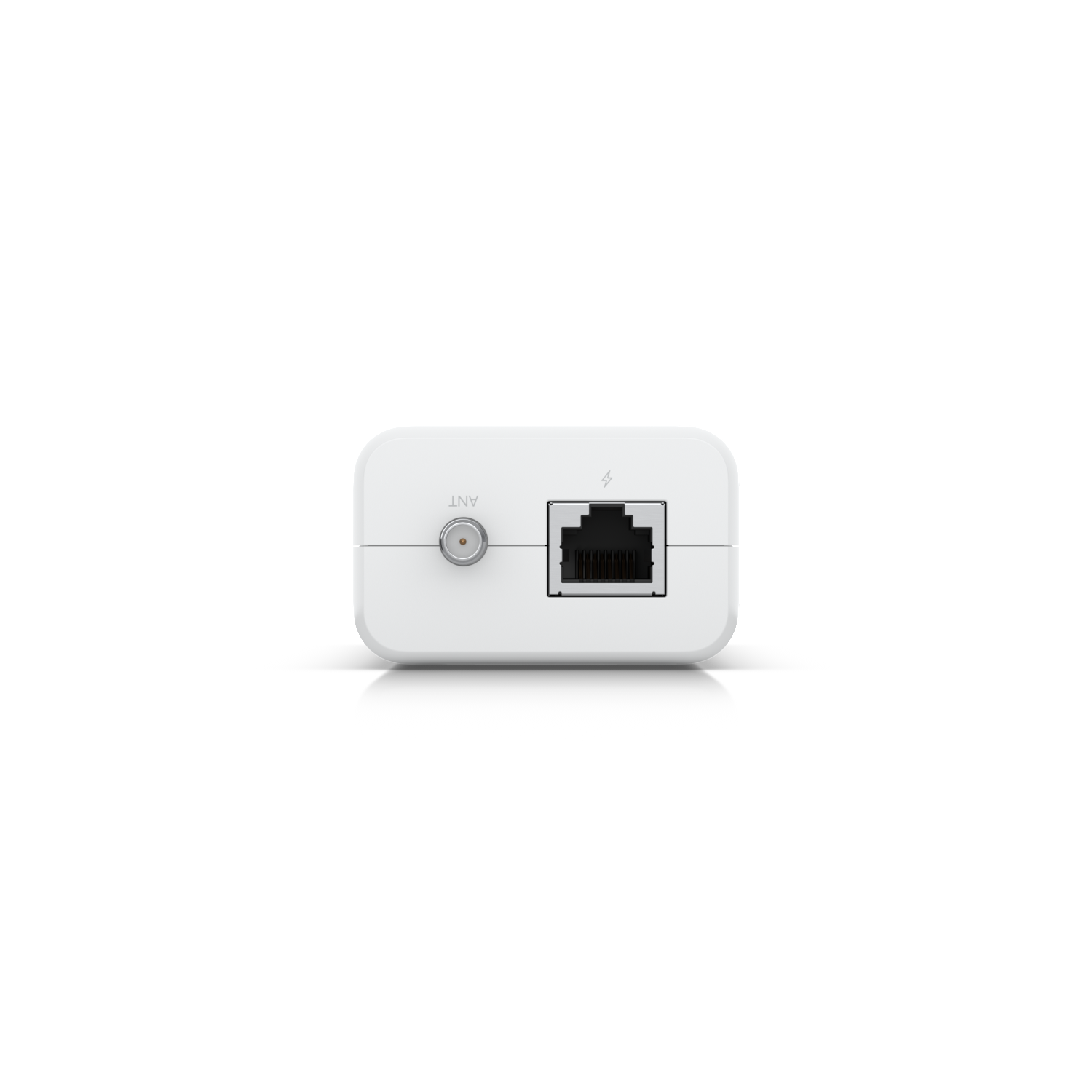

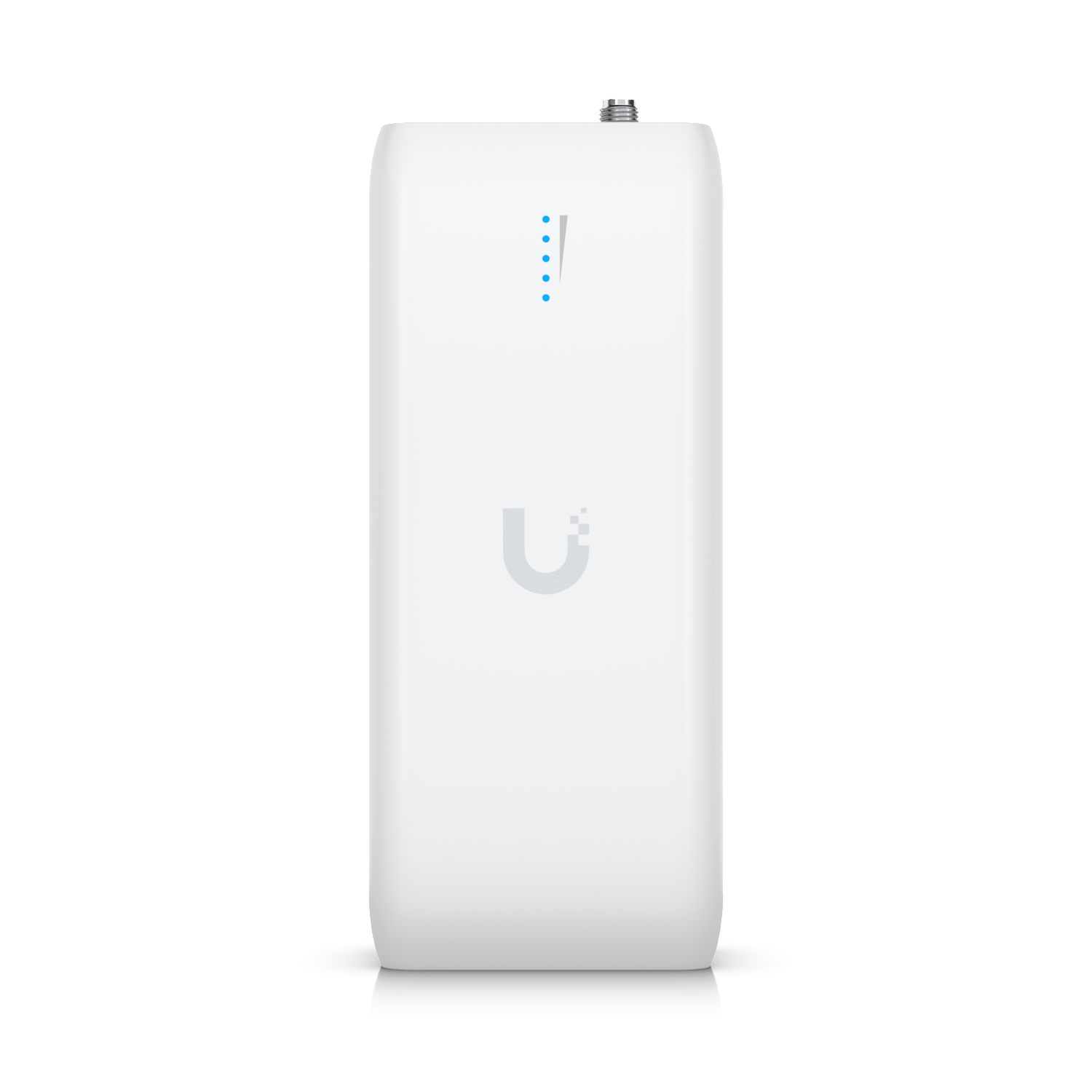

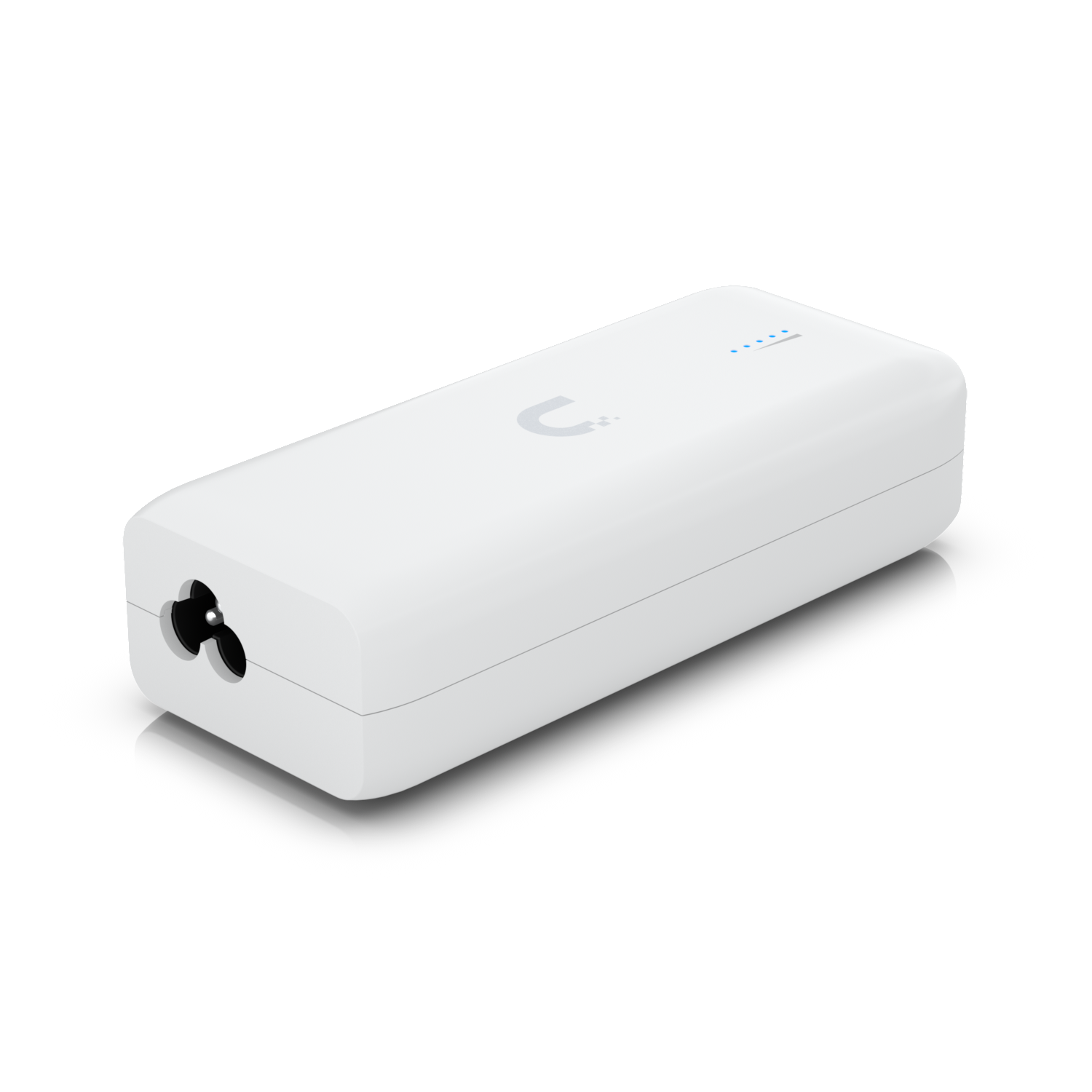

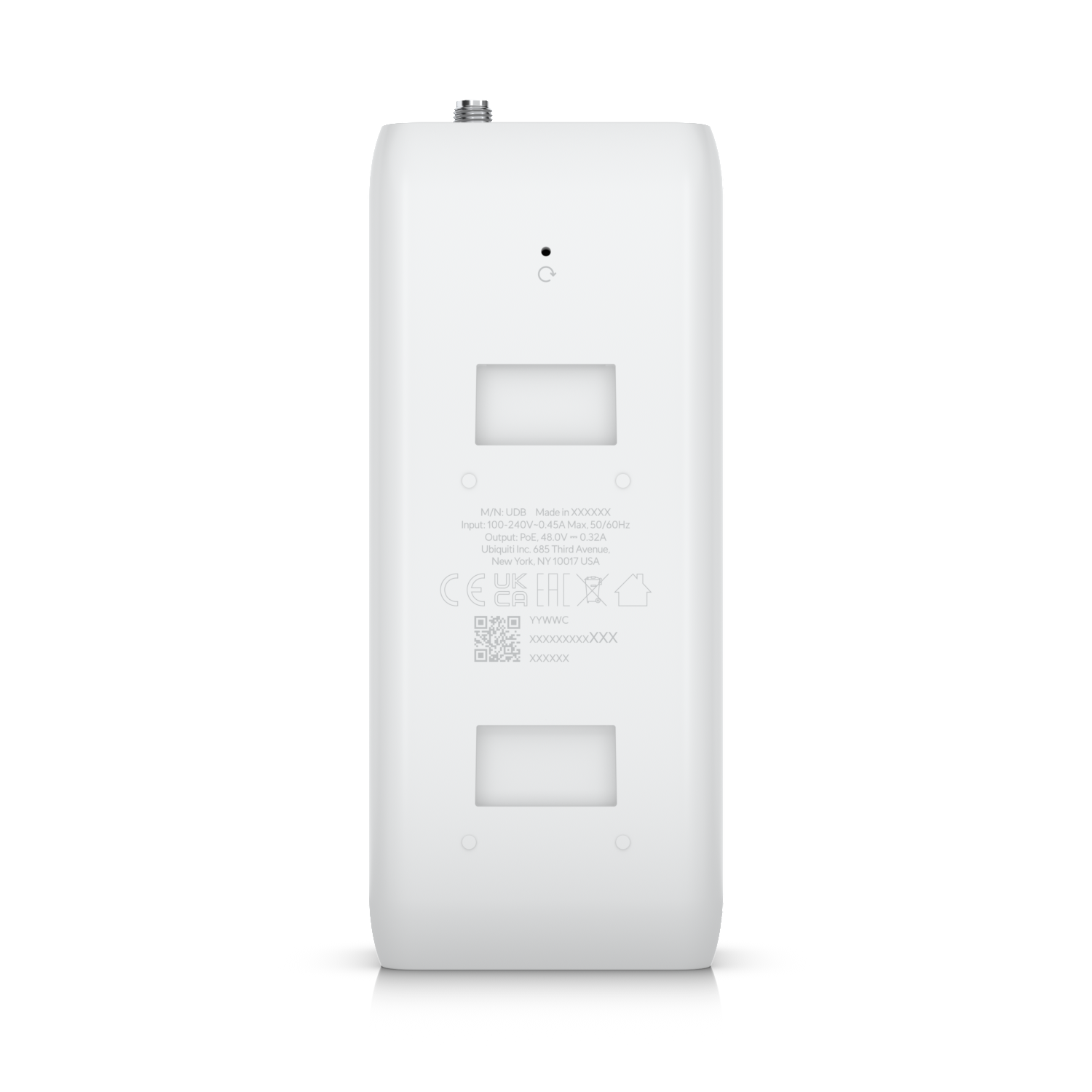

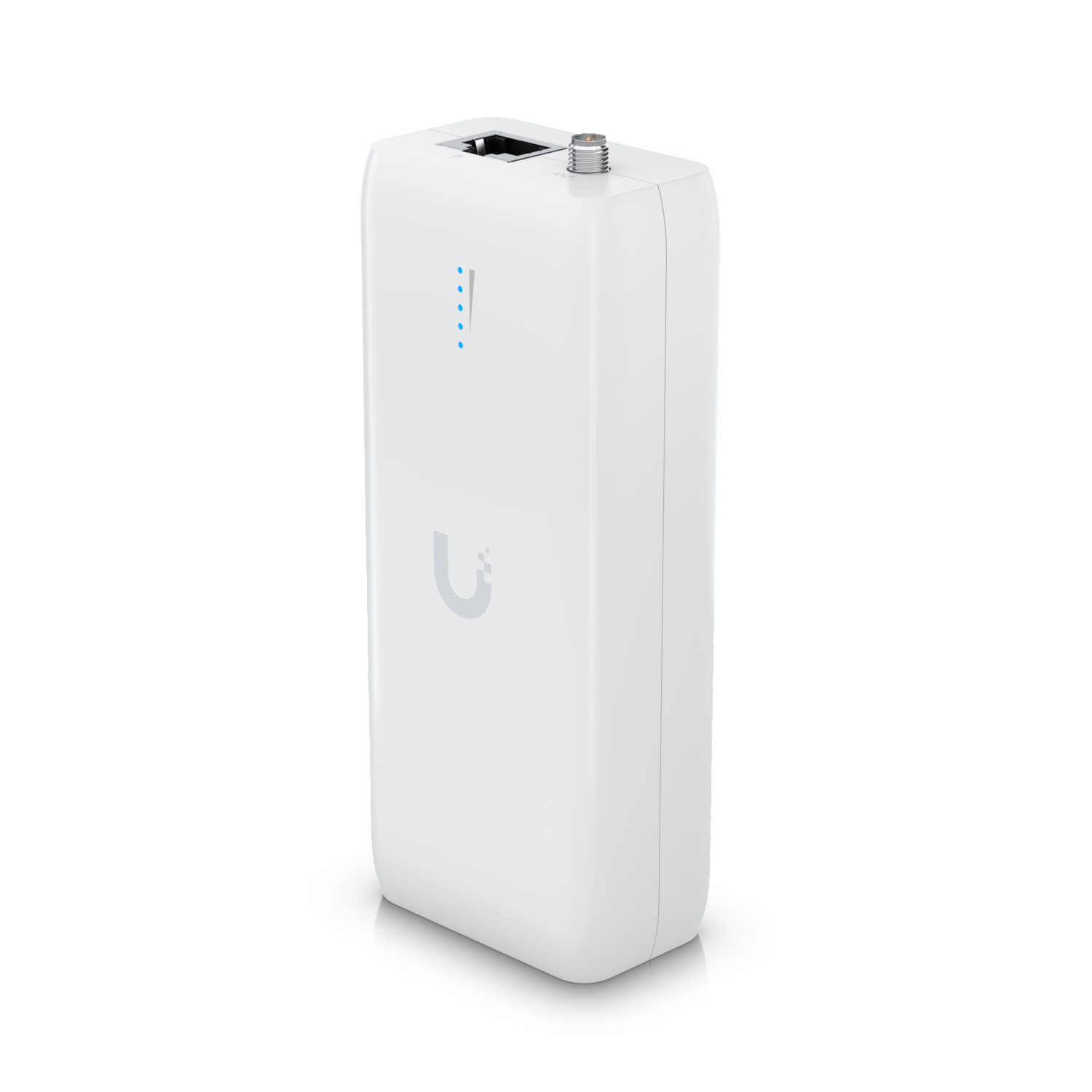

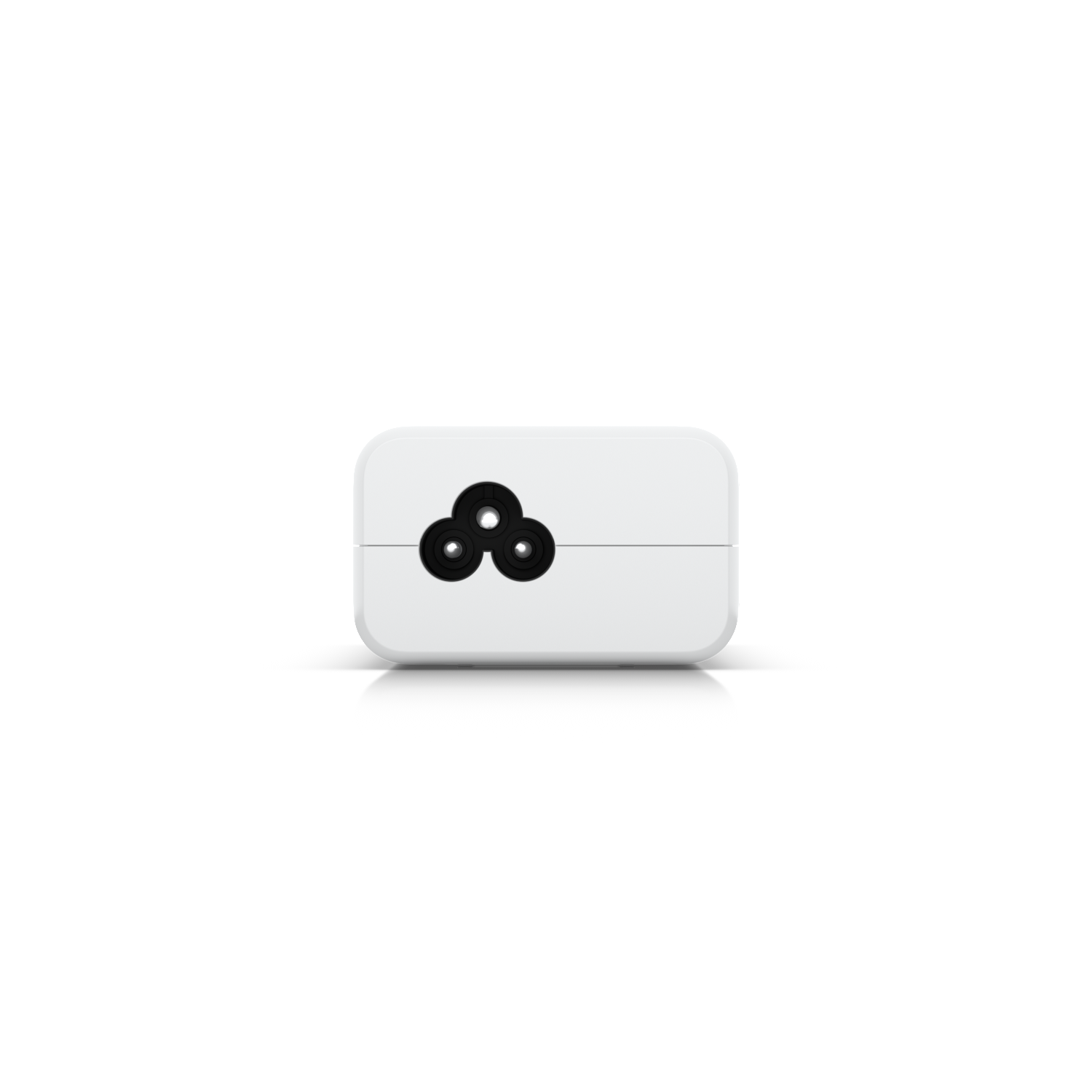

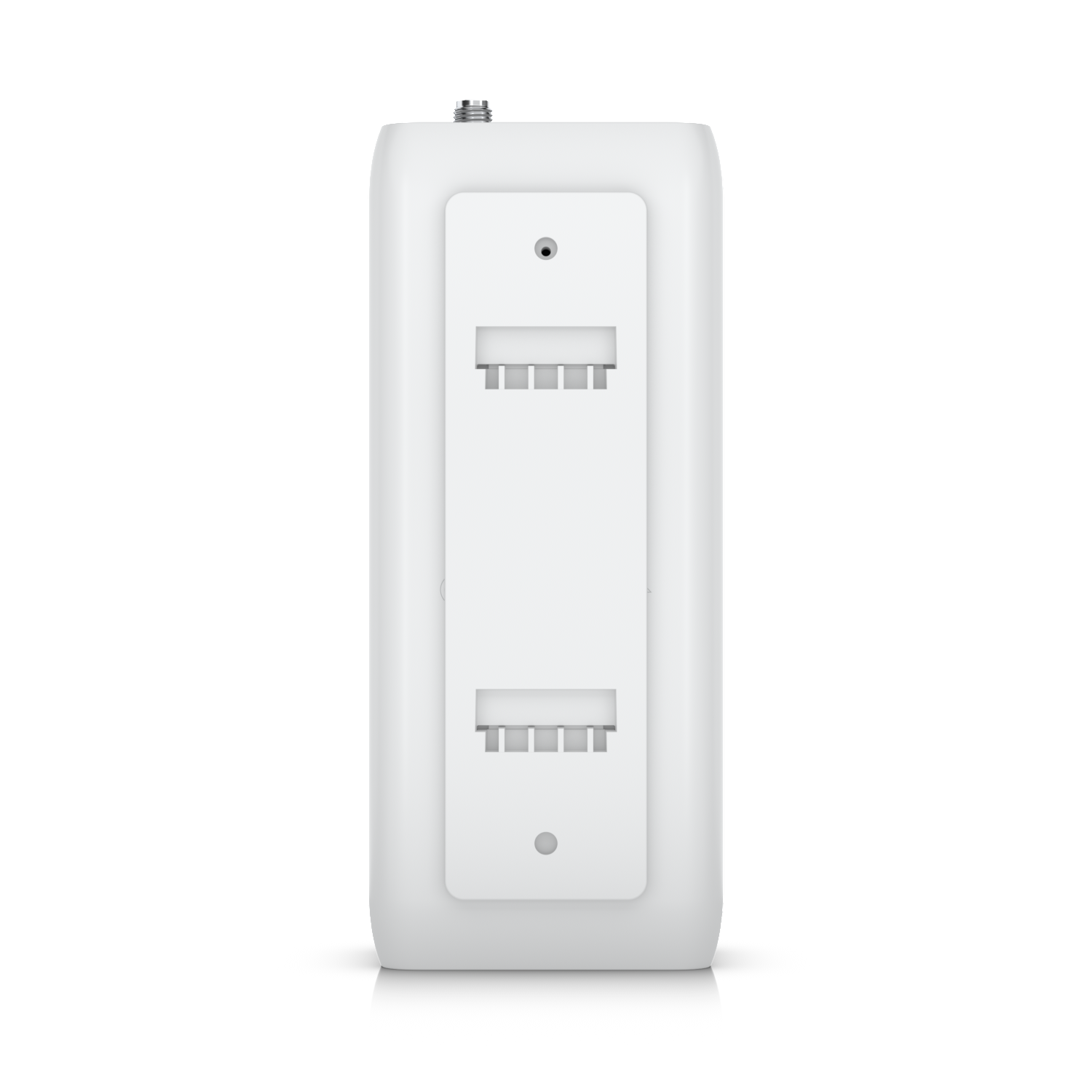

UniFi Device Bridge

UniFi · Vörunr UNI-UDB

(1) GbE LAN tengi sem gefur allt að 15W af PoE
5 GHz tíðnisvið með allt að 867 Mbps flutningshraða
Samhæft UniFi Protect PoE myndavélum, Talk símum og ýmsum IoT tækjum um Ethernet tengingu
Athugið. Nýjustu hugbúnaðaruppfærslur þurfa að vera uppsettar á UniFi Consoles og AP.

Þrívídd og myndbönd

Tækni

Upplýsingar úr ETIM gögnum framleiðanda. Vantar þig meira? Hafðu samband við tækniráðgjöf okkar.

Dimensions	130 x 55 x 34 mm (5.1 x 2.2 x 1.3")
WiFi Standard	WiFi 5
Spatial Streams	2
Mounting Locations	Wall, table
Mounting	Wall (Included)
Power Method	100–240V AC, 0.45A Max., 50/60 Hz
MIMO: 5 GHz	2 x 2
Max. Data Rate: 5 GHz	866.7 Mbps (BW80)
Antenna Gain: 5 GHz	Internal: 5 dBi External omni: 4 dBi, 360° x 30°
Max. TX Power: 5 GHz	21 dBm
Supported Data Rates: 802.11ac (WiFi 5)	6.5 Mbps to 866.7 Mbps (MCS0 - MCS9 NSS1/2, VHT 20/40/80)
Supported Data Rates: 802.11n	6.5 Mbps to 300 Mbps (MCS0 - MCS15, HT 20/40)
Supported Data Rates: 802.11a	6, 9, 12, 18, 24, 36, 48, 54 Mbps
Wireless Security	WPA2 AES
Max. Power Consumption	25W (AC input) 10W (Excluding PoE output)
Supported Voltage Range	100–240V AC
Networking Interface	(1) GbE RJ45 port
Antennas	(1) Internal antenna (1) RP-SMA connector for external omni-antenna
Management	WiFi
Channel Bandwidth	20/40/80 (MHz)
Weight	200 g (7.1 oz)
Enclosure Material	Polycarbonate
Mount Material	Polycarbonate
Button	(1) Factory reset
LEDs: System	(4) Blue: signal (1) White/blue: indicator
NDAA Compliant	Yes
Certifications	CE, FCC, IC, Anatel: 03885-25-08356
Operating Frequency	US/CA: U-NII-1 5150 - 5250 MHz U-NII-2A 5250 - 5350 MHz U-NII-2C 5470 - 5725 MHz U-NII-3 5725 - 5850 MHz Worldwide: 5150 - 5875 MHz (For worldwide, it depends on the regulatory region)
Ambient Operating Temperature	-10 to 40° C (14 to 104° F)
Ambient Operating Humidity	5 to 95% noncondensing
