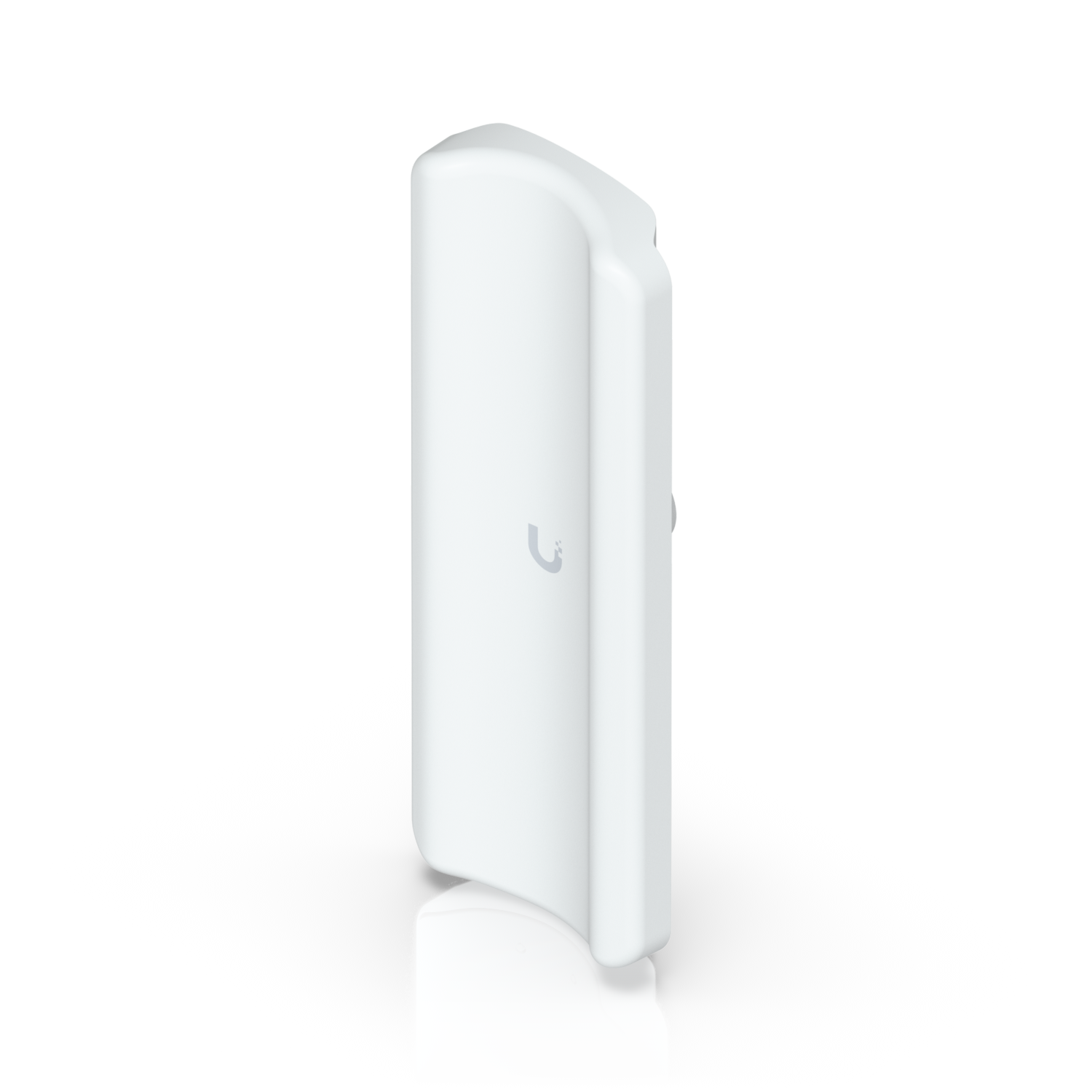

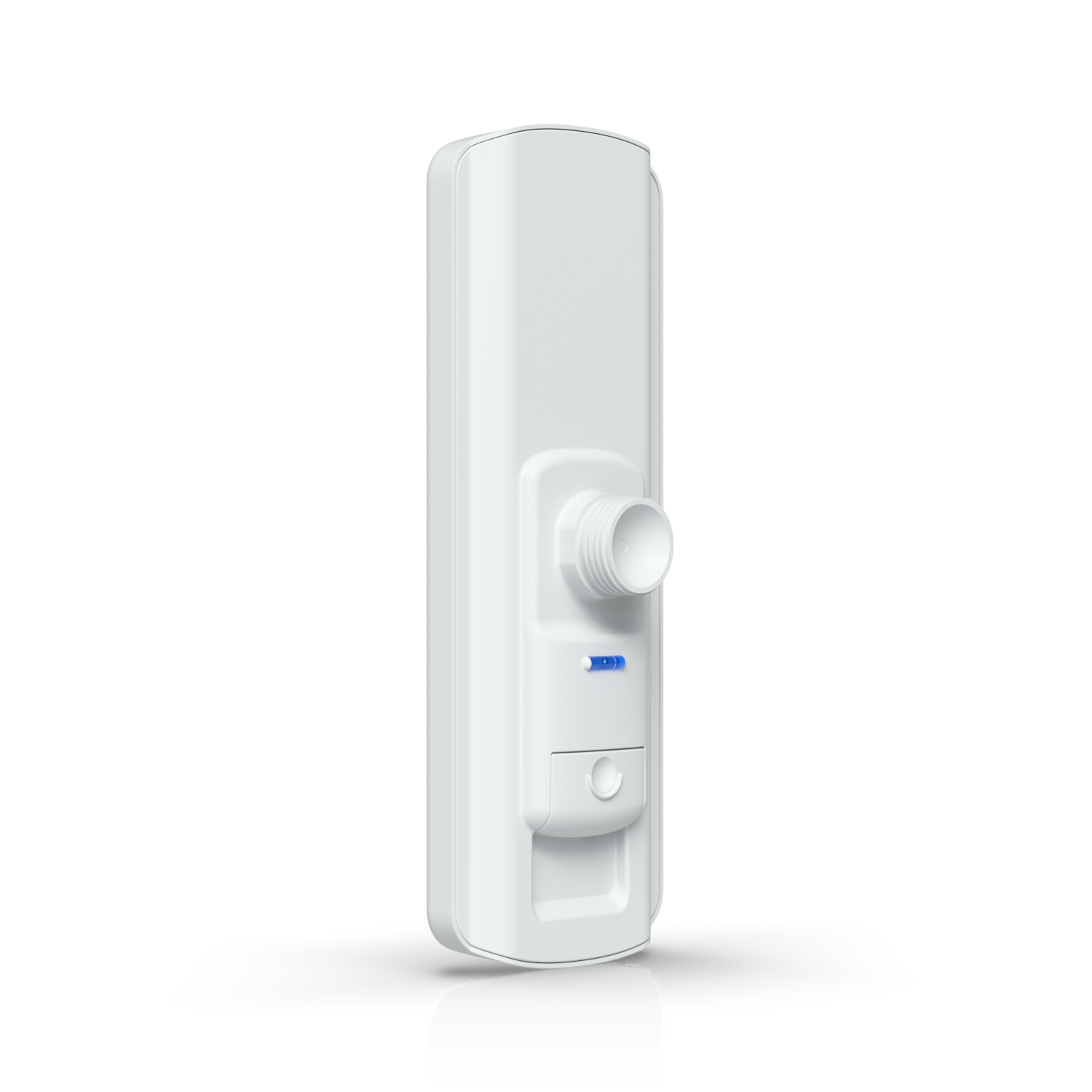

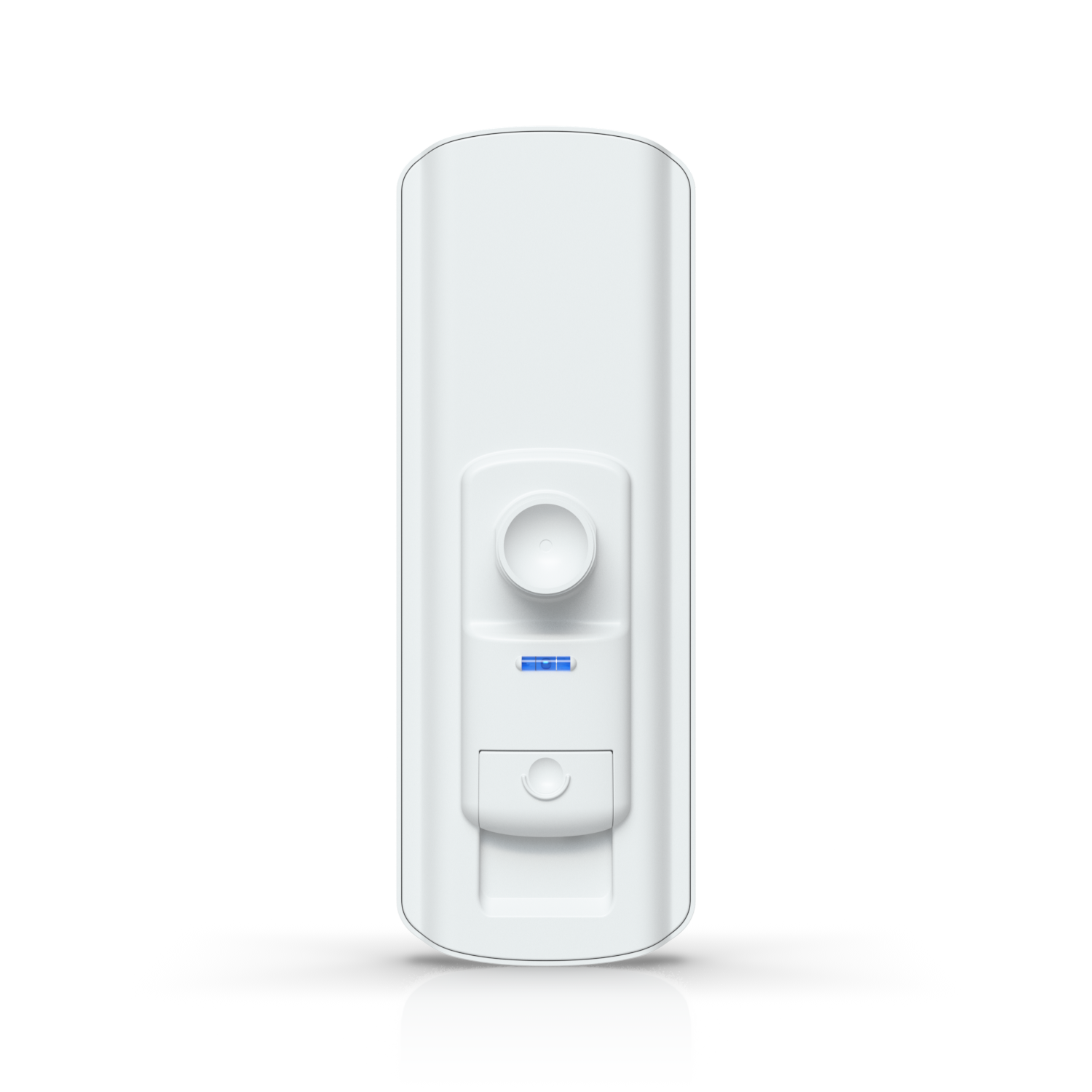

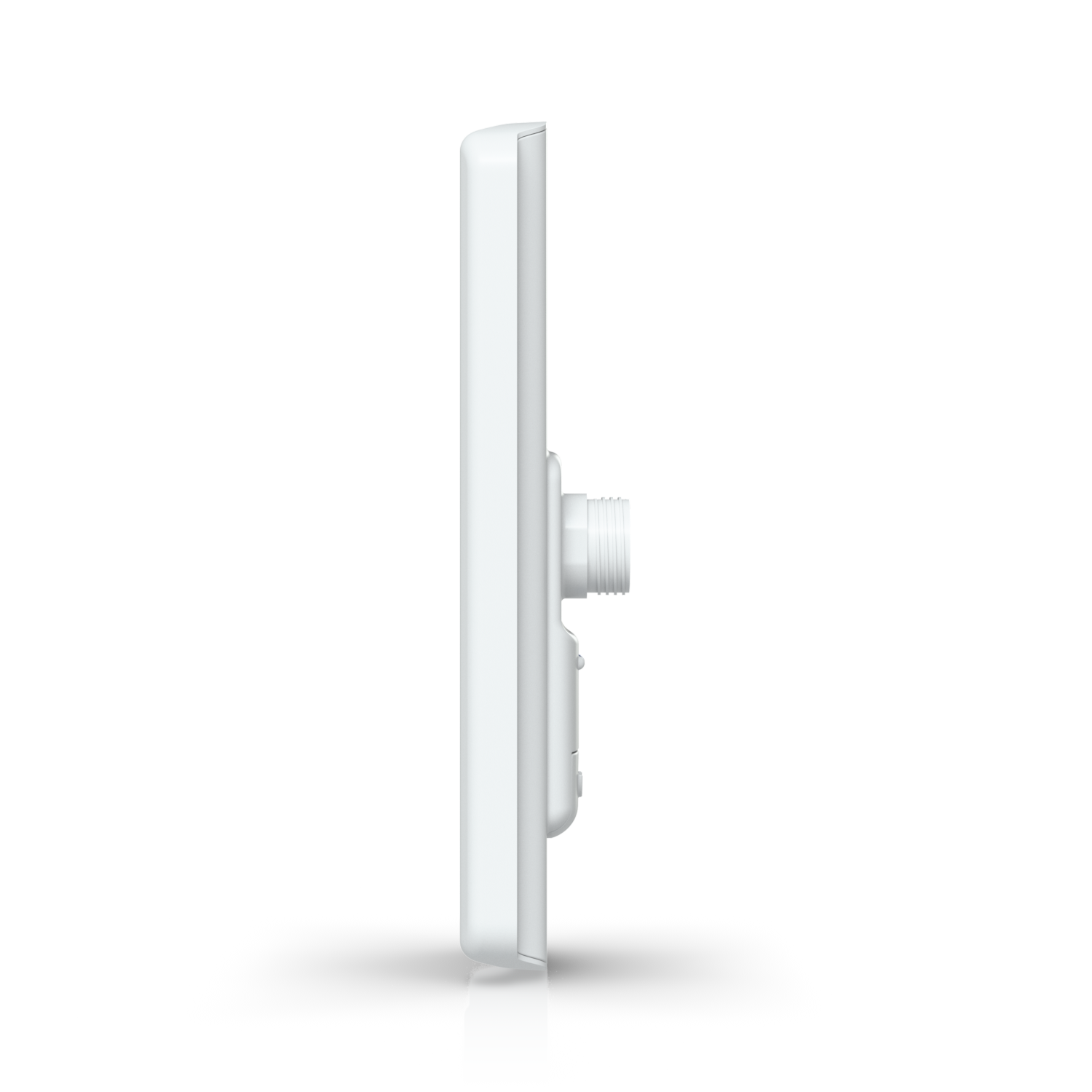

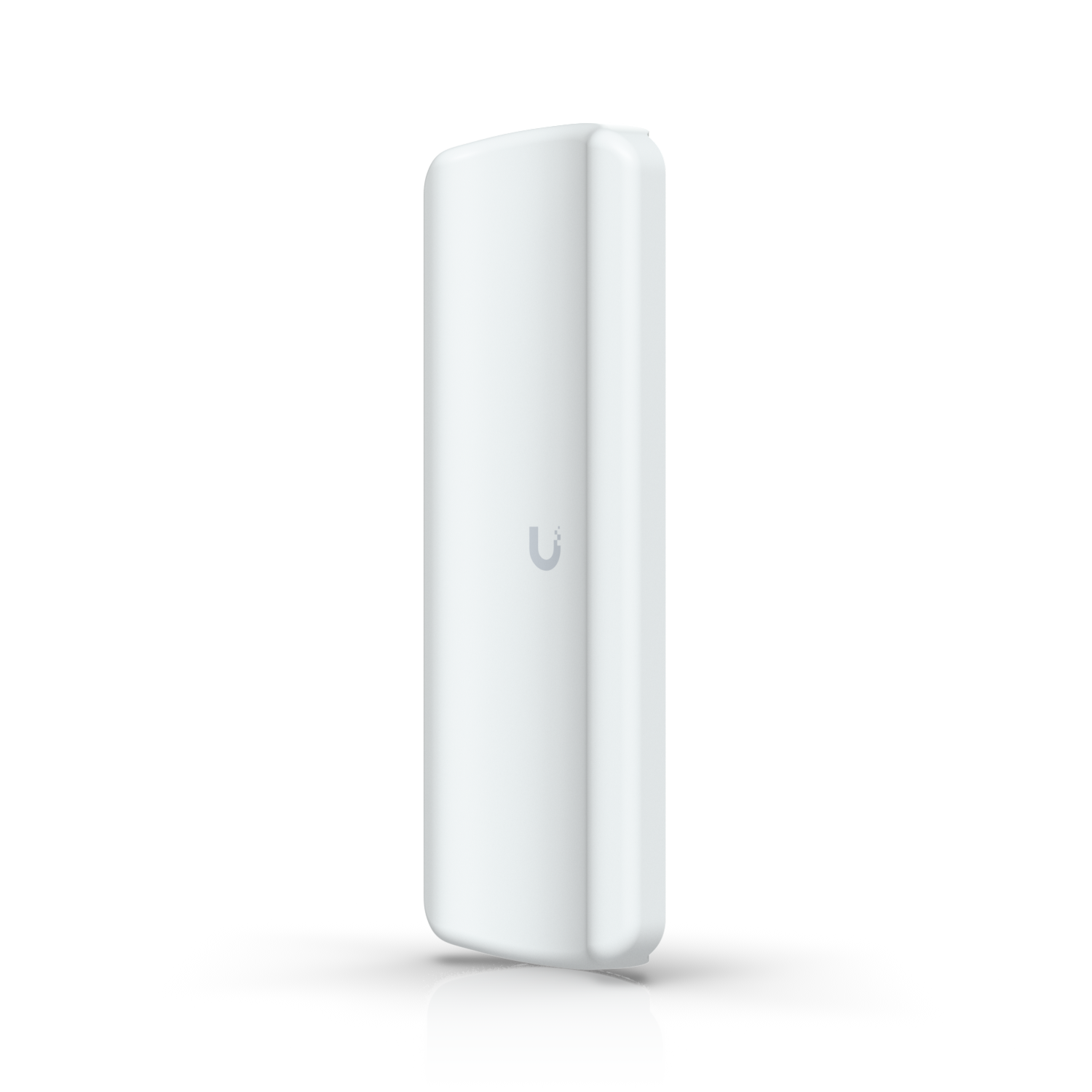

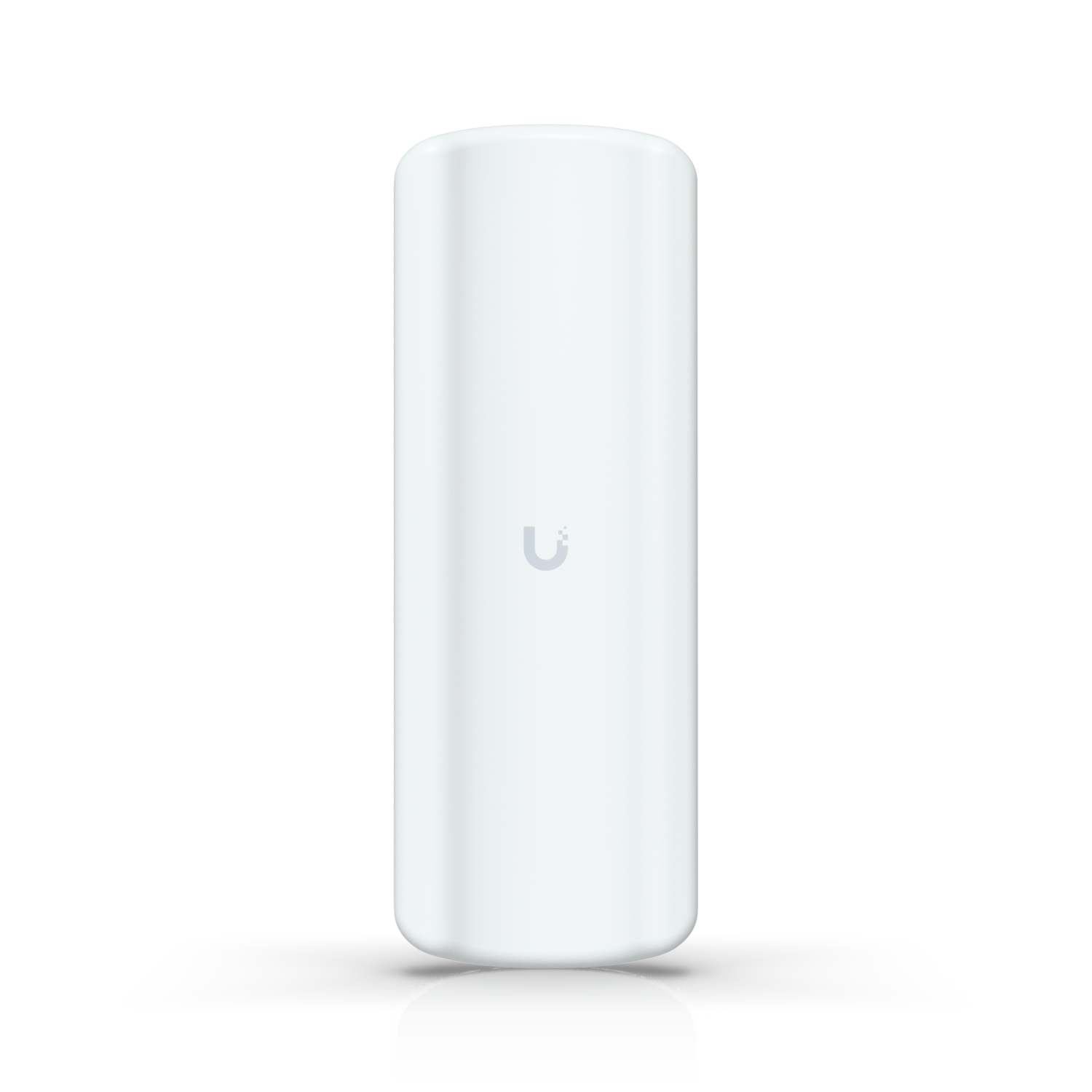

UniFi Device Bridge Pro Sector

UniFi · Vörunr UNI-UDB-Pro-Sector

5 GHz punkt-til-margpunkta aðgangsstaður sem tengir þráðlaust 50+ Device Bridge Pro skjólstæðinga á 5+ km fjarlægð.

Gerir kleift Point-to-Multi-Point (PtMP tengingu) með 50+ UDB-Pro skjólstæðingum
90° geiradekkun
Knúið með PoE
Staurfesting
Veðurþolið (útiuppsetning)

Þrívídd og myndbönd

Tækni

Upplýsingar úr ETIM gögnum framleiðanda. Vantar þig meira? Hafðu samband við tækniráðgjöf okkar.

Dimensions	360.9 x 129.6 x 71.4 mm (14.2 x 5.1 x 2.8”)
WiFi Standard	WiFi 5
Spatial Streams	2
Coverage Area	5 km (3.1 mi)
Mounting Locations	Pole
Weatherproofing	IPX6
Power Method	PoE
MIMO: 5 GHz	2 x 2
Max. Data Rate: 5 GHz	400 Mbps (BW40)
Antenna Gain: 5 GHz	17 dBi
Max. TX Power: 5 GHz	25 dBm
Max. Conducted TX Power	25 dBm (Combined)
Supported Data Rates: 802.11ac (WiFi 5)	6.5 Mbps to 400 Mbps (MCS0 - MCS9 NSS1/2, VHT 20/40)
Supported Data Rates: 802.11n	6.5 Mbps to 300 Mbps (MCS0 - MCS15, HT 20/40)
Supported Data Rates: 802.11a	6, 9, 12, 18, 24, 36, 48, 54 Mbps
Wireless Security	WPA2 AES
Max. Power Consumption	6W
Supported Voltage Range	42.5–57V DC

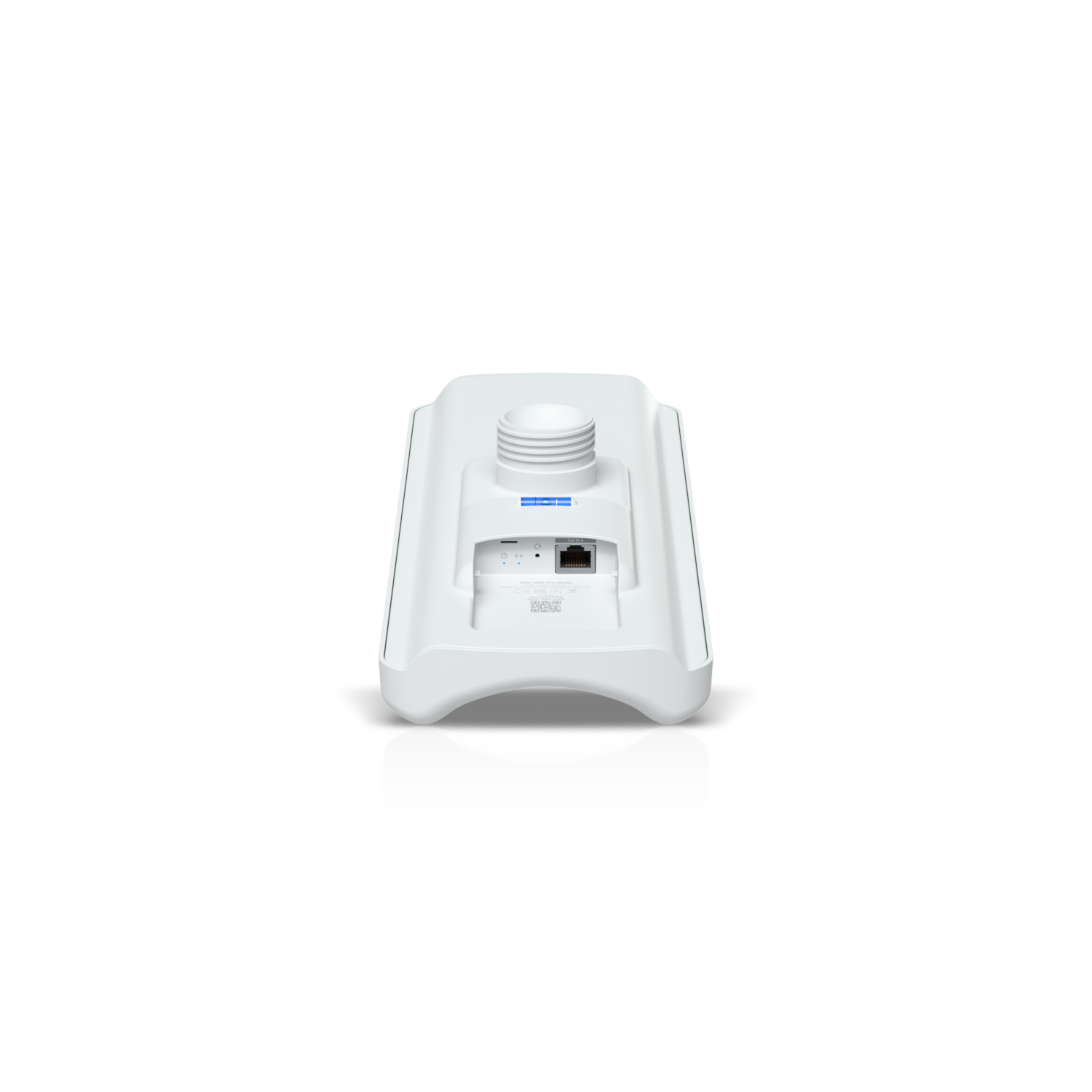

Networking Interface	(1) GbE RJ45 port
Antennas	Internal
Management	Ethernet WiFi
Channel Bandwidth	20/40 MHz
Wind Loading	128.2N at 200 km/h
Weight	Device: 782 g (1.7 lb) With mount: 835 g (1.8 lb)
Enclosure Material	UV-stabilized polycarbonate
Mount Material	UV-stabilized polycarbonate, stainless steel
Pole Mount Diameter	0.9—2.4" (24—60 mm)
Button	(1) Factory reset
LEDs: System	Power, Ethernet
NDAA Compliant	Yes
Certifications	CE, FCC, IC, Anatel: 05978-25-08356
Operating Frequency	US/CA: U-NII-1 5150 - 5250 MHz U-NII-2A 5250 - 5350 MHz U-NII-2C 5470 - 5725 MHz U-NII-3 5725 - 5850 MHz Worldwide: 5150 - 5875 MHz (For worldwide, it depends on the regulatory region)
Ambient Operating Temperature	-40 to 60° C (-40 to 140° F)
Ambient Operating Humidity	5 to 95% noncondensing
