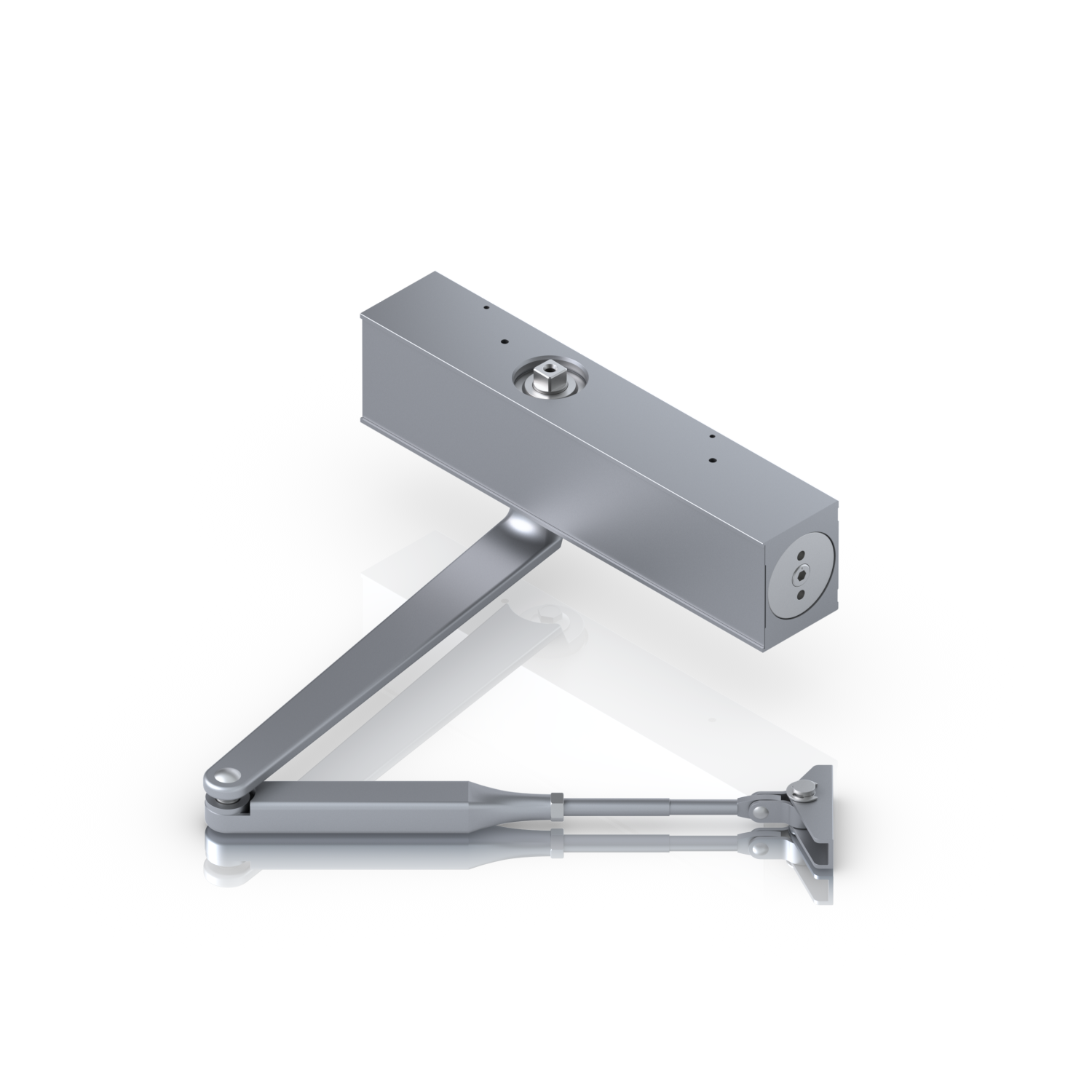

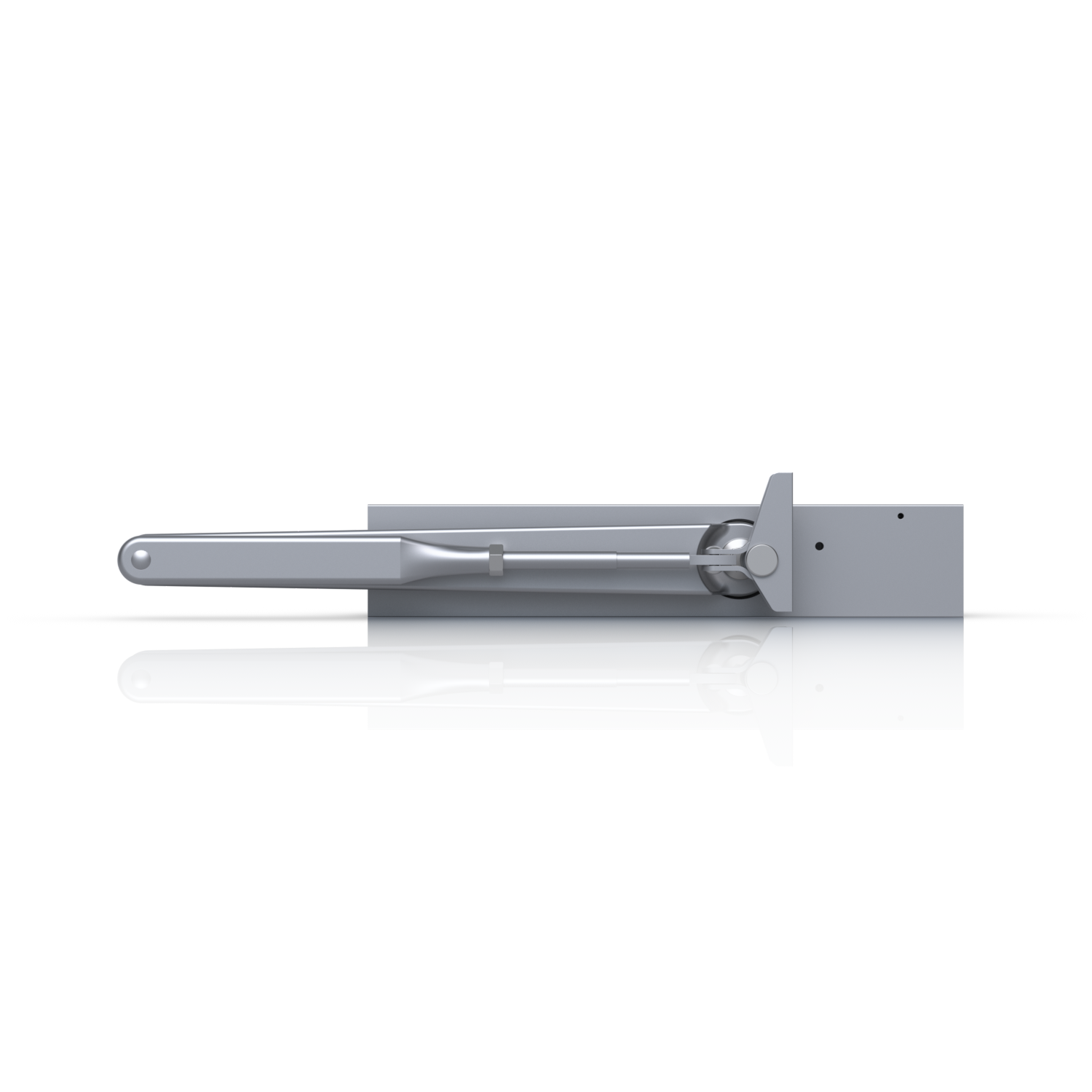

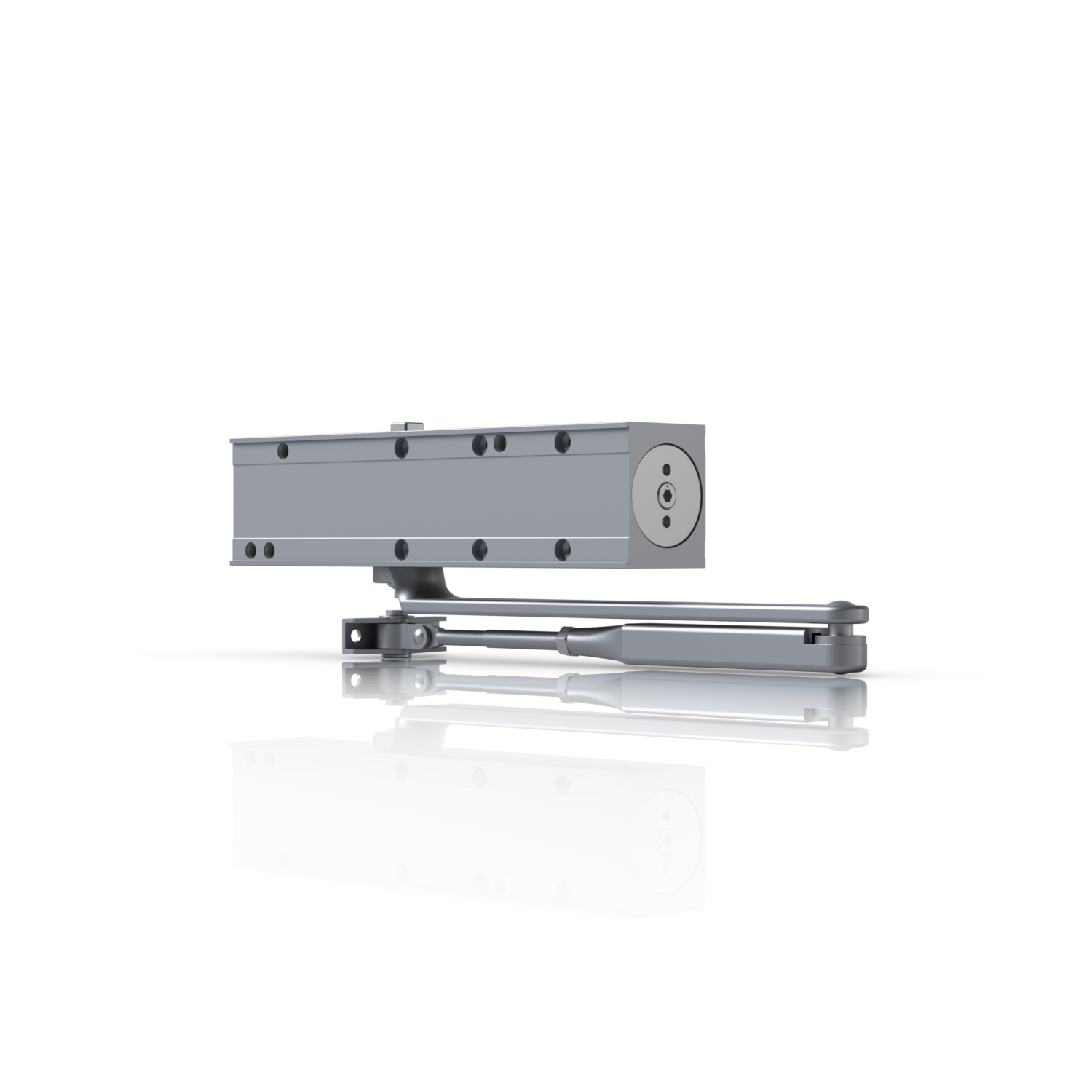

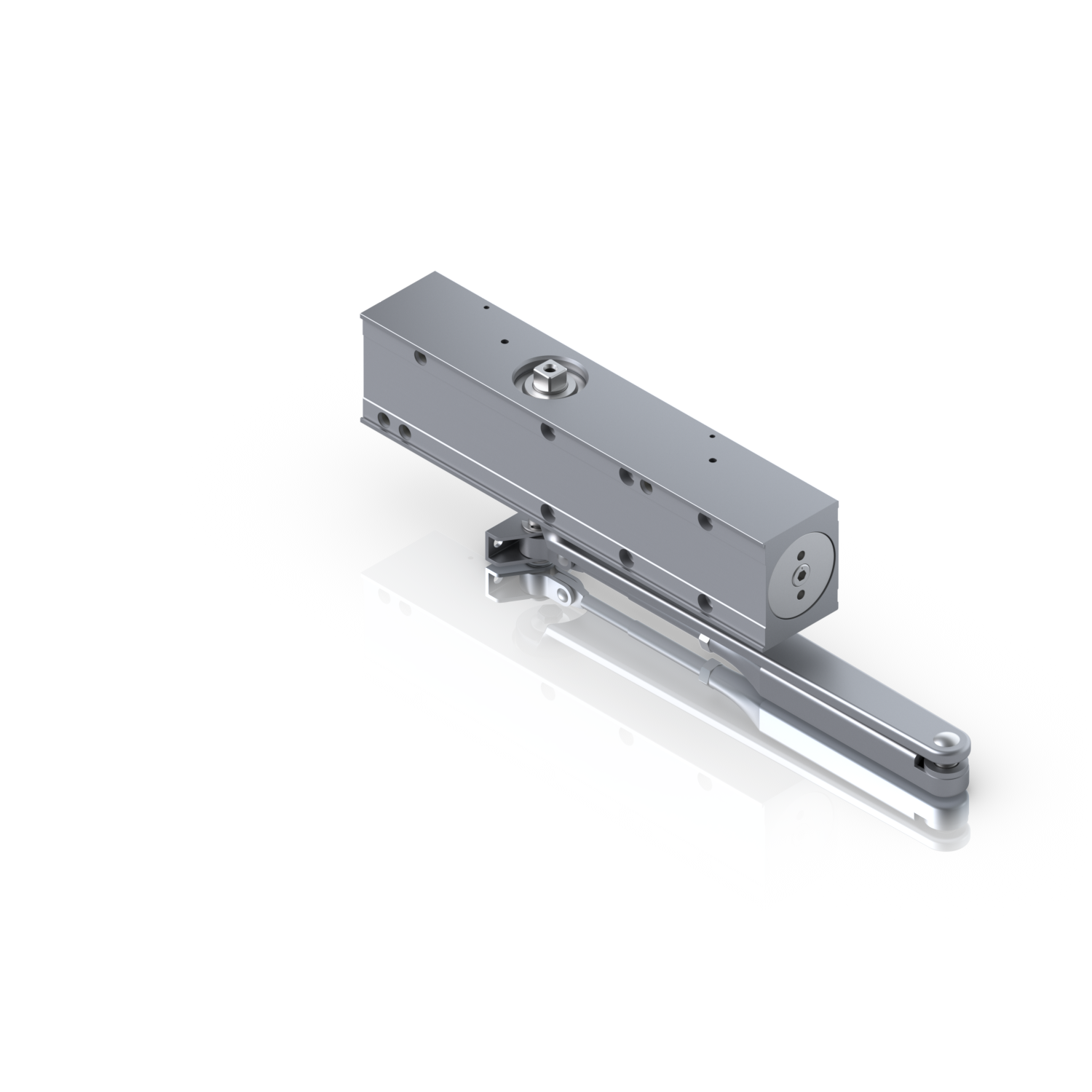

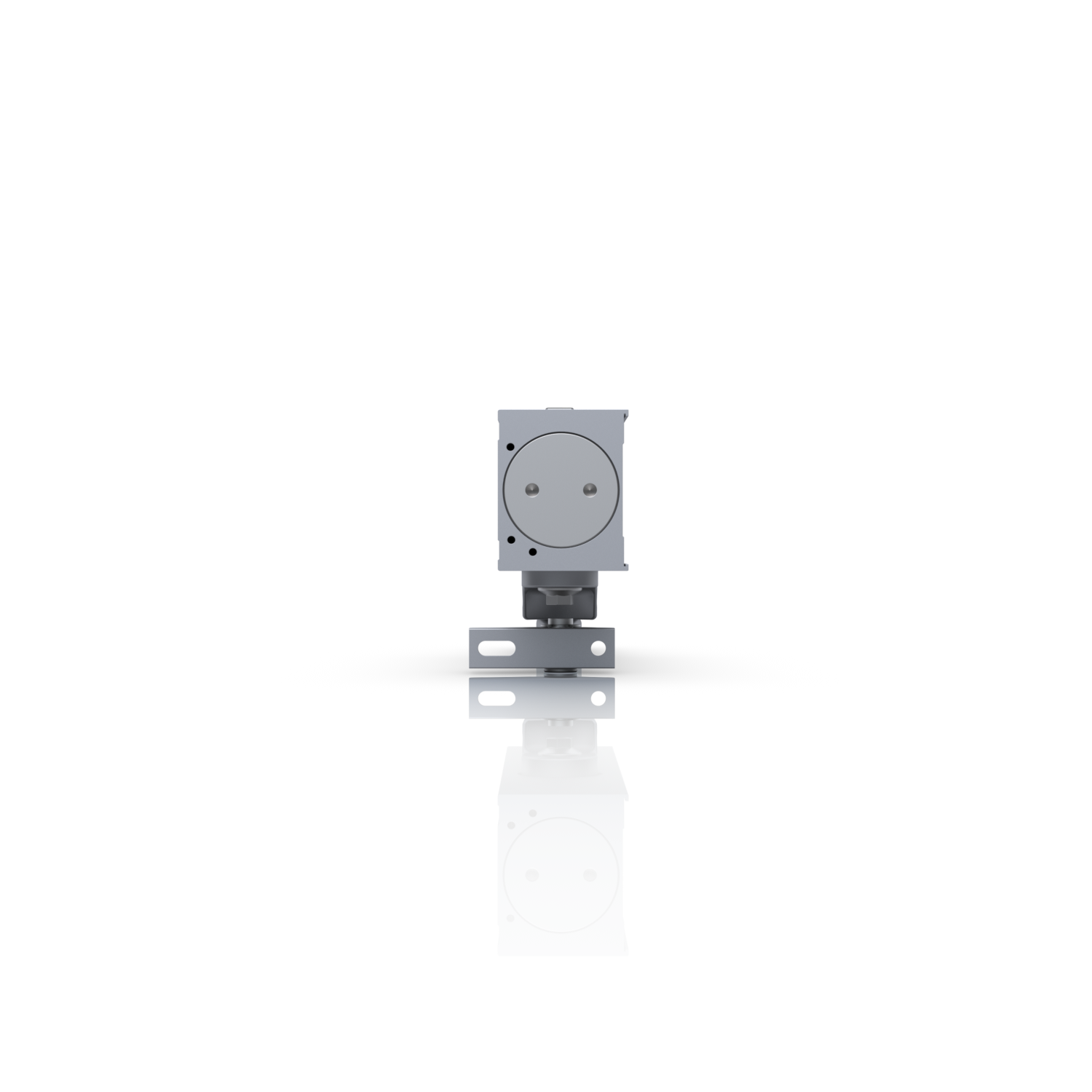

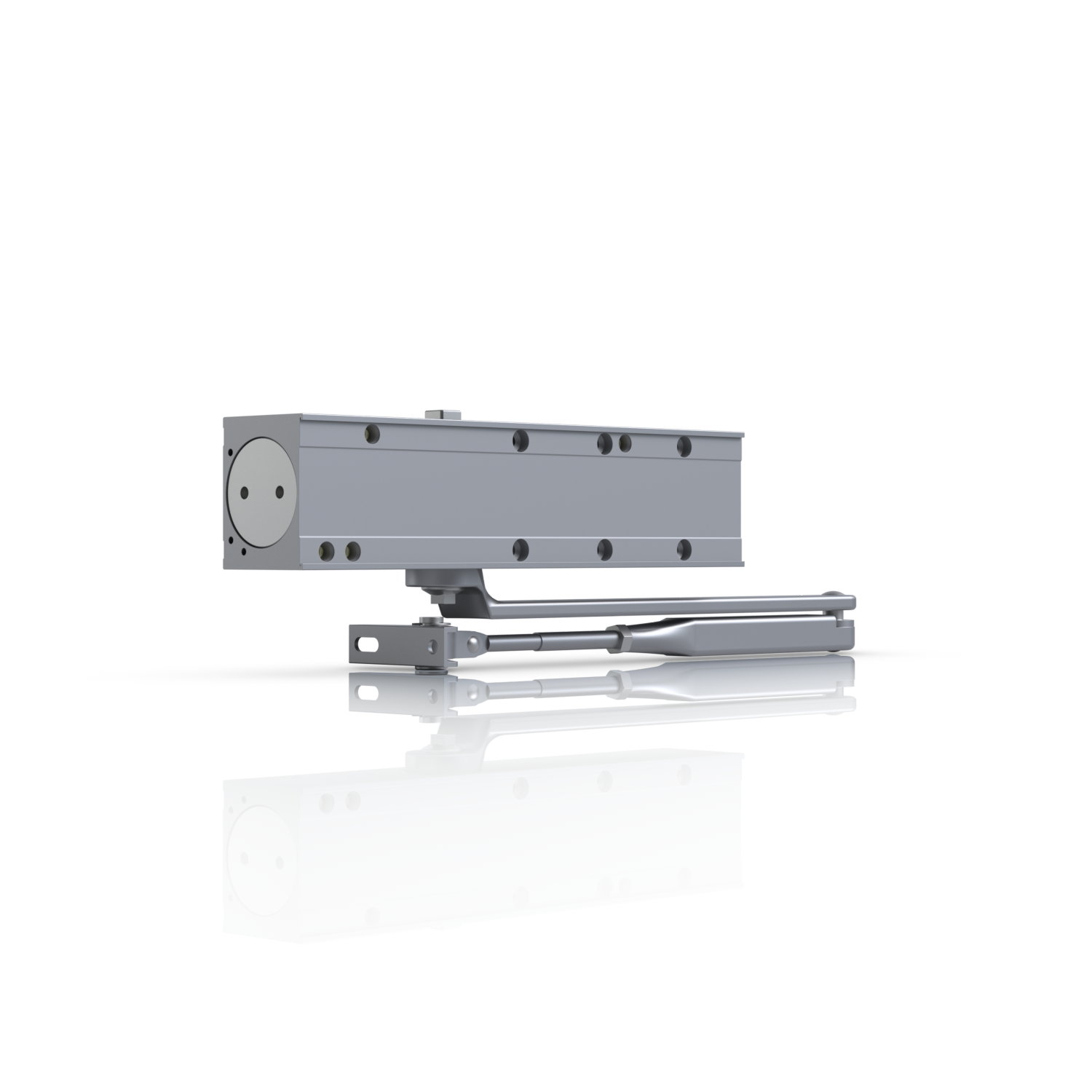

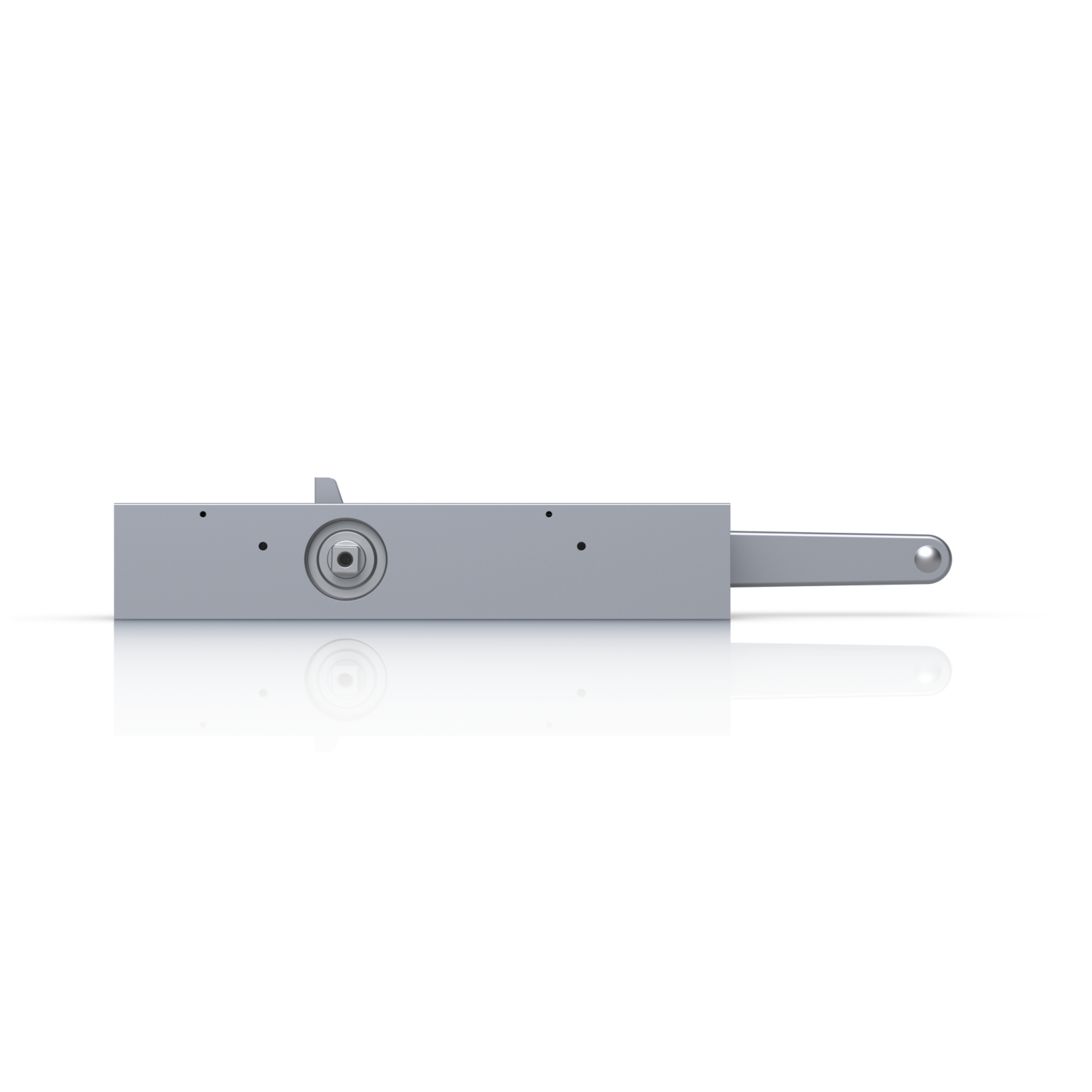

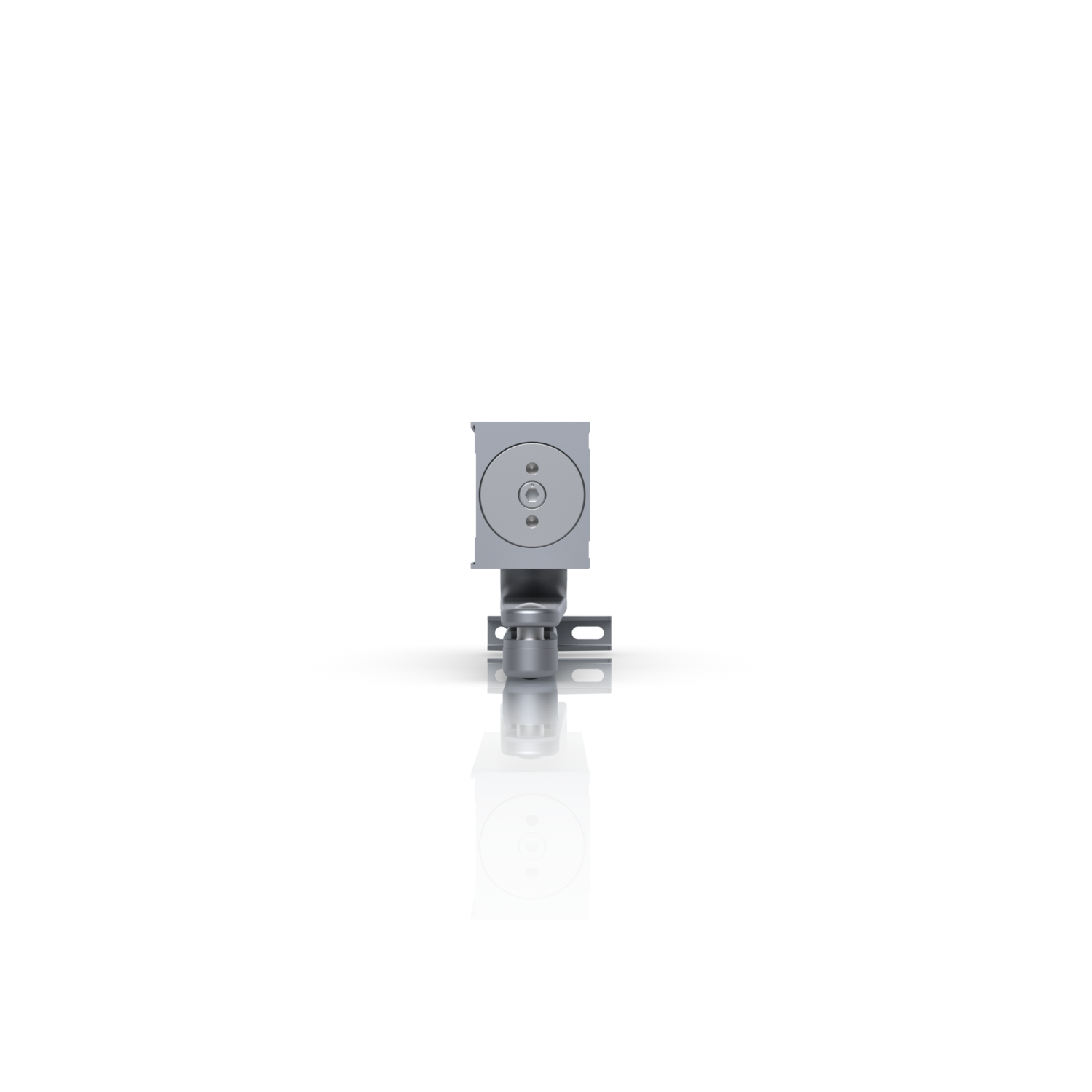

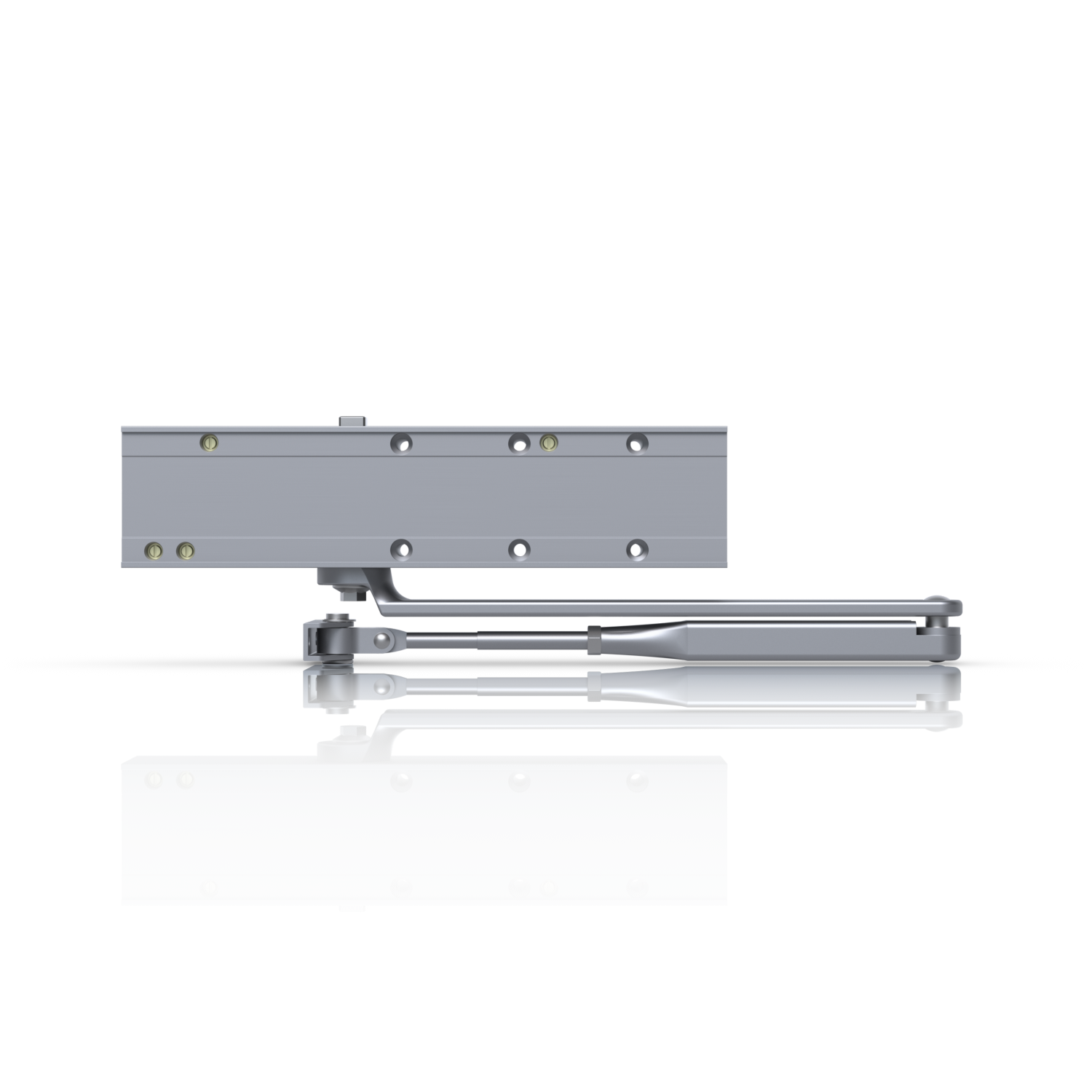

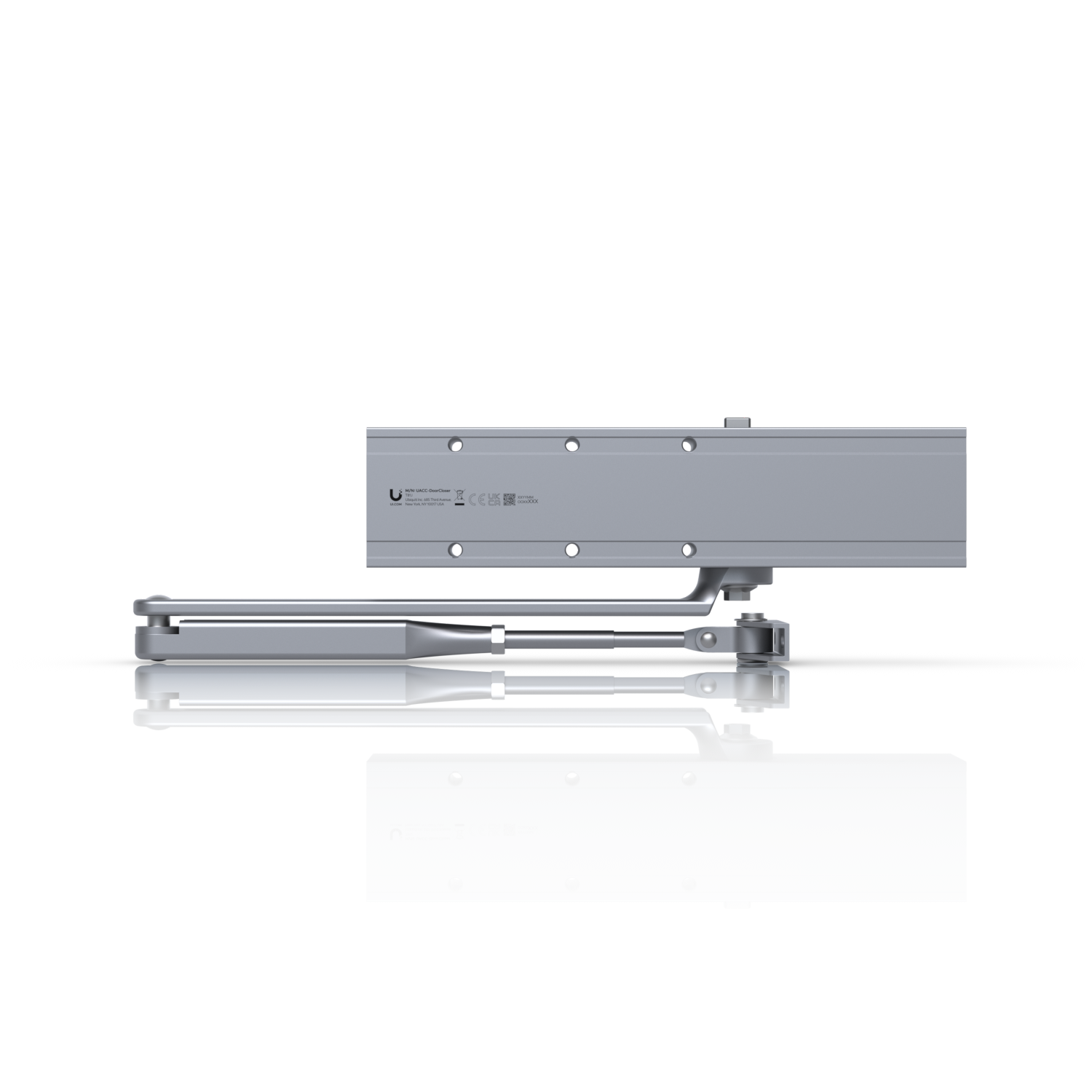

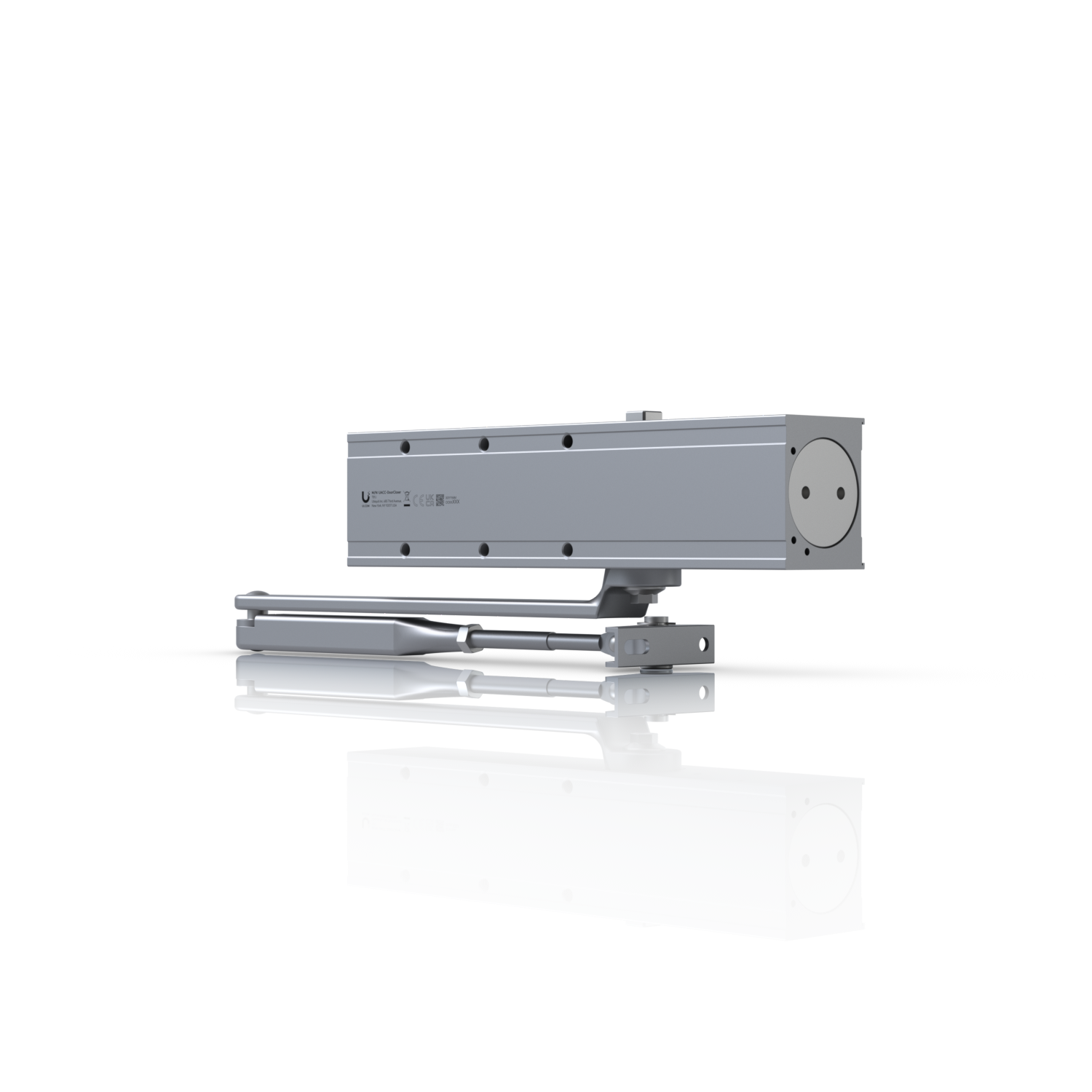

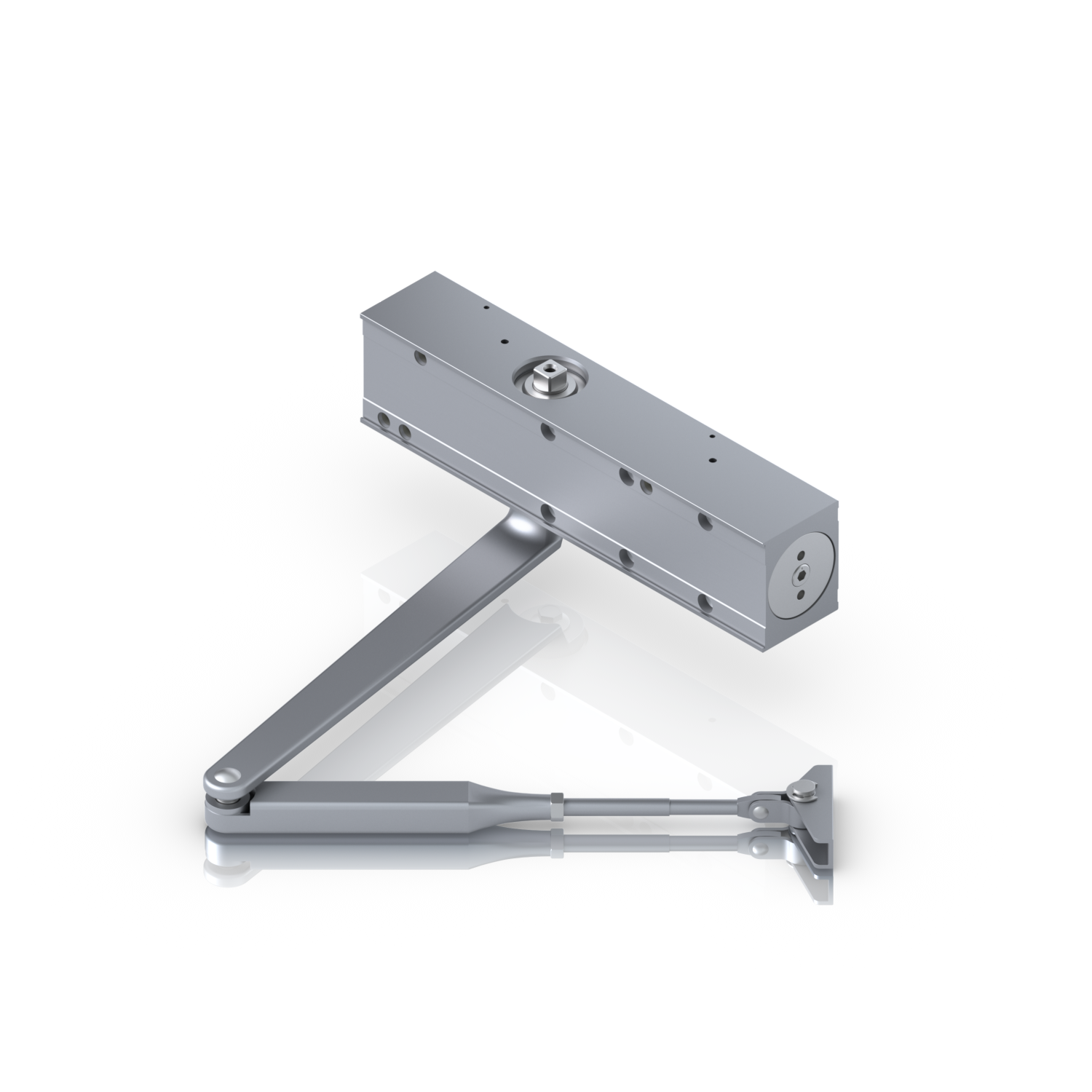

UniFi Door Closer
Vélrænn hurðarpumpa sem tryggir stýrða lokun fyrir öryggi og þægindi.
- Stillanleg aflstærð EN 2~6
- Stillanlegur lokunar- og læsingarhraði
- Stillanlegur opnunarhraði (back-check)
- Yfirborðsfesting
- Uppsetning óháð höndun (non-handed)
Tækni
Tæknilegir eiginleikar
Upplýsingar úr ETIM gögnum framleiðanda. Vantar þig meira? Hafðu samband við tækniráðgjöf okkar.
| Dimensions | 256.5 x 60 x 48 mm (10.1 x 2.4 x 1.9") |
|---|---|
| Weight | 3.3 kg (7.3 lb) |
| Enclosure Material | Device: aluminum alloy, carbon steel, hot-rolled steel Deco cover: cold-rolled steel |
| Max. Door Opening Angle | 180° |
| Door Width / Weight: Standard Door/Transom Mount | Power size 2: 850 mm / 40 kg Power size 3: 950 mm / 60 kg Power size 4: 1100 mm / 80 kg Power size 5: 1250 mm / 100 kg Power size 6: 1400 mm / 120 kg |
| Door Width / Weight: Parallel Bracket Mount | Power size 3: 950 mm / 60 kg Power size 4: 1100 mm / 80 kg Power size 5: 1250 mm / 100 kg |
| Application Range | Standard door mount on the pull side Transom mount on the push side (This option is not covered by the Certificate) Parallel bracket mount on the push side (Size 3-5 only) |
| Power Size | EN2-6 |
| Certifications | CE, EN 1154, EN 1634, AS 1530.4 |
