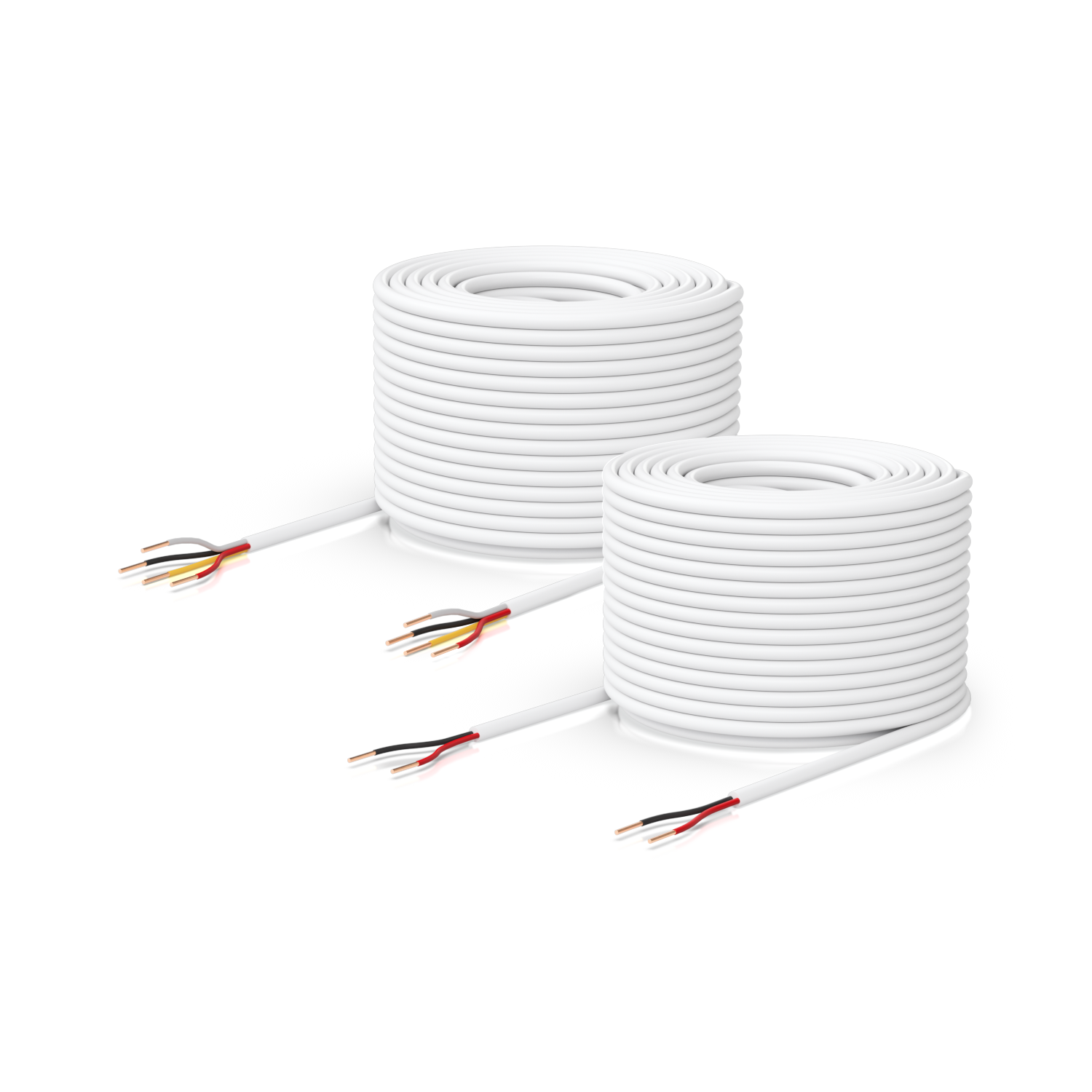

UniFi Door Lock Relay Cable (2-Pair Relay Cable)
- Liðastrengur með 1 pari: tengir rafmagns eða segullás við Access Hub
- Liðastrengur með 2 pörum: tengir rafmagns eða segullás og hurðarnema við Access Hub

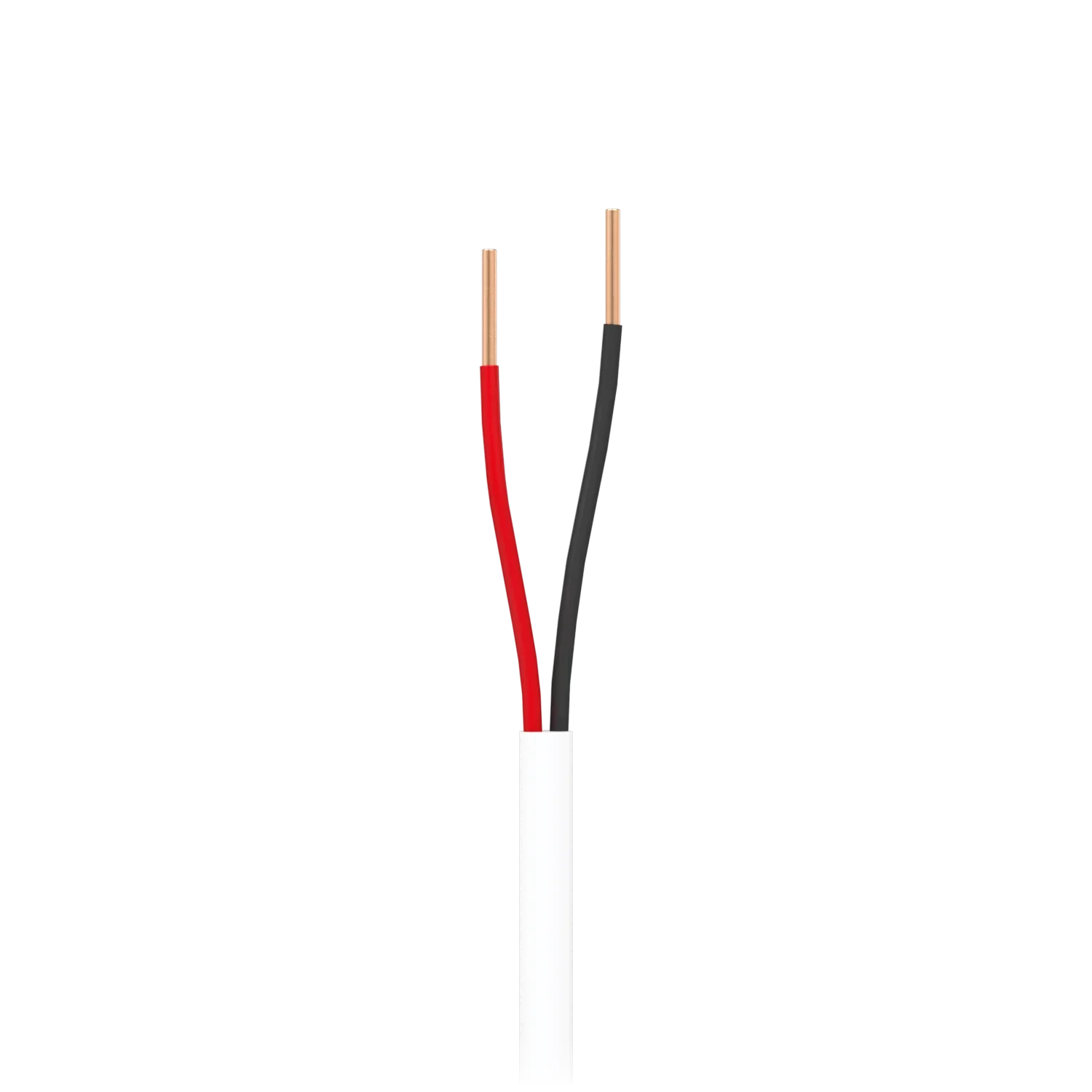

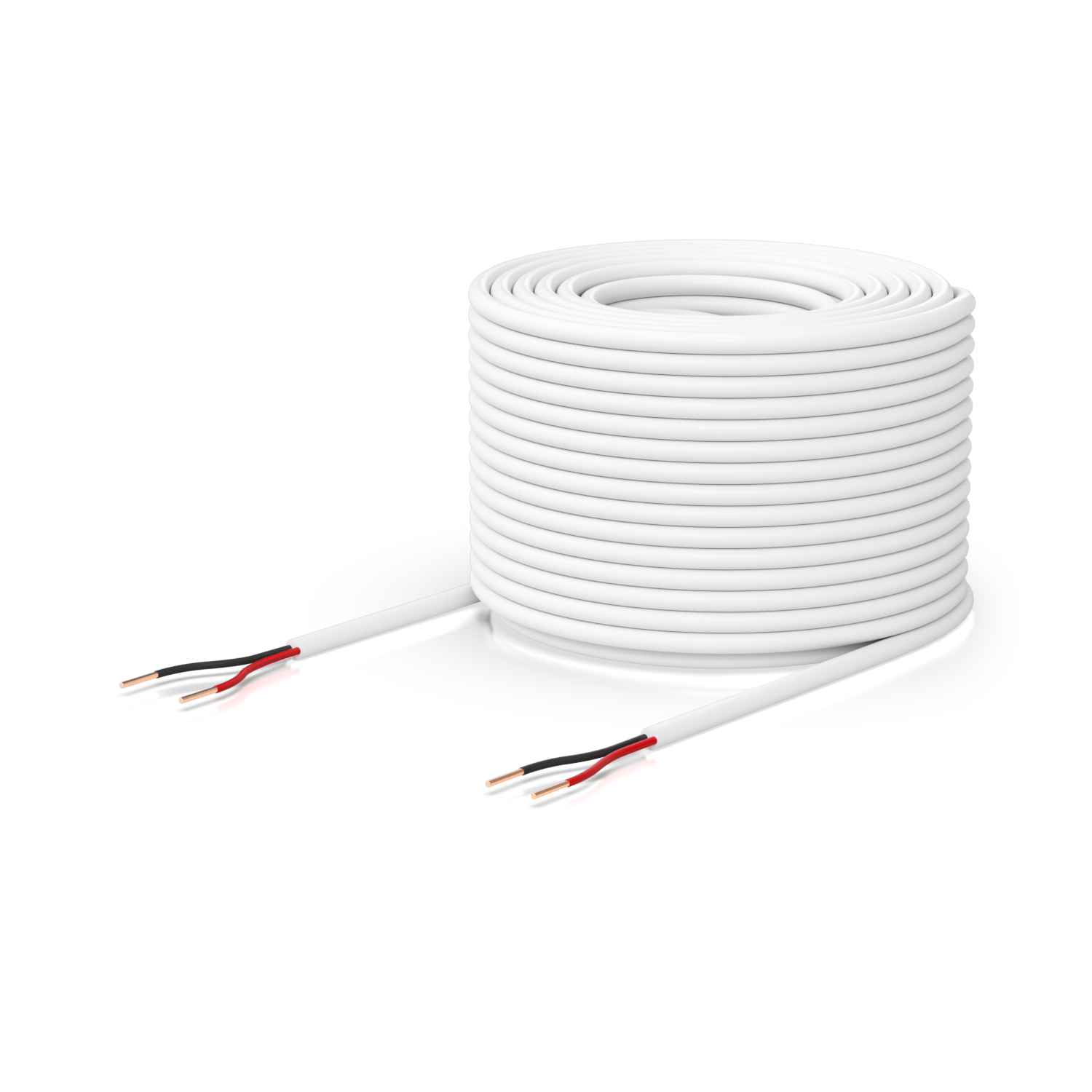

- Liðastrengur með 1 pari:
- — (2) 18 AWG leiðarar fyrir rafmagns eða segullás

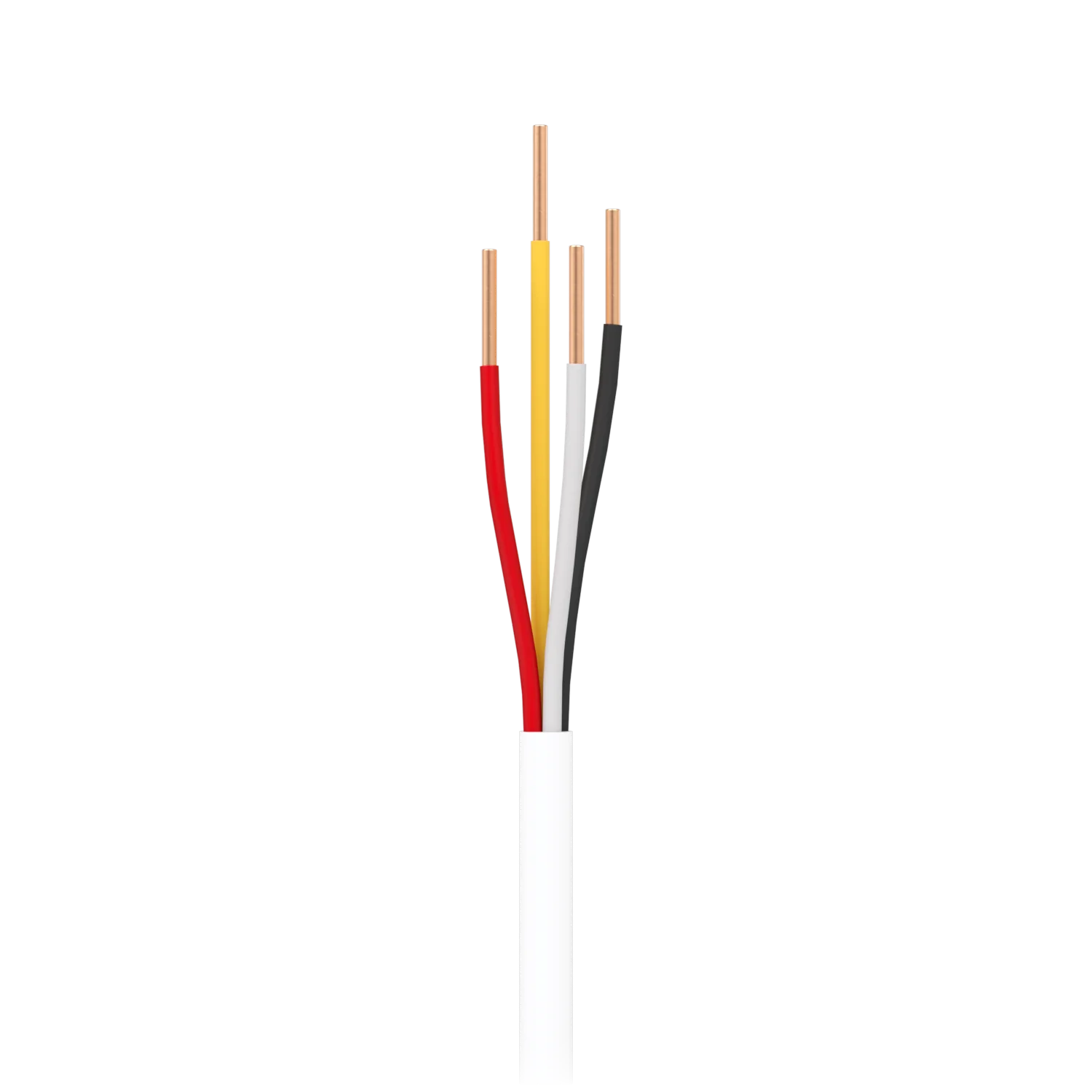

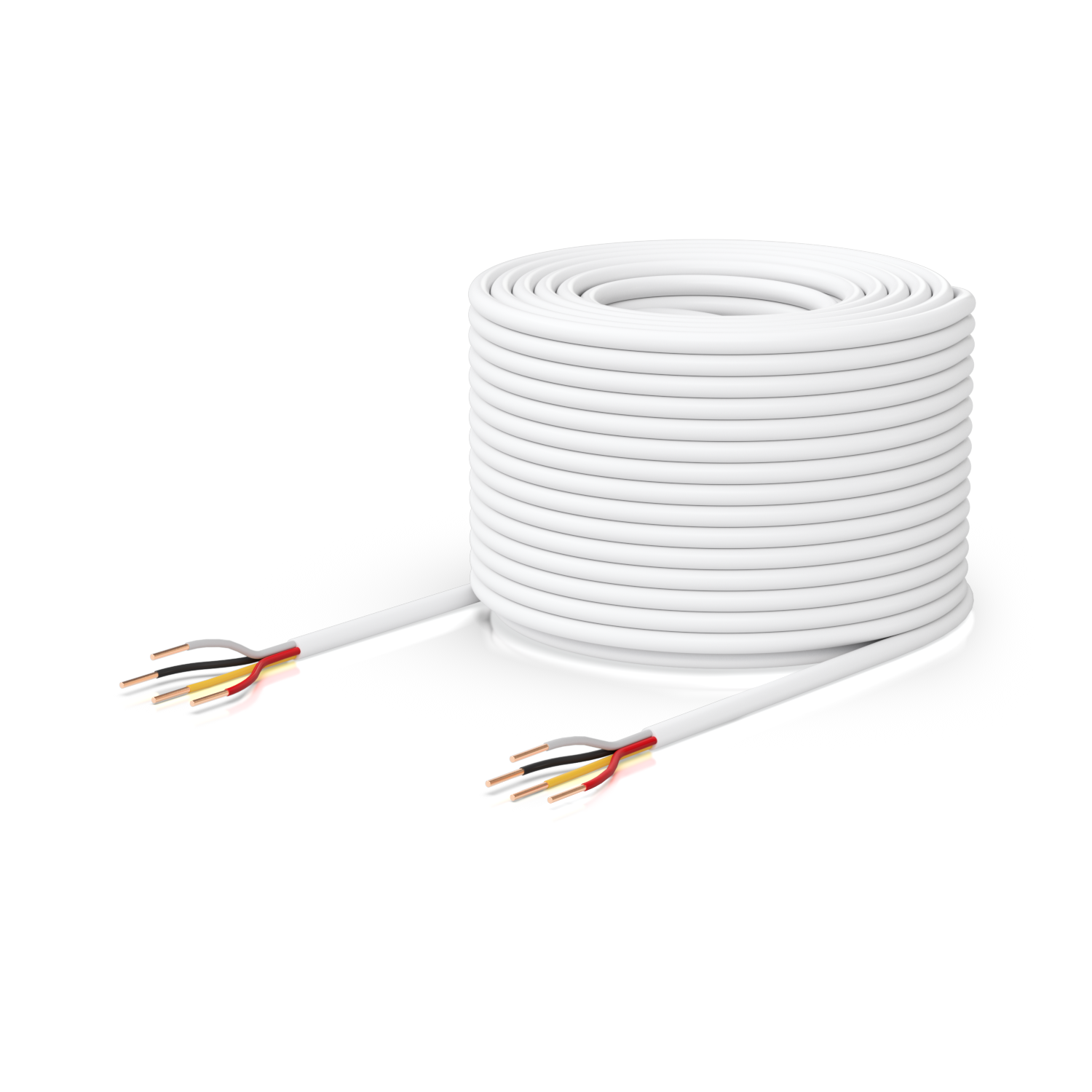

- Liðastrengur með 2 pörum:
- — (2) 18 AWG leiðarar fyrir rafmagns eða segullás
- — (2) 22 AWG leiðarar fyrir hurðarnema
- Lengd kapals 152,4 m
Tækni
Tæknilegir eiginleikar
Upplýsingar úr ETIM gögnum framleiðanda. Vantar þig meira? Hafðu samband við tækniráðgjöf okkar.
| Length | 152.4 m (500 ft) |
|---|---|
| Material | Conductor: Solid bare copper Jacket: Thermoplastic elastomer (TPE) Insulation: Semi-rigid polyvinyl chloride (SR-PVC) |
| Insulation | UACC-Cable-DoorLockRelay-2P: black/red (18AWG), amber/white (22AWG) UACC-Cable-DoorLockRelay-1P: black/red (18AWG) |
| Current Rating | 18AWG: 2A for 500 ft length 22AWG: 1A for 500 ft length |
| Flame Rating | VW-1 |
| Conductor Wire Gauge | UACC-Cable-DoorLockRelay-2P: 18/22 AWG UACC-Cable-DoorLockRelay-1P: 18 AWG |
| Weight | UACC-Cable-DoorLockRelay-2P: 5.6 kg (12.3 lb) UACC-Cable-DoorLockRelay-1P: 4.58 kg (10.1 lb) |
| Cable: Jacket Outer Diameter | UACC-Cable-DoorLockRelay-2P: 4.5 mm (0.18") UACC-Cable-DoorLockRelay-1P: 4.2 mm (0.17") |
| Cable: Jacket Color | White |
| Cable: Bend Radius | UACC-Cable-DoorLockRelay-2P: 56 mm (2.2") UACC-Cable-DoorLockRelay-1P: 33 mm (1.3") (Min. bend radius) |
| Pulling Tension | UACC-Cable-DoorLockRelay-2P: 24.2 kgf UACC-Cable-DoorLockRelay-1P: 16.4 kgf (Max. pull tension) |
| Conductor DCR | UACC-Cable-DoorLockRelay-2P: 23.2 ohm/km (18AWG), 59.4 ohm/km (22AWG) UACC-Cable-DoorLockRelay-1P: 23.2 ohm/km (18AWG) |
| Supported Voltage Range | 36V DC |
| Number of Conductors | UACC-Cable-DoorLockRelay-2P: 4 UACC-Cable-DoorLockRelay-1P: 2 |
| Ambient Storage Temperature | -45 to 65° C (-49 to 149° F) |
| Ambient Operating Temperature | -45 to 65° C (-49 to 149° F) |
