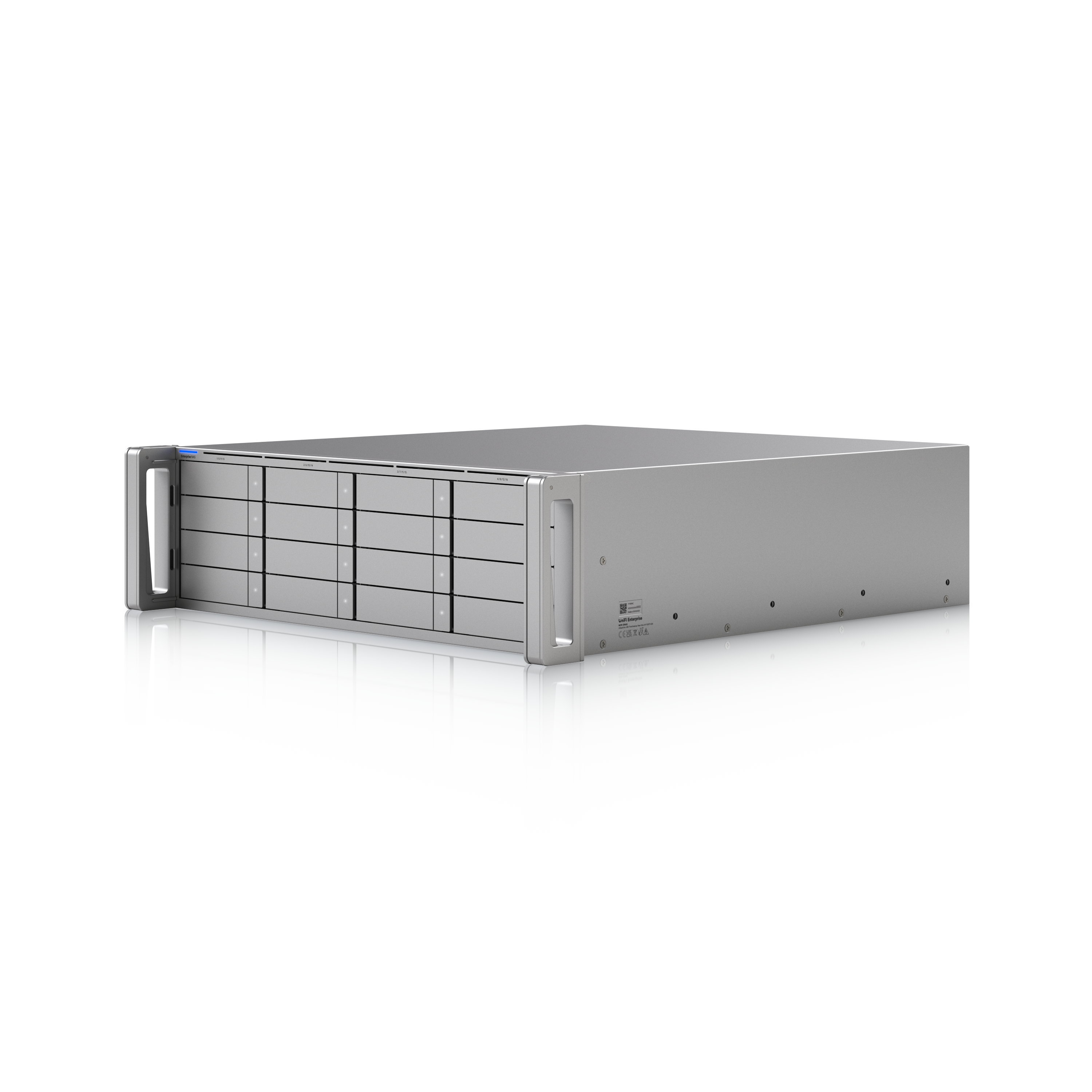

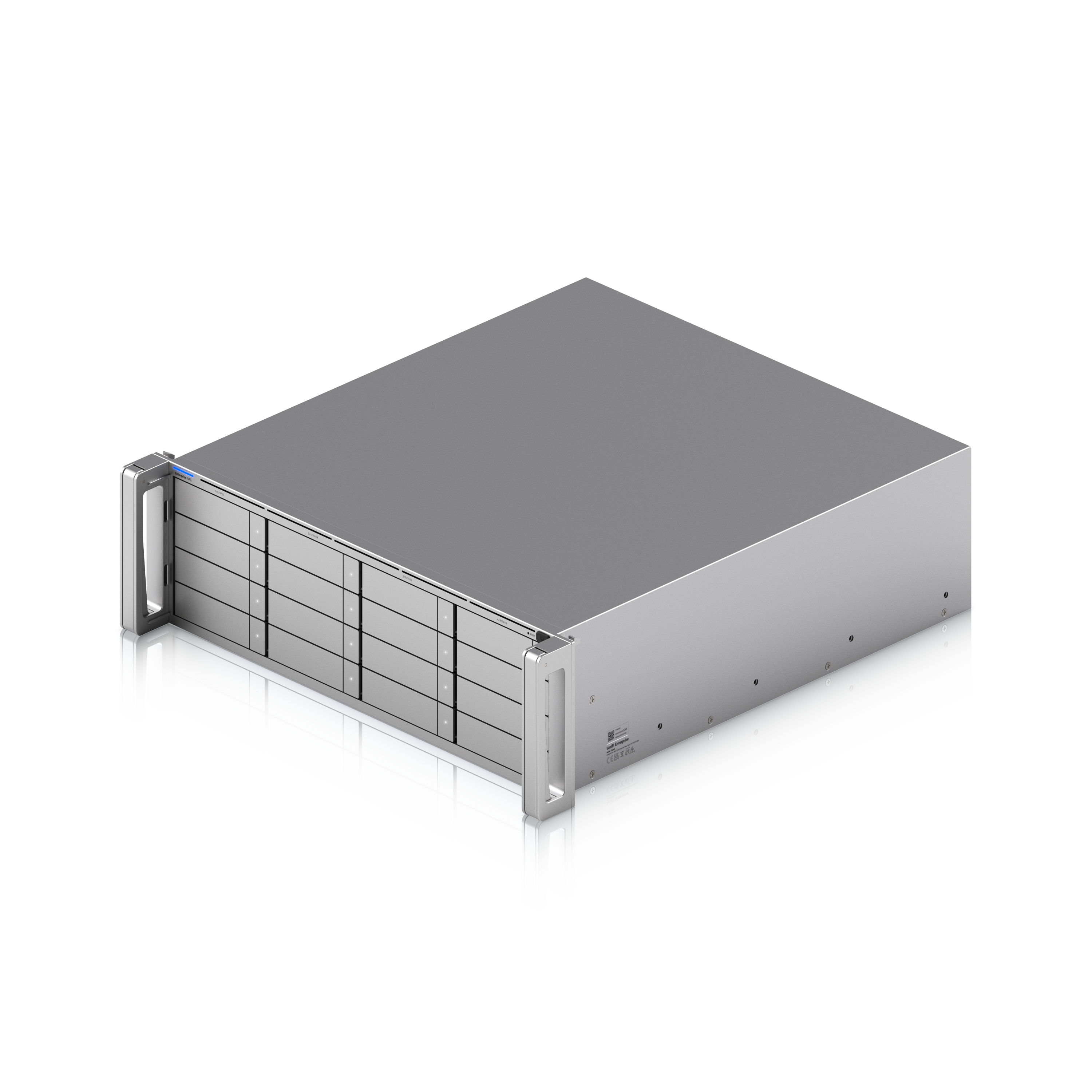

UniFi Enterprise NAS
3U rekkistæð NAS-geymslueining með sextán 3.5"/2.5" SATA-hólfum, tvöföldum 25 Gbps SFP28 og 10 GbE RJ45 tengjum, stuðningi fyrir M.2 NVMe og tvöföldu CRPS aflgjafakerfi fyrir stigstærðanlega, afkastamikla geymslulausn.
Þrívídd og myndbönd
Tækni
Tæknilegir eiginleikar
Upplýsingar úr ETIM gögnum framleiðanda. Vantar þig meira? Hafðu samband við tækniráðgjöf okkar.
| Dimensions | 481.4 x 480 x 132 mm (19 x 18.9 x 5.2") |
|---|---|
| Storage Capacity | (16) 2.5''/ 3.5" drive bays (2) M.2 NVMe bays |
| Networking Interface | (2) 25G SFP28 (25G/10G/1G) (1) 10 GbE RJ45 (10G/5G/2.5G/1G/100M) |
| Expansion Port | (2) SFF-8644 (24G) |
| Power Redundancy | Yes (Dual hot-swappable PSUs) |
| Form Factor | Rack mount (3U) |
| Hard Drive Capacity | (16) 2.5/3.5" HDD / SSD support (2) M.2 NVMe SSD support (2) Expansion ports support (Expansion with UACC-ESE-16) |
| Max. Power Budget for Drives | 450W |
| Max. Power Consumption | 550W |
| Power Method | (2) AC input, Hot-swappable power modules |
| Power Supply | (2) Hot-swappable AC/DC 550W power modules |
| Processor | Eight-Core ARM N2 at 2.4 GHz |
| Memory | 64 GB |
| Management | Ethernet |
| RF Interface | Bluetooth 4.1 |
| Weight | 16.1 kg (35.5 lb) |
| Enclosure Material | SGCC steel |
| Mount Material | SGCC steel |

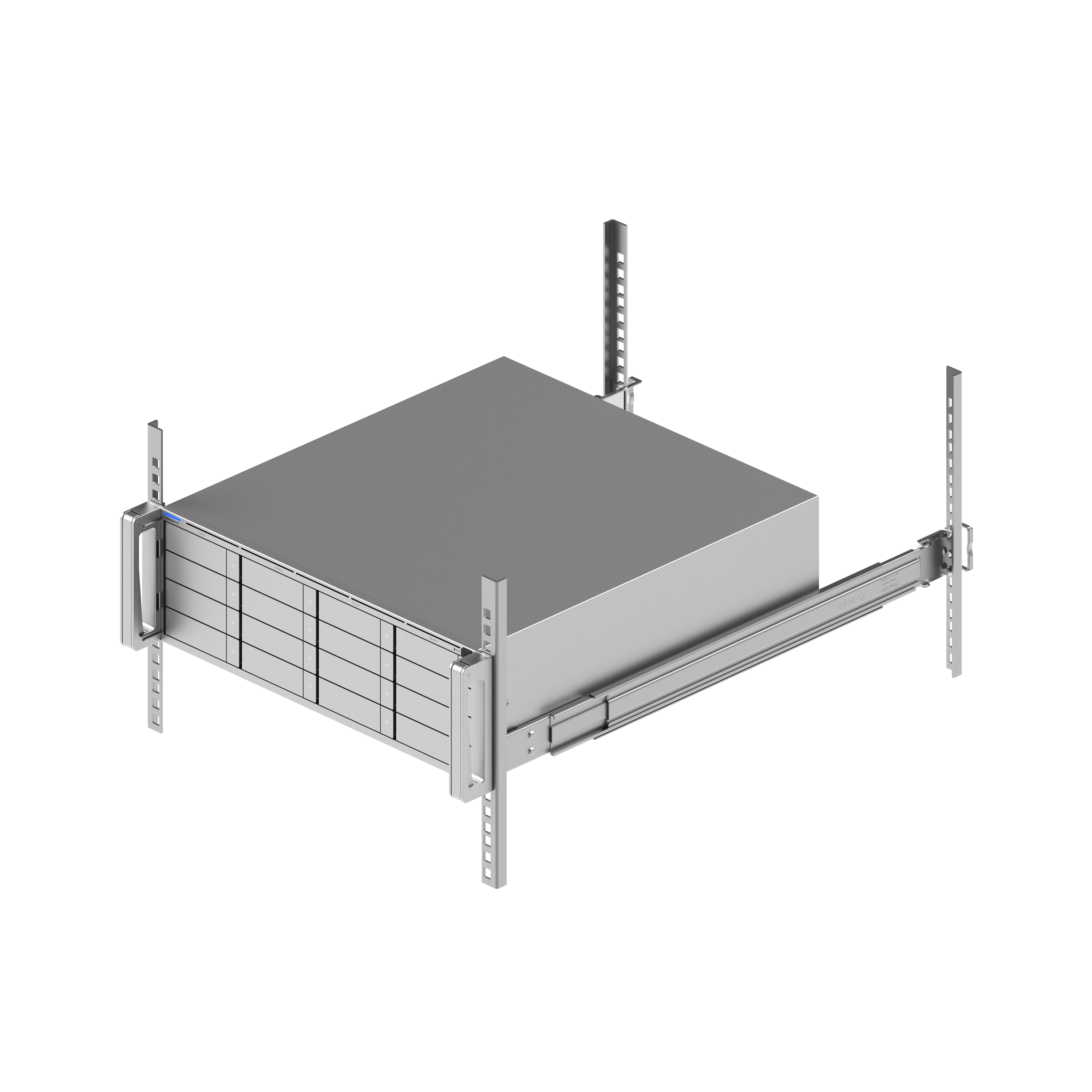

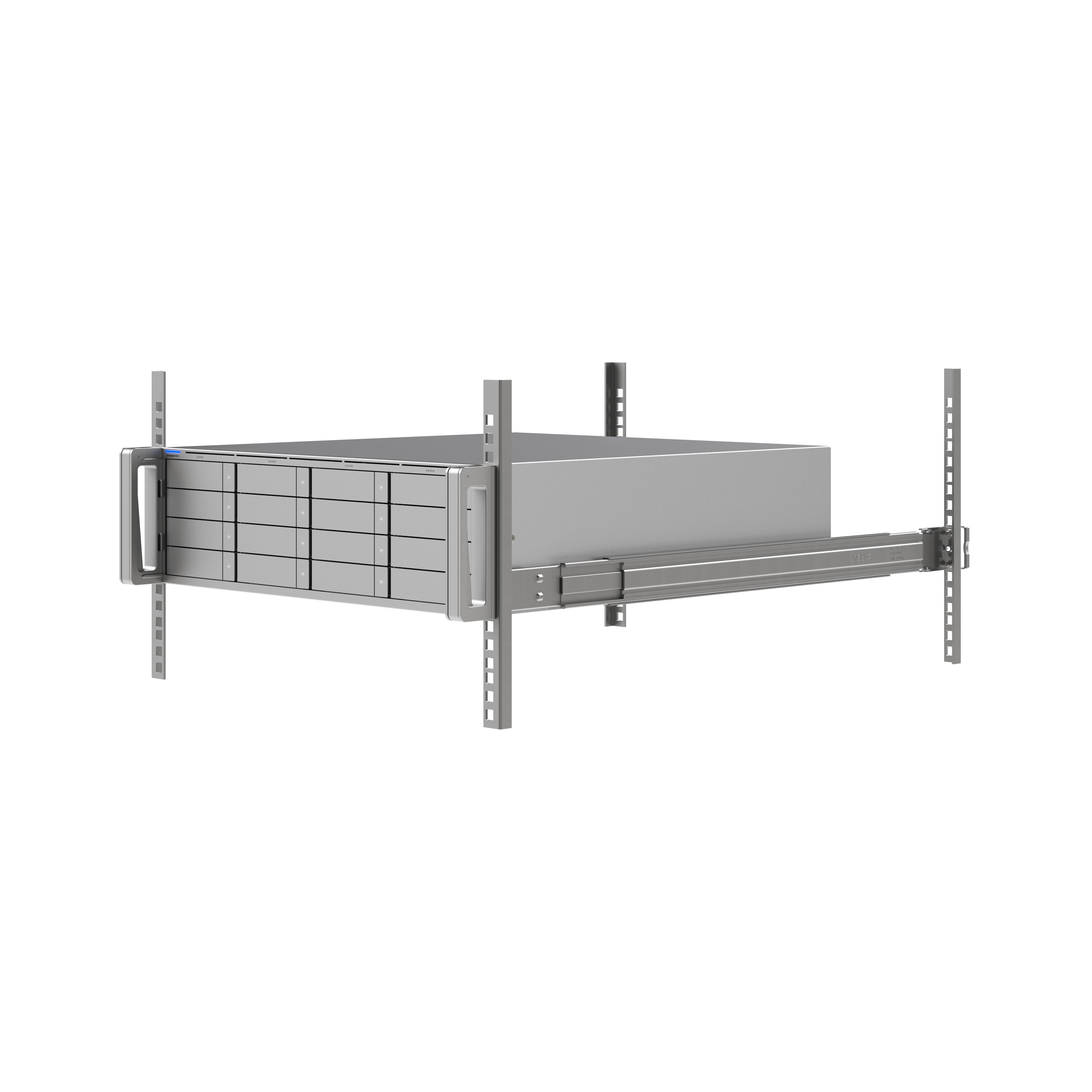

| Supported Rack Depth | The rails support 600 mm (23.6") four-post racks with square holes (9.5 x 9.5 mm) Posts depths ranging from 600–1066 mm (23.6–42") |
| Faceplate | 3U Bezel, 3U Bezel Lite (Optional) |
| LEDs: Ethernet | Yes |
| LEDs: SFP28 | Yes |
| LEDs: HDD | Yes |
| LEDs: System | Yes |
| LEDs: CRPS | Yes |
| LEDs: Expansion Port | Yes |
| Ambient Operating Temperature | -5 to 40° C (23 to 104° F) |
| Ambient Operating Humidity | 5 to 95% noncondensing |
| NDAA Compliant | Yes |
| Certifications | FCC, CE, IC |
| Supported File Protocols: NFS | Yes |
| Supported File Protocols: SMB | Yes |
| Supported Block Protocols: iSCSI | Yes |
| Supported features on unifi.ui.com: RAID Type | Mirror RAID-Z1 RAID-Z2 RAID-Z3 |
| Supported features on unifi.ui.com: RAID Group | Multiple |
| Supported features on unifi.ui.com: Hot Spare Support | Yes |
| Supported features on unifi.ui.com: Personal Drive & Shared Drive | Yes |
| Supported features on unifi.ui.com: SSD Cache | Yes |
| Supported features on unifi.ui.com: Max. NVMe SSD Capacity Supported | 8 TiB |
| Supported features on unifi.ui.com: File Encryption | Yes |
| Supported features on unifi.ui.com: Backup to Remote UNAS | Yes |
| Supported features on unifi.ui.com: Backup to CIFS/SMB Server | Yes |
| Supported features on unifi.ui.com: Backup to Cloud Services (Google Drive, OneDrive, Dropbox, Amazon S3, Backblaze B2, Wasabi) | Yes |
| Supported features on unifi.ui.com: Snapshots | Yes |
| Supported features on unifi.ui.com: Share Links | Yes |
| Supported features on unifi.ui.com: Time Machine Backup | Yes |
| Supported features on unifi.ui.com: Client App Support | Yes |
| Supported features on unifi.ui.com: User Groups | Yes |
