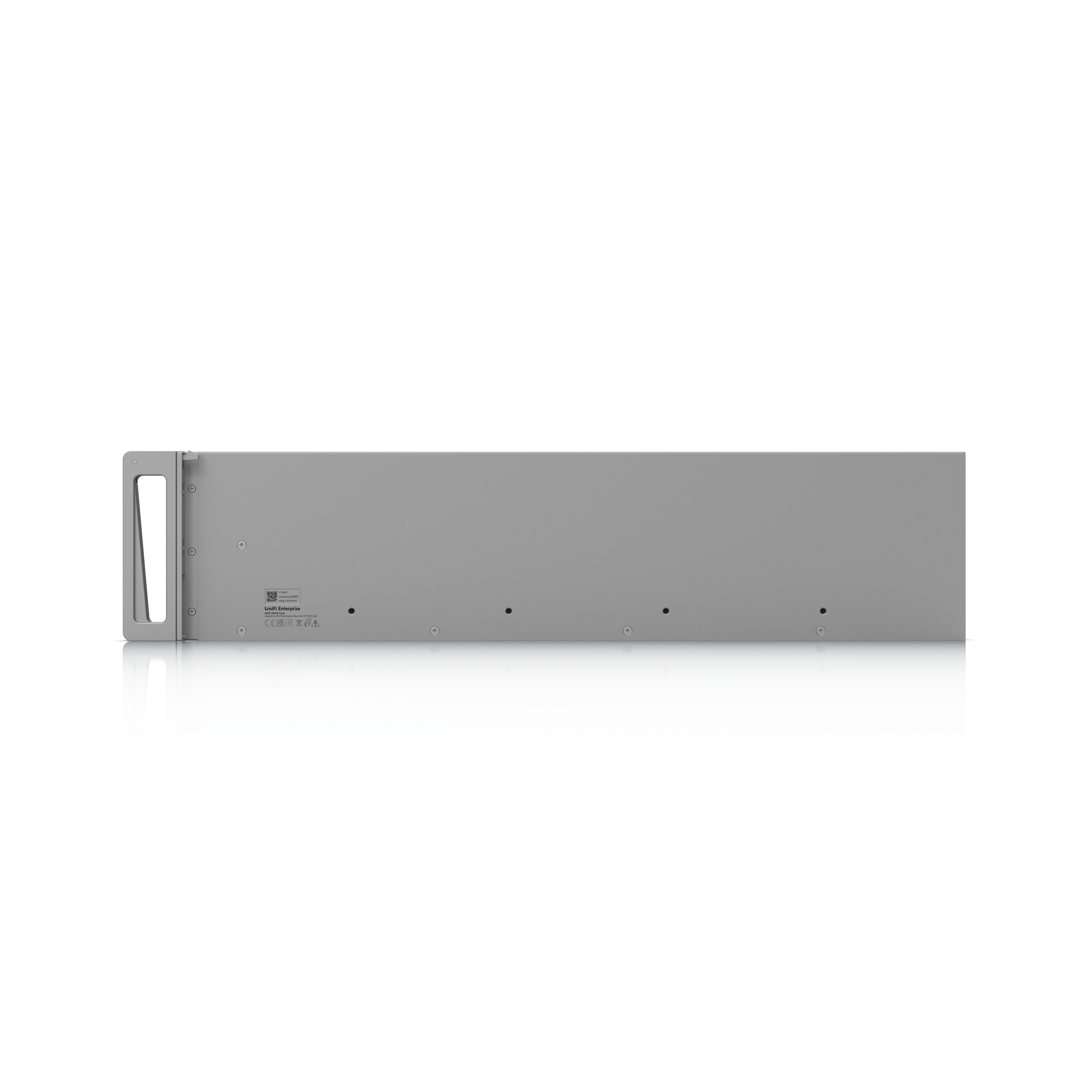

UniFi Enterprise NVR Core
Þrívídd og myndbönd
Tækni
Tæknilegir eiginleikar
Upplýsingar úr ETIM gögnum framleiðanda. Vantar þig meira? Hafðu samband við tækniráðgjöf okkar.
| Dimensions | 481.4 x 550 x 132 mm (19 x 21.7 x 5.2") |
|---|---|
| Managed Cameras | (500) HD (400) 2K (300) 4K |
| Managed Access Hubs | 300+ |

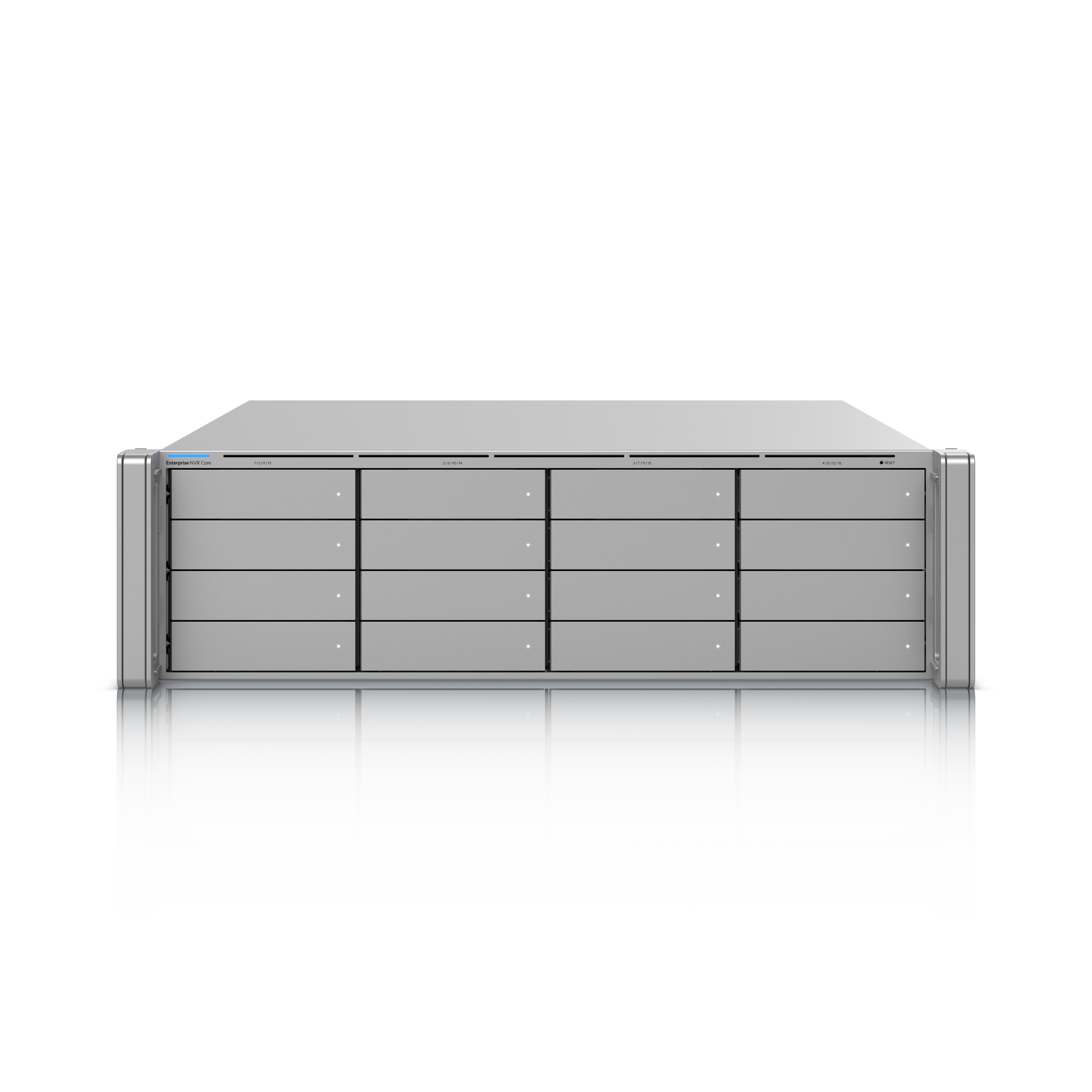

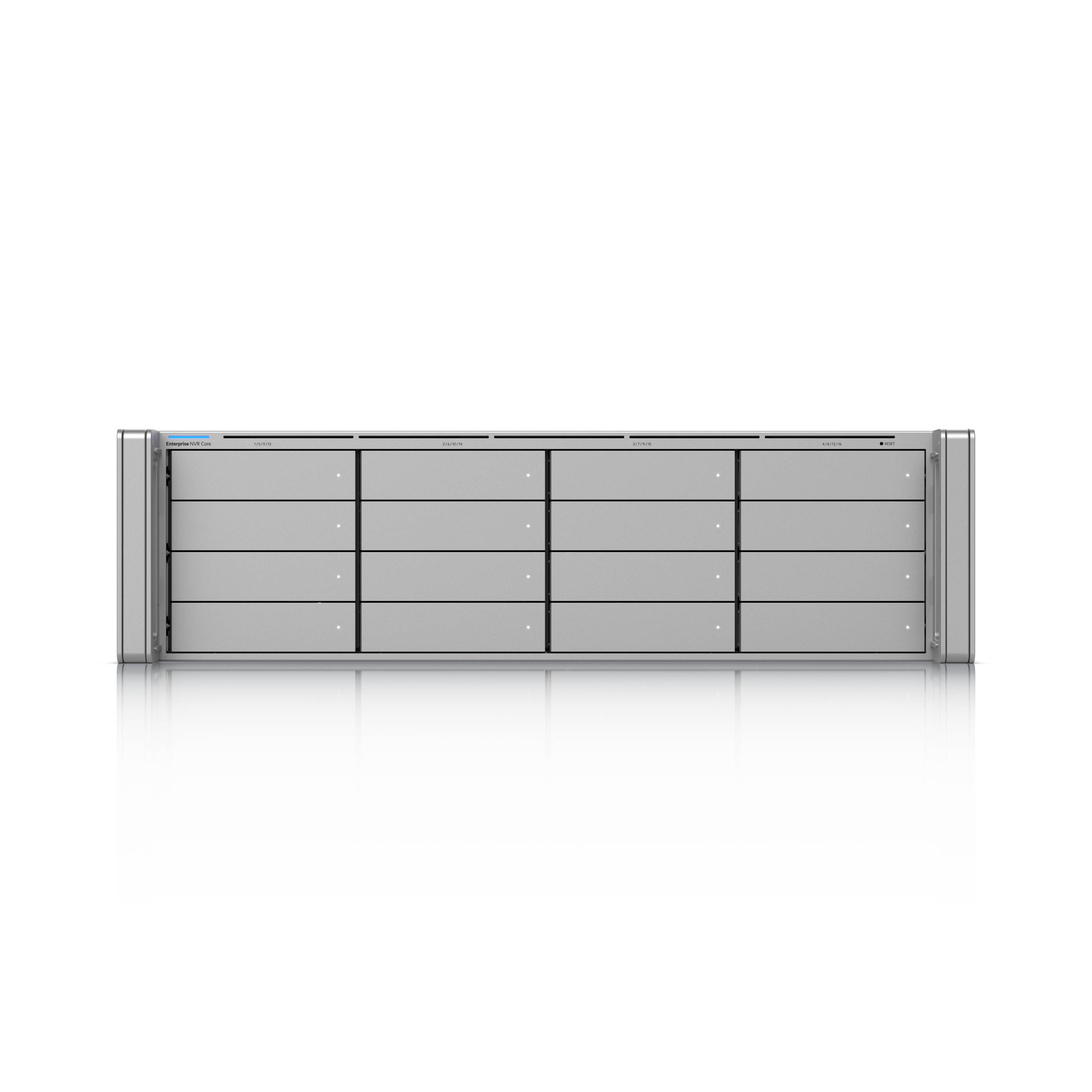

| Storage Capacity | (16) 3.5" drive bays |
| Data Protection | Yes |
| Vantage Point | Yes |

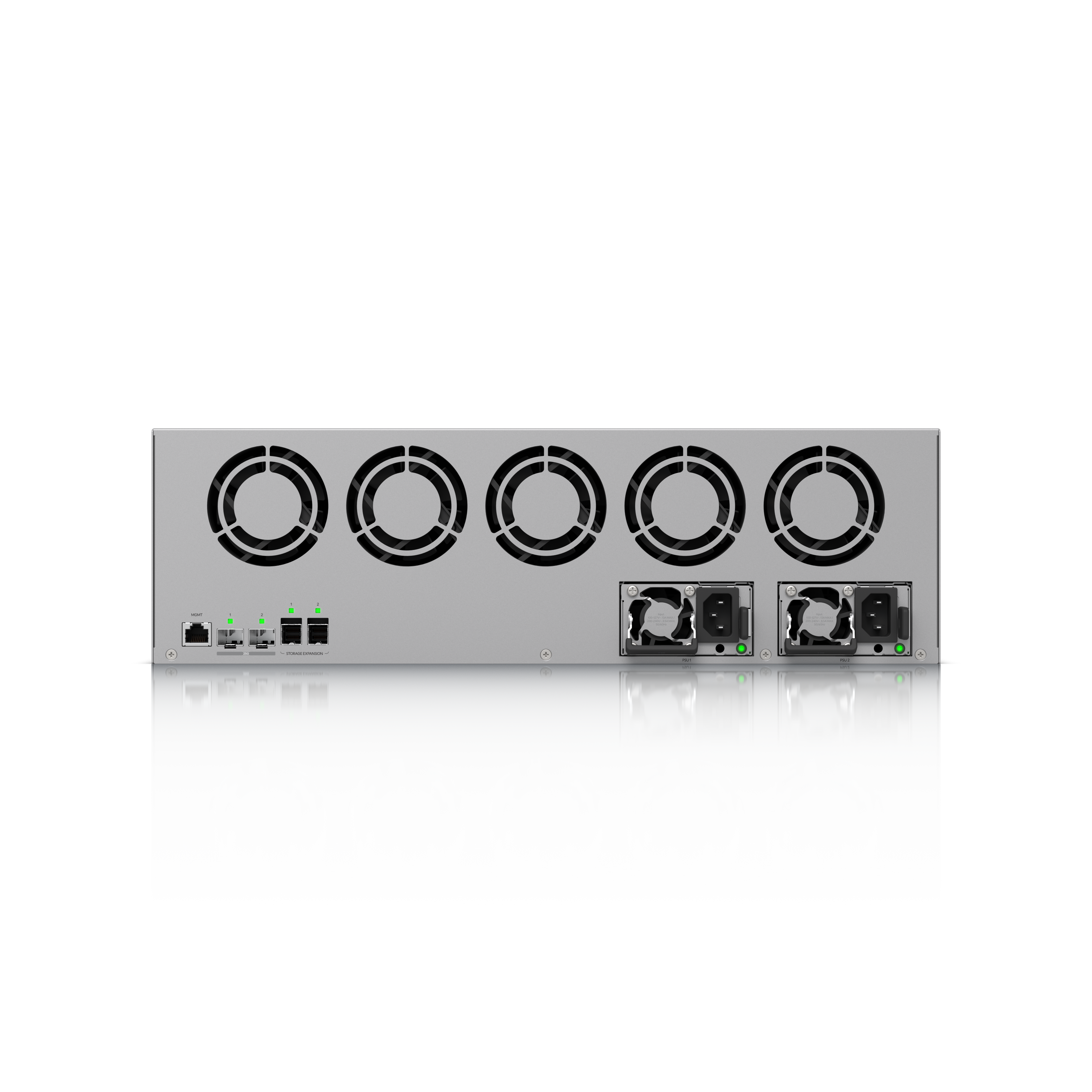

| Networking Interface | (2) 25G SFP28 ports (25G/10G/1G) (1) GbE MGMT RJ45 port (1G/100M) (10G/25G mixed-speed operation across ports not supported (1G/10G and 1G/25G mixing supported)) |
| Expansion Port | (2) SFF-8644 ports (24G) |
| Power Redundancy | Yes (Dual hot-swappable PSUs) |
| Form Factor | Rack Mount (3U) |
| Door Access Support | Yes |
| Management Application | UniFi Protect UniFi Access UniFi Connect |
| Hard Drive Capacity | (16) 2.5/3.5" HDD / SSD support (2) Expansion ports, support up to 48 total HDD/SSD (Expansion requires UACC-ESE-16 (Coming soon)) |
| Max. Power Budget for Drives | 313W |
| Max. Power Consumption | 237W (Excluding HDD power consumption) |
| Power Method | (2) AC input, 100–240V, 7A Max., 50/60Hz (Redundant, hot-swappable) |
| Power Supply | Hot-swappable 550W CRPS |
| Processor | 128-core Arm® v8.2 at 2.6 GHz |
| Memory | 64 GB |
| Management | Ethernet Bluetooth |
| Weight | Without rails: 20.5 kg (45.2 lb) With rails: 23.4 kg (51.6 lb) |
| Enclosure Material | SGCC steel |
| Mount Material | Aluminum |

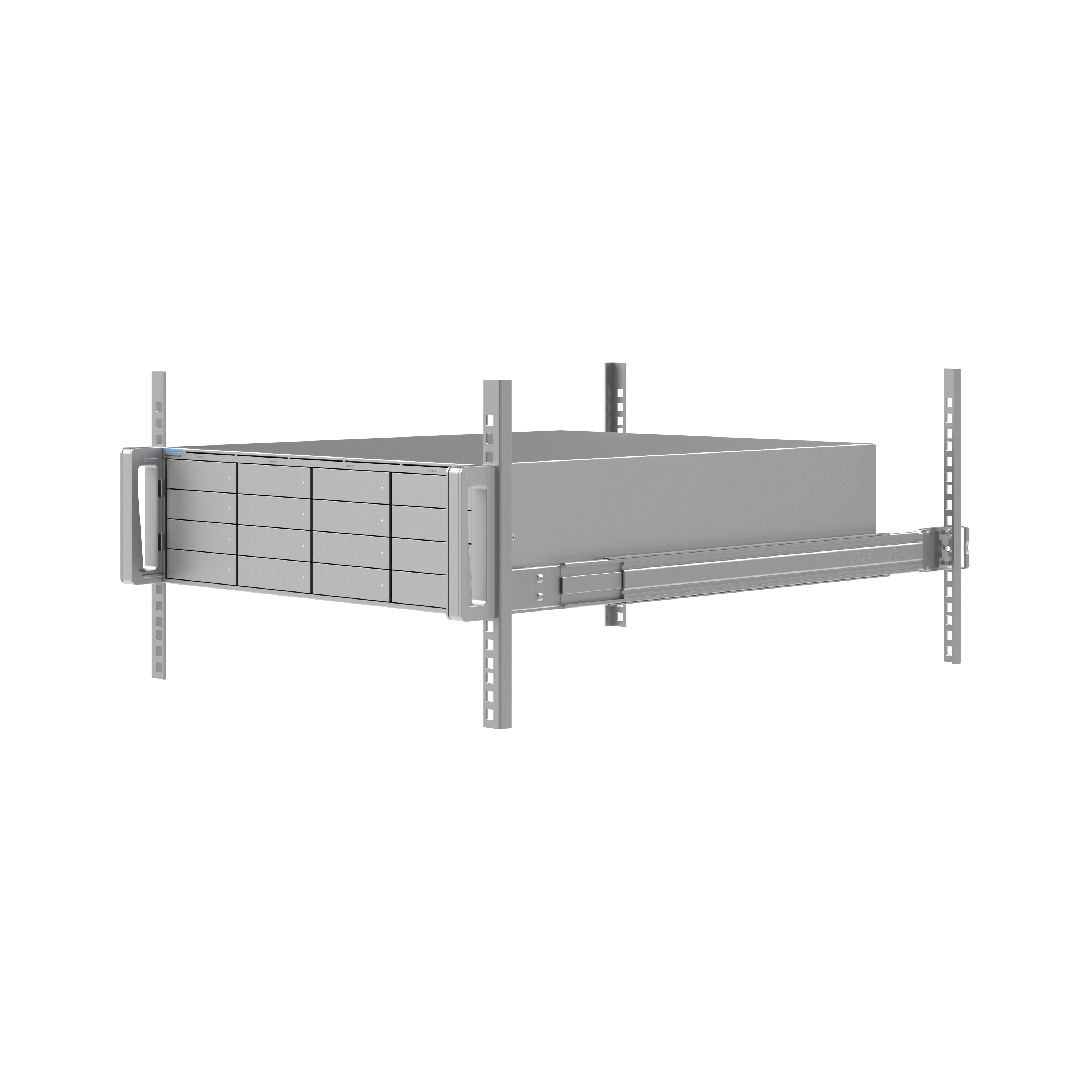

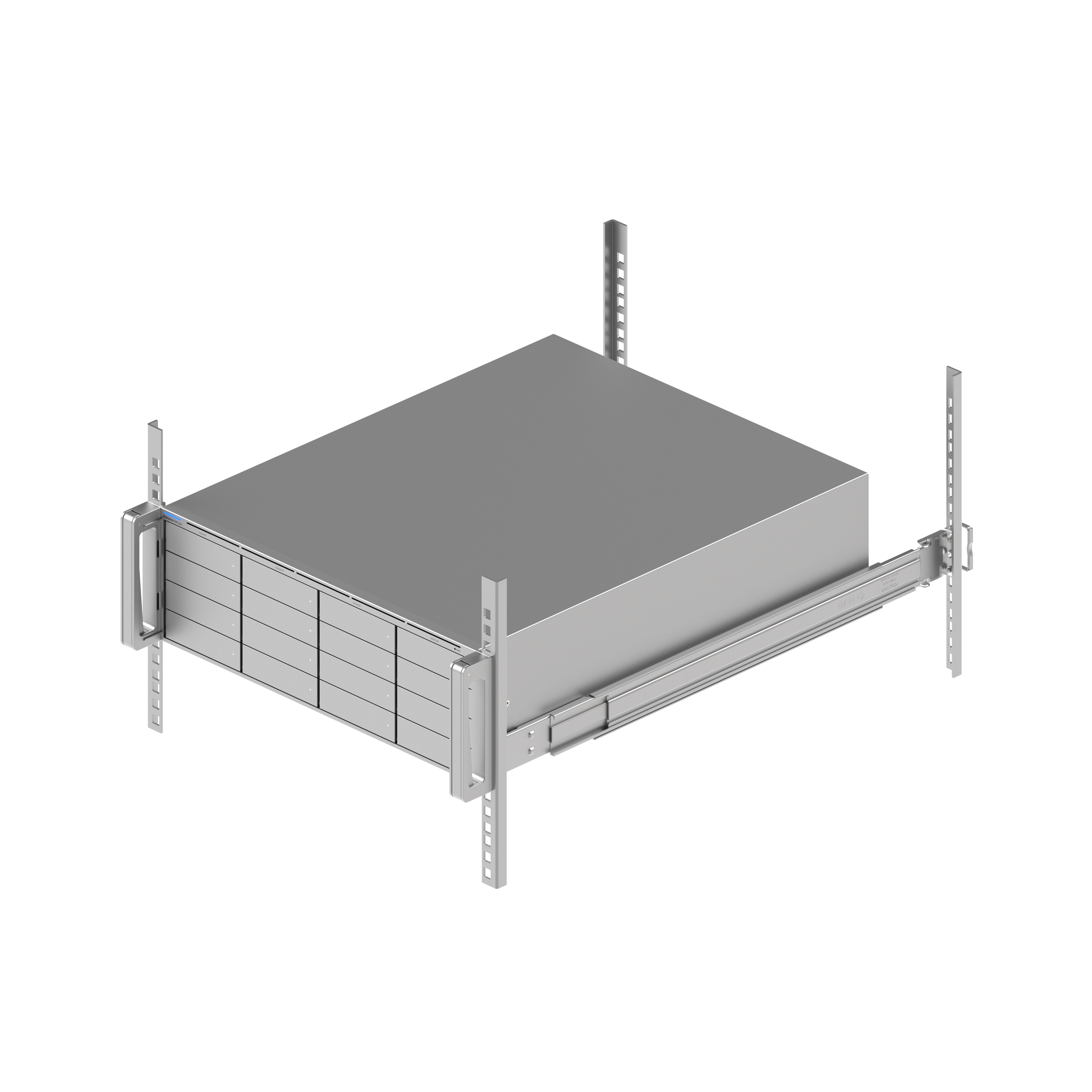

| Slide Rails | The rails support 482.6 mm (19") four-post racks with square holes (9.5 x 9.5 mm) and posts depths ranging from 600–1066 mm (23.6–42") |

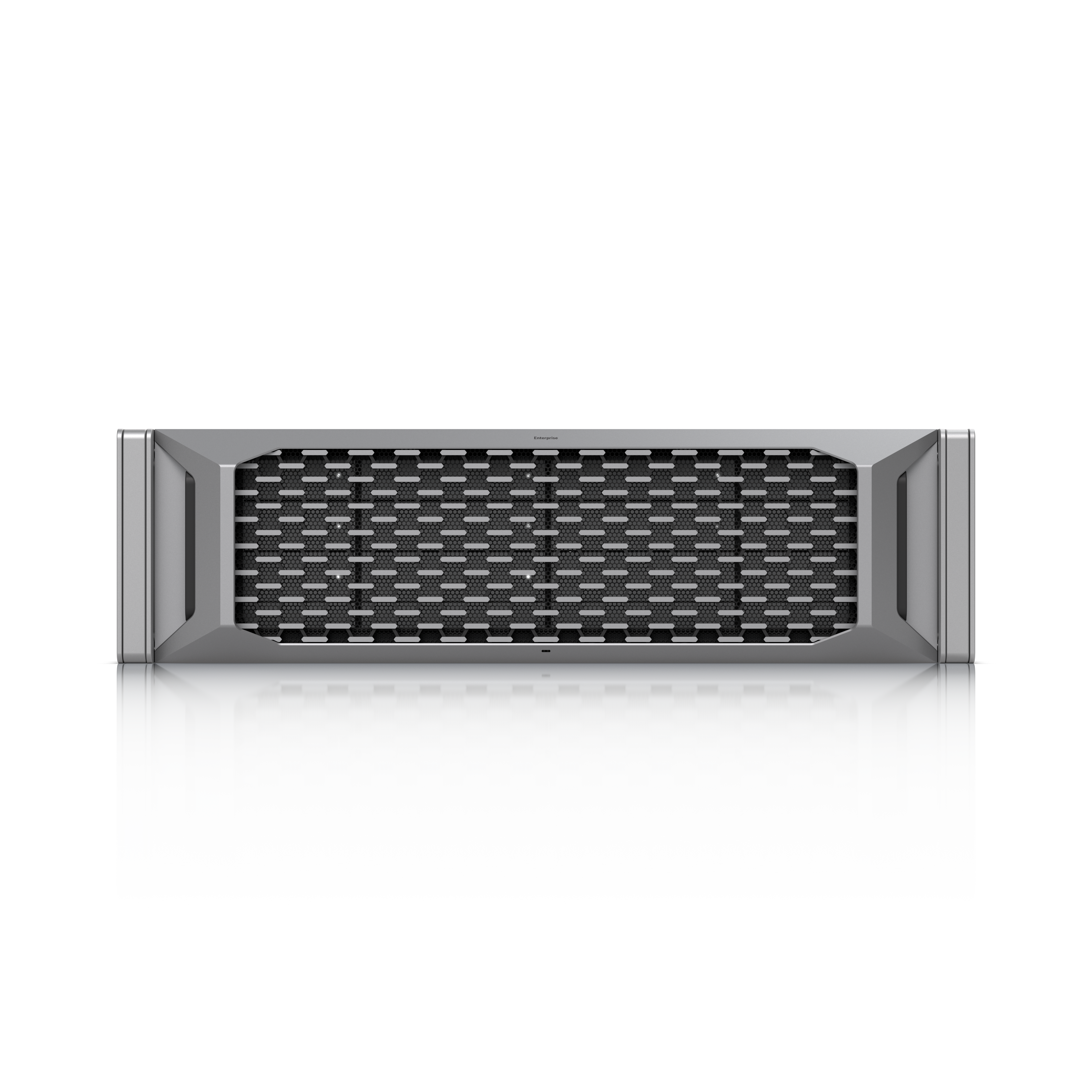

| Faceplate | 3U Bezel Lite (Included) 3U Bezel (Optional) |
| LEDs: SFP28 | Yes |
| LEDs: HDD | Yes |
| LEDs: System | Yes |
| LEDs: CRPS | Yes |
| LEDs: Expansion Port | Yes |
| Ambient Operating Temperature | 10 to 35° C (50 to 95° F) |
| Ambient Operating Humidity | 20 to 90% noncondensing |
| NDAA Compliant | Yes |
| Certifications | CE, FCC, IC |
| Application Requirements: Mobile App | UniFi Protect iOS™ version 3.3.0 and later UniFi Protect Android™ version 3.2.0 and later |
