UniFi Enterprise Storage Expansion
Stækkunareining fyrir ENAS & ENVR-Core með (16) 2,5/3,5" drifhólfum sem veitir óaðfinnanlega stækkun á HDD geymsluplássi.
Þrívídd og myndbönd
Tækni
Tæknilegir eiginleikar
Upplýsingar úr ETIM gögnum framleiðanda. Vantar þig meira? Hafðu samband við tækniráðgjöf okkar.
| Dimensions | 481.4 x 480 x 132 mm (19 x 18.9 x 5.2") |
|---|---|
| Storage Capacity | (16) 2.5"/3.5" drive bays |
| Expansion Port | (1) SFF-8644 (24G) (1 m (3.3 ft) cable is included) |
| Power Redundancy | Yes (Dual hot-swappable PSUs) |
| Form Factor | Rack mount (3U) |
| Hard Drive Capacity | (16) 2.5/3.5" HDD / SSD support |
| Max. Power Budget for Drives | 500W |
| Max. Power Consumption | 550W |
| Power Method | (2) AC input, Hot-swappable power modules |
| Power Supply | (2) Hot-swappable AC/DC 550W power modules |
| Management | Master console |
| Weight | 15.5 kg (34.2 lb) |
| Enclosure Material | SGCC steel |
| Mount Material | SGCC steel |

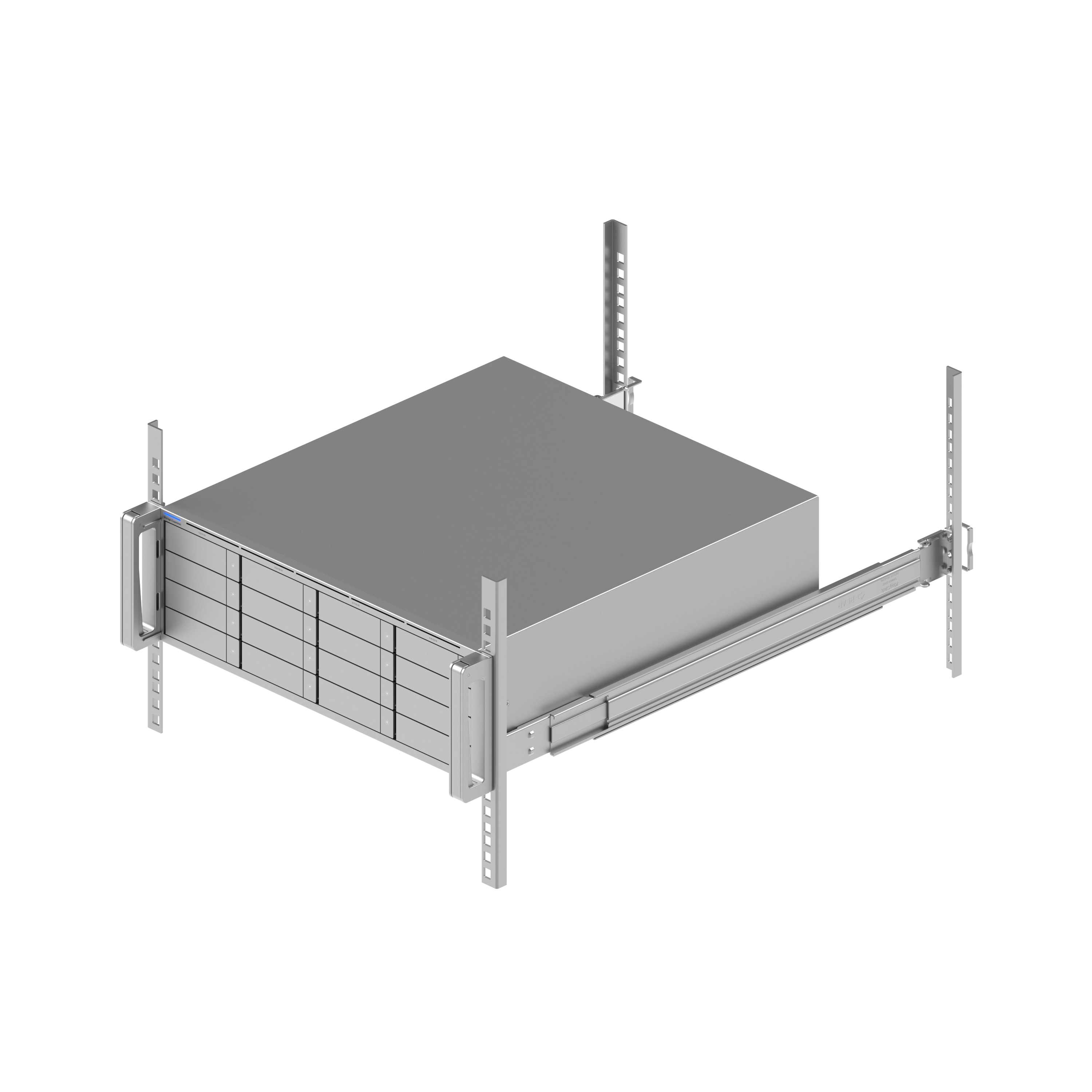

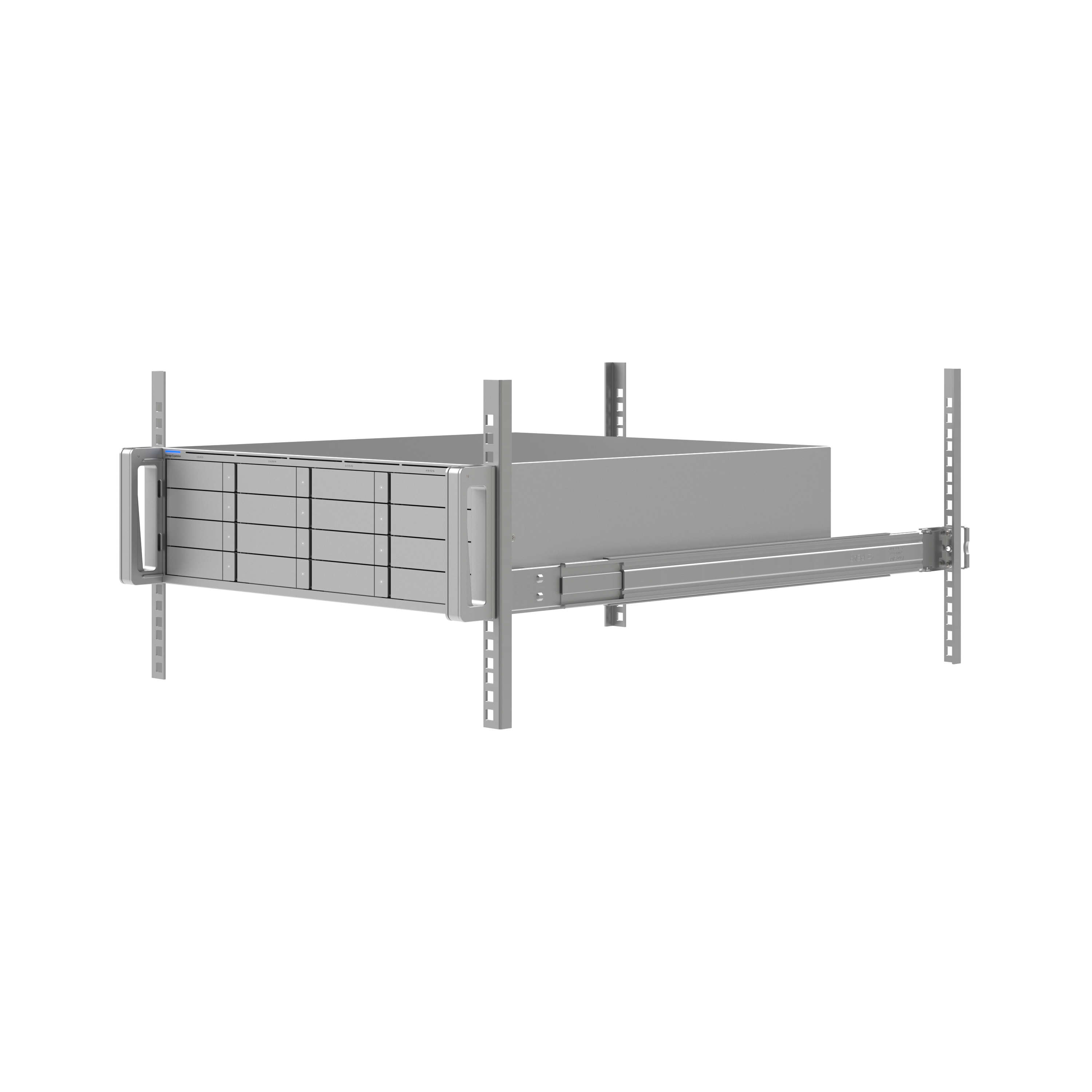

| Supported Rack Depth | The rails support 600 mm (23.6") four-post racks with square holes (9.5 x 9.5 mm) Posts depths ranging from 600–1066 mm (23.6–42") |
| Faceplate | 3U Bezel Lite (Optional) |
| LEDs: HDD | Yes |
| LEDs: System | Yes |
| LEDs: CRPS | Yes |
| LEDs: Expansion Port | Yes |
| Ambient Operating Temperature | -5 to 40° C (23 to 104° F) |
| Ambient Operating Humidity | 5 to 95% noncondensing |
| NDAA Compliant | Yes |
| Certifications | FCC, CE, IC |
