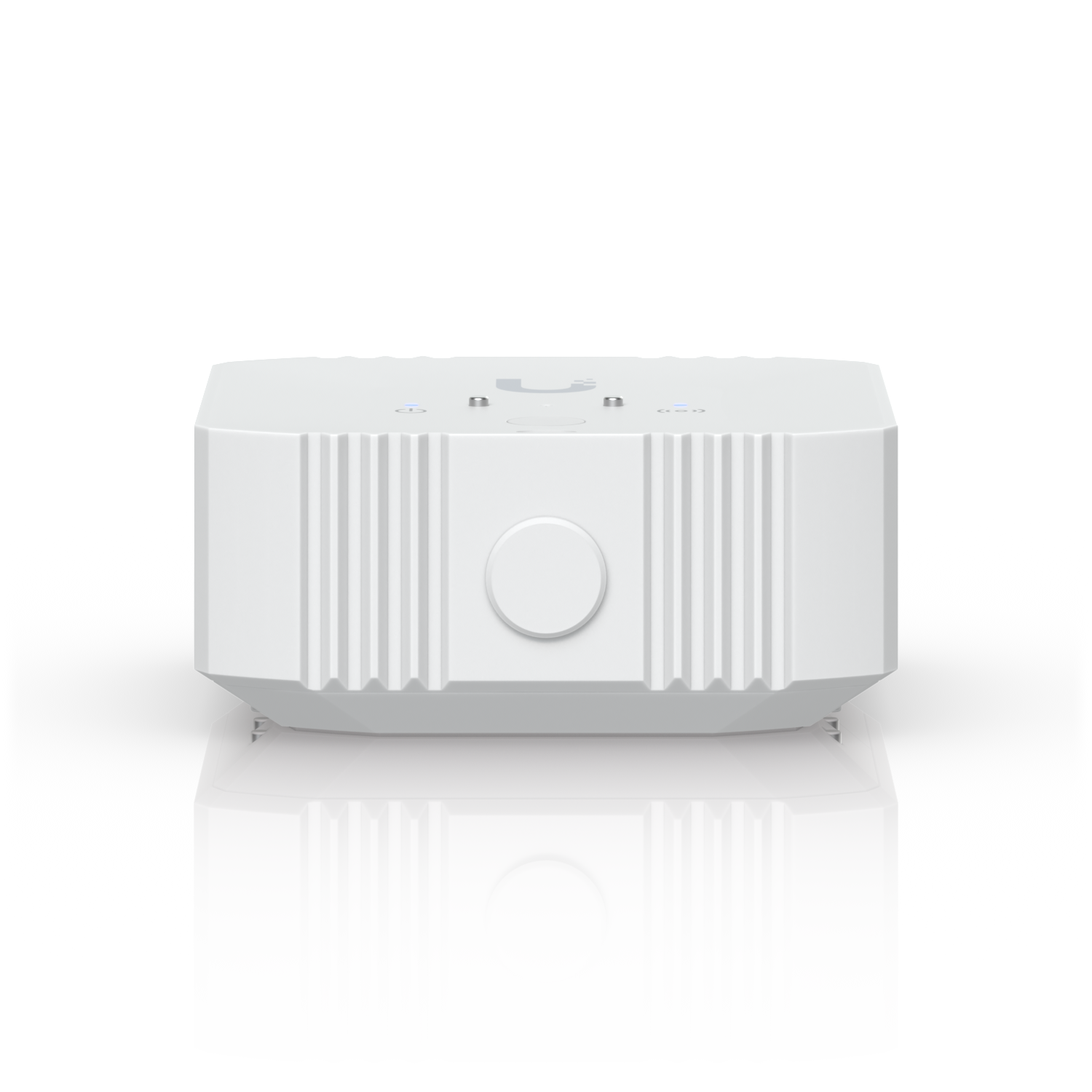

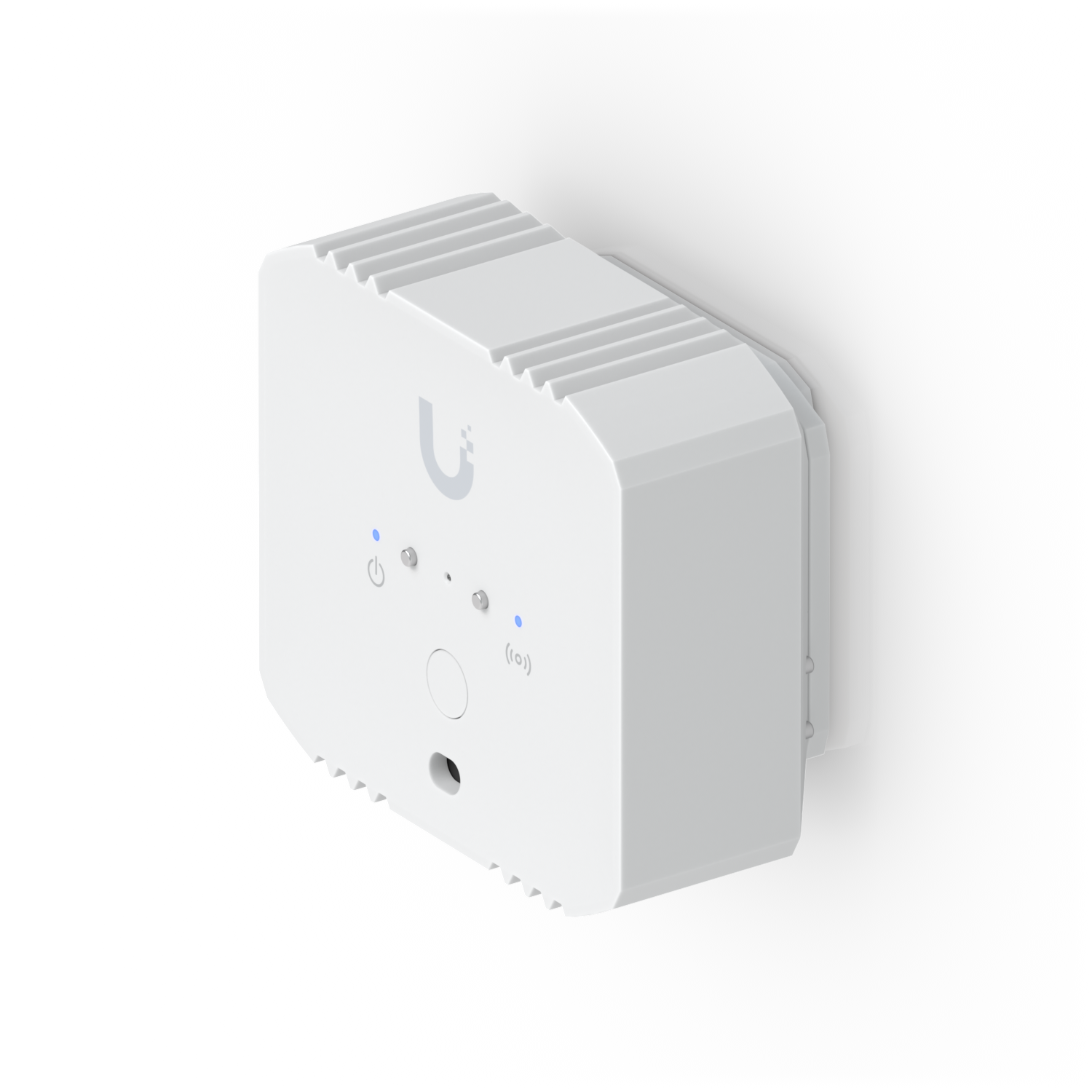

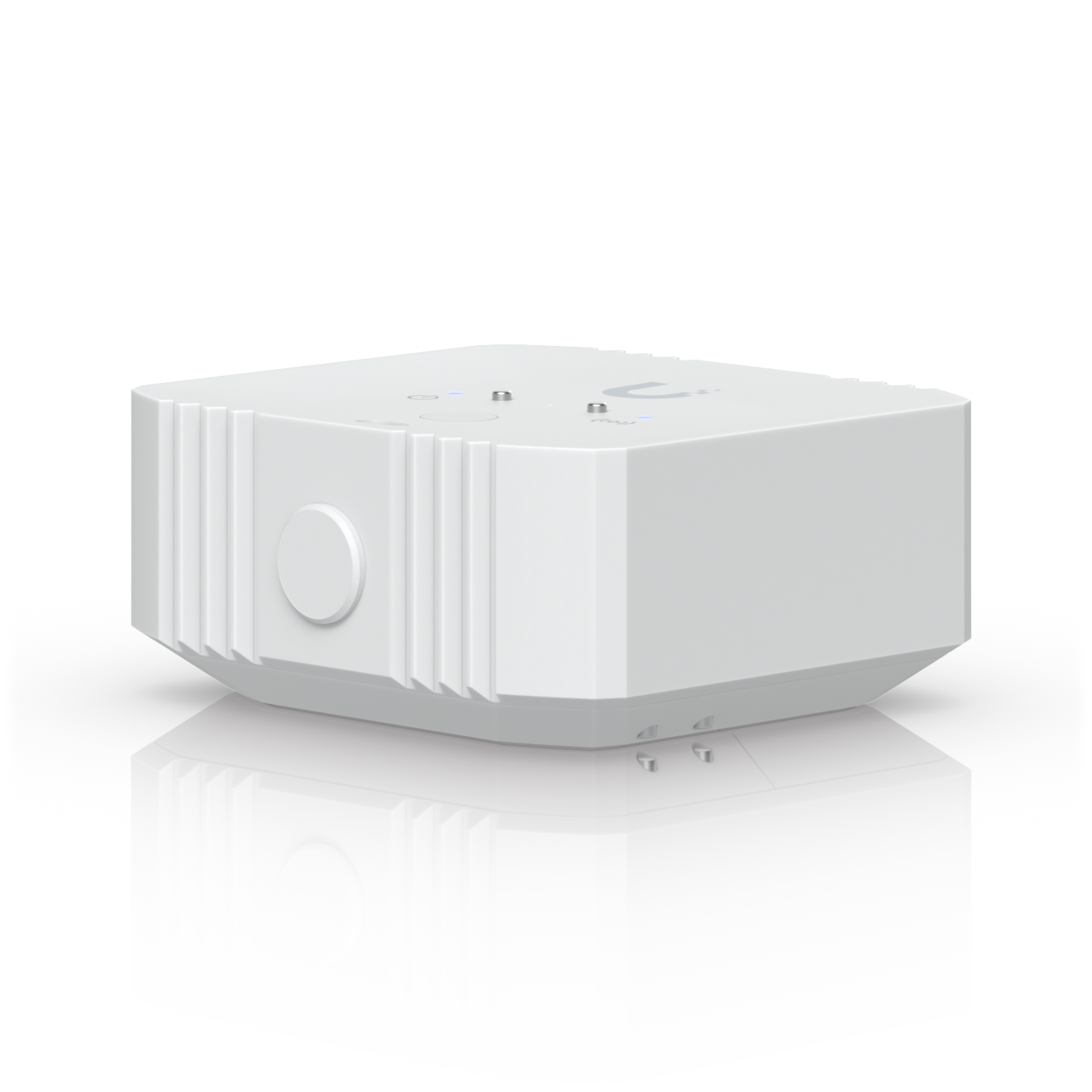

UniFi Environmental Sensor
Rafhlöðuknúinn SuperLink skynjari sem greinir vatnsleka, hitastig, rakastig og umhverfisbirtu.
Þrívídd og myndbönd
Tækni
Tæknilegir eiginleikar
Upplýsingar úr ETIM gögnum framleiðanda. Vantar þig meira? Hafðu samband við tækniráðgjöf okkar.
| Dimensions | Device: 53 x 49 x 23.5 mm (2.1 x 1.9 x 0.9") Mount: 41.3 x 36.6 x 3.1 mm (1.6 x 1.4 x 0.1") |
|---|---|
| Weatherproofing | IPX5 |
| Mounting | Adhesive, magnet and screw mount |
| UniFi Application Suite | Protect |
| Connectivity | SuperLink (Proprietary) |
| Operating Frequency: SuperLink | US: 915.6–927.6 MHz EU: 865.1–869.5 MHz JP: 920.5–922.3 MHz |
| Antenna Gain: SuperLink | 0 dBi |
| Max. TX Power: SuperLink | 14 dBm |
| Max. Range: SuperLink | 2 km (1.2 mi) (Line of Sight (LOS)) |
| Sensor Features: Temperature Sensor | Yes |
| Sensor Features: Humidity Sensor | Yes |
| Sensor Features: Ambient Light Sensor | Yes |
| Sensor Features: Water Sensor | Yes (Top & bottom) |
| Sensor Features: Other | 3.5 mm AUX jack (TRS or TS) for water leak probe |
| Max. Power Consumption | 34.9mW |
| Supported Voltage Range | 3V |

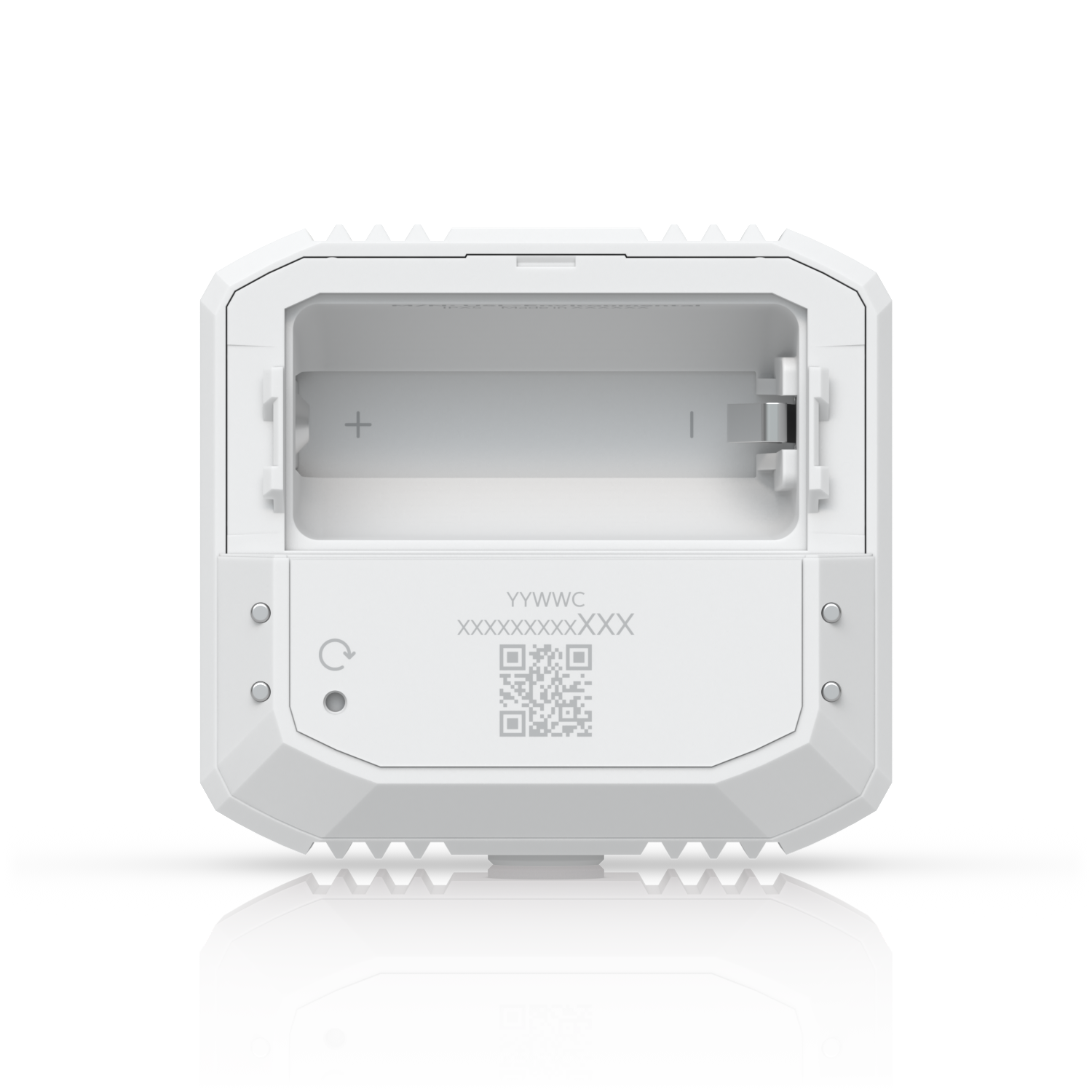

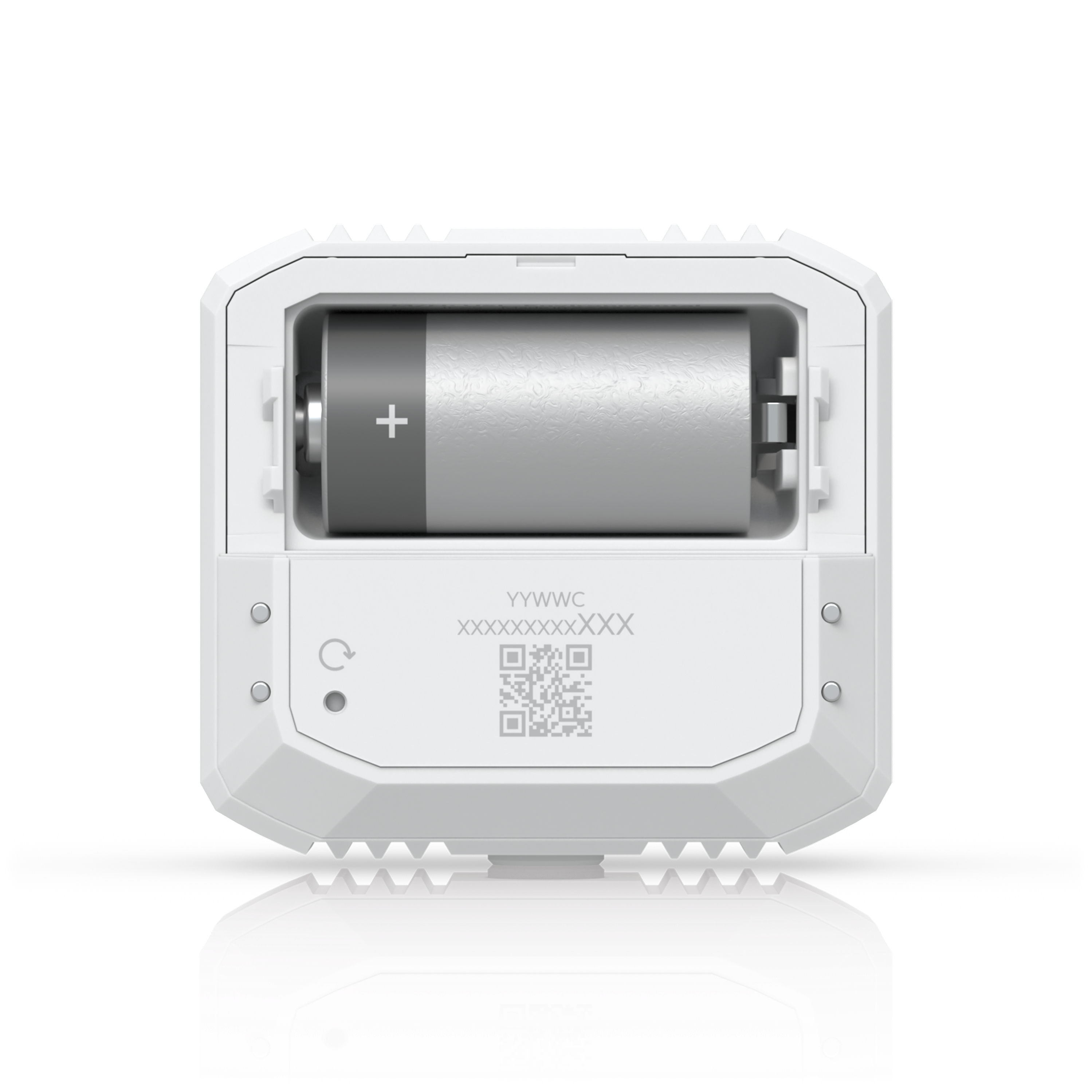

| Power Method | Lithium battery CR123A |
| Battery Life | Up to 6 years |
| Weight | Device: 47.8 g (1.7 oz) With mount: 70 g (2.5 oz) |
| Enclosure Material | Polycarbonate |
| Mount Material | Galvanized steel |
| Buttons | (1) Factory reset (1) Function button |

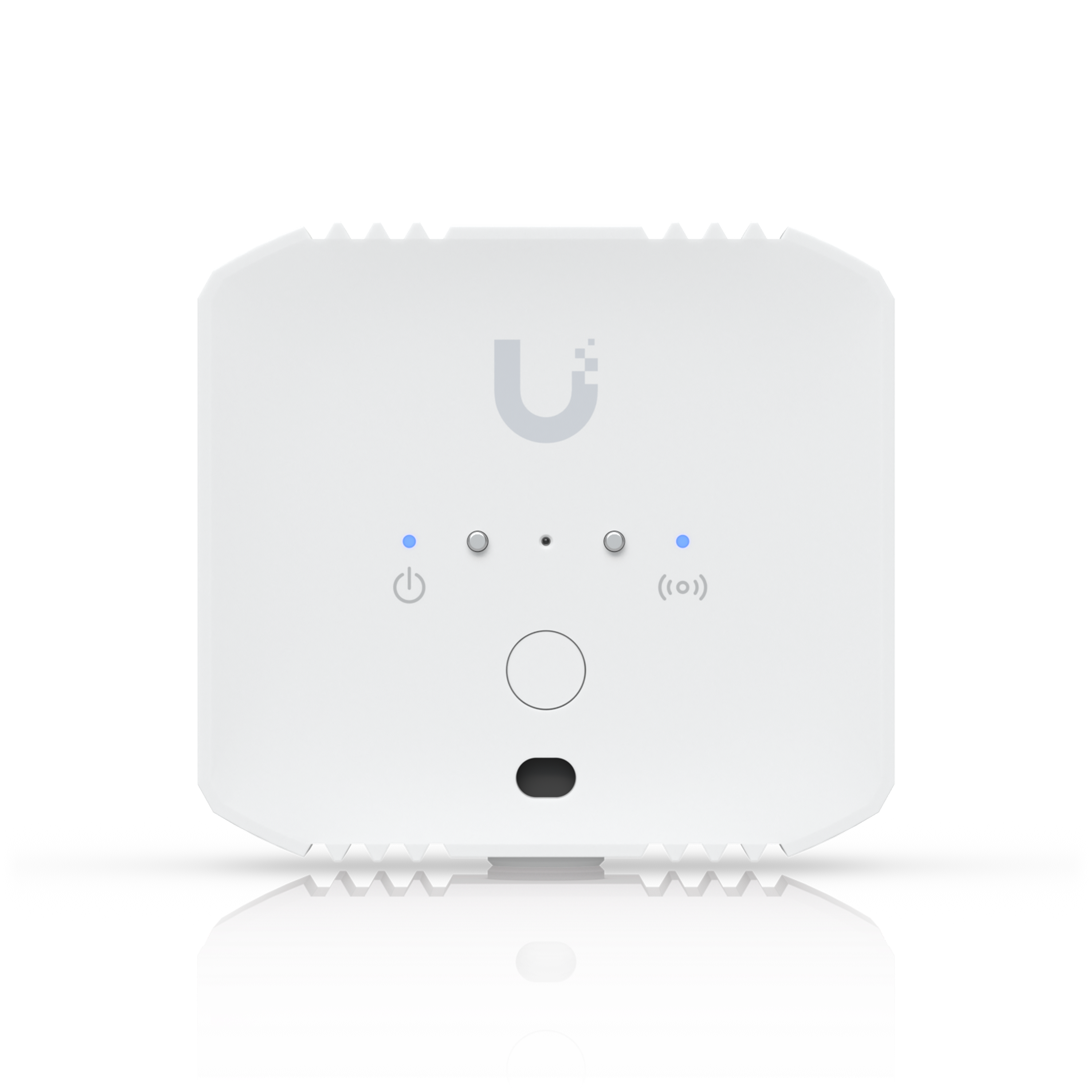

| LEDs | (1) Status: R/B/W (1) Signal: B/R |
| Ambient Operating Temperature | -20 to 40° C (-4 to 104° F) |
| Ambient Operating Humidity | 10 to 90% noncondensing |
| Certifications | FCC, IC, CE |
| NDAA Compliant | Yes |
| Application Requirements: Web Application | UniFi Protect |
| Application Requirements: Mobile App | UniFi Protect iOS™ and Android™ |
Engin skjöl skráð á þessa vöru.
