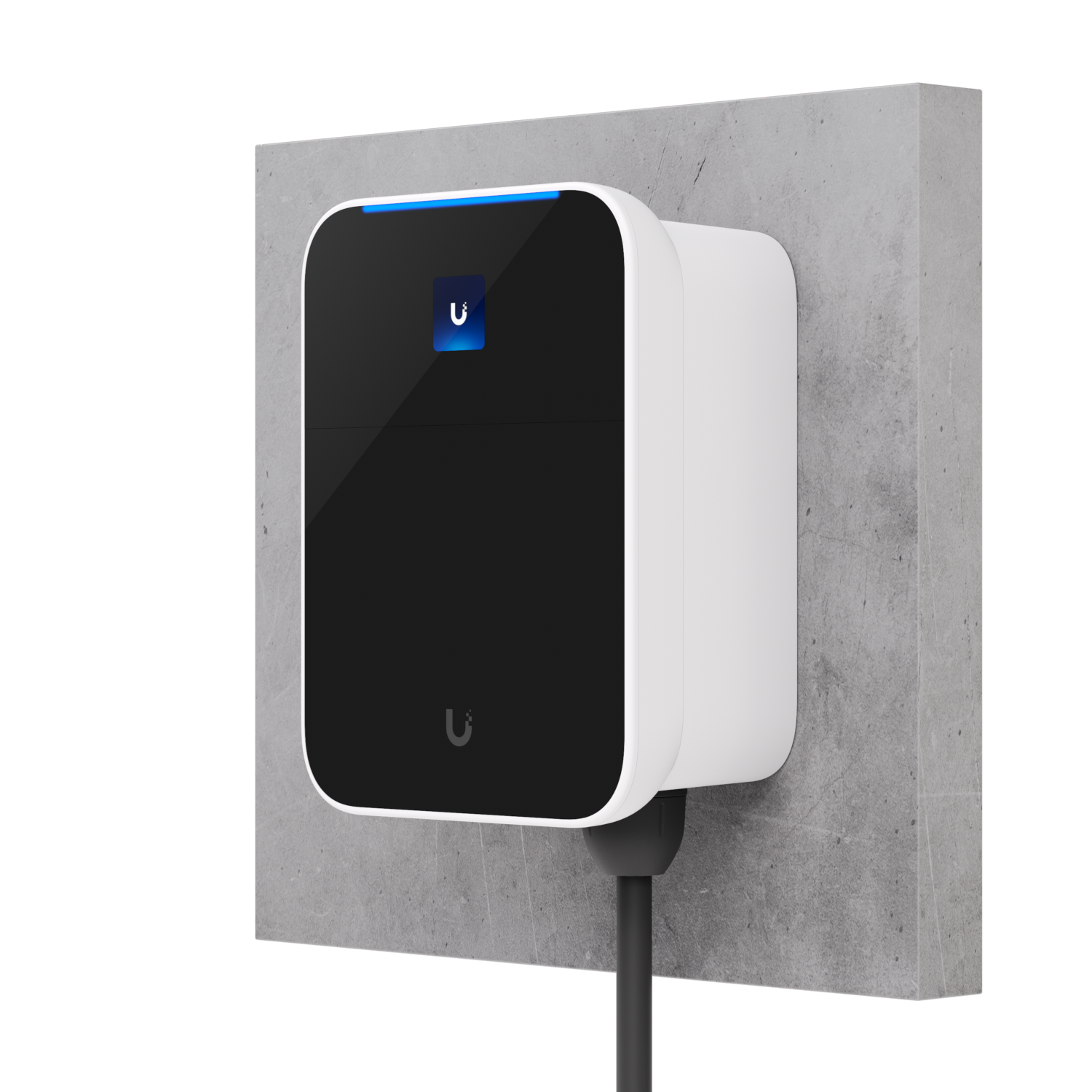

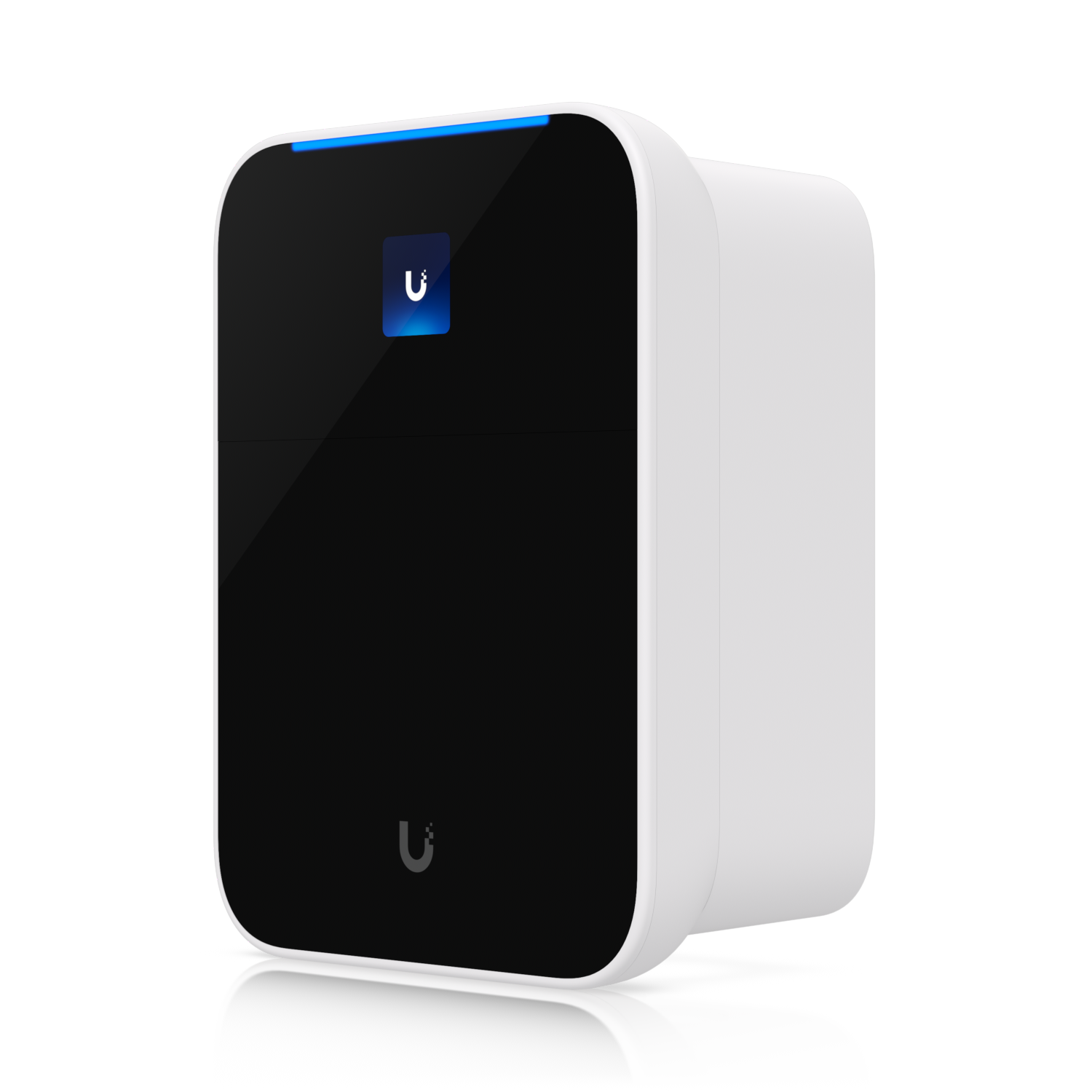

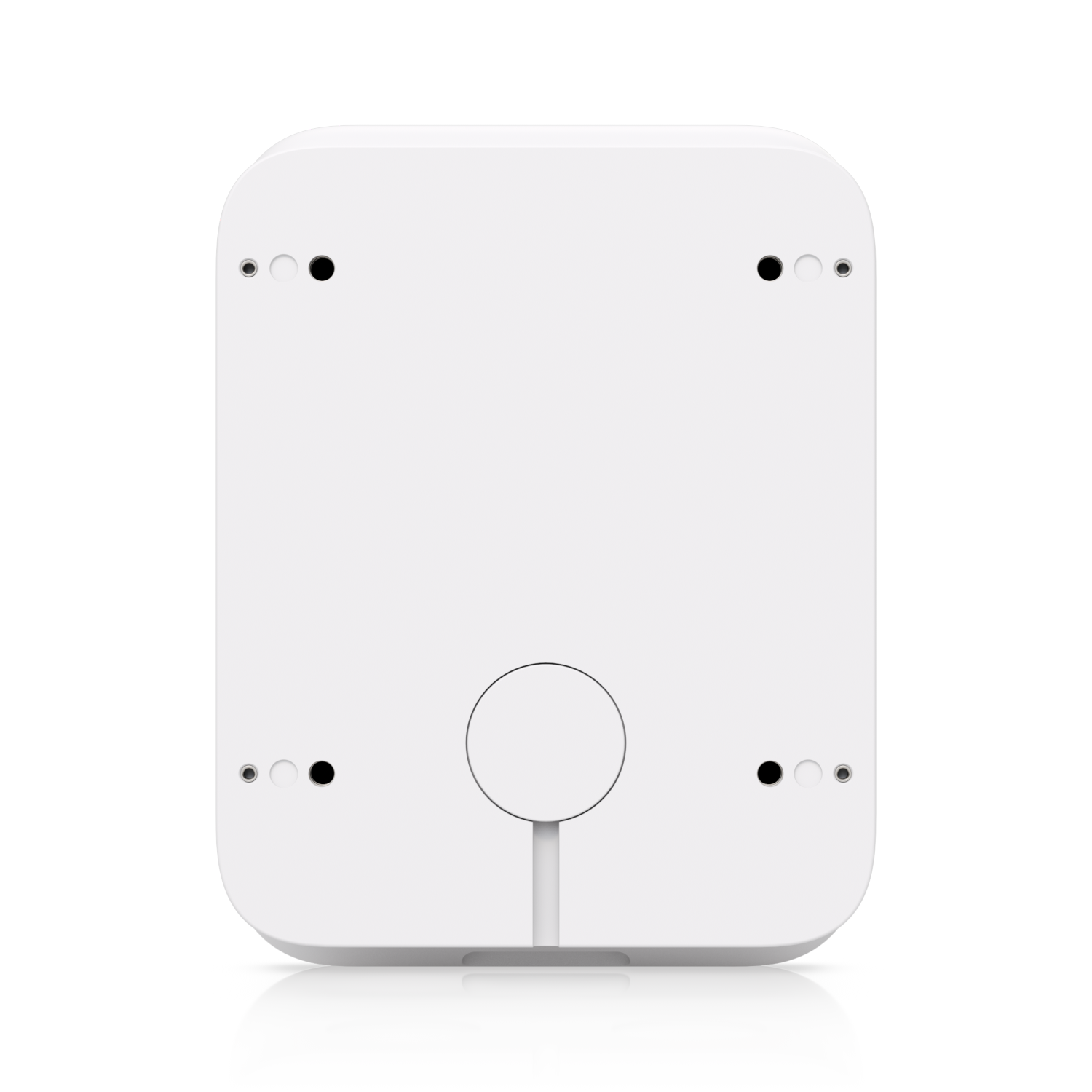

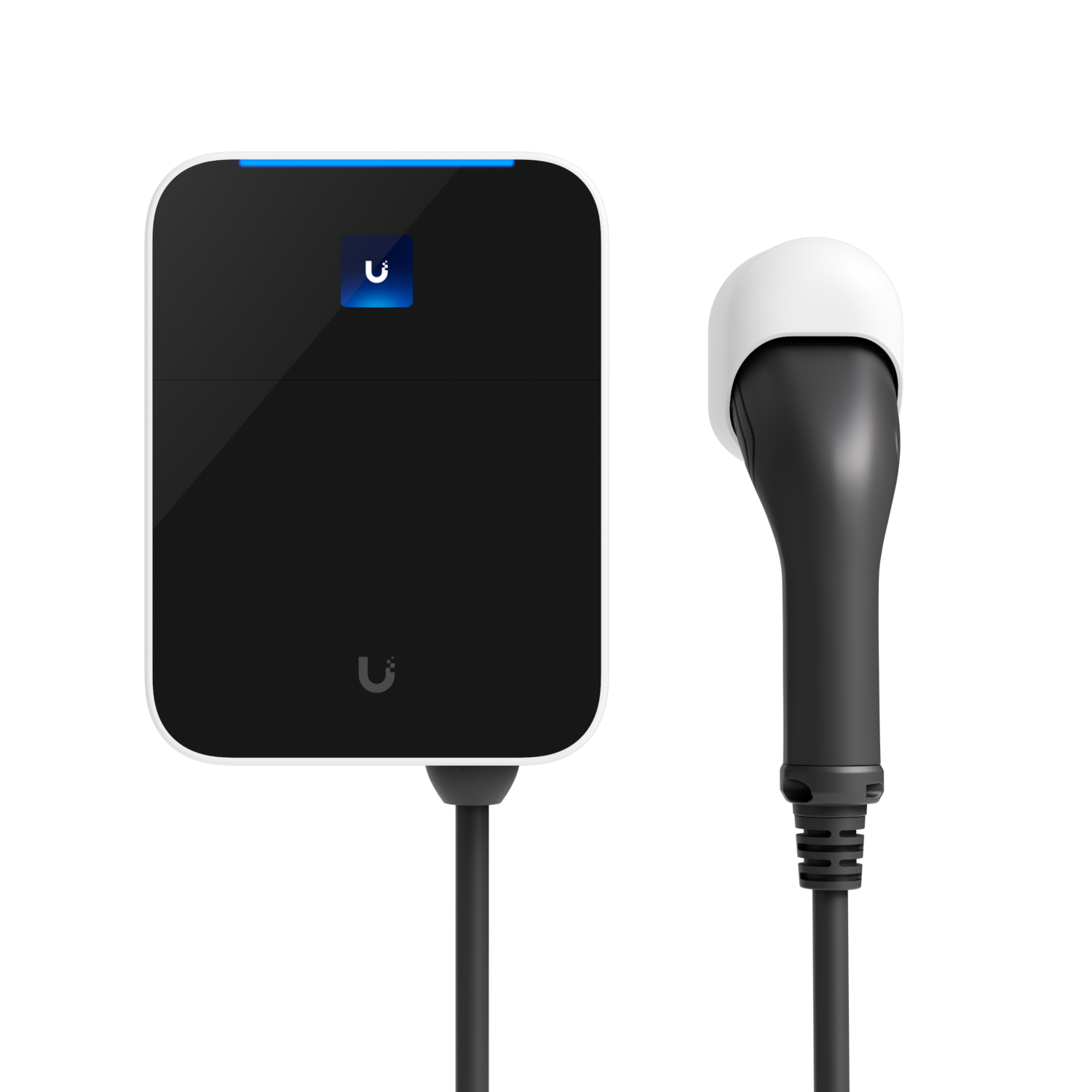

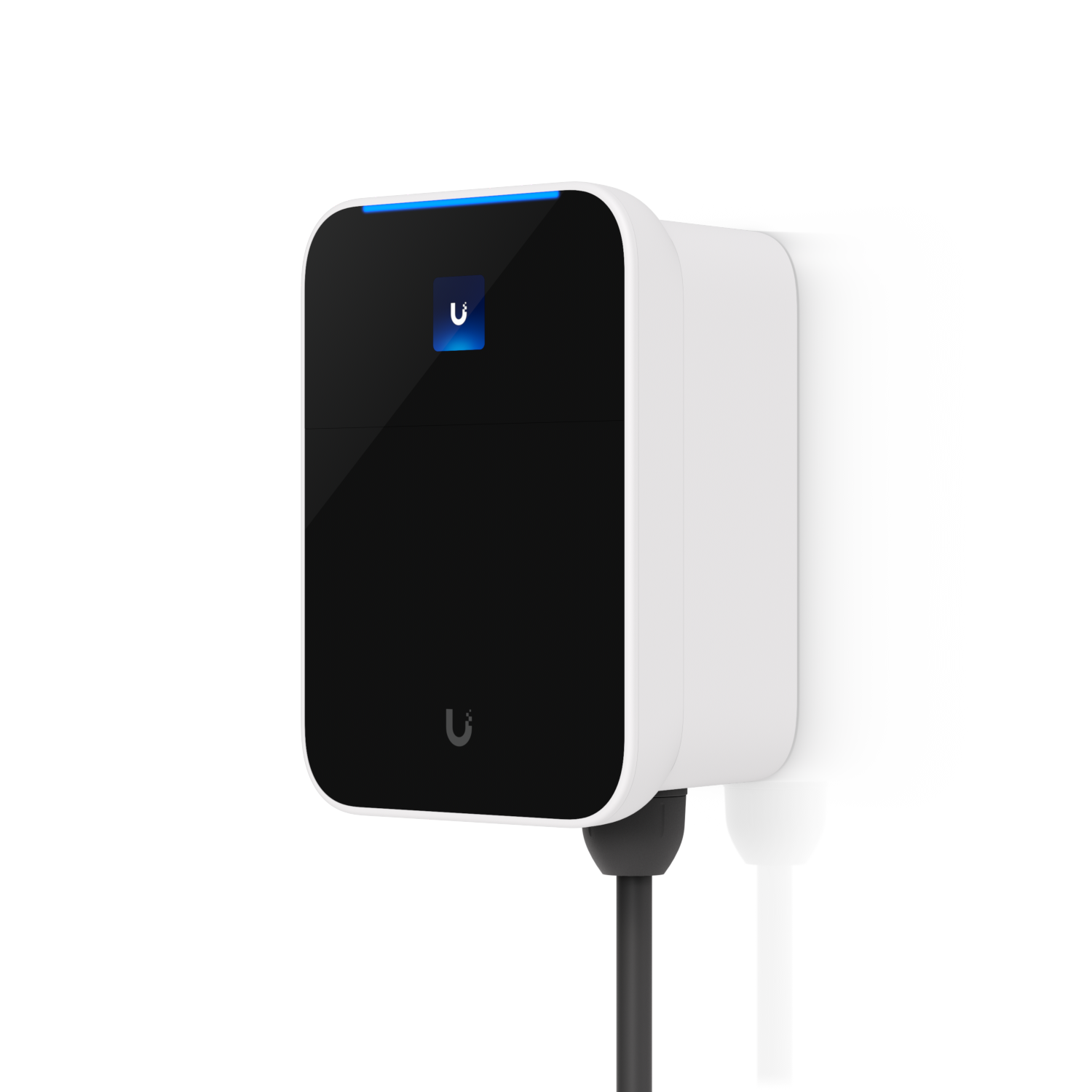

UniFi EV Station Lite
Þrívídd og myndbönd
Tækni
Tæknilegir eiginleikar
Upplýsingar úr ETIM gögnum framleiðanda. Vantar þig meira? Hafðu samband við tækniráðgjöf okkar.
| Dimensions | 254.7 x 192.7 x 101.4 mm (10 x 7.6 x 4”) |
|---|---|
| Mounting | Wall Mount or Stand |
| Power Input | 400V AC, ~32A, 50/60Hz 3φ |
| Power Output | 400V AC, ~32A, 50/60Hz 3φ |
| Weatherproofing | IP55 |
| Weight | 7.2 kg (15.9 lb) |
| Enclosure Material | Polycarbonate |
| Charging Cable Length | 7 m (23 ft) |
| Charging Outlet | IEC 62196-2 Type 2 |
| Display: Size | 1.7" status display |
| Processor | Dual-core Arm® Cortex®-A53, 1 GHz |
| Connectivity | (1) GbE RJ45 port (1) USB-C port Bluetooth® 5.0 WiFi |
| Circuit Rating: Max. load | 40A/32A 40A/25A 30A/20A 20A/16A 15A/10A 10A/8A |
| Circuit Rating: Plug-in | 40A: No 32A: Yes 25A: Yes 20A: Yes 16A: Yes 10A: Yes |
| Circuit Rating: Hardwired | 40A: Yes 32A: Yes 25A: Yes 20A: Yes 16A: Yes 10A: Yes |
| WiFi Standards | 802.11a/b/g/n/ac/ax |
| Ambient Operating Humidity | 5 to 90% noncondensing |
| Ambient Operating Temperature | -30 to 50° C (-22 to 122° F) |
| IEC 61851-1 Compliant | Yes |
| Certifications | CE |
| Management Application | UniFi Connect: Version 3.21 and later. UniFi Connect iOS™ and Android™: Version 2.32 and later. |
