UniFi Gateway Max
Lítið, fjölnetstengt (multi-WAN) sjálfstætt gátt (gateway) með fullum 2.5G stuðningi fyrir öflugt netkerfi á litlum til meðalstórum starfsstöðum.
- Stjórnað með CloudKey, Official UniFi Hosting, eða UniFi OS Server með UniFi Network 8.1.113 og nýrra
- Allt að 2.3 Gbps beining (routing) með IDS/IPS

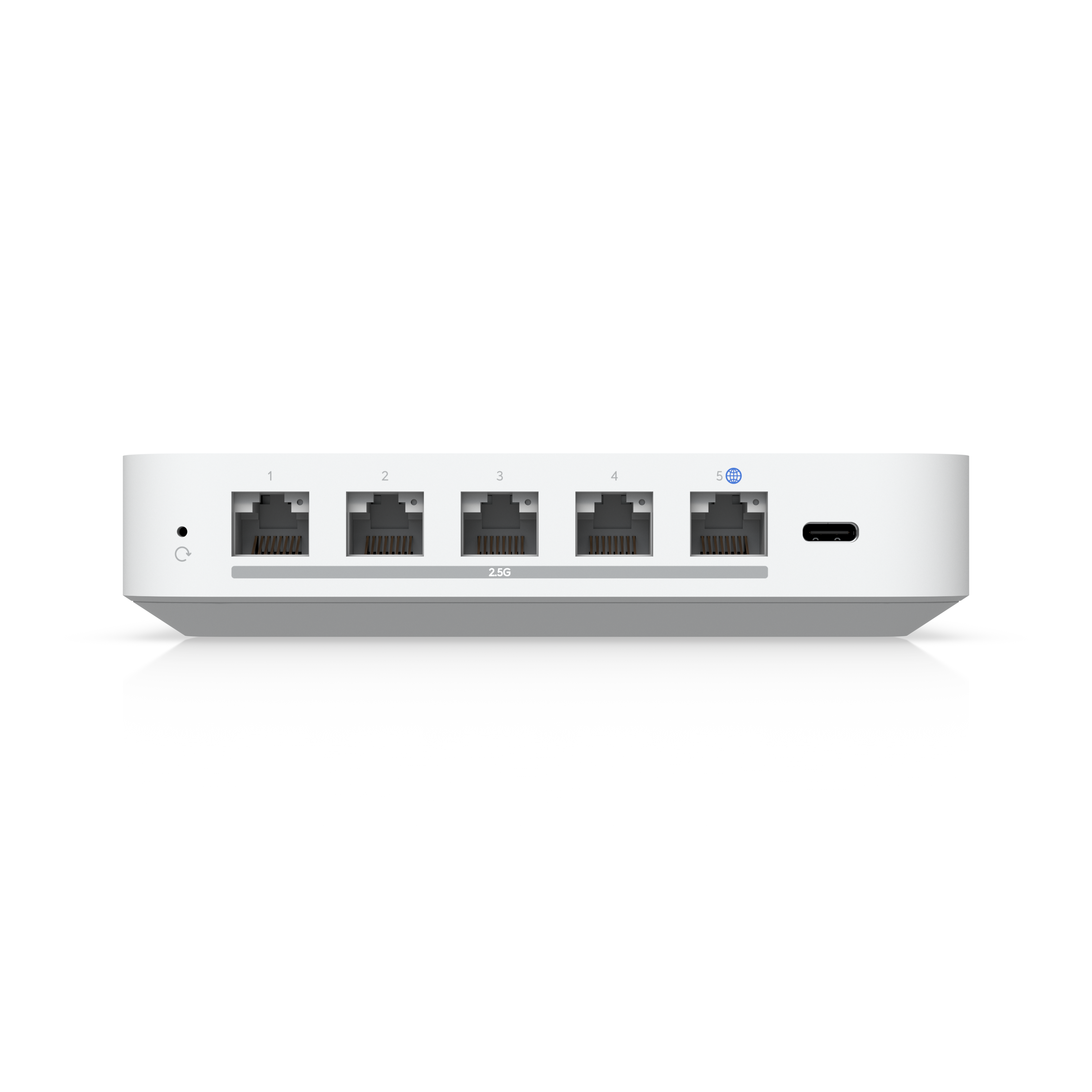

- (1) 2.5 GbE WAN tengi
- (4) 2.5 GbE LAN tengi, þar af (1) sem hægt er að endurstilla í WAN
- USB-C knúið (millistykki fylgir)
Þrívídd og myndbönd
Tækni
Tæknilegir eiginleikar
Upplýsingar úr ETIM gögnum framleiðanda. Vantar þig meira? Hafðu samband við tækniráðgjöf okkar.
| Dimensions | 141.8 x 127.6 x 30 mm (5.6 x 5 x 1.2") |
|---|---|
| Max. WAN Port Count | 4 |
| Default WAN Ports | (1) 2.5 GbE RJ45 |
| Port Layout: 2.5 GbE RJ45 | 5 (2.5G/1G/100M/10M) |
| IDS/IPS Throughput | 2.3 Gbps (With UniFi Gateway firmware 4.1 or later.) |
| Form Factor | Compact desktop |
| Stateful Firewall | Yes |
| Application-Aware Layer 7 Firewall | Yes |
| DPI & Traffic Identification | Yes |
| Zone-Based Firewall Advanced Filtering (Regions, Domains, Apps) | Yes |
| Content Filtering | Yes |
| Intrusion Prevention (IPS/IDS) | Yes |
| Ad Blocking | Yes |
| IDS/IPS Signatures | 55,000+ With CyberSecure |
| License-Free SD-WAN | Yes |
| Site-to-Site VPN: Site Magic | Yes |
| Site-to-Site VPN: IPsec | Yes |
| Site-to-Site VPN: OpenVPN | Yes |
| VPN Server: Teleport Zero-Configuration VPN | Yes (Available on the Default site when paired with a CloudKey) |
| VPN Server: WireGuard | Yes |
| VPN Server: OpenVPN | Yes |
| VPN Server: L2TP | Yes |
| VPN Client: OpenVPN | Yes |
| VPN Client: WireGuard | Yes |
| Multi-WAN Load Balancing | Yes |
| Dynamic Routing: OSPF | Yes |
| Advanced QoS | Yes |
| Multicast DNS (mDNS) | Yes |
| Advanced NAT (SNAT / DNAT / Masquerade / NAT Pooling / 1-to-1 NAT) | Yes |
| Integrated RADIUS Server | Yes |
| RADIUS over TLS (RadSec) | Yes |
| Additional Internet Failover with UniFi LTE Backup | Yes |
| Internet Quality and Outage Reporting | Yes |
| MAC Address Table Size | 2,000 |
| Virtual Network Override | Yes |
| All Traffic Flows | Yes (Available when managed with a UniFi OS Server, CloudKey Enterprise, or Official UniFi Hosting.) |
| Max. Power Consumption | 9.6W |
| Power Method | USB type C (5V DC/3A) |
| Power Supply | USB type C (5V DC/3A) (Adapter included) |
| Supported Voltage Range | 100–240V AC |
| Heat Dissipation | 33 BTU/hr |
| Processor | Quad-core ARM® Cortex®-A53 at 1.5 GHz |
| System Memory | 2 GB |
| Weight | 520 g (1.1 lb) |
| Enclosure Material | Polycarbonate |
| Management | Ethernet Bluetooth |
| LEDs: Ethernet | Yes |
| LEDs: System | Yes |
| Button | (1) Factory reset |
| ESD/EMP Protection | Air: ± 8kV, contact: ± 4kV |
| Ambient Operating Temperature | -10 to 40° C (14 to 104° F) |
| Ambient Operating Humidity | 5 to 95% noncondensing |
| NDAA Compliant | Yes |
| Certifications | CE, FCC, IC, Anatel: 04873-25-08356 |
| Application Requirements: UniFi Network | Version 8.1.113 and later |
