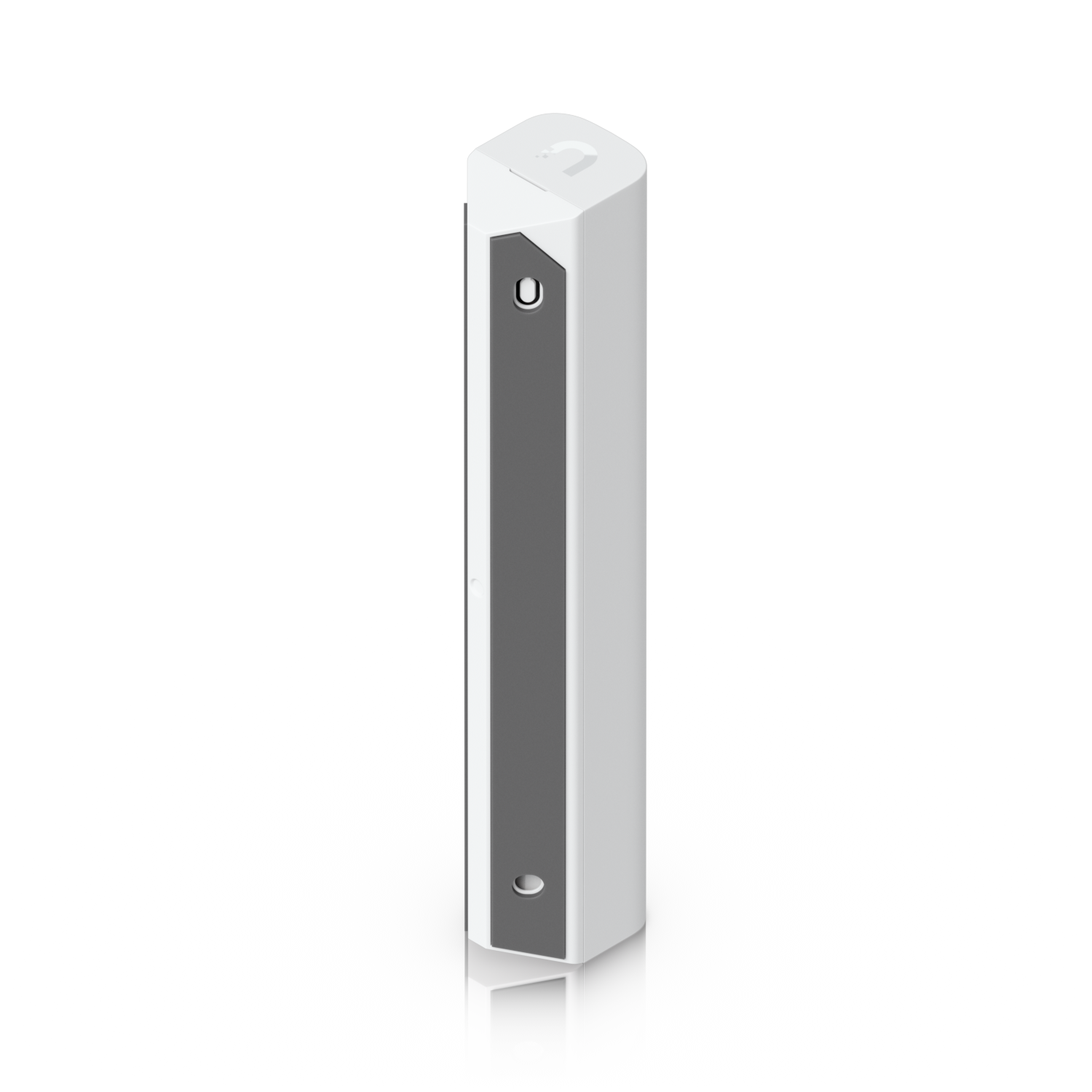

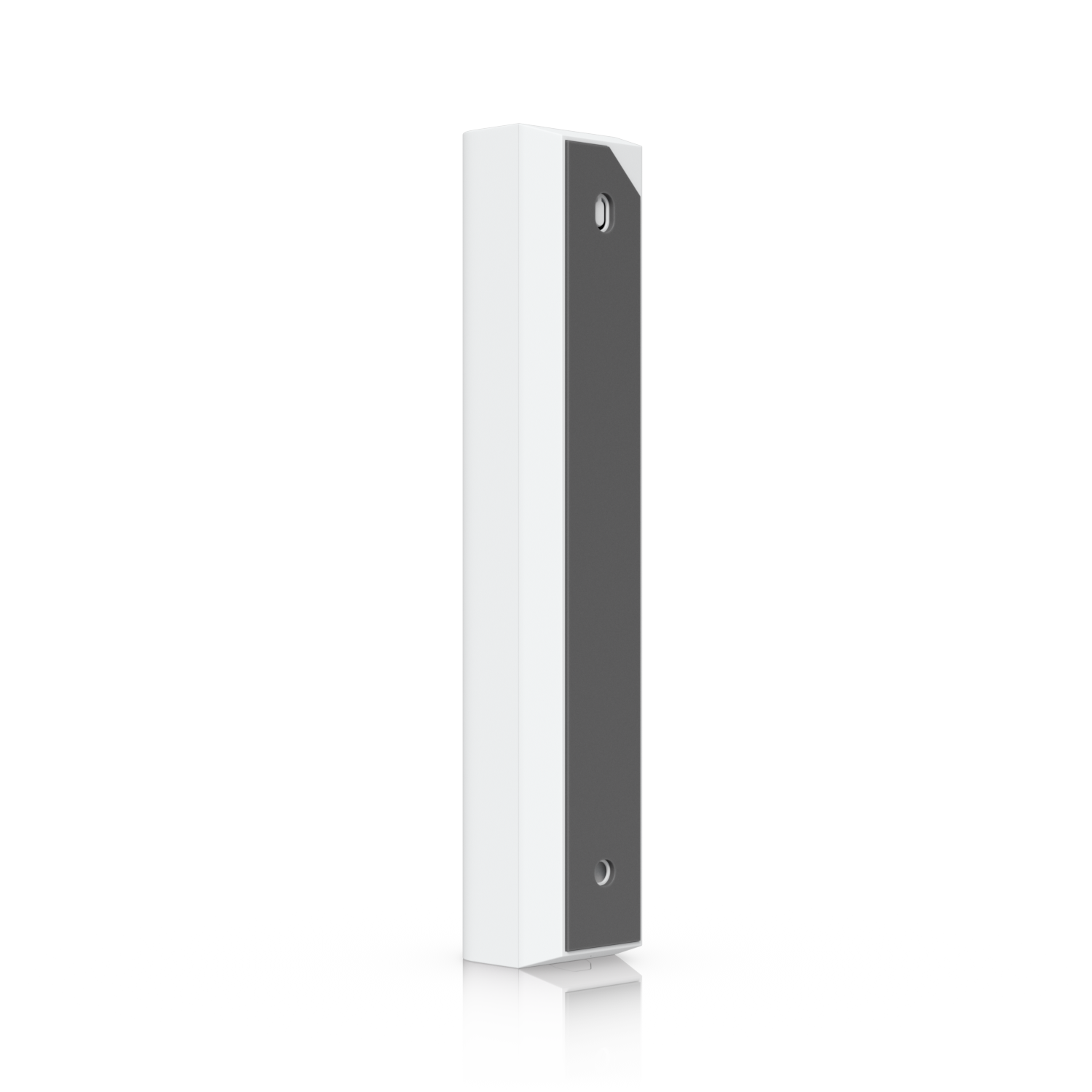

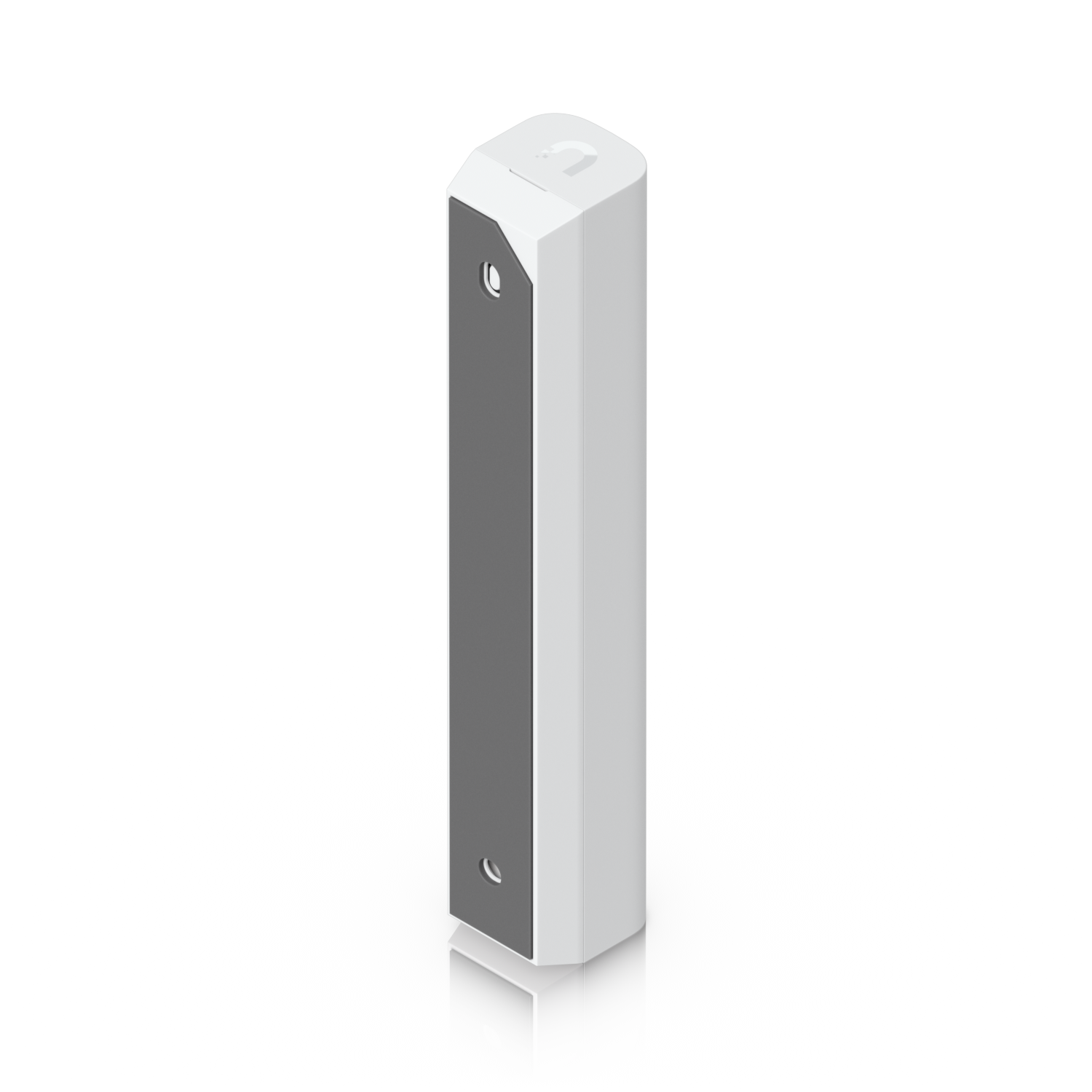

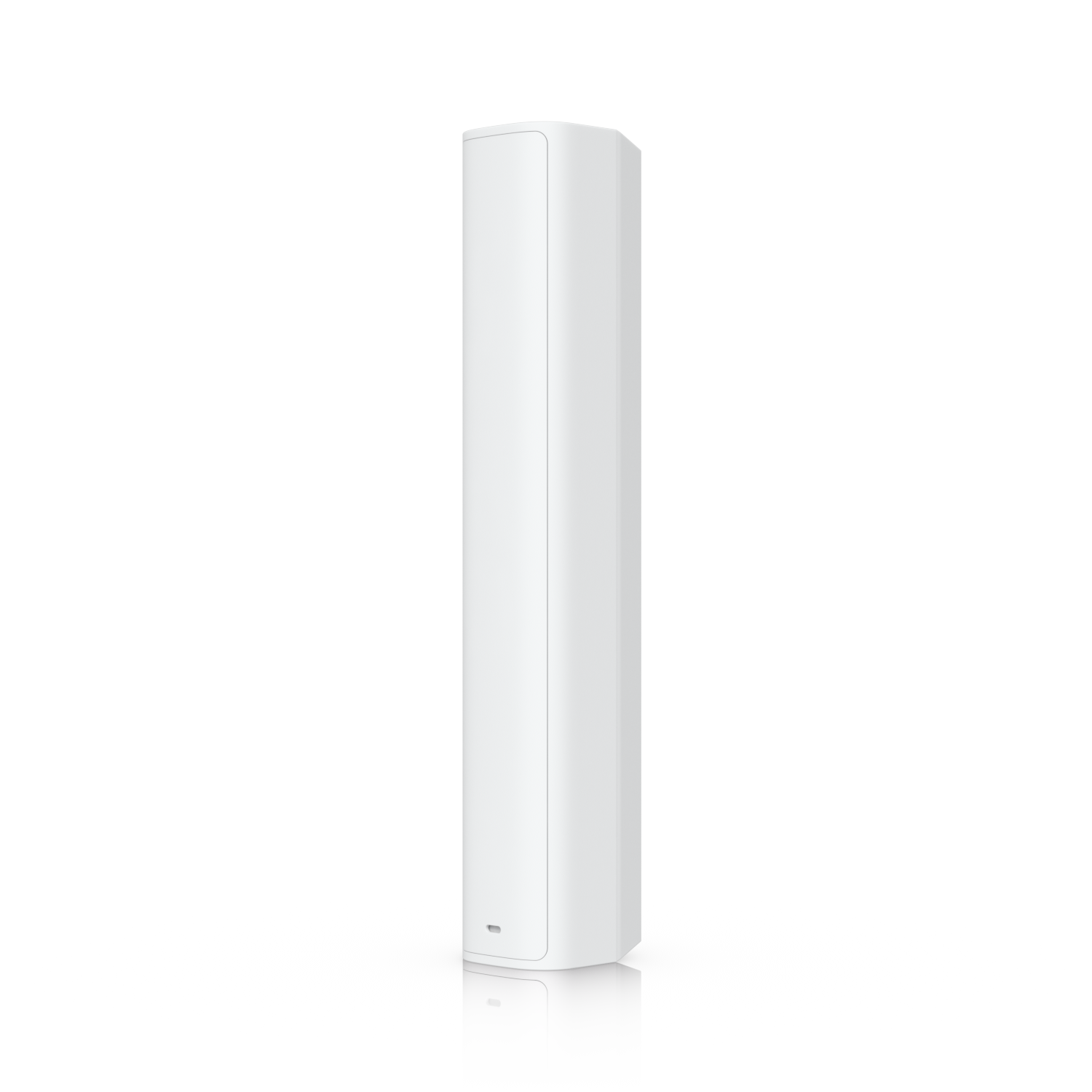

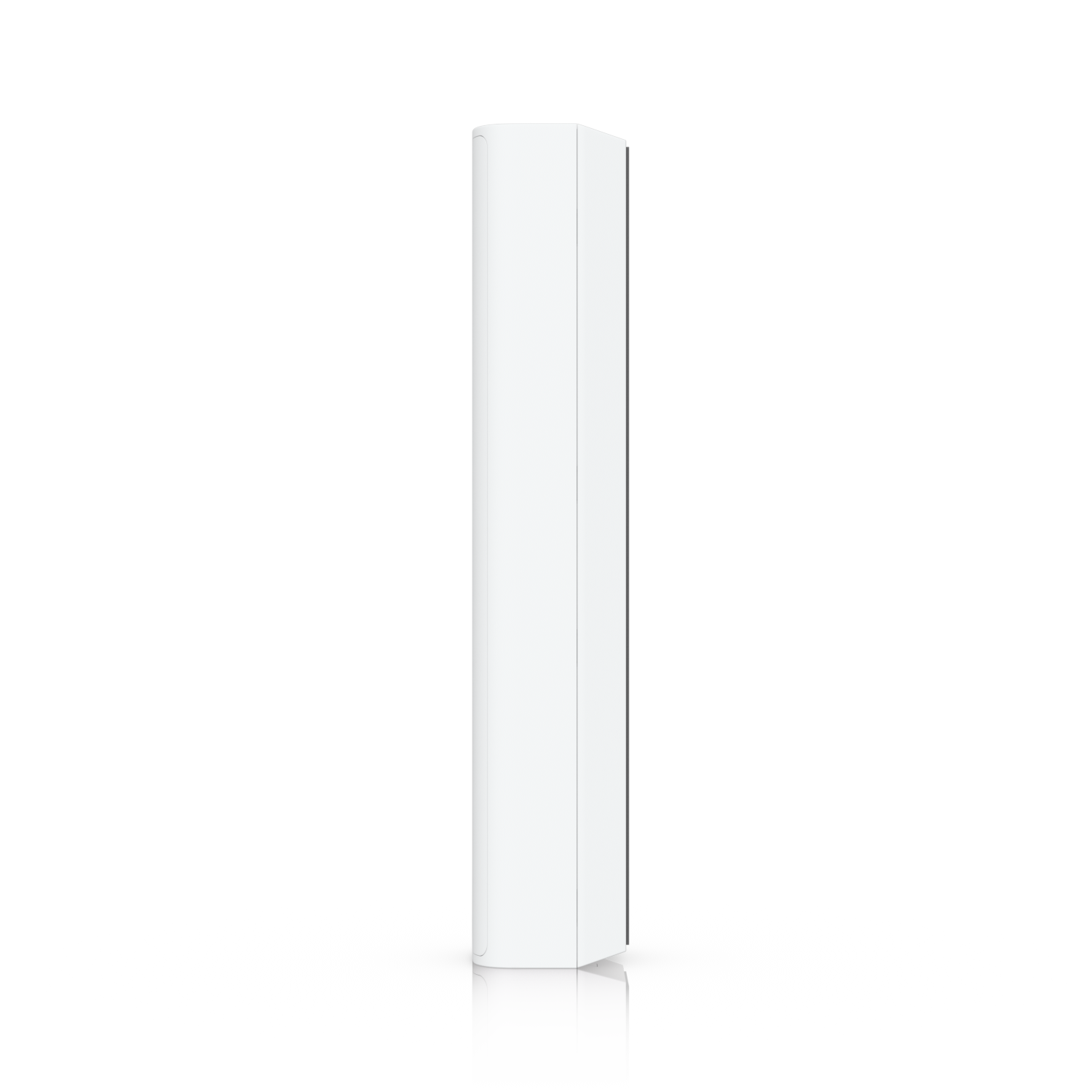

UniFi Glass Break Sensor
Rafhlöðuknúinn SuperLink skynjari með háþróaðri glerbrotsgreiningu og hreyfiskynjun.
Þrívídd og myndbönd
Tækni
Tæknilegir eiginleikar
Upplýsingar úr ETIM gögnum framleiðanda. Vantar þig meira? Hafðu samband við tækniráðgjöf okkar.
| Dimensions | Device with wall mount: 134.5 x 22.5 x 24.8 mm (5.3 x 0.9 x 1") Device with corner mount: 134.5 x 22.5 x 27.9 mm (5.3 x 0.9 x 1.1") |
|---|---|
| Microphone | Yes |

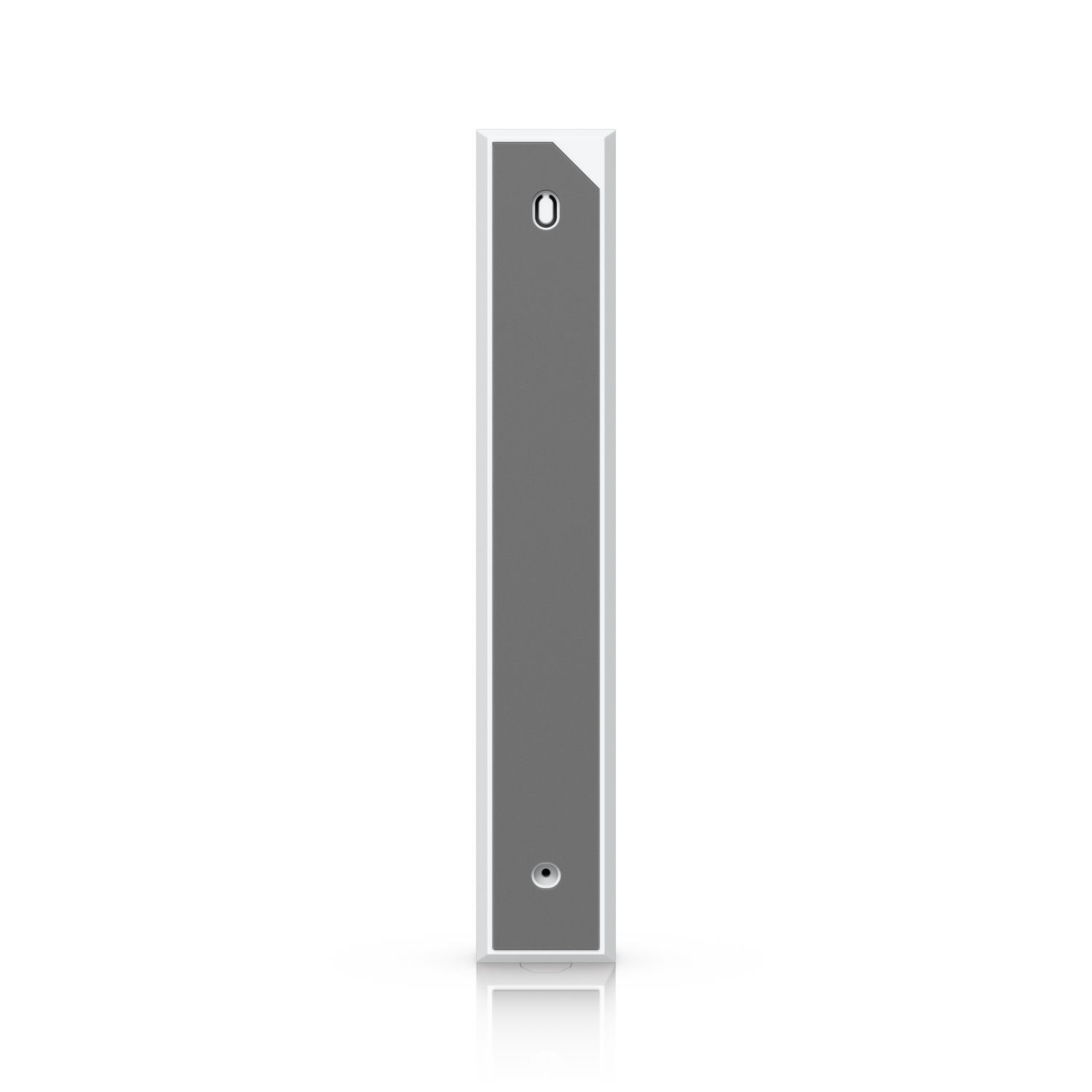

| Mounting | Adhesive and screw mount |
| UniFi Application Suite | Protect |
| Connectivity | SuperLink (Proprietary) |
| Operating Frequency: US | 915.6–927.6 MHz |
| Operating Frequency: EU | 865.1–869.5 MHz |
| Max. TX Power: SuperLink | 14 dBm |
| Max. Range: SuperLink | 2 km (1.2 mi) (Line of Sight (LOS)) |
| Sensor Features: PIR Sensor | Yes |
| Detected Glass Type | Plate, tempered, obscured, laminated, coated, wired Size: 280 x 356 mm (11 x 14") to 1067 x 1626 mm (42 x 64”) Thickness: 2.4 mm (3/32"), 4.8 mm (3/16"), 3.2 mm (1/8"), 6.4 mm (1/4") |
| Max. Power Consumption | 0.2W |
| Supported Voltage Range | 3V |

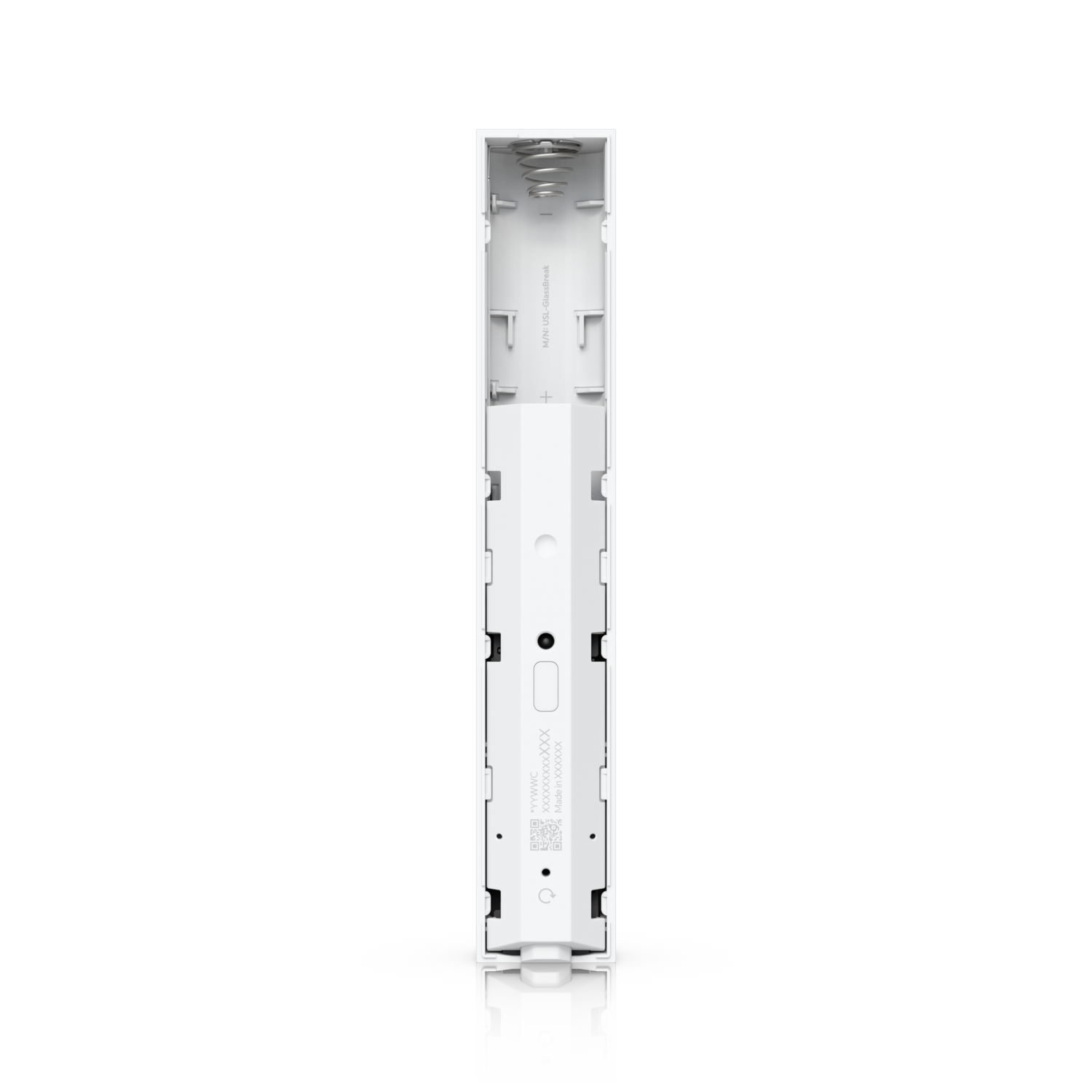

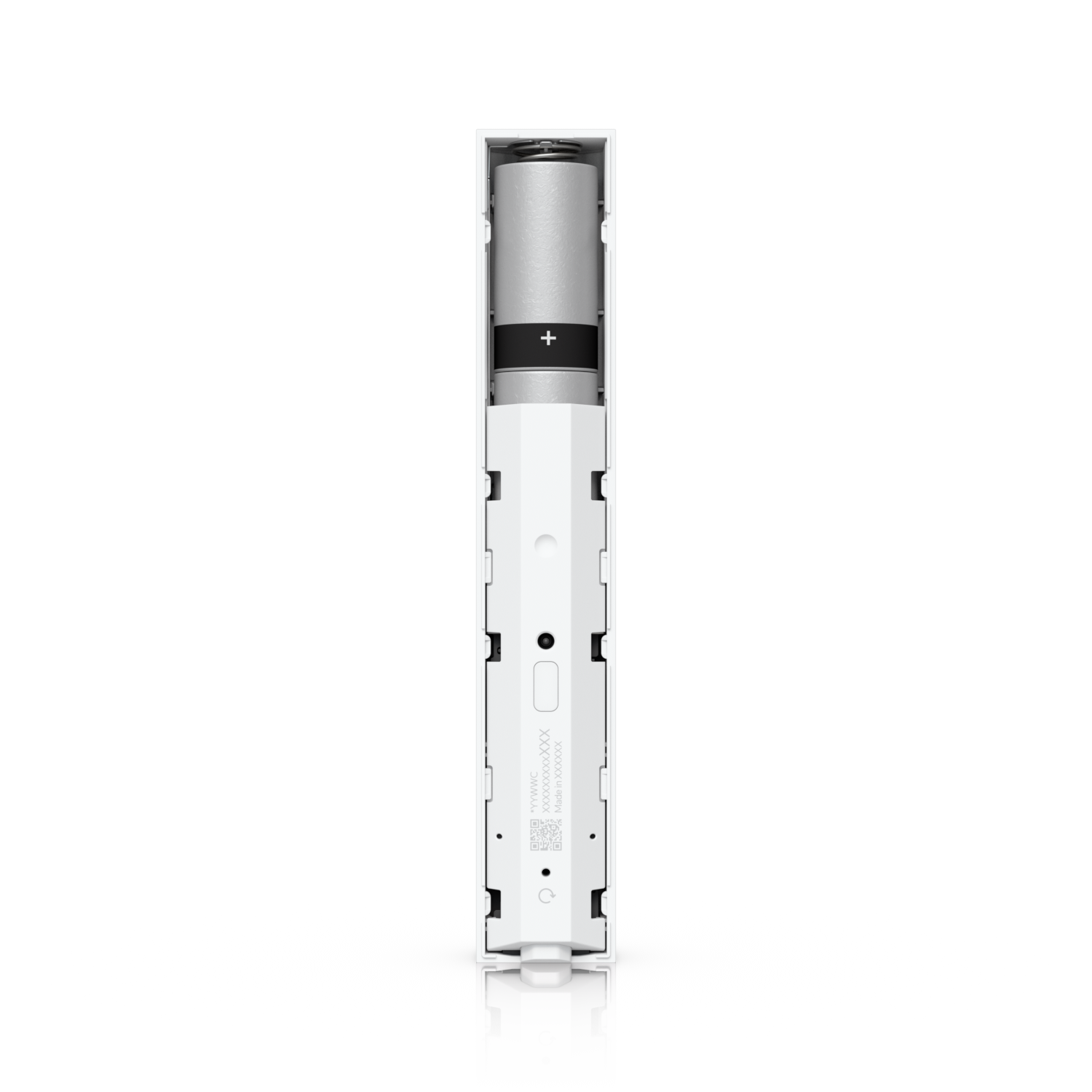

| Power Method | (2) Lithium battery CR123A |
| Battery Life | Up to 3 years |
| Weight | With mount and batteries: 70 g (2.5 oz) |
| Enclosure Material | Polycarbonate |
| Mount Material | Polycarbonate |
| Buttons | (1) Function button (1) Factory reset (1) Tamper switch |
| LEDs | (1) Status: R/B/W (1) Signal: B/R |
| Ambient Operating Temperature | 0 to 40° C (32 to 104° F) |
| Ambient Operating Humidity | 10 to 90% noncondensing |
| Certifications | FCC, IC, CE |
| NDAA Compliant | Yes |
| Application Requirements: Web Application | UniFi Protect |
| Application Requirements: Mobile App | UniFi Protect iOS™ and Android™ |
