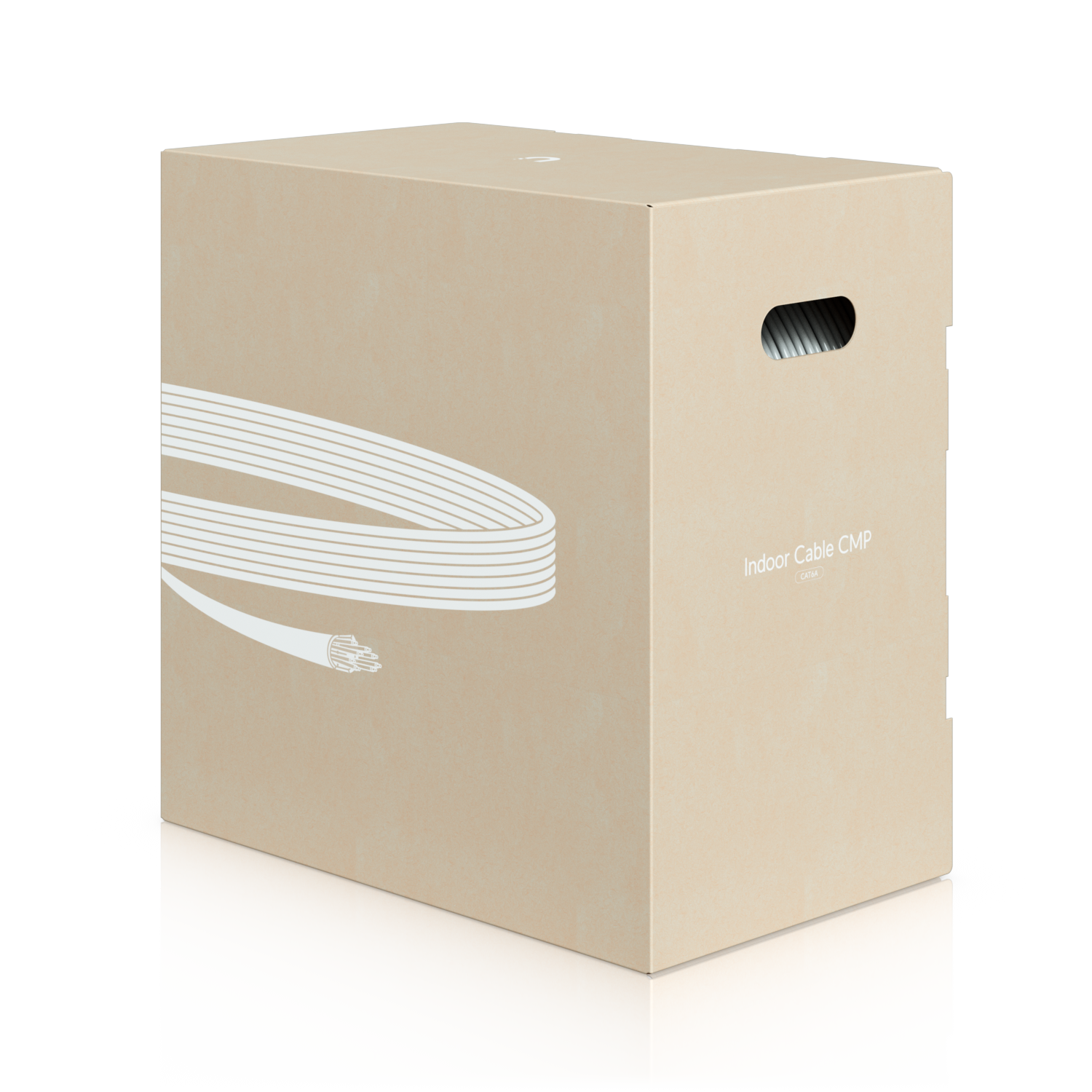

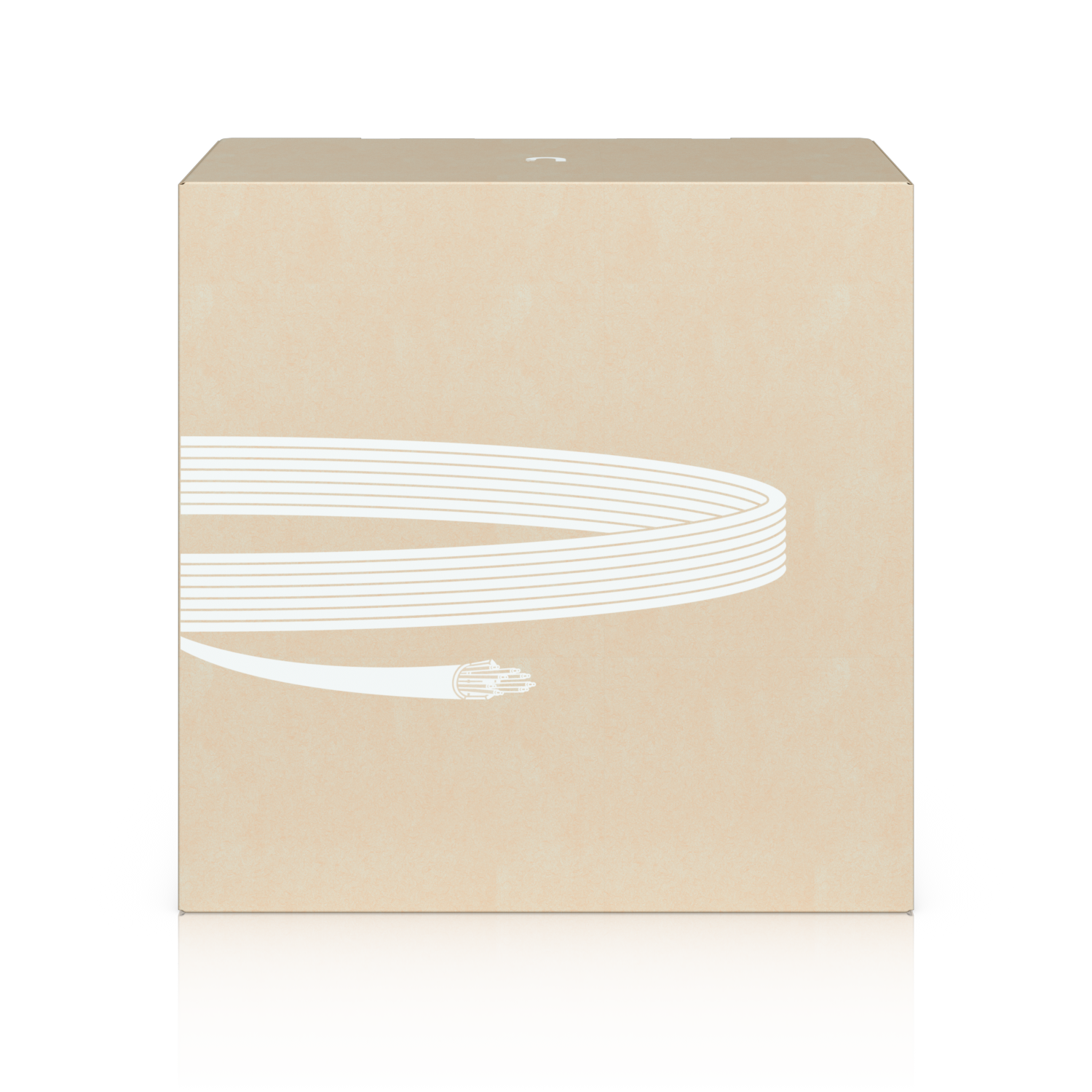

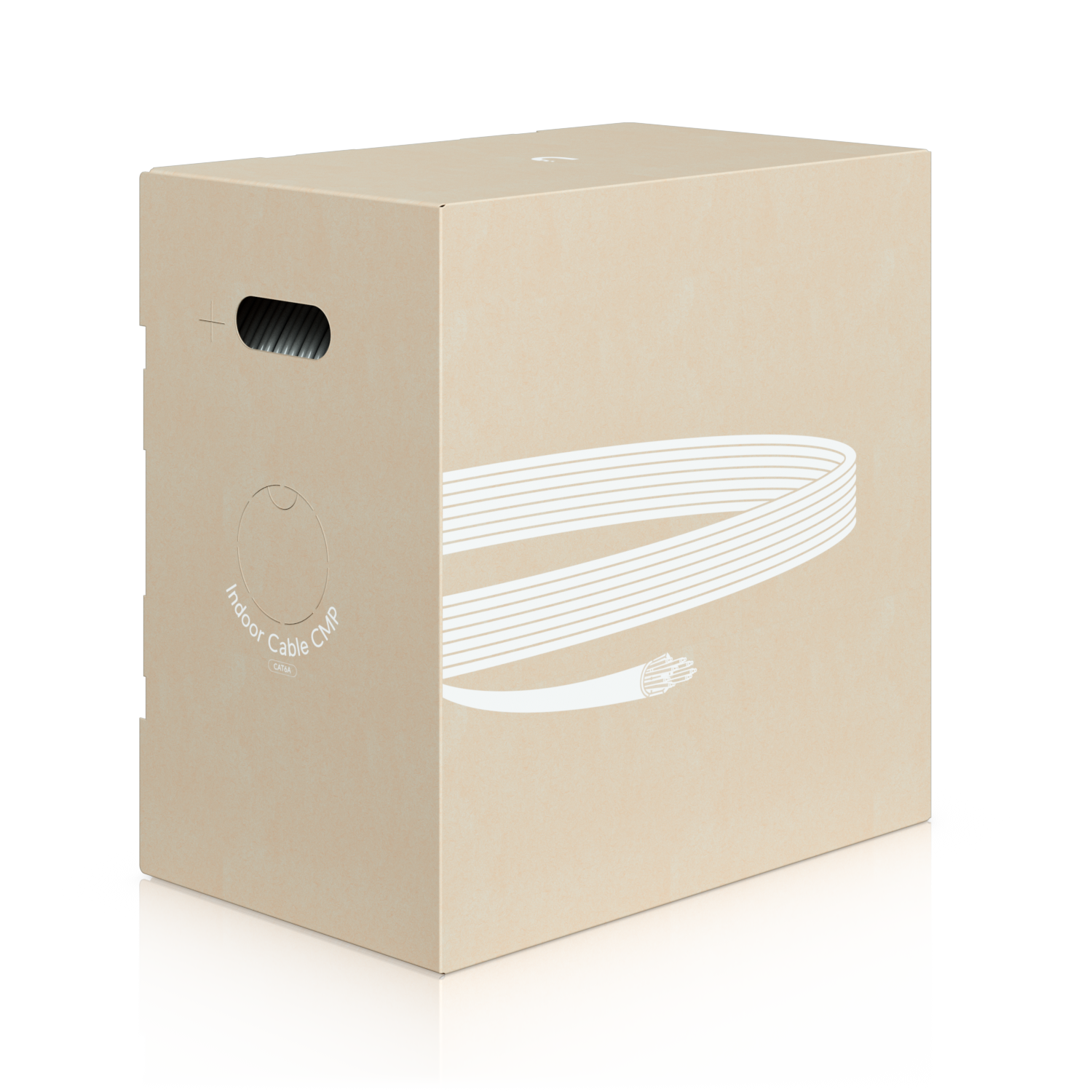

UniFi Indoor Cable Cat6A CMP
Category 6A Ethernet kapall fyrir hraðvirkar uppsetningar í umhverfi sem krefst plenum-vottaðrar kapalvæðingar.
- Category 6A UTP fjölnota fjarskiptakapall
- Plenum (CMP)-vottuð, eldþolin slíður
- Yfirheyrsluvarnar skilrúm
- Kapallengd 305 m
Þrívídd og myndbönd
Tækni
Tæknilegir eiginleikar
Upplýsingar úr ETIM gögnum framleiðanda. Vantar þig meira? Hafðu samband við tækniráðgjöf okkar.
| Length | 305 m (1,000 ft) |
|---|---|
| Type | Category 6A |
| Flame Rating | CMP |
| Operating Environment | Indoor |
| Box Dimensions | 494 x 302 x 481 mm (19.4 x 11.9 x 18.9") |
| Box Weight | 21.3 kg (47 lb) |
| Cable: Jacket Color | White |
| Cable: Jacket Diameter | 6.7 ±0.2 mm |
| Cable: Jacket Material | Flame retardant polyvinyl chloride (FRPVC) |
| Cable: Shielding Type | UTP |
| Cable: Conductor Type | Solid bare copper |
| Cable: Conductor Wire Gage | 23 AWG |
| Cable: Bend Radius | Min. 26.8 mm (1.05 '') |
| Cable: Twisting | 4 Twisted pairs with color code. Pair 1: white-blue / blue Pair 2: white-orange / orange Pair 3: white-green / green Pair 4: white-brown / brown |
| Anti-Crosstalk Divider | Yes |
| Ripcord | Yes |
| Standards: Electrical Transmission | ANSI/TIA -568.2-D ISO/IEC 11801-1 (Edition 2.2) IEC 61156-5 (Edition 2.1) |
| Standards: Flame Test | NFPA 262 (CMP) |
| Standards: Material and Construction | UL 444 CSA 22.2 NO.214 EU Directive 2011/65/EU (RoHS2) EU Directive 2006/95/EC (LVD) |
| Installation Temperature | 0 to 60°C (32 to 140°F) |
| Ambient Storage Temperature | -20 to 75°C (-4 to 167°F) |
| Ambient Operating Temperature | -20 to 75°C (-4 to 167°F) |
Engin skjöl skráð á þessa vöru.
