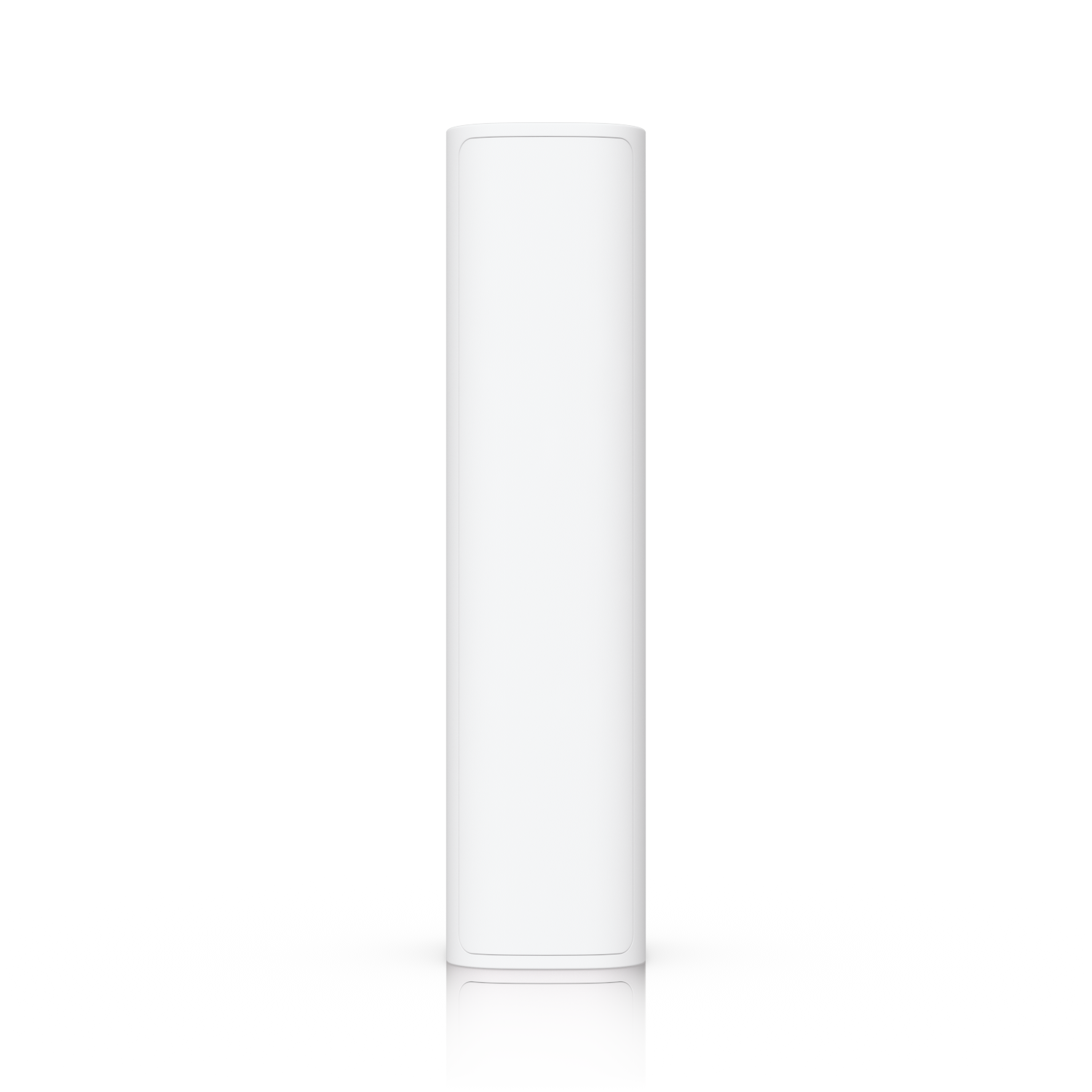

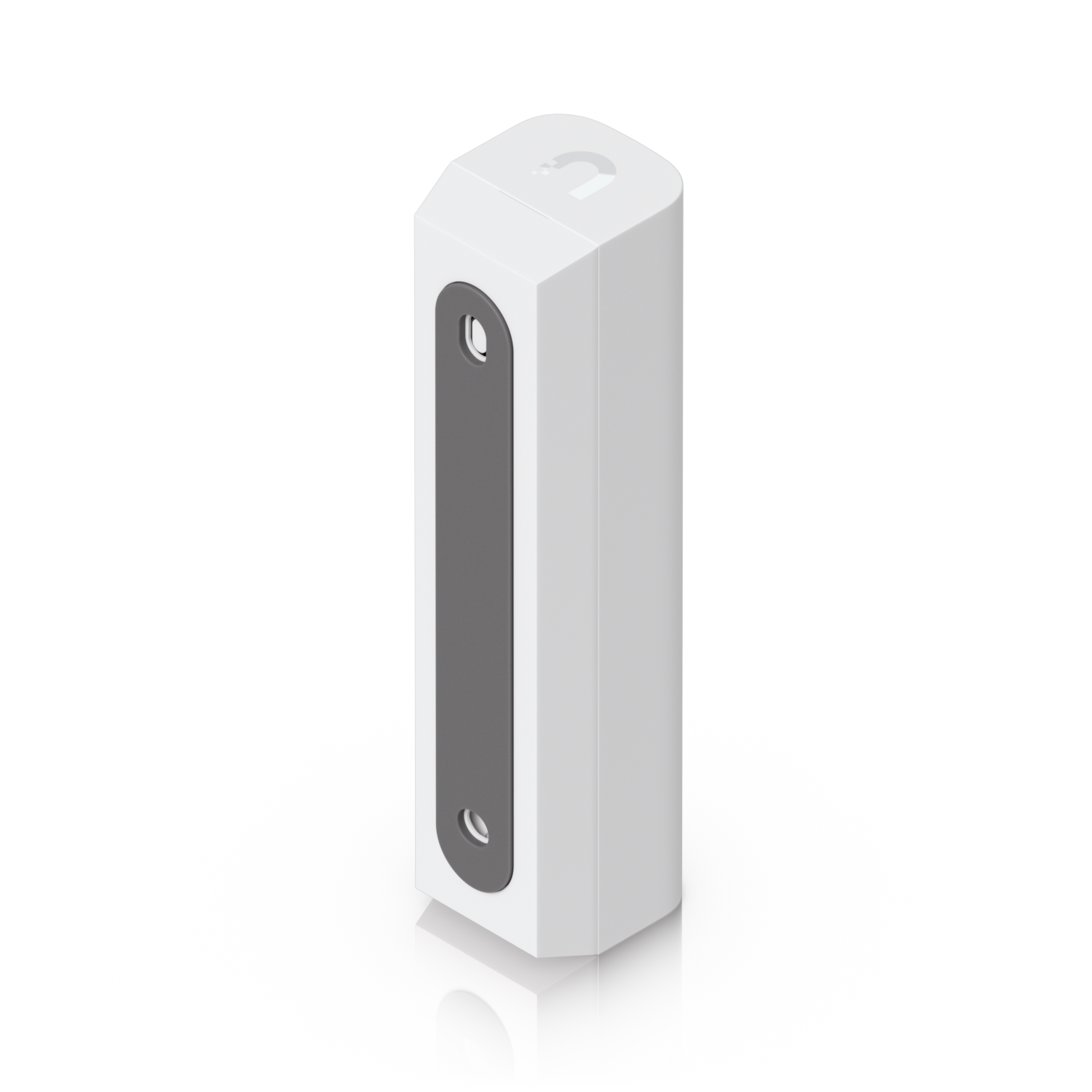

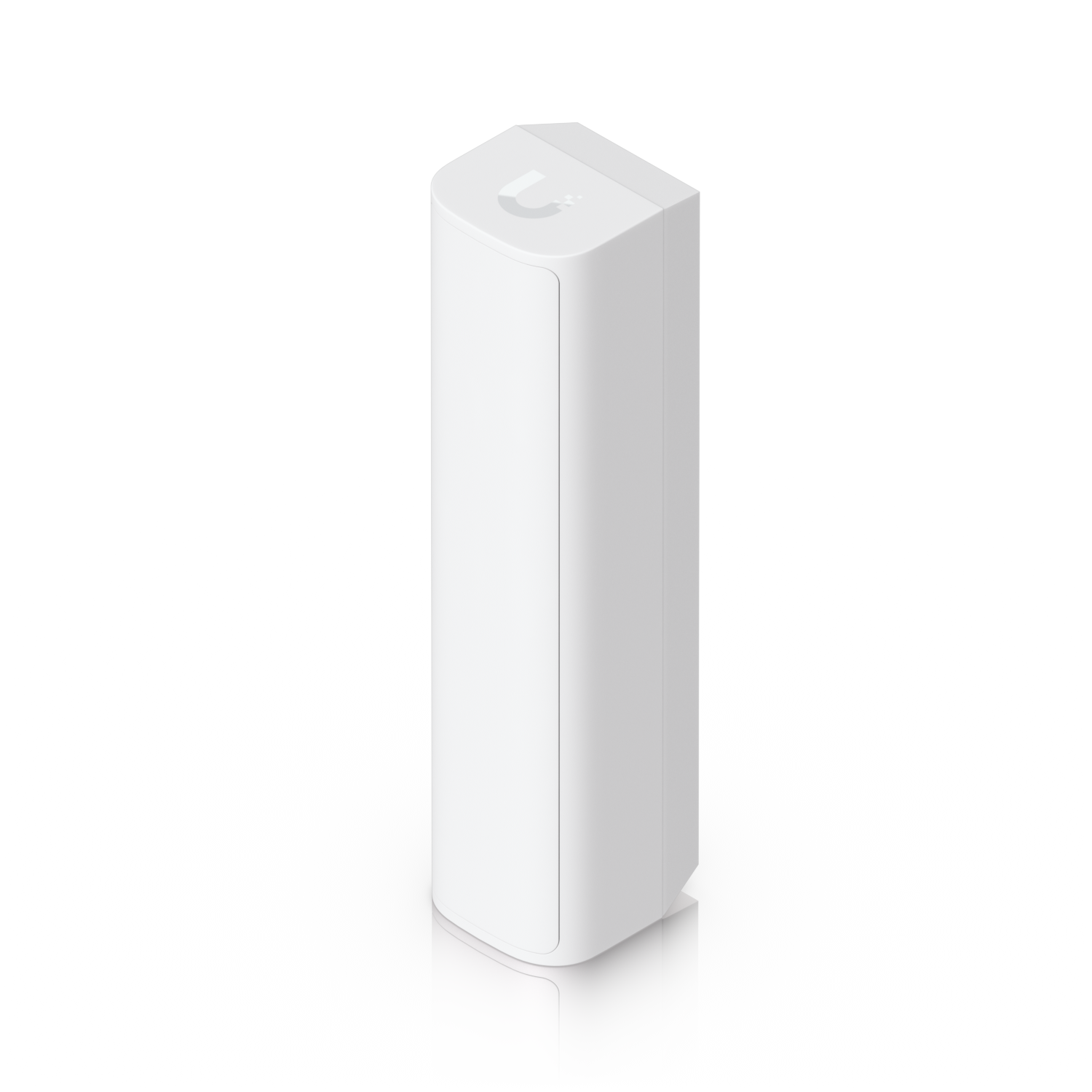

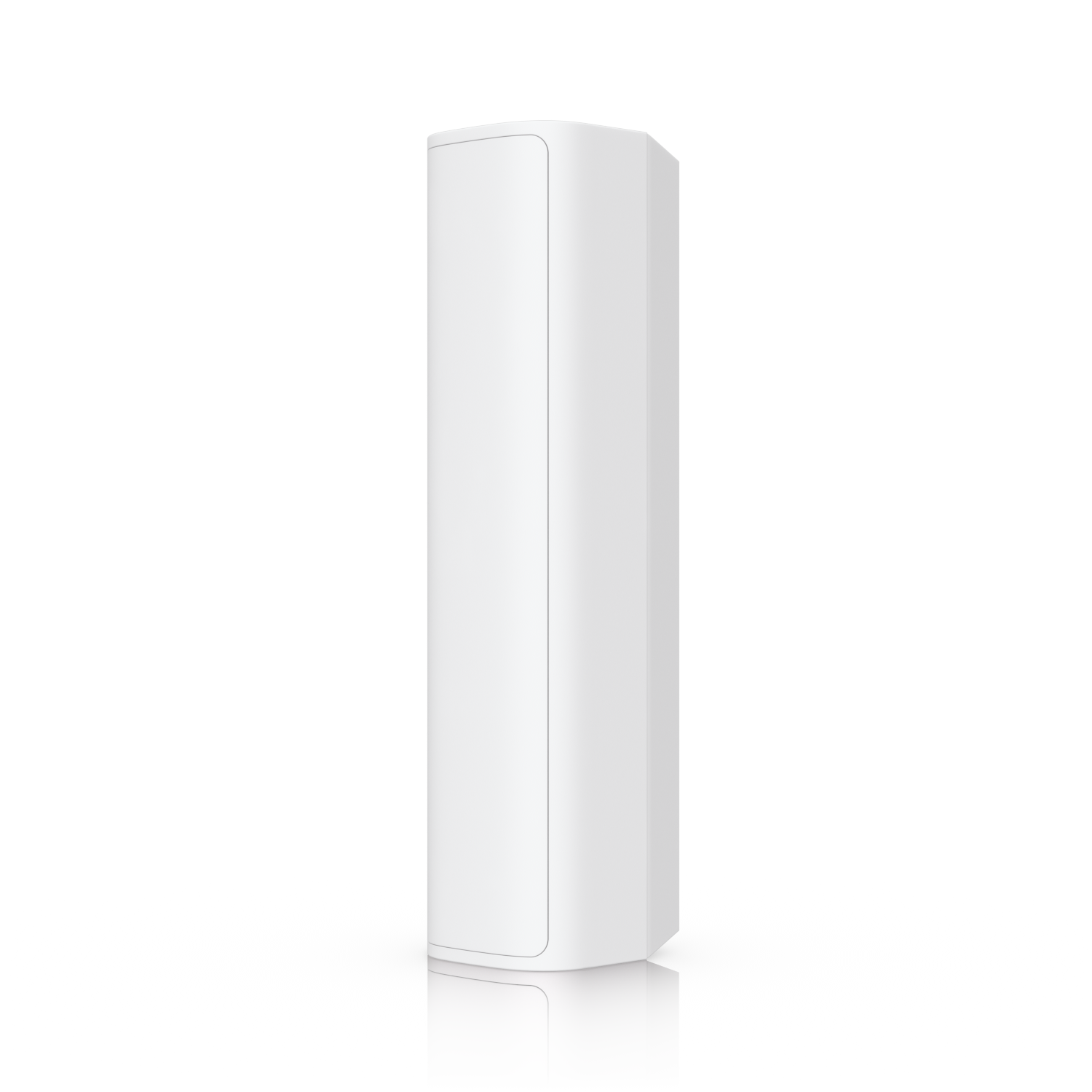

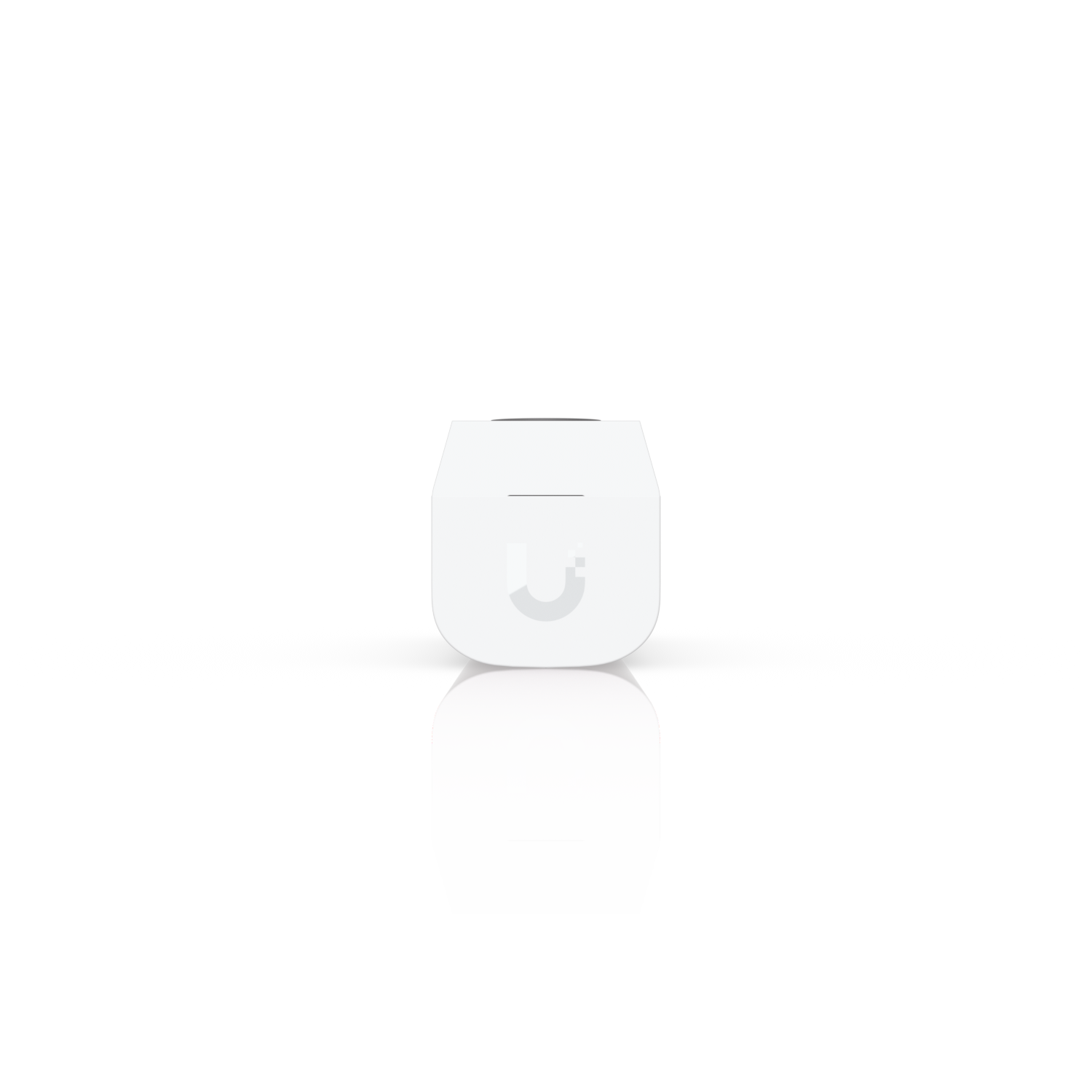

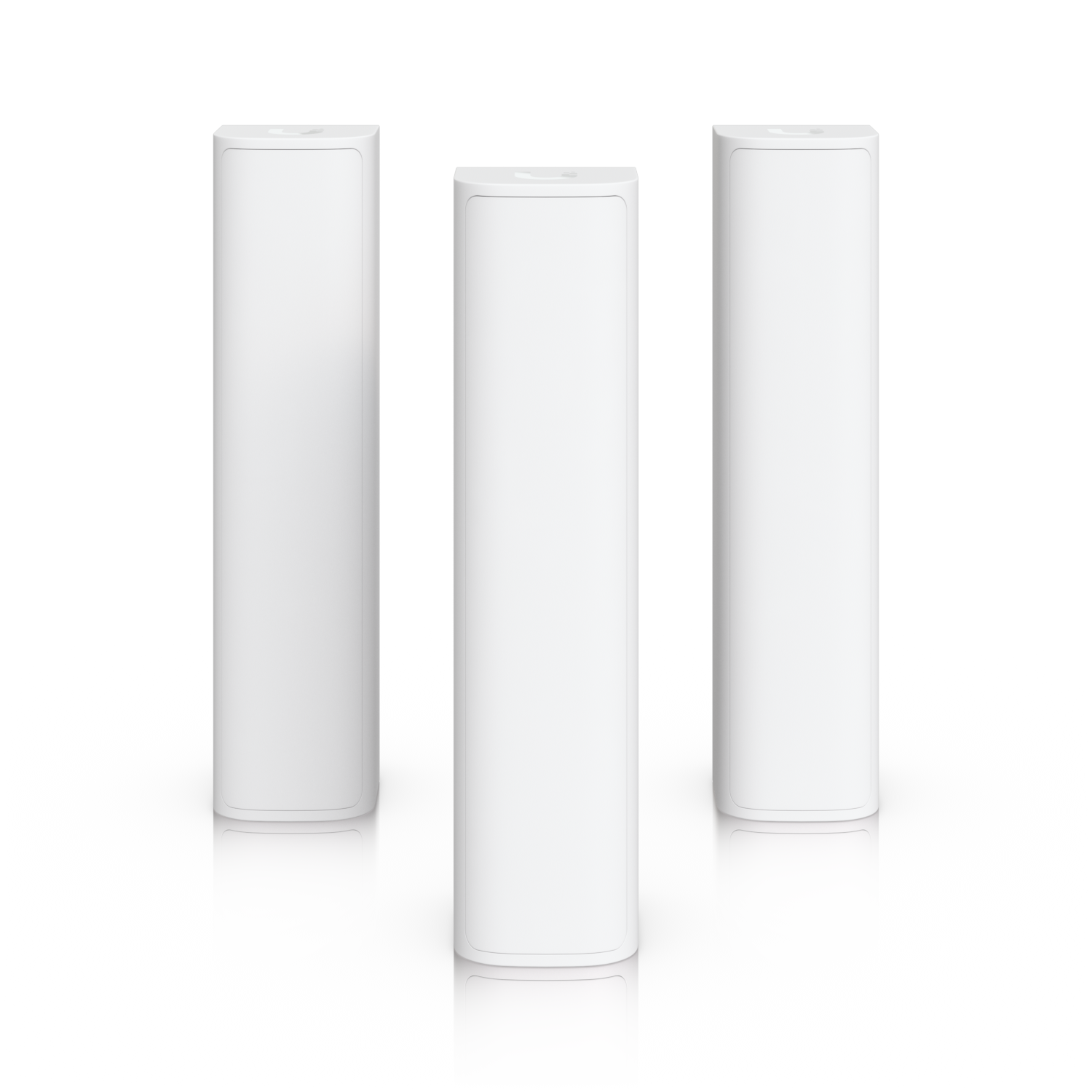

UniFi Motion Sensor
SuperLink hreyfiskynjari hannaður fyrir fjölhæfa uppsetningu, með allt að 6 ára rafhlöðuendingu.
Þrívídd og myndbönd
Tækni
Tæknilegir eiginleikar
Upplýsingar úr ETIM gögnum framleiðanda. Vantar þig meira? Hafðu samband við tækniráðgjöf okkar.
| Dimensions | Device with wall mount: 93.5 x 22.5 x 24.7 mm (3.7 x 0.89 x 0.97") Device with corner mount: 93.5 x 22.5 x 27.9 mm (3.7 x 0.89 x 1.1") |
|---|---|

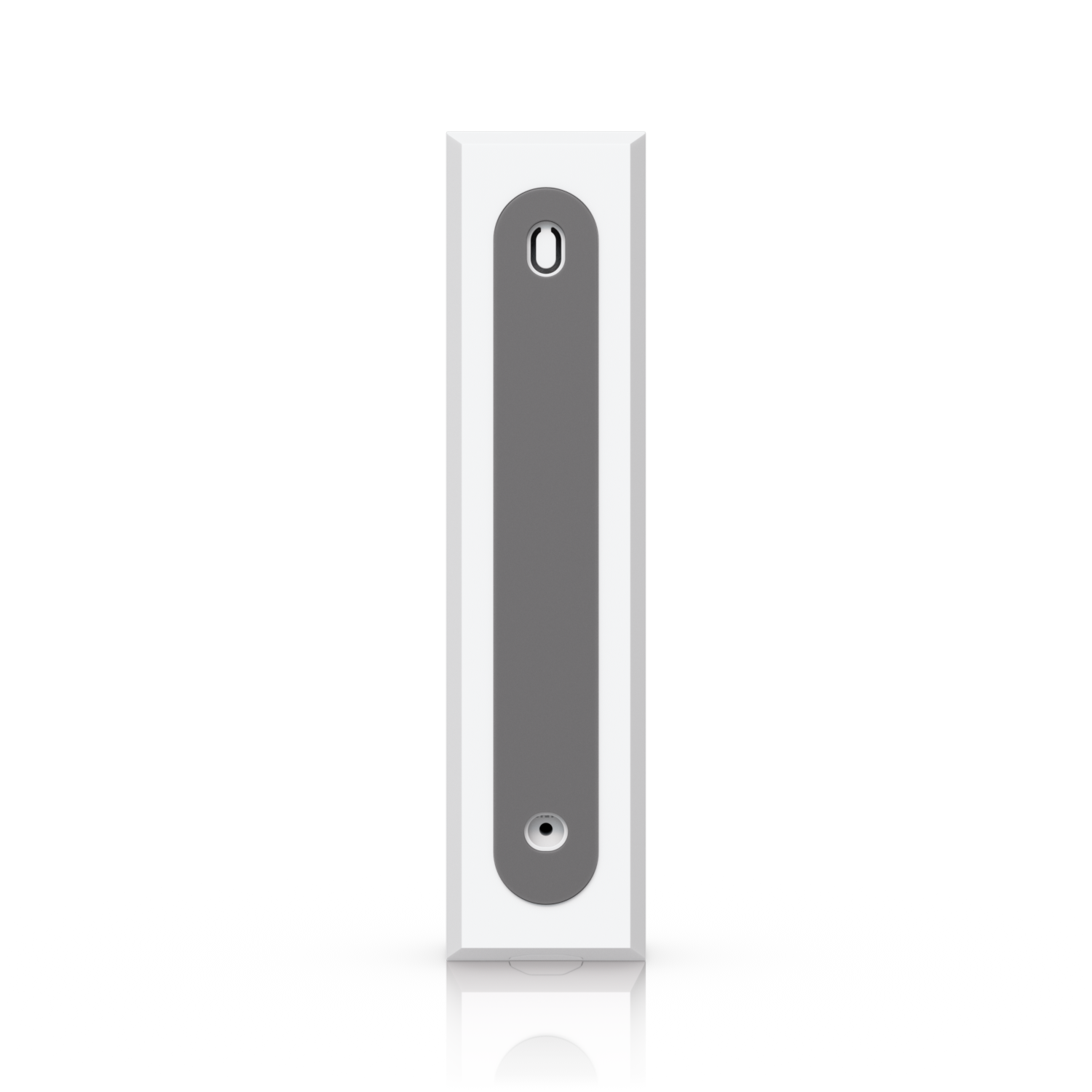

| Mounting | Adhesive and screw mount |
| UniFi Application Suite | Protect |
| Connectivity | SuperLink (Proprietary) |
| Operating Frequency: SuperLink | US: 915.6–927.6 MHz EU: 865.1–869.5 MHz JP: 920.5–922.3 MHz |
| Max. TX Power: SuperLink | 14 dBm |
| Max. Range: SuperLink | 2 km (1.2 mi) (Line of Sight (LOS)) |
| Sensor Features: Horizontal PIR Sensor | Detection range up to 1.5 m (4.9 ft) |
| Sensor Features: Vertical PIR Sensor | Detection range up to 6 m (19.7 ft) with pet immunity |
| Max. Power Consumption | 22.6mW |
| Supported Voltage Range | 3V |

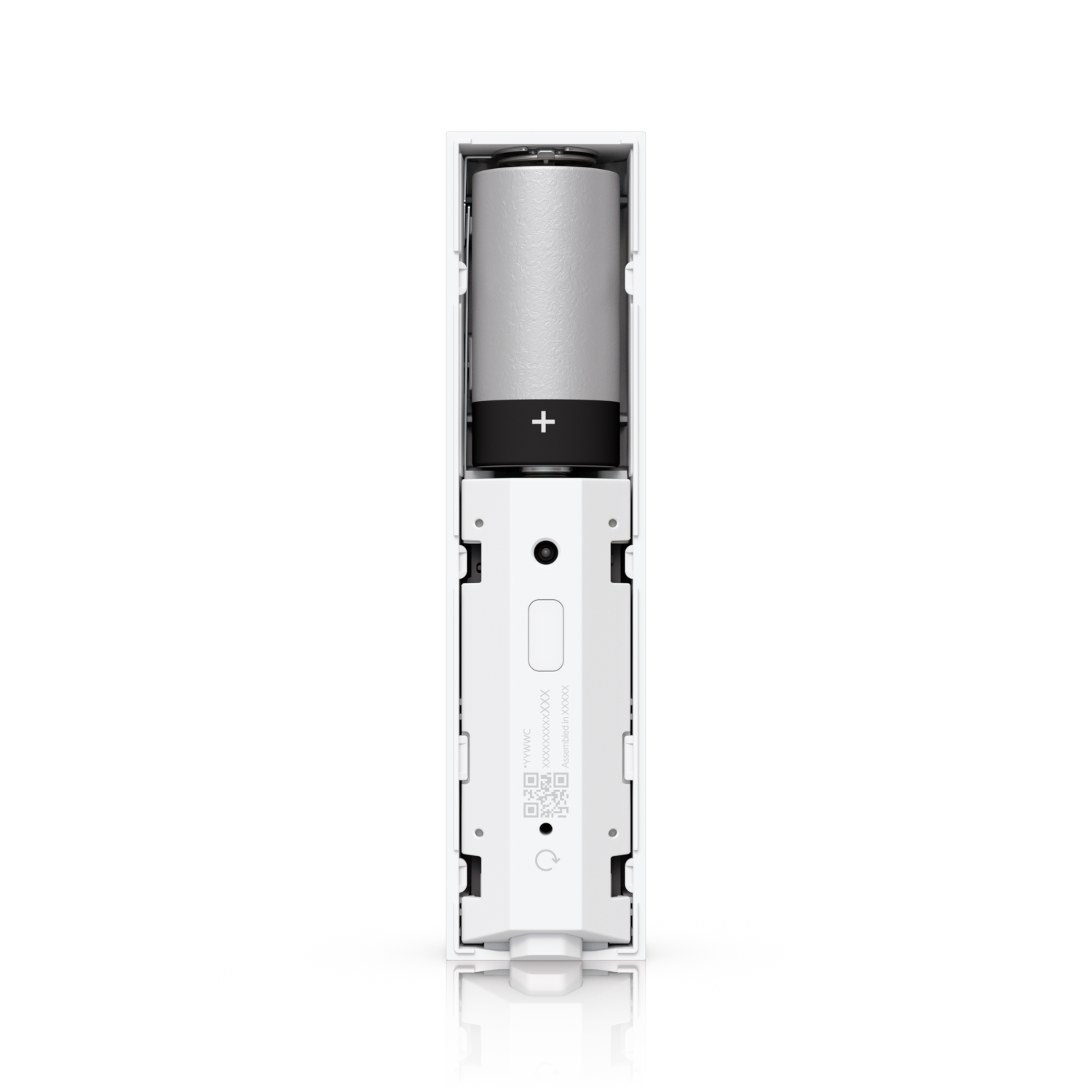

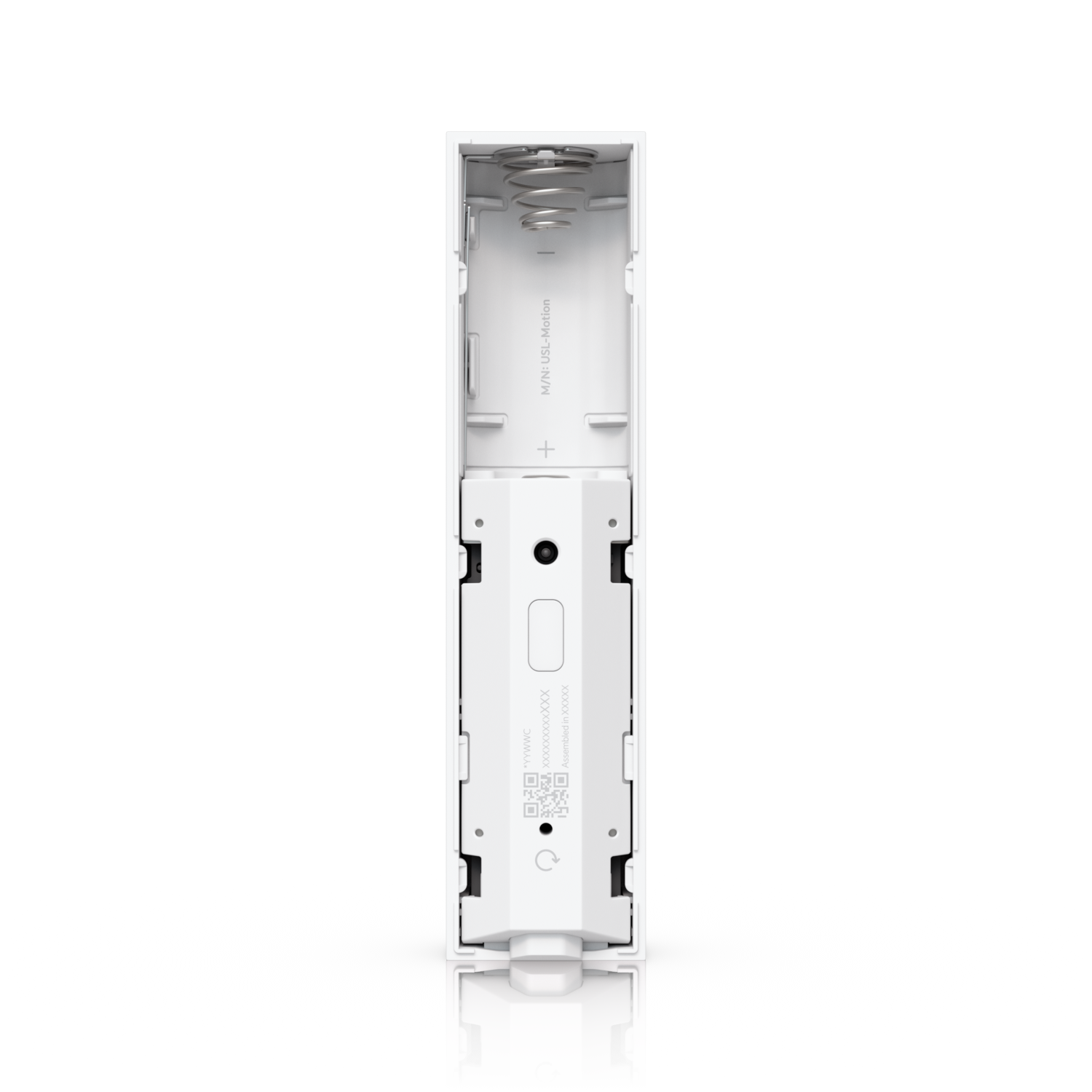

| Power Method | Lithium battery CR123A |
| Battery Life | Up to 6 years |
| Weight | 45 g (1.6 oz) |
| Enclosure Material | Polycarbonate, high-density polyethylene (HDPE) |
| Mount Material | Polycarbonate |
| Buttons | (1) Factory reset (1) Function button (1) Tamper switch |

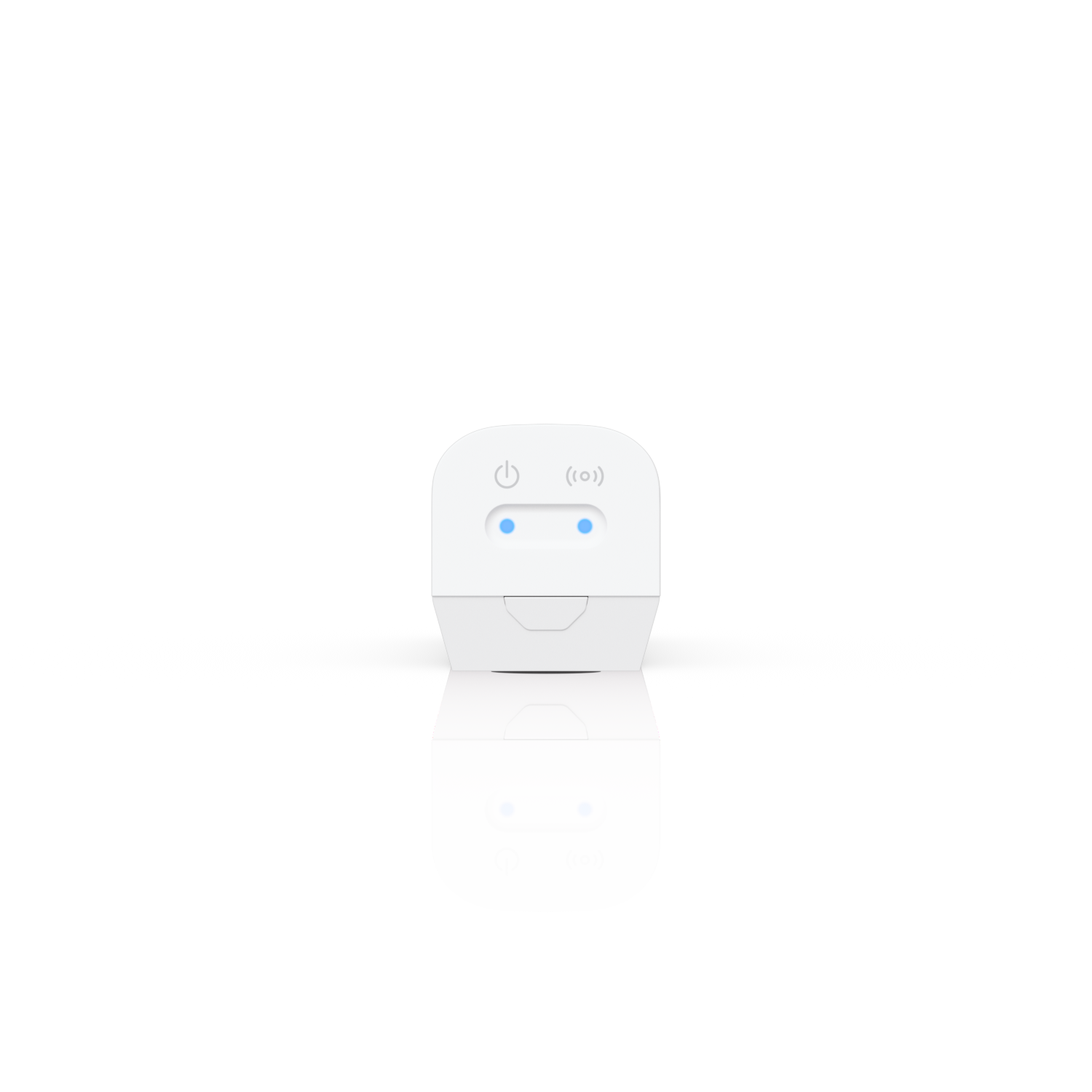

| LEDs | (1) Status: R/B/W (1) Signal: B/R |
| Ambient Operating Temperature | 0 to 40° C (32 to 104° F) |
| Ambient Operating Humidity | 10 to 90% noncondensing |
| Certifications | FCC, IC, CE |
| NDAA Compliant | Yes |
| Application Requirements: Web Application | UniFi Protect |
| Application Requirements: Mobile App | UniFi Protect iOS™ and Android™ |
Engin skjöl skráð á þessa vöru.
