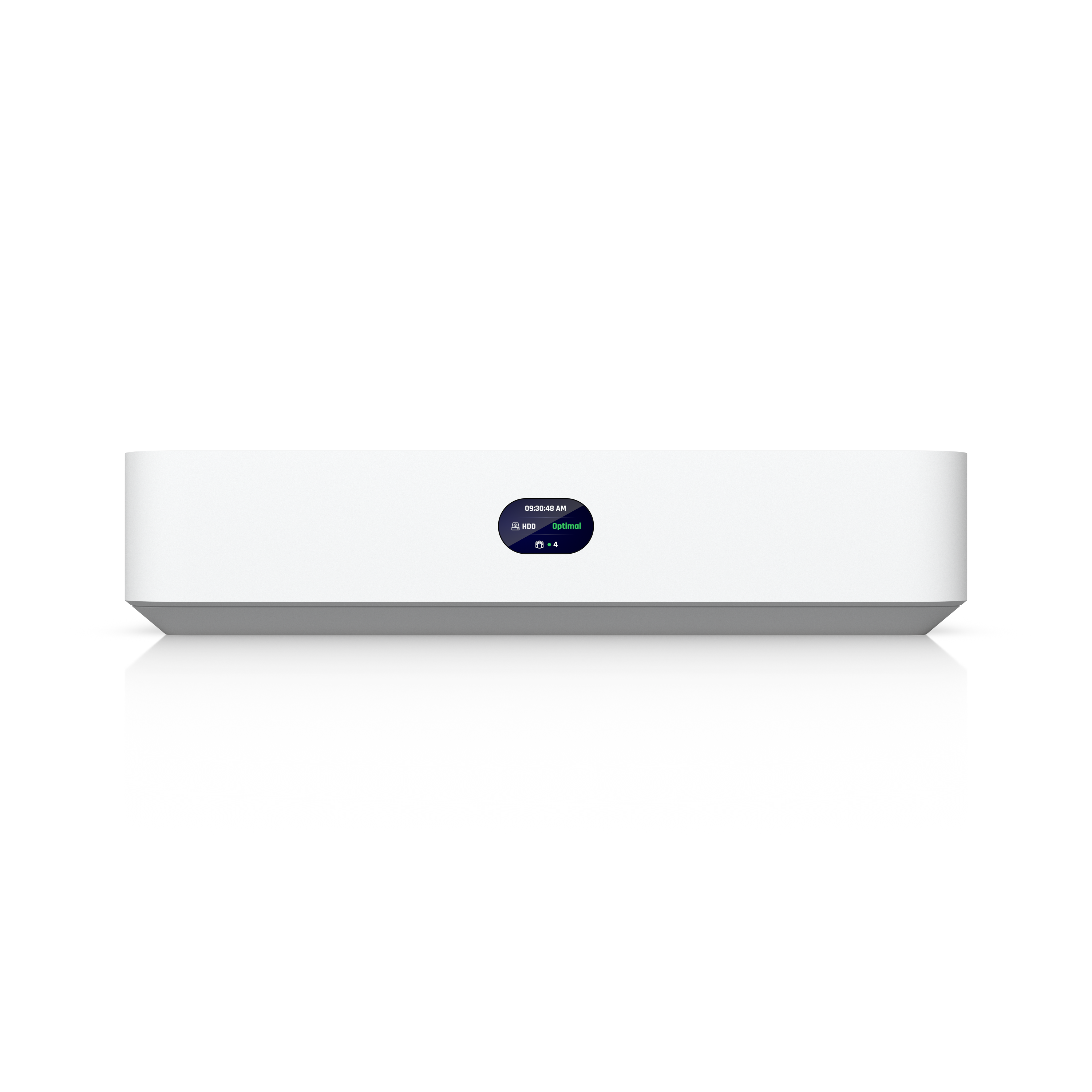

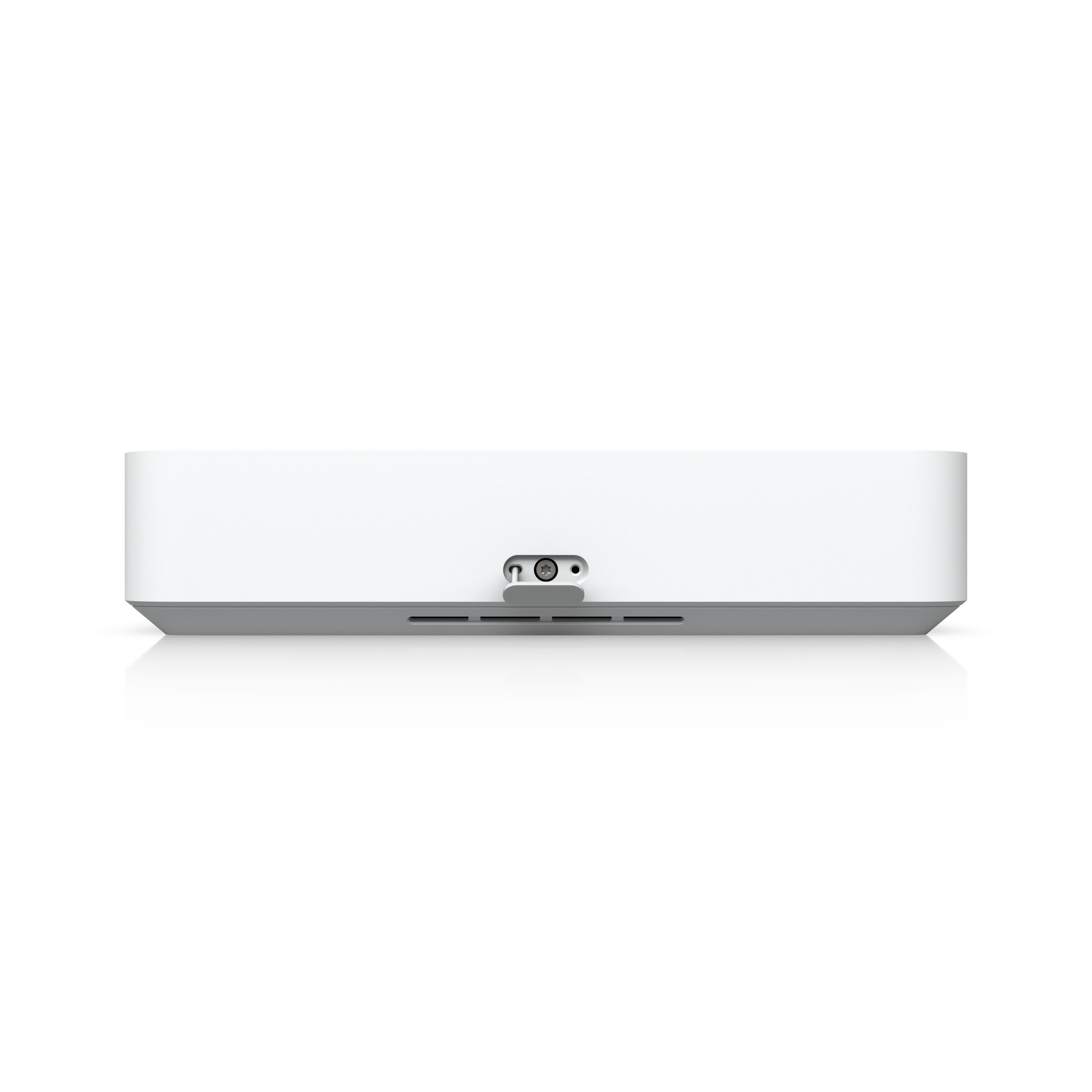

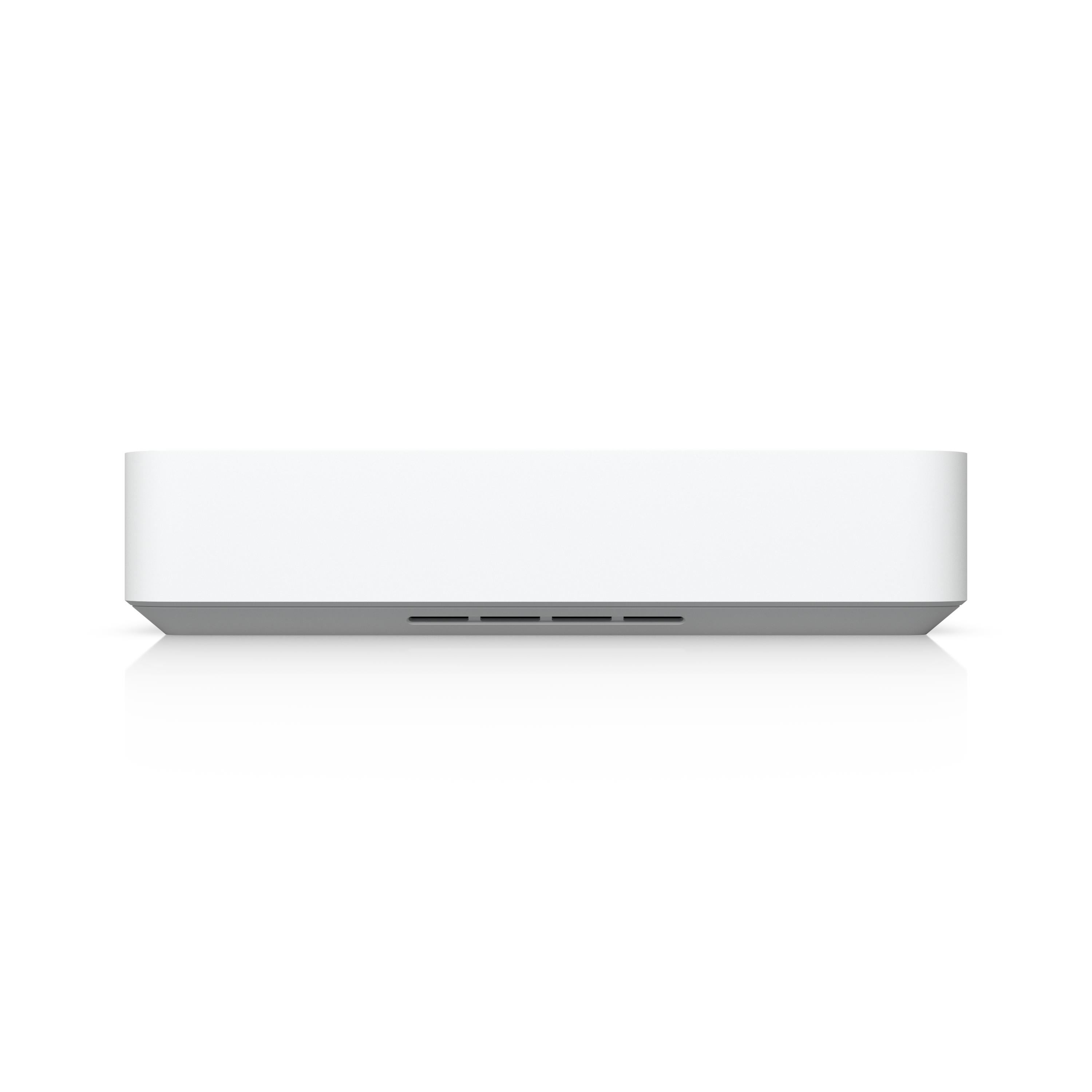

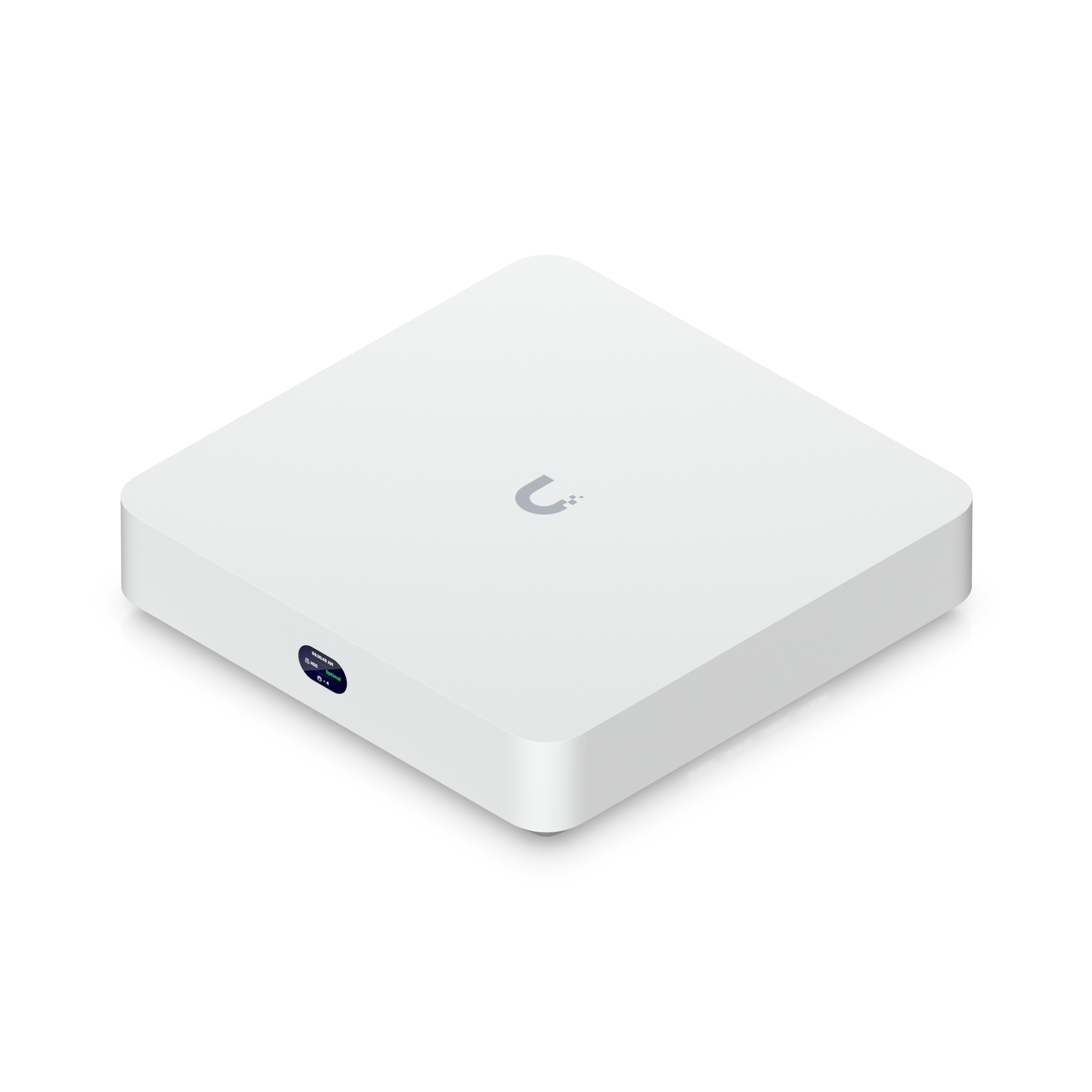

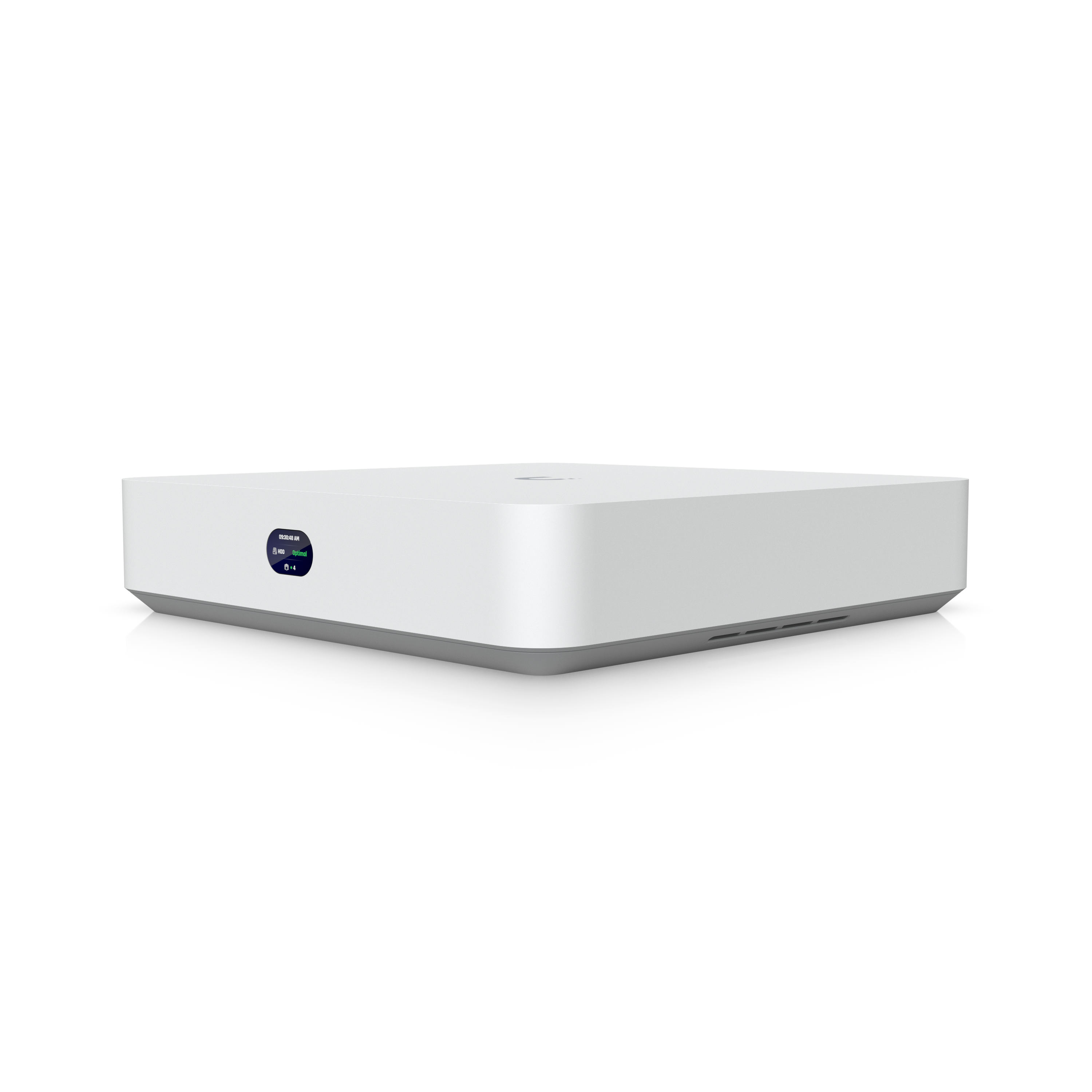

UniFi Network Video Recorder Instant
Þjappað UniFi Protect NVR með stuðningi fyrir 3.5" HDD, með innbyggðum 6-porta PoE rofa, innbyggðu HDMI View Port, og getu fyrir (6) 4K myndavélar eða (15) Full HD myndavélar.
Athugið. Krefst tengingar við Gateway eða Layer 3 rofa.
Þrívídd og myndbönd
Tækni
Tæknilegir eiginleikar
Upplýsingar úr ETIM gögnum framleiðanda. Vantar þig meira? Hafðu samband við tækniráðgjöf okkar.
| Dimensions | 220 x 220 x 47 mm (8.7 x 8.7 x 1.9") |
|---|---|
| Managed Cameras | (15) HD (8) 2K (6) 4K |
| Max. Simultaneous Viewport Streams | 6 4K cameras |
| Managed Access Hubs | 50 |

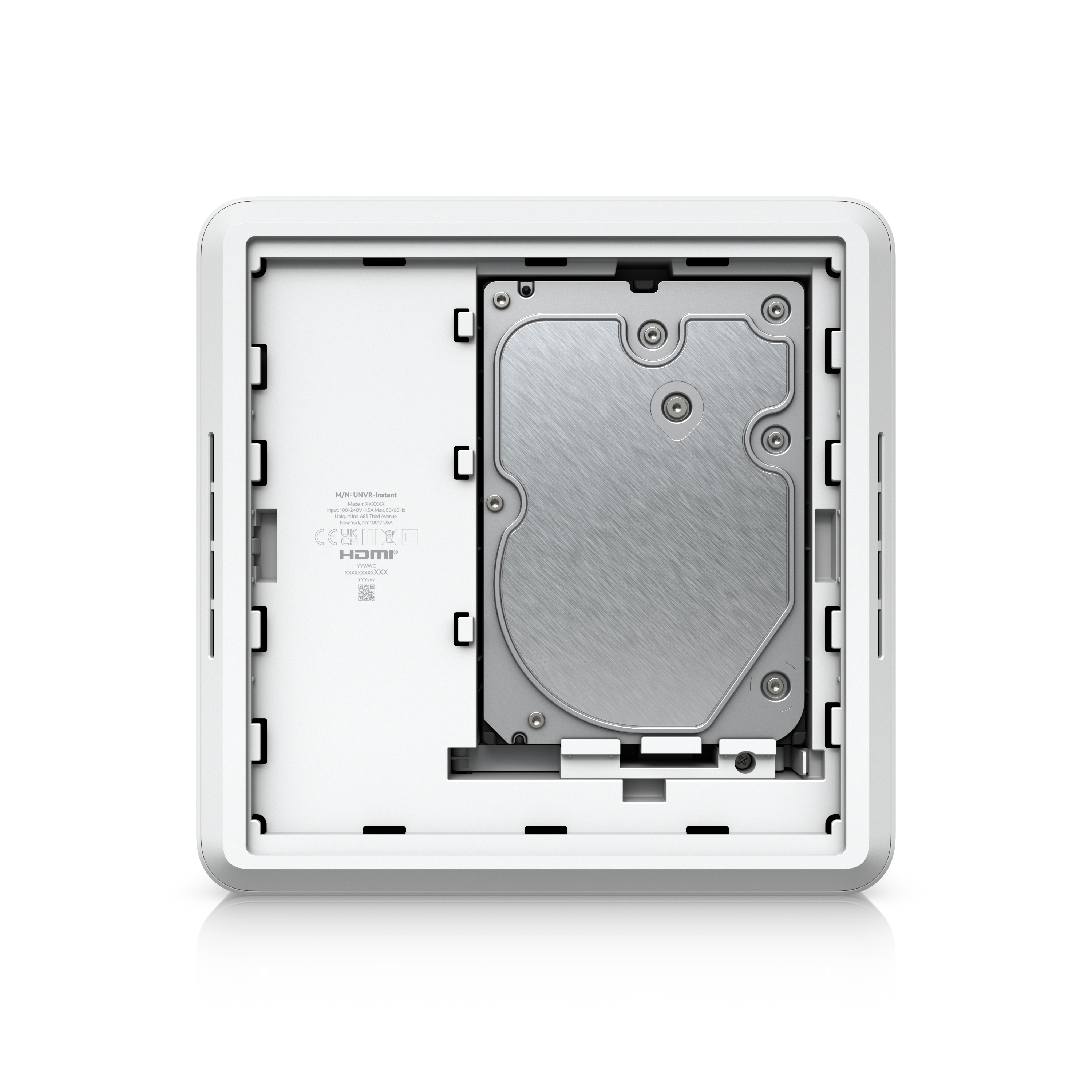

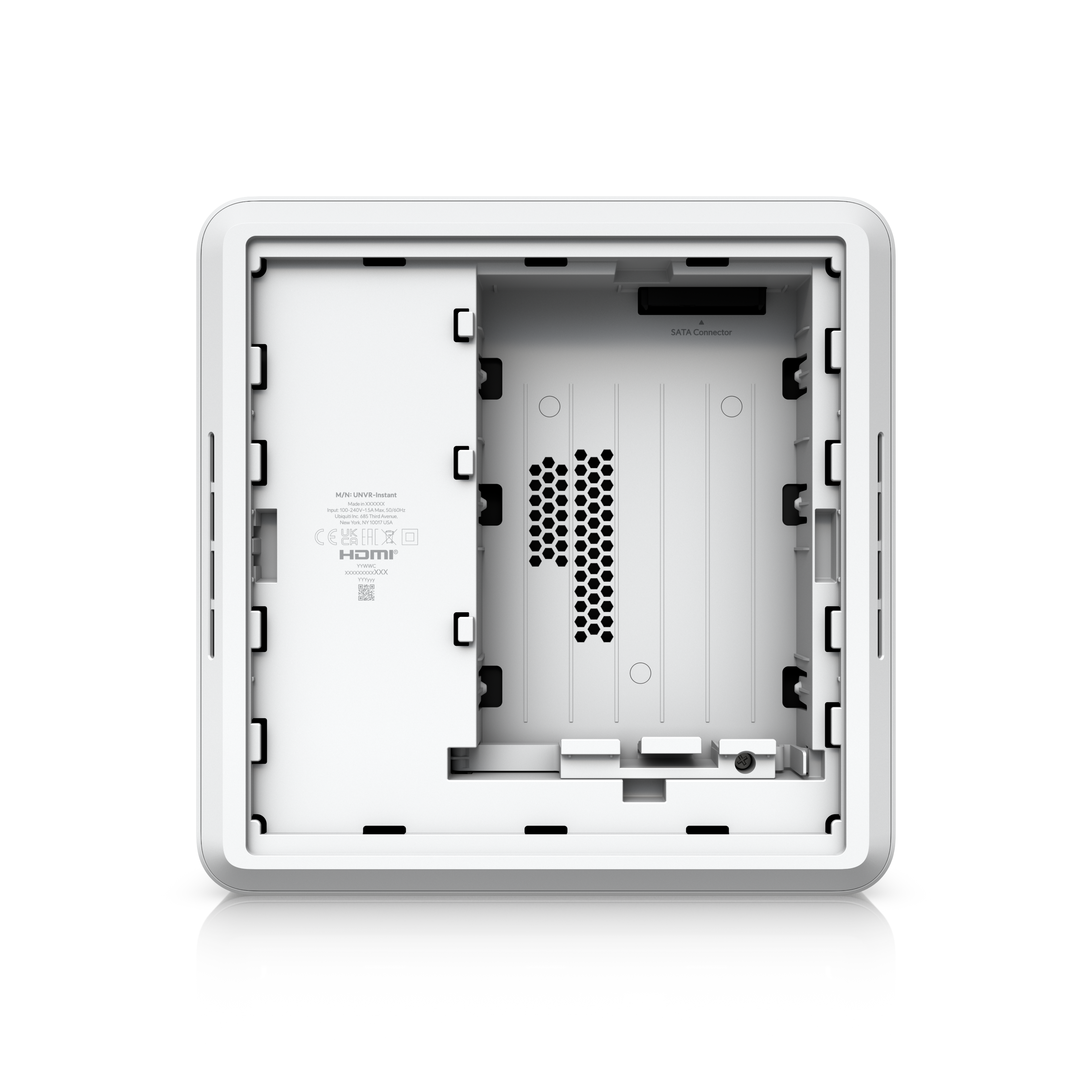

| Storage Capacity | (1) 3.5" drive bay |
| Data Protection | Yes |
| Vantage Point | Yes |

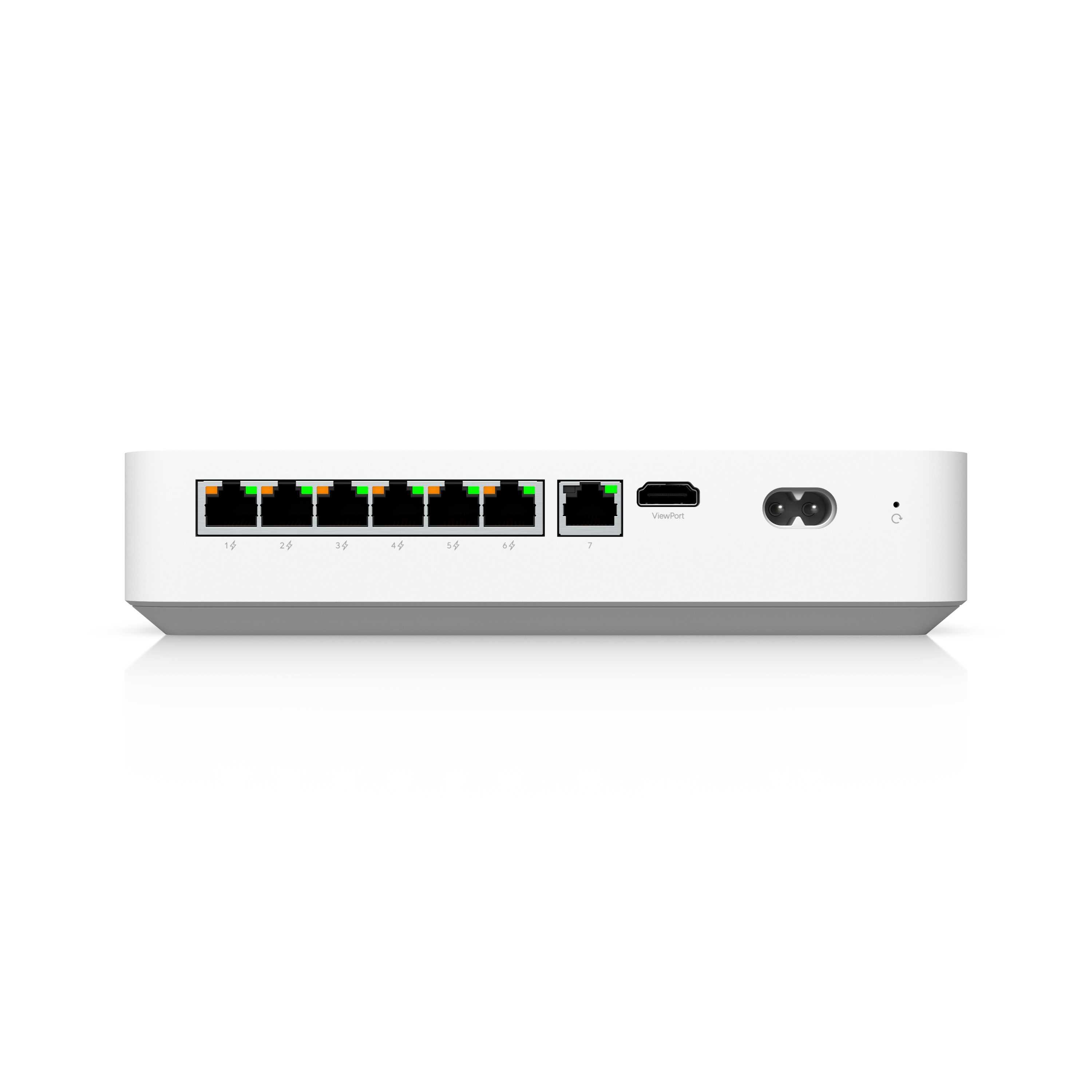

| Networking Interface | (1) GbE RJ45 uplink port (6) GbE PoE RJ45 downlink ports (1) HDMI port (Viewport) |
| Form Factor | Compact Desktop |
| Mounting | Wall, Din rail mount (Included) |
| Door Access Support | Yes |
| Management Application | UniFi Protect UniFi Access UniFi Connect |
| Hard Drive Capacity | (1) 3.5" HDD support |
| Max. Power Budget for Drives | 11W |
| Max. Power Consumption | 9W (Excluding PoE output & HDD power consumption) |
| Power Method | Universal AC input, 100–240V AC, 1.5A Max, 50/60 Hz |
| Power Supply | AC/DC, Internal, 60W |
| PoE Budget | 40W |
| Max. PoE Wattage per Port by PSE: PoE | 15.4W |
| Voltage Range PoE Mode | 44–57V |
| Processor | Quad-core ARM® Cortex®-A55 at 1.7 GHz |
| Memory | 4 GB |
| Management | Ethernet Bluetooth |
| Display | 1.14" screen |
| Weight | 1.04 kg (2.3 lb) |
| Enclosure Material | Polycarbonate |
| Mount Material | Polycarbonate |
| LEDs: Ethernet | Yes |
| LEDs: PoE | Yes |
| Ambient Operating Temperature | 0 to 40° C (32 to 104° F) |
| Ambient Operating Humidity | 5 to 95% noncondensing |
| NDAA Compliant | Yes |
| Certifications | FCC, IC, CE, Electrical Safety, SRRC, Anatel: 06781-25-08356 |
Engin skjöl skráð á þessa vöru.
Leiðbeiningar
Leiðbeiningar og gögn
Gagnablöð, uppsetningarleiðbeiningar og fleiri gögn frá birgja.
