UniFi Network Video Recorder Instant Kit

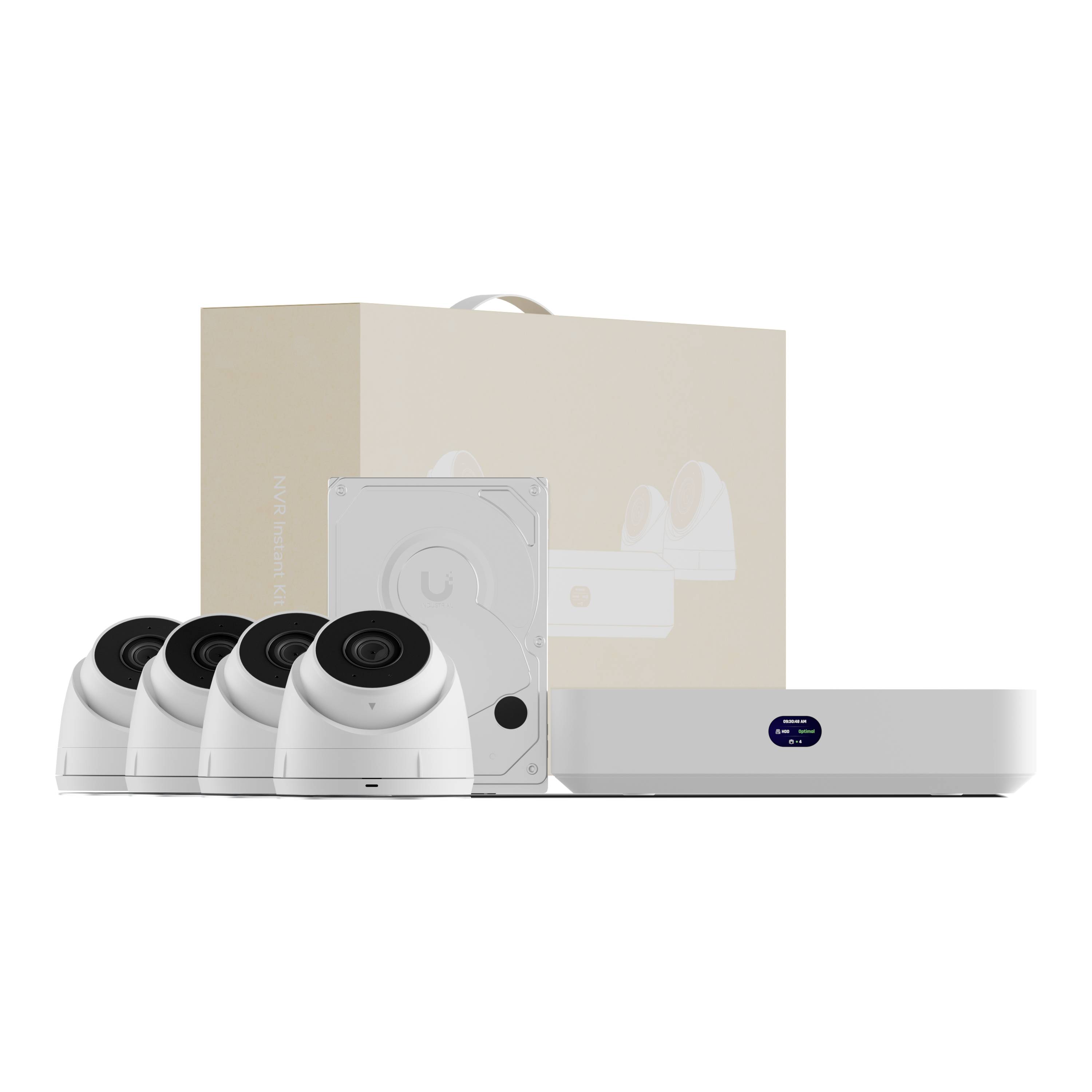

Þjappað UniFi Protect NVR Kit, inniheldur (1) UniFi Protect NVR Instant með (4) G5 Turret Ultra myndavélum og (1) 1TB HDD, sem veitir heildstæða lausn fyrir hraða og einfalda uppsetningu.
Athugið. Krefst tengingar við Gateway eða Layer 3 switch.
Þrívídd og myndbönd
Tækni
Tæknilegir eiginleikar
Upplýsingar úr ETIM gögnum framleiðanda. Vantar þig meira? Hafðu samband við tækniráðgjöf okkar.
| Dimensions | 220 x 220 x 47 mm (8.7 x 8.7 x 1.9") |
|---|---|
| Managed Cameras | (15) HD (8) 2K (6) 4K |
| Max. Simultaneous Viewport Streams | 6 4K cameras |
| Managed Access Hubs | 50 |
| Storage Capacity | (1) 3.5" drive bay |
| Data Protection | Yes |
| Vantage Point | Yes |
| Networking Interface | (1) GbE RJ45 uplink port (6) GbE PoE RJ45 downlink ports (1) HDMI port (Viewport) |
| Form Factor | Compact Desktop |
| Mounting | Wall, Din rail mount (Included) |
| Door Access Support | Yes |
| Management Application | UniFi Protect UniFi Access UniFi Connect |
| Hard Drive Capacity | (1) 3.5" HDD support |
| Max. Power Budget for Drives | 11W |
| Max. Power Consumption | 9W (Excluding PoE output & HDD power consumption) |
| Power Method | Universal AC input, 100–240V AC, 1.5A Max, 50/60 Hz |
| Power Supply | AC/DC, Internal, 60W |
| PoE Budget | 40W |
| Max. PoE Wattage per Port by PSE: PoE | 15.4W |
| Voltage Range PoE Mode | 44–57V |
| Processor | Quad-core ARM® Cortex®-A55 at 1.7 GHz |
| Memory | 4 GB |
| Management | Ethernet Bluetooth |
| Display | 1.14" screen |
| Weight | 1.04 kg (2.3 lb) |
| Enclosure Materials | Polycarbonate |
| Mount Material | Polycarbonate |
| LEDs: Ethernet | Yes |
| LEDs: PoE | Yes |
| Ambient Operating Temperature | 0 to 40° C (32 to 104° F) |
| Ambient Operating Humidity | 5 to 95% noncondensing |
| NDAA Compliant | Yes |
| Certifications | FCC, IC, CE, Electrical Safety |

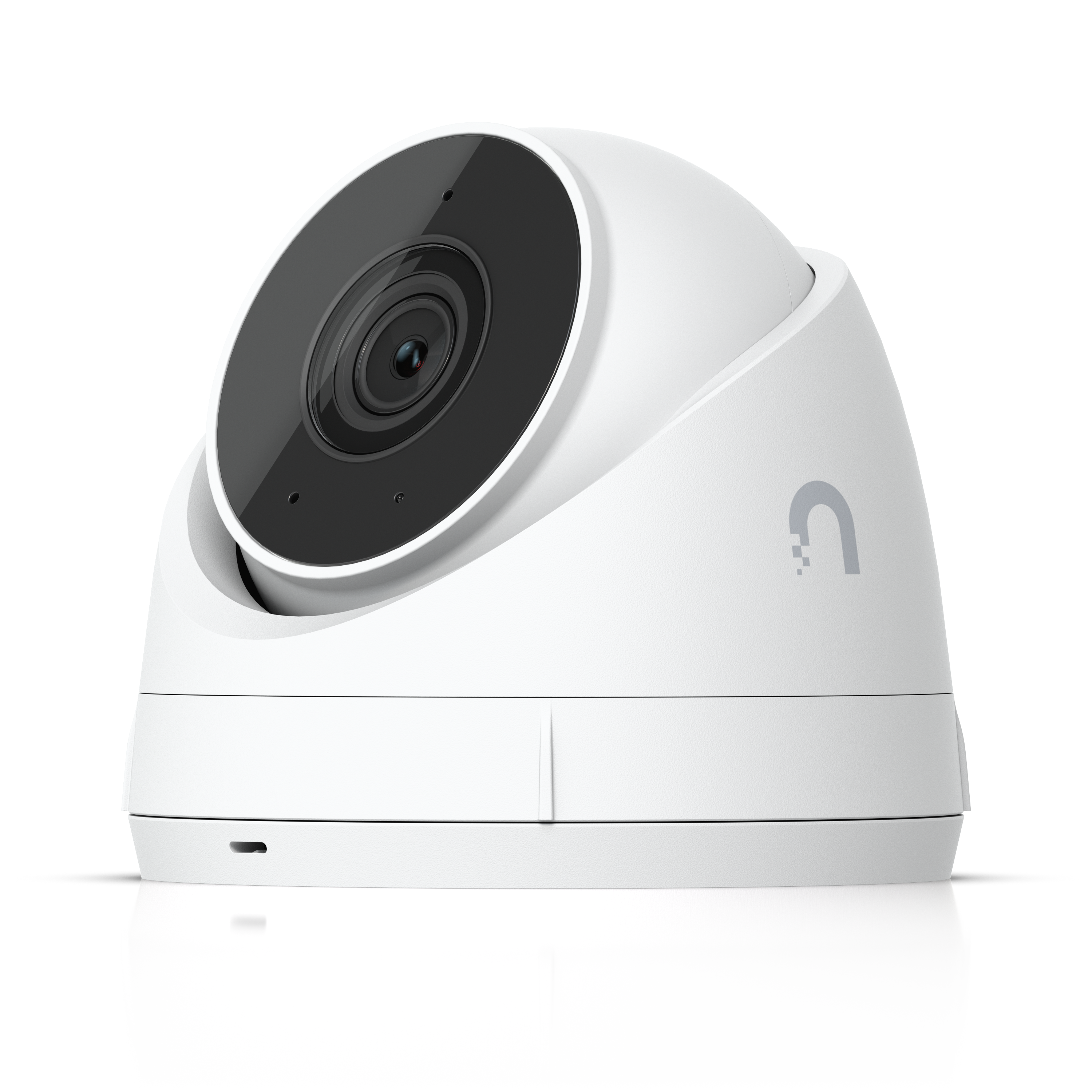

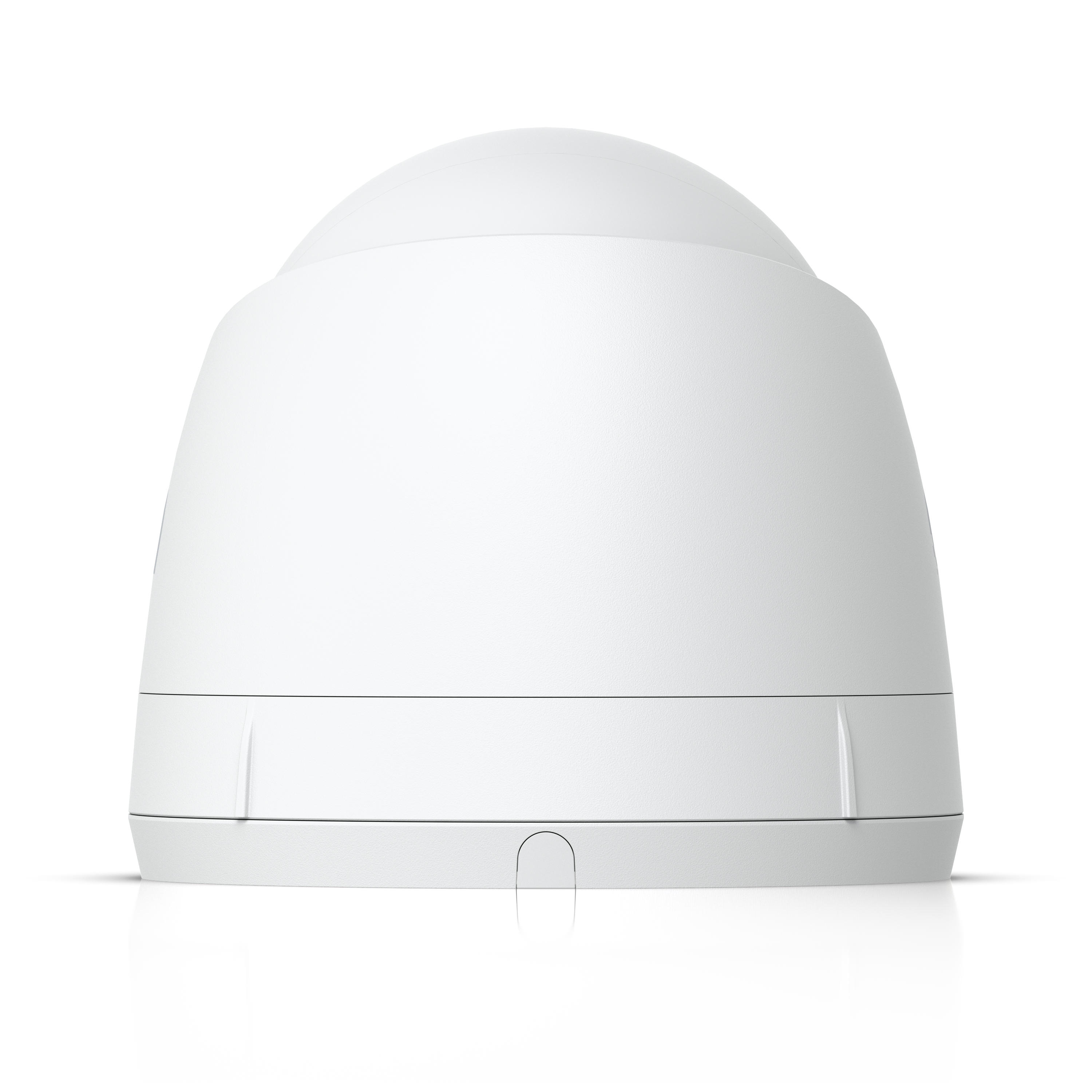

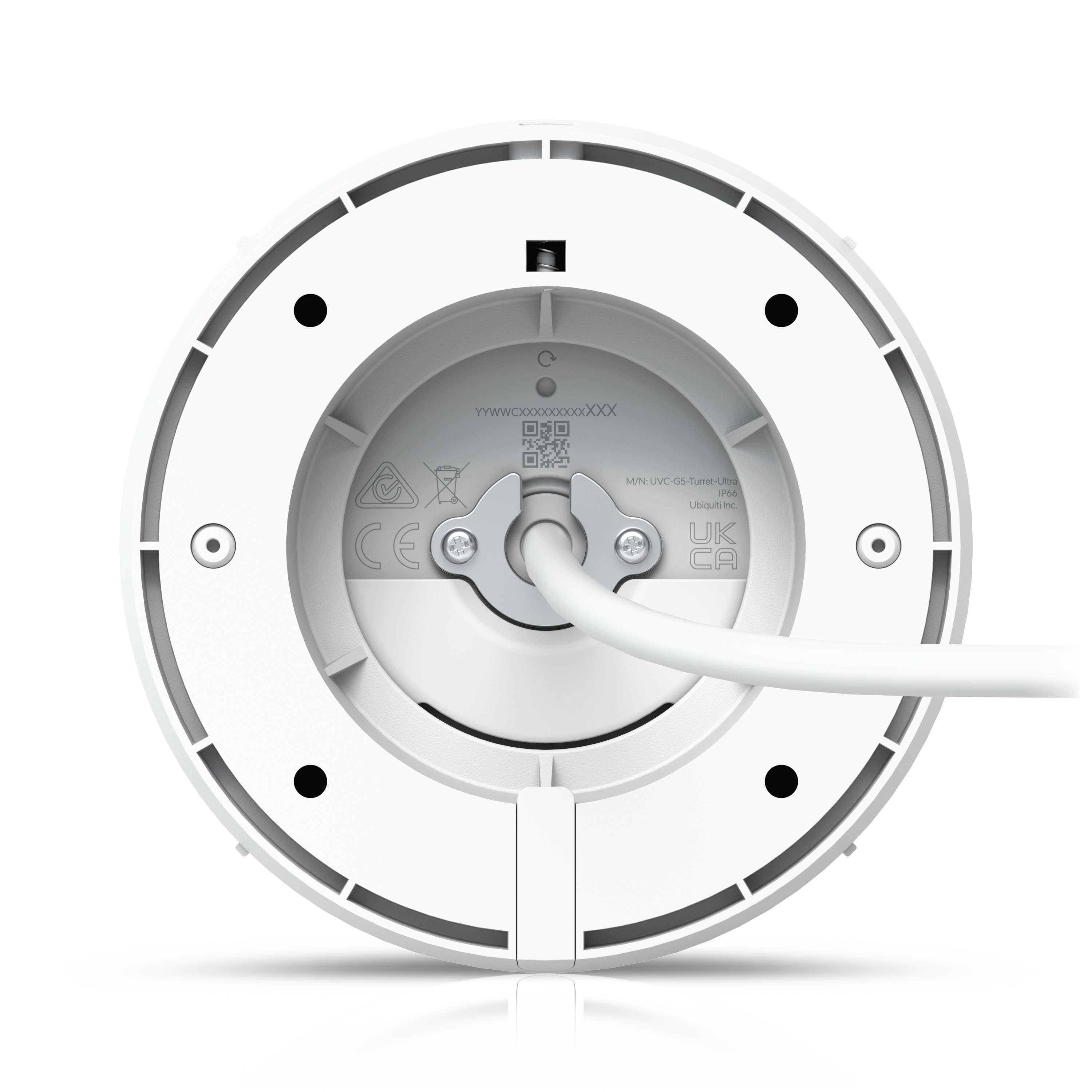

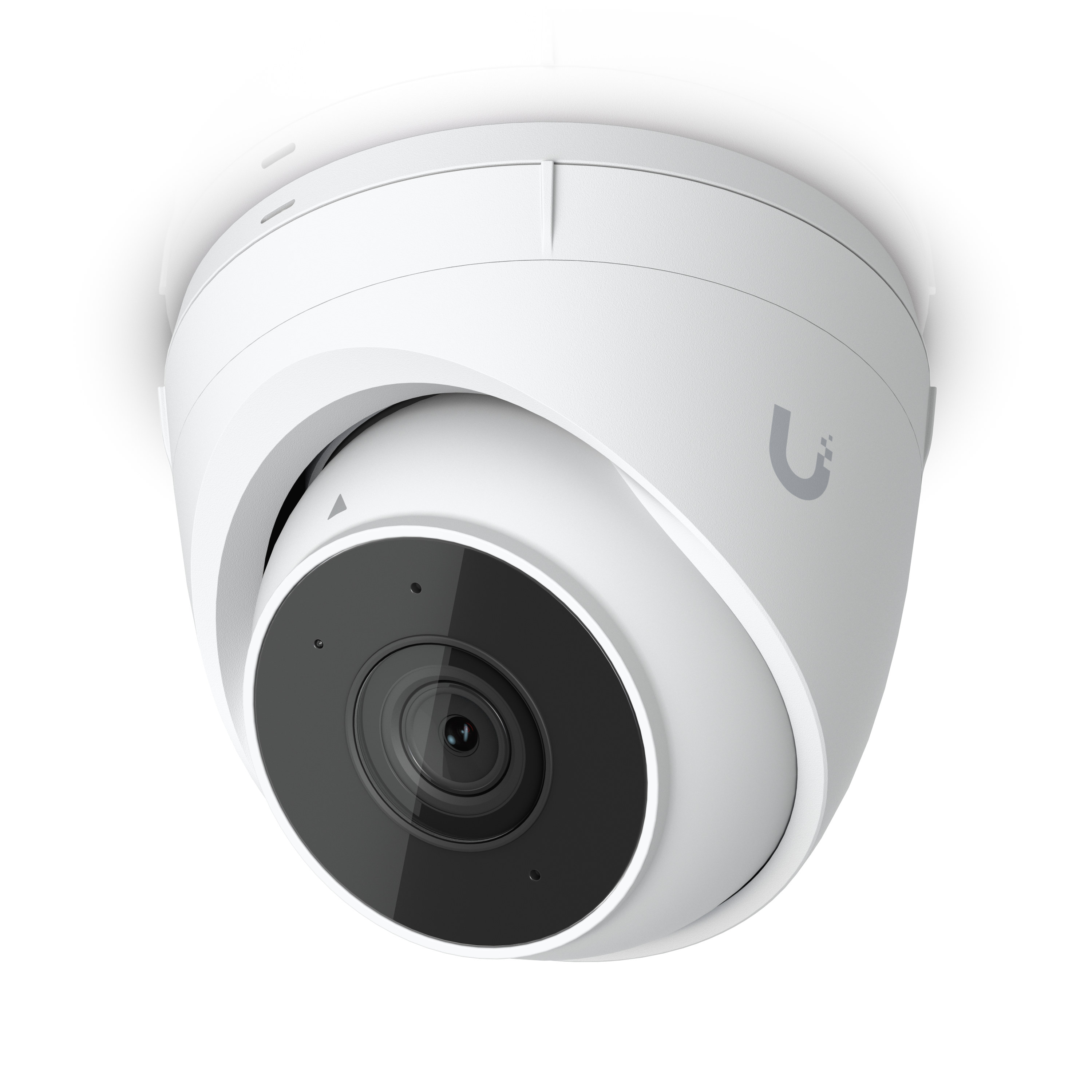

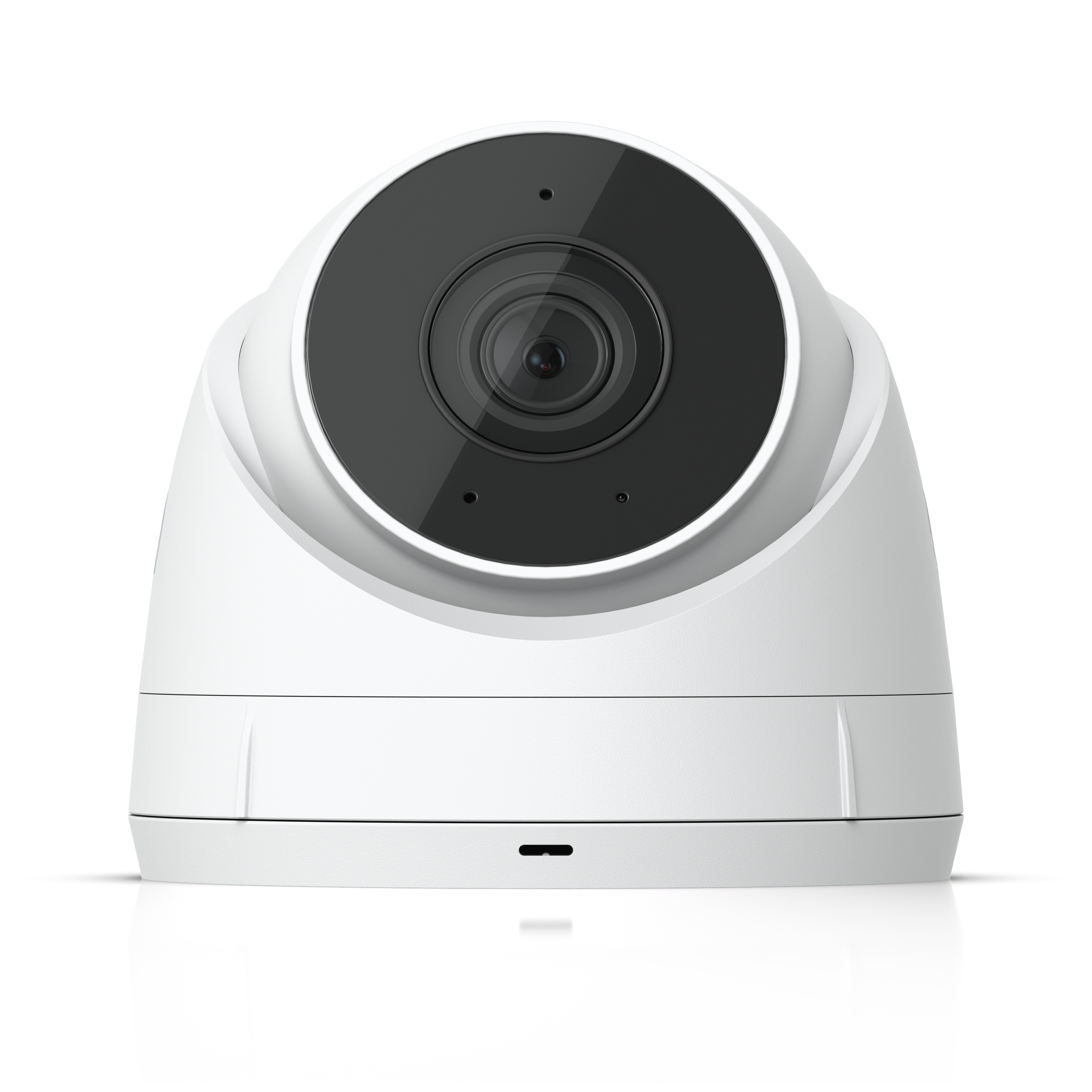

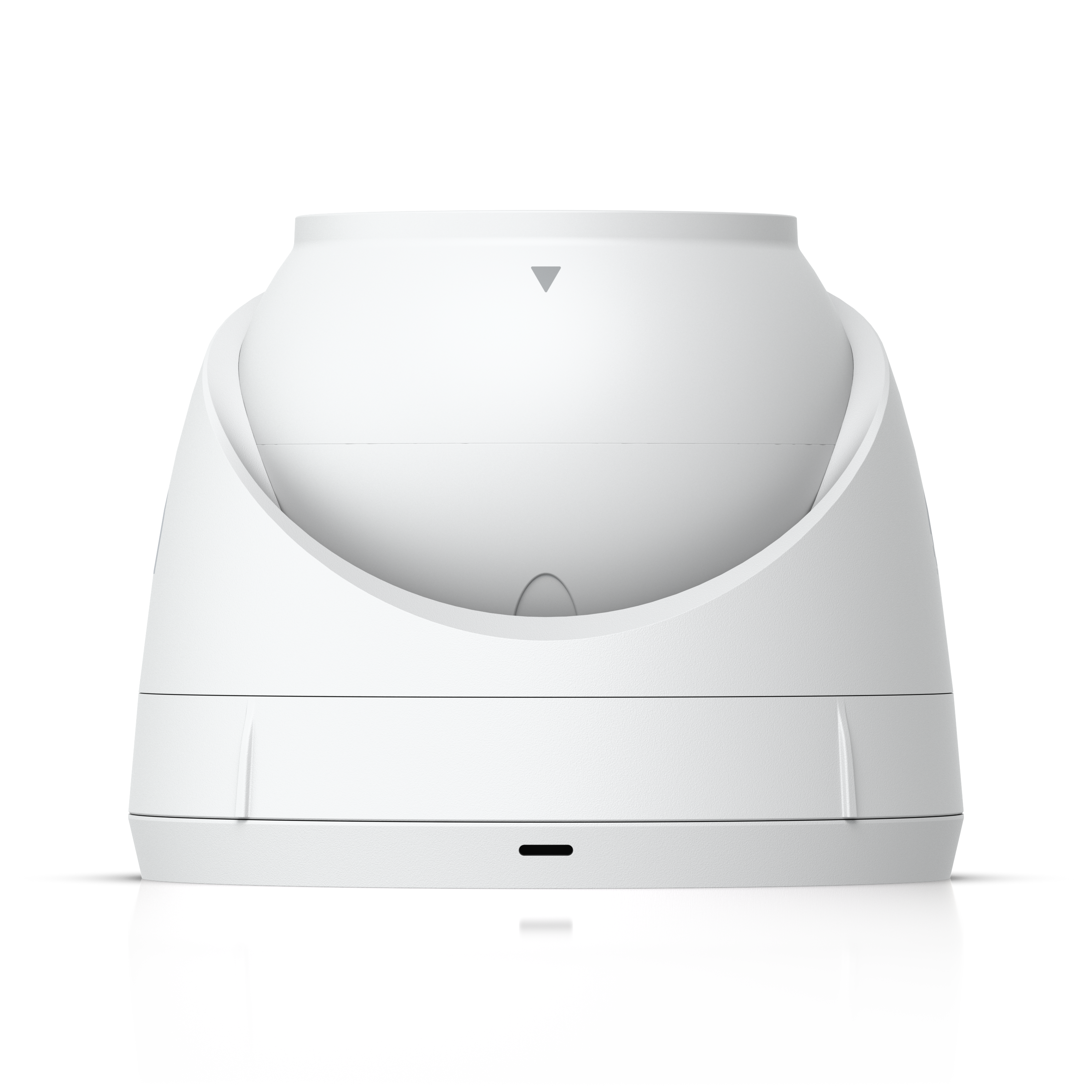

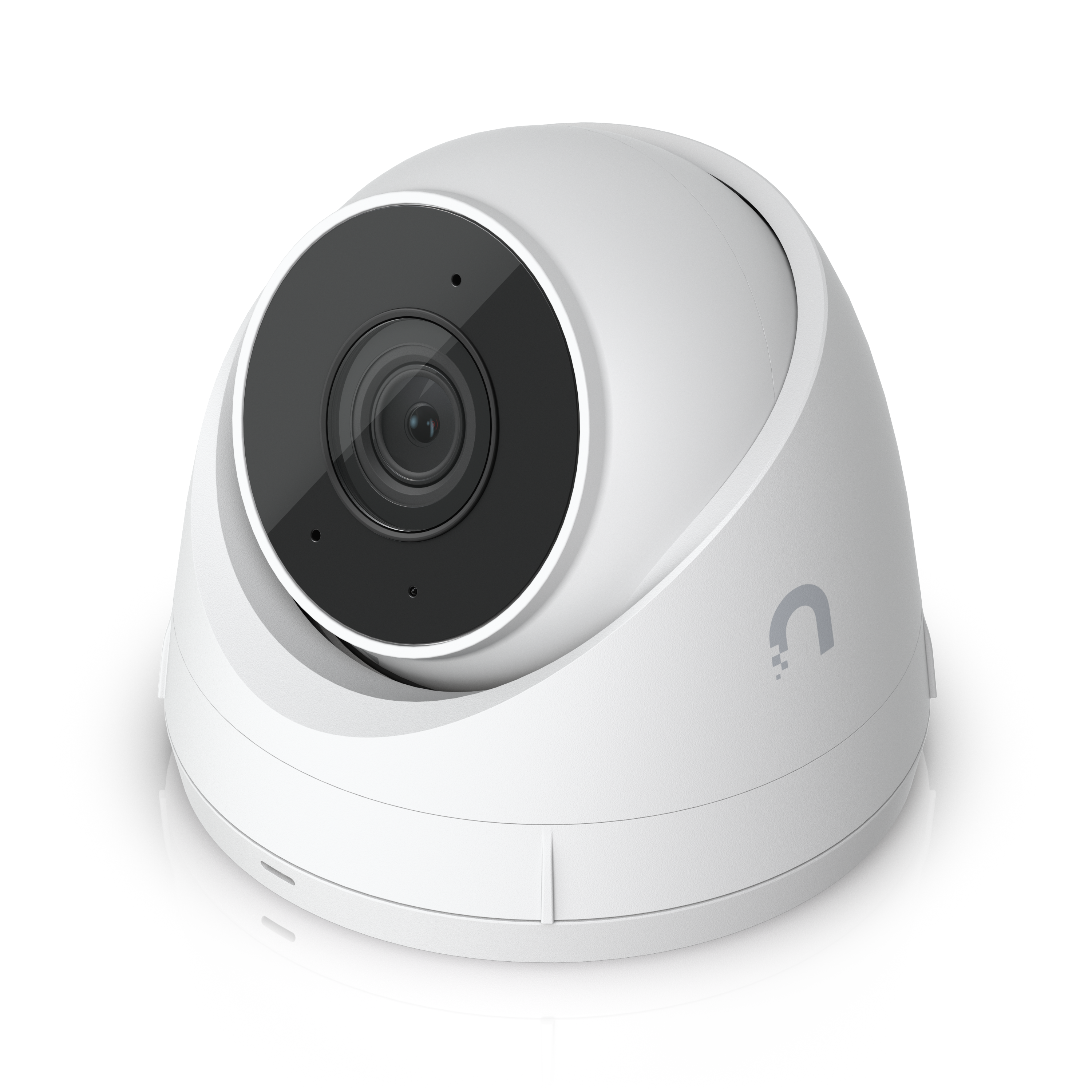

| Dimensions | ⌀90 x 71.2 mm (⌀3.5 x 2.8") |
| IR Night Vision | 30 m (98 ft) |
| Smart Detections (People, Vehicles, Animals) | Yes |
| Resolution | 2K |
| Field of View | H: 102.4°, V: 54.9°, D: 120.6° |
| Audio | Microphone |
| Weatherproofing | IP66 |
| Tamper Resistance | IK04 |
| Mounting | Wall, ceiling mount (Included) Junction box, arm mount (Optional) |
| Networking Interface | 10/100 MbE RJ45 port |
| Video: Image Settings | Color, brightness, sharpness, contrast, white balance, exposure control, 2DNR, 3DNR, NR by motion, masking, text overlay |
| Video: Max. Frame Rate | 30 FPS |
| Video: Resolution | 4MP 2688 x 1512 (16:9) |
| Optics: Sensor | 1/2.4" CMOS |
| Optics: Lens | Fixed focal length |
| Optics: Night Mode | Built-in IR LED illumination and IR cut filter |
| Max. Power Consumption | 4W |
| Supported Voltage Range | 37—57V DC |
| Power Method | PoE |
| Processor | Dual-core Arm® Cortex®-A7 based chip |
| Weight | 330 g (11.6 oz) |
| Enclosure Material | Aluminum alloy, UV-stabilized polycarbonate |
| Mount Material | Polycarbonate |
| Button | (1) Factory reset |
| Cable: Cable Connector Type | RJ45 |
| Cable: Cable Diameter | 5 mm (0.2") |
| Cable: Cable Length | 30 cm (1 ft) |
| Cable: Jacket Material | Polycarbonate |
| Cable: Jacket Enclosure Dimensions | ⌀20 x 70.6 mm (0.8 x 2.8") |
| Cable: Jacket Enclosure Material | Thermoplastic elastomer, polycarbonate, silicone rubber |
| Ambient Operating Temperature | -30 to 50° C (-22 to 122° F) |
| Ambient Operating Humidity | 0 to 90% noncondensing |
| NDAA Compliant | Yes |
| Certifications | CE, FCC, IC |

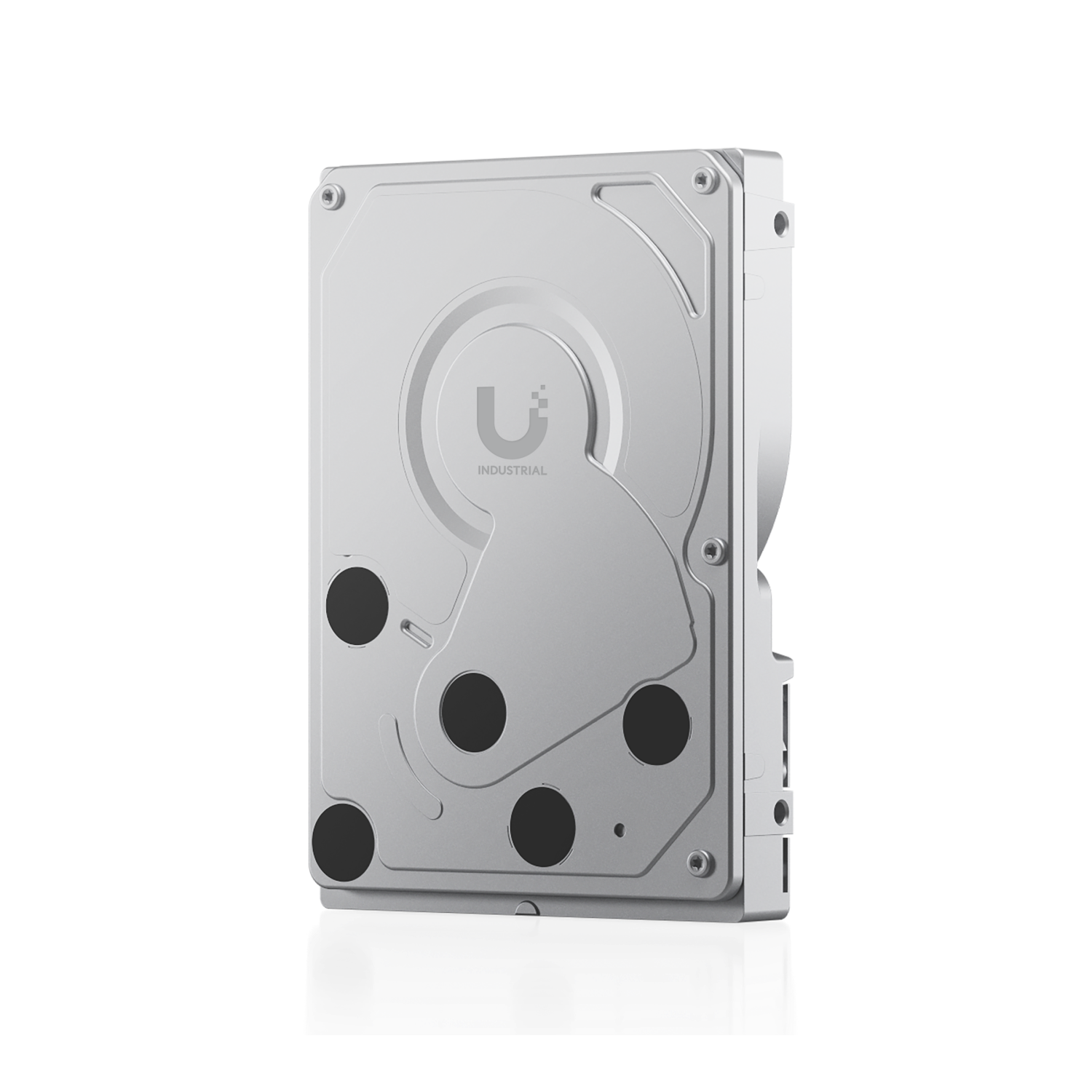

| Dimensions | 147 x 101.6 x 26.1 mm (5.75 x 4 x 1") |
| Hard Disk Form Factor | 3.5-inch |
| Weight | 0.45 kg (0.99 lb) |
| Storage Capacity | 1 TB |
| Power Method | 5V/12V input |
| Management Interface | SATA 6 Gb/s |
| Rotation Speed | 5400 RPM |
| Workload Rating | 180 TB/year |
| Mean Time Between Failure (MTBF) | 1,000,000 h |
| Ambient Operating Temperature | 0 to 65° C (32 to 149° F) |
| Ambient Operating Humidity | 5 to 95% noncondensing |
| NDAA Compliant | Yes |
| Certifications | FCC, CE, TUV, RCM, KC, BSMI |
