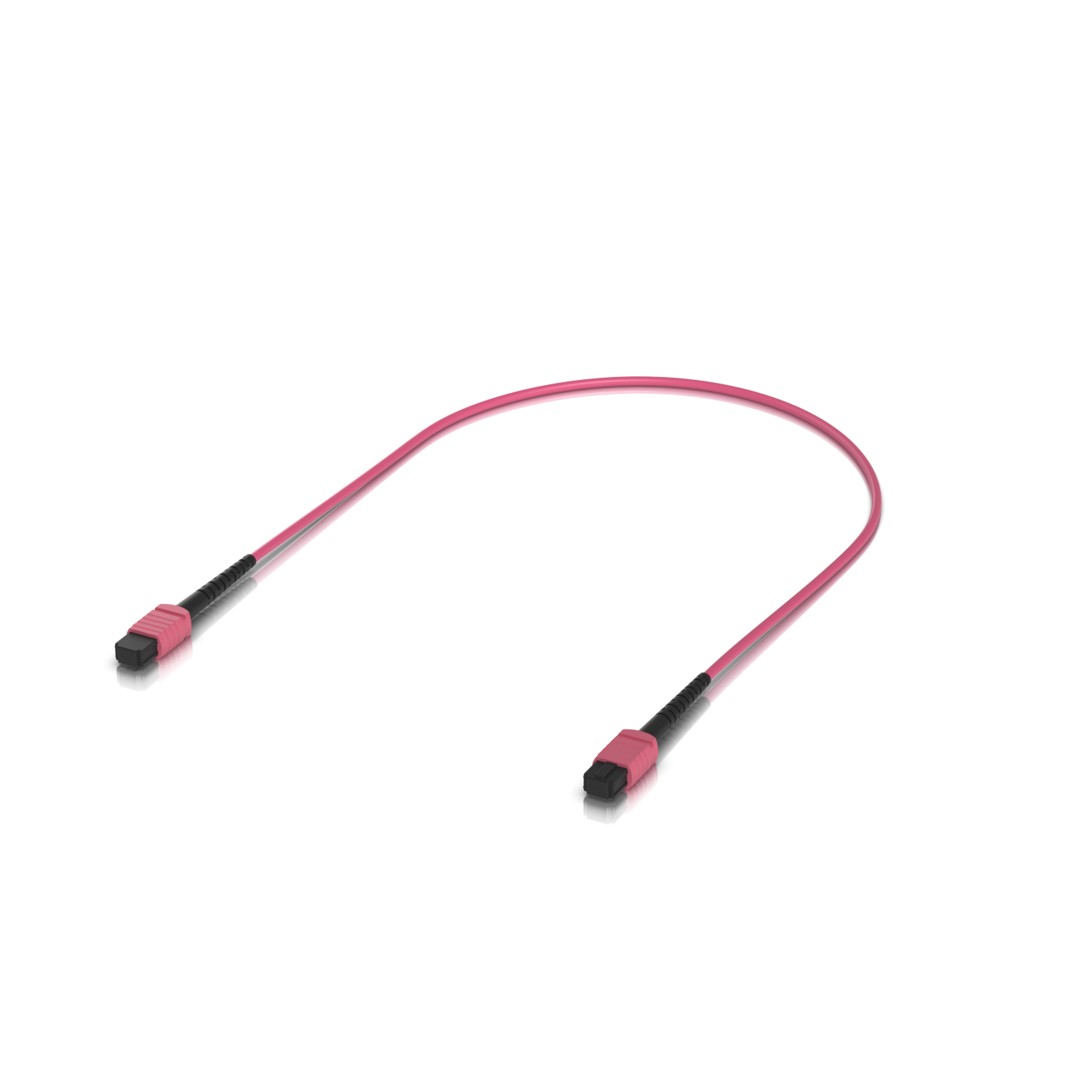

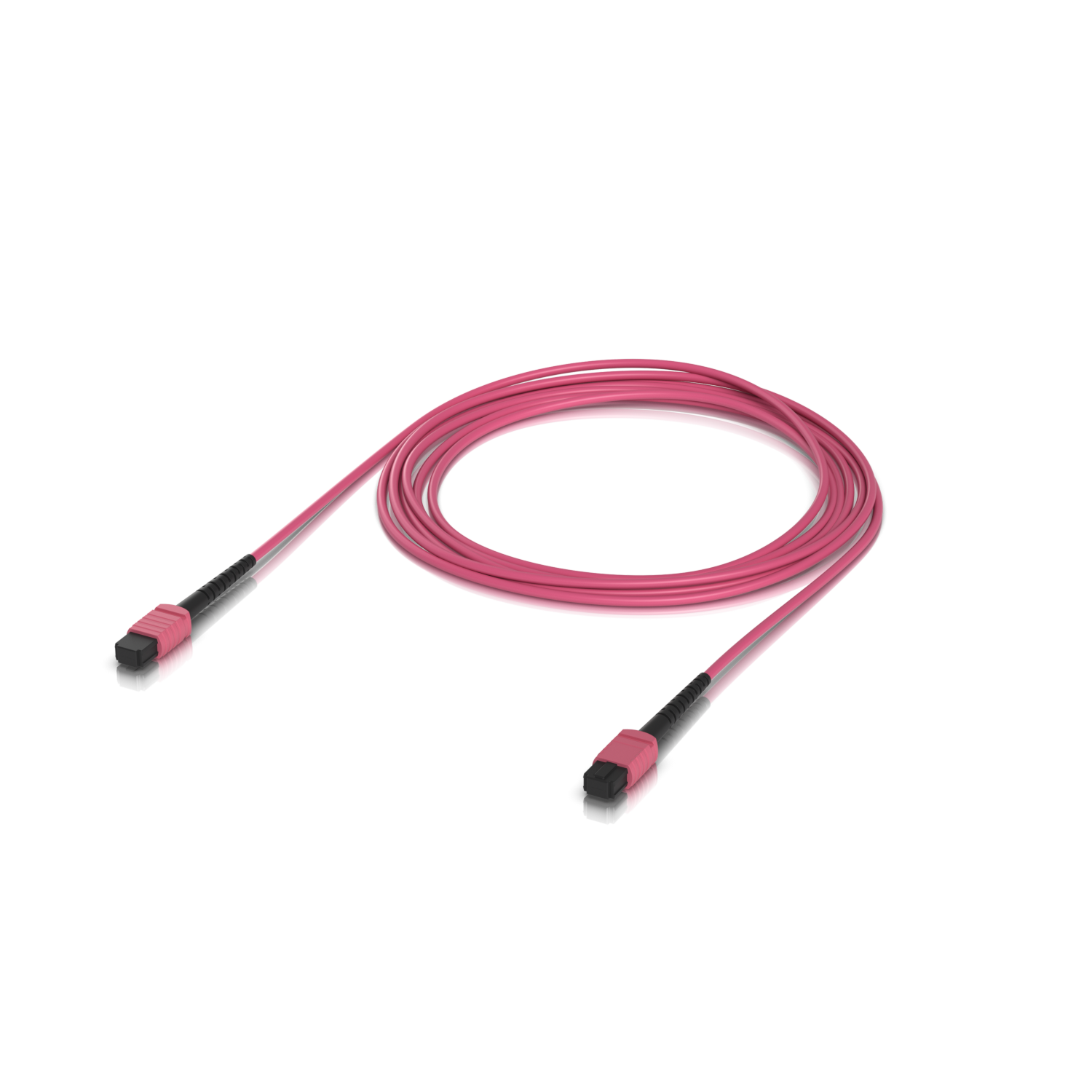

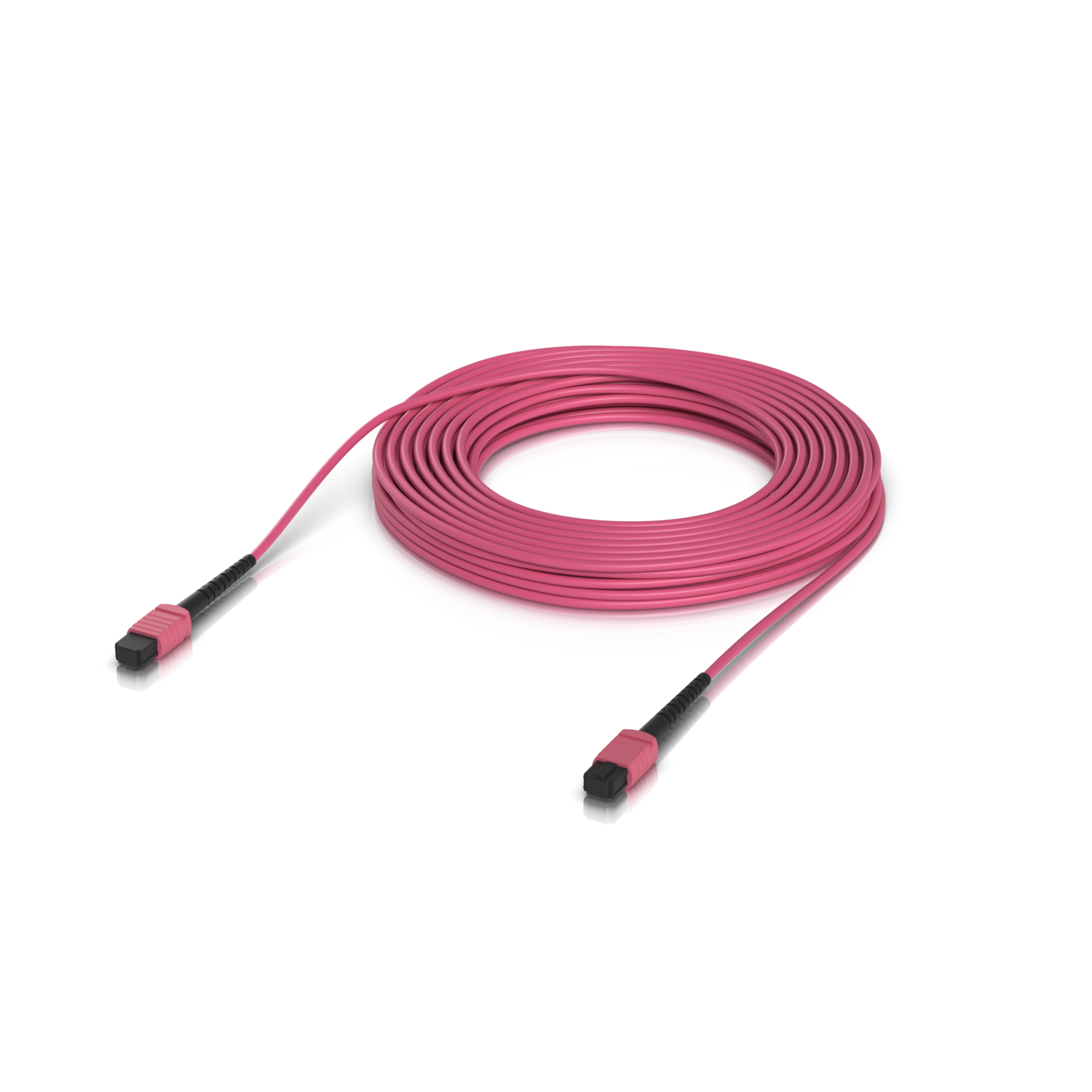

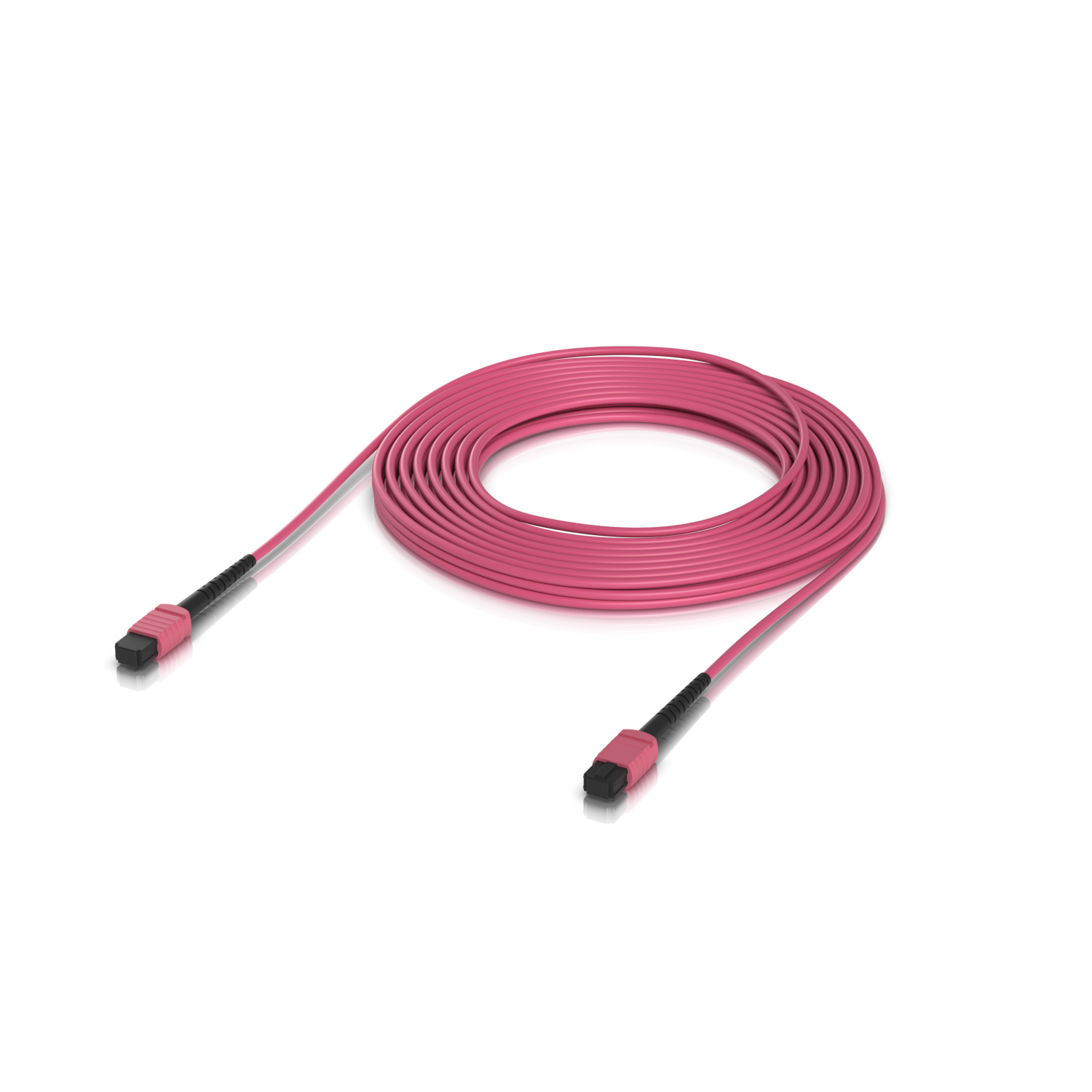

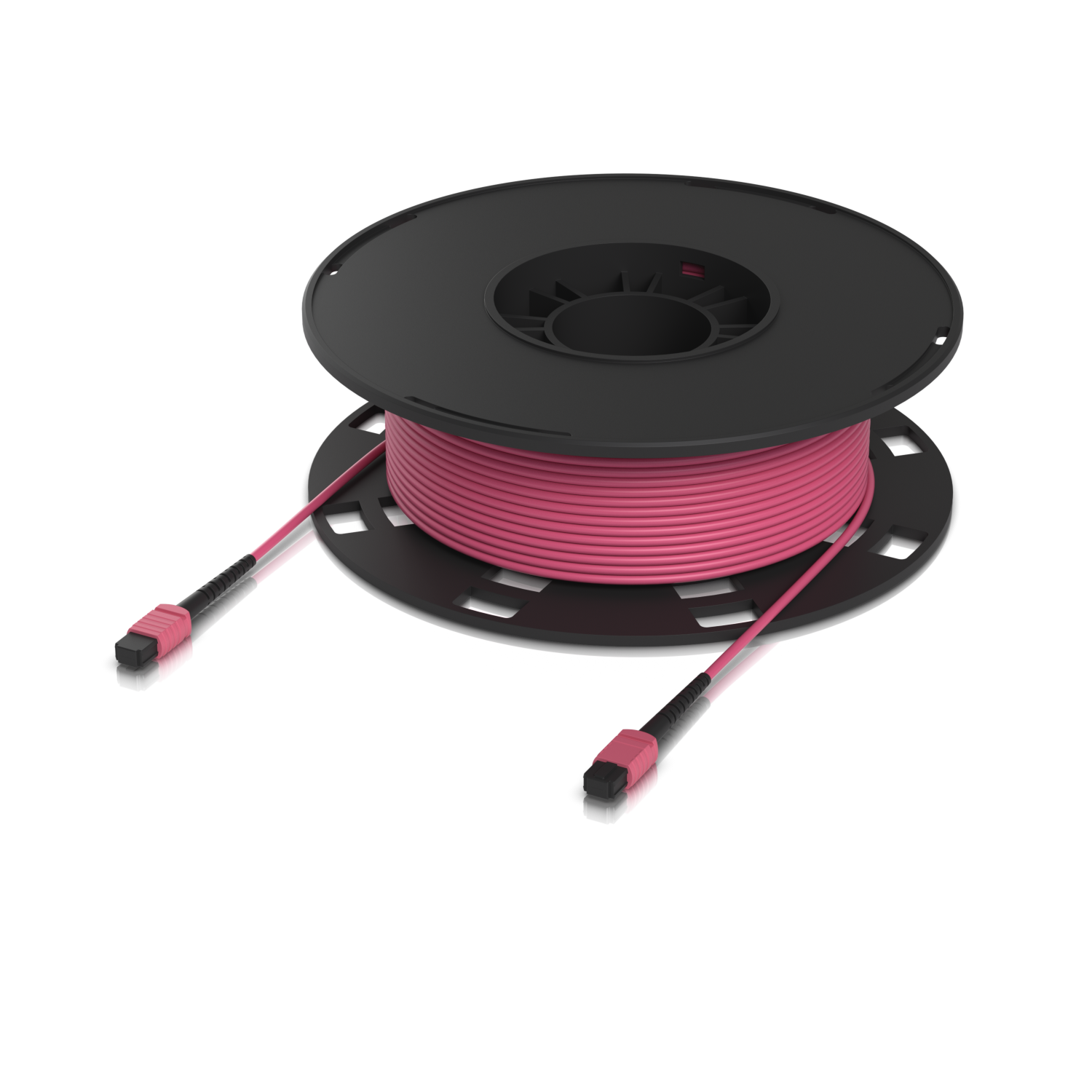

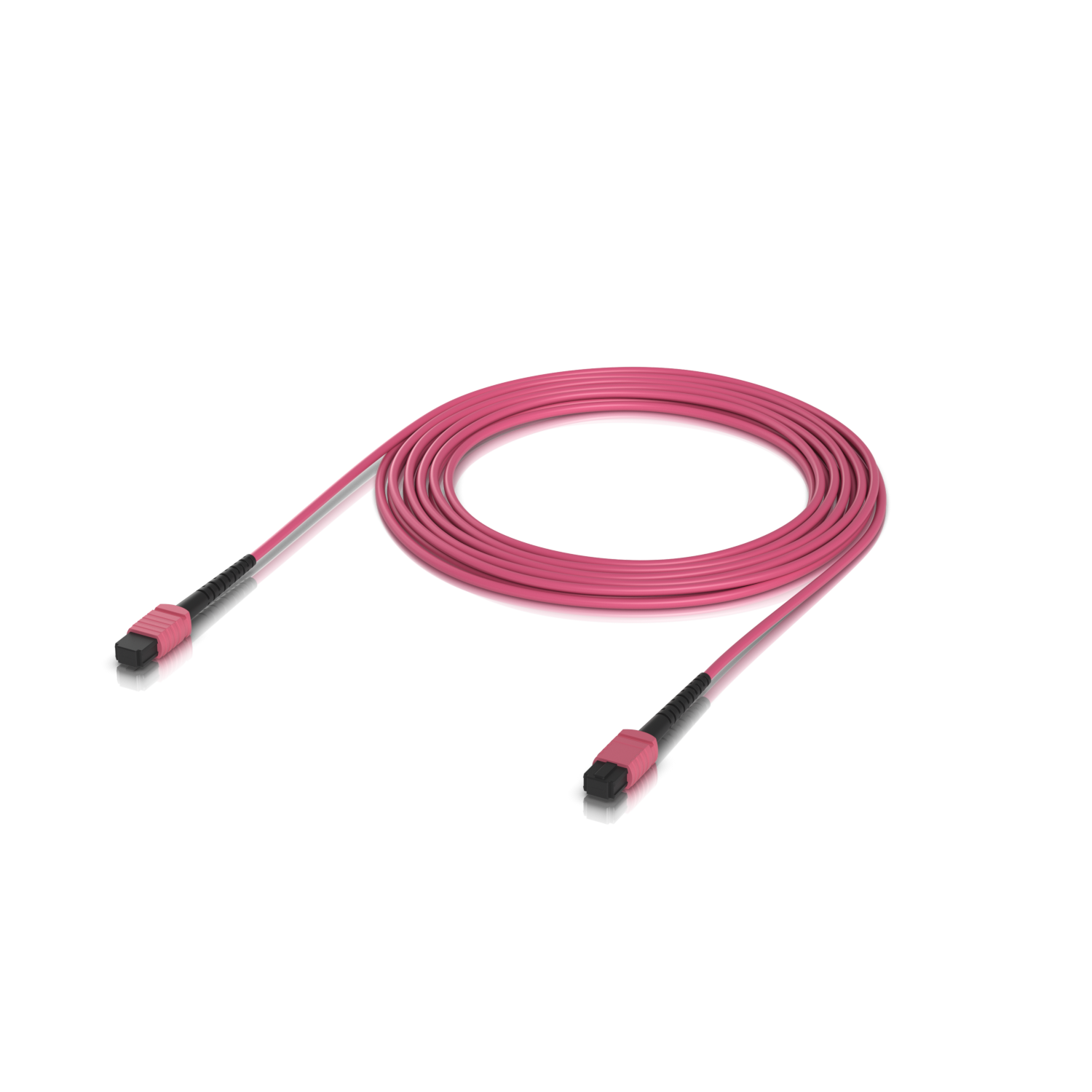

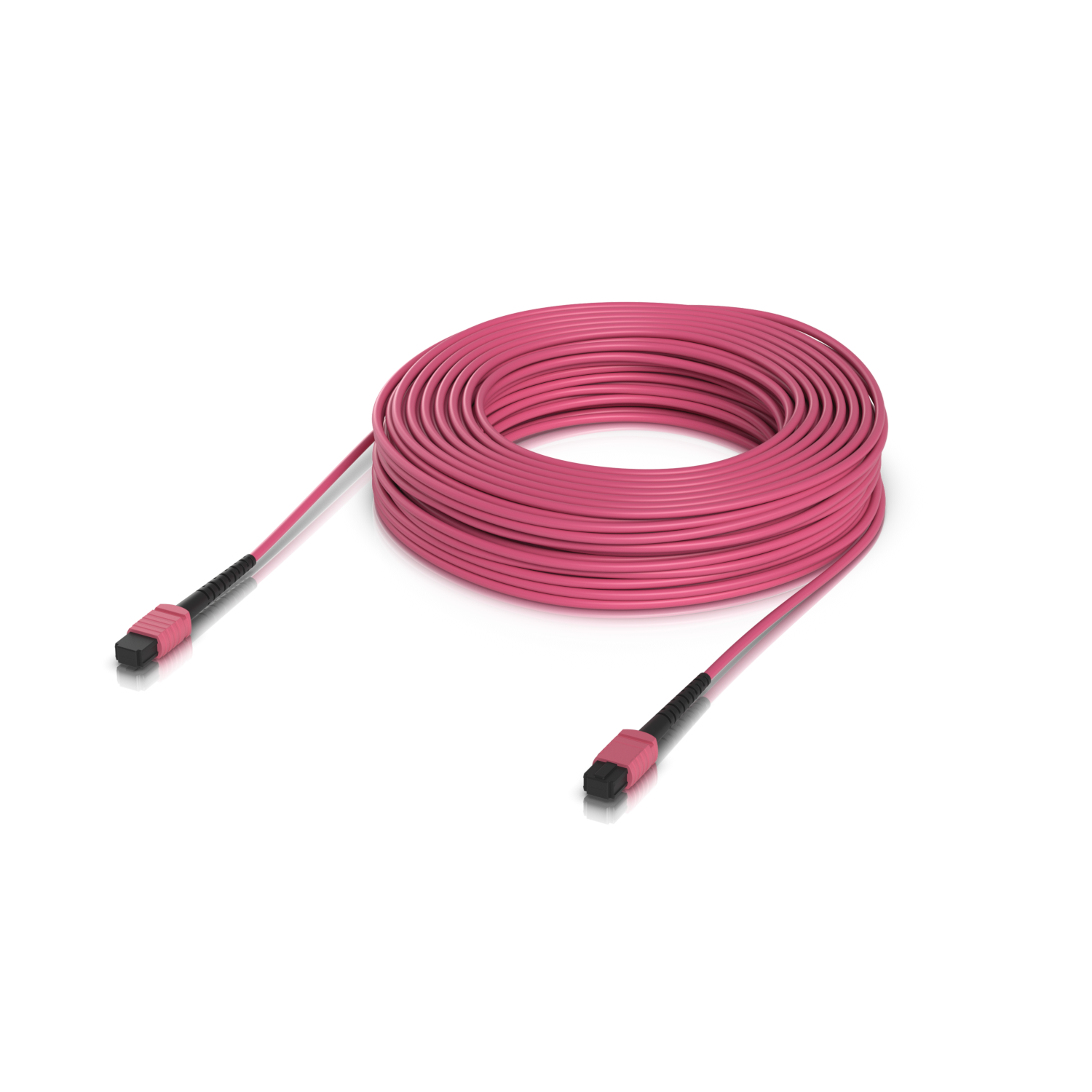

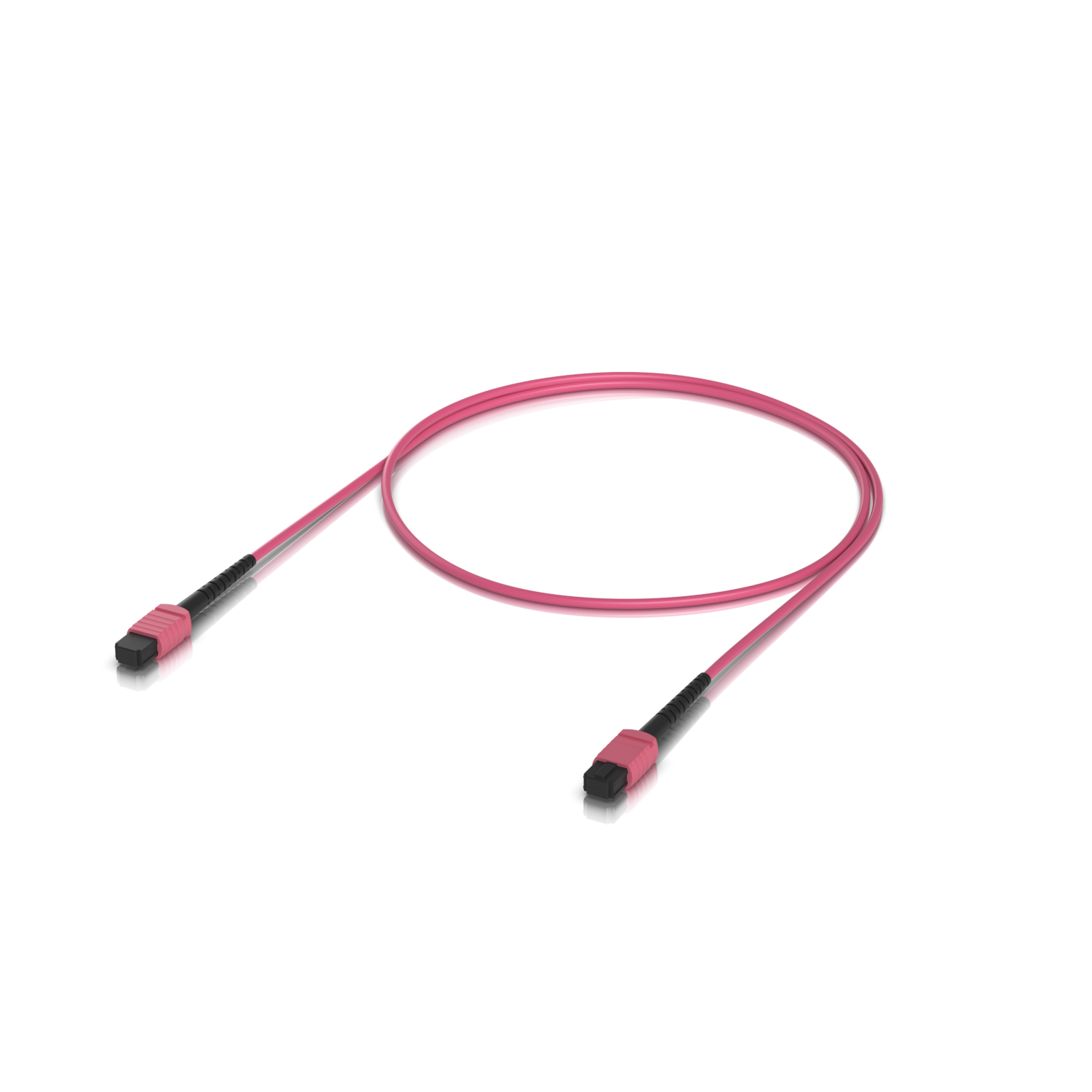

UniFi OM4 MPO-12 UPC Fiber Patch Cable (1 m)
Fjölgilda ljósleiðaratengisnúra (OM4) til innanhússnotkunar með MPO-12 Type B UPC tengjum, hönnuð fyrir 100G forrit.
- OM4 fjölgilda ljósleiðari

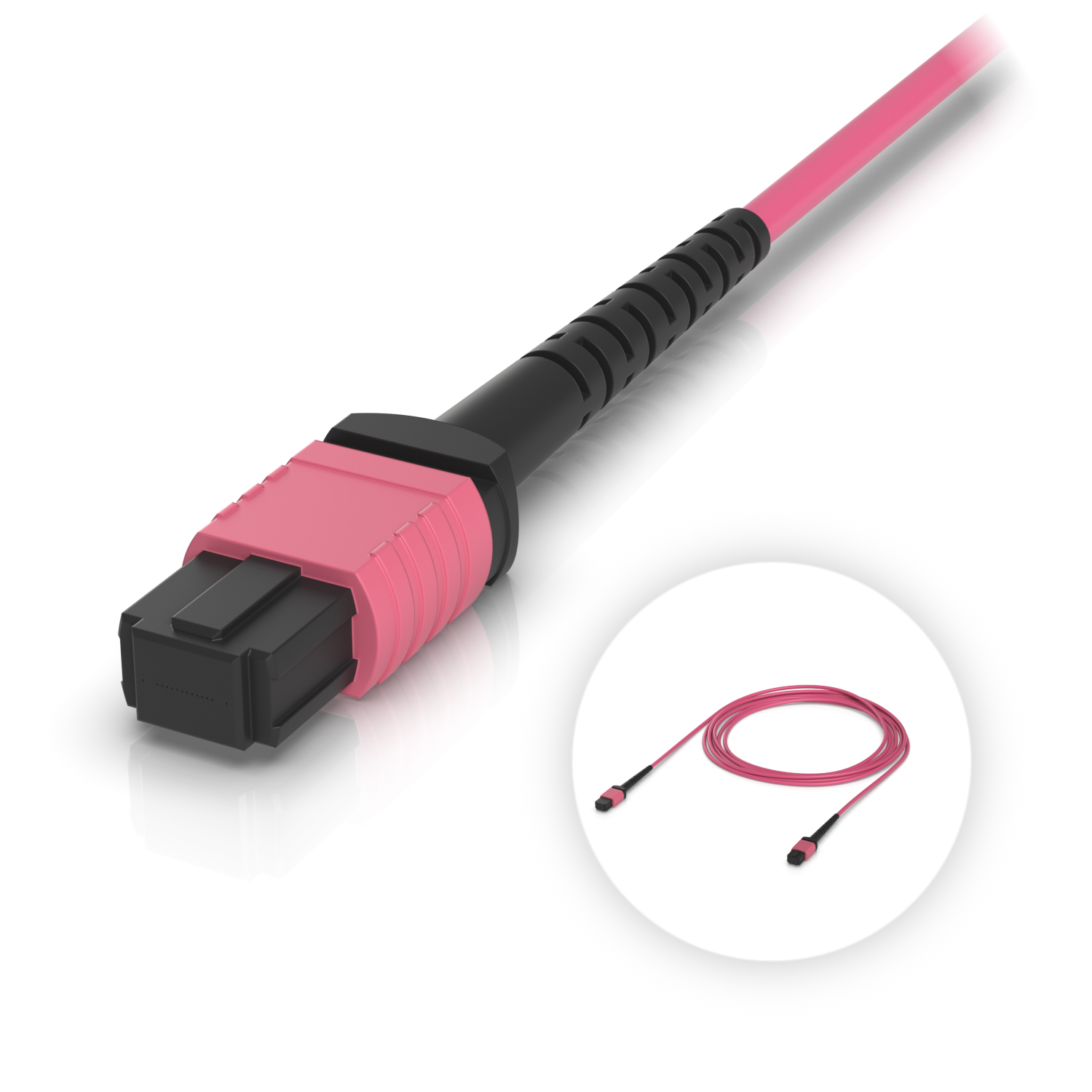

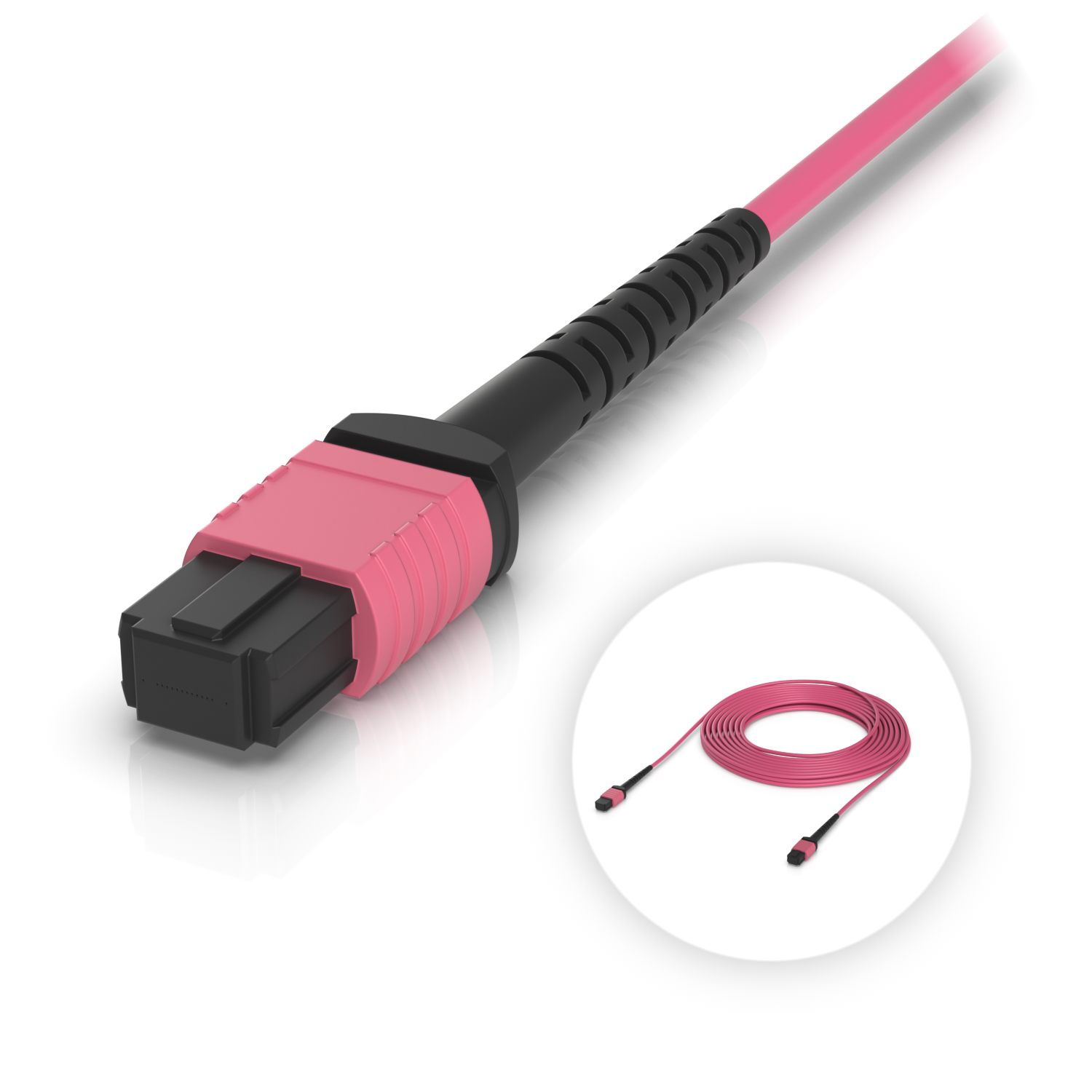

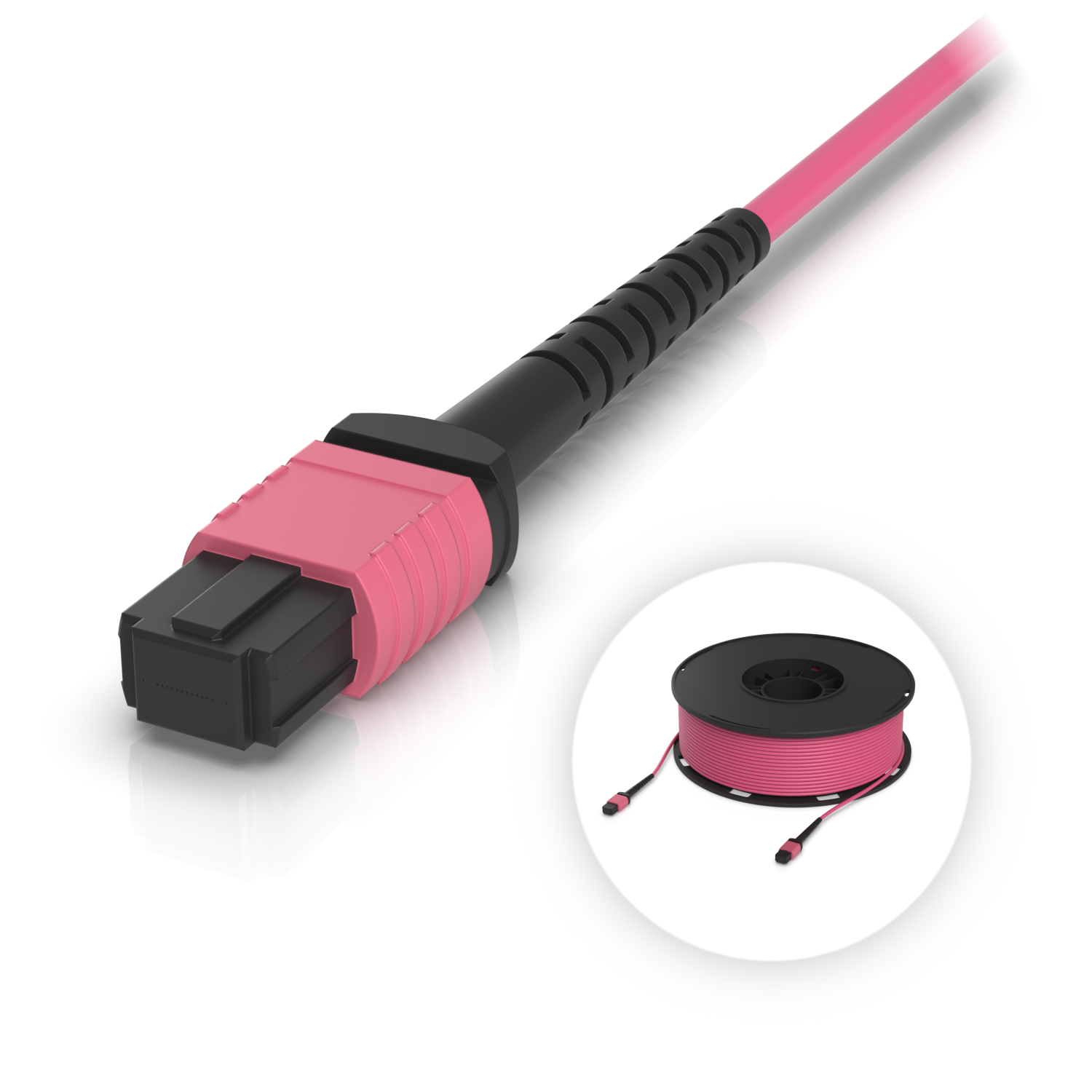

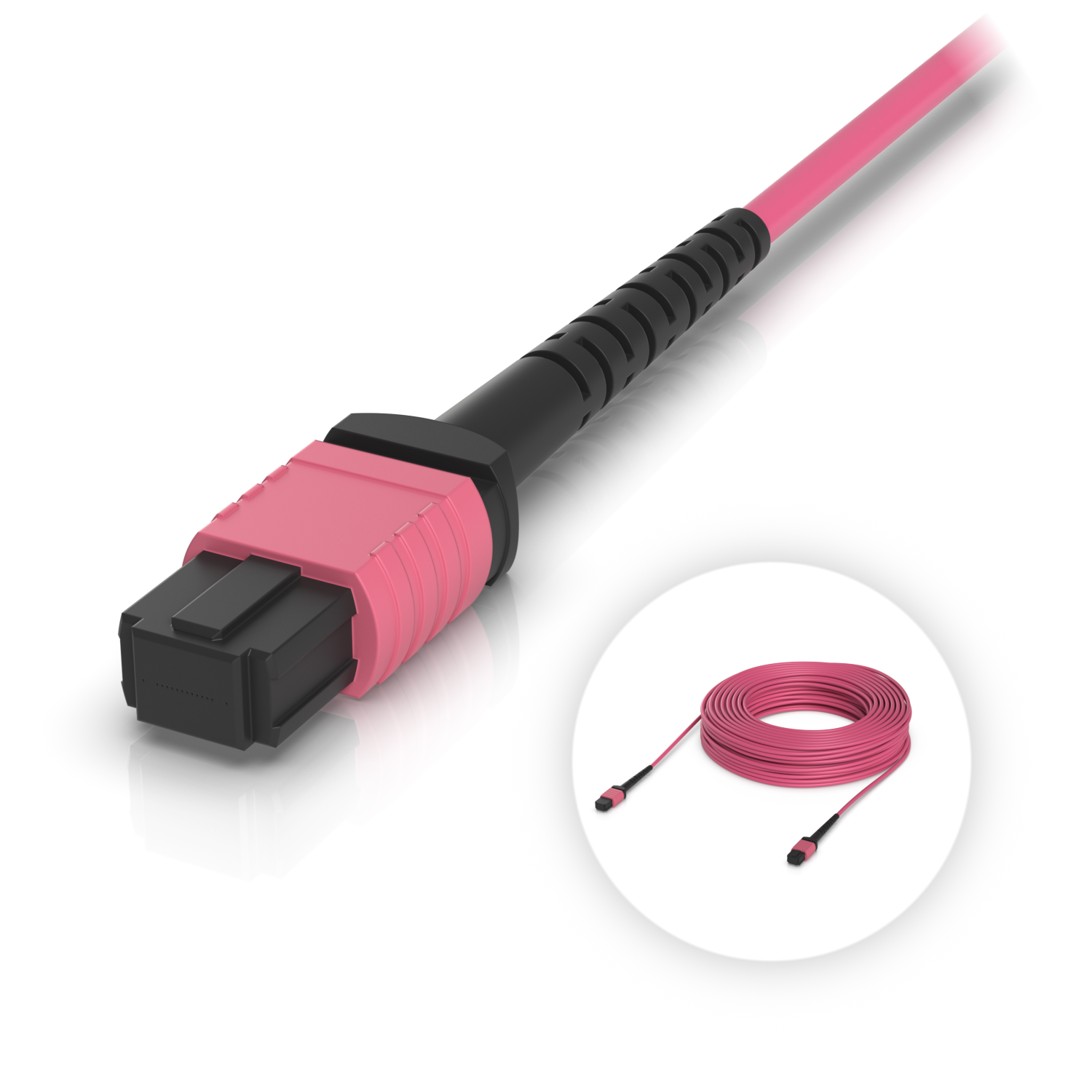

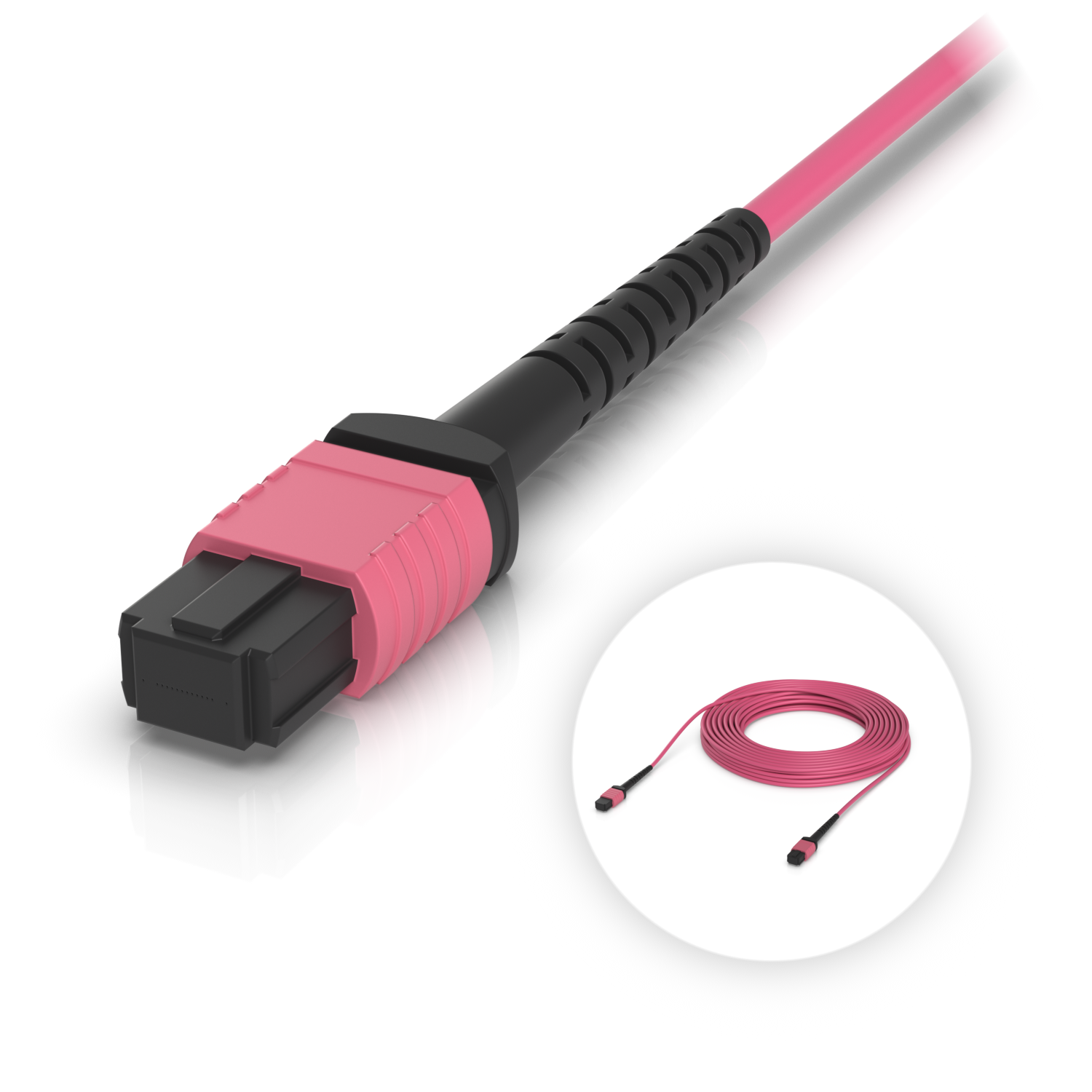

- MPO-12 Type B UPC tengi
- Lengd kapals: 0.5 to 100 m
Tækni
Tæknilegir eiginleikar
Upplýsingar úr ETIM gögnum framleiðanda. Vantar þig meira? Hafðu samband við tækniráðgjöf okkar.
| Available Lengths | 0.5, 1, 3, 5, 10, 15, 30, 60, 100 m (1.6, 3.3, 9.8, 16.4, 32.8, 49.2, 98.4, 196.9, 328 ft) |
|---|---|
| Pack Options | Single Unit 10-Pack (0.5/1/3 m) |
| Connector | (2) MPO-12 Type B UPC |
| Operating Environment | Indoor |
| Cable: Fiber Mode | OM4 |
| Cable: Jacket Diameter | 3 mm (0.12") |
| Cable: Jacket Material | Low smoke zero halogen (LSZH) |
| Cable: Jacket Color | Rose |
| Wavelength | 850 nm |
| Insertion Loss | ≤ 0.6 dB |
| Return Loss | ≥ 20 dB |
| Repeatability | ≤ 0.1 dB |
| Durability | ≤ 0.2 dB (1,000 times mating) |
| Ambient Operating Temperature | -40 to 75° C (-40 to 167° F) |
Engin skjöl skráð á þessa vöru.
