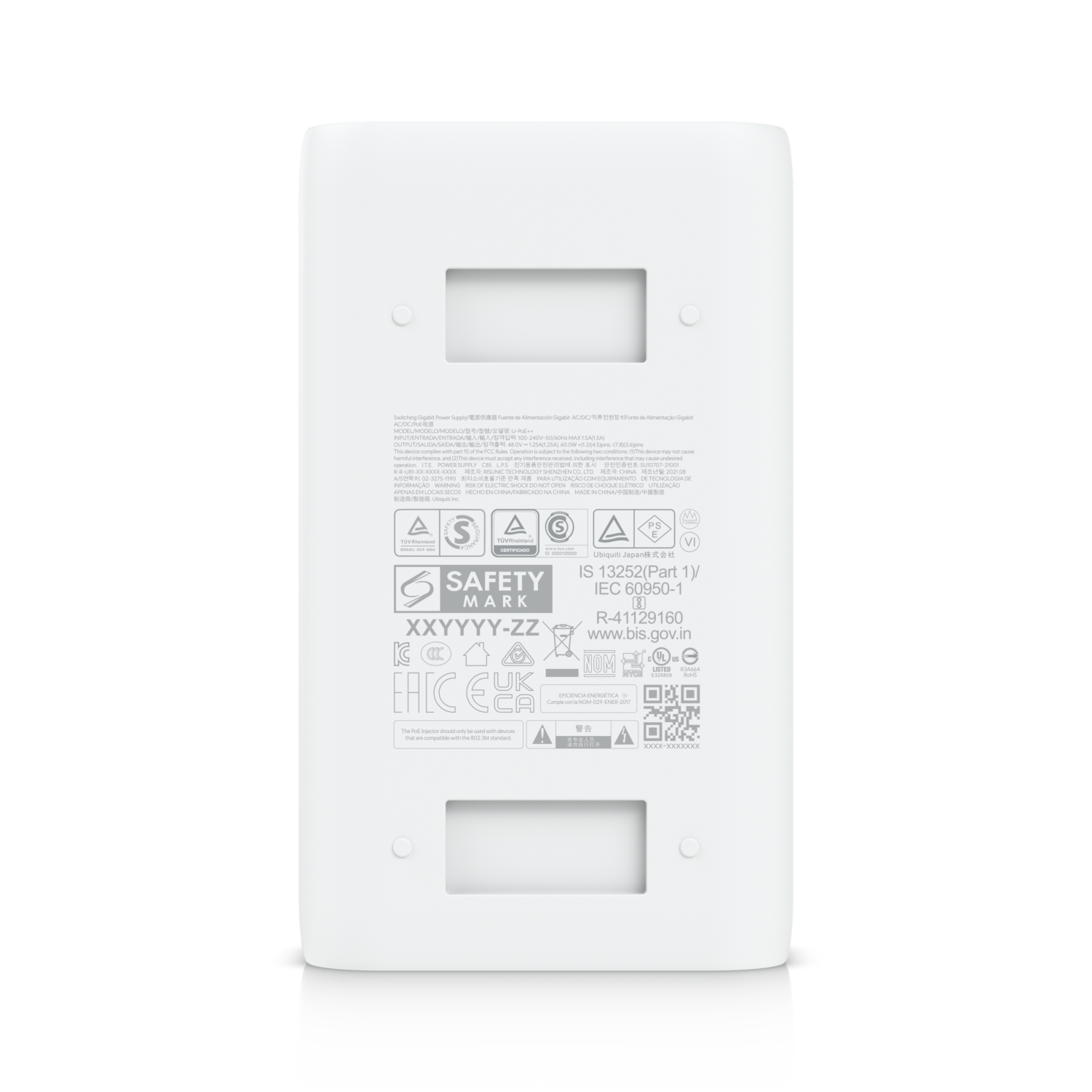

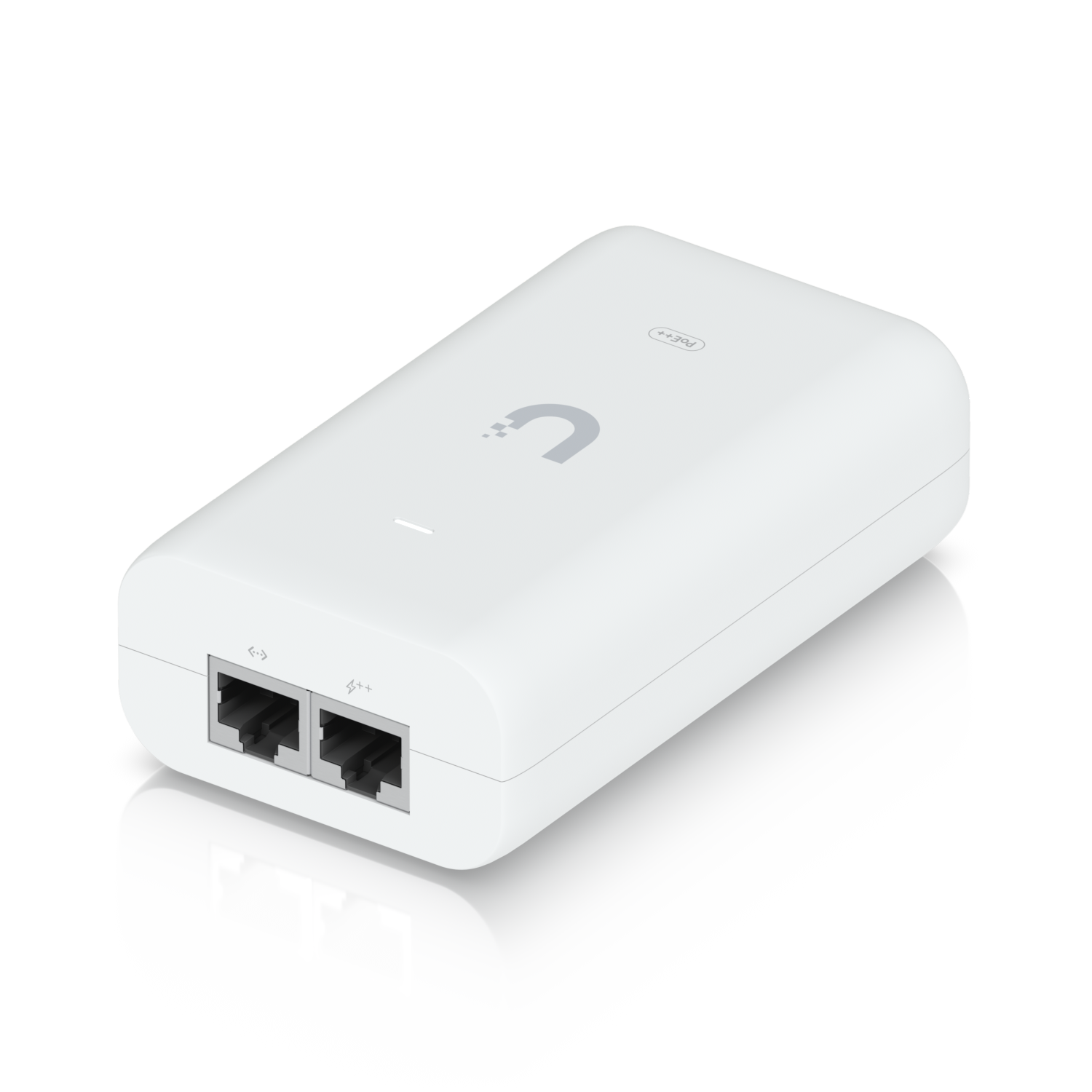

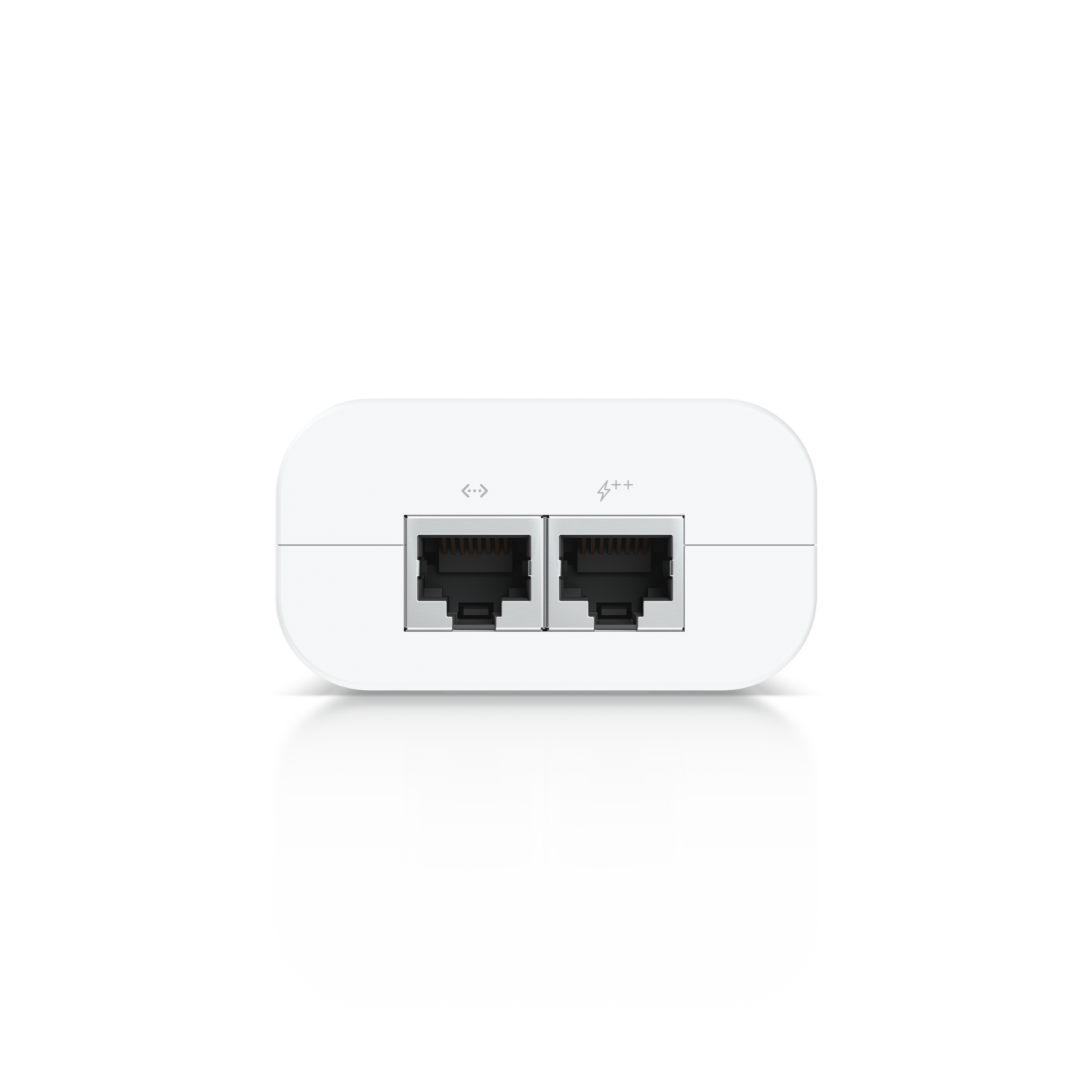

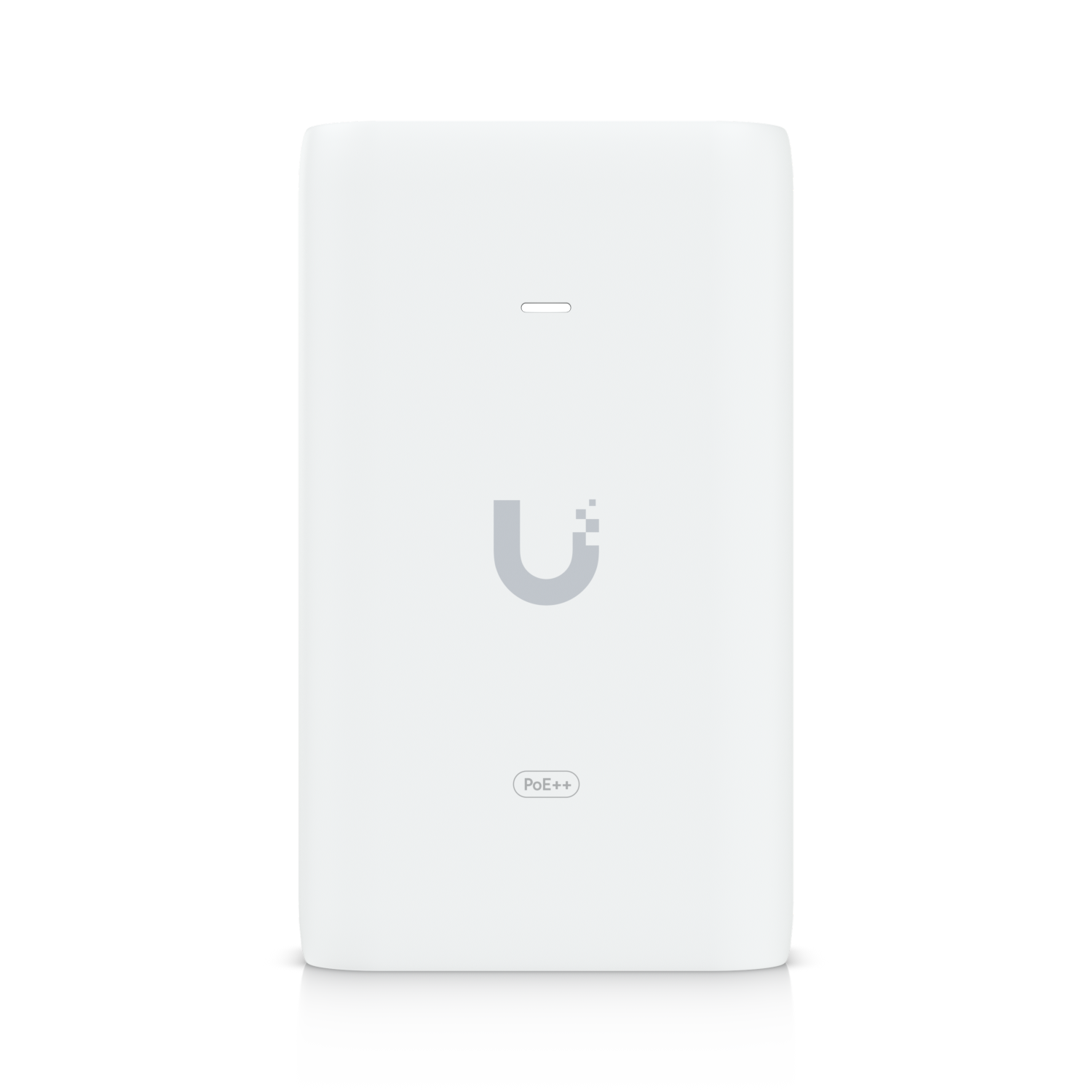

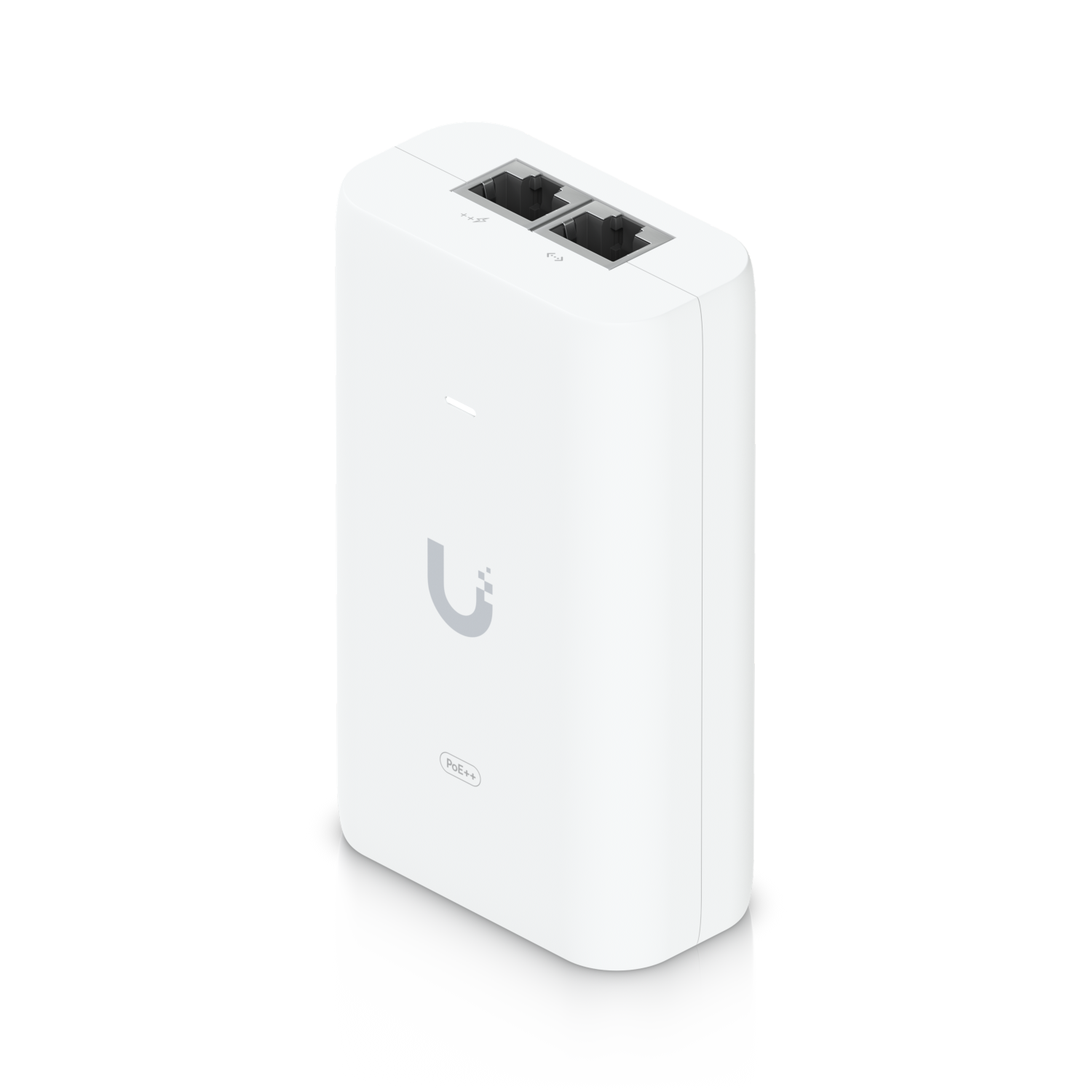

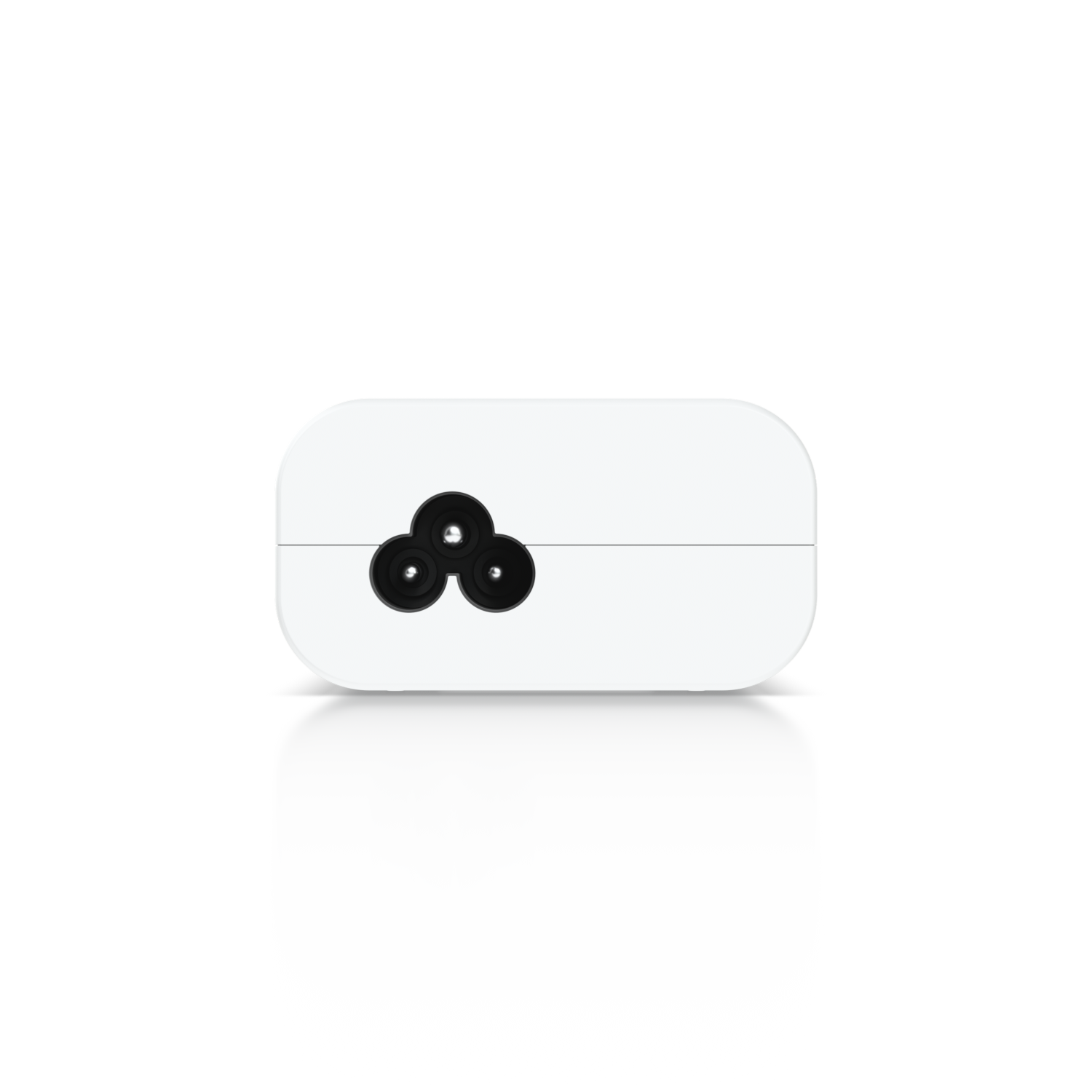

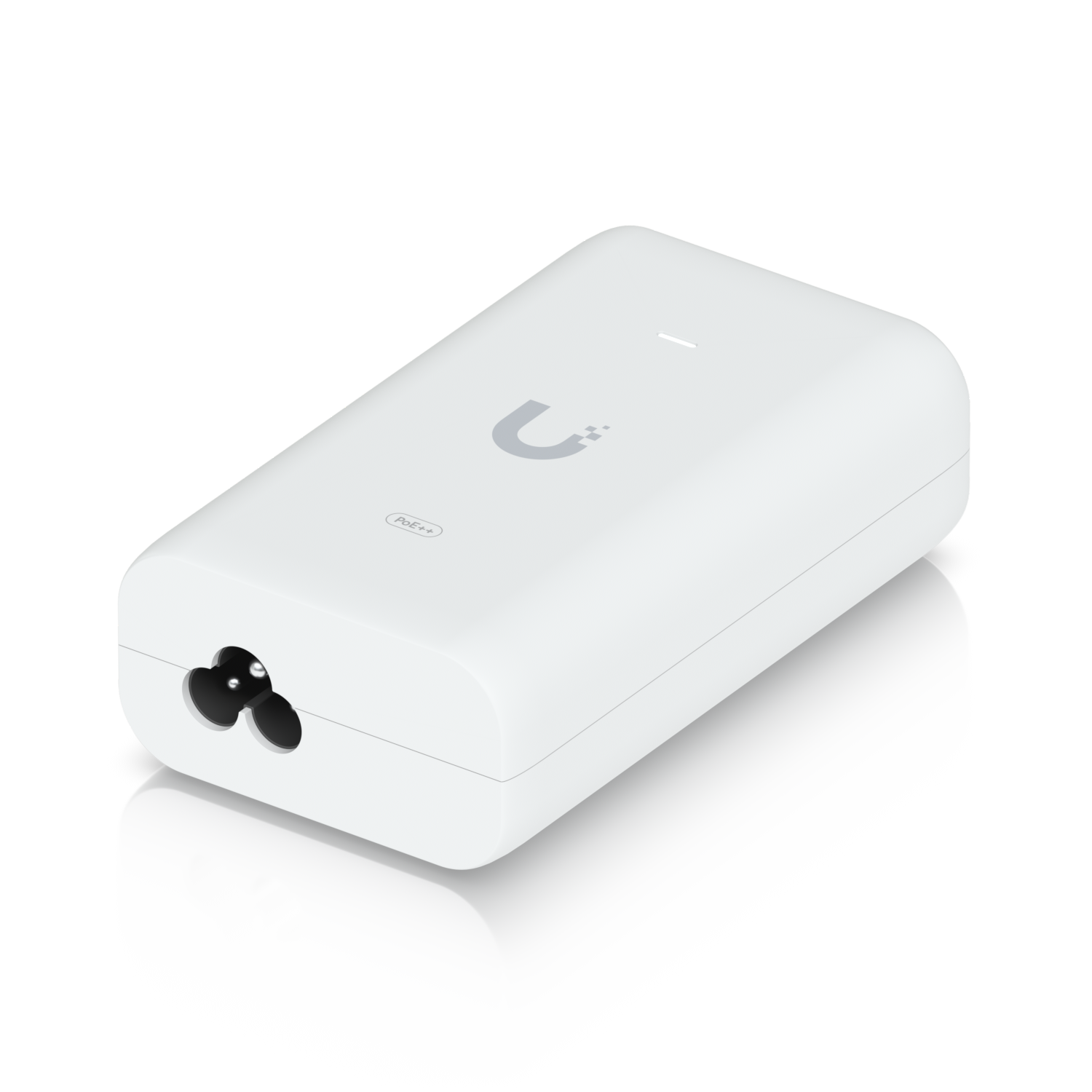

UniFi PoE++ Adapter (60W)
Millistykki sem getur knúið UniFi PoE++ búnað, dregið úr þörf á afli frá PoE rofa og veitt Gigabit LAN tengingu.
- Skilar allt að 60W af PoE++
- Vörn gegn spennuflóði, hámarkspúlsi og yfirstraumi
- Inniheldur RJ45 inntak fyrir gögn, AC rafmagnssnúru með jarðtengingu og PoE++ úttak
- LED vísir fyrir vöktun á stöðu
Tækni
Tæknilegir eiginleikar
Upplýsingar úr ETIM gögnum framleiðanda. Vantar þig meira? Hafðu samband við tækniráðgjöf okkar.
| Dimensions | 106 x 63 x 34 mm (4.2 x 2.5 x 1.3") |
|---|---|
| Weight | 210 g (7.4 oz) |
| Power Cable | Included |
| Output Voltage | 48V DC at 1.25A |
| Rated Voltage | 100–240V AC at 50/60Hz |
| Gigabit LAN Port | Yes |
| 4-pair Powering | Pins 1, 2, 4, 5 (+) and 3, 6, 7, 8 (-) |
| AC Connector | IEC-320 C6 |
| Clamping Protection | 11V Data, 60V power |
| Data In / PoE | RJ45 Shielded Socket |
| Input Current | 1.3A @ 120V AC |
| Inrush Current | <100A peak @ 120V AC <200A peak @ 230V AC |
| Efficiency | 85+% |
| Switching Frequency | 65 kHz |
| Output Ripple | 1% Max. |
| Line Regulation | ≤ 1% |
| Load Regulation | ≤ 3% |
| Max. PoE+ Wattage per Port by PSE | 60W |
| Max. Surge Discharge | 1500A (8/20 μs) power |
| Peak Pulse Current | 36A (10/1000 μs) data |
| Power Method | Universal AC input, 100–240V AC, 50/60 Hz |
| Power Supply | AC/DC |
| Response Time | <1 ns |
| Shunt Capacitance | <5 pF data |
| Supported Voltage Range | 100–240V AC |
| Surge Protection | Difference and common mode |
| Ambient Storage Temperature | -30 to 70°C (-22 to 158° F) |
| Ambient Operating Temperature | 0 to 40° C (32 to 104° F) |
| Ambient Operating Humidity | 10 to 95% noncondensing |
| NDAA Compliant | Yes |
| Certifications | CE, FCC, IC, UKCA, KC, CCC, RoHS |
Engin skjöl skráð á þessa vöru.
