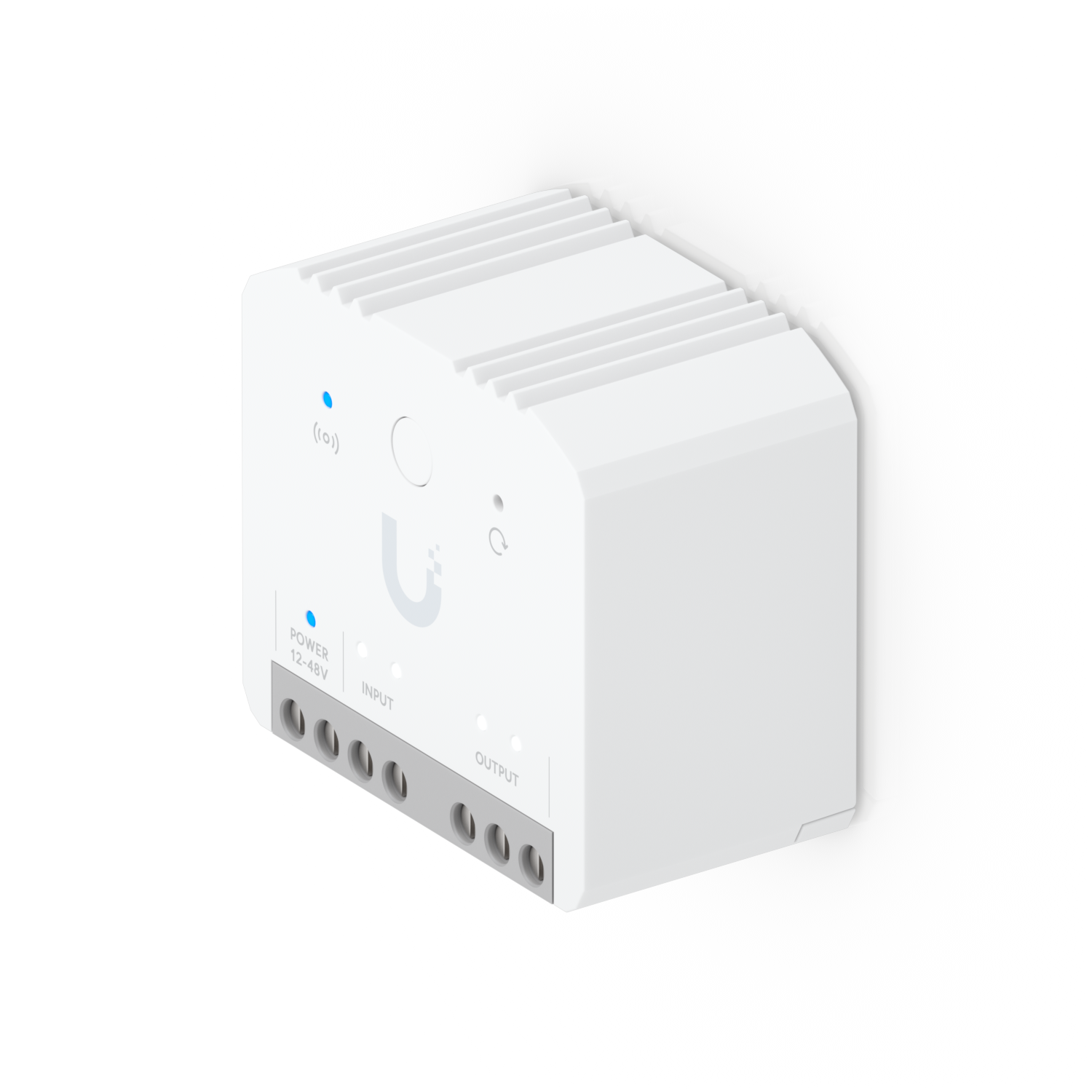

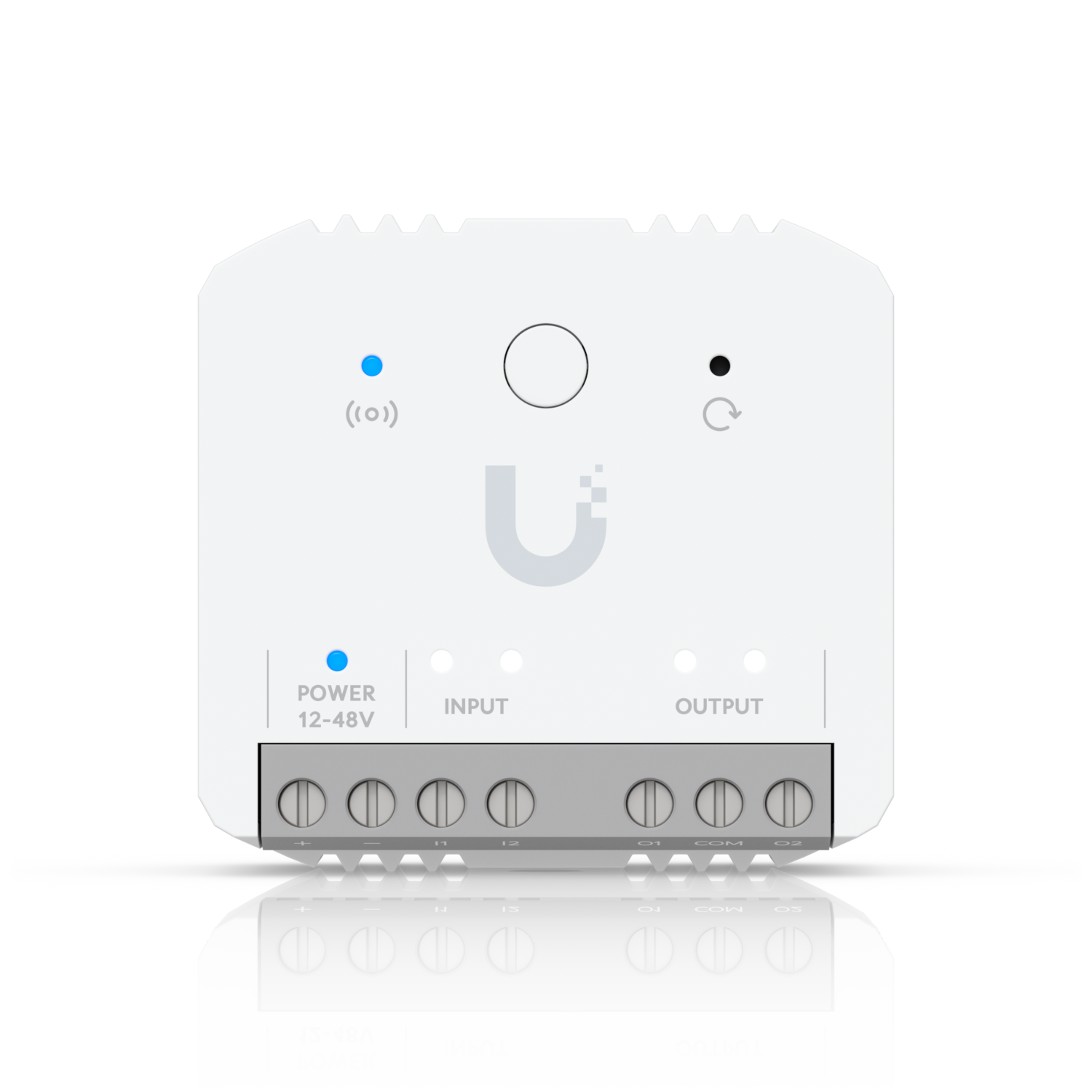

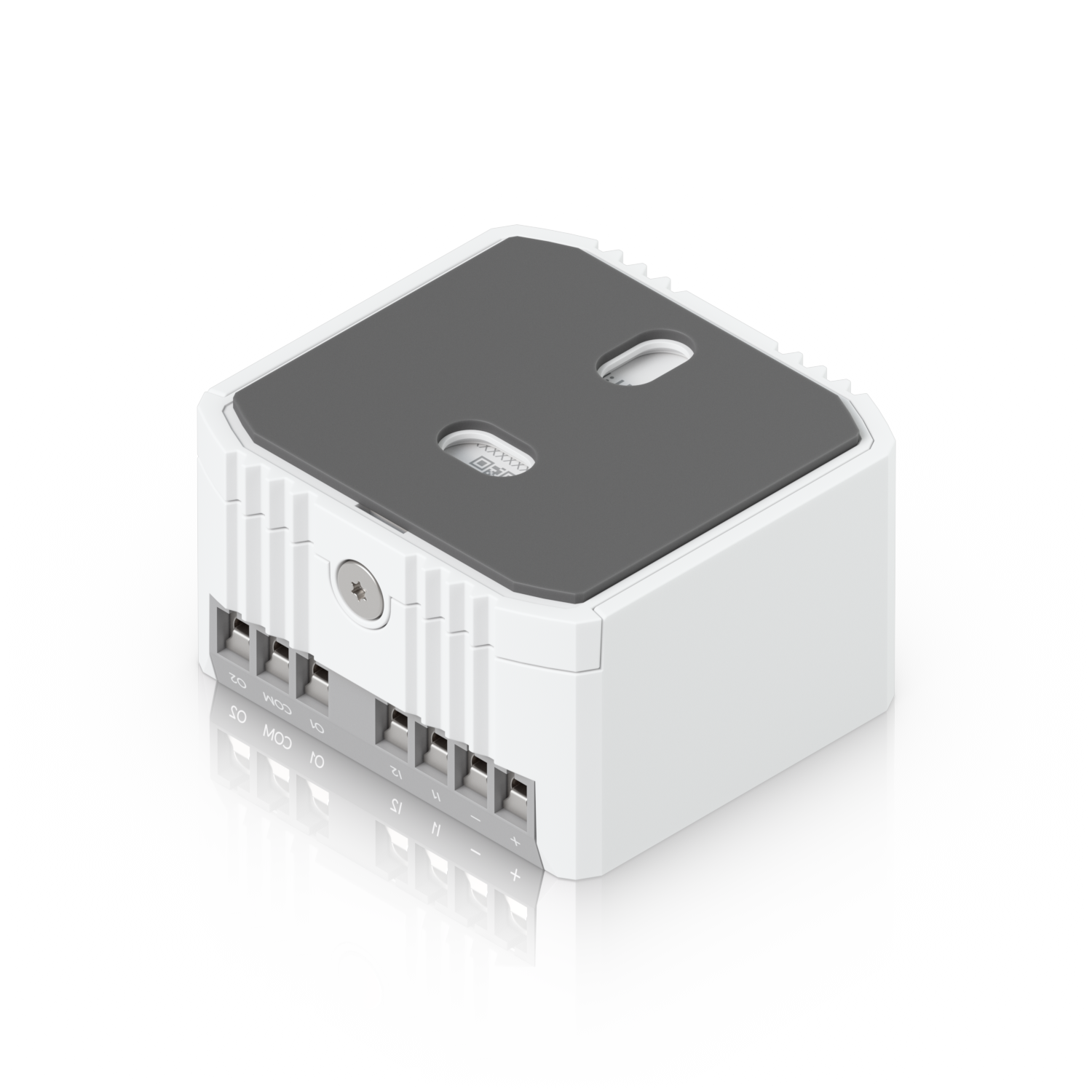

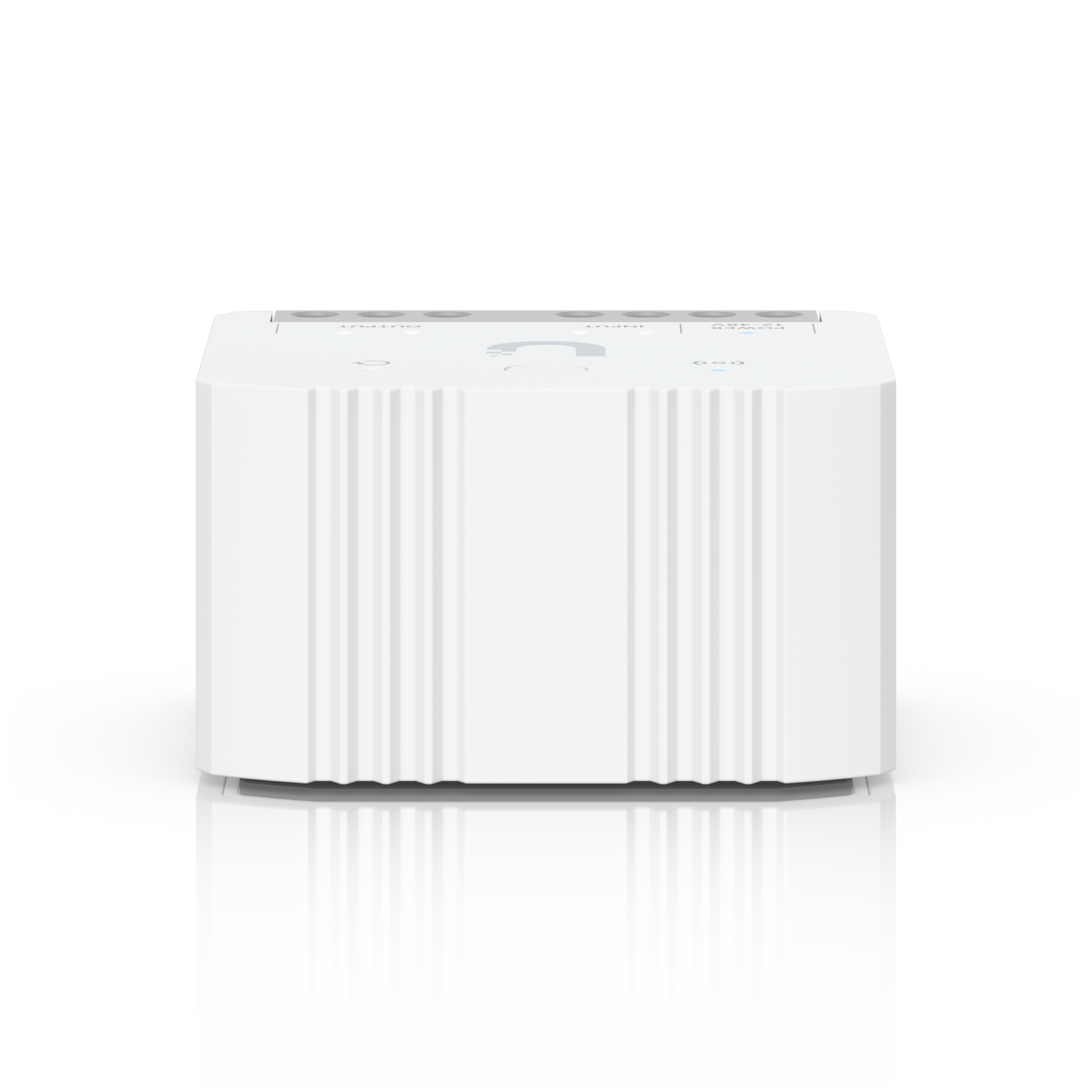

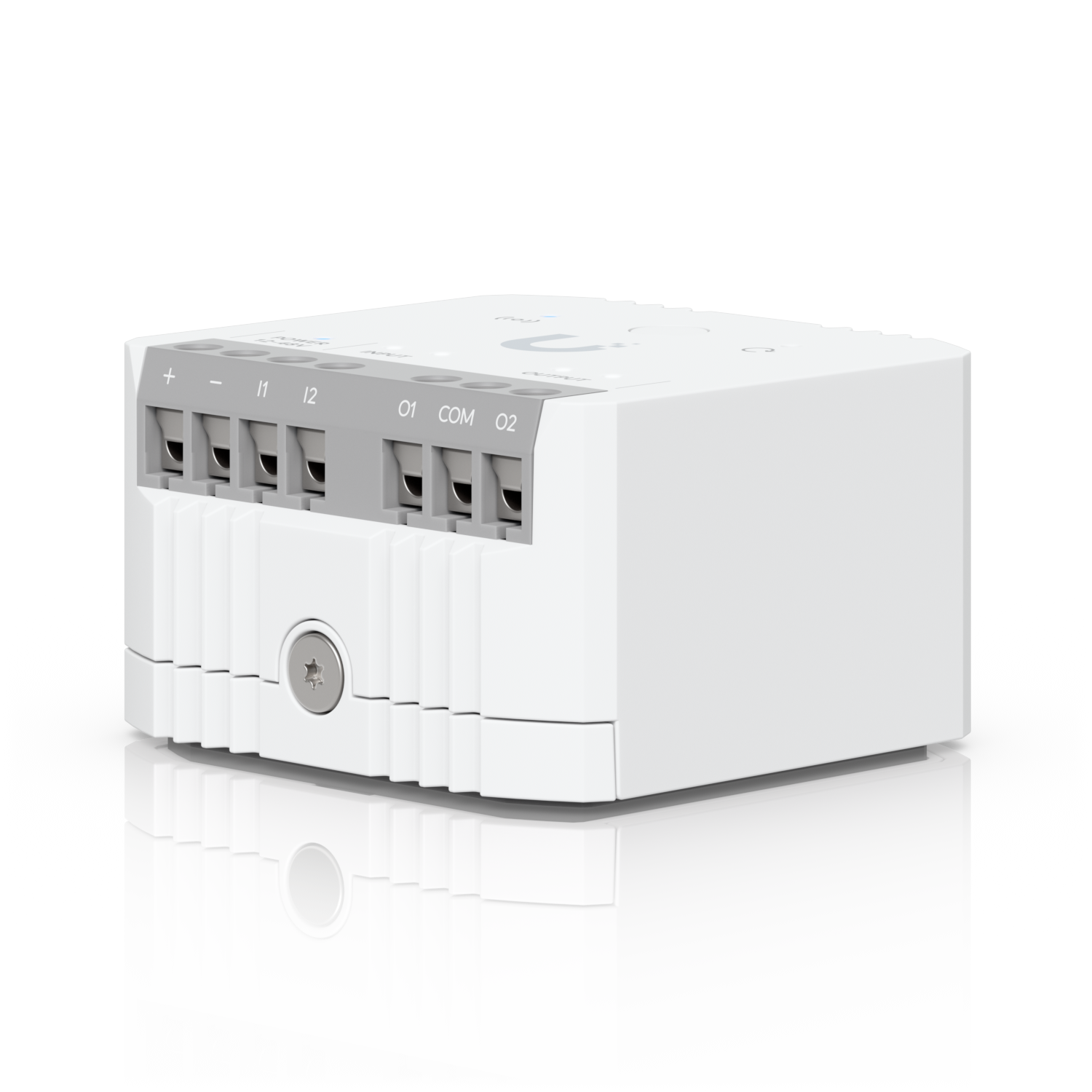

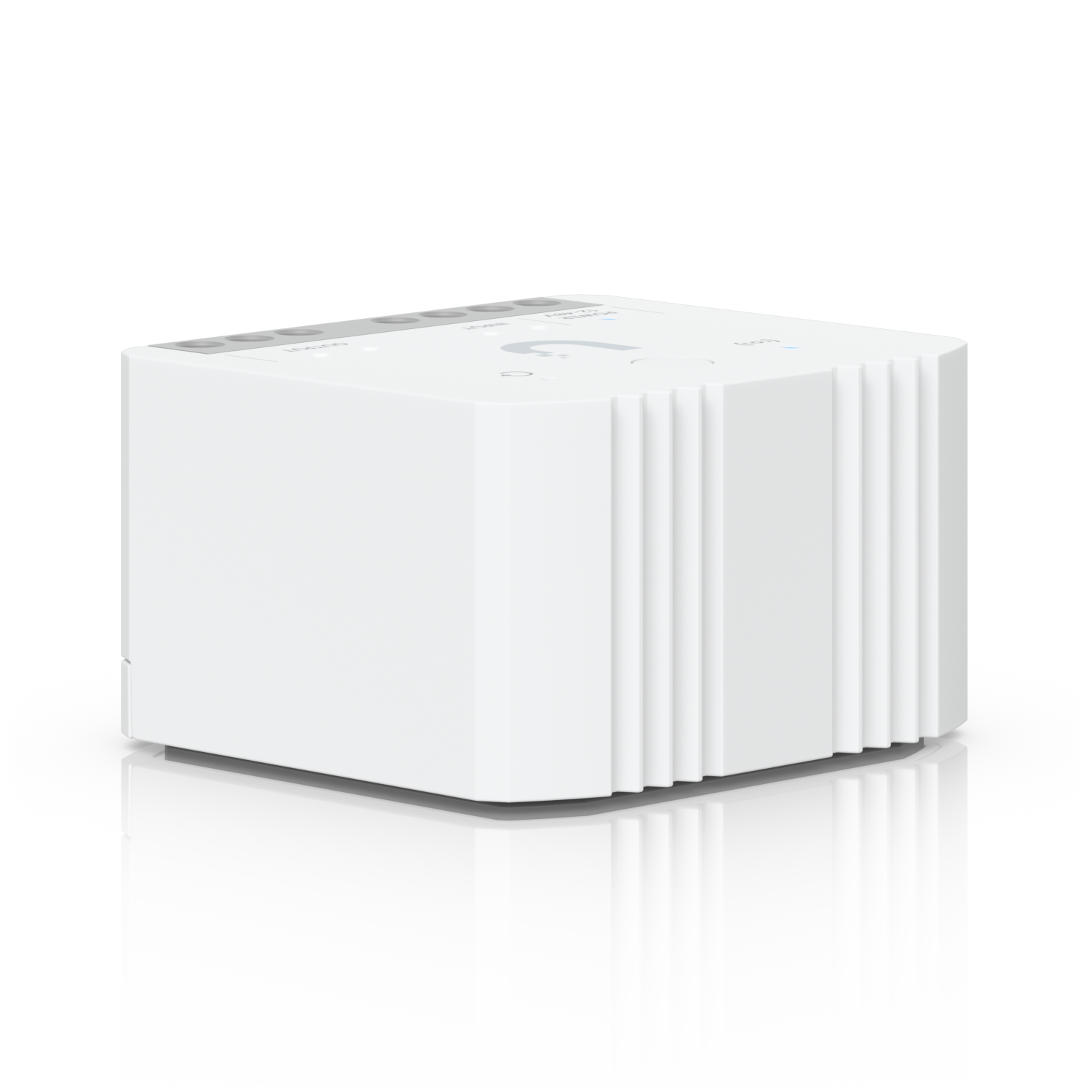

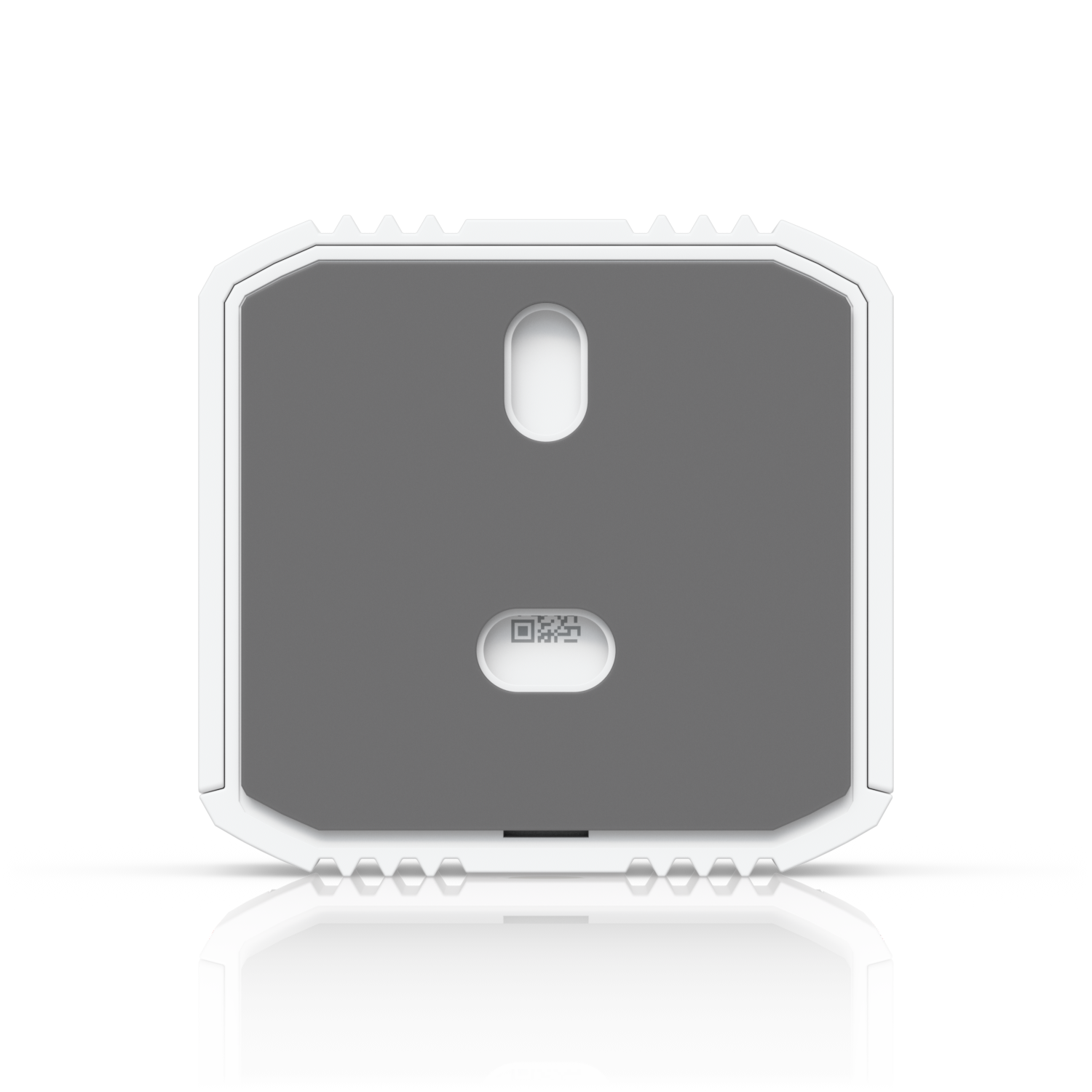

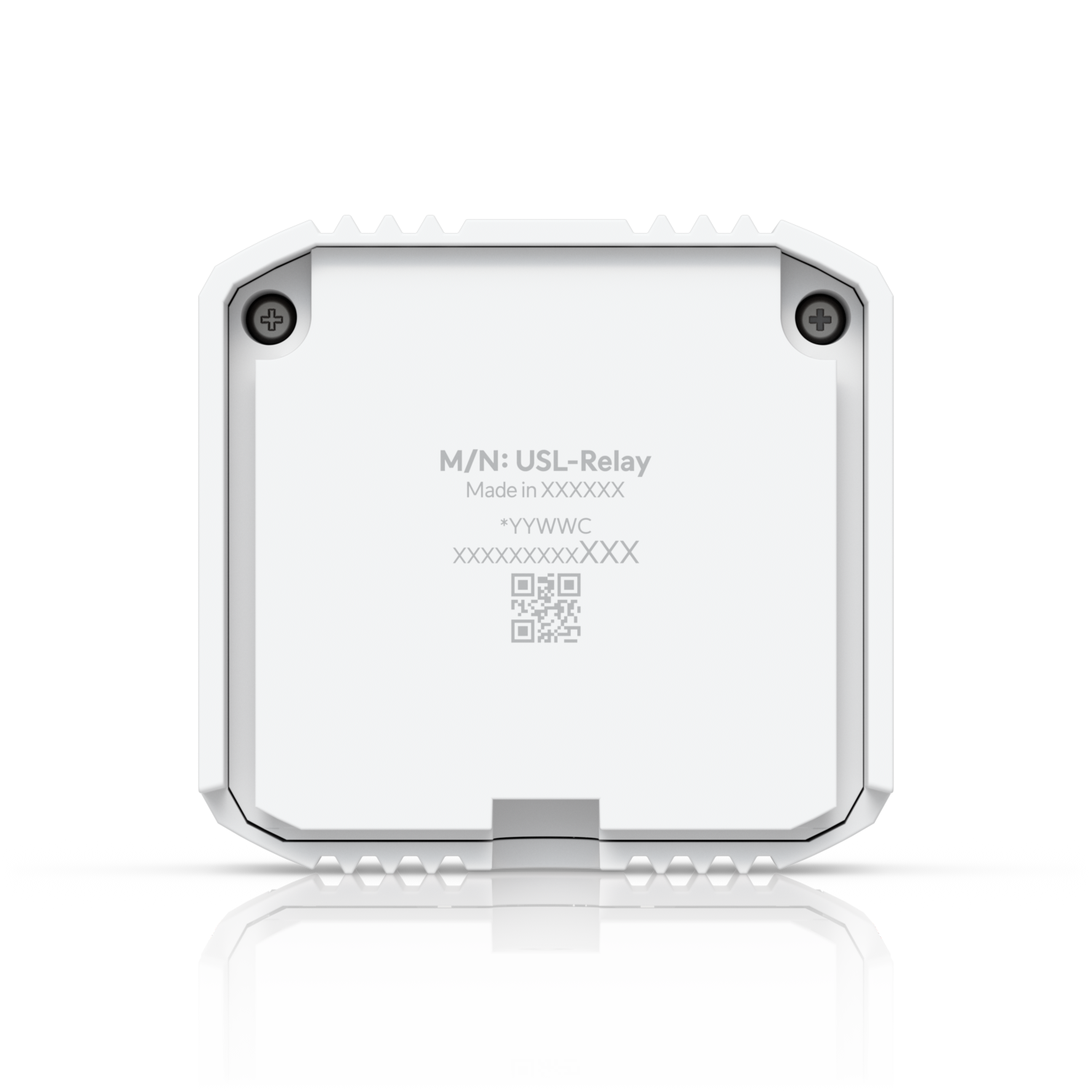

UniFi Protect Relay
Lítið SuperLink gengi hannað með I/O tengi fyrir óaðfinnanlega samþættingu við skynjara og merkjabúnað frá þriðja aðila.
Þrívídd og myndbönd
Tækni
Tæknilegir eiginleikar
Upplýsingar úr ETIM gögnum framleiðanda. Vantar þig meira? Hafðu samband við tækniráðgjöf okkar.
| Dimensions | 50 x 47.6 x 28 mm (2 × 1.9 × 1.1") |
|---|---|

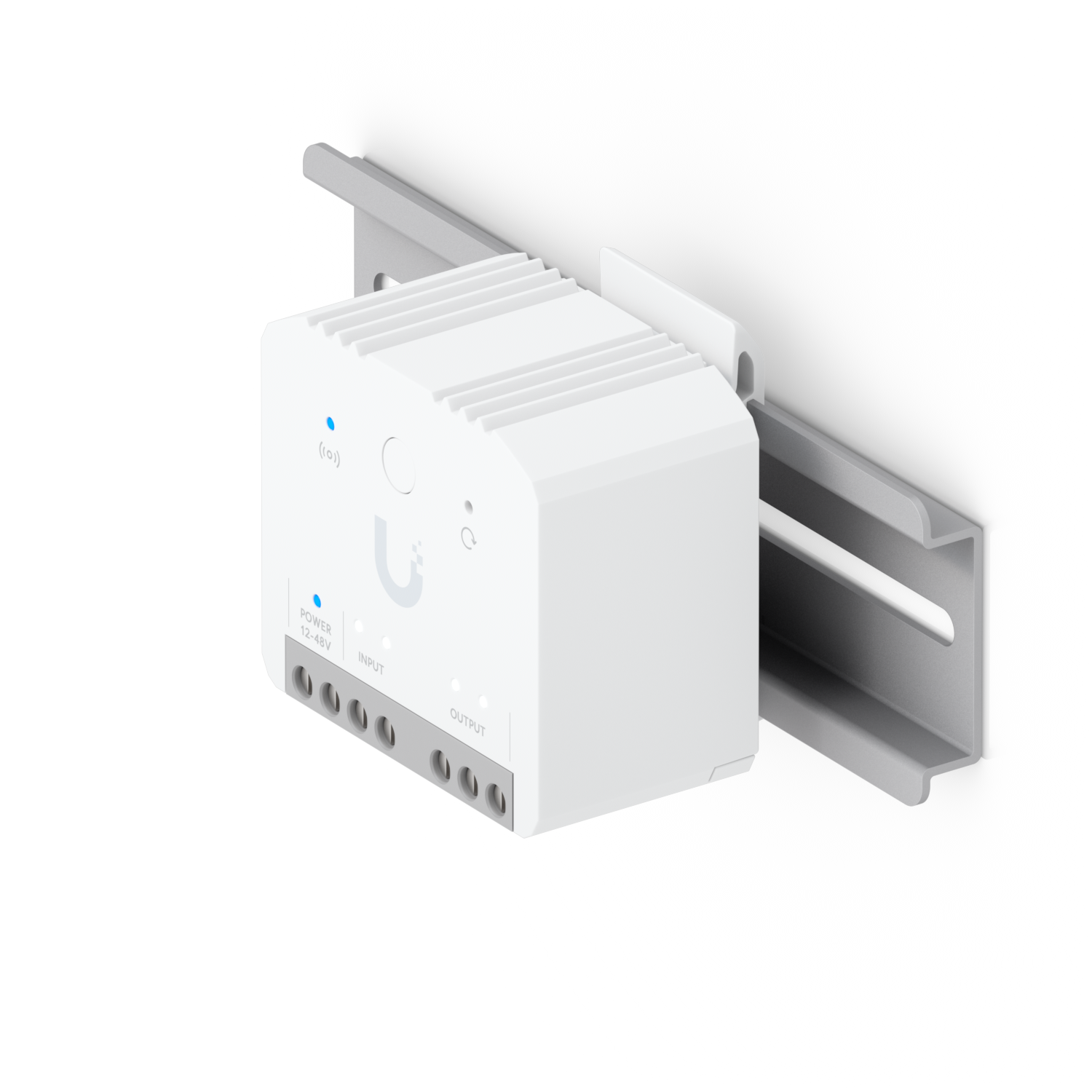

| Mounting | Adhesive, wall and DIN rail mount |
| UniFi Application Suite | Protect |
| Connectivity | SuperLink (Proprietary) |
| Operating Frequency: US | 915.6–927.6 MHz |
| Operating Frequency: EU | 865.1–869.5 MHz |
| Max. TX Power: SuperLink | 14 dBm |
| Max. Range: SuperLink | 2 km (1.2 mi) (Line of Sight (LOS)) |
| Max. Power Consumption | 0.83W |
| Supported Voltage Range | 12–48V DC |
| Power Method | 12V DC / 24V DC / 48V DC |
| Weight | 100 g (3.5 oz) |
| Enclosure Material | Polycarbonate |
| Mount Material | Polycarbonate |
| Buttons | (1) Factory reset (1) Test button |

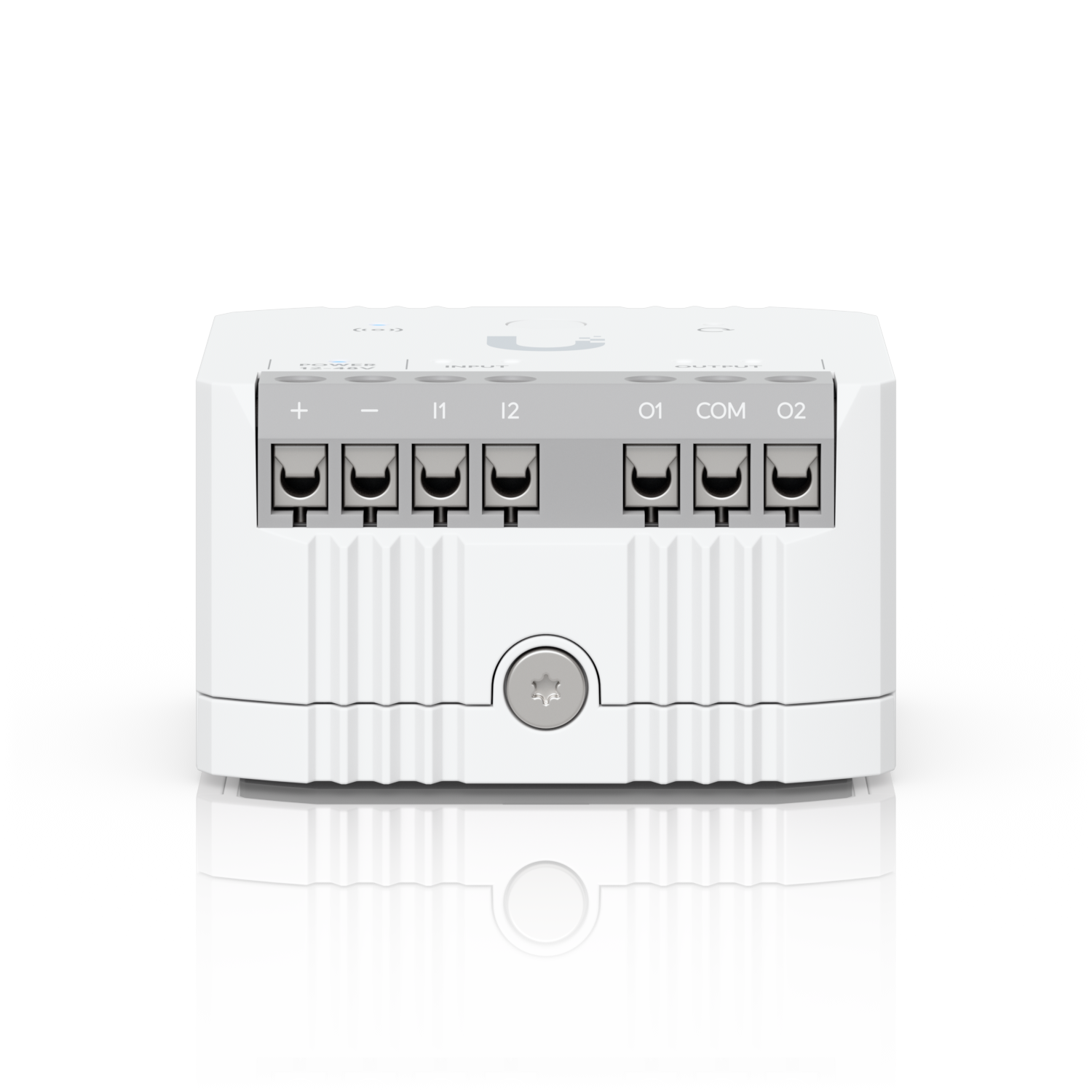

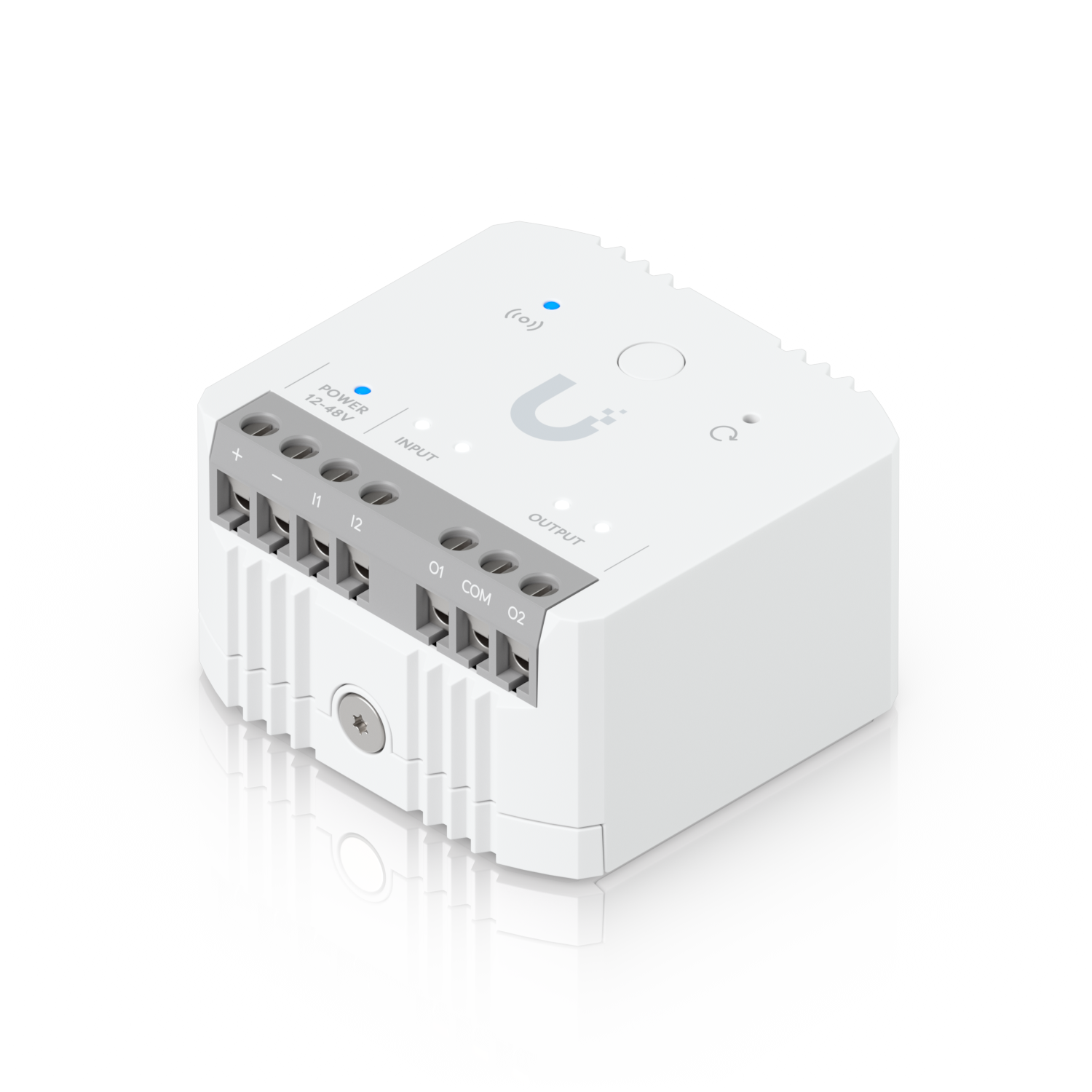

| Terminal Blocks: Output | O1/COM/O2 Dry contact only (12-48V DC, 12-240V AC) 10A/port, UL total max: 12A IEC total max: 16A |
| Terminal Blocks: Input | I1/I2 Dry contact only Open/Short (GND) Integrated 5V TVS protection |
| Terminal Blocks: Power | VDD/GND 12–48V DC, max. 48V Integrated over-temperature protection (OTP) at 85°C (185°F) |
| LEDs | (1) LoRa, Status: RGBW (2) Signal input, Relay output: W |
| Ambient Operating Temperature | 0 to 40° C (32 to 104° F) |
| Ambient Operating Humidity | 10 to 90% noncondensing |
| Certifications | CE, FCC, IC |
| NDAA Compliant | Yes |
| Application Requirements: Web Application | UniFi Protect |
| Application Requirements: Mobile App | UniFi Protect iOS™ and Android™ |
