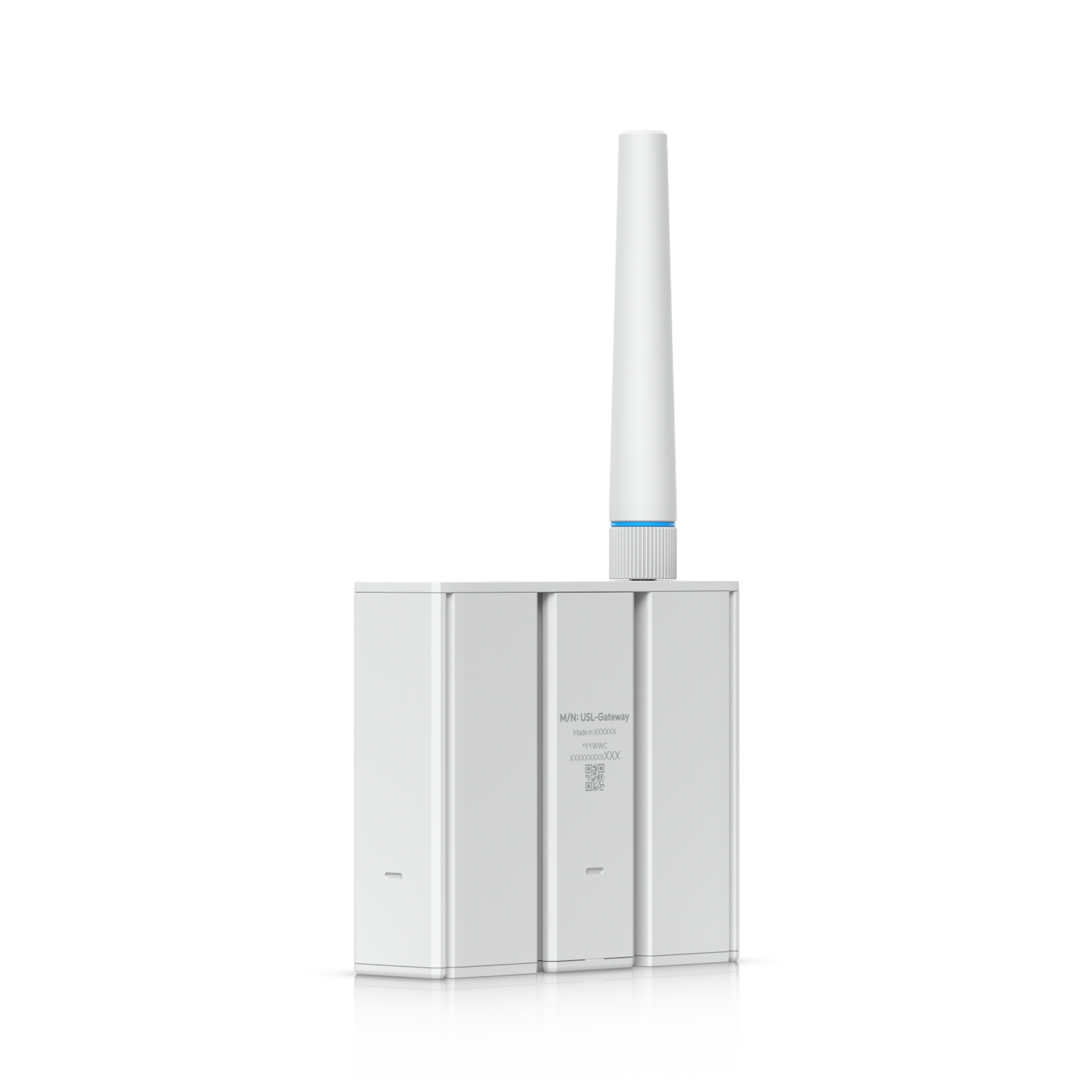

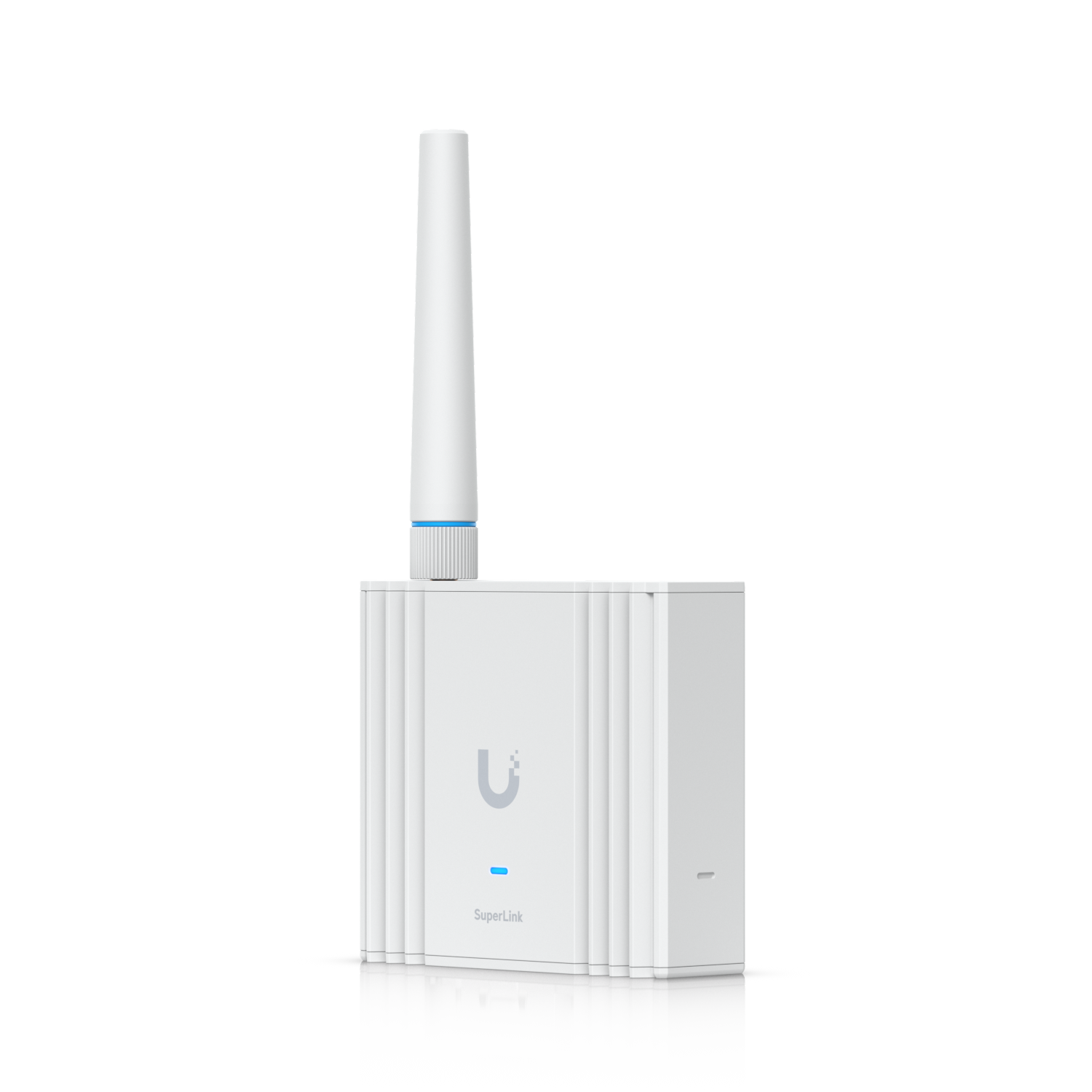

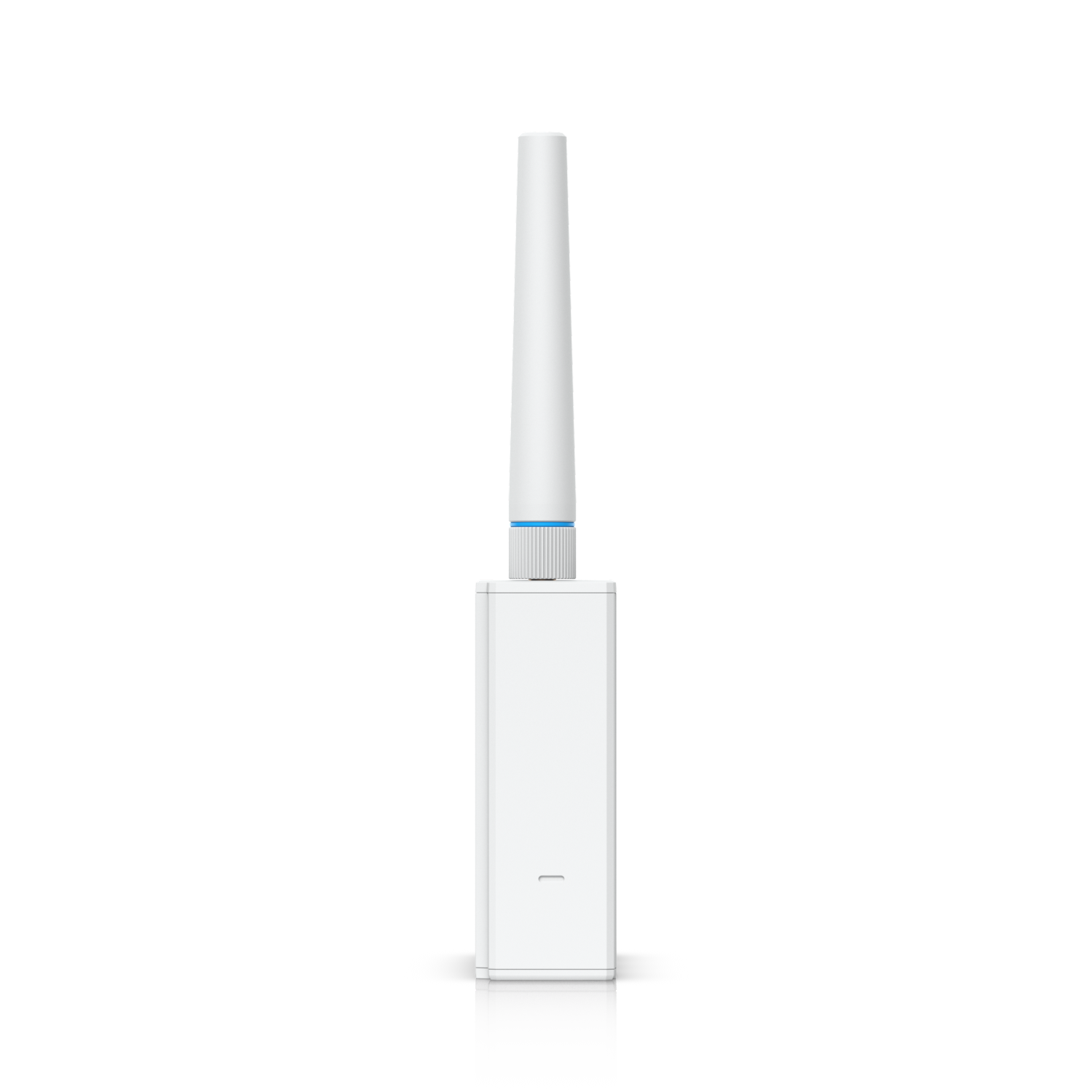

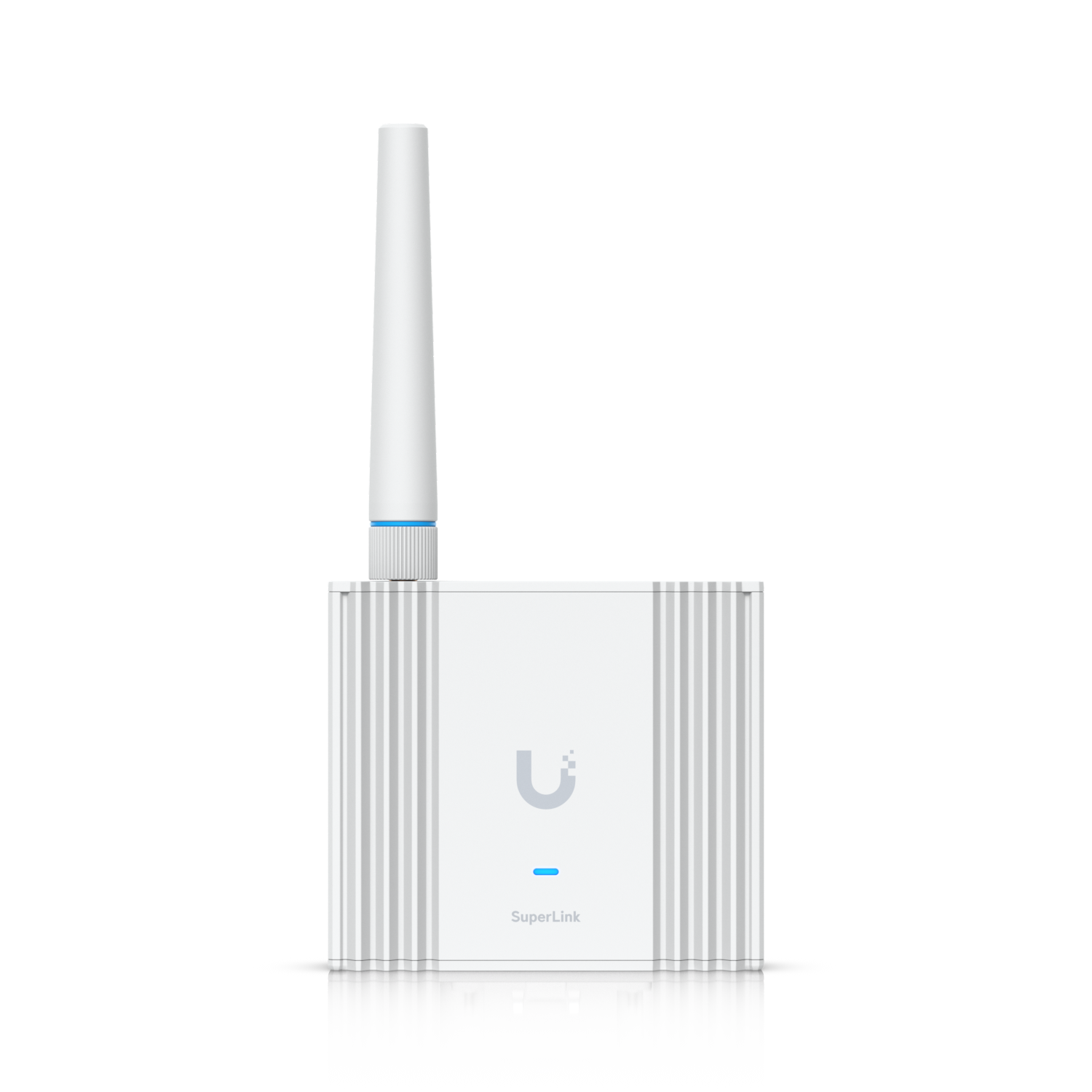

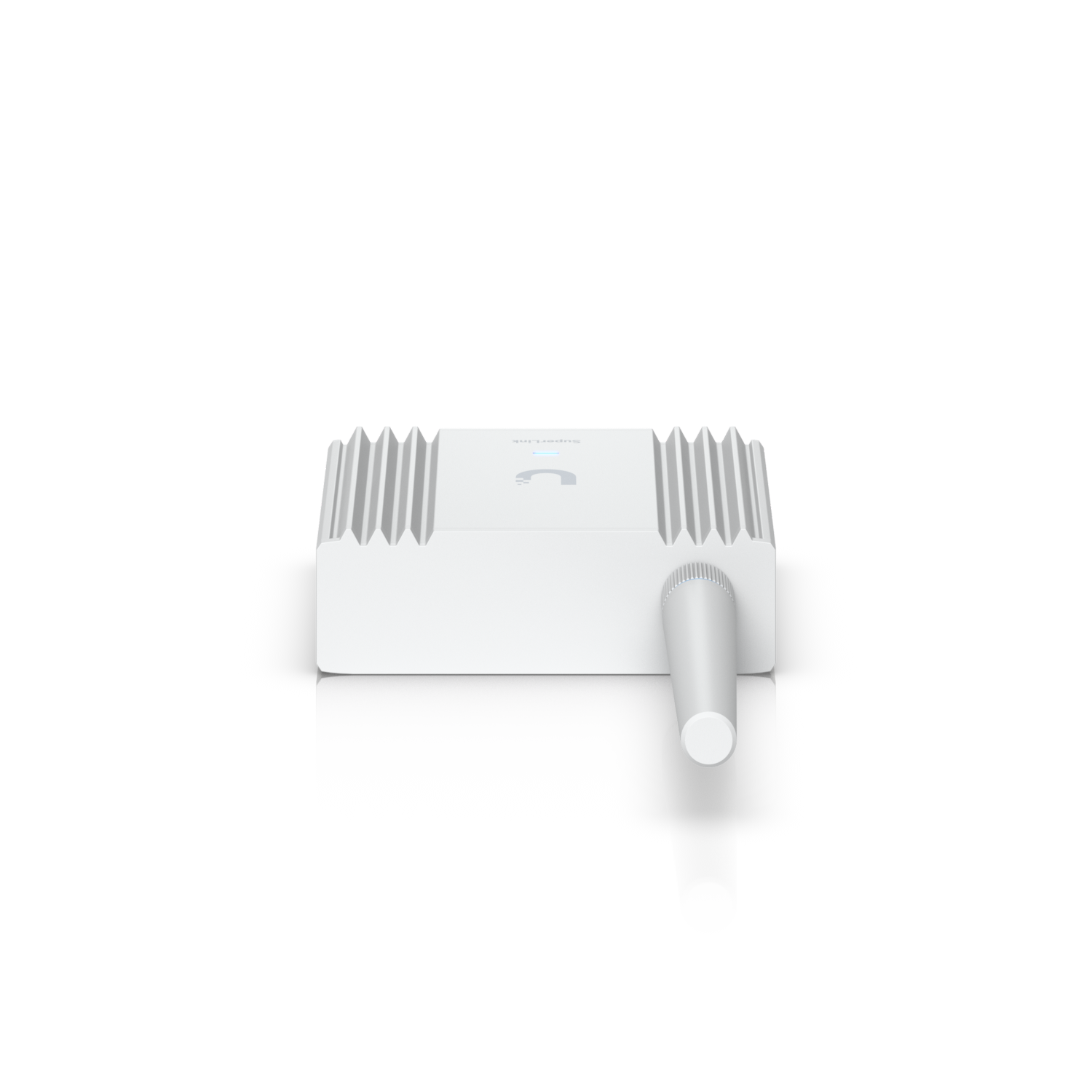

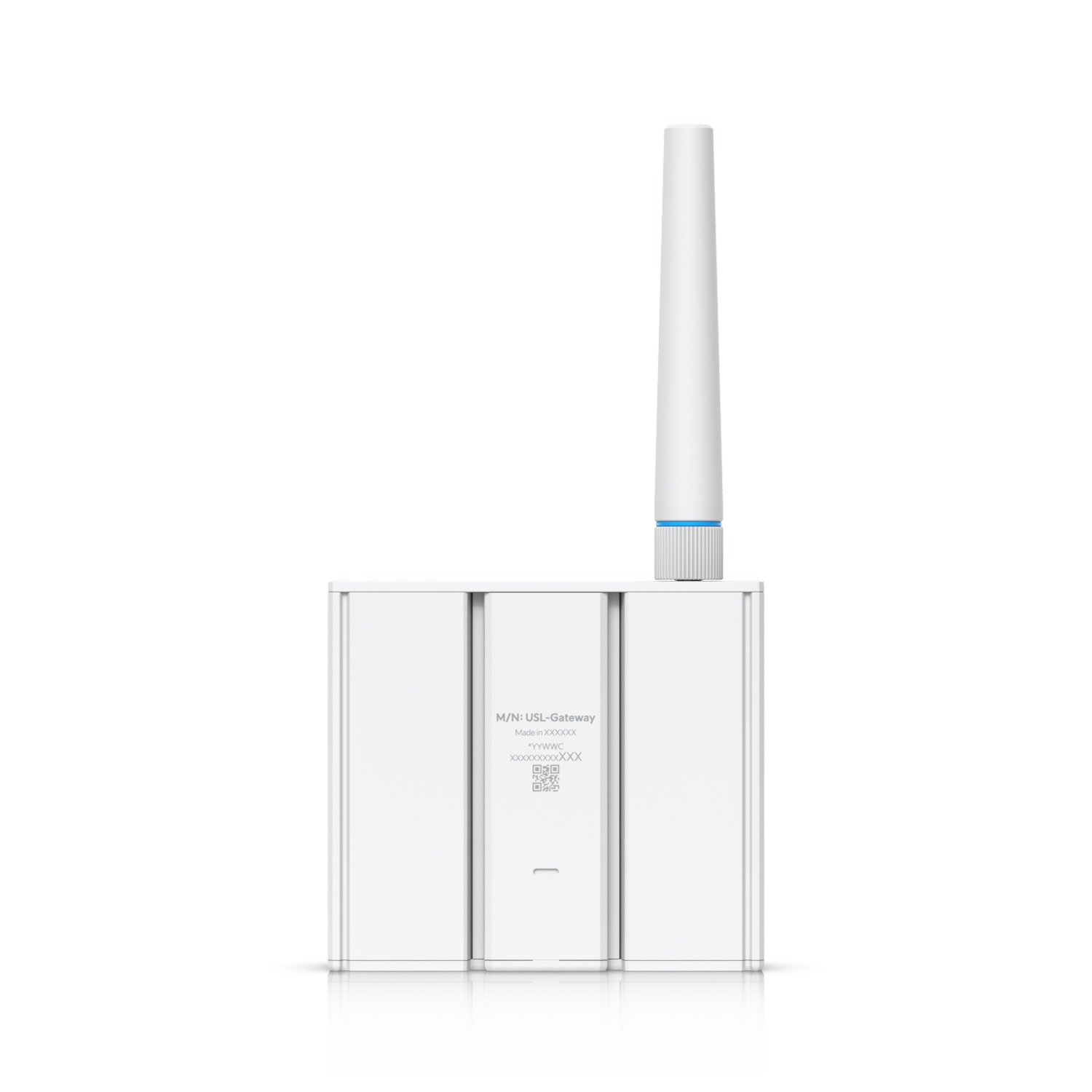

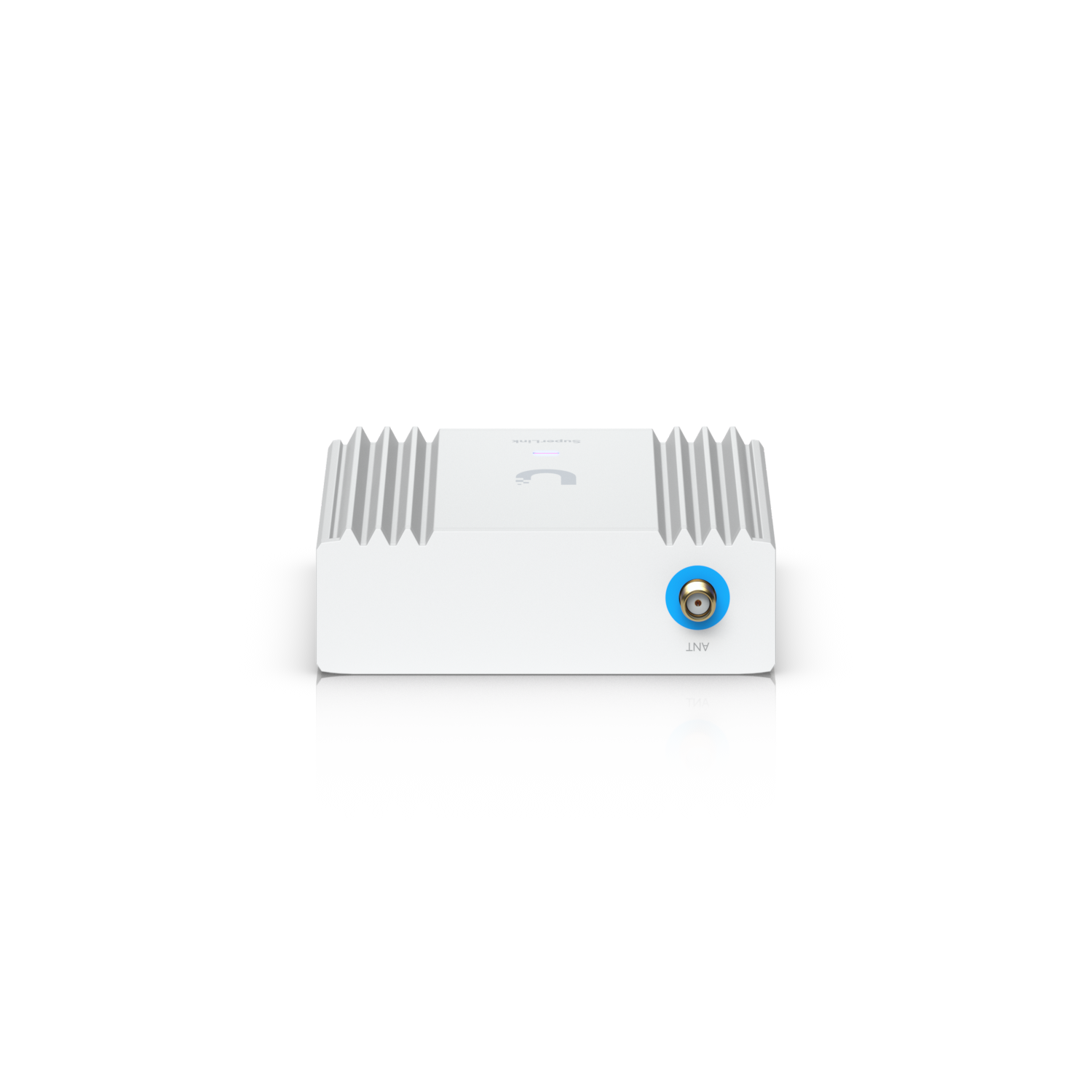

UniFi SuperLink Gateway
Sérhannað þráðlaust hlið (gateway) með mjög langdrægni og lágum leiðslutíma (low-latency) fyrir UniFi Protect Sensors.
SuperLink uppsetningarleiðbeiningar
Athugið. Langdræg BLE-þekja er sambærileg við WiFi-þekju.
Þrívídd og myndbönd
Tækni
Tæknilegir eiginleikar
Upplýsingar úr ETIM gögnum framleiðanda. Vantar þig meira? Hafðu samband við tækniráðgjöf okkar.
| Dimensions | With antenna: 159.3 x 81.9 x 26 mm (6.3 x 3.2 x 1") With DIN rail mount: 159.3 x 81.9 x 38.5 mm (6.3 x 3.2 x 1.5") With wall mount: 159.3 x 81.9 x 30.5 mm (6.3 x 3.2 x 1.2") |
|---|---|
| Mounting | Wall and DIN rail mount |
| UniFi Application Suite | Protect |

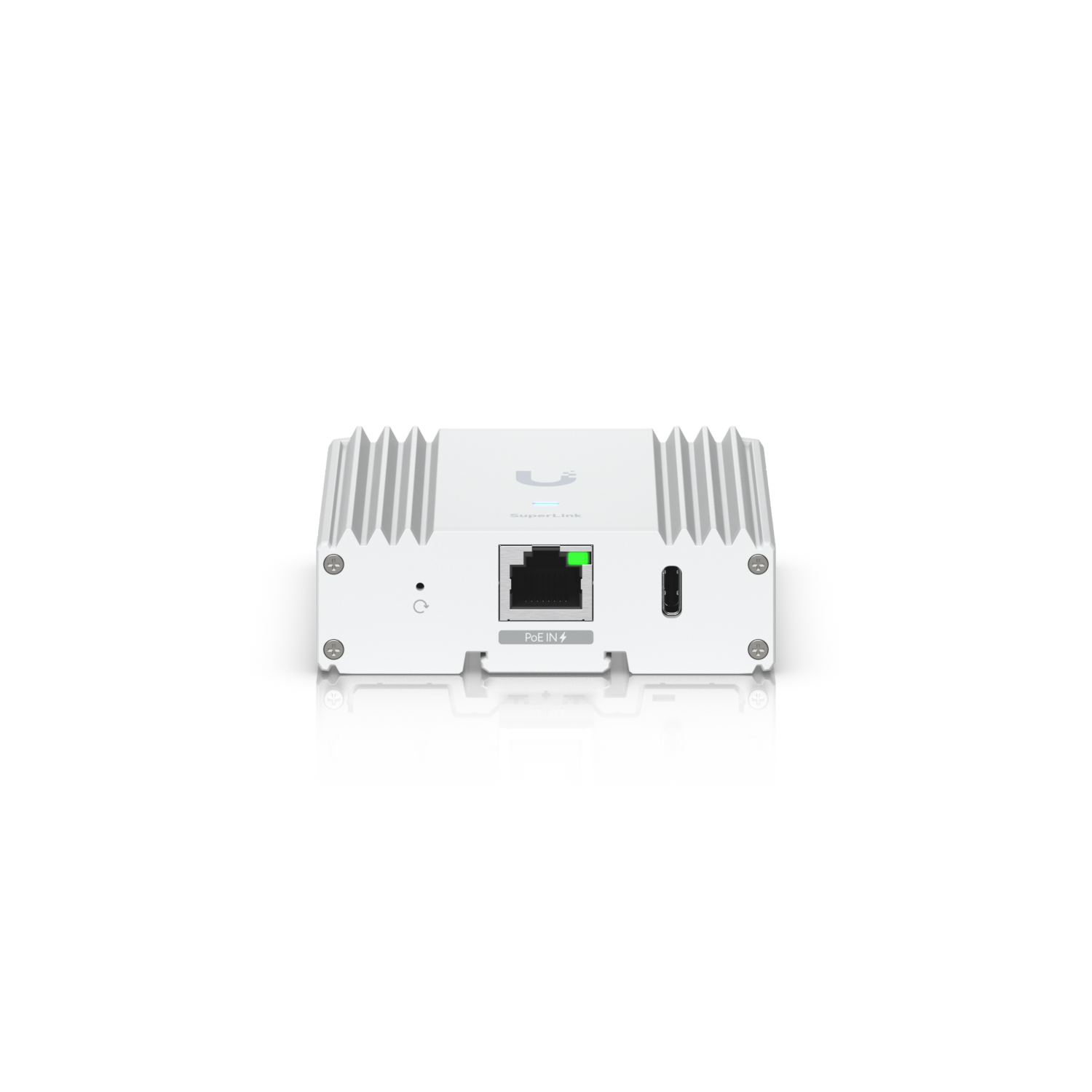

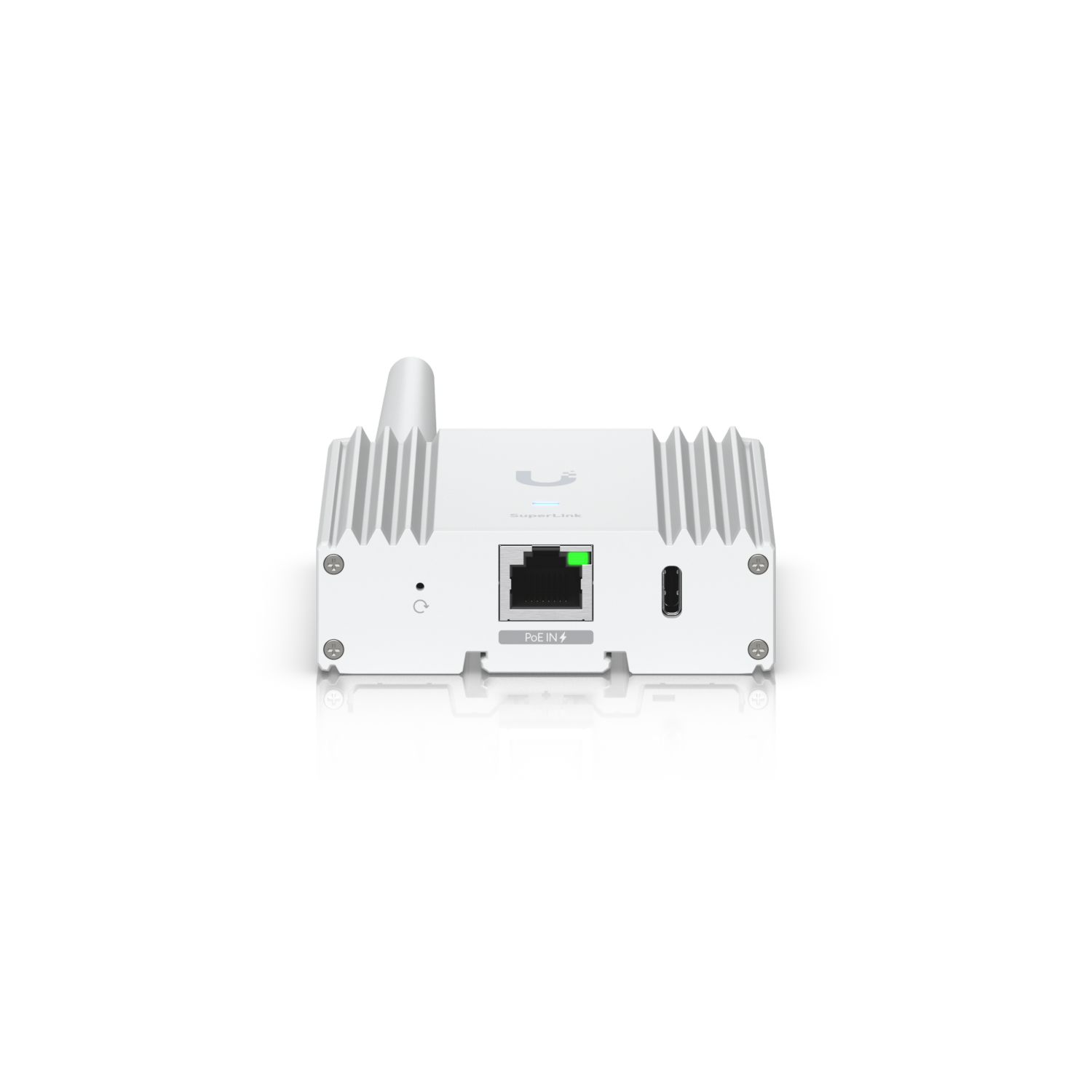

| Networking Interface | (1) 10/100 MbE RJ45 port |
| Connectivity | Bluetooth® 5.2 SuperLink (Proprietary) |
| Operating Frequency: Bluetooth | 2400–2480 MHz |
| Operating Frequency: SuperLink | US: 915.6–927.6 MHz EU: 865.1–869.5 MHz JP: 920.5–922.3 MHz |
| Antenna Gain: Bluetooth | 3 dBi |
| Antenna Gain: SuperLink | 2 dBi |
| Max. TX Power: Bluetooth | 10 dBm |
| Max. TX Power: SuperLink | 27 dBm |
| Max. Range: Bluetooth | Up to 100 m (328 ft) |
| Max. Range: SuperLink | 2 km (1.2 mi) (Line of Sight (LOS)) |
| Max. Client Count: Bluetooth | 7 |
| Max. Client Count: SuperLink | 96 |
| Max. Power Consumption | 3.4W |
| Power Method | PoE USB Type-C, 5V, 1A (Optional) |
| Weight | 179 g (6.3 oz) |
| Enclosure Material | Polycarbonate, aluminum alloy |
| Mount Material | Polycarbonate |
| Antenna Connector | (1) RP-SMA female |
| Buttons | (1) Factory reset |
| LEDs | (1) Status: B/W |
| Ambient Operating Temperature | 0 to 40° C (32 to 104° F) |
| Ambient Operating Humidity | 10 to 90% noncondensing |
| Certifications | CE, FCC, IC, UL62368-1 |
| NDAA Compliant | Yes |
| Application Requirements: Web Application | UniFi Protect |
| Application Requirements: Mobile App | UniFi Protect iOS™ and Android™ |
