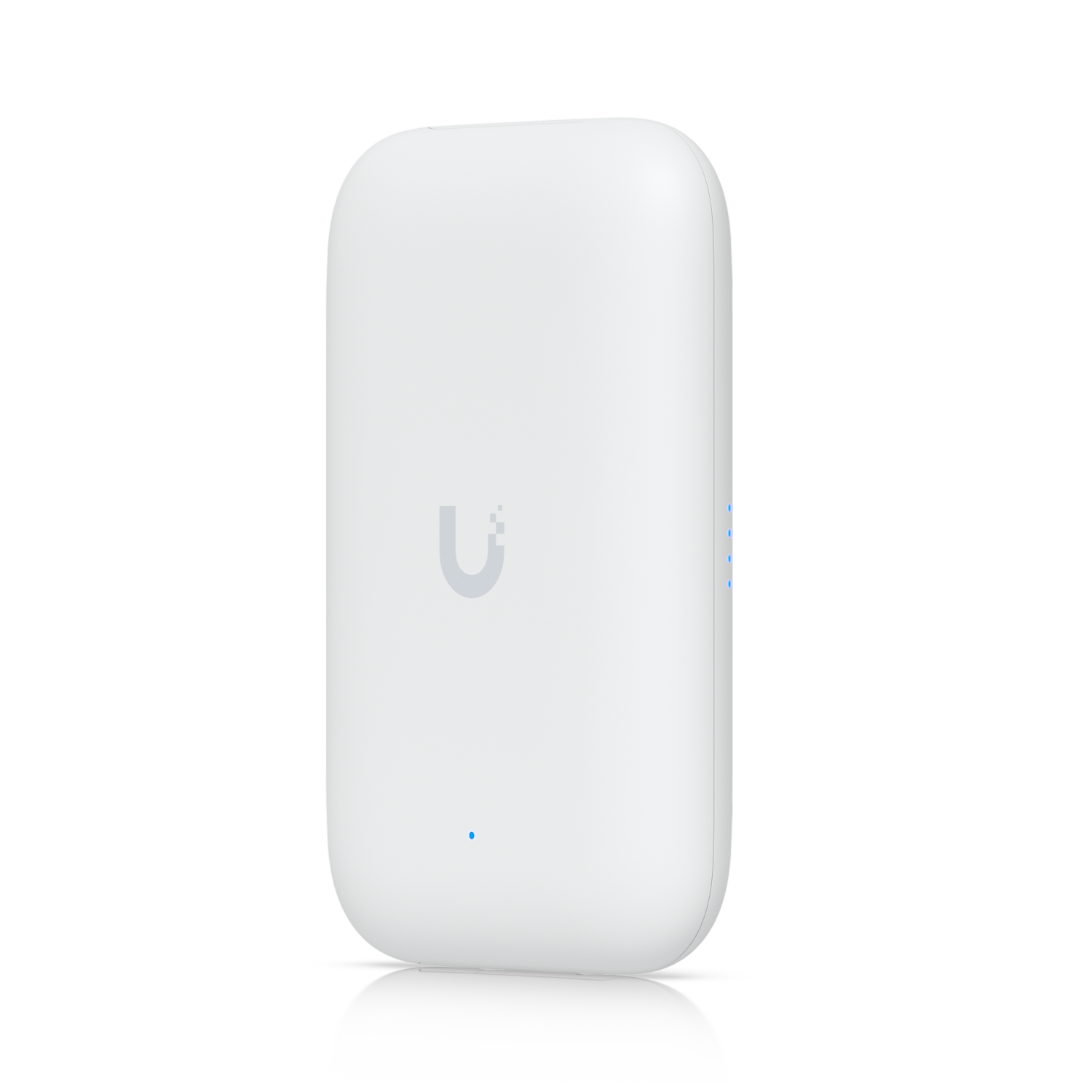

UniFi Swiss Army Knife
Ótrúlega fyrirferðarlítill AP til notkunar innan- og utandyra með fjölhæfum festingarmöguleikum og stuðningi við langdrægar ytri loftnet.
- WiFi 5
- 4 rýmisstraumar (spatial streams)
- 115 m² (1.250 ft²) þekja með innbyggðu loftneti
- 200+ tengd tæki
- Knúið með PoE
- GbE upptengingu
- Fjölhæf vegg-, lofts- og staurfesting

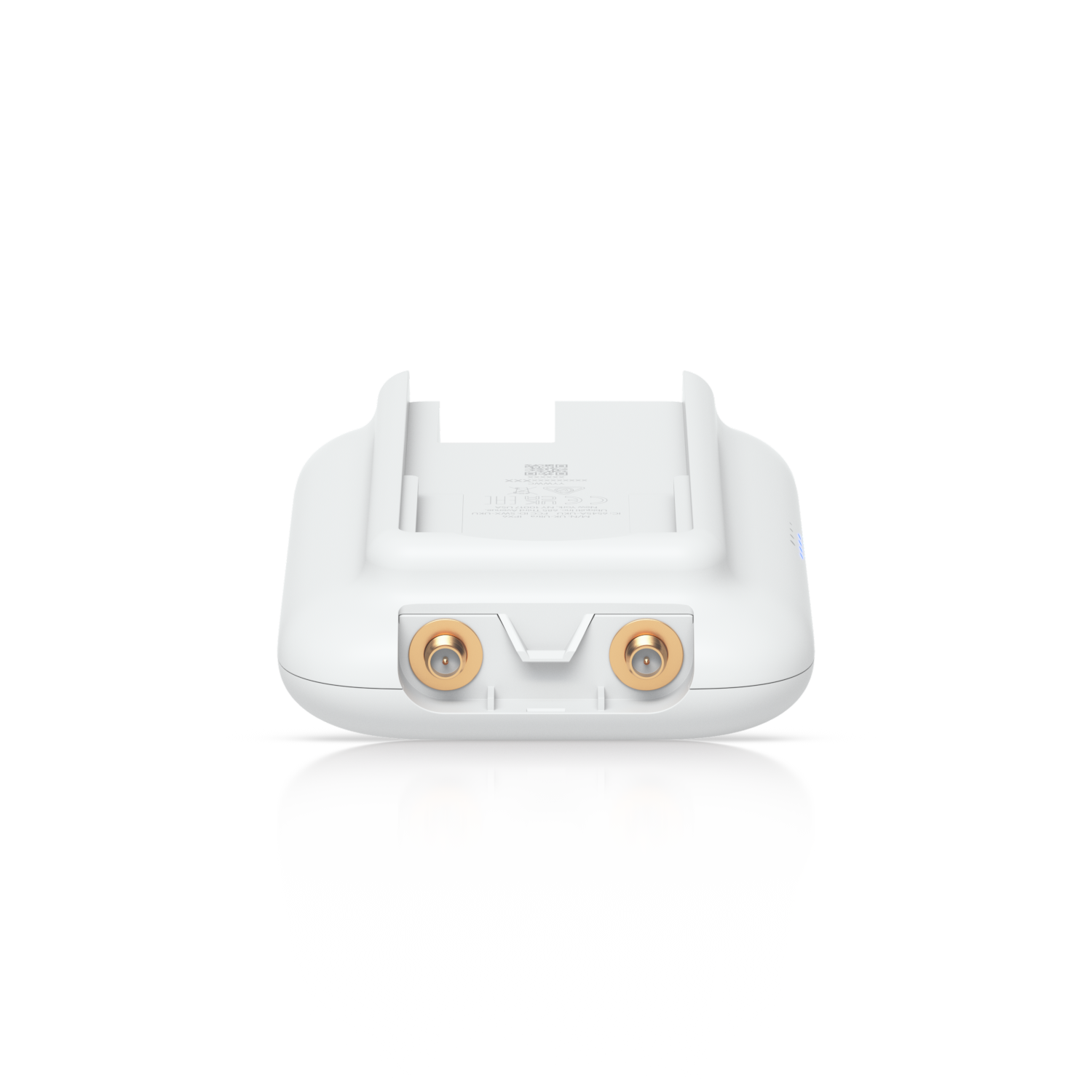

- (2) RP-SMA tengi fyrir valfrjáls ytri loftnet
- Veðurþolið (fyrir útsetningu utandyra)
Þrívídd og myndbönd
Tækni
Tæknilegir eiginleikar
Upplýsingar úr ETIM gögnum framleiðanda. Vantar þig meira? Hafðu samband við tækniráðgjöf okkar.
| Dimensions | 137 x 84 x 34 mm (5.4 x 3.3 x 1.3") |
|---|---|
| WiFi Standard | WiFi 5 |
| Spatial Streams | 4 |
| Coverage Area | 115 m² (1,250 ft²) |
| Max. Client Count | 200+ |
| Uplink | GbE |
| Mounting | Ceiling, Wall, Pole, Table (With Accessory) (Mounts Included) Desktop Stand (Optional) |
| Weatherproofing | IPX6 |
| Power Method | PoE |
| MIMO: 5 GHz | 2 x 2 (DL MU-MIMO) |
| MIMO: 2.4 GHz | 2 x 2 (DL MU-MIMO) |
| Max. Data Rate: 5 GHz | 866.7 Mbps (BW80) |
| Max. Data Rate: 2.4 GHz | 300 Mbps (BW40) |
| Antenna Gain: 5 GHz | 6.1 dBi |
| Antenna Gain: 2.4 GHz | 4.7 dBi |
| Max. TX Power: 5 GHz | 20 dBm |
| Max. TX Power: 2.4 GHz | 20 dBm |
| Max. BSSIDs | 8 per Radio |
| Supported Data Rates: 802.11ac (WiFi 5) | 6.5 Mbps to 866.7 Mbps (MCS0 - MCS9 NSS1/2, VHT 20/40/80) |
| Supported Data Rates: 802.11n | 6.5 Mbps to 300 Mbps (MCS0 - MCS15, HT 20/40) |
| Wireless Meshing | Yes |
| Band Steering | Yes |
| 802.11v BSS Transition Management | Yes |
| 802.11r Fast Roaming | Yes |
| 802.11k Radio Resource Management (RRM) | Yes |
| Advanced Radio Management | Yes |
| Passpoint (Hotspot 2.0) | Yes |
| Captive Hotspot Portal: Custom Branding Landing Page | Yes |
| Captive Hotspot Portal: Voucher Authentication | Yes |
| Captive Hotspot Portal: Payment-Based Authentication | Yes |
| Captive Hotspot Portal: External Portal Server Support | Yes |
| Captive Hotspot Portal: Password Authentication | Yes |
| Captive Hotspot Portal: Guest Network Isolation | Yes |
| Private Pre-Shared Key (PPSK) | Yes |
| WiFi Speed Limiting | Yes |
| Client Device Isolation | Yes |
| WiFi Schedules | Yes |
| RADIUS over TLS (RadSec) | Yes |
| Dynamic RADIUS-assigned VLAN | Yes |
| Max. Power Consumption | 8W |
| Supported Voltage Range | 44–57V DC |

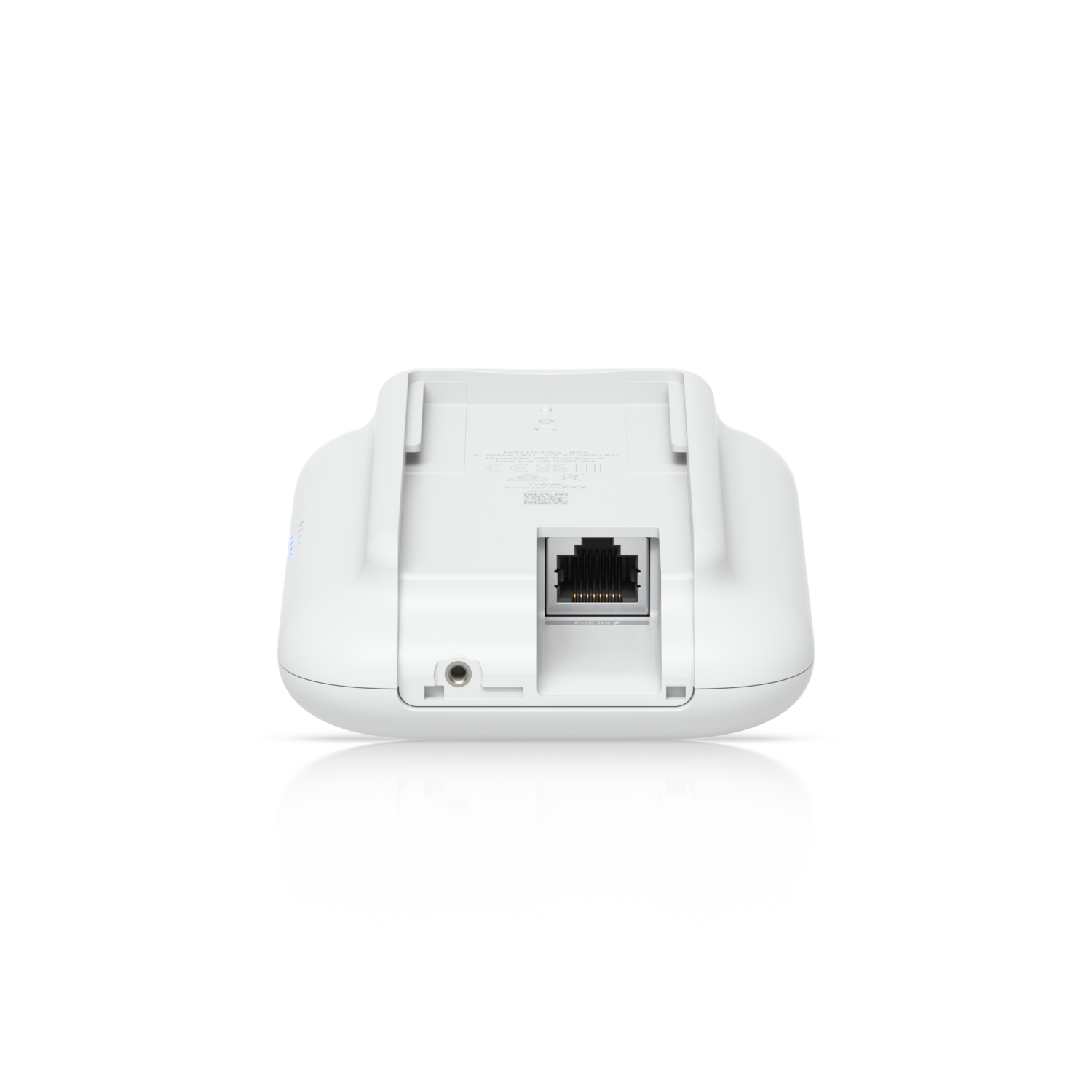

| Networking Interface | (1) GbE RJ45 port |
| Weight | 173 g (6.1 oz) |
| Wind Loading | 33.2 N at 200 km/h (7.5 lbf at 125 mph) |
| Pole Mount Diameter | 1~2" (25–50 mm) |
| Antennas | (1) Internal antenna (2) RP-SMA connectors |
| Management | Ethernet |
| Enclosure Material | UV-stabilized polycarbonate |
| Mount Material | Polycarbonate, SGCC steel, plastic |
| LEDs: System | (1) Power: White/Blue (4) Mesh Signal: Blue |
| Channel Bandwidth | HT 20/40, VHT 20/40/80 |
| Operating Frequency | US/CA: 2400 - 2472 MHz U-NII-1: 5150 - 5250 MHz U-NII-2A: 5250 - 5350 MHz U-NII-2C: 5470 - 5725 MHz U-NII-3: 5725 - 5850 MHz Worldwide: 2400 - 2483.5 MHz 5150 - 5850 MHz (For worldwide, it depends on the regulatory region) |
| Ambient Operating Temperature | -40 to 60° C (-40 to 140° F) |
| Ambient Operating Humidity | 5 to 95% noncondensing |
| NDAA Compliant | Yes |
| Certifications | CE, FCC, IC, Anatel: 06237-24-08356 |
| Application Requirements: UniFi Network | Version 7.5.187 and later |
