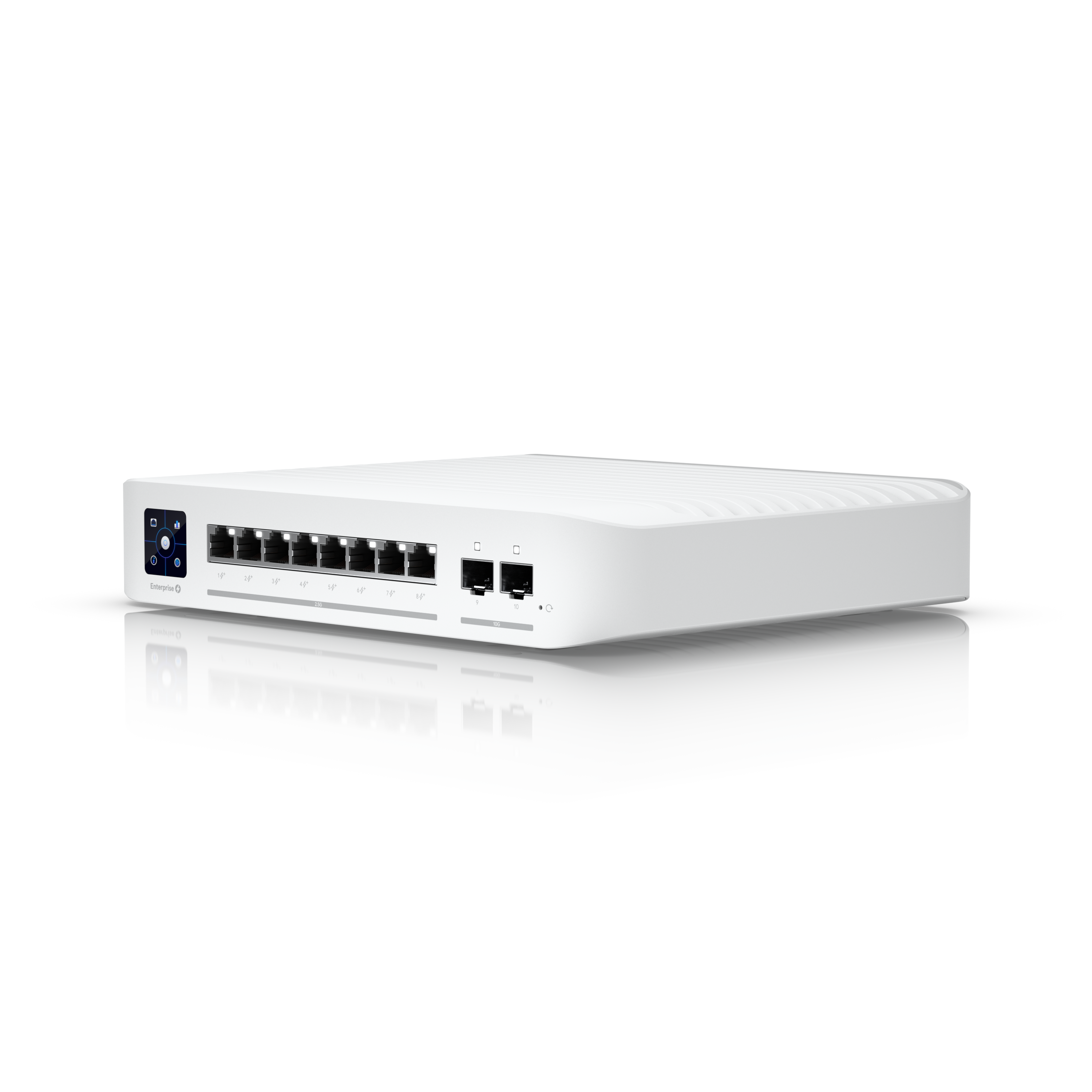

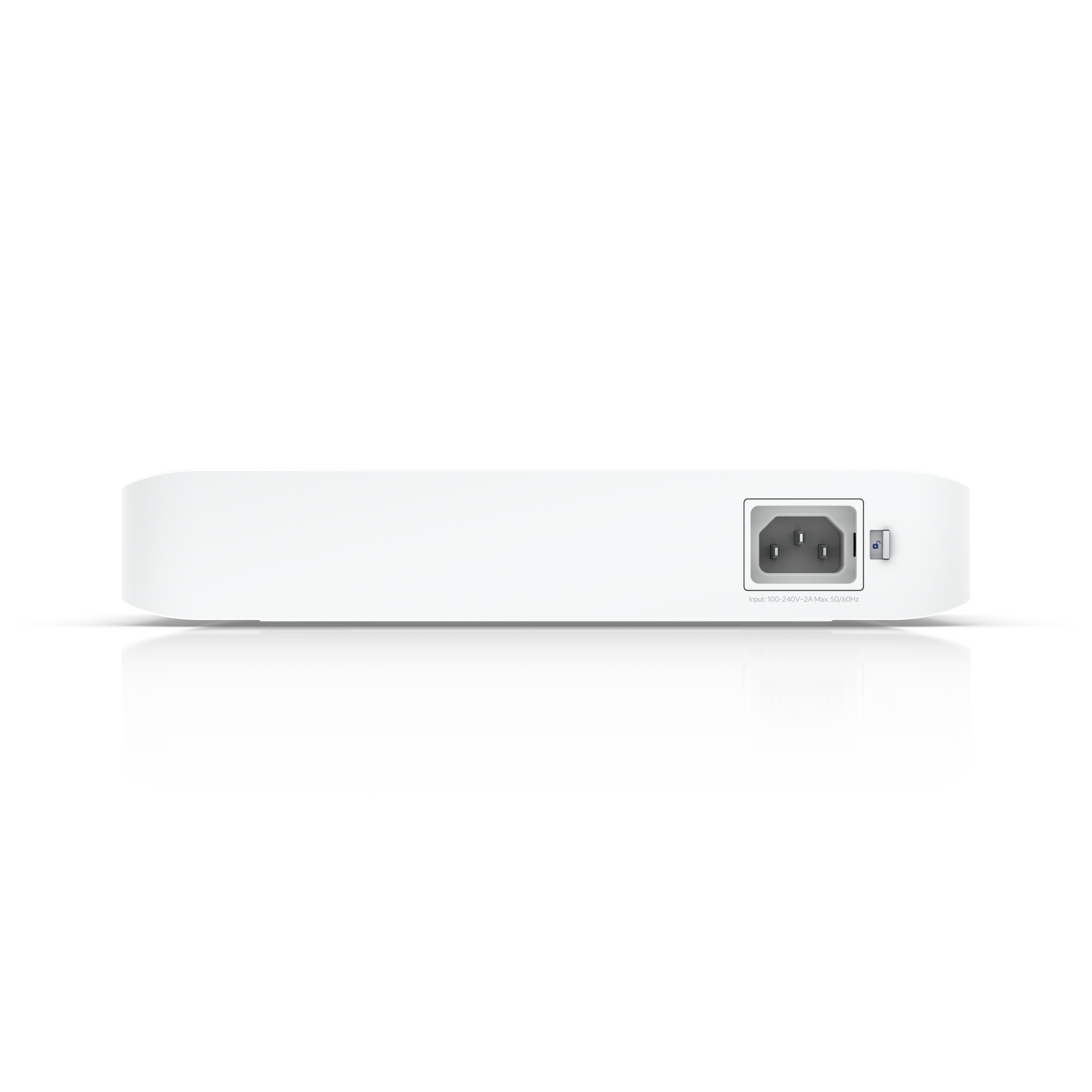

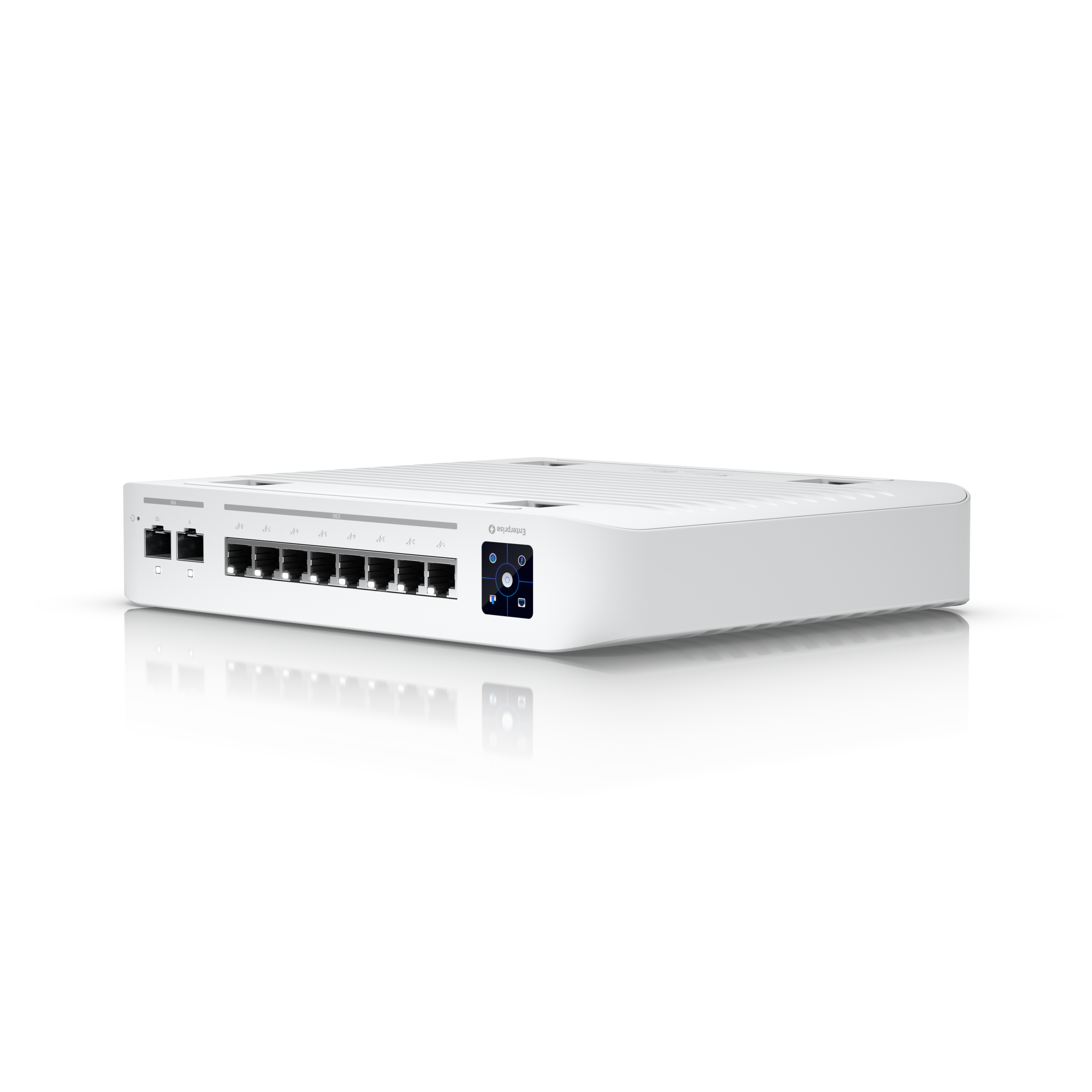

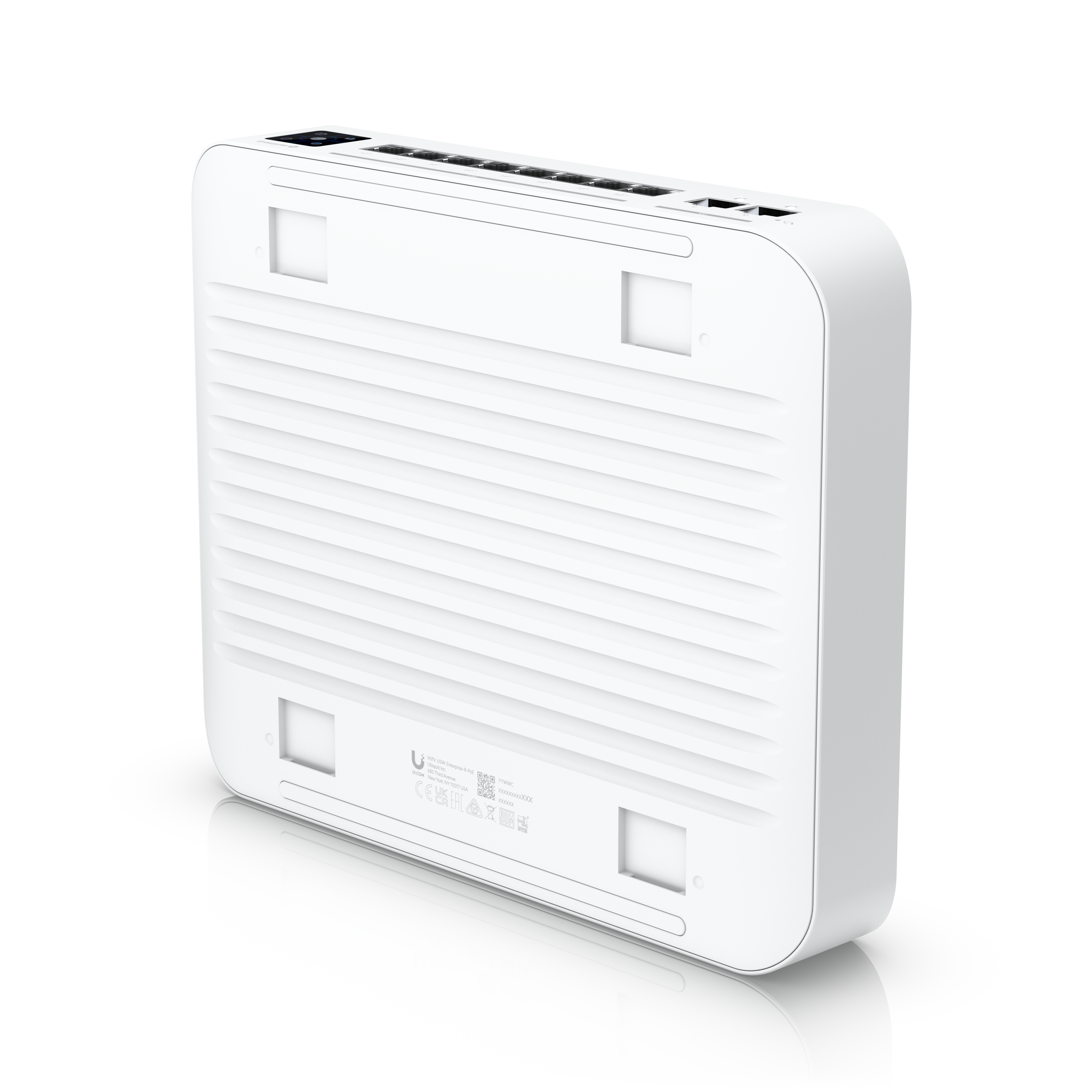

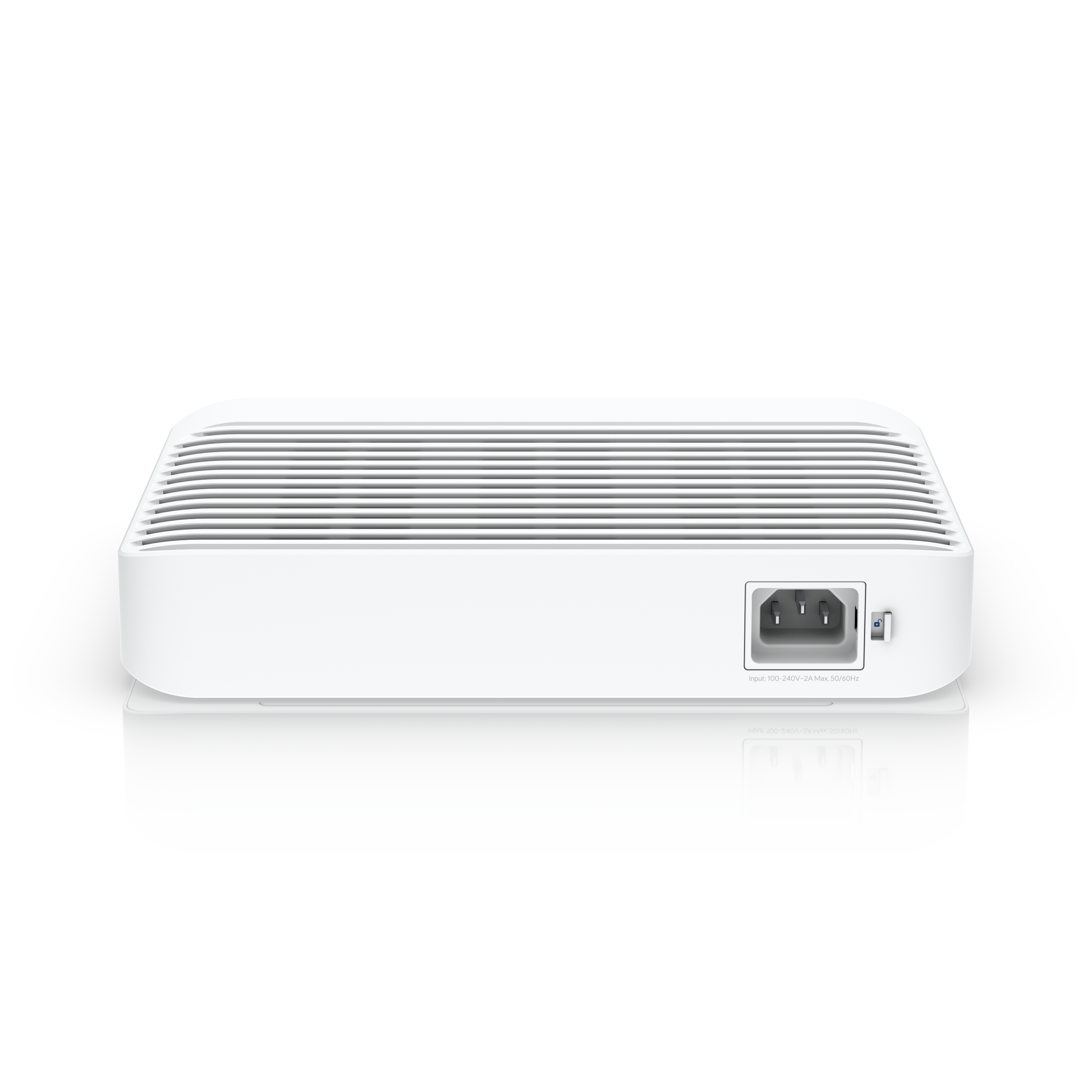

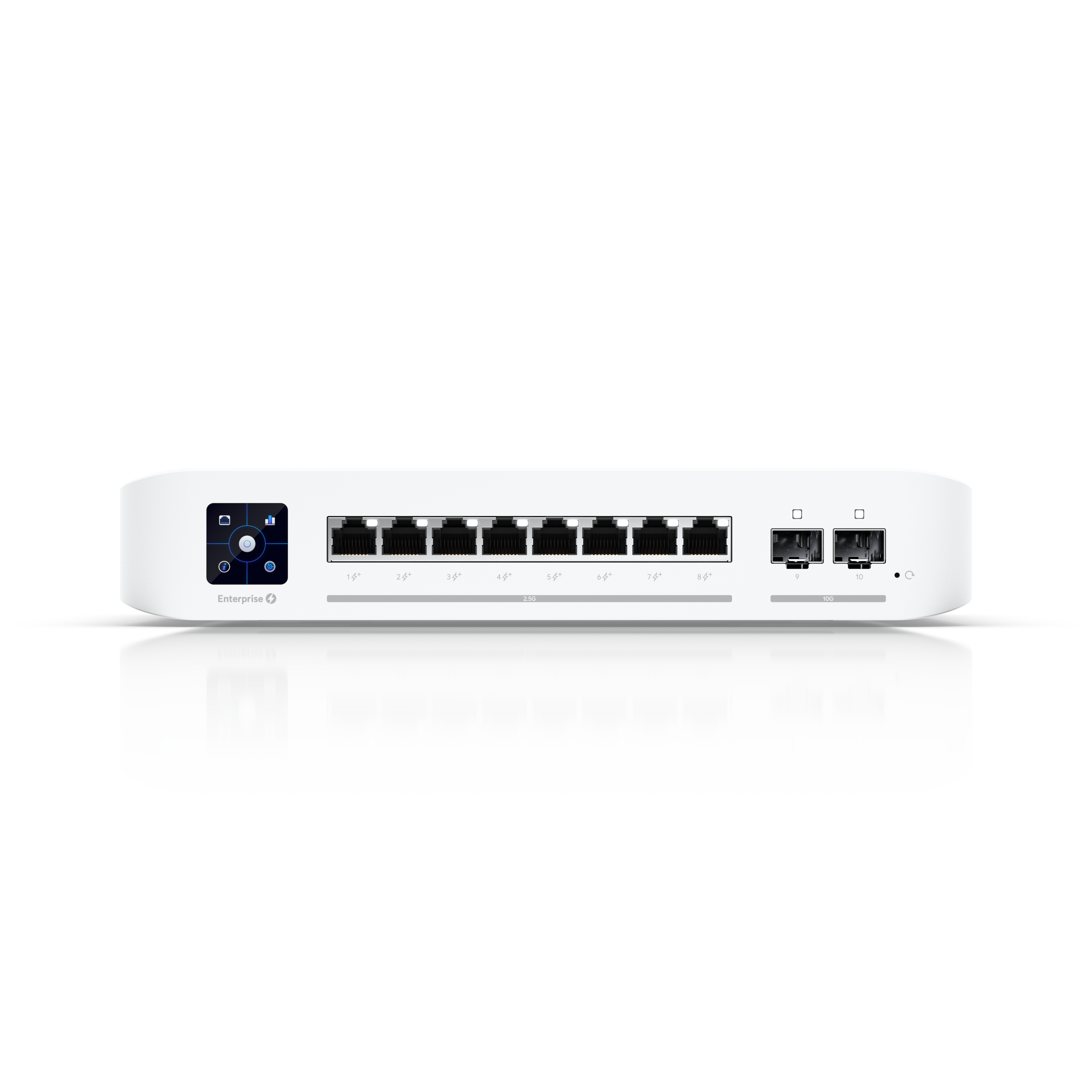

UniFi Switch Enterprise 8 PoE (Vintage)
- (8) 2.5 GbE PoE+ tengi
- (2) 10G SFP+ tengi
- 120W heildar PoE framboð
- Athugið. Þessir rofar eru ekki samhæfðir við PoE++ kröfur nýju U7 og E7 Access Points. Við mælum með að nota Enterprise Campus rofa fyrir slíkar uppsetningar.
Þrívídd og myndbönd
Tækni
Tæknilegir eiginleikar
Upplýsingar úr ETIM gögnum framleiðanda. Vantar þig meira? Hafðu samband við tækniráðgjöf okkar.
| Dimensions | 200 x 248 x 44 mm (7.9 x 9.8 x 1.7") |
|---|---|
| Port Layout: 2.5 GbE RJ45 | 8 (All PoE+) (2.5G/1G/100/10M) |
| Port Layout: 10G SFP+ | 2 (10G/1G) |
| Max. PoE Output | Up to PoE+ |
| Total PoE Availability | 120W |
| Layer 3 | Yes |
| Form Factor | Compact desktop (Do not physically stack) |
| Switching Capacity | 80 Gbps |
| Total Non-Blocking Throughput | 40 Gbps |
| Forwarding Rate | 60 Mpps |
| Supported VLANs | 1,000 |
| MAC Address Table Size | 16,000 |
| IPv4 Static Routes | 256 |
| Packet Buffer Size | 1.5 MB |
| Access Lists: IPv4 | 12 |
| Access Lists: MAC | 10 |
| DHCP Server (Local Networks) | Yes |
| Inter-VLAN Routing (Local Networks) | Yes |
| Static Routing (Local Networks) | Yes |
| LACP Port Aggregation | Yes |
| STP & RSTP | Yes |
| Advanced IGMP Configuration (Querier, Fast Leave, Router Port) | Yes |
| IGMP Snooping | Yes |
| 802.1X Control | Yes |
| MAC-Based ACLs & Device Isolation | Yes |
| DHCP Snooping & Guarding | Yes |
| Egress Rate Limit | Yes |
| Flow Control | Yes |
| Storm Control | Yes |
| Multicast & Broadcast Rate Limiting | Yes |
| MAC Address Blocking | Yes |
| IP-Based ACLs & Network Isolation | Yes |
| MAC-Based Port Restriction | Yes |
| Port Isolation | Yes |
| Port Mirroring | Yes |
| Jumbo Frames | Yes |
| LLDP-MED | Yes |
| Voice VLAN | Yes |
| Loop Protection | Yes |
| Virtual Network Override | Yes |
| PoE Ports: PoE+ | 8 |
| Max. PoE Wattage per Port by PSE: PoE+ | 32W |
| Max. Power Consumption | 30W (Excluding PoE Output) 150W (Including PoE Output) |
| Power Method | Universal input, 100–240V AC, 50/60 Hz |
| Power Input Method | AC input |
| Power Supply | AC/DC, internal, 150W |
| Supported Voltage Range | 100–240V AC |
| Management | Ethernet AR |
| Heat Dissipation | 102.4 BTU/hr (Excluding PoE Output) |
| Weight | 2.4 kg (5.3 lb) |
| Enclosure Material | Polycarbonate |
| Mount Material | Polycarbonate |
| Supported Rack Depth | 400~1200 mm (15.7-47.2") |
| LCM Display | 1.3" touchscreen |
| ESD Protection | Air: ± 16kV, contact: ± 12kV |
| Ambient Operating Temperature | -5 to 45° C (23 to 113° F) |
| Ambient Operating Humidity | 10 to 90% noncondensing |
| NDAA Compliant | Yes |
| Certifications | CE, FCC, IC, Anatel: 06645-23-08356 |
| Application Requirements: UniFi Network | Version 6.3.51 and later |
