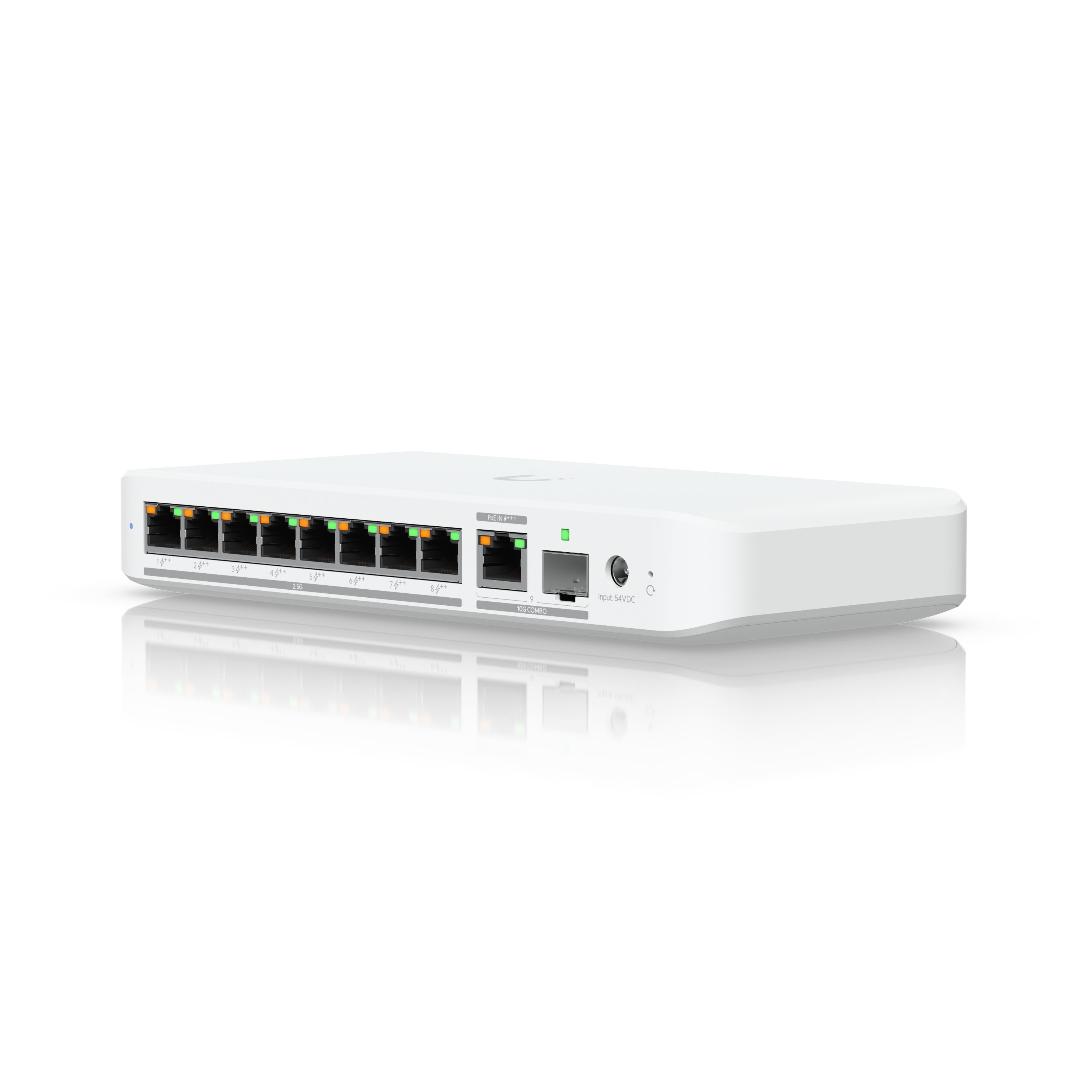

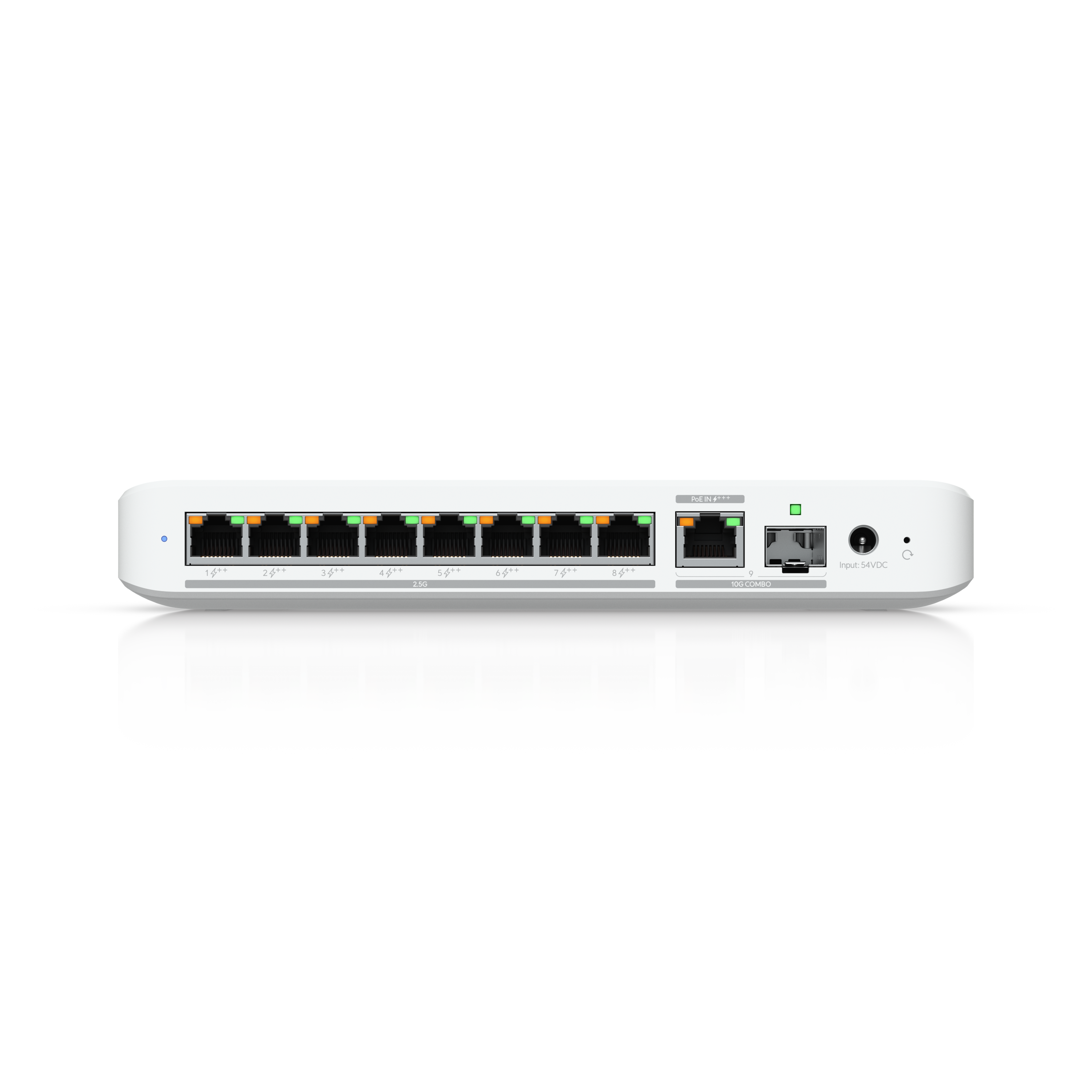

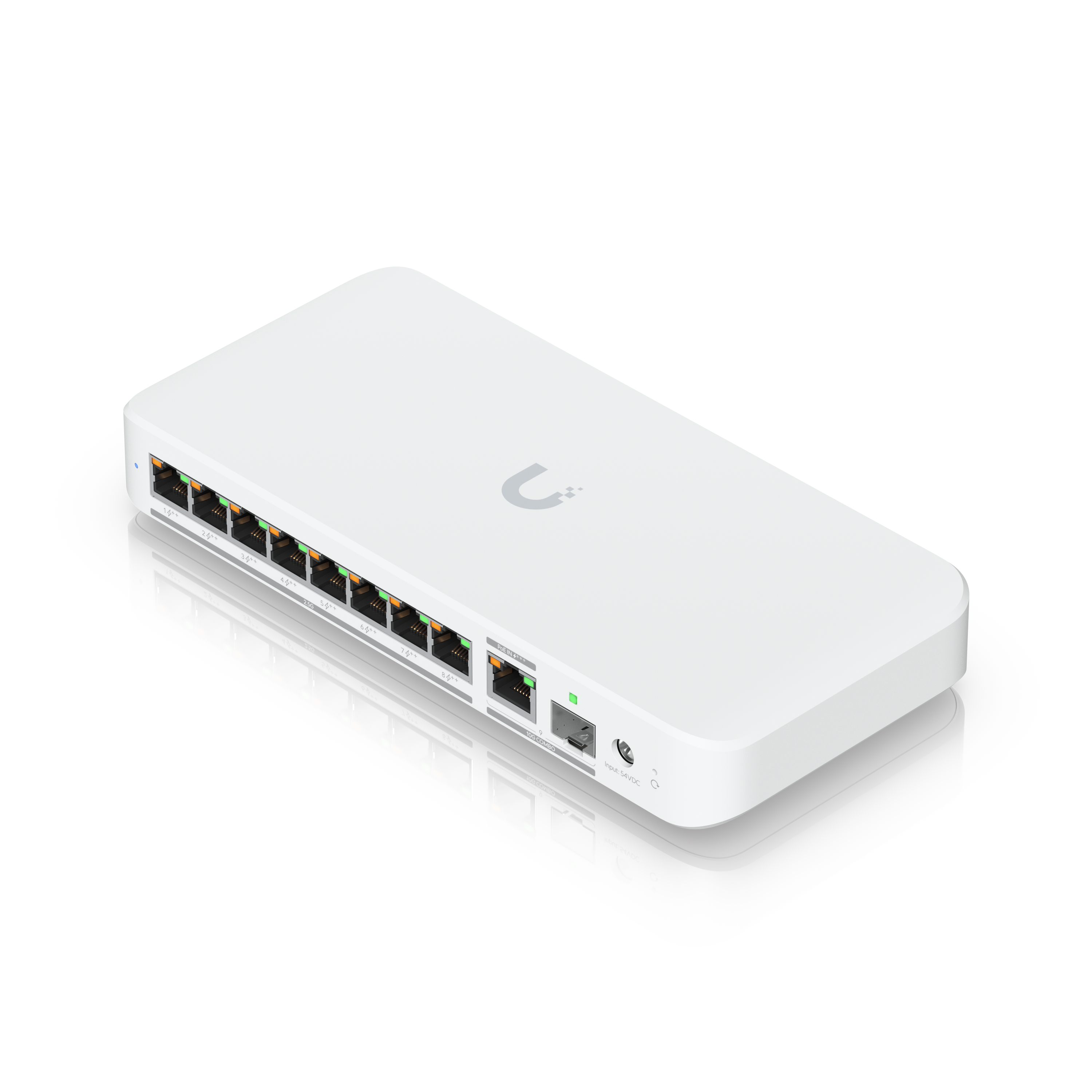

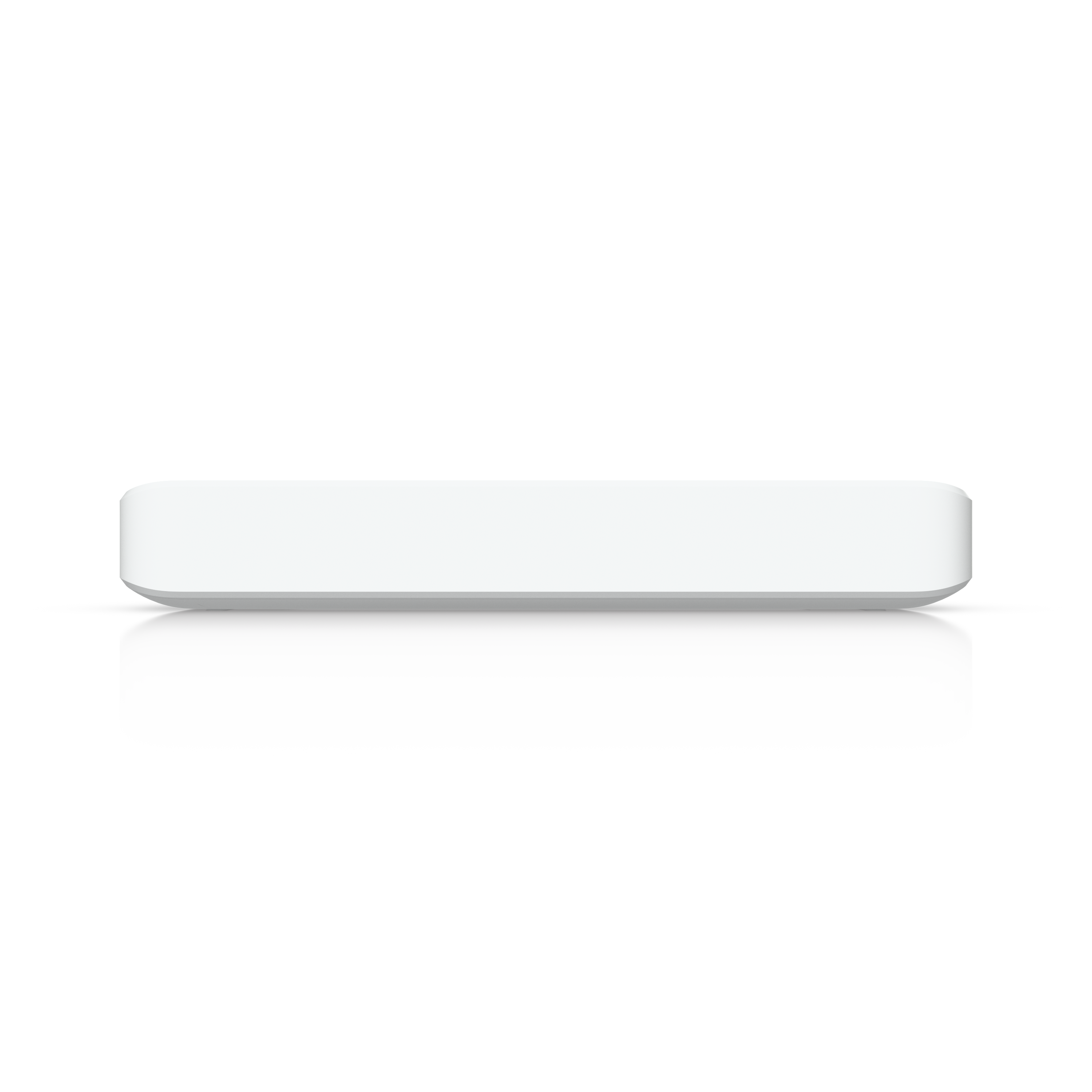

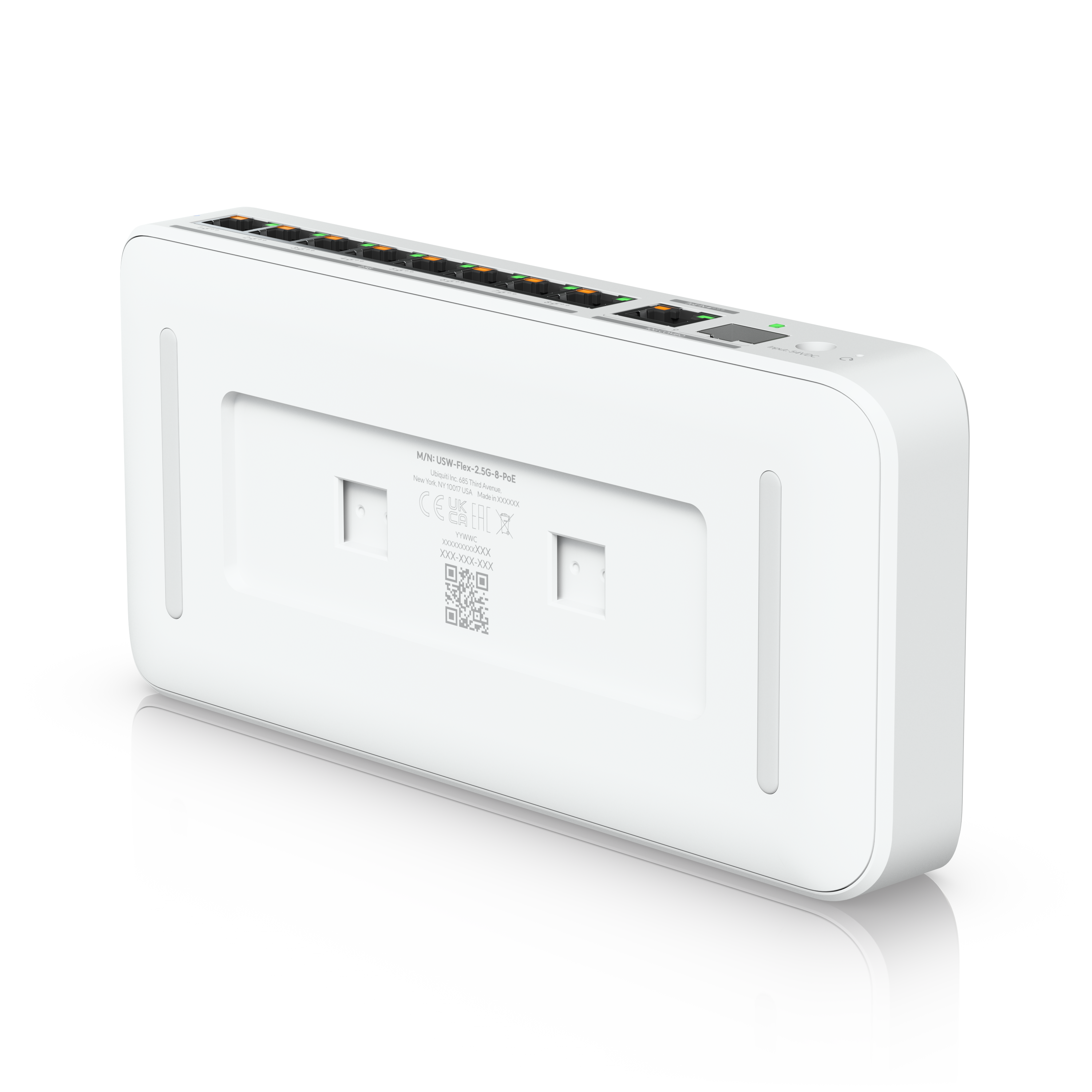

UniFi Switch Flex 2.5G PoE
Sveigjanlegur, 8-porta 2.5 GbE PoE++ rofi með 10 GbE RJ45/SFP+ samsettri uplink-tengi sem hægt er að knýja með PoE+++ eða AC spennubreyti.
Athugið. Raunveruleg PoE geta getur verið breytileg eftir lengd og gæðum inntaksstrengs.
AC spennubreytir seldur sérstaklega.
- (8) 2.5 GbE PoE++ úttaksportar
- (1) 10 GbE PoE+++ inntaksport fyrir straum / SFP+ port samsett
- — 76W PoE geta með PoE+++ inntaki*
- — 46W PoE geta með PoE++ inntaki*
- — 16W PoE geta með PoE+ inntaki*
- 196W PoE geta með valfrjálsum AC spennubreyti**
- *Raunveruleg PoE geta getur verið breytileg eftir lengd og gæðum inntaksstrengs.
- **AC spennubreytir seldur sérstaklega.
Þrívídd og myndbönd
Tækni
Tæknilegir eiginleikar
Upplýsingar úr ETIM gögnum framleiðanda. Vantar þig meira? Hafðu samband við tækniráðgjöf okkar.
| Dimensions | 212.9 x 99.4 x 33.5 mm (8.4 x 3.9 x 1.3") |
|---|---|
| Port Layout: 2.5 GbE RJ45 | 8 (All PoE++) (2.5G/1G/100M/10M) |
| Port Layout: 10 GbE RJ45 | 1 (PoE+++) (10G/5G/2.5G/1G/100M) (Combo port) |
| Port Layout: 10G SFP+ | 1 (10G/1G) (Combo port) |
| Max. PoE Output | Up to PoE++ |
| Total PoE Availability | PoE+++ input: 76W PoE++ input: 46W PoE+ input: 16W 210W AC adapter input: 196W |
| Form Factor | Compact Desktop (Wall, DIN, magnetic mounting (DIN and Magnetic are sold separately)) |
| Switching Capacity | 60 Gbps |
| Total Non-Blocking Throughput | 30 Gbps |
| Forwarding Rate | 45 Mpps |
| Supported VLANs | 256 |
| MAC Address Table Size | 4,000 |
| STP & RSTP | Yes |
| Egress Rate Limit | Yes |
| Flow Control | Yes |
| Storm Control | Yes |
| Multicast & Broadcast Rate Limiting | Yes |
| Port Isolation | Yes |
| Port Mirroring | Yes |
| Jumbo Frames | Yes |
| Loop Protection | Yes |
| PoE Ports: PoE++ | 8 |
| Max. PoE Wattage per Port by PSE: PoE | 15.4W |
| Max. PoE Wattage per Port by PSE: PoE+ | 32W |
| Max. PoE Wattage per Port by PSE: PoE++ | 64W |
| Max. Power Consumption | 14W (Excluding PoE output) with PoE input 17W (Excluding PoE output) with AC adapter input 210W (Including PoE Output) |
| Power Method | (1) AC/DC adapter (Excluded) (1) PoE+++ (AC power adapter sold separately.) |
| Power Input Method | DC Input PoE |
| Supported Voltage Range | 50–57V DC/PoE |
| Management | Ethernet |
| Weight | 567 g (20 oz) |
| Enclosure Material | Polycarbonate |
| Mount Material | Polycarbonate |
| Ambient Operating Temperature | -20 to 45° C (-4 to 113° F) |
| Ambient Operating Humidity | 10 to 90% noncondensing |
| NDAA Compliant | Yes |
| Certifications | CE, FCC, IC |
| Application Requirements: UniFi Network | Version 9.0.114 and later |
