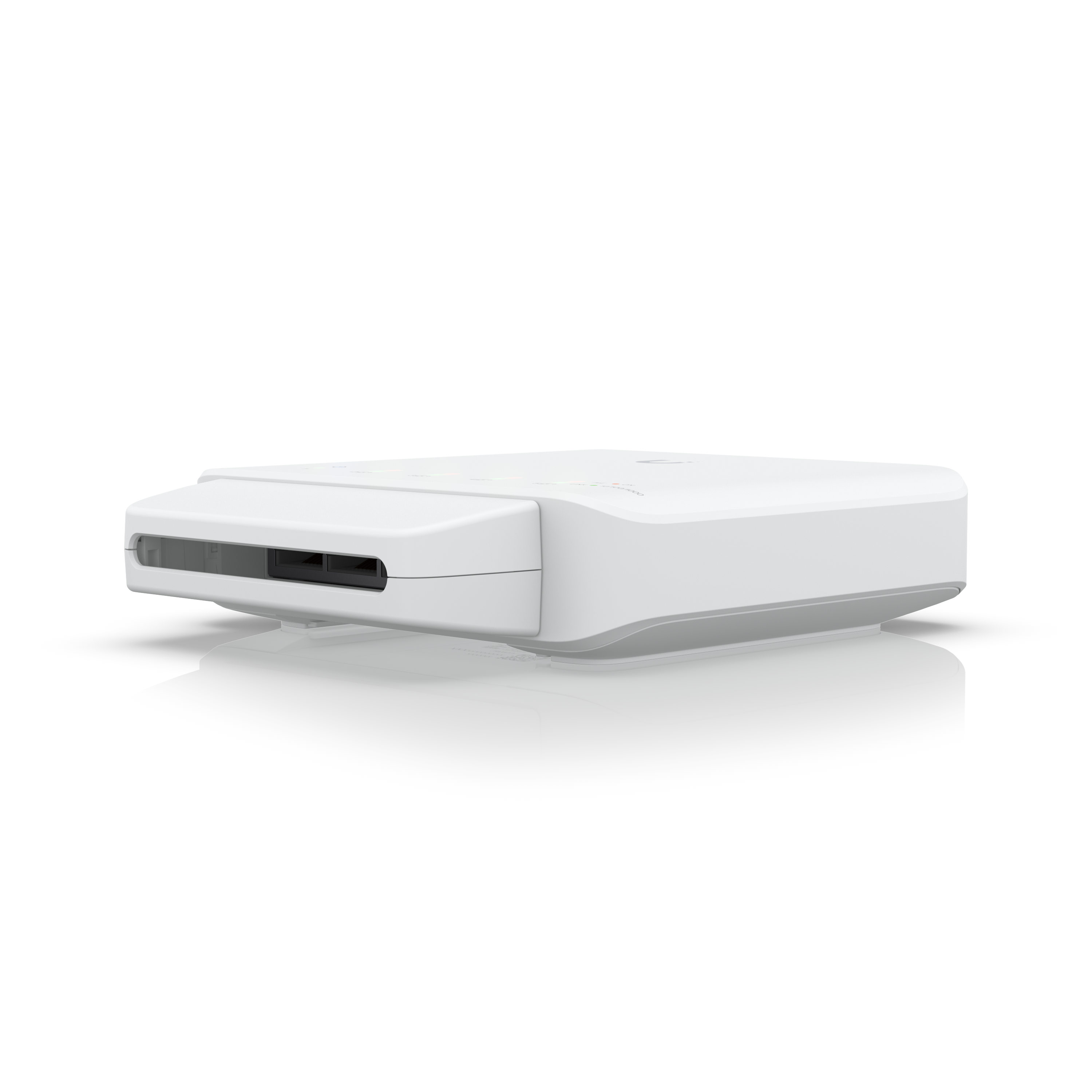

UniFi Switch Flex (3-Pack)
Sveigjanlegt 5-porta, Layer 2 PoE rofi fyrir notkun innan- og utandyra, sem hægt er að knýja með PoE++.
Athugið. 46W heildar PoE framboð þegar knúið er með PoE++ rofa eða 60W PoE millistykki (selt sérstaklega).
- (4) GbE PoE+ tengi
- (1) GbE PoE++ inntakstengi fyrir rafmagn
- — 46W PoE framboð* PoE++ inntak
- — 20W PoE framboð PoE+ inntak
- — 8W PoE framboð PoE inntak
- Innandyra/Utandyra
- *Þegar knúið er með PoE++ rofa eða 60W PoE millistykki (selt sérstaklega).
Þrívídd og myndbönd
Tækni
Tæknilegir eiginleikar
Upplýsingar úr ETIM gögnum framleiðanda. Vantar þig meira? Hafðu samband við tækniráðgjöf okkar.
| Dimensions | 122.5 x 107.1 x 28 mm (4.8 x 4.2 x 1.1") |
|---|---|
| Port Layout: 1 GbE RJ45 | 5 (4 PoE+; 1 PoE++) (1G/100M/10M) |
| Max. PoE Output | Up to PoE+ |
| Total PoE Availability | PoE++/60W PoE adapter input: 46W PoE+ input: 20W PoE input: 8W (60W PoE adapter sold separately) |
| Form Factor | Compact desktop, wall, pole (Pole mounting requires USW-Flex-Utility accessory) |
| Switching Capacity | 10 Gbps |
| Total Non-Blocking Throughput | 5 Gbps |
| Forwarding Rate | 7 Mpps |
| Supported VLANs | 1,000 |
| MAC Address Table Size | 2,000 |
| Egress Rate Limit | Yes |
| Flow Control | Yes |
| Port Isolation | Yes |
| Port Mirroring | Yes |
| Jumbo Frames | Yes |
| PoE Ports: PoE+ | 4 |
| PoE Ports: PoE++ | 1 |
| Max. PoE Wattage per Port by PSE: PoE+ | 25W |
| Max. Power Consumption | 5W (Excluding PoE Output) 51W (Including PoE Output) |
| Power Method | PoE++ |
| Power Input Method | PoE |
| Supported Voltage Range | 50–57V PoE |
| Management | Ethernet |
| Heat Dissipation | 17.1 BTU/hr (Excluding PoE Output) |
| Outdoor Ready | Yes |
| Weight | 230 g (8.1 oz) |
| ESD Protection | Air/contact: ± 16kV |
| Ambient Operating Temperature | 46W PoE output: -40 to 55° C (-40 to 131° F) 25W PoE output: -40 to 65° C (-40 to 149° F) |
| Ambient Operating Humidity | 5 to 95% noncondensing |
| NDAA Compliant | Yes |
| Certifications | CE, FCC, IC, Anatel: 14502-20-08356 |
| Application Requirements: UniFi Network | Version 5.10.3 and later |
