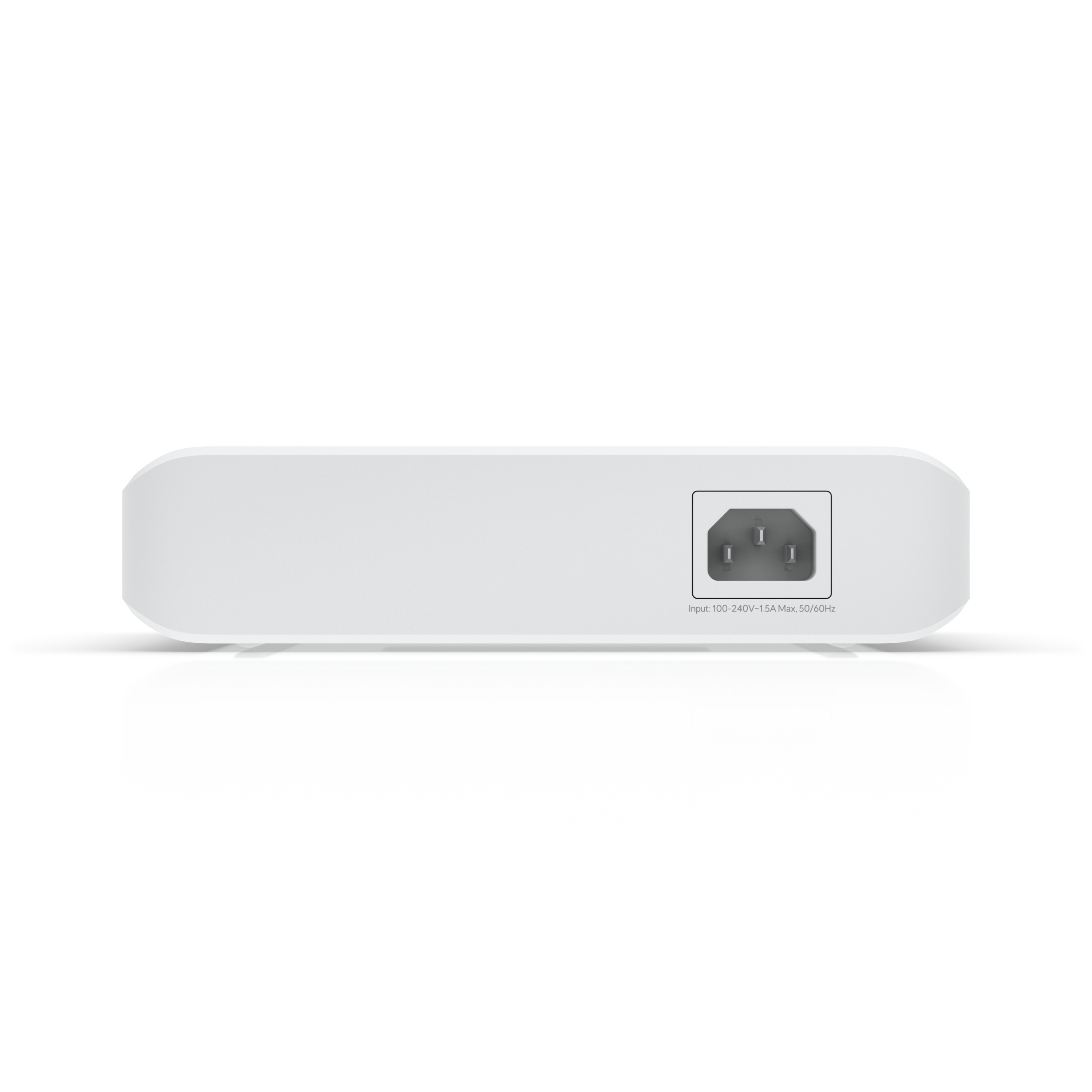

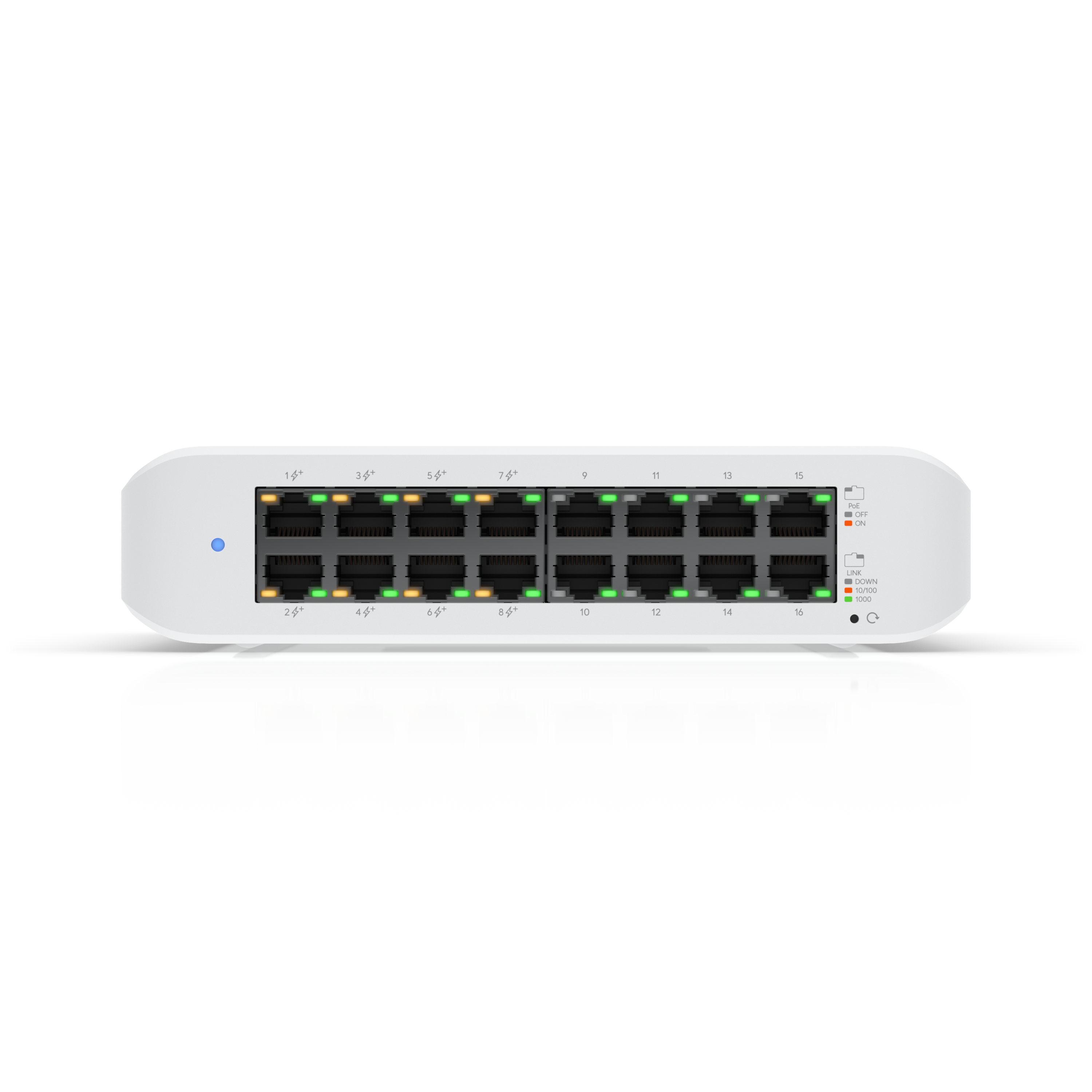

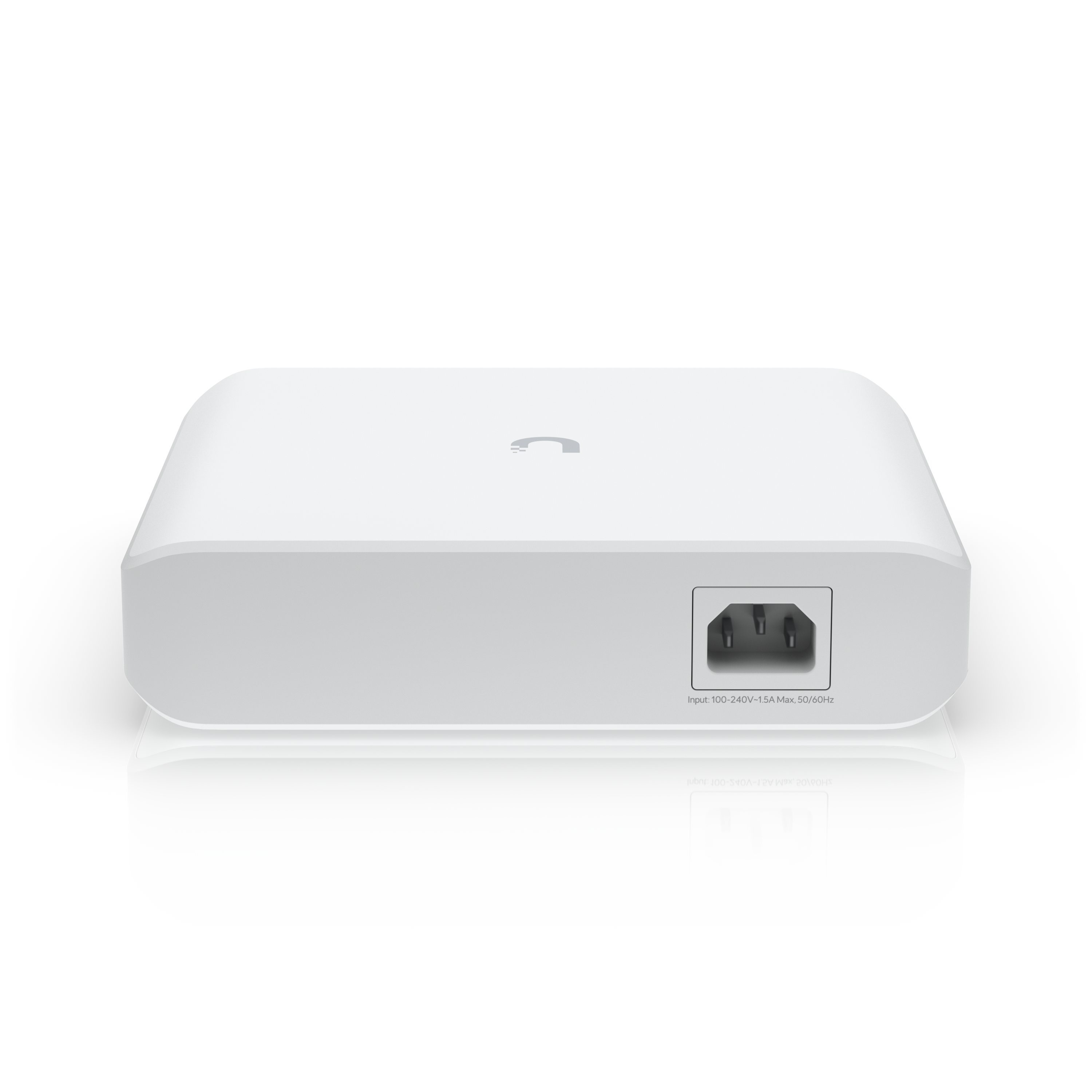

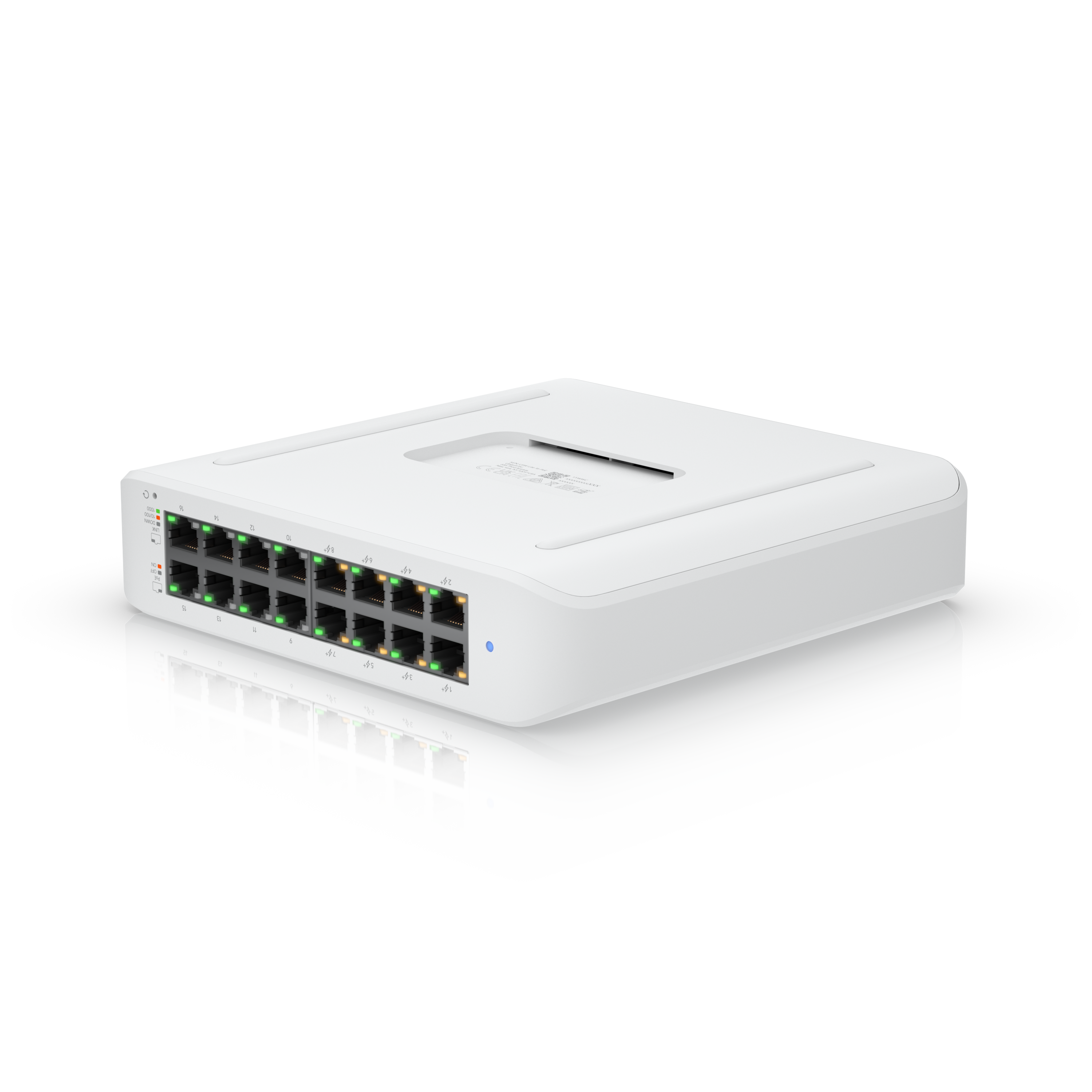

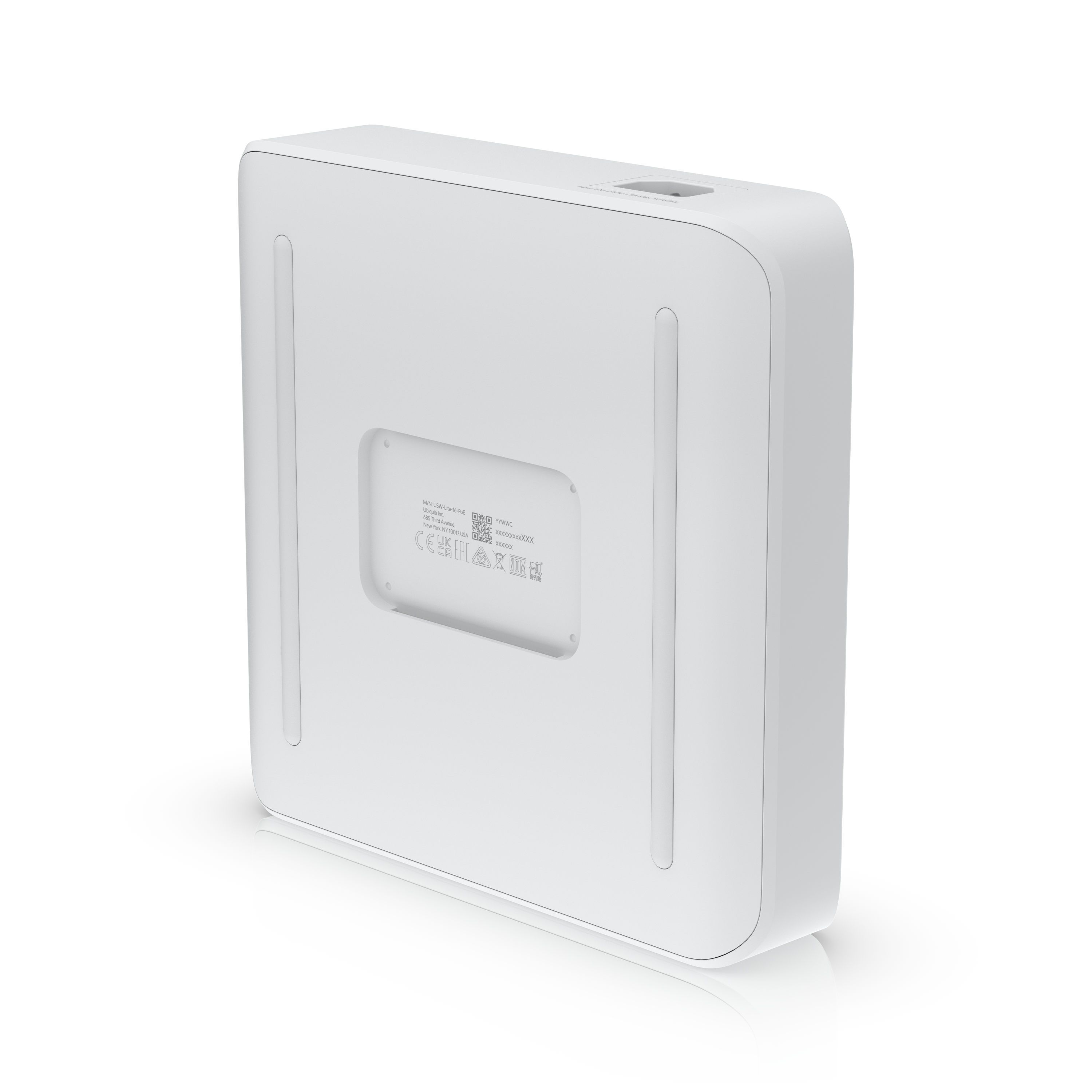

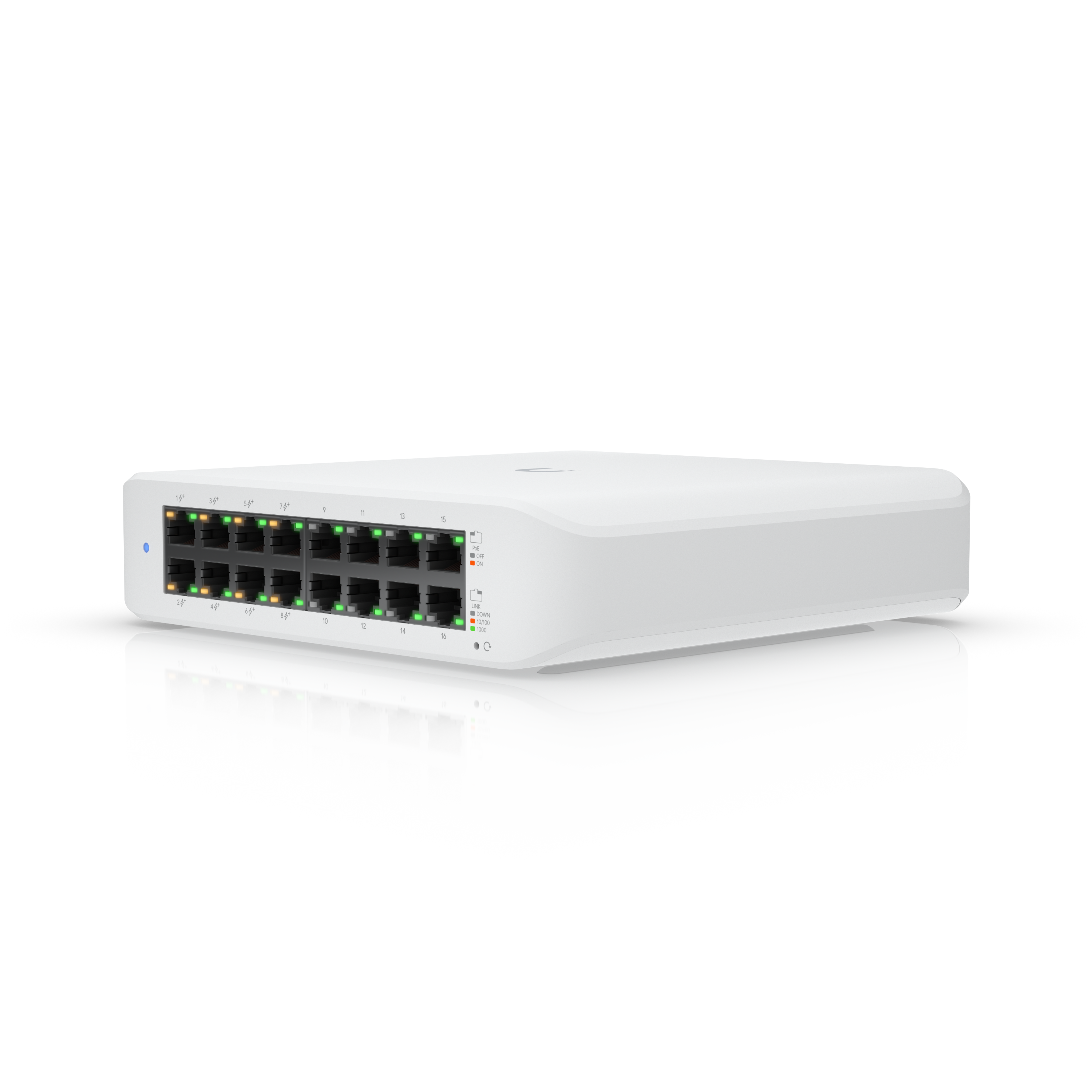

UniFi Switch Lite 16 PoE
Vegghengjanlegt, 16-porta, Layer 2 PoE rofi með viftulausu kælikerfi.
- (8) GbE PoE+, (8) GbE tengi
- 45W PoE afl í boði samtals
- Vegghengjanlegt
Þrívídd og myndbönd
Tækni
Tæknilegir eiginleikar
Upplýsingar úr ETIM gögnum framleiðanda. Vantar þig meira? Hafðu samband við tækniráðgjöf okkar.
| Dimensions | 192 x 185 x 44 mm (7.6 x 7.3 x 1.7") |
|---|---|
| Port Layout: 1 GbE RJ45 | 16 (8 PoE+) (1G/100M/10M) |
| Max. PoE Output | Up to PoE+ |
| Total PoE Availability | 45W |
| Form Factor | Compact desktop, wall |
| Switching Capacity | 32 Gbps |
| Total Non-Blocking Throughput | 16 Gbps |
| Forwarding Rate | 24 Mpps |
| Supported VLANs | 1,000 |
| MAC Address Table Size | 8,000 |
| Packet Buffer Size | 0.5 MB |
| Access Lists: IPv4 | 128 |
| Access Lists: MAC | 128 |
| LACP Port Aggregation | Yes |
| STP & RSTP | Yes |
| Advanced IGMP Configuration (Querier, Fast Leave, Router Port) | Yes |
| IGMP Snooping | Yes |
| 802.1X Control | Yes |
| MAC-Based ACLs & Device Isolation | Yes |
| DHCP Snooping & Guarding | Yes |
| Egress Rate Limit | Yes |
| Flow Control | Yes |
| Storm Control | Yes |
| Multicast & Broadcast Rate Limiting | Yes |
| MAC Address Blocking | Yes |
| IP-Based ACLs & Network Isolation | Yes |
| MAC-Based Port Restriction | Yes |
| Port Isolation | Yes |
| Port Mirroring | Yes |
| Jumbo Frames | Yes |
| LLDP-MED | Yes |
| Voice VLAN | Yes |
| Loop Protection | Yes |
| Virtual Network Override | Yes |
| PoE Ports: PoE+ | 8 |
| Max. PoE Wattage per Port by PSE: PoE+ | 32W |
| Max. Power Consumption | 15W (Excluding PoE Output) 60W (Including PoE Output) |
| Power Method | Universal input, 100–240V AC, 50/60 Hz |
| Power Input Method | AC input |
| Power Supply | AC/DC, internal, 60W |
| Supported Voltage Range | 100–240V AC |
| Management | Ethernet |
| Heat Dissipation | 51.2 (Excluding PoE Output) |
| Weight | 1.2 kg (2.6 lb) |
| Enclosure Material | Polycarbonate |
| Mount Material | Polycarbonate |
| Ambient Operating Temperature | -15 to 40° C (5 to 104° F) |
| Ambient Operating Humidity | 10 to 90% noncondensing |
| NDAA Compliant | Yes |
| Certifications | CE, FCC, IC, Anatel: 04479-21-08356 |
| Application Requirements: UniFi Network | Version 7.2.94 and later |
