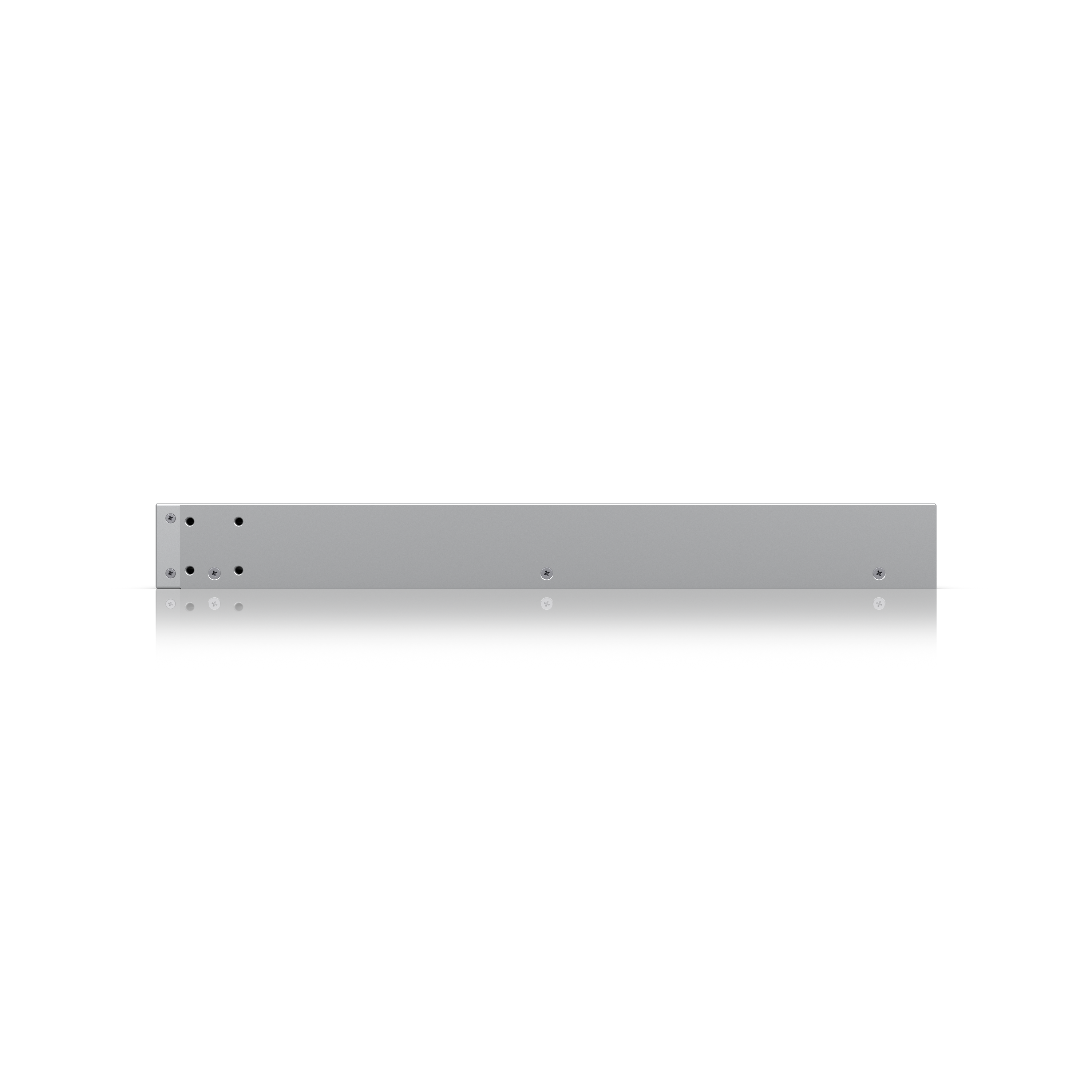

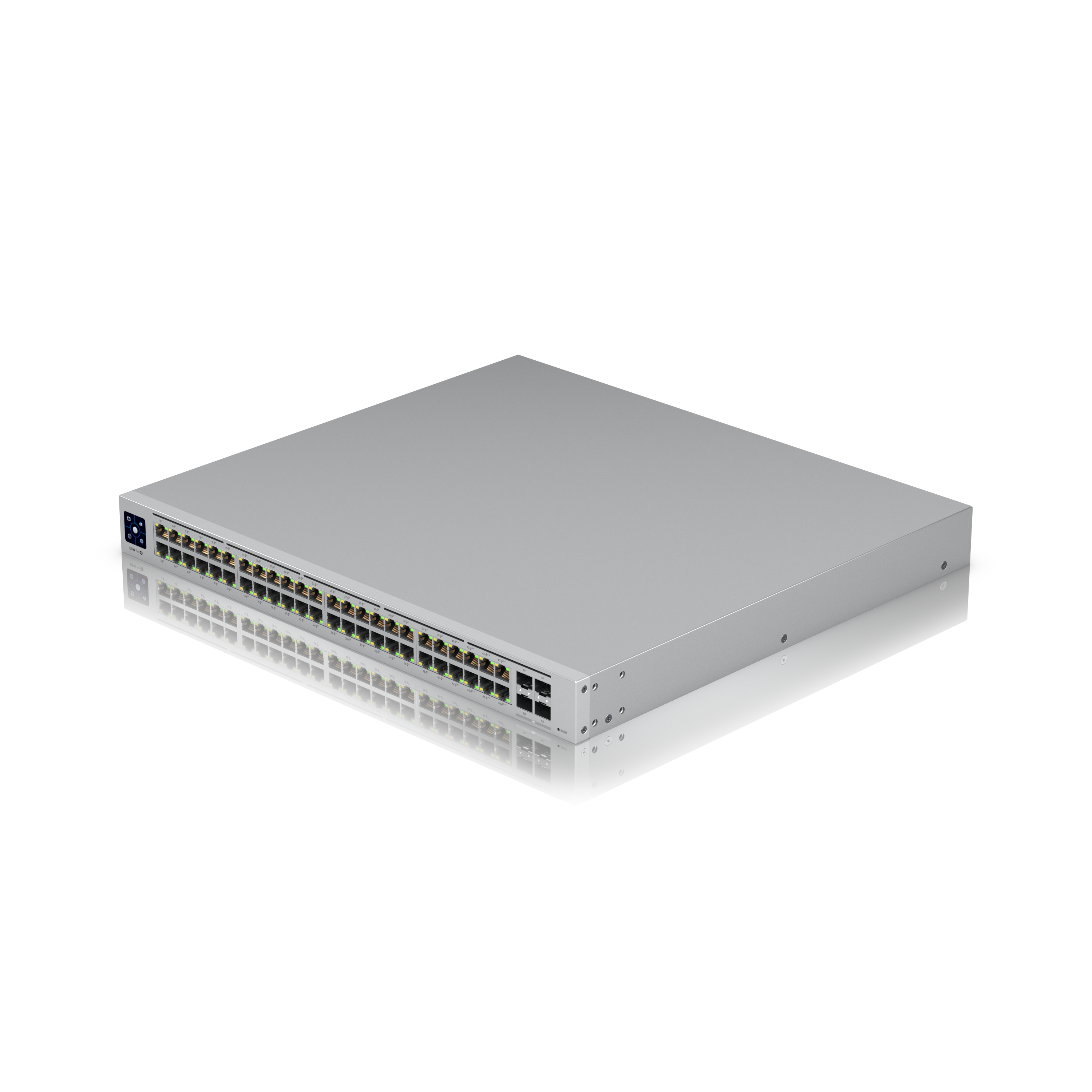

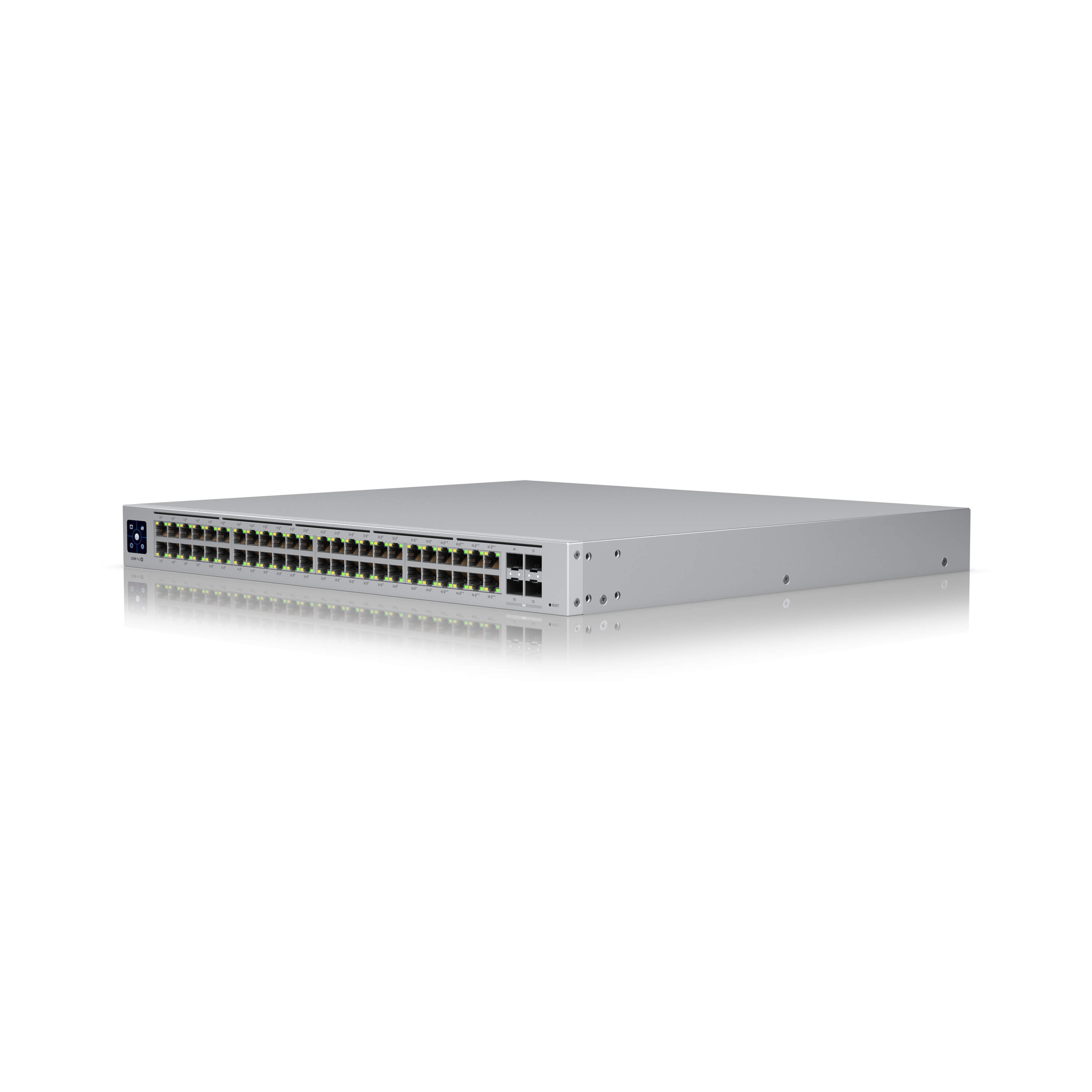

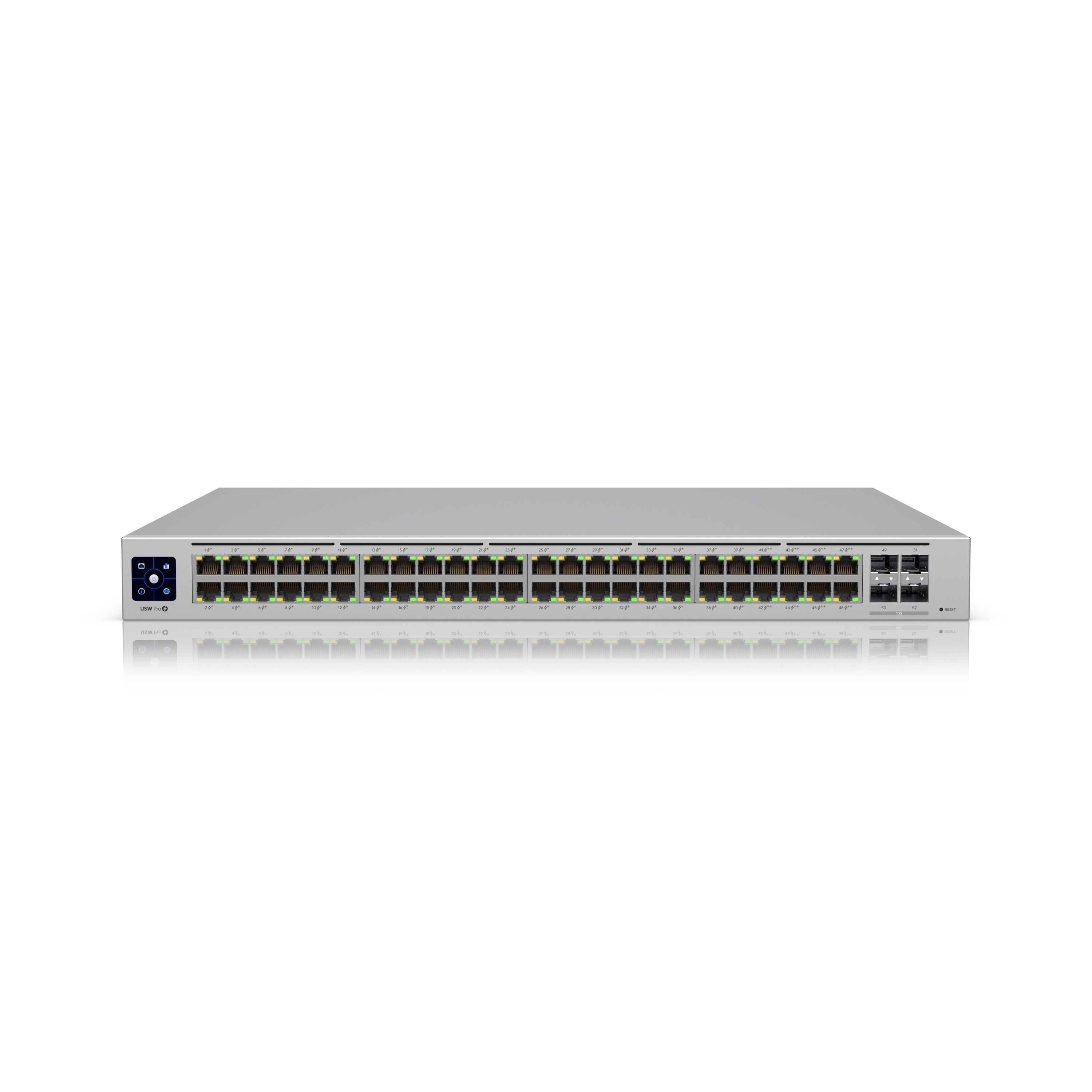

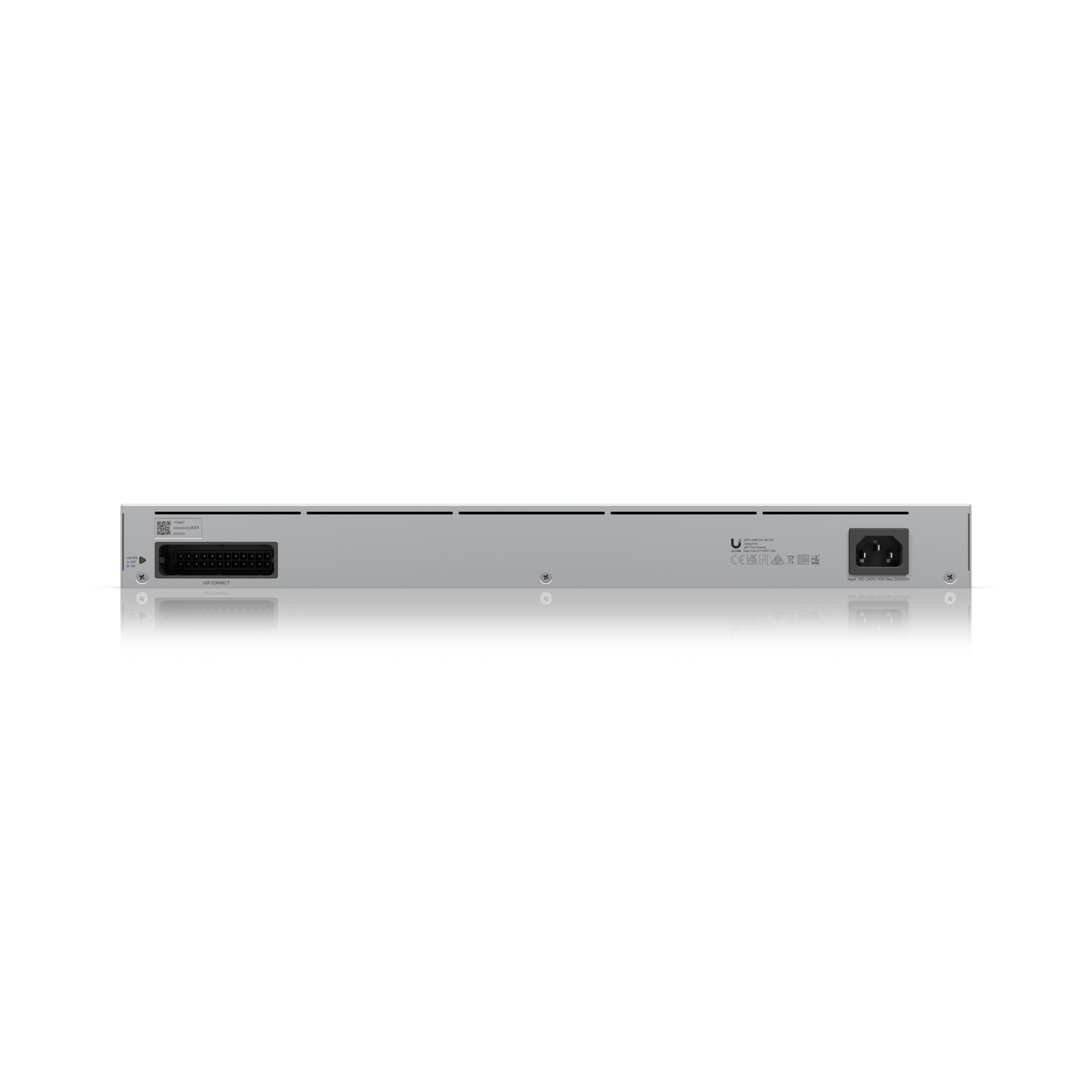

UniFi Switch Pro 48 PoE
- (40) GbE PoE+, (8) GbE PoE++ tengi
- (4) 10G SFP+ tengi
- 600W PoE afl í boði samtals
- Tilbúinn fyrir DC varaafl
- Layer 3 skiptiworking
- Nær hljóðlaus kæling
Þrívídd og myndbönd
Tækni
Tæknilegir eiginleikar
Upplýsingar úr ETIM gögnum framleiðanda. Vantar þig meira? Hafðu samband við tækniráðgjöf okkar.
| Dimensions | 442 x 400 x 44 mm (17.4 x 15.7 x 1.7") |
|---|---|
| Port Layout: 1 GbE RJ45 | 48 (40 PoE+; 8 PoE++) (1G/100M/10M) |
| Port Layout: 10G SFP+ | 4 (10G/1G) |
| Max. PoE Output | Up to PoE++ |
| Total PoE Availability | 600W |
| Redundancy | DC Power Backup (With UniFi RPS) |
| Layer 3 | Yes |
| Form Factor | Rack mount (1U) |
| Switching Capacity | 176 Gbps |
| Total Non-Blocking Throughput | 88 Gbps |
| Forwarding Rate | 131 Mpps |
| Supported VLANs | 1,000 |
| MAC Address Table Size | 16,000 |
| IPv4 Static Routes | 256 |
| Packet Buffer Size | 4 MB |
| Access Lists: IPv4 | 128 |
| Access Lists: MAC | 128 |
| DHCP Server (Local Networks) | Yes |
| DHCP Relay | Yes |
| Inter-VLAN Routing (Local Networks) | Yes |
| Static Routing (Local Networks) | Yes |
| LACP Port Aggregation | Yes |
| STP & RSTP | Yes |
| QoS (DSCP) | Yes |
| Pro AV Profiles (Play, Dante, Q-SYS, NDI, SDVoE, Shure, AES67, Crestron) | Yes |
| Advanced IGMP Configuration (Querier, Fast Leave, Router Port) | Yes |
| IGMP Snooping | Yes |
| 802.1X Control | Yes |
| MAC-Based ACLs & Device Isolation | Yes |
| DHCP Snooping & Guarding | Yes |
| Egress Rate Limit | Yes |
| Flow Control | Yes |
| Storm Control | Yes |
| Multicast & Broadcast Rate Limiting | Yes |
| MAC Address Blocking | Yes |
| IP-Based ACLs & Network Isolation | Yes |
| MAC-Based Port Restriction | Yes |
| Port Isolation | Yes |
| Port Mirroring | Yes |
| Jumbo Frames | Yes |
| LLDP-MED | Yes |
| Voice VLAN | Yes |
| Loop Protection | Yes |
| Virtual Network Override | Yes |
| PoE Ports: PoE+ | 40 |
| PoE Ports: PoE++ | 8 |
| Max. PoE Wattage per Port by PSE: PoE | 15.4W |
| Max. PoE Wattage per Port by PSE: PoE+ | 32W |
| Max. PoE Wattage per Port by PSE: PoE++ | 60W |
| Max. Power Consumption | 60W (Excluding PoE Output) 660W (Including PoE Output) |
| Power Method | (1) Universal input, 100–240V AC, 50/60 Hz (1) USP RPS DC input |
| Power Input Method | AC input |
| Power Supply | AC/DC, internal, 660W |
| Supported Voltage Range | 100–240V AC |
| Management | Ethernet AR |
| Heat Dissipation | 204.7 BTU/hr (Excluding PoE Output) |
| Weight | Without mounting brackets: 6.2 kg (13.7 lb) With mounting brackets: 6.3 kg (13.9 lb) |
| Enclosure Material | SGCC steel |
| Mount Material | SGCC steel |
| Supported Rack Depth | 400~1200 mm (15.7-47.2") |
| LCM Display | 1.3" touchscreen |
| ESD Protection | Air: ± 16kV, contact: ± 12kV |
| Ambient Operating Temperature | -5 to 40° C (23 to 104° F) |
| Ambient Operating Humidity | 10 to 90% noncondensing |
| NDAA Compliant | Yes |
| Certifications | CE, FCC, IC, Anatel: 13790-20-08356 |
| Application Requirements: UniFi Network | Version 5.10.5 and later< |
