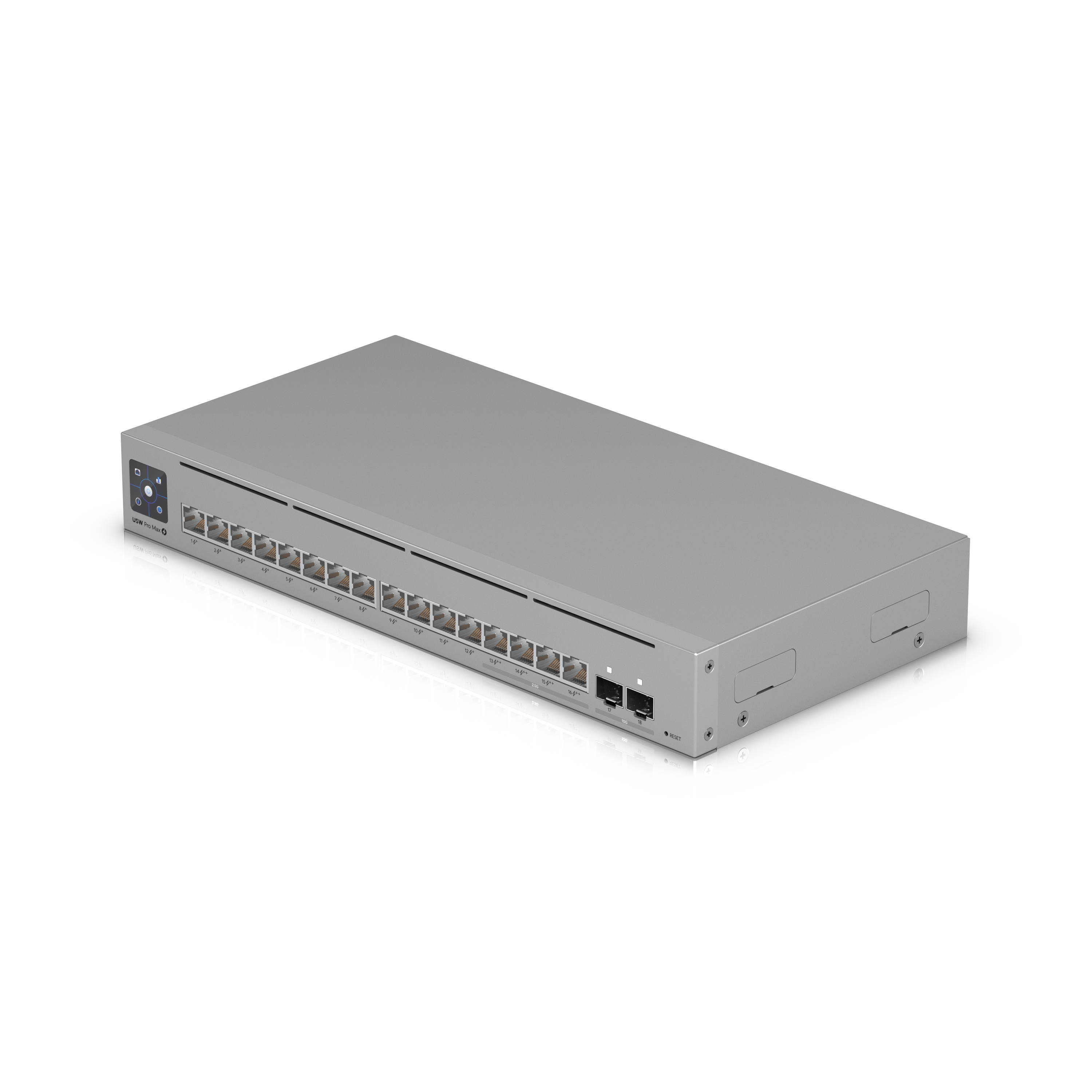

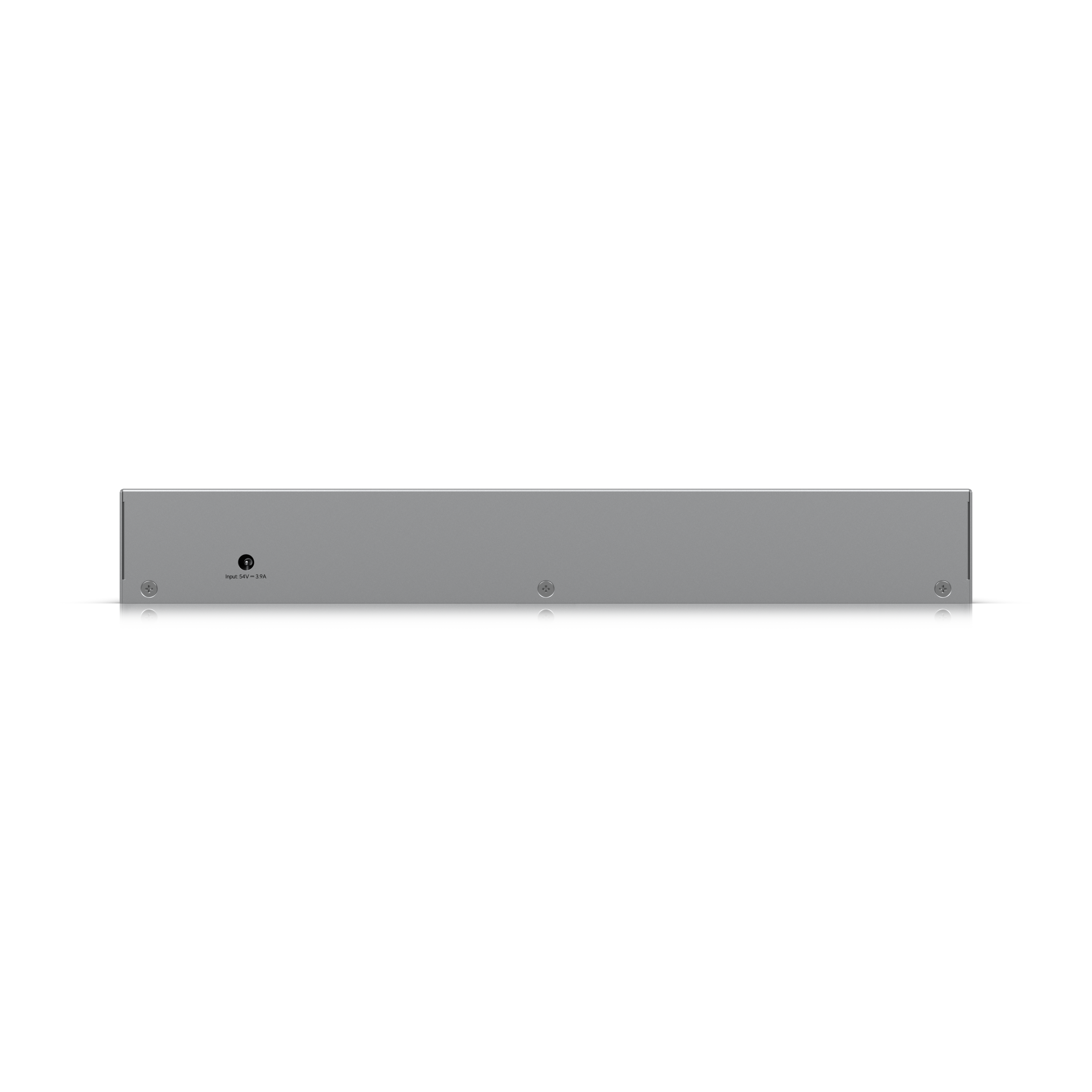

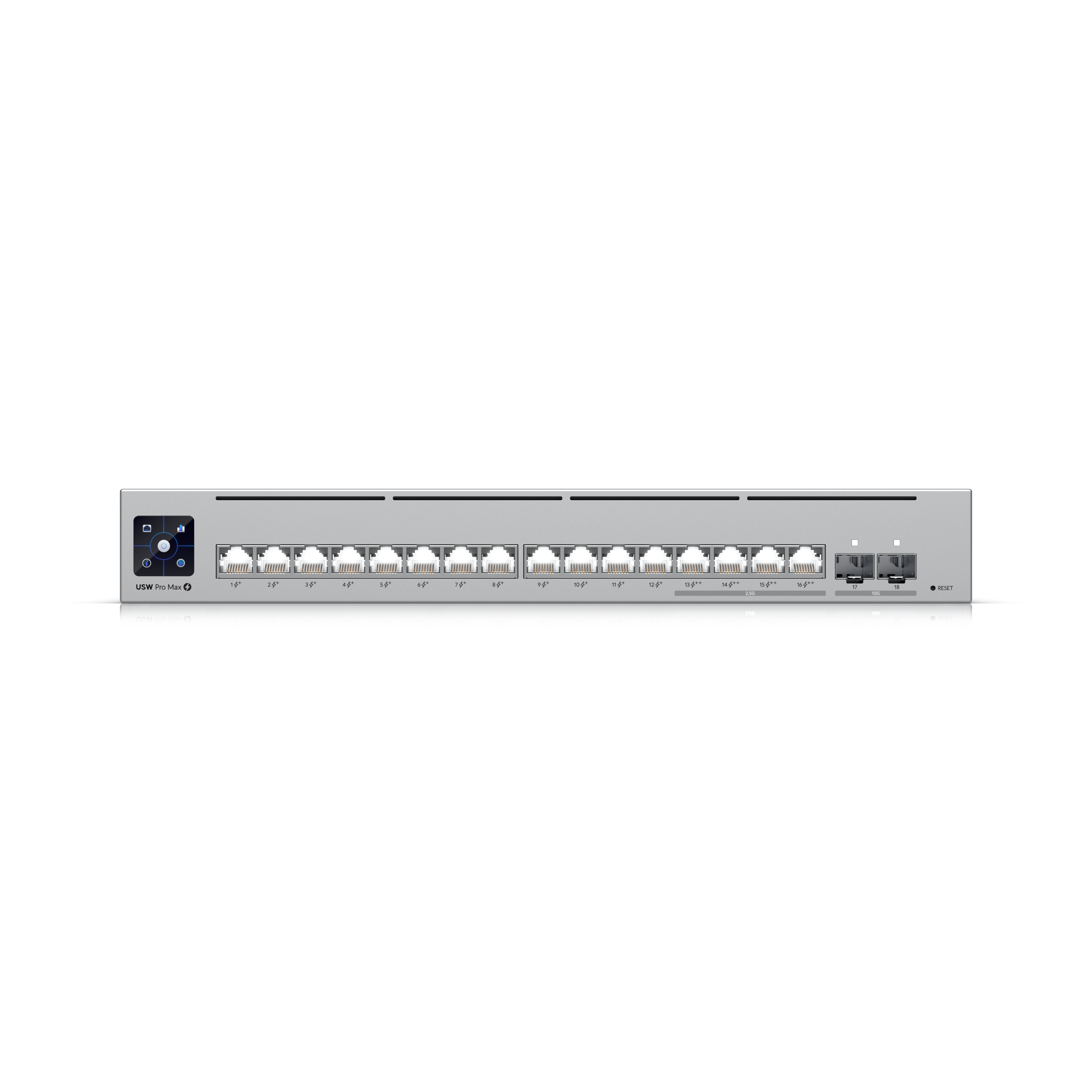

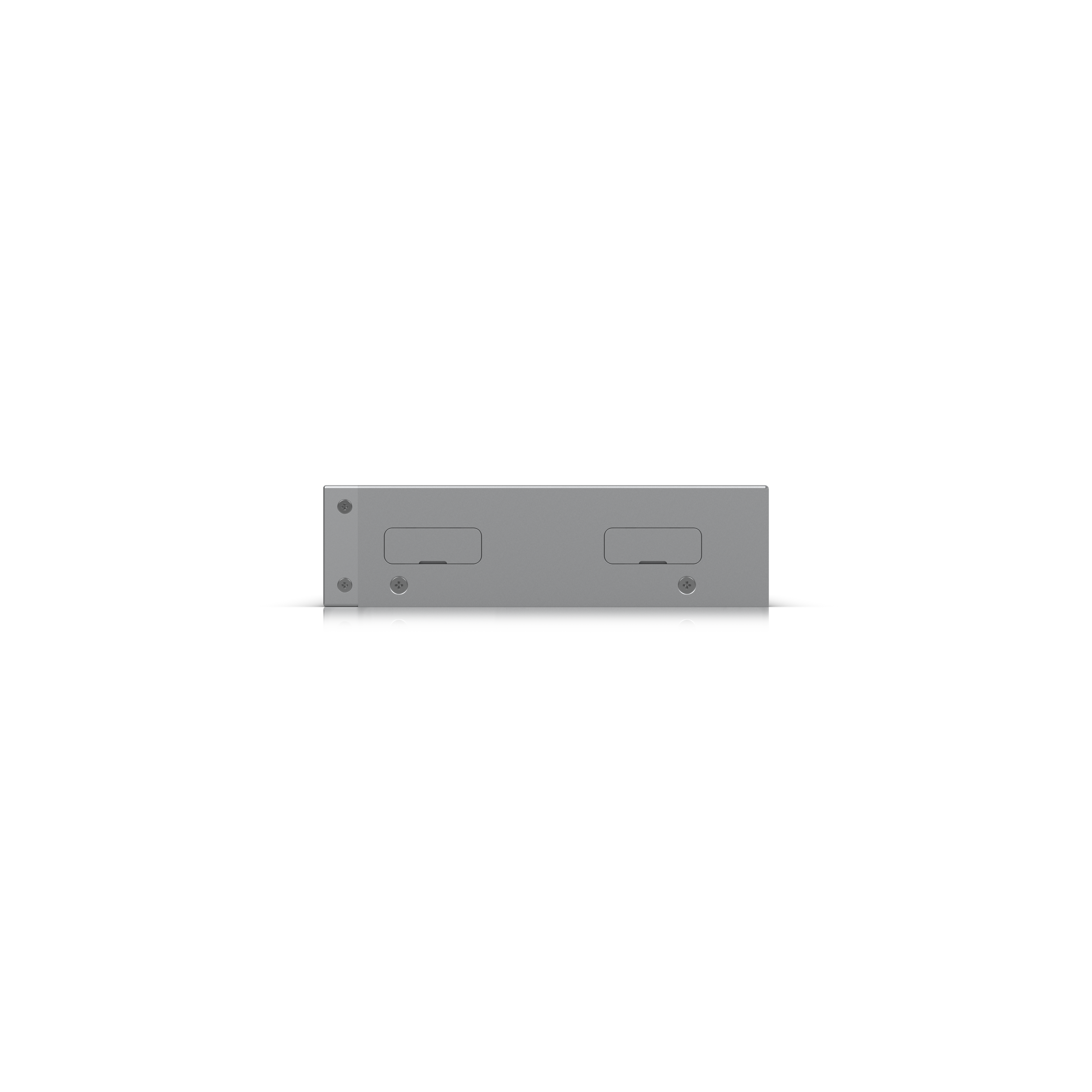

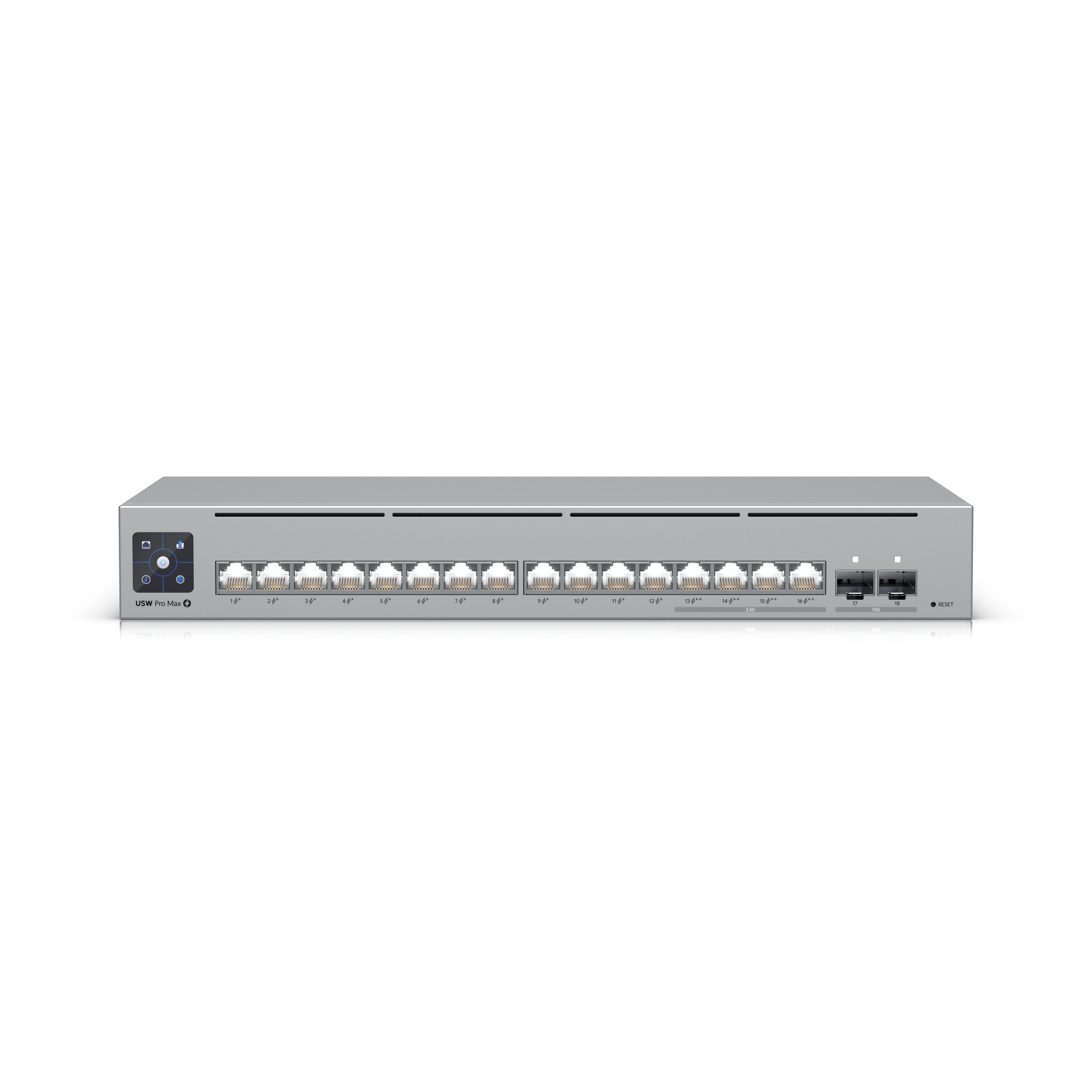

UniFi Switch Pro Max 16 PoE
16-porta Layer 3 Etherlighting™ rofi með 2.5 GbE, PoE++ úttaki og fjölbreyttum festingarmöguleikum.

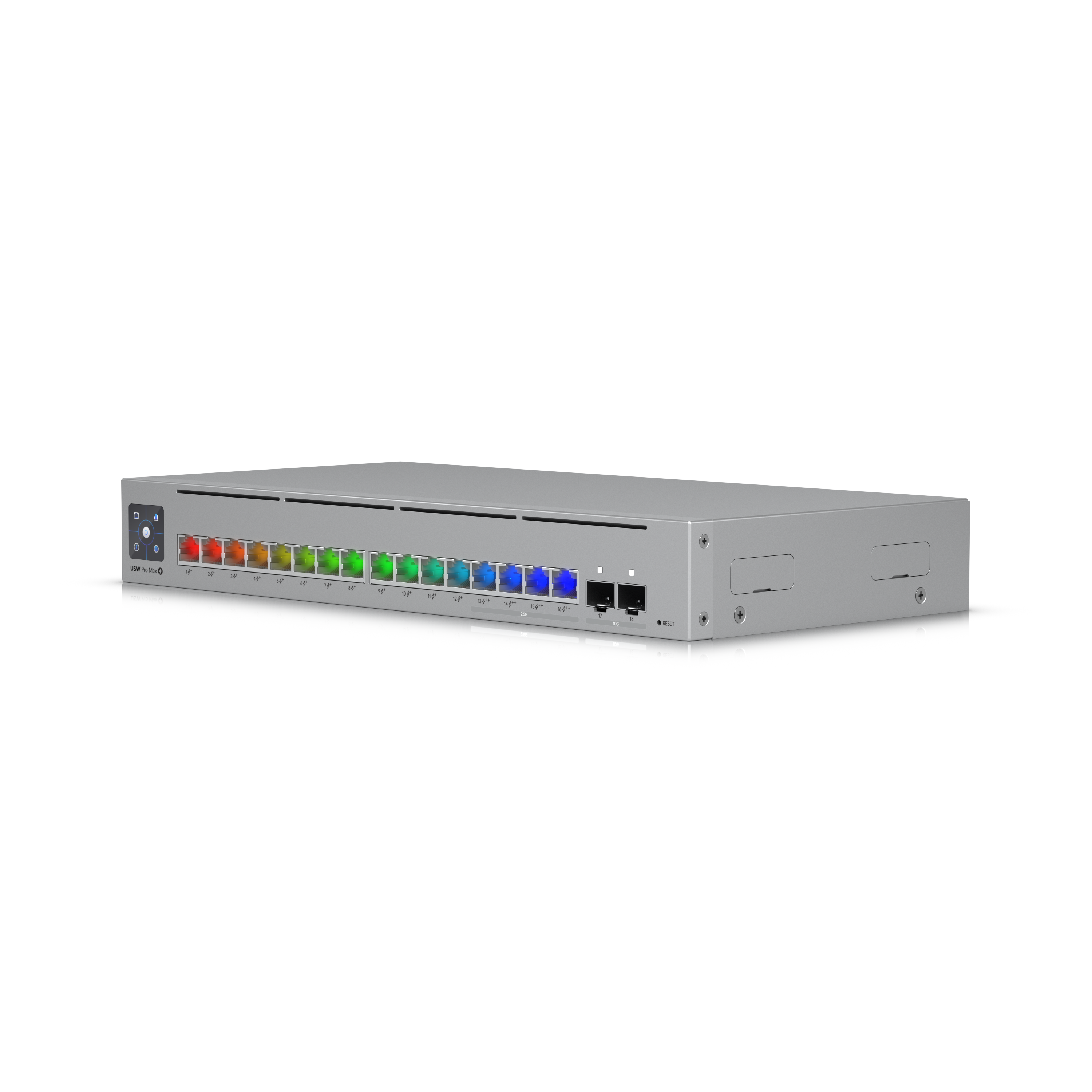

- Etherlighting™ tengi sem lýsa upp til að sýna staðsetningu tengis, hraða/tengingu og sjálfgefið VLAN/net*
- (4) 2.5 GbE PoE++ tengi
- (12) GbE PoE+ tengi
- (2) 10G SFP+ tengi
- 180W heildarafl fyrir PoE
- Fjölhæf festing á borð, vegg og í rekka**
- Hljóðlaus, viftulaus kæling
- *Notið með UniFi Etherlighting Patch Cables fyrir bestu birtu.
- **Krefst aukabúnaðarins Rack Mount.
Þrívídd og myndbönd
Tækni
Tæknilegir eiginleikar
Upplýsingar úr ETIM gögnum framleiðanda. Vantar þig meira? Hafðu samband við tækniráðgjöf okkar.
| Dimensions | 325.1 x 160 x 43.7 mm (12.8 x 6.3 x 1.7") |
|---|---|
| Port Layout: 1 GbE RJ45 | 12 (All PoE+) (1G/100M/10M) |
| Port Layout: 2.5 GbE RJ45 | 4 (All PoE++) (2.5G/1G/100M/10M) |
| Port Layout: 10G SFP+ | 2 (10G/1G) |
| Max. PoE Output | Up to PoE++ |
| Total PoE Availability | 180W |
| Layer 3 | Yes |
| Form Factor | Rack mount (1U), desktop, wall (1U rack-mounting requires add-on Rack Mount accessory) |
| Etherlighting™ | Yes |
| Switching Capacity | 84 Gbps |
| Total Non-Blocking Throughput | 42 Gbps |
| Forwarding Rate | 62 Mpps |
| Supported VLANs | 1,000 |
| MAC Address Table Size | 16,000 |
| IPv4 Static Routes | 256 |
| Packet Buffer Size | 1.5 MB |
| Access Lists: IPv4 | 128 |
| Access Lists: MAC | 128 |
| DHCP Server (Local Networks) | Yes |
| DHCP Relay | Yes |
| Inter-VLAN Routing (Local Networks) | Yes |
| Static Routing (Local Networks) | Yes |
| LACP Port Aggregation | Yes |
| STP & RSTP | Yes |
| QoS (DSCP) | Yes |
| Pro AV Profiles (Play, Dante, Q-SYS, NDI, SDVoE, Shure, AES67, Crestron) | Yes |
| Advanced IGMP Configuration (Querier, Fast Leave, Router Port) | Yes |
| IGMP Snooping | Yes |
| 802.1X Control | Yes |
| MAC-Based ACLs & Device Isolation | Yes |
| DHCP Snooping & Guarding | Yes |
| Egress Rate Limit | Yes |
| Flow Control | Yes |
| Storm Control | Yes |
| Multicast & Broadcast Rate Limiting | Yes |
| MAC Address Blocking | Yes |
| IP-Based ACLs & Network Isolation | Yes |
| MAC-Based Port Restriction | Yes |
| Port Isolation | Yes |
| Port Mirroring | Yes |
| Jumbo Frames | Yes |
| LLDP-MED | Yes |
| Voice VLAN | Yes |
| Loop Protection | Yes |
| Virtual Network Override | Yes |
| PoE Ports: PoE+ | 12 |
| PoE Ports: PoE++ | 4 |
| Max. PoE Wattage per Port by PSE: PoE | 15.4W |
| Max. PoE Wattage per Port by PSE: PoE+ | 32W |
| Max. PoE Wattage per Port by PSE: PoE++ | 60W |
| Max. Power Consumption | 25W (Excluding PoE Output) 210W (Including PoE Output) |
| Power Method | AC Adapter |
| Power Input Method | AC input |
| Power Supply | AC/DC, external, 210W |
| Supported Voltage Range | 50–54V DC |
| Management | Ethernet AR |
| Heat Dissipation | 68 BTU/hr (Excluding PoE Output) |
| Weight | 2.1 kg (4.6 lb) |
| Enclosure Material | SGCC steel |
| Mount Material | SGCC steel |
| Supported Rack Depth | 400~1200 mm (15.7-47.2") |
| LCM Display | 1.3" touchscreen |
| Ambient Operating Temperature | -5 to 40° C (23 to 104° F) |
| Ambient Operating Humidity | 10 to 90% noncondensing |
| Etherlighting™: Ethernet | Yes |
| Etherlighting™: SFP+ | Yes |
| NDAA Compliant | Yes |
| Certifications | CE, FCC, IC, Anatel: 08953-24-08356 |
| Application Requirements: UniFi Network | Version 8.1.127 and later |
