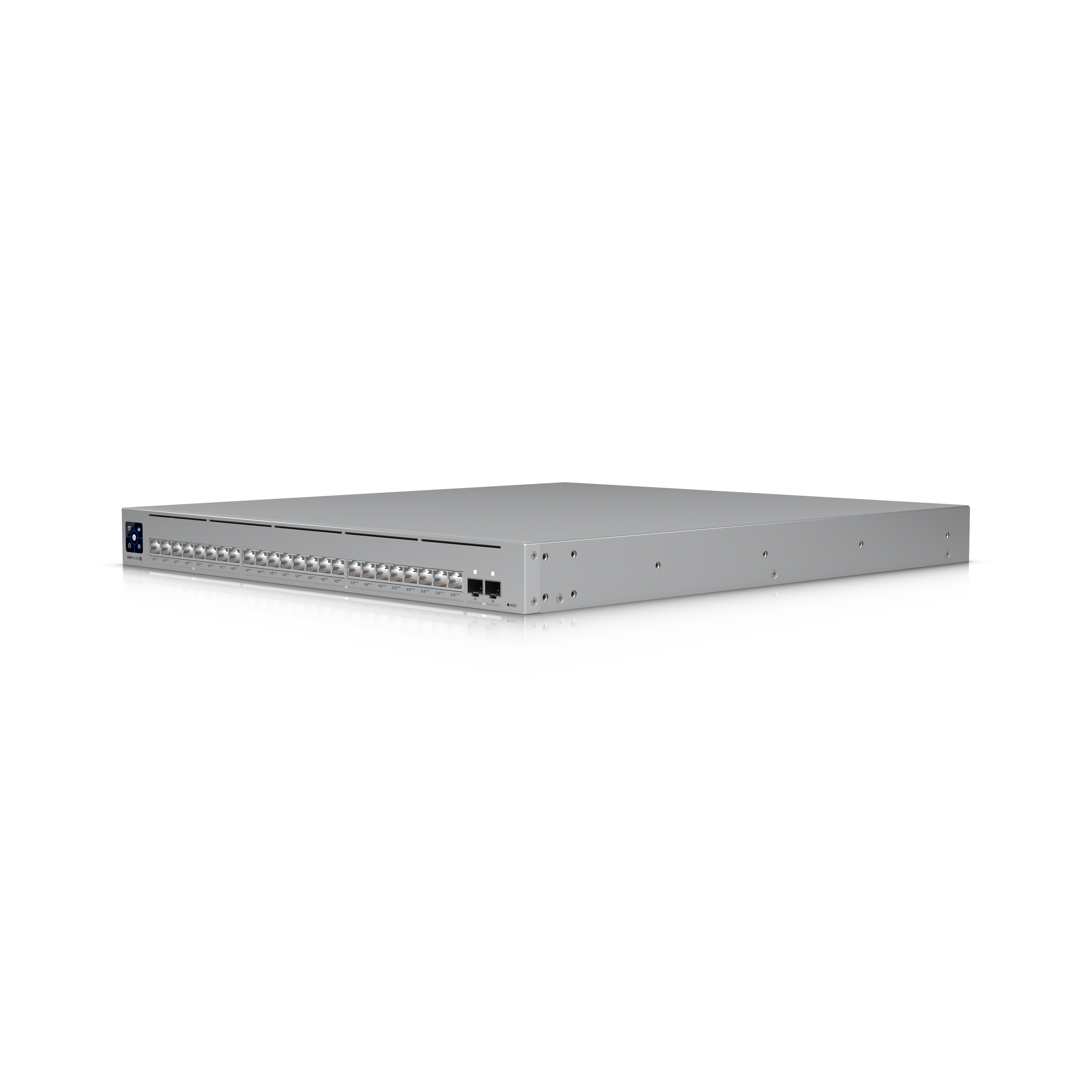

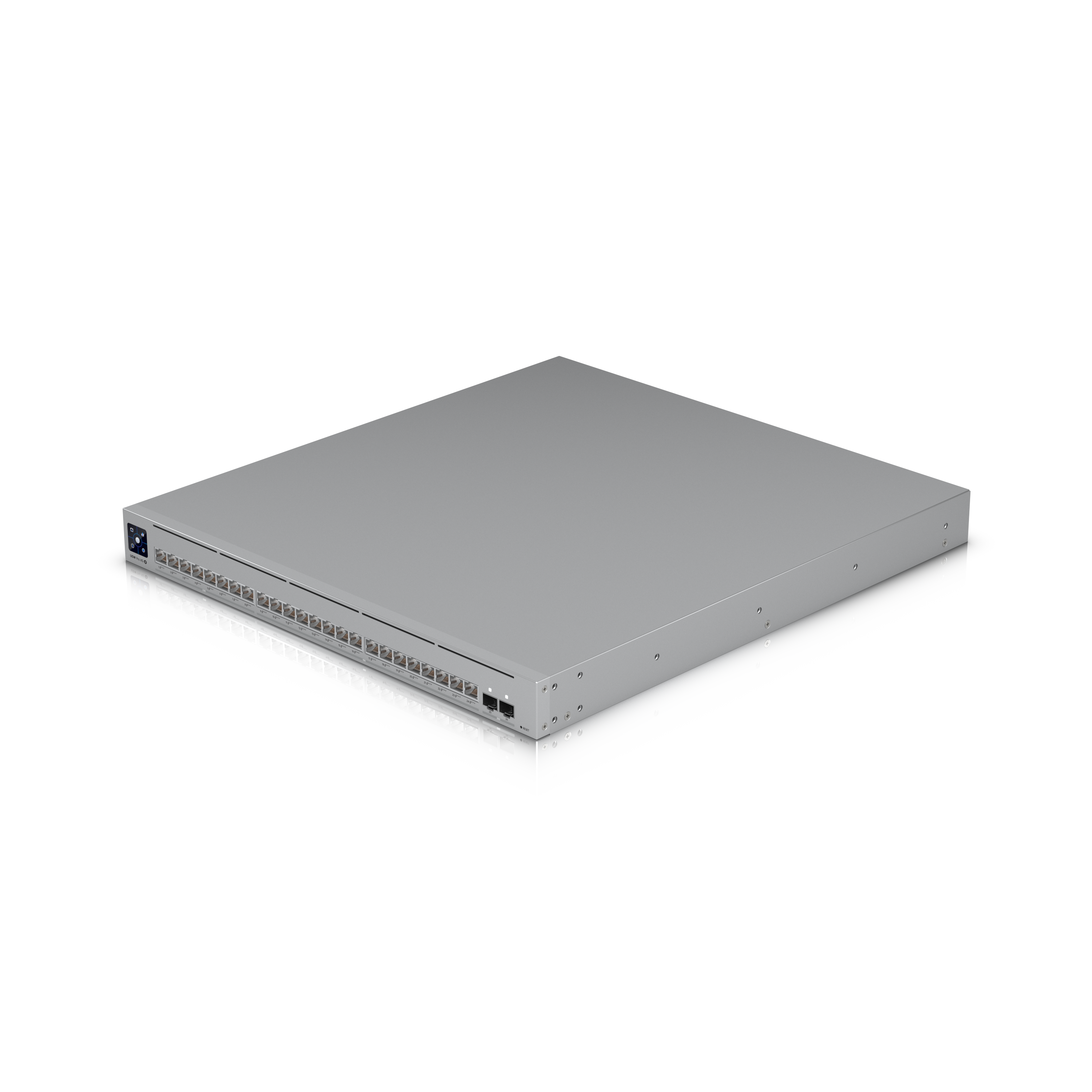

UniFi Switch Pro XG 24 PoE
Fagmanna 24-porta Layer 3 Etherlighting™ PoE+++ rofi með (16) 10 GbE, (8) 2.5 GbE, og (2) 25G SFP28 tengjum.

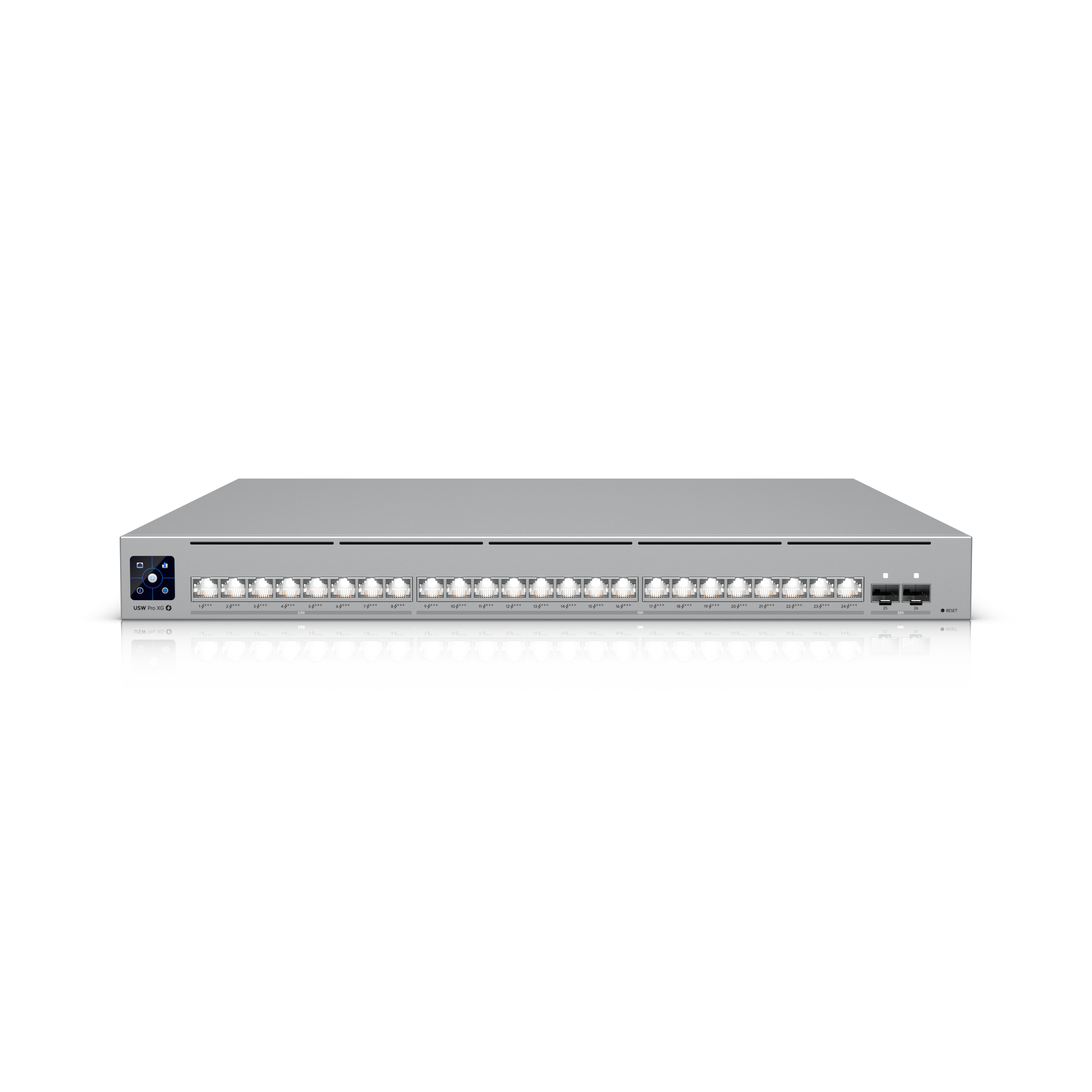

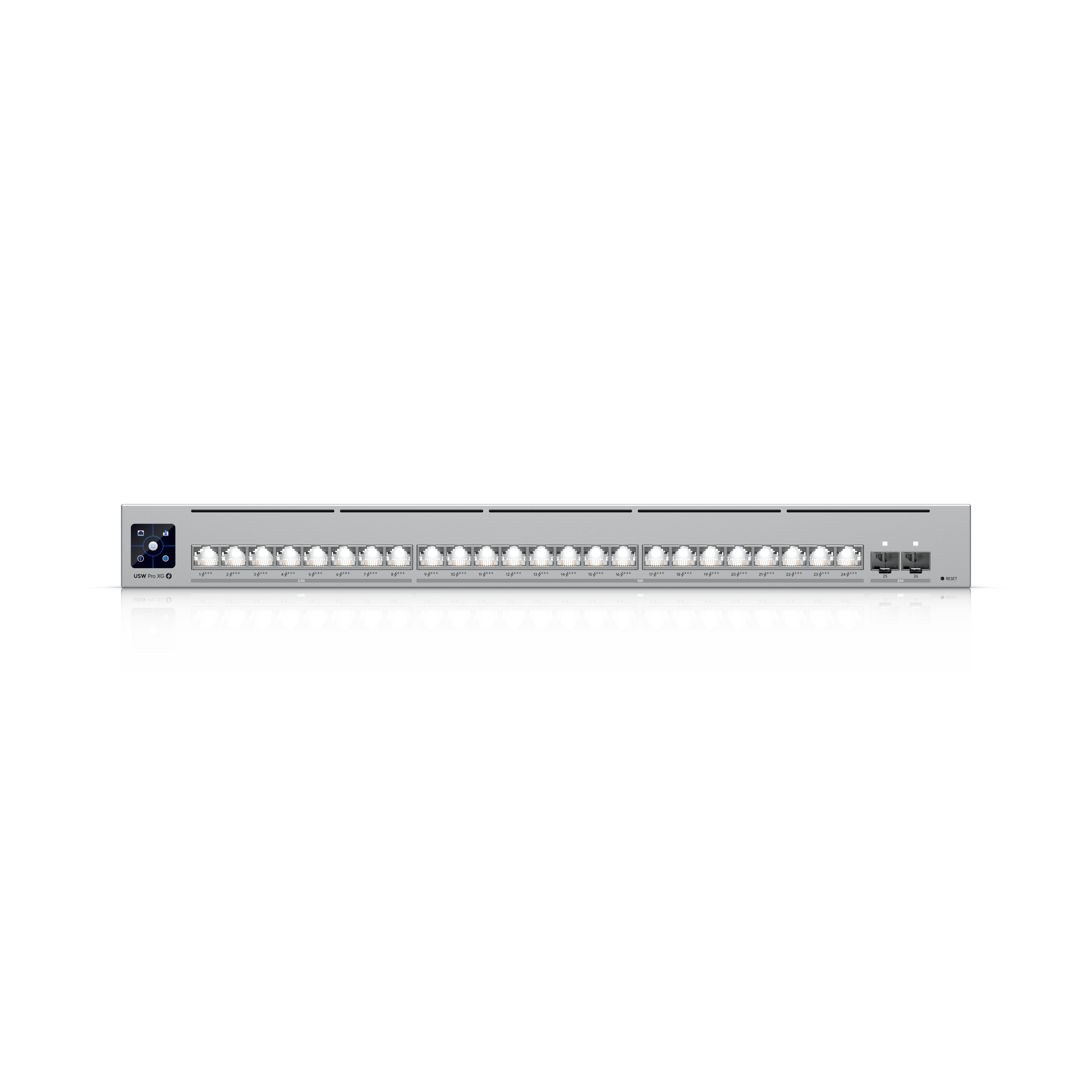

- Etherlighting™ tengi sem lýsa upp til að gefa til kynna staðsetningu tengis, hraða/tengingu og innbyggt VLAN/net*
- (16) 10 GbE, (8) 2.5 GbE tengi, öll PoE+++ (90W fær)
- (2) 25G SFP28 tengi
- Tilbúið fyrir DC varaaflgjafa**
- 720W heildar PoE framboð
- *Notið með UniFi Etherlighting Patch snúrum fyrir hámarks birtu.
- **Krefst UniFi RPS.
Þrívídd og myndbönd
Tækni
Tæknilegir eiginleikar
Upplýsingar úr ETIM gögnum framleiðanda. Vantar þig meira? Hafðu samband við tækniráðgjöf okkar.
| Dimensions | 442 x 480 x 44 mm (17.4 x 18.9 x 1.7") |
|---|---|
| Port Layout: 2.5 GbE RJ45 | 8 (All PoE+++) (2.5G/1G/100M/10M) (10/100M half-duplex not supported) |
| Port Layout: 10 GbE RJ45 | 16 (All PoE+++) (10G/5G/2.5G/1G/100M/10M) (10/100M half-duplex not supported) |
| Port Layout: 25G SFP28 | 2 (25G/10G/1G) |
| Max. PoE Output | Up to PoE+++ (802.3bt Type 4, Class 8) |
| Total PoE Availability | 720W |
| Redundancy | DC Power Backup (With UniFi RPS) |
| Layer 3 | Yes |
| Form Factor | Rack mount (1U) |
| Etherlighting™ | Yes |
| Switching Capacity | 460 Gbps |
| Total Non-Blocking Throughput | 230 Gbps |
| Forwarding Rate | 342 Mpps |
| Supported VLANs | 1,000 |
| MAC Address Table Size | 32,000 |
| IPv4 Static Routes | 512 |
| Packet Buffer Size | 8 MB |
| Access Lists: IPv4 | 256 |
| Access Lists: MAC | 256 |
| DHCP Server (Local Networks) | Yes |
| DHCP Relay | Yes |
| Inter-VLAN Routing (Local Networks) | Yes |
| Static Routing (Local Networks) | Yes |
| LACP Port Aggregation | Yes |
| STP & RSTP | Yes |
| QoS (DSCP) | Yes |
| Pro AV Profiles (Play, Dante, Q-SYS, NDI, SDVoE, Shure, AES67, Crestron) | Yes |
| Advanced IGMP Configuration (Querier, Fast Leave, Router Port) | Yes |
| IGMP Snooping | Yes |
| 802.1X Control | Yes |
| MAC-Based ACLs & Device Isolation | Yes |
| DHCP Snooping & Guarding | Yes |
| Egress Rate Limit | Yes |
| Flow Control | Yes |
| Storm Control | Yes |
| Multicast & Broadcast Rate Limiting | Yes |
| MAC Address Blocking | Yes |
| IP-Based ACLs & Network Isolation | Yes |
| MAC-Based Port Restriction | Yes |
| Port Isolation | Yes |
| Port Mirroring | Yes |
| Jumbo Frames | Yes |
| LLDP-MED | Yes |
| Voice VLAN | Yes |
| Loop Protection | Yes |
| Virtual Network Override | Yes |
| PoE Ports: PoE+++ | 24 |
| Max. PoE Wattage per Port by PSE: PoE | 15.4W |
| Max. PoE Wattage per Port by PSE: PoE+ | 30W |
| Max. PoE Wattage per Port by PSE: PoE++ | 60W |
| Max. PoE Wattage per Port by PSE: PoE+++ | 90W |
| Max. Power Consumption | 150W (Excluding PoE Output) 870W (Including PoE Output) |

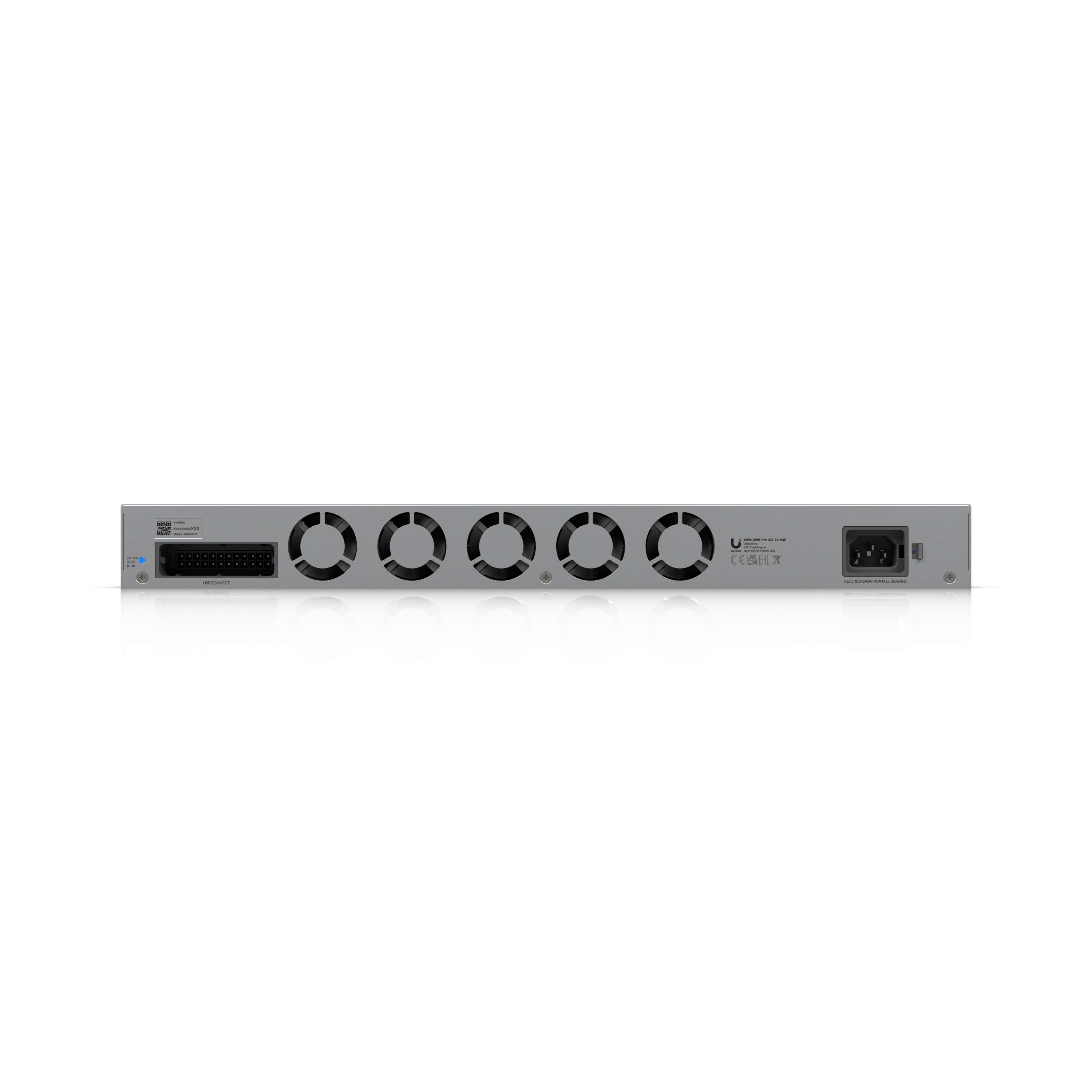

| Power Method | (1) Universal input, 100–240V AC, 50/60 Hz (1) USP RPS DC input |
| Power Input Method | AC input |
| Power Supply | AC/DC, internal, 870W |
| Supported Voltage Range | 100–240V AC |
| Management | Ethernet AR |
| Weight | Without mounting brackets: 7.9 kg (17.4 lb) With mounting brackets: 8 kg (17.6 lb) |
| Enclosure Material | SGCC steel |
| Mount Material | SGCC steel |

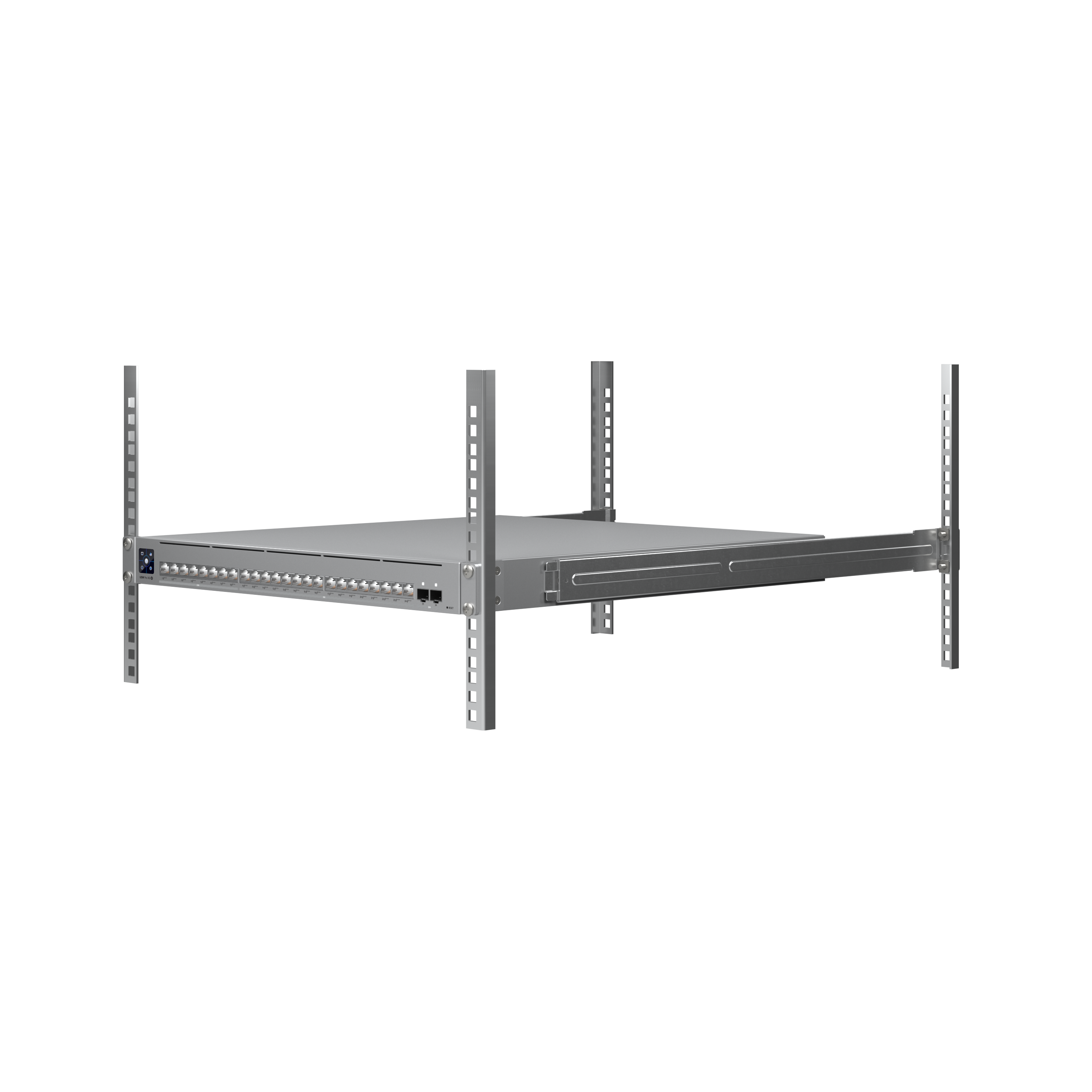

| Supported Rack Depth | 482.6 mm (19") four-post racks Posts depths ranging from 600 to 1,066 mm (23.6-42”) |
| LCM Display | 1.3" touchscreen |
| ESD Protection | Air: ± 30kV, contact: ± 20kV |
| Ambient Operating Temperature | -5 to 40° C (23 to 104° F) |
| Ambient Operating Humidity | 10 to 90% noncondensing |
| Etherlighting™: Ethernet | Yes |
| Etherlighting™: SFP28 | Yes |
| LEDs: RPS | Yes |
| NDAA Compliant | Yes |
| Certifications | CE, FCC, IC, Anatel: 04322-25-08356 |
| Application Requirements: UniFi Network | Version 9.1.120 and later |
