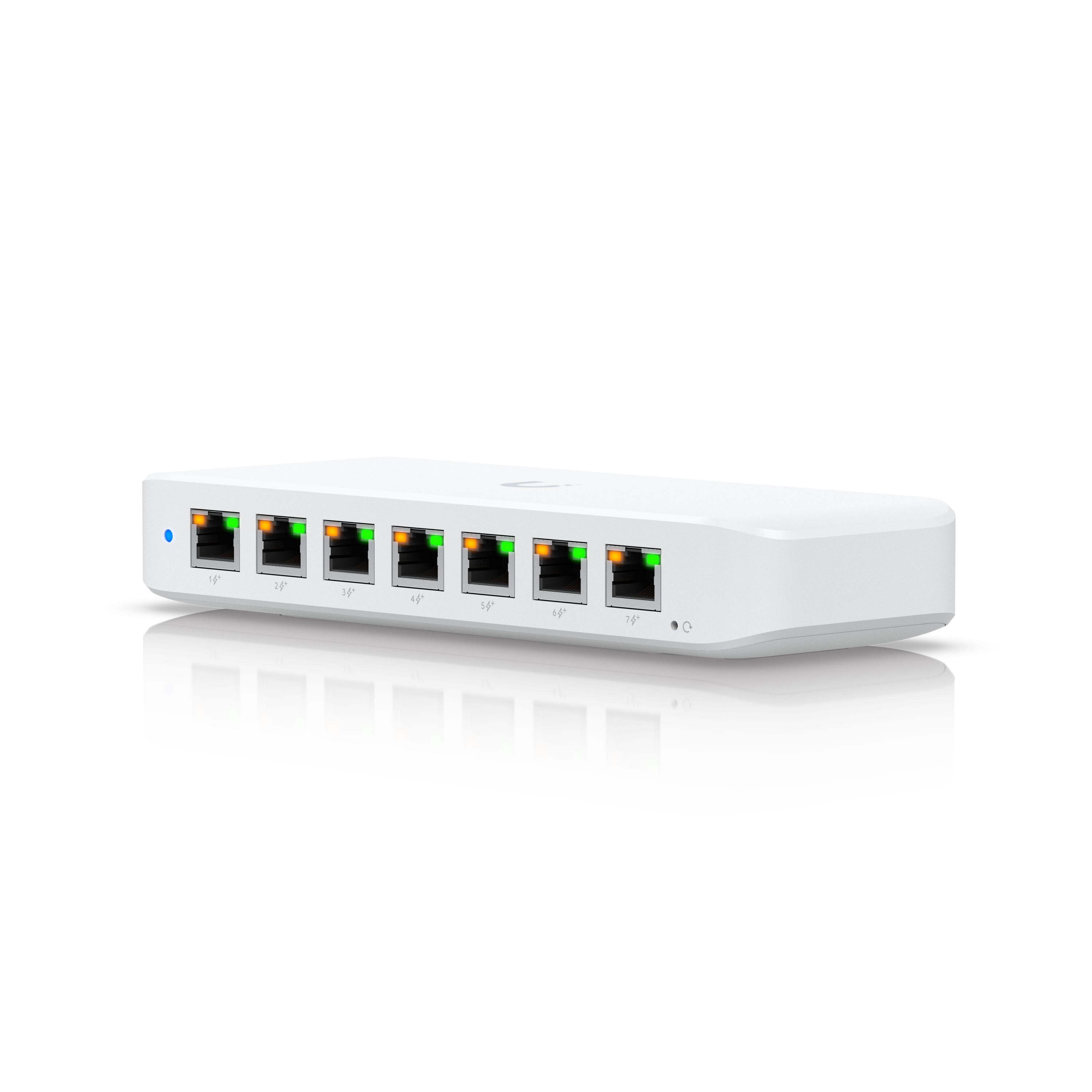

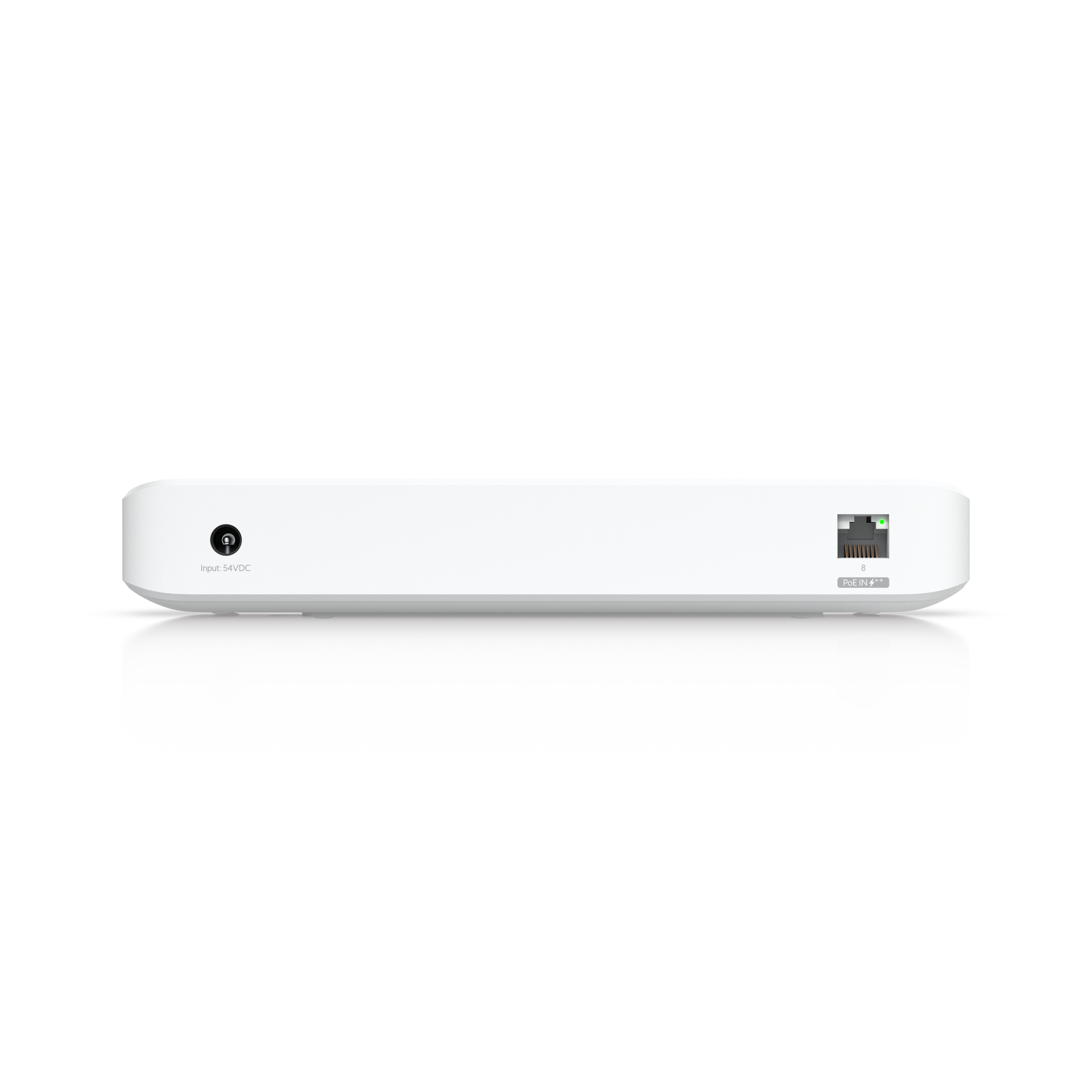

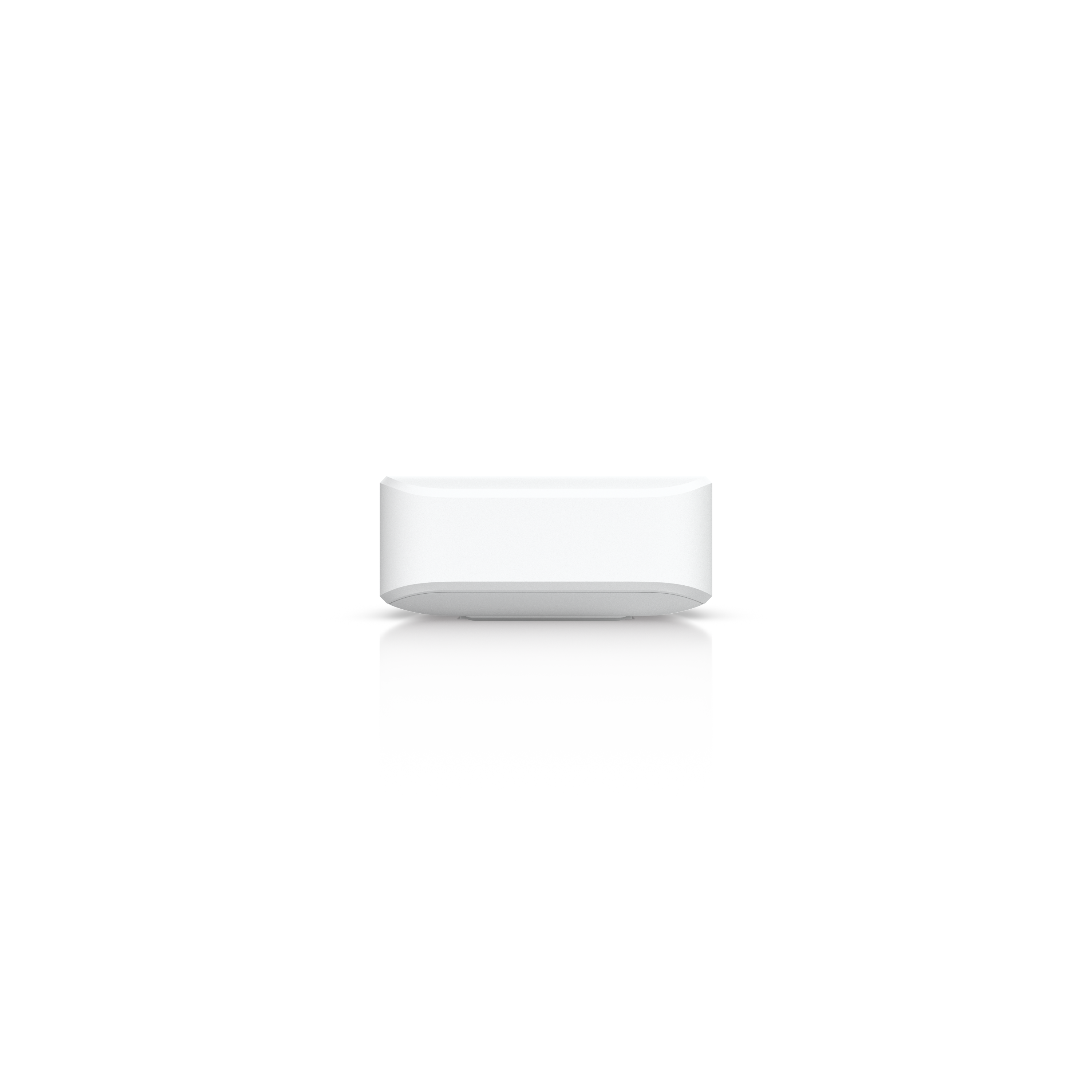

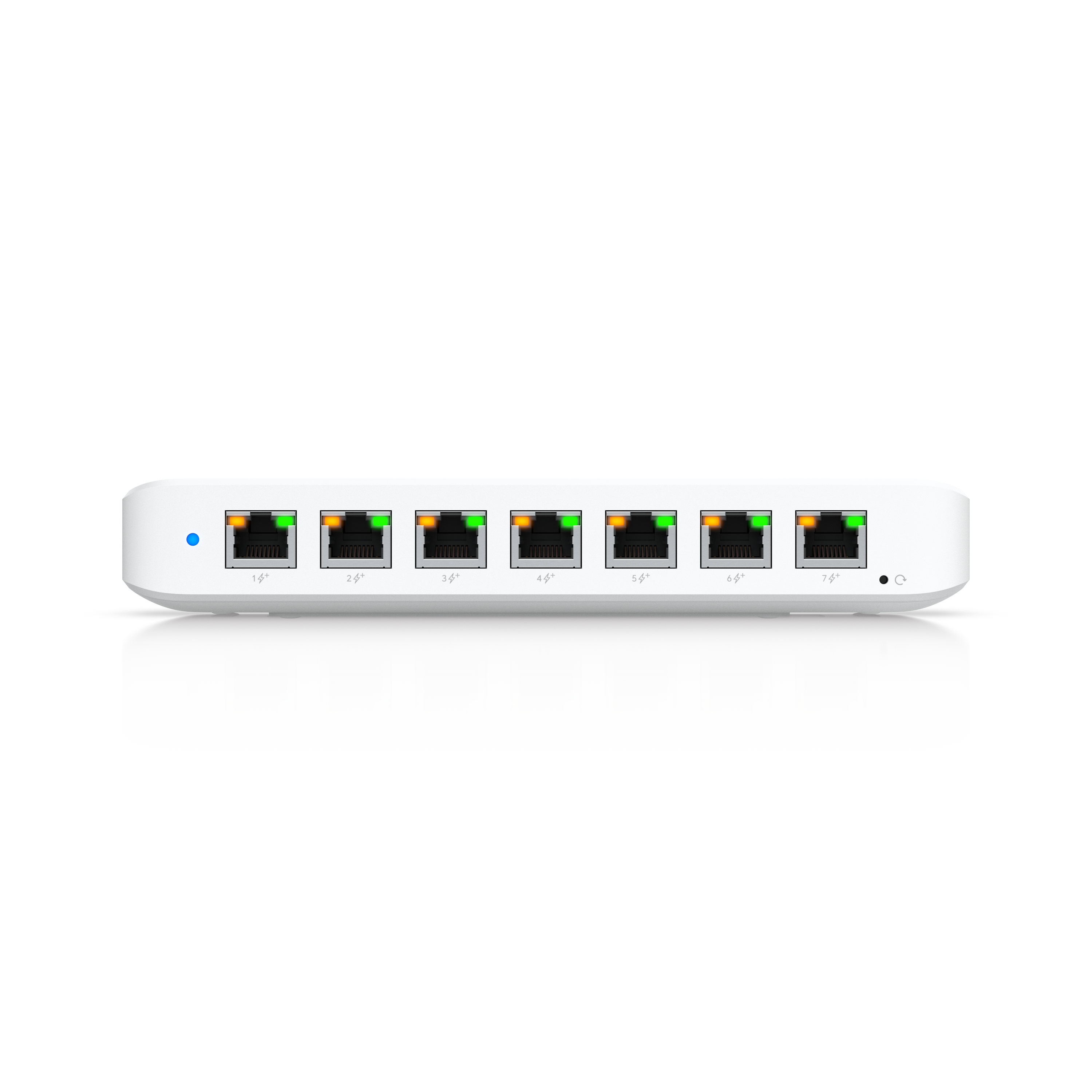

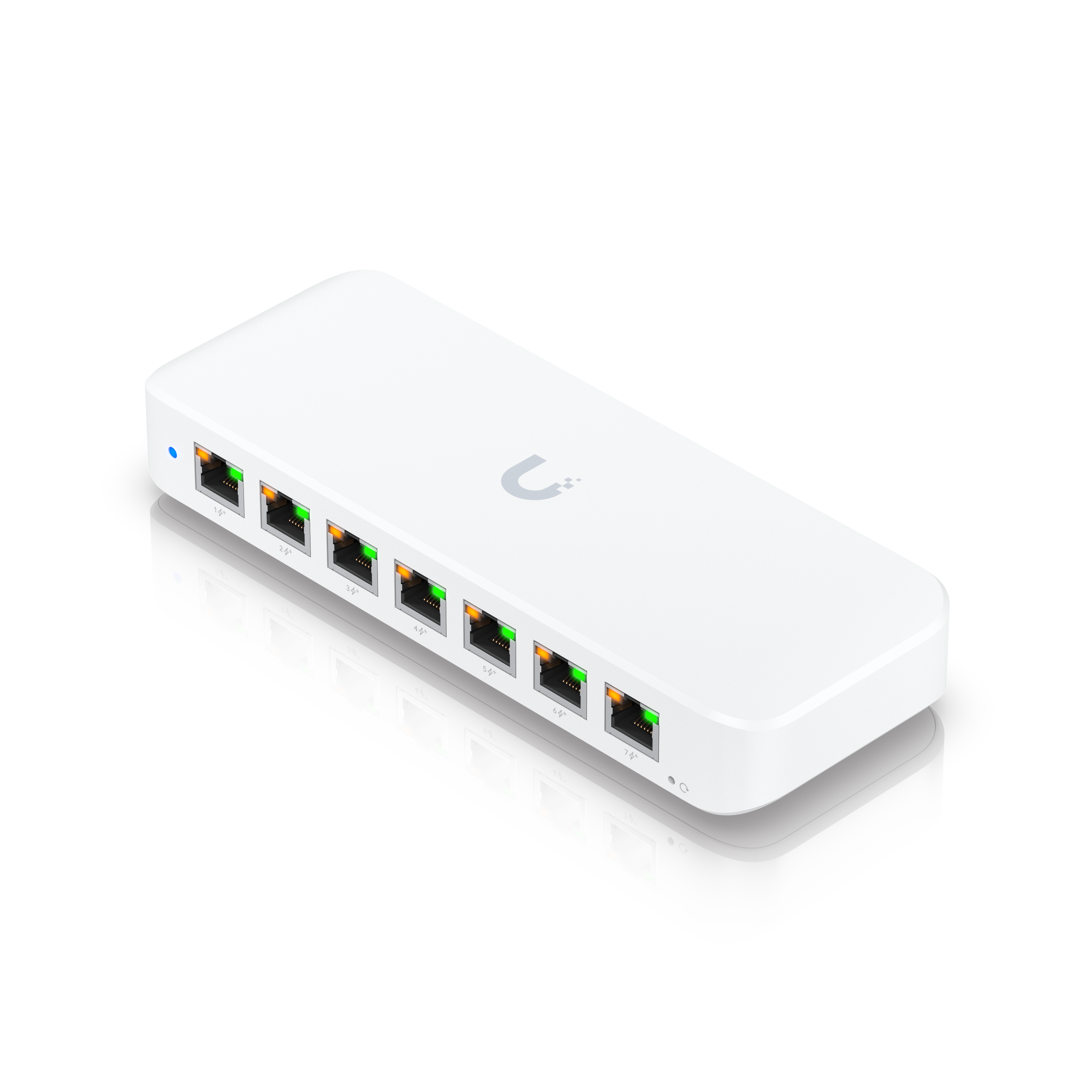

UniFi Switch Ultra 60W
Þéttur, Layer 2, 8-porta GbE PoE rofi með fjölbreyttum festingarmöguleikum.
Athugið. PoE inntak er stutt fyrir rekstur rofans, en PoE+/PoE++ inntak eða AC straumur er nauðsynlegt fyrir PoE úttak.
- (7) GbE PoE+ úttaksportar
- (1) GbE port með valkvæðu PoE++ inntaki*
- 52W PoE framboð með meðfylgjandi AC straumbreyti
-
- *PoE inntak er stutt fyrir rekstur rofans, en PoE+/PoE++ inntak eða AC straumur er nauðsynlegt fyrir PoE úttak.
Þrívídd og myndbönd
Tækni
Tæknilegir eiginleikar
Upplýsingar úr ETIM gögnum framleiðanda. Vantar þig meira? Hafðu samband við tækniráðgjöf okkar.
| Dimensions | 203 x 76 x 33 mm (8 x 3 x 1.3") |
|---|---|
| Port Layout: 1 GbE RJ45 | 8 (7 PoE+; 1 PoE++ input) (1G/100M/10M) (PoE input is supported for switch operation, with PoE+/PoE++ input or AC power required for PoE output) |
| Max. PoE Output | Up to PoE+ |
| Total PoE Availability | PoE++ input: 42W PoE+ input: 16W 60W PoE adapter input: 42W 60W AC adapter input: 52W 210W AC adapter input: 202W (At 45° C (113° F) operating temperature. Reduced to 161W (230V) or 121W (115V) at 60° C (140° F)) |
| Form Factor | Compact desktop, wall, magnetic |
| Switching Capacity | 16 Gbps |
| Total Non-Blocking Throughput | 8 Gbps |
| Forwarding Rate | 12 Mpps |
| Supported VLANs | 256 |
| MAC Address Table Size | 4,000 |
| STP & RSTP | Yes |
| Egress Rate Limit | Yes |
| Flow Control | Yes |
| Storm Control | Yes |
| Multicast & Broadcast Rate Limiting | Yes |
| Port Isolation | Yes |
| Port Mirroring | Yes |
| Jumbo Frames | Yes |
| Loop Protection | Yes |
| PoE Ports: PoE+ | 7 |
| PoE Ports: PoE++ | 1 |
| Max. PoE Wattage per Port by PSE: PoE+ | 30W |
| Max. Power Consumption | 9W (Excluding PoE Output) with PoE input 8W (Excluding PoE Output) with adapter input 210W (Including PoE Output) with 210W AC adapter input |
| Power Method | (1) AC/DC adapter (Included) (1) PoE++ |
| Power Input Method | DC Input PoE |
| Power Supply | AC/DC, external, 60W |
| Supported Voltage Range | 50–57V DC/PoE |
| Management | Ethernet |
| Heat Dissipation | 31 BTU/hr (Excluding PoE Output) |
| Weight | Device: 320 g (11.3 oz) Wall mount: 45 g (1.6 oz) Adapter: 330 g (11.6 oz) |
| Enclosure Material | Polycarbonate |
| Ambient Operating Temperature | PoE++ input: -30 to 60° C (-22 to 140° F) 60W AC adapter input: -20 to 45° C (-4 to 113° F) |
| Ambient Operating Humidity | 10 to 90% noncondensing |
| NDAA Compliant | Yes |
| Certifications | CE, FCC, IC, Anatel: 06367-24-08356 |
| Application Requirements: UniFi Network | Version 8.0.7 and later |
