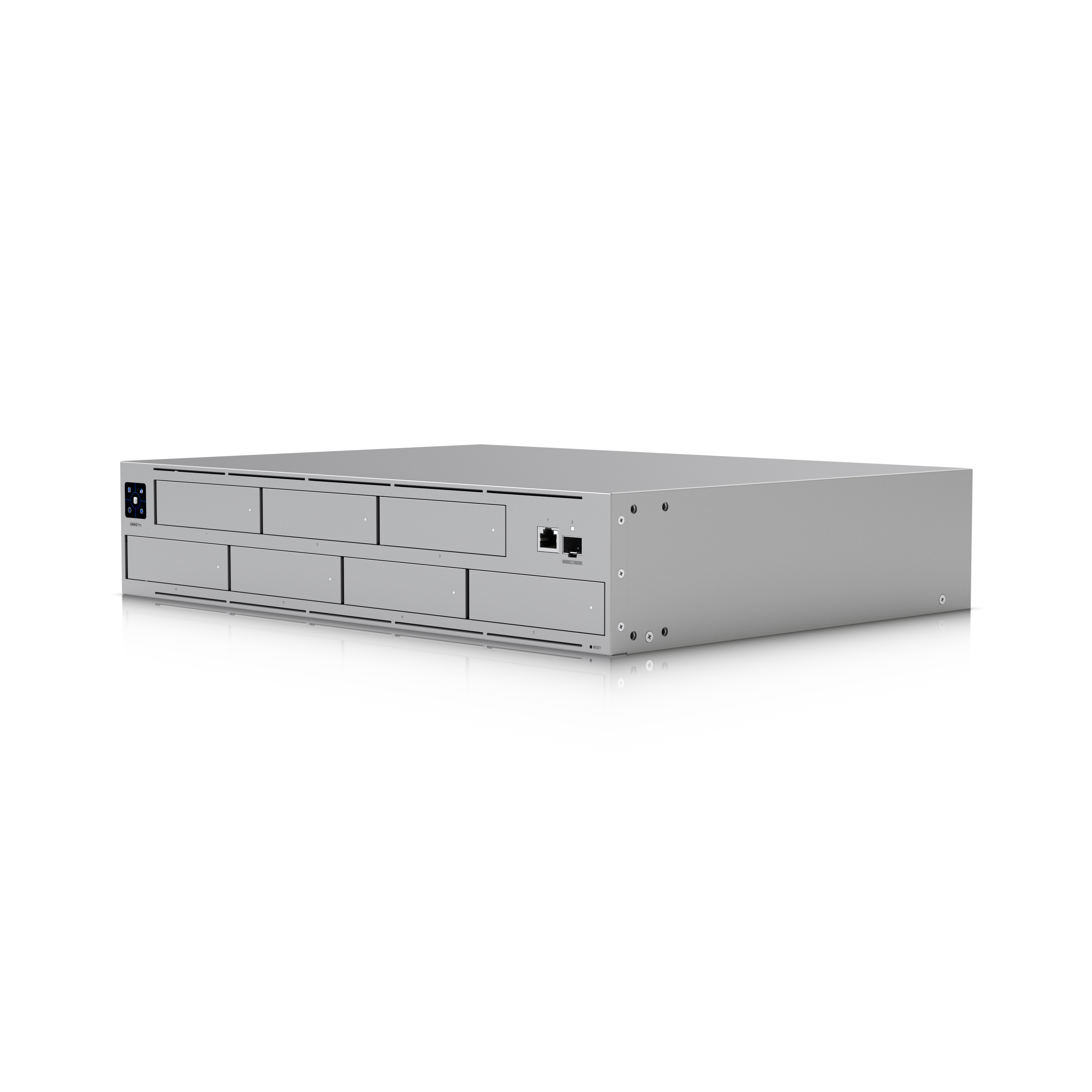

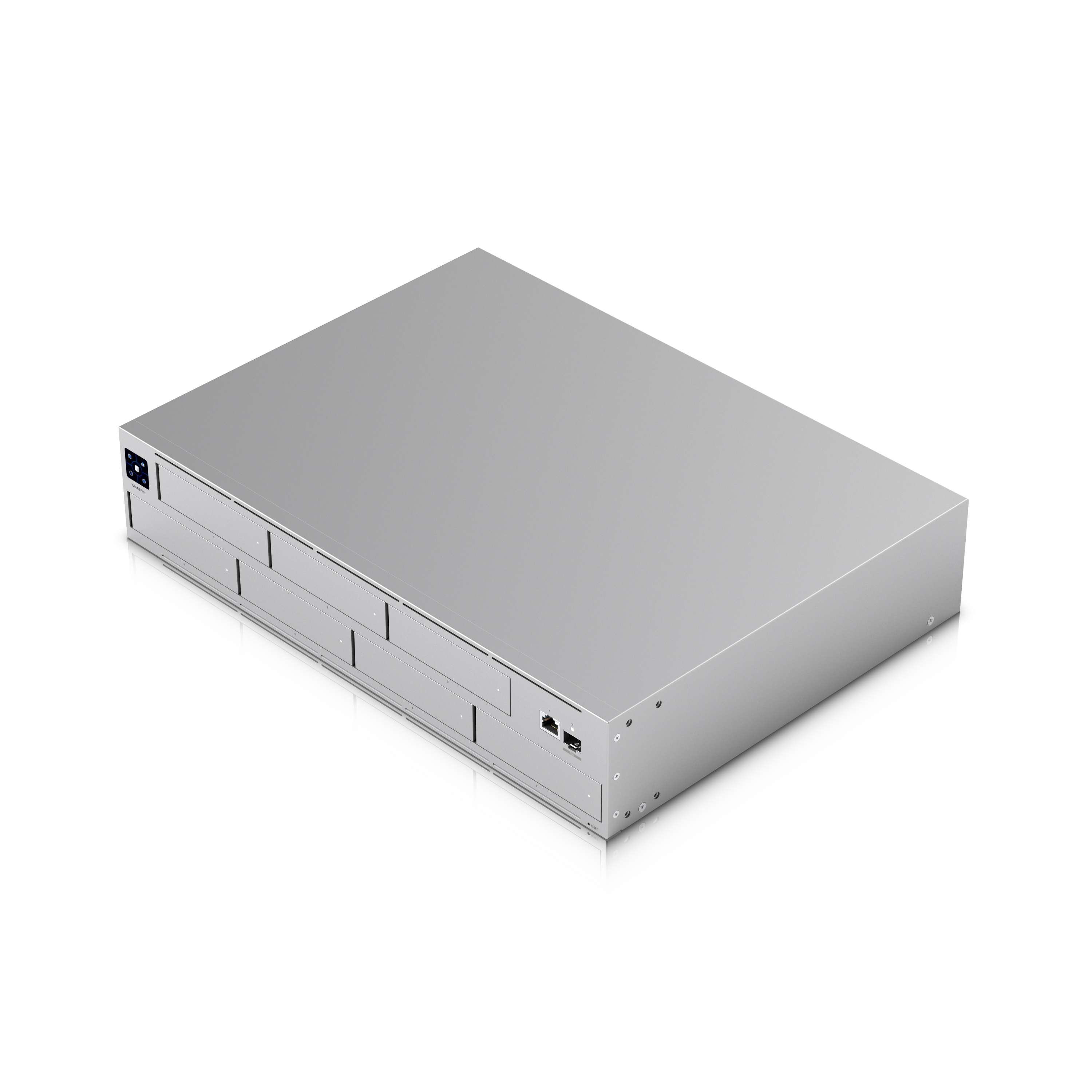

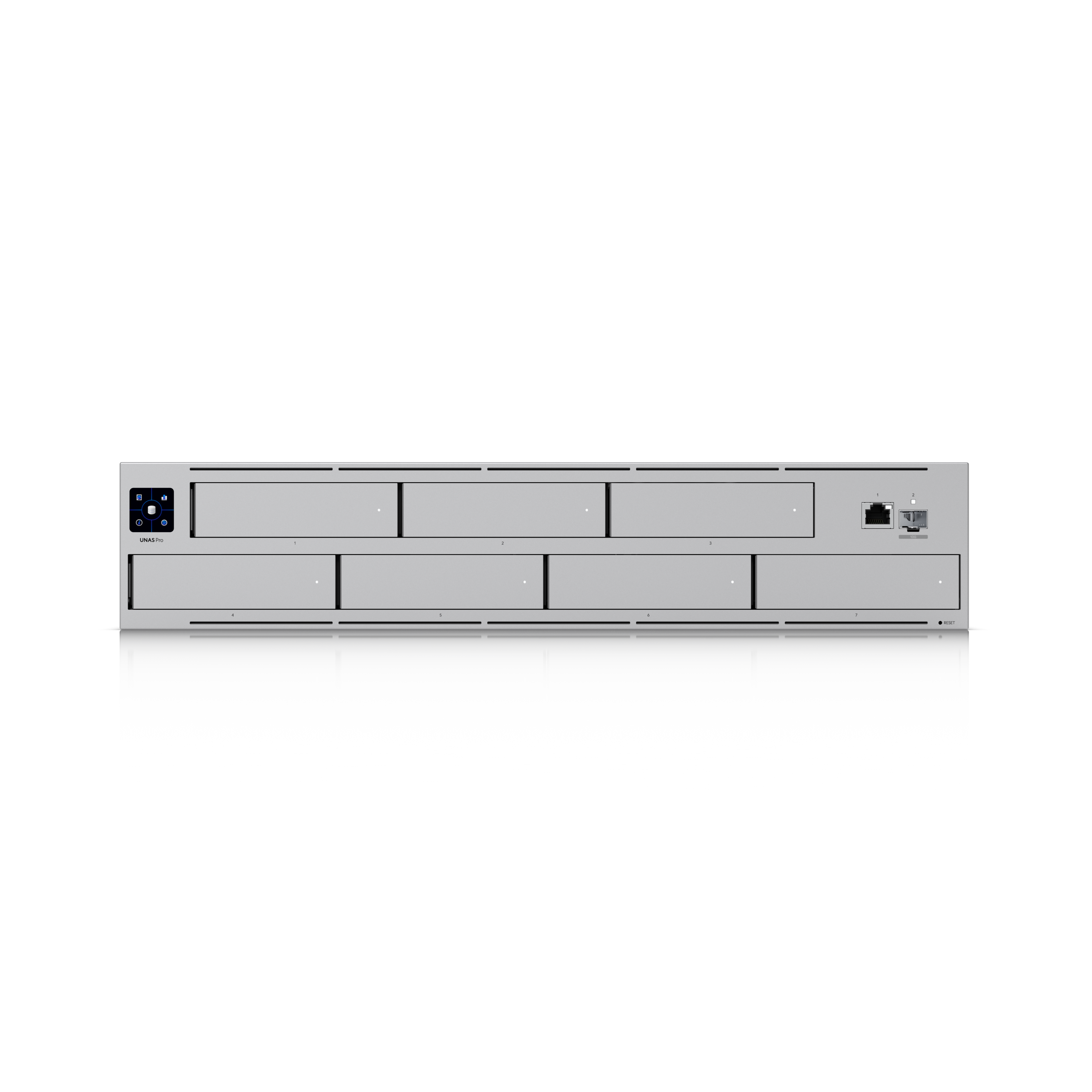

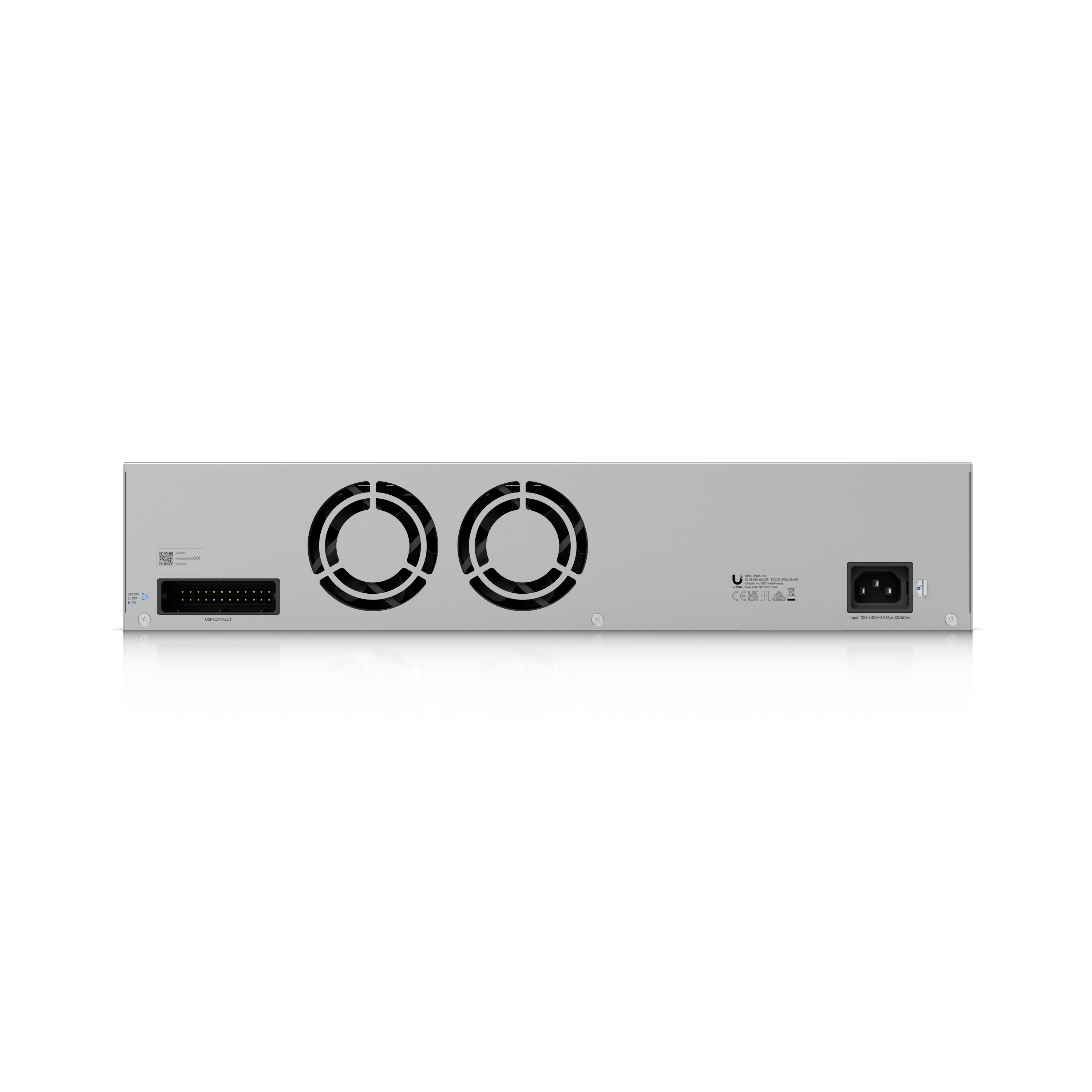

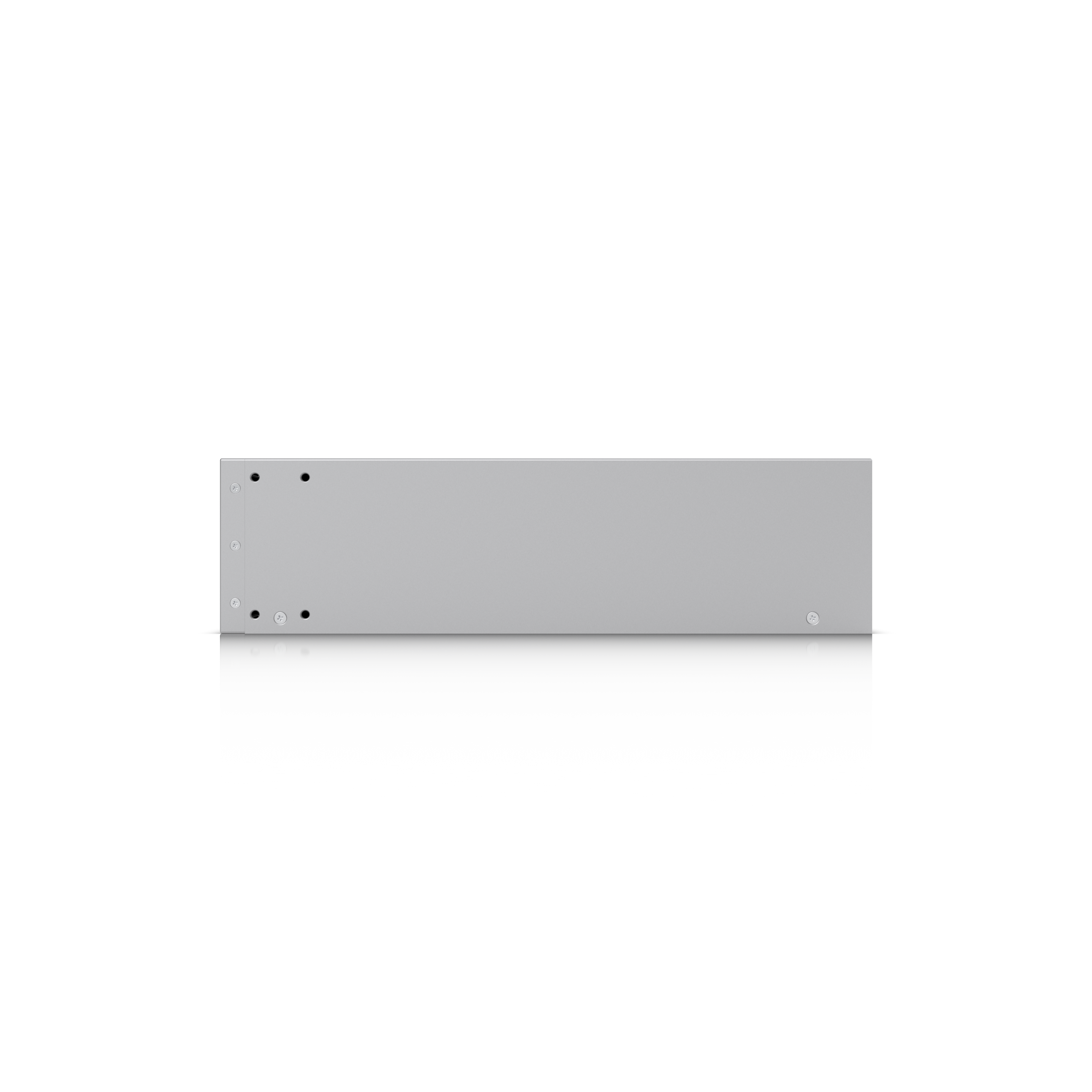

UniFi UNAS Pro
2U rekkistæð NAS með (7) 2.5/3.5" drifabásum og 10 Gbps afköstum, hönnuð fyrir umfangsmikla skráageymslu og -deilingu.
- (7) 2.5/3.5" HDD / SSD stuðningur
- (1) 10G SFP+ uplink og (1) GbE RJ45 tengi
- Gagnavörn með RAID geymslutækni
- UniFi Power Backup tilbúið
- 1.3" snertiskjár fyrir stjórnun
Þrívídd og myndbönd
Tækni
Tæknilegir eiginleikar
Upplýsingar úr ETIM gögnum framleiðanda. Vantar þig meira? Hafðu samband við tækniráðgjöf okkar.
| Dimensions | 442.4 x 325 x 87.4 mm (17.4 x 12.8 x 3.4") |
|---|---|
| Storage Capacity | (7) 2.5/3.5" drive bays |
| Networking Interface | (1) 10G SFP+ (10G/1G) (1) GbE RJ45 (1G/100M/10M) |
| Power Redundancy | Yes (DC Power Backup with UniFi RPS) |
| Form Factor | Rack mount (2U) |
| Hard Drive Capacity | (7) 2.5/3.5" HDD / SSD support |
| Max. Power Budget for Drives | 135W |
| Max. Power Consumption | 160W |
| Power Method | (1) Universal AC input, 100–240V AC, 3A Max., 50/60 Hz (1) USP-RPS DC input, 11.5V DC, 13.91A |
| Power Supply | AC/DC, internal, 200W |
| Processor | Quad-Core ARM® Cortex®-A57 at 1.7 GHz |
| Memory | 8 GB |
| Management | Ethernet |
| RF Interface | Bluetooth 4.1 |
| Display | 1.3" touchscreen |
| Weight | Without mounting brackets: 9.2 kg (20.3 lb) With mounting brackets: 9.5 kg (20.8 lb) |
| Enclosure Material | SGCC steel |
| Mount Material | SGCC steel |
| Supported Rack Depth | 482.6 mm (19") four-post racks Posts depths ranging from 650 to 1,000 mm (25.6–39.4”) |
| LEDs: Ethernet | Yes |
| LEDs: SFP+ | Yes |
| LEDs: RPS | Yes |
| LEDs: HDD | Yes |
| Ambient Operating Temperature | -5 to 40° C (23 to 104° F) |
| Ambient Operating Humidity | 5 to 95% noncondensing |
| NDAA Compliant | Yes |
| Certifications | FCC, CE, IC, Anatel: 01886-25-08356 |
| Application Requirements: UniFi Drive | Version 1.16.0 and later |
| Supported File Protocols: NFS | Yes |
| Supported File Protocols: SMB | Yes |
| Supported features on unifi.ui.com: RAID Type | RAID 5 RAID 6 RAID 10 |
| Supported features on unifi.ui.com: RAID Group | Multiple |
| Supported features on unifi.ui.com: Hot Spare Support | Yes |
| Supported features on unifi.ui.com: Personal Drive & Shared Drive | Yes |
| Supported features on unifi.ui.com: File Encryption | Yes |
| Supported features on unifi.ui.com: Backup to Remote UNAS | Yes |
| Supported features on unifi.ui.com: Backup to CIFS/SMB Server | Yes |
| Supported features on unifi.ui.com: Backup to Cloud Services (Google Drive, OneDrive, Dropbox, Amazon S3, Backblaze B2, Wasabi) | Yes |
| Supported features on unifi.ui.com: Snapshots | Yes |
| Supported features on unifi.ui.com: Share Links | Yes |
| Supported features on unifi.ui.com: Time Machine Backup | Yes |
| Supported features on unifi.ui.com: Client App Support | Yes |
| Supported features on unifi.ui.com: User Groups | Yes |
