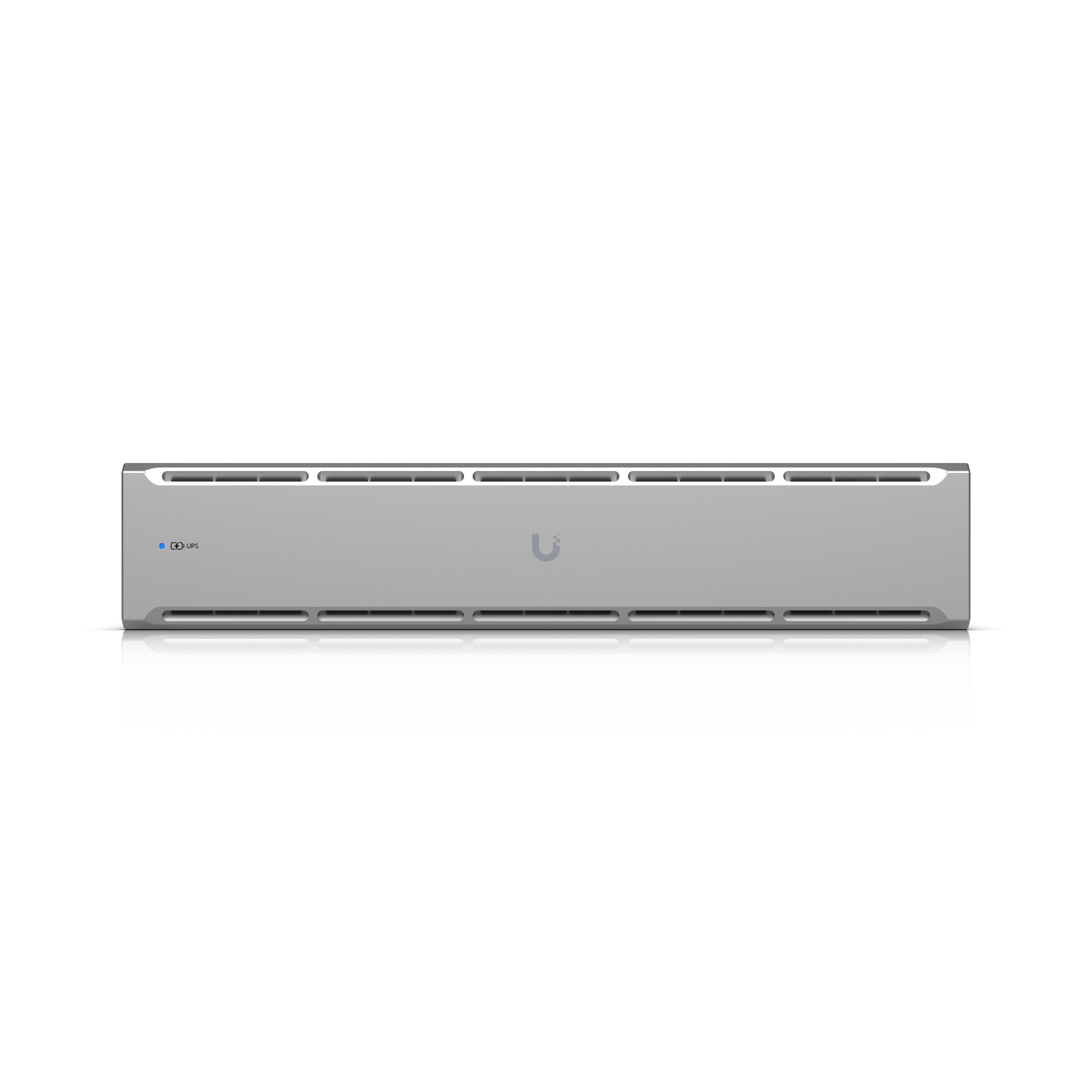

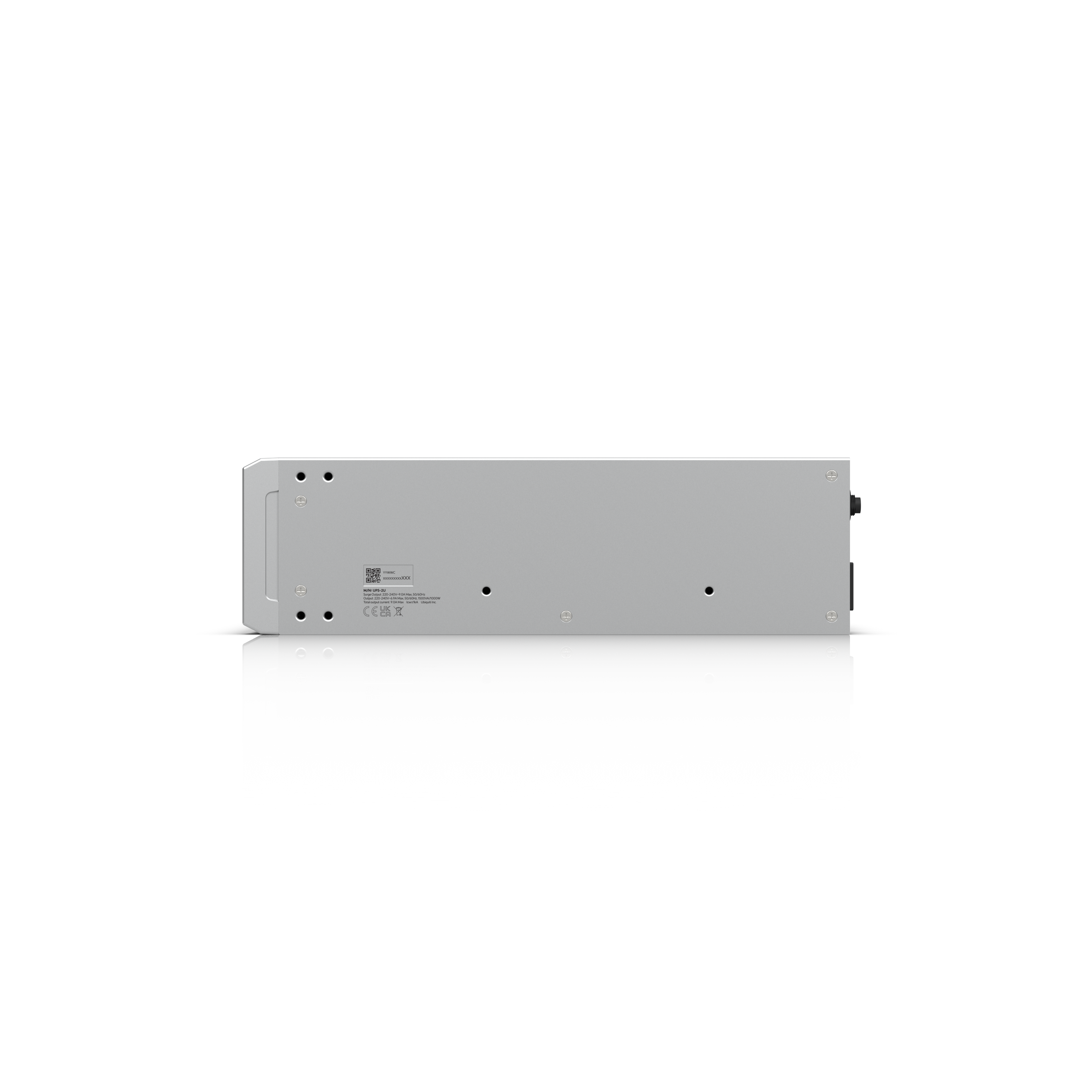

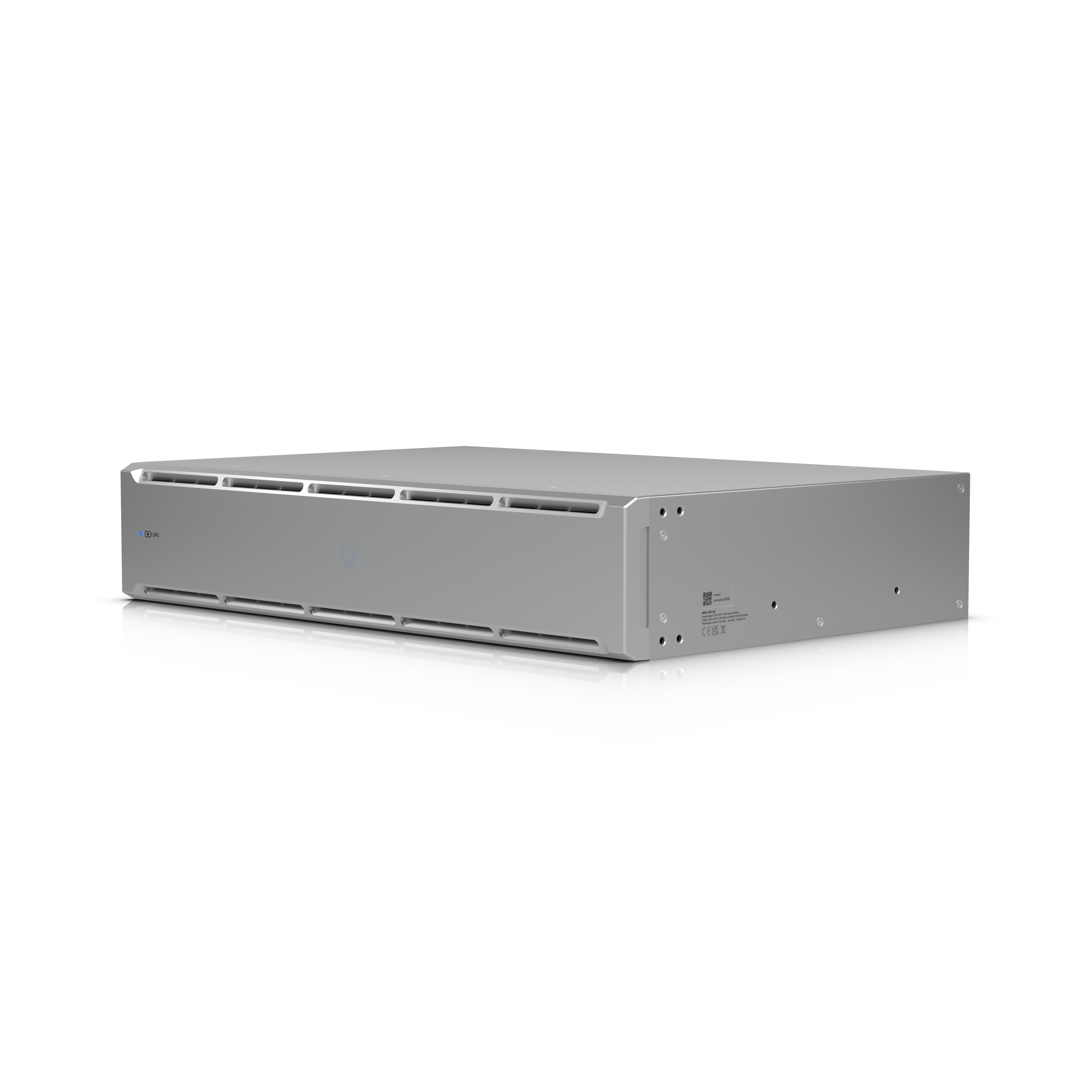

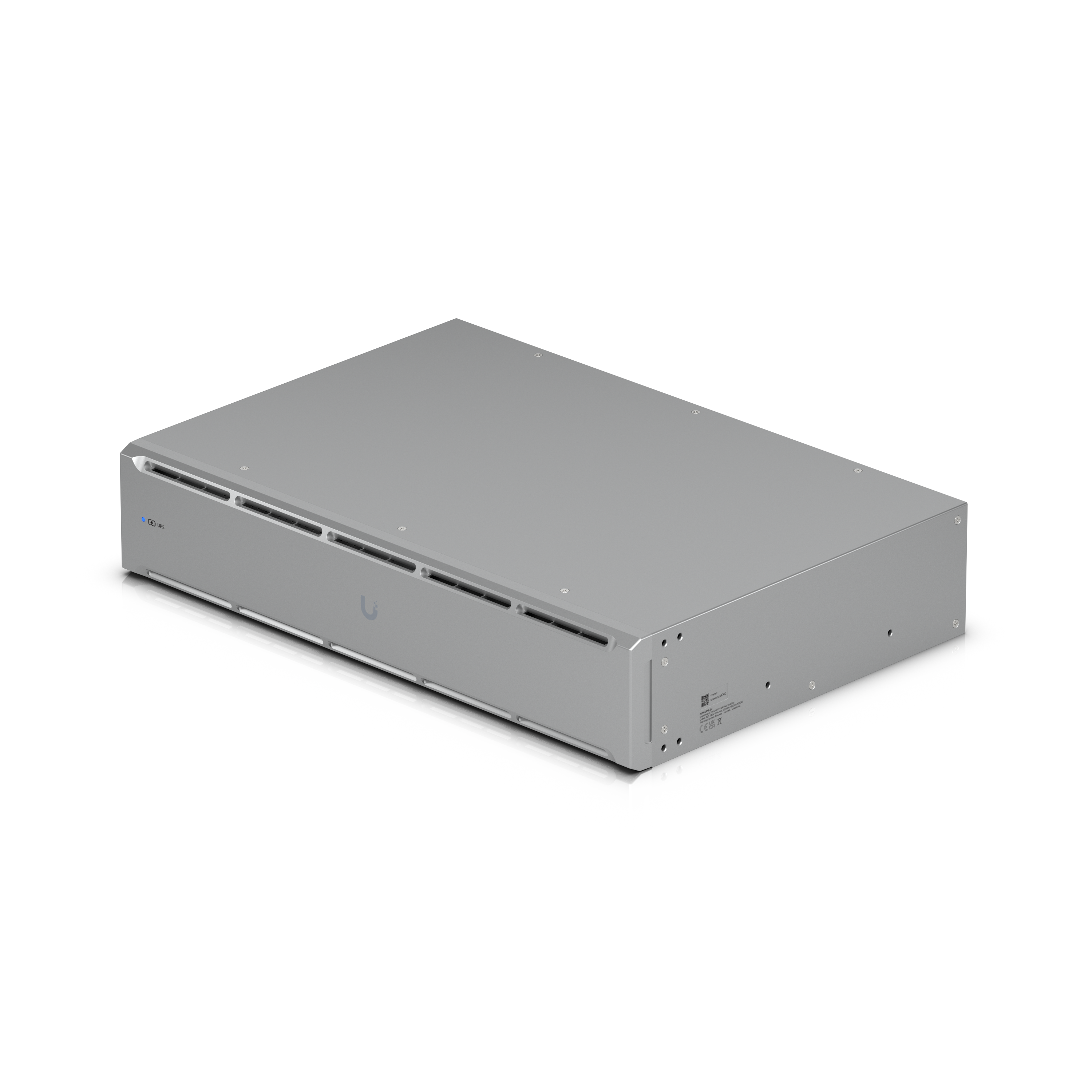

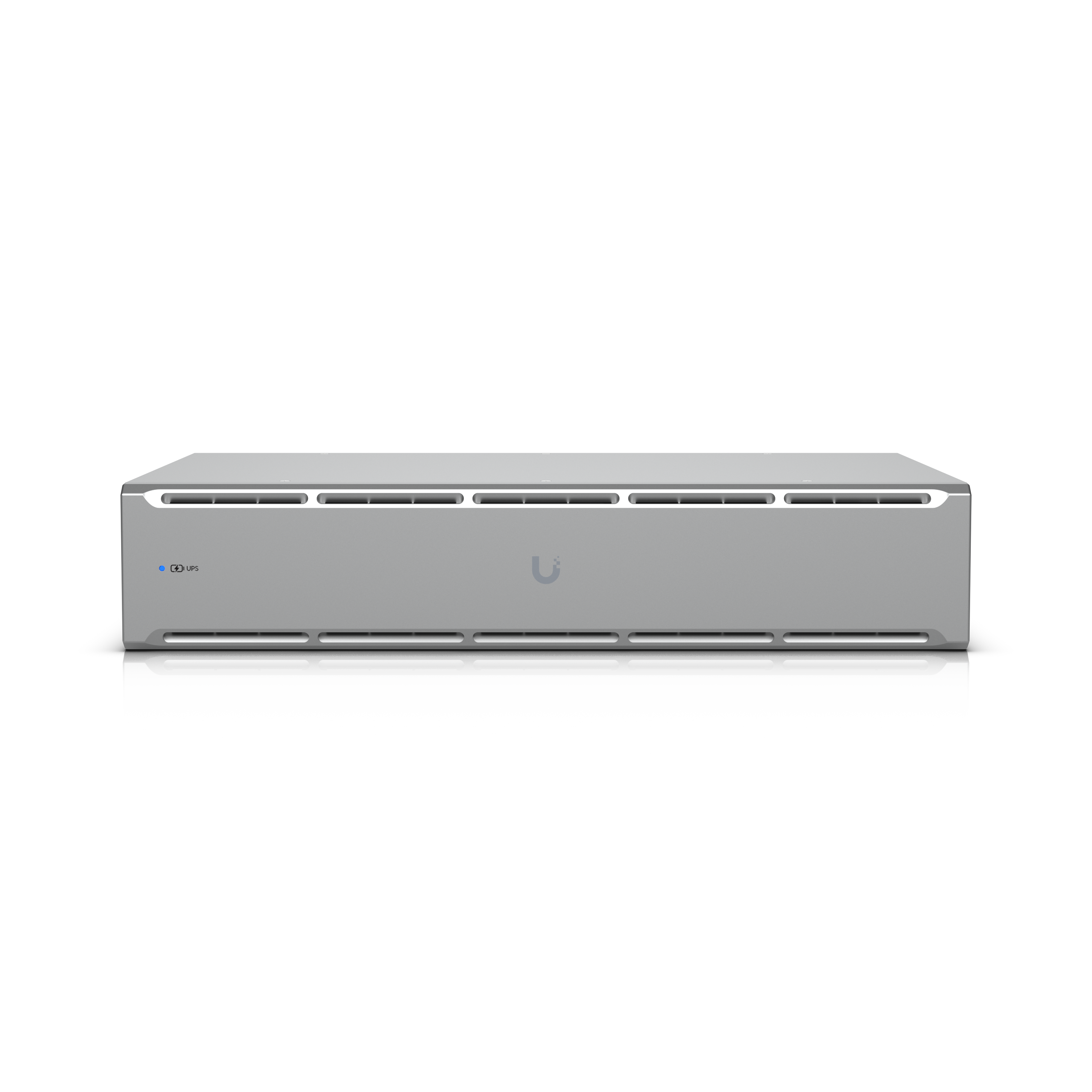

UniFi UPS 2U
UniFi stýrð 1.5kVA rackfest óslitin aflgjafi (UPS) með 4 varaaflstengjum, 4 yfirspennuvörðum innstungum og rafhlöðu sem hægt er að skipta um á vettvangi, 216Wh, keyrslutími við hálft álag (500W) er 8 mínútur. Hún styður Graceful Shutdown fyrir UNVR og UNAS og inniheldur NUT samhæfni fyrir búnað frá þriðja aðila.
Athugið. Fyrir Graceful Shutdown virkni þarf UniFi OS útgáfu 4.4.3 eða hærri.
Þrívídd og myndbönd
Tækni
Tæknilegir eiginleikar
Upplýsingar úr ETIM gögnum framleiðanda. Vantar þig meira? Hafðu samband við tækniráðgjöf okkar.
| Dimensions | 442.4 x 300 x 87.4 mm (17.4 x 11.8 x 3.4") |
|---|---|
| Weight | 13.7 kg (30.2 lb) |
| Enclosure Material | Galvanized steel |
| Form Factor | Rack mount (2U) |
| Weatherproofing | IP20 |
| Management | Ethernet |
| Networking Interface | (1) 100/10 MbE port for network connection (2) GbE ports for surge in/out |

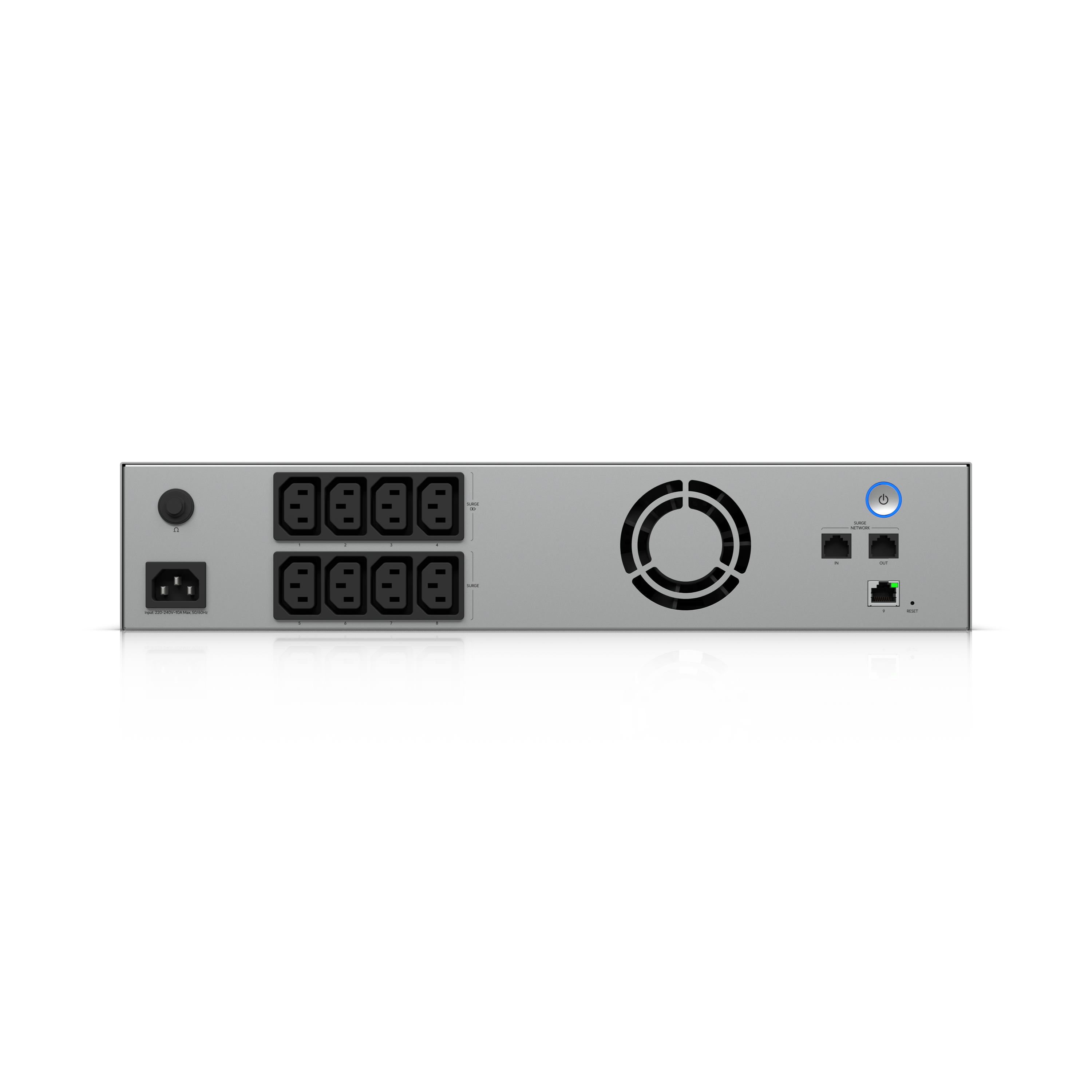

| Power | (1) OVC II AC in: C14 socket, 1.8 m (5.9 ft) removable power cord (4) Battery backup/surge protection: C13 (4) Surge protection: C13 (Outlets are not individually resettable) |
| Capacity | 1,500VA/1,000W |
| Type | Line interactive |
| Input Voltage Range | 170–280V AC |
| Power Method | (1) TN system, 220–240V AC, 10A Max., 50/60 Hz |
| Nominal Input Voltage | 230V AC |
| Output Voltage | 220–240V AC |
| Nominal Output Voltage | 230V AC |
| Frequency Range | AC mode: 50/60 Hz ±5 Hz (Auto sensing) Battery mode: 50 Hz ±1 Hz |
| AC Voltage Regulation | ±10% (Battery mode) |
| Transfer Time | 6 ms typical; 10 ms max. (Battery mode) |
| Wave Form | Simulated sine wave (Battery mode) |
| Battery Type | (2) Lead Acid 12V, 9Ah |
| Runtime | Full load: 2.3 min Half load: 8 min |
| Battery Charging Time | 6-8 hours recovery to 90% capacity |
| Overload at On-Line Mode | 110% 5 min go to fault 120% go to fault immediately |
| Overload at Battery Mode | 110% shutdown in 5 sec 120% shutdown immediately |
| Short Circuit Protection at On-Line Mode | Breaker, 250V AC, 10A |
| Output Short-Circuit Current | Ipeak 444.0A Irms 223.1A |
| Buttons | (1) Power (1) Factory reset |
| LEDs: Status | Off: device not turned on Flashing white: initializing / factory default Steady white: waiting for adoption Steady blue: device adoption and working Flashing blue: battery mode Alternating white/blue: firmware upgrading Rapid flashing blue: locate Steady red: warning Flashing red: low battery |
| Operating Altitude | 3,000 m (1.9 mi) |
| Operating Environment | Pollution Degree 2 |
| Ambient Storage Temperature | -20 to 50° C (-4 to 122° F) |
| Ambient Operating Temperature | 0 to 40° C (32 to 104° F) |
| Ambient Operating Humidity | 0 to 95% noncondensing |
| Certifications | CE, IEC 62040-1 |
