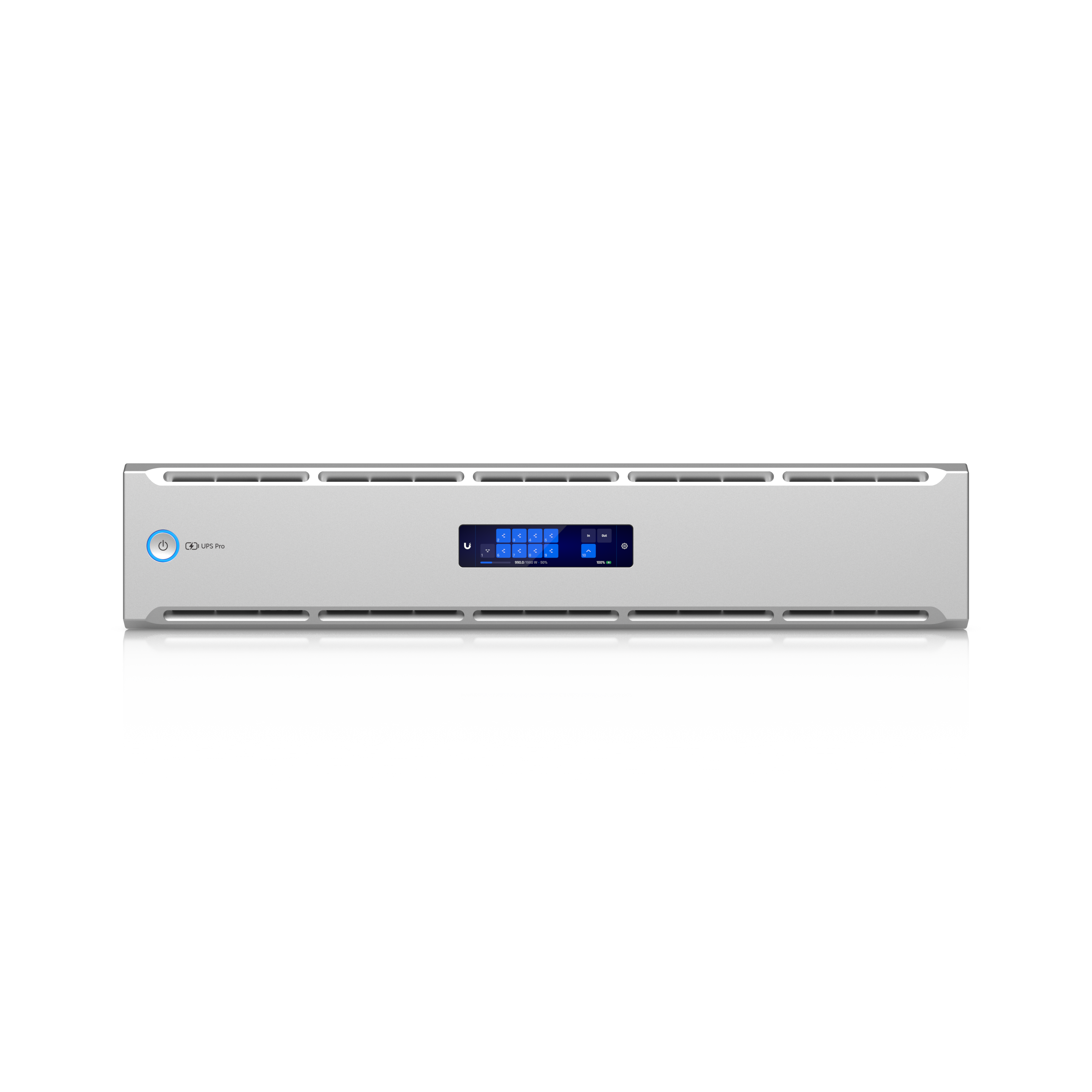

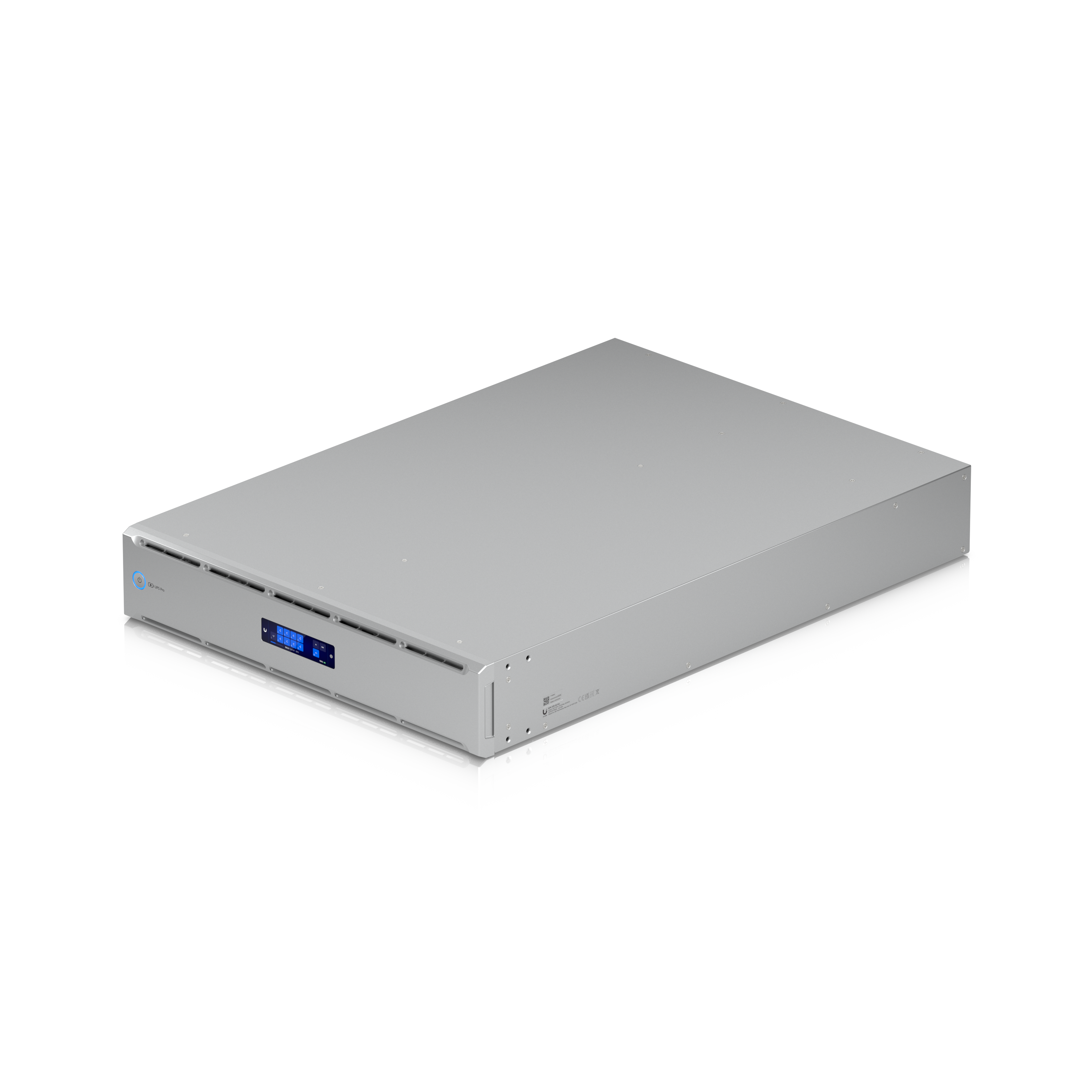

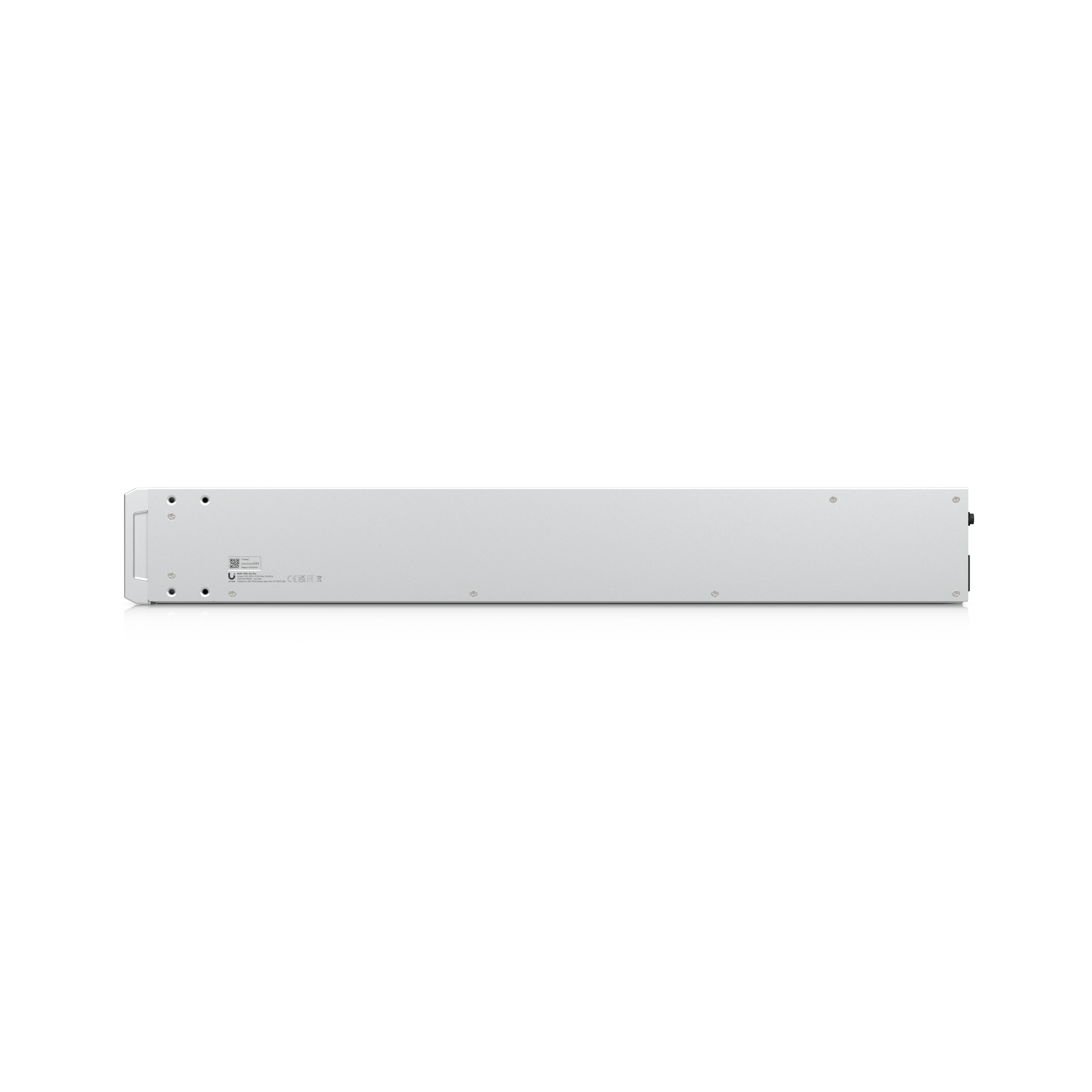

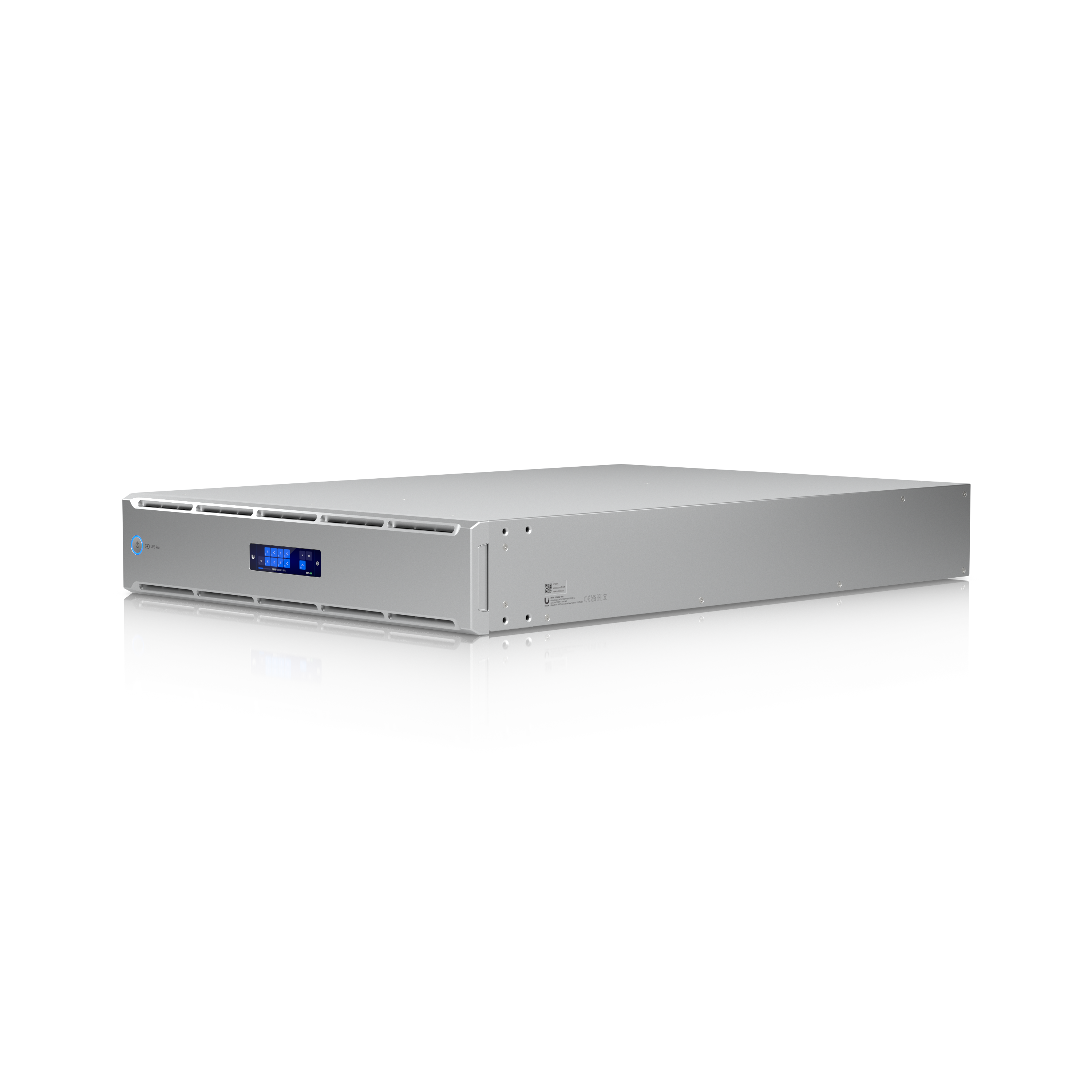

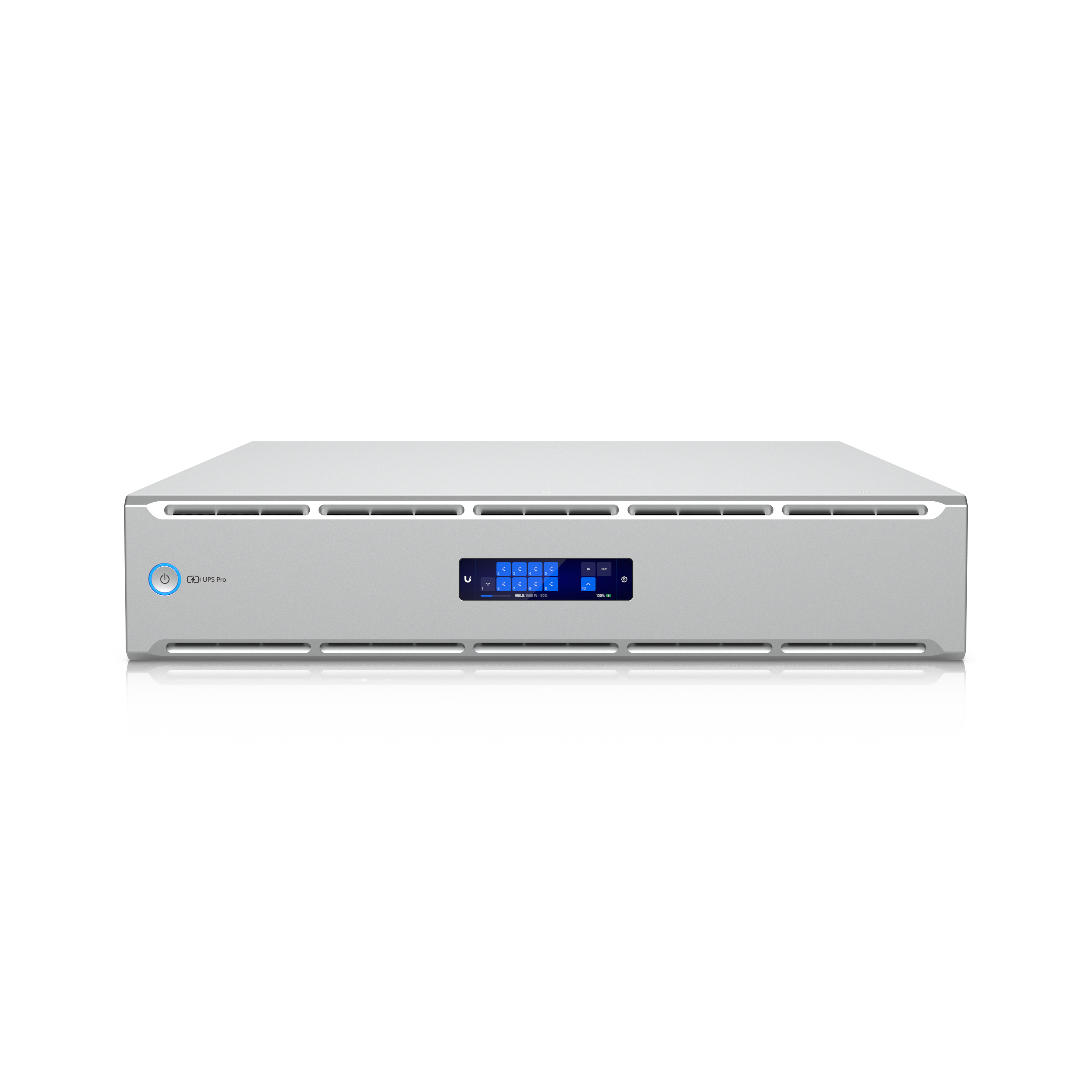

UniFi UPS 2U Pro
Þrívídd og myndbönd
Tækni
Tæknilegir eiginleikar
Upplýsingar úr ETIM gögnum framleiðanda. Vantar þig meira? Hafðu samband við tækniráðgjöf okkar.
| Dimensions | 442.4 x 87.4 x 630 mm (17.4 x 3.4 x 24.8") |
|---|---|
| Weight | 32 kg (70.5 lb) |
| Enclosure Material | Galvanized steel |

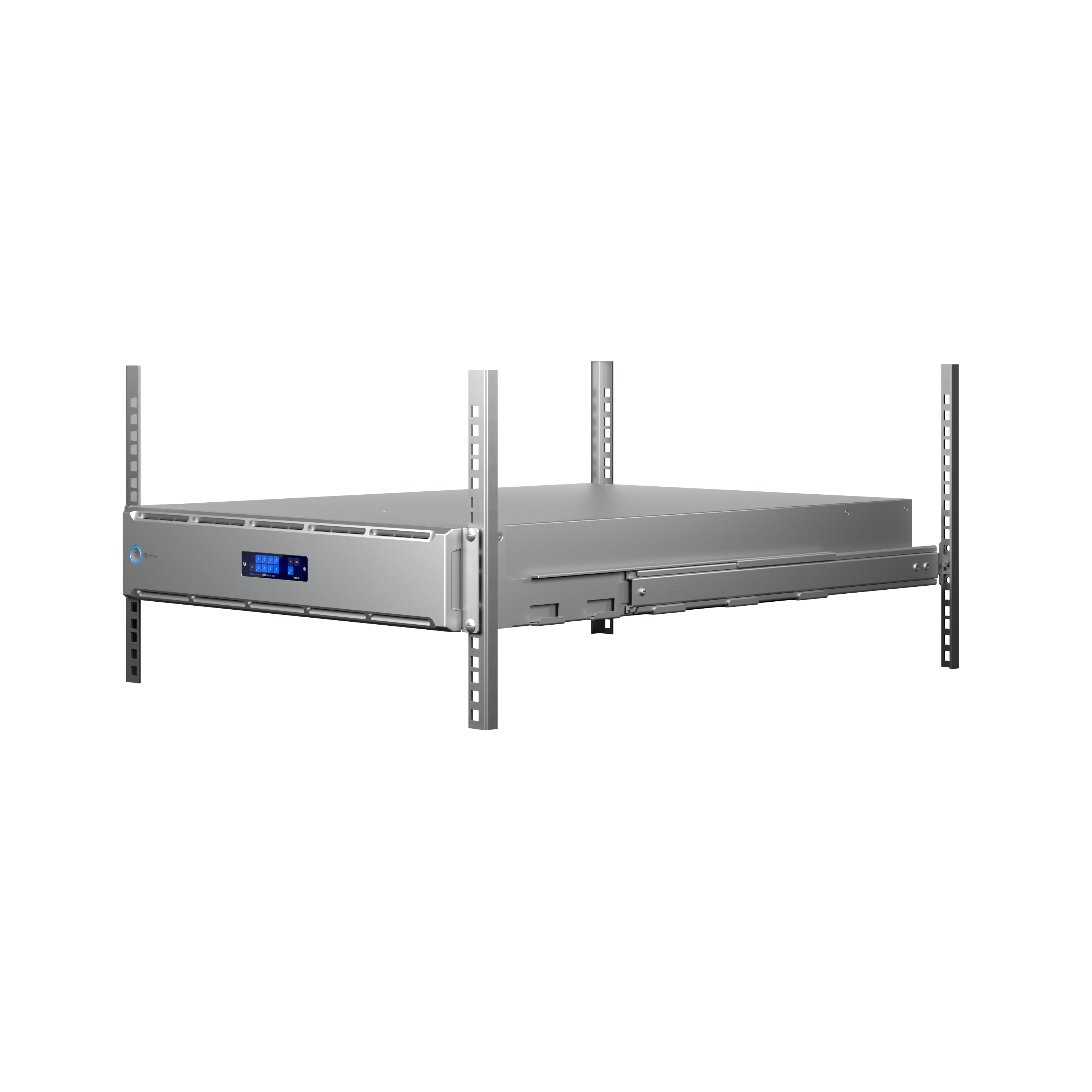

| Form Factor | Rack mount (2U) |
| Weatherproofing | IP20 |
| Management | Ethernet |
| Networking Interface | (1) 100/10 MbE port for network connection (2) GbE ports for surge in/out |

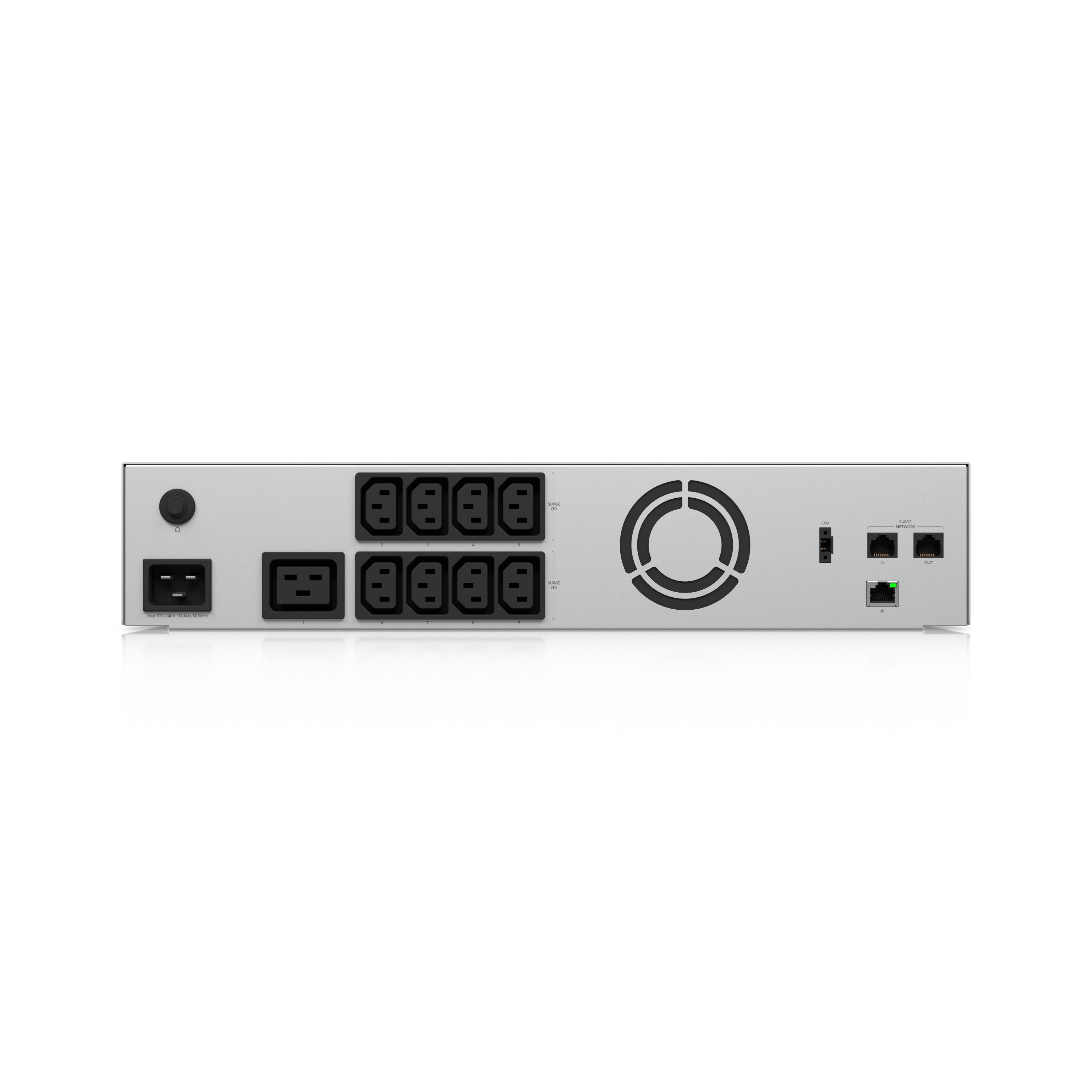

| Power | (1) OVC II AC in: C20 socket (8) Battery backup/surge protection: C13 (1) Battery backup/surge protection: C19 (Outlets are individually resettable) |
| Capacity | 2200VA/1980W |
| Type | Line interactive |
| Input Voltage Range | 170–280V AC |
| Power Method | (1) TN system, 230V AC, 10.2A Max., 50/60 Hz |
| Nominal Input Voltage | 230V AC |
| Output Voltage | 230V AC |
| Nominal Output Voltage | 230V AC |
| Frequency Range | AC mode: 50/60 Hz ±5 Hz (Auto sensing) Battery mode: 50 Hz ±1 Hz |
| AC Voltage Regulation | ±1.5% (Battery mode) |
| Transfer Time | 6 ms typical; 10 ms max. (Battery mode) |
| Wave Form | Pure sine wave (Battery mode) |
| Battery Type | (1) Lead Acid 72V, 10Ah |
| Runtime | Full load: 9 min Half load: 22 min |
| Battery Charging Time | 8 hours recovery to 90% capacity |
| Overload at On-Line Mode | 103–120% 5 min go to fault 120–150% 10 sec go to fault 150% 1 sec go to fault |
| Overload at Battery Mode | 103–120% 1 min go to fault 120–150% 10 sec go to fault 150% 0.5 sec go to fault |
| Short Circuit Protection at On-Line Mode | Breaker, 250V AC, 16A |
| Emergency Power Off (EPO) | Yes |

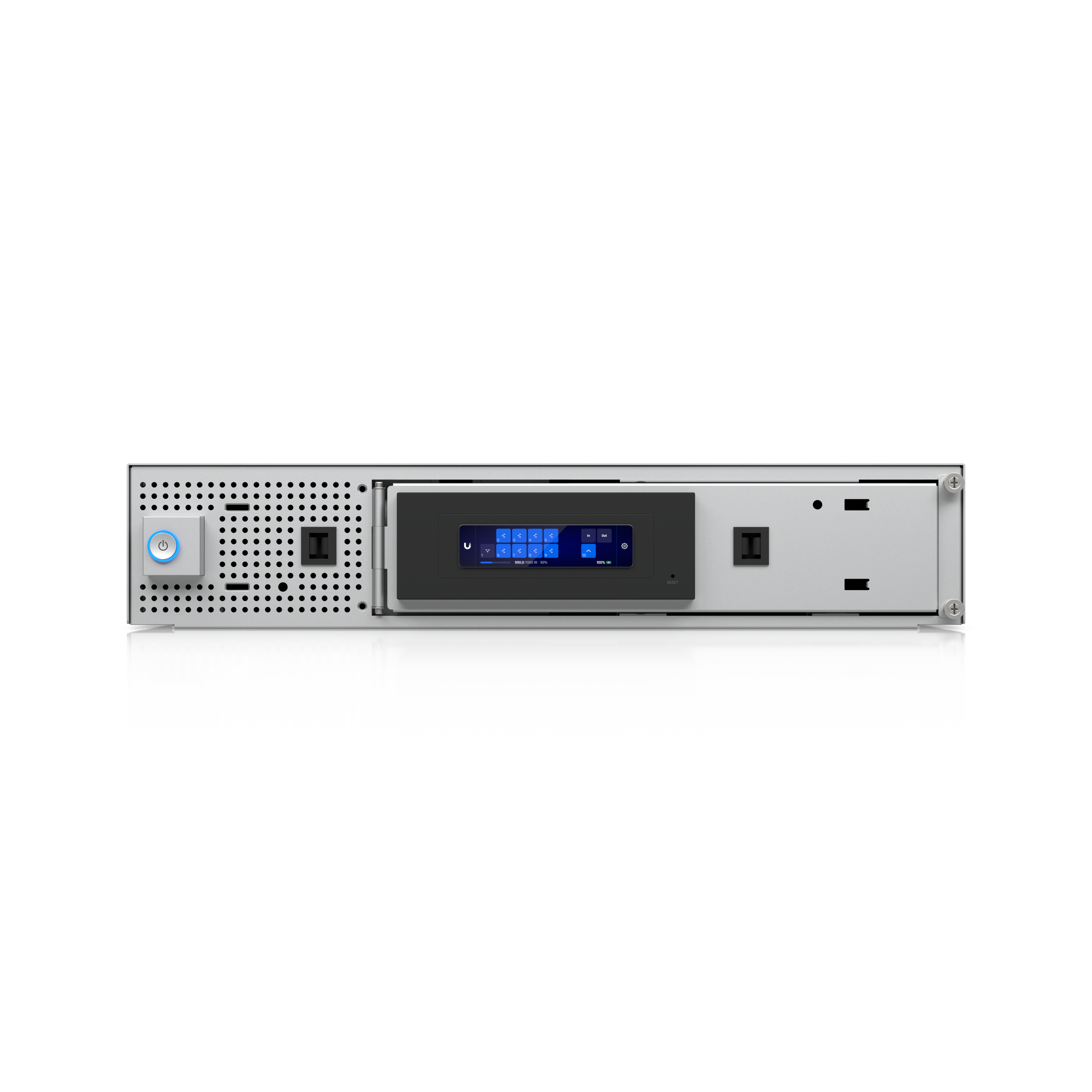

| Display | 3.7” touchscreen |
| Buttons | (1) Power (1) Factory reset (1) Circuit breaker |
| LEDs: Status | Off: device not turned on Flashing white: initializing / factory default Steady white: waiting for adoption Steady blue: device adoption and working Flashing blue: battery mode Alternating white/blue: firmware upgrading Rapid flashing blue: locate Steady red: warning Flashing red: low battery |
| LEDs: Ethernet | Yes |
| Operating Altitude | 3,000 m (1.9 mi) |
| Operating Environment | Pollution Degree 2 |
| Ambient Storage Temperature | -15 to 50° C (5 to 122° F) |
| Ambient Operating Temperature | 0 to 40° C (32 to 104° F) |
| Ambient Operating Humidity | 0 to 95% noncondensing |
| Certifications | CE, IEC 62040-1 |
| Application Requirements: Mobile Apps | iOS™: Version 10.36.1 and later Android™: Version 10.39.3 and later |
| Application Requirements: UniFi Network | Version 10.5.67 and later |
