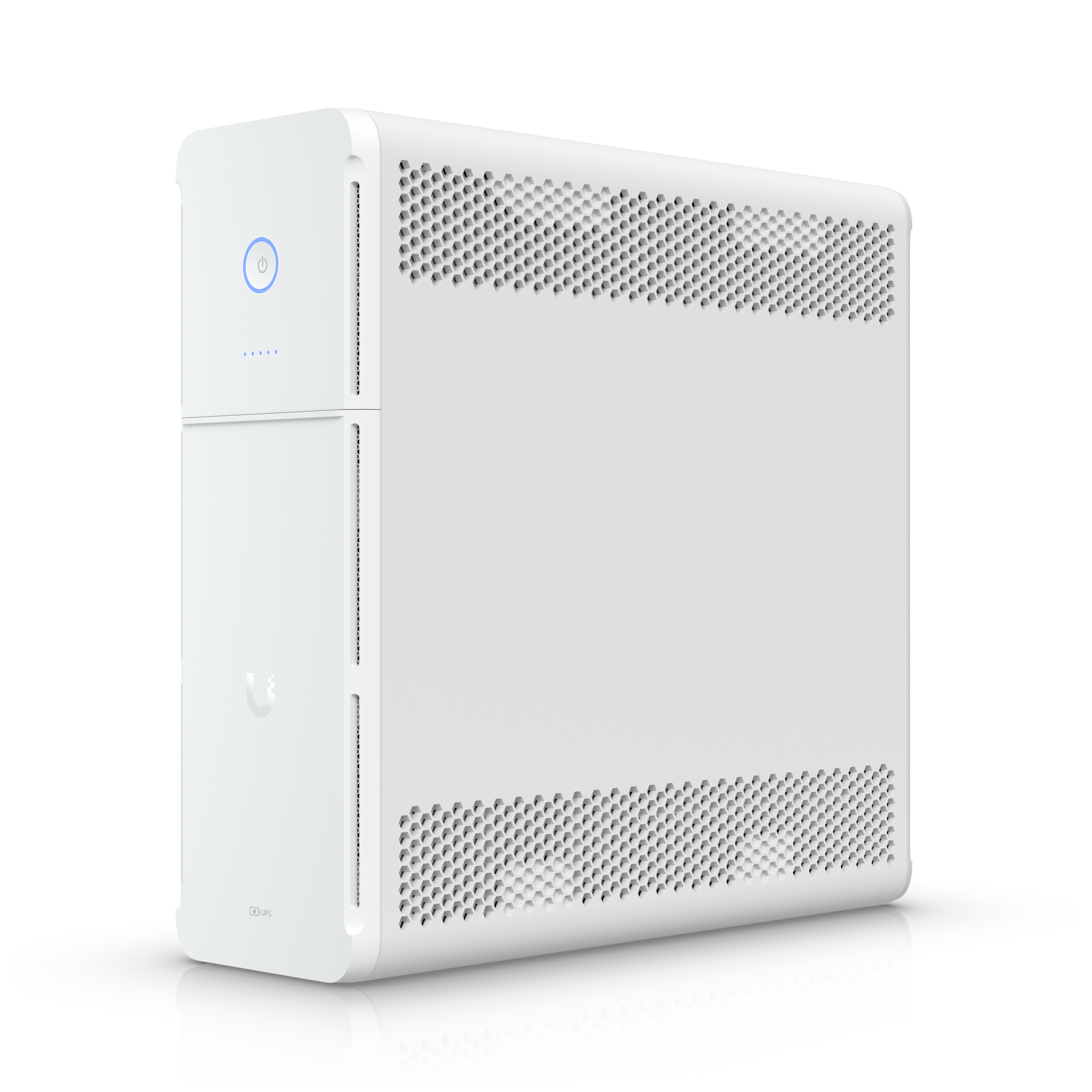

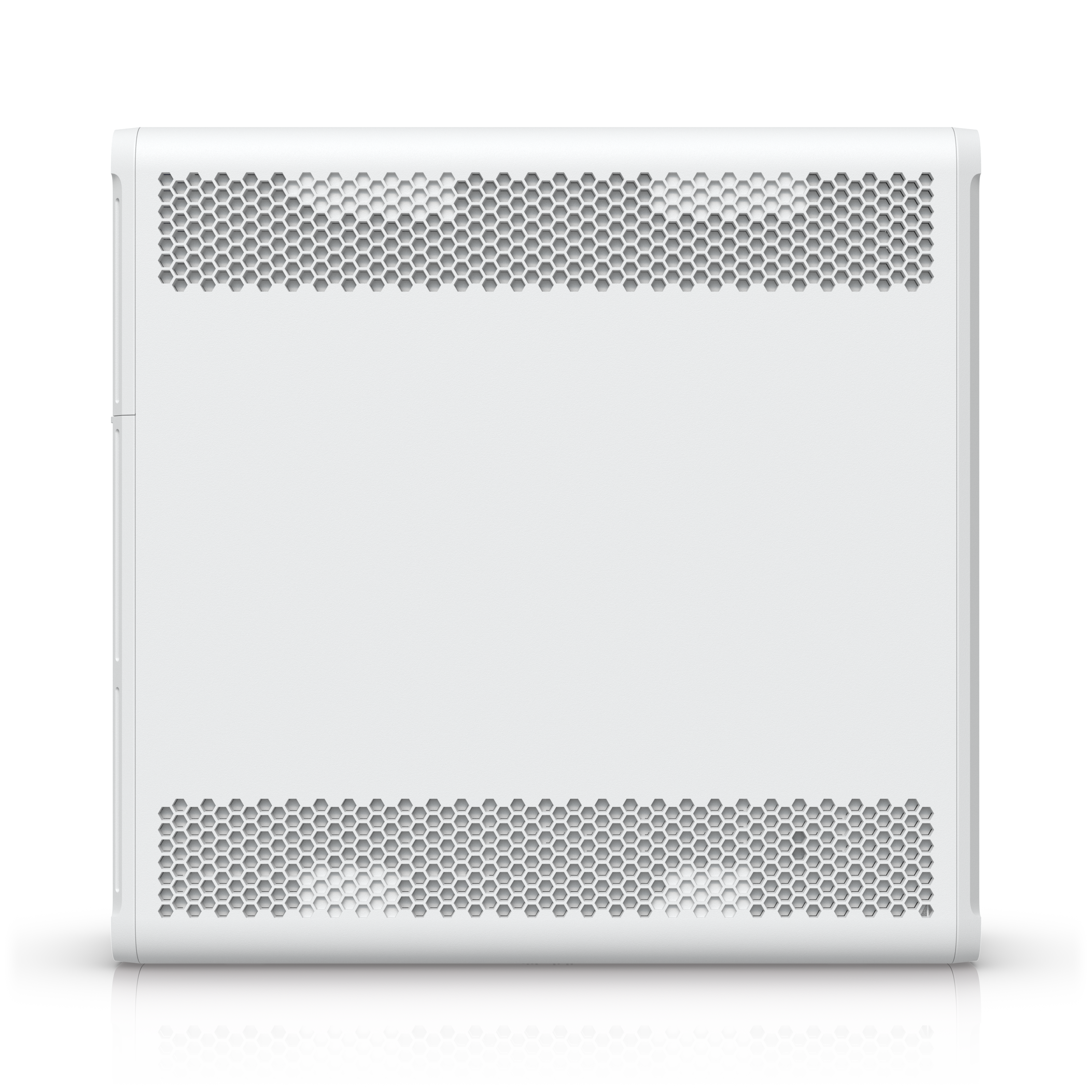

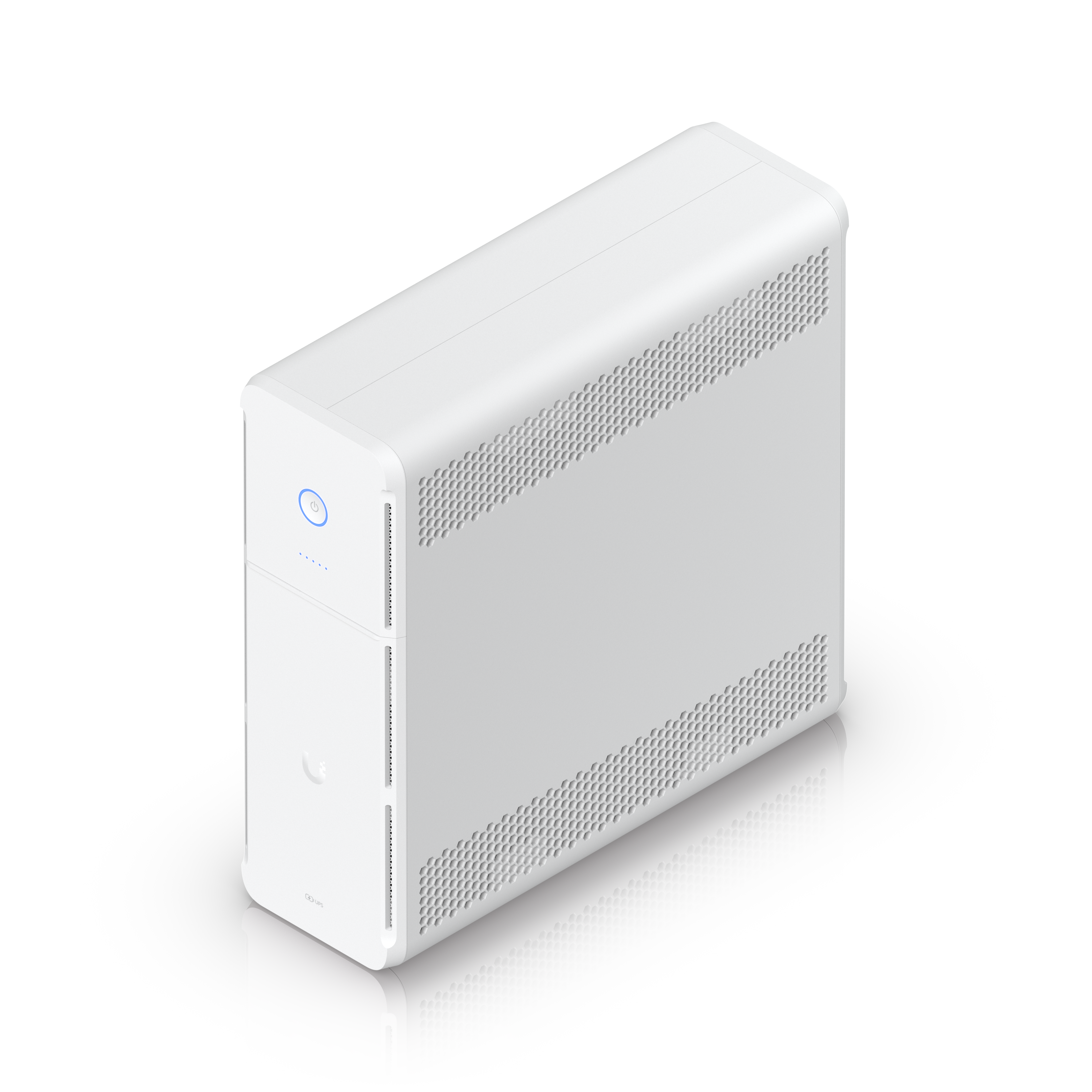

UniFi UPS Tower
Þrívídd og myndbönd
Tækni
Tæknilegir eiginleikar
Upplýsingar úr ETIM gögnum framleiðanda. Vantar þig meira? Hafðu samband við tækniráðgjöf okkar.
| Dimensions | 288 x 99 x 280.5 mm (11.3 x 3.9 x 11") |
|---|---|
| Weight | 7.85 kg (17.3 lb) |
| Enclosure Material | Polycarbonate and acrylonitrile butadiene styrene blend |
| Form Factor | Desktop |
| Weatherproofing | IP20 |
| Management | Ethernet |
| Networking Interface | (1) 100/10 MbE port for network connection (2) GbE ports for surge in/out |

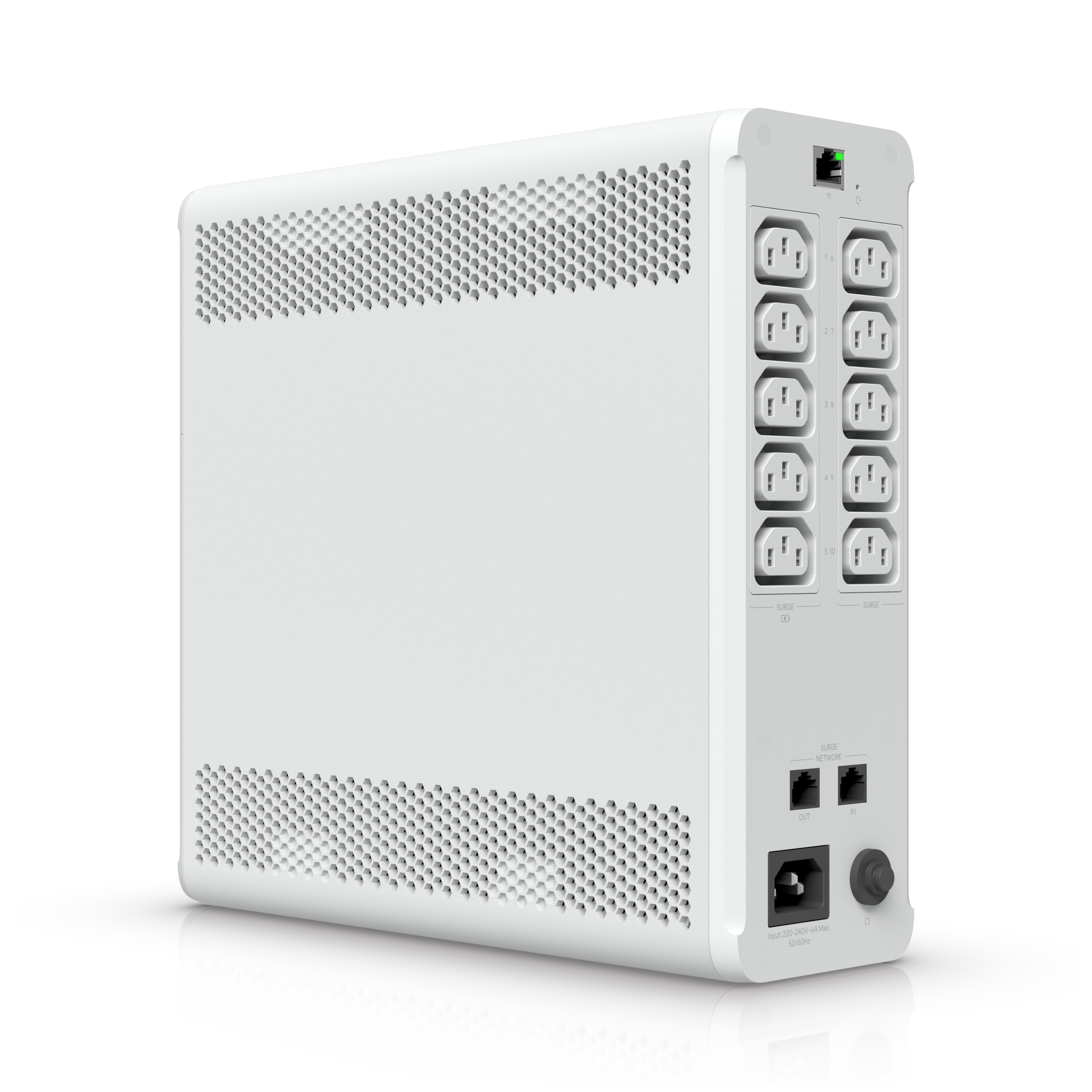

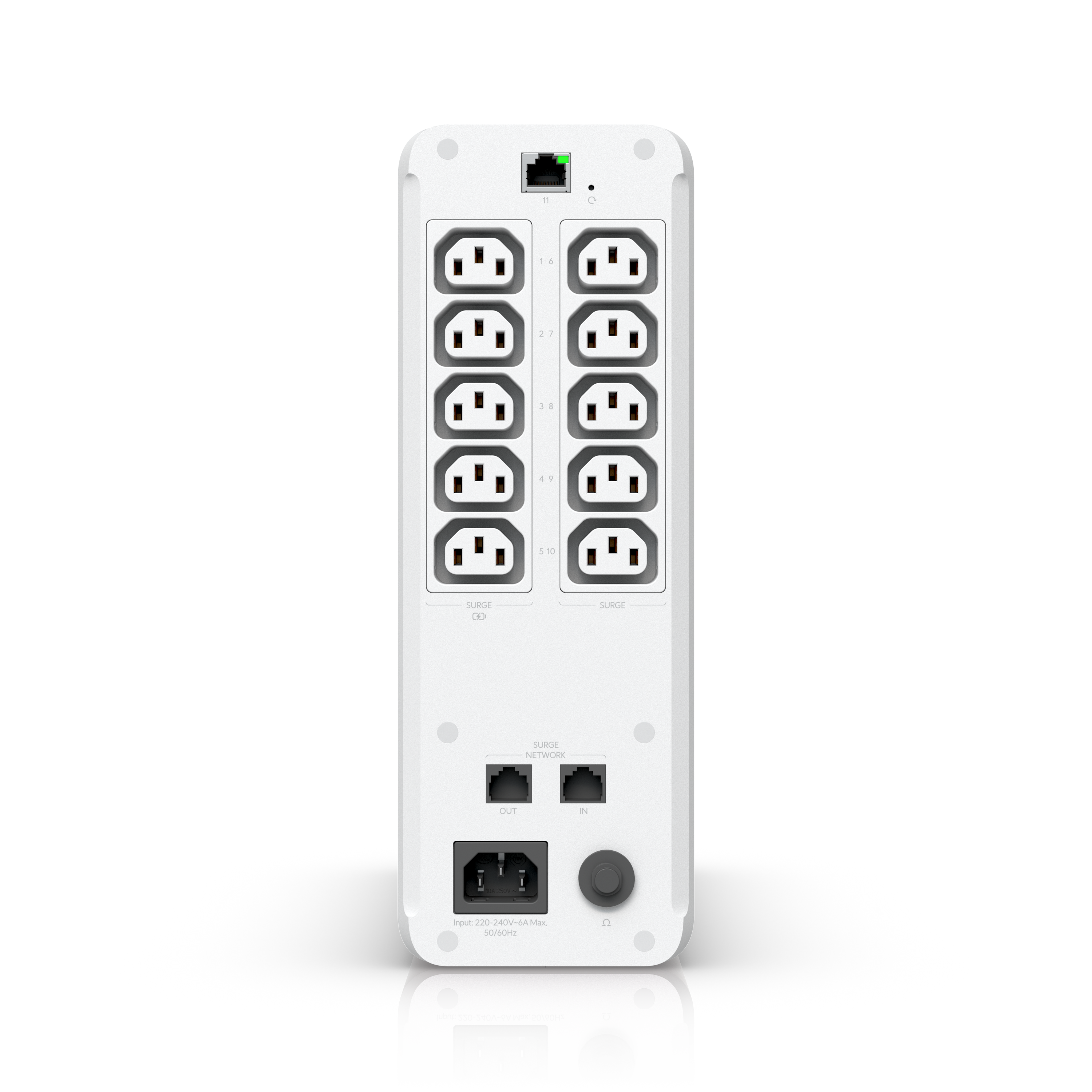

| Power | (1) OVC II AC in: C14 socket, 1.8 m (5.9 ft) removable power cord (5) Battery backup/surge protection: C13 (5) Surge protection: C13 (Outlets are not individually resettable) |
| Capacity | 1,000VA/600W |
| Type | Line interactive |
| Input Voltage Range | 170–280V AC |
| Power Method | (1) TN system, 220–240V AC, 6A Max., 50/60 Hz |
| Nominal Input Voltage | 230V AC |
| Output Voltage | 220–240V AC |
| Nominal Output Voltage | 230V AC |
| Frequency Range | AC mode: 50/60 Hz ±5 Hz (Auto sensing) Battery mode: 50 Hz ±1 Hz |
| AC Voltage Regulation | ±10% (Battery mode) |
| Transfer Time | 6 ms typical; 10 ms max. (Battery mode) |
| Wave Form | Simulated sine wave (Battery mode) |
| Battery Type | (1) Lead Acid 12V, 9Ah |
| Runtime | Full load: 2 min Half load: 7 min |
| Battery Charging Time | 6-8 hours recovery to 90% capacity |
| Overload at On-Line Mode | 110% 5 min go to fault 120% go to fault immediately |
| Overload at Battery Mode | 110% shutdown in 5 sec 120% shutdown immediately |
| Short Circuit Protection at On-Line Mode | Breaker, 250V AC, 10A |
| Output Short-Circuit Current | Ipeak 401.9A Irms 160.7A |
| Buttons | (1) Power (1) Factory reset |

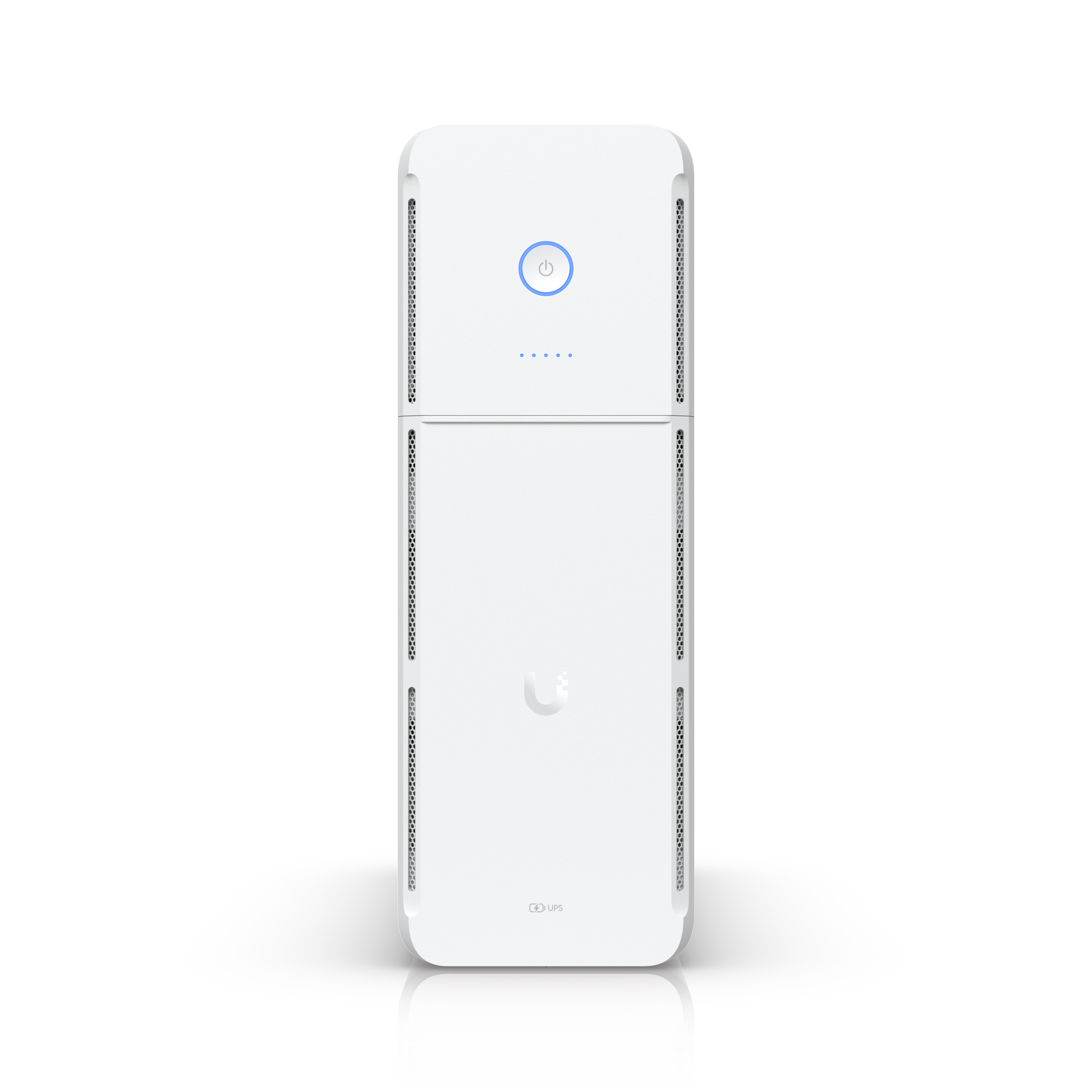

| LEDs: Status | Off: device not turned on Flashing white: initializing / factory default Steady white: waiting for adoption Steady blue: device adoption and working Flashing blue: battery mode Alternating white/blue: firmware upgrading Rapid flashing blue: locate Steady red: warning Flashing red: low battery |
| LEDs: Battery Indicator | All off: 0% (1) Steady blue: battery 1–19% (2) Steady blue: battery 20–39% (3) Steady blue: battery 40–59% (4) Steady blue: battery 60–79% (5) Steady blue: battery 80–100% |
| Operating Altitude | 3,000 m (1.9 mi) |
| Operating Environment | Pollution Degree 2 |
| Ambient Storage Temperature | -20 to 50° C (-4 to 122° F) |
| Ambient Operating Temperature | 0 to 40° C (32 to 104° F) |
| Ambient Operating Humidity | 0 to 95% noncondensing |
| Certifications | CE, IEC 62040-1 |
