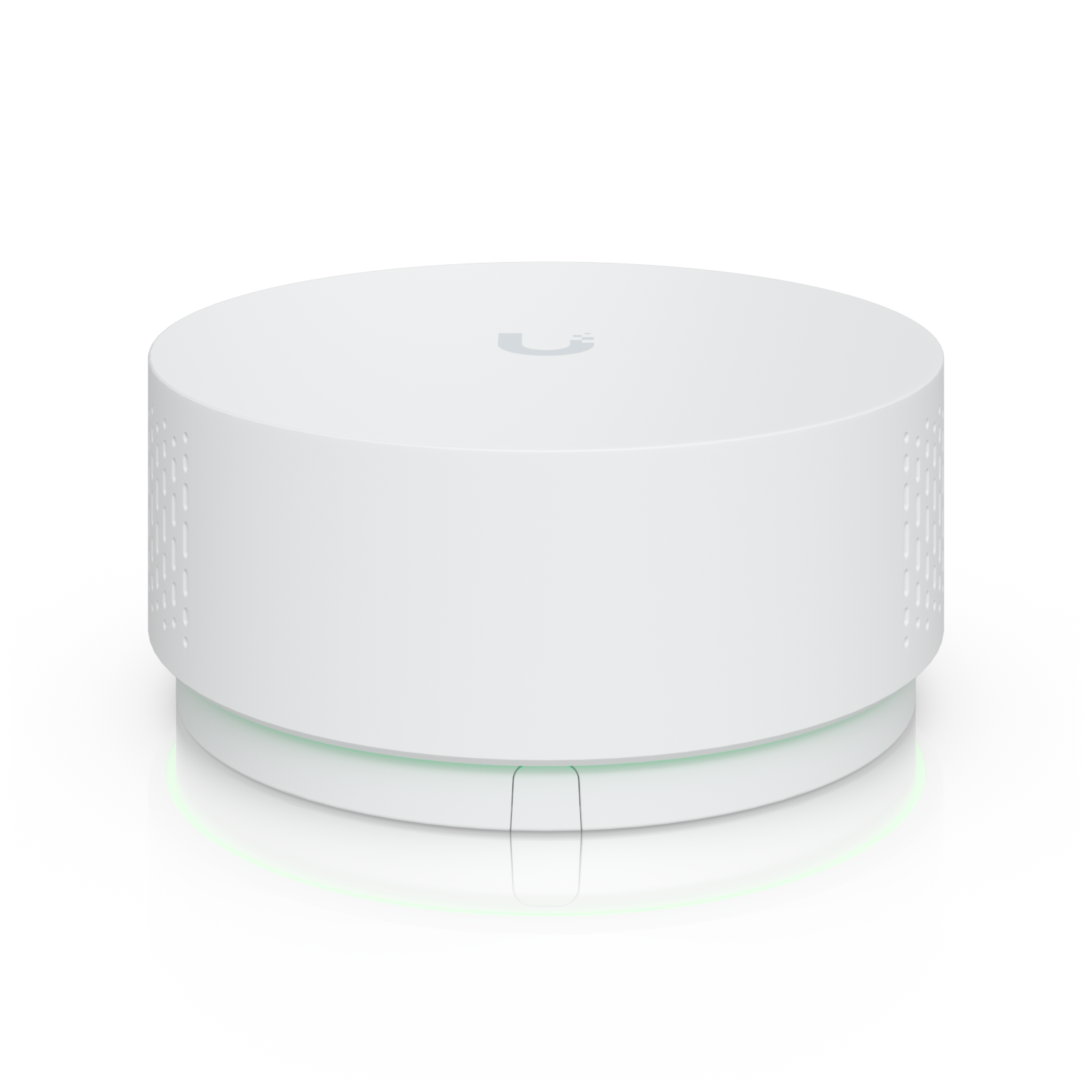

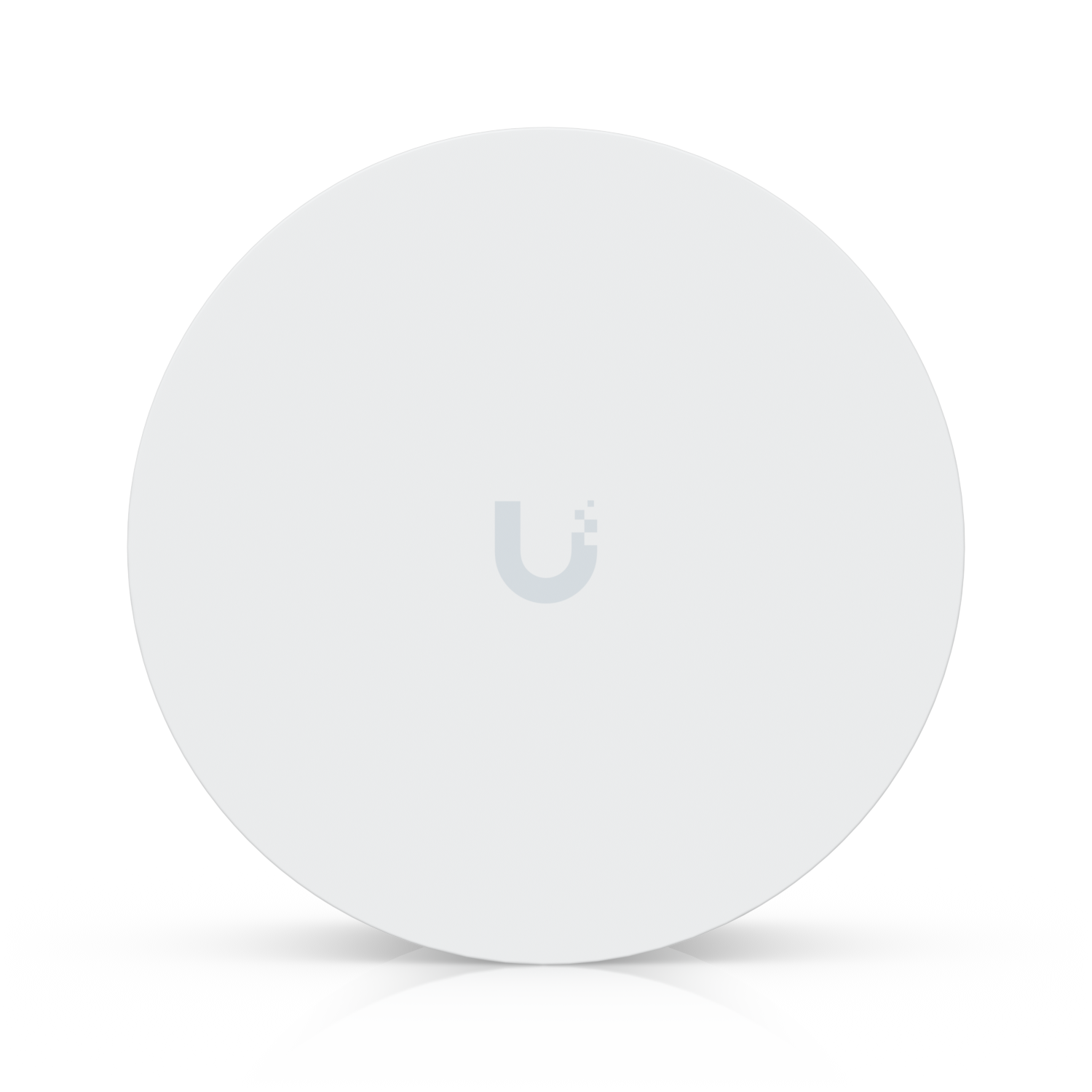

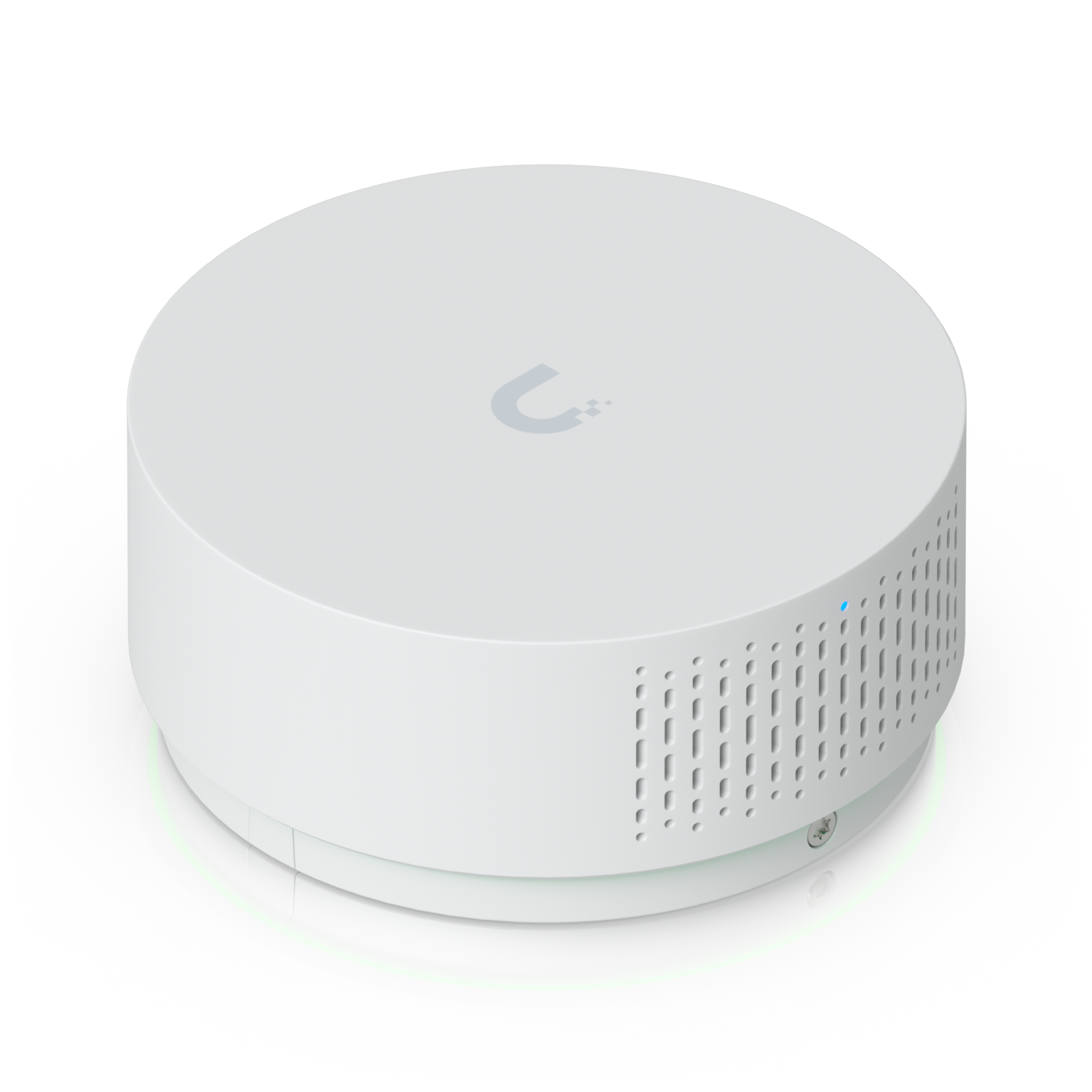

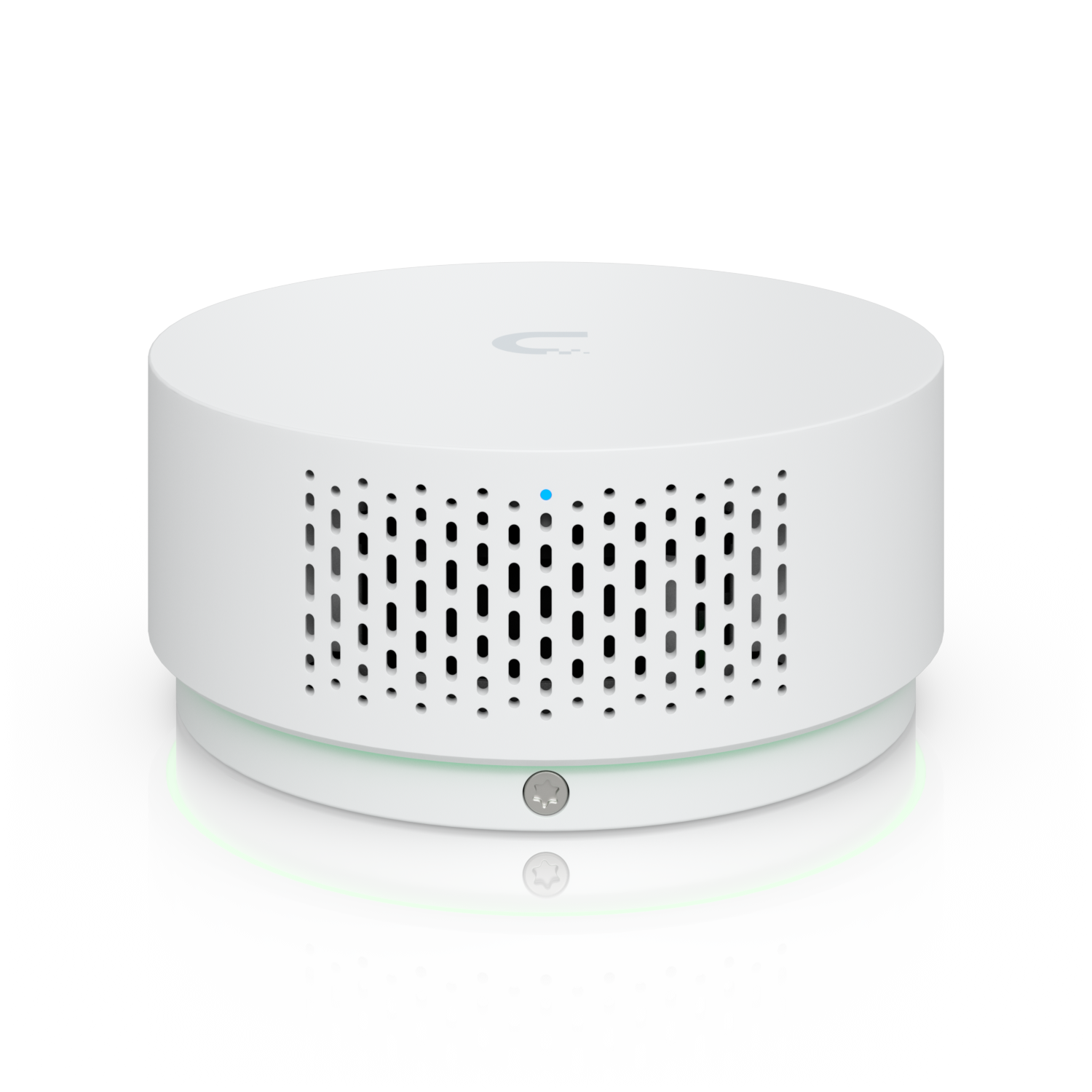

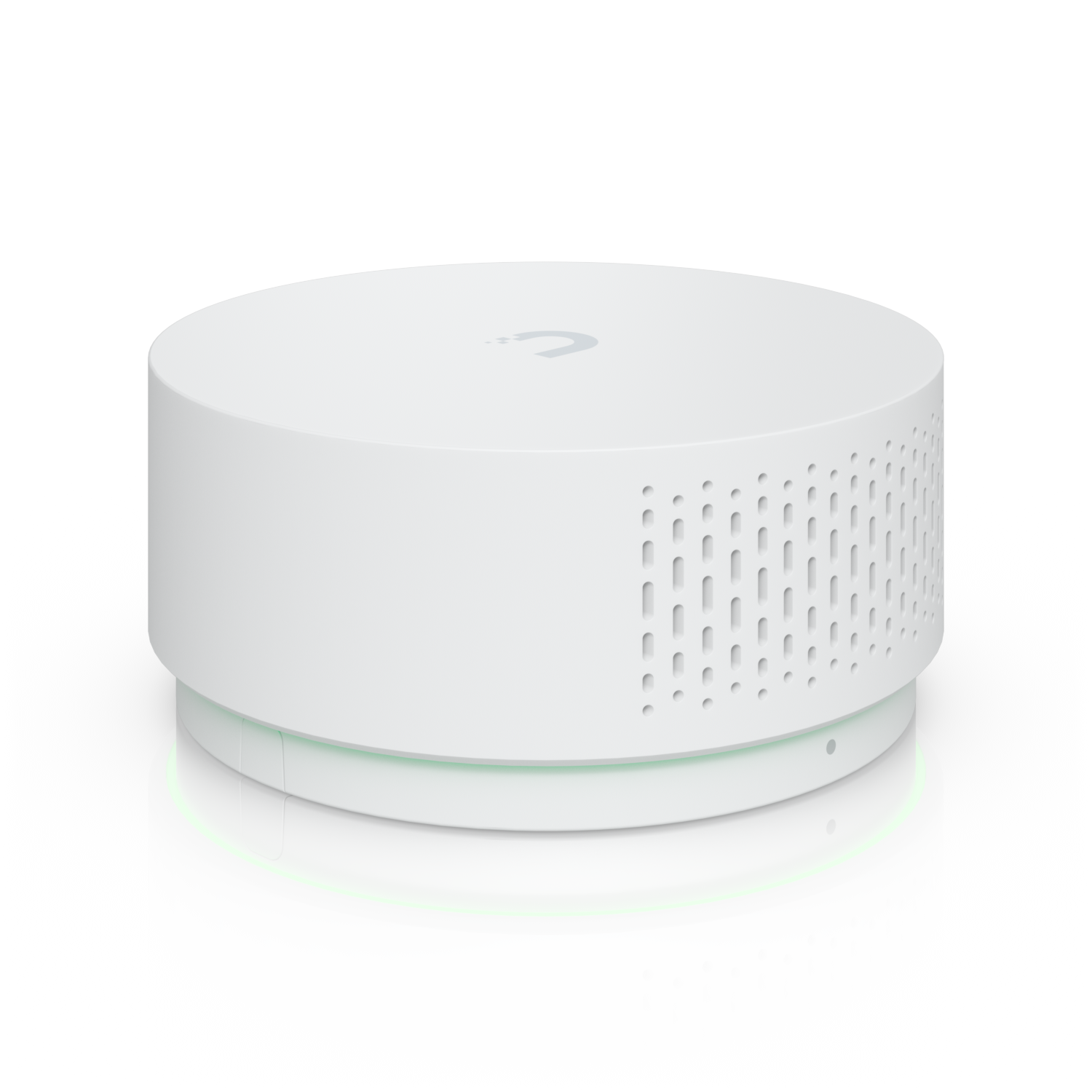

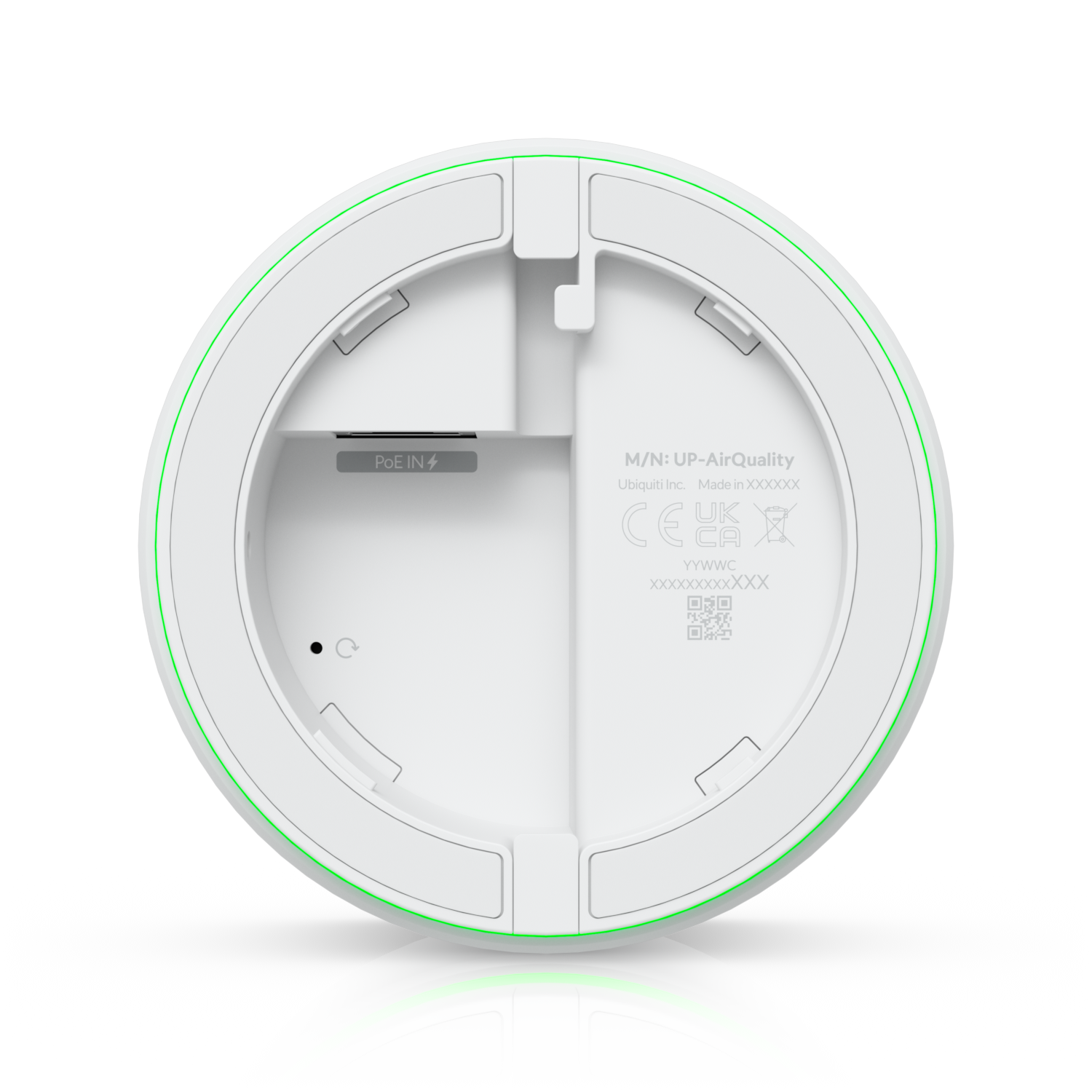

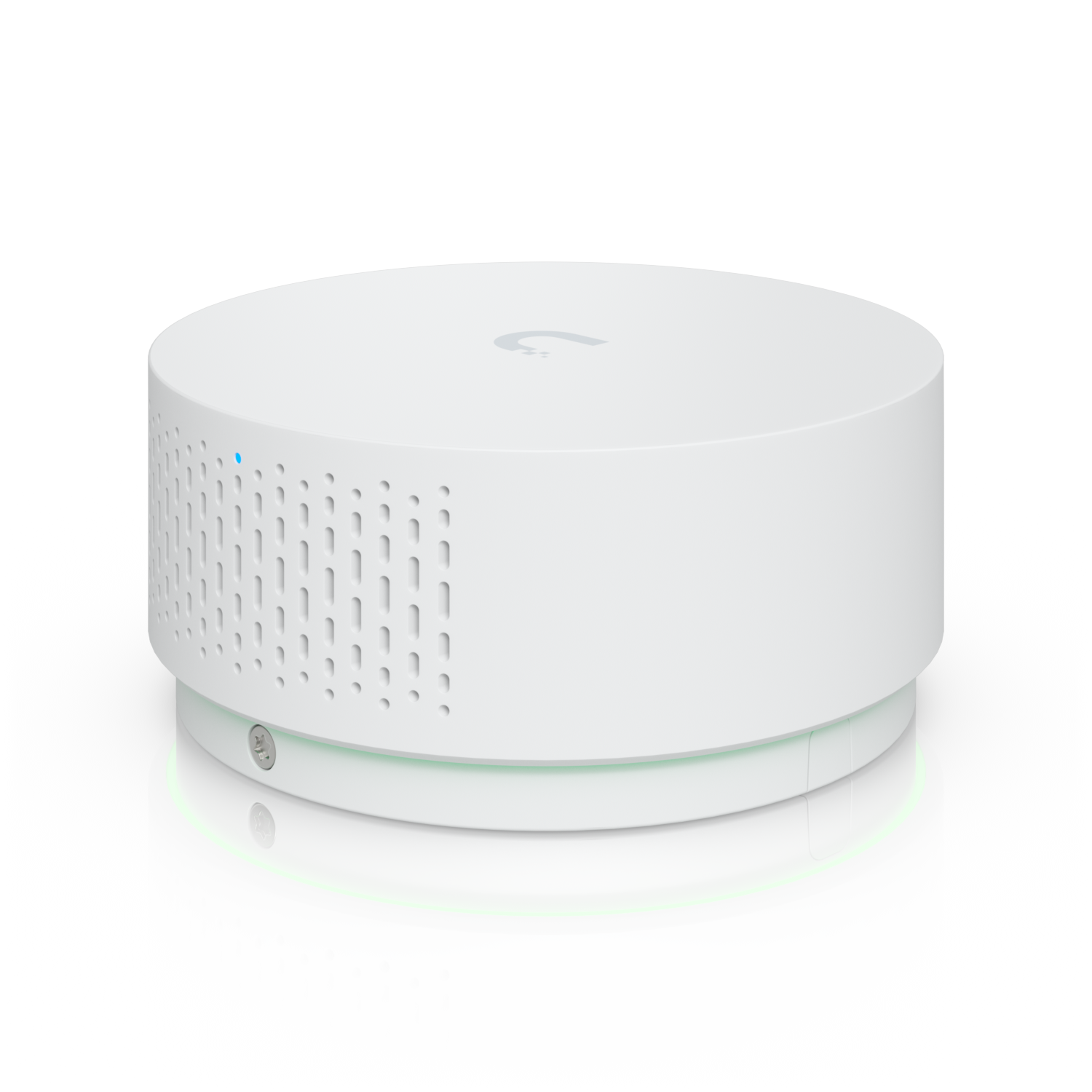

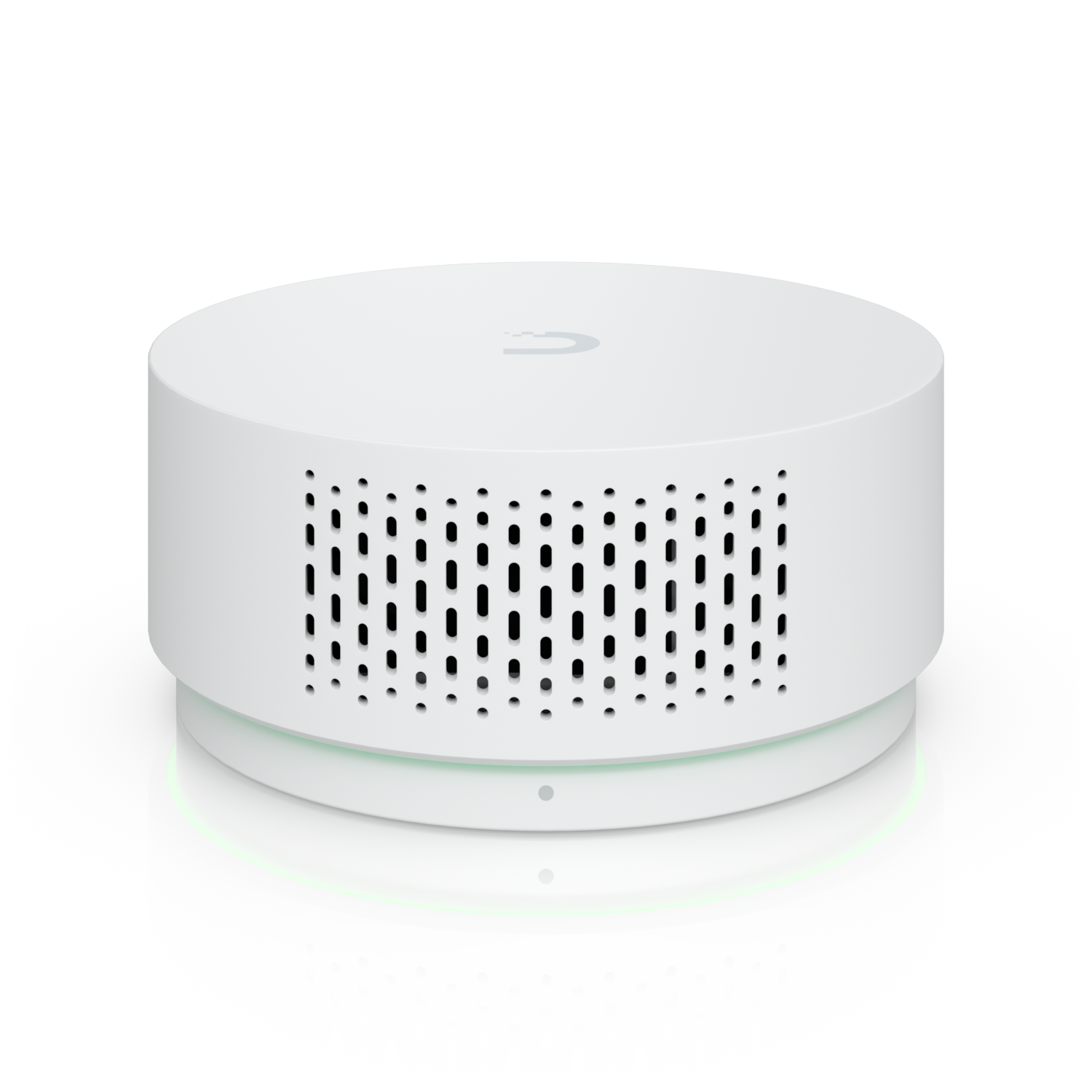

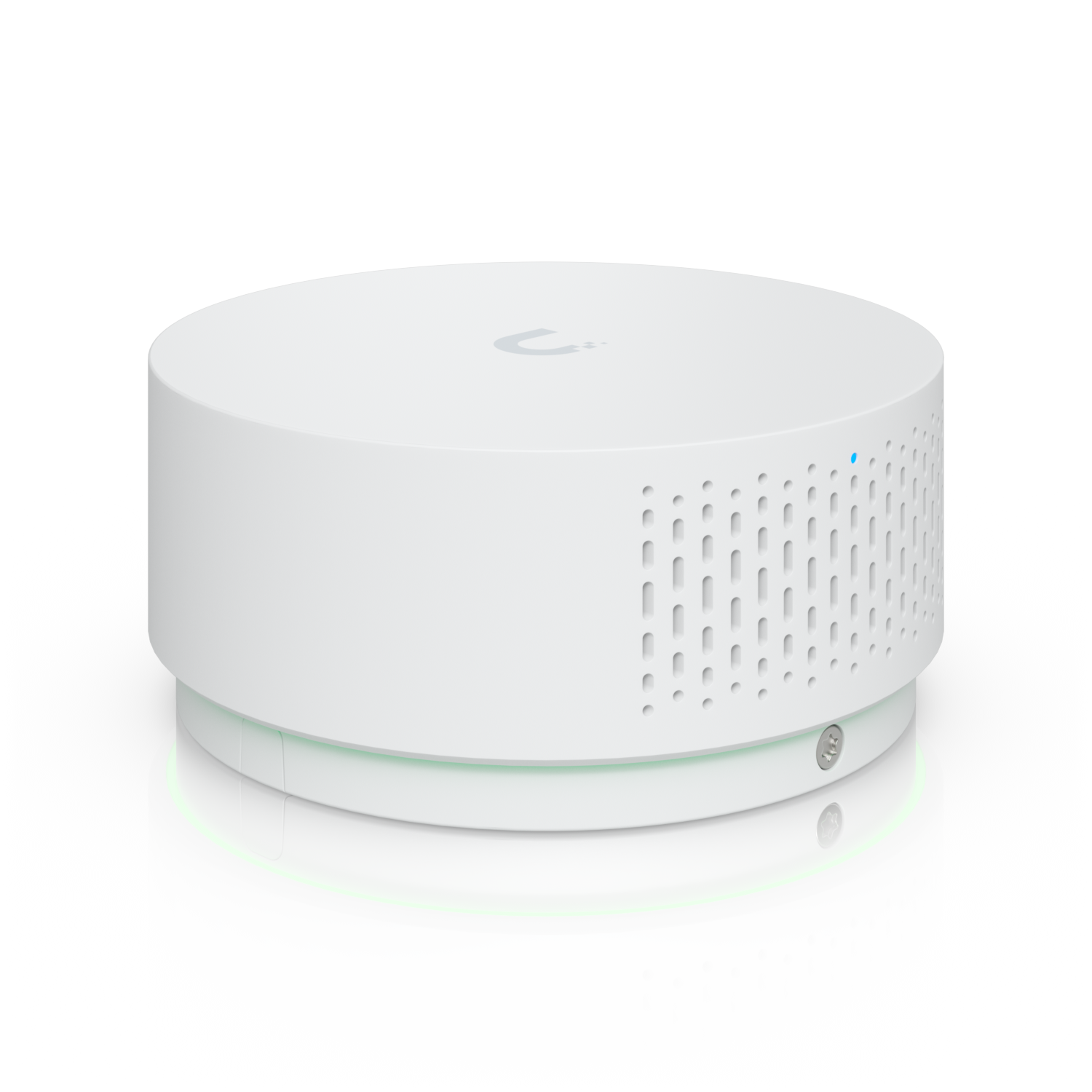

UniFi Vape Detection & Air Quality Sensor
Skynjari knúinn með PoE sem veitir rauntíma uppgötvun á gufurettum, loftgæðavöktun og tafarlausar viðvaranir fyrir skóla, vinnustaði, gistiþjónustu og rekstrarumhverfi fyrirtækja.
Þrívídd og myndbönd
Tækni
Tæknilegir eiginleikar
Upplýsingar úr ETIM gögnum framleiðanda. Vantar þig meira? Hafðu samband við tækniráðgjöf okkar.
| Dimensions | ⌀93 x 40.5 mm (⌀3.7 x 1.6") |
|---|---|
| Mounting | Wall, ceiling and table |
| UniFi Application Suite | Protect |

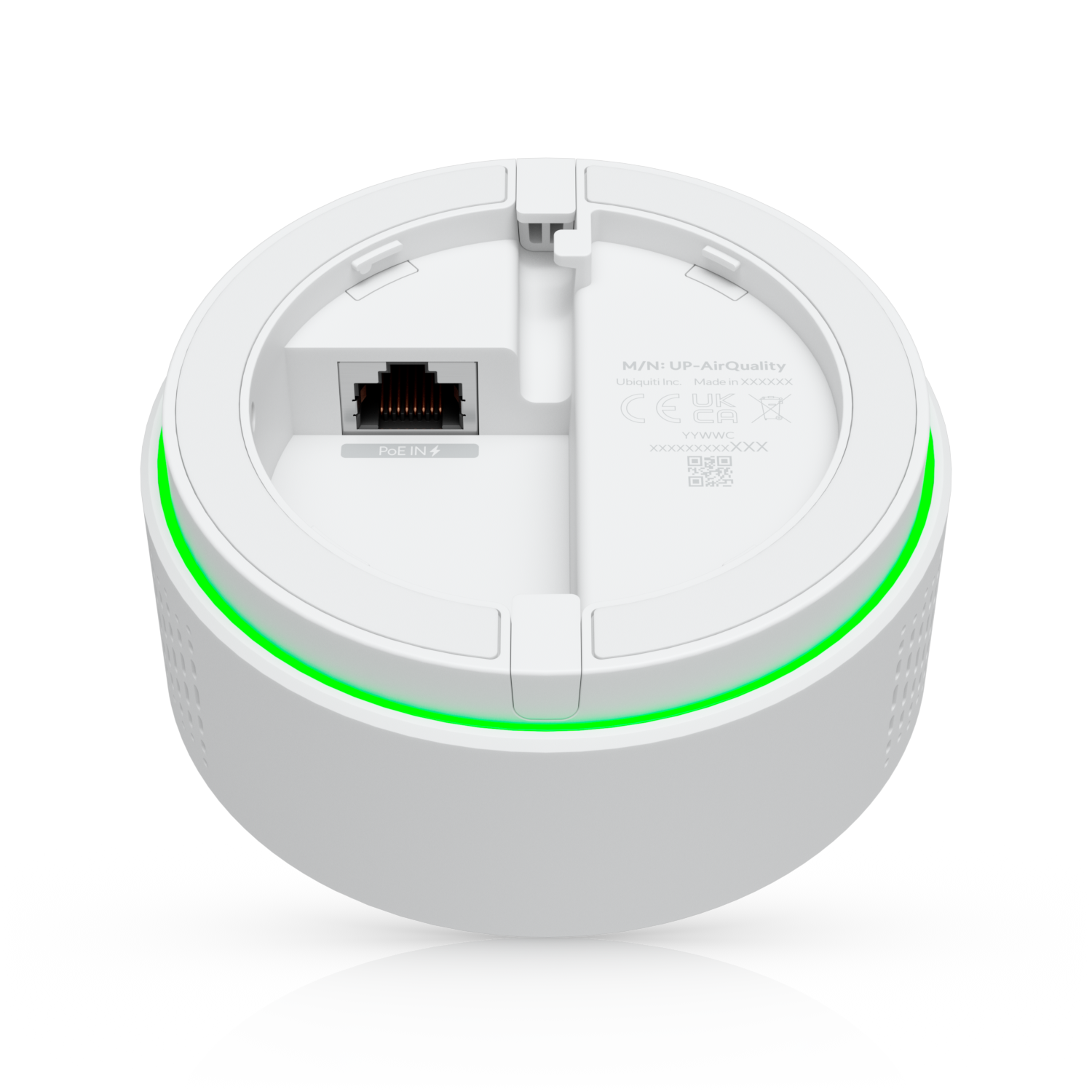

| Networking Interface | (1) 10/100 MbE RJ45 port |
| Connectivity | Ethernet |
| Sensor Features: Temperature Sensor | Yes |
| Sensor Features: Humidity Sensor | Yes |
| Sensor Features: Air Quality | CO2, PM1, PM2.5, PM4, PM10, VOC, NOx, AQI, Vape |
| Sensor Features: Sampling Rate | 1 Hz |
| Sensitivity Range: Temperature Sensor | 0–40° C (32–104° F) |
| Sensitivity Range: Humidity Sensor | 0–90% RH |
| Sensitivity Range: Air Quality | 0–500 |
| Sensitivity Range: CO2 Sensor | 0–40,000 ppm |
| Sensitivity Range: PM1/PM2.5/PM4/PM10 | 0–1000 μg/m³ |
| Sensitivity Range: VOC Index | 1–500 |
| Sensitivity Range: Vape Index | 0–100 |
| Sensitivity Range: NOx Index | 1–500 |
| Accuracy: PM1/PM2.5 | 0–100: ±(5 µg/m³ + 5% m.v.) 100–1000: ±10% m.v. |
| Accuracy: PM4/PM10 | 0–100: ±25 µg/m³ 100–1000: ±25% m.v. |
| Accuracy: VOC | ±5% |
| Accuracy: CO2 | 400–2000: ±(50 ppm + 3% of reading) 2000–5000: ±(50 ppm + 5% of reading) |
| Accuracy: Temperature | ±1° C (1.8° F) |
| Accuracy: Relative Humidity | ±8% RH |
| Max. Power Consumption | 2.2W |
| Supported Voltage Range | 37–57V |
| Power Method | PoE |
| Weight | 190 g (6.7 oz) |
| Enclosure Material | Polycarbonate |
| Mount Material | Aluminum alloy, stainless steel |
| LEDs | (1) Status: White/Blue (1) Air quality indicator: Red/Green/Yellow/Violet |
| Operating Environment | Indoor use only |
| Ambient Operating Temperature | Recommended 10 to 35° C (50 to 95° F) (Short-term exposure outside this range is supported. Accuracy and long-term reliability are not guaranteed.) |
| Ambient Operating Humidity | 10 to 90% noncondensing |
| Certifications | CE, FCC, IC |
| NDAA Compliant | Yes |
| Application Requirements: Web Application | UniFi Protect: Version 7.1 or later. |
| Application Requirements: Mobile App | UniFi Protect iOS™: Version 3.6.0 or later. Android™: Version 3.5.0 or later. |
