ABB Busch-Jaeger / KNX

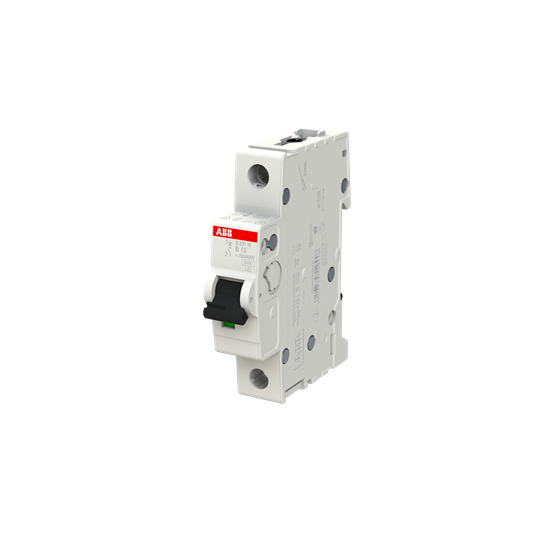

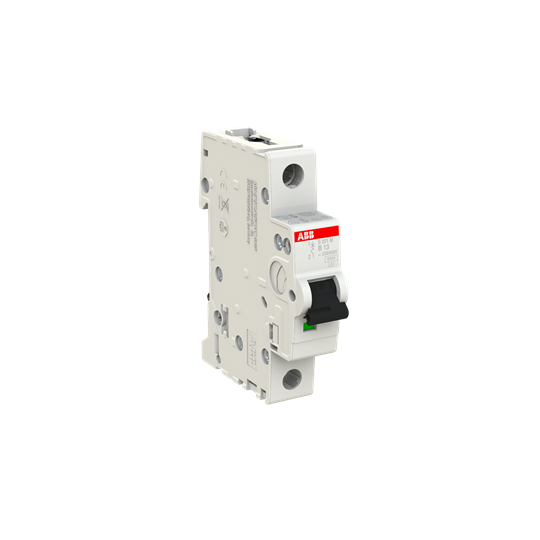

S201M-B Sjálfvar 1x13A B 10kA
Vörunr 473113EAN 4016779549448Framl. 2CDS271001R0135
Miniature Circuit Breaker - S200M - 1P - 13 A - B - (AC) 10 kA
System pro M compact S200M miniature circuit breakers are current limiting. They have two different
Tækni
Tæknilegir eiginleikar
Upplýsingar úr ETIM gögnum framleiðanda. Vantar þig meira? Hafðu samband við tækniráðgjöf okkar.
ETIM flokkur · EC000042
| Built-in depth | 69 mm |
|---|---|
| Number of poles (total) | 1 |
| Number of protected poles | 1 |
| Rated current | 13 A |
| Rated voltage | 230 V |
| Rated insulation voltage Ui | 440 V |
| Rated impulse withstand voltage Uimp | 4 kV |
| Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V | 6 kA |
| Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V | 10 kA |
| Frequency | 50 – 60 Hz |
| Power loss | 2.3 W |
| Current limiting class | 3 |
| Flush-mounted installation | |
| Concurrently switching neutral conductor | |
| Overvoltage category |
