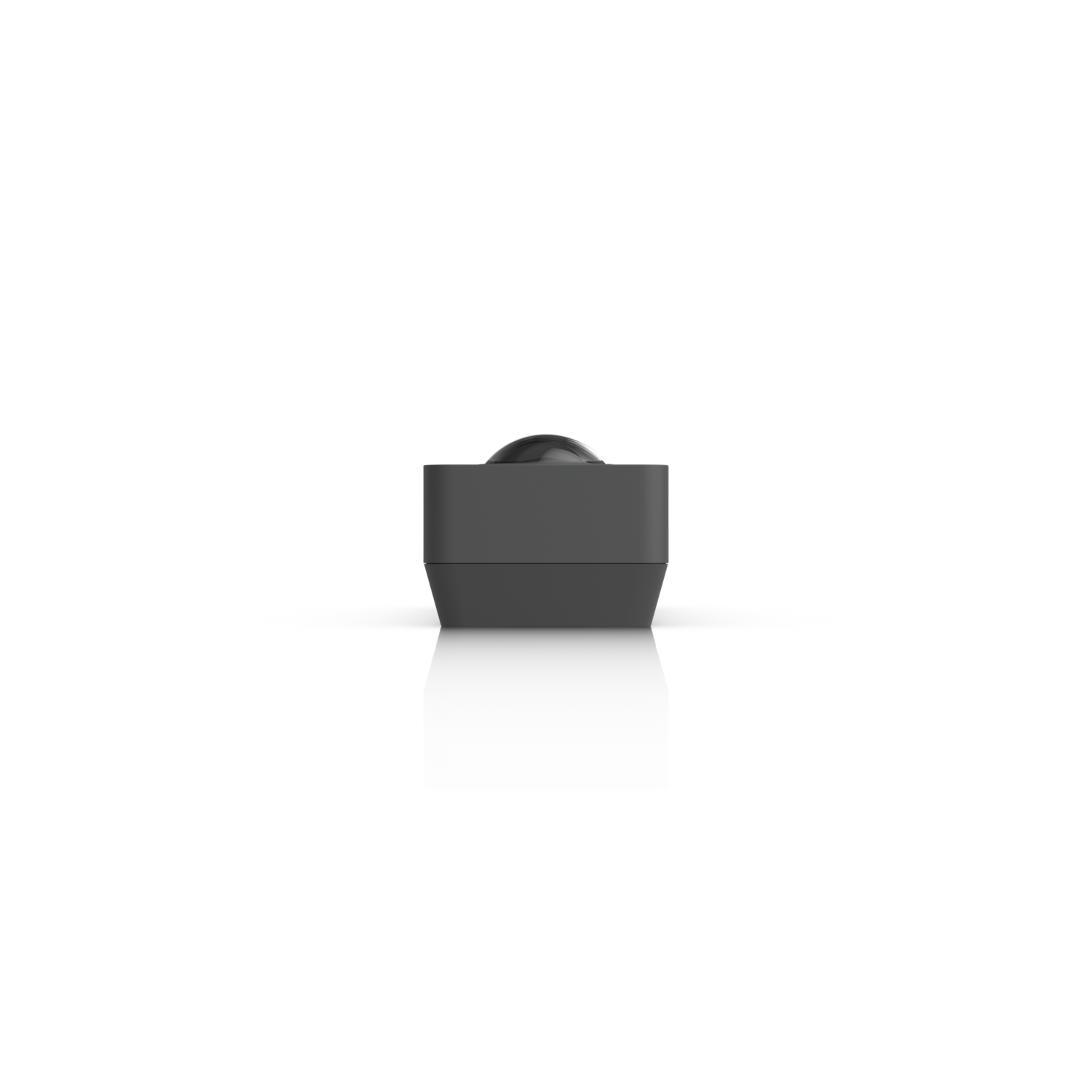

UniFi Reader G6 Entry
Þrívídd og myndbönd
Tækni
Tæknilegir eiginleikar
Upplýsingar úr ETIM gögnum framleiðanda. Vantar þig meira? Hafðu samband við tækniráðgjöf okkar.
| Dimensions | 176 x 45 x 29.6 mm (6.9 x 1.8 x 1.2") |
|---|---|
| Integrated Camera | Yes |
| IR Night Vision | 5 m (16 ft) |
| Resolution | Main camera: 5MP Package camera: 8MP |
| UniFi Application Suite | Protect Access (To enable Access Hub door access features, both UniFi Protect and UniFi Access must be installed on the Cloud Console.) |
| Face Recognition | Yes |
| NFC Card & Keyfob Access | Yes (Requires UniFi Access Hub / Hub Mini for NFC functionality) |
| Apple/Google Wallet | Yes |
| Mobile Unlock | Yes |
| Face Unlock | Yes |
| Two-Way Intercom & Doorbell Access | Yes |
| Weatherproofing | IP55 |
| Smart Detections (People, Vehicles, Animals) | Yes |
| Tamper Resistance | IK07 |
| Audio | Two-way audio (With noise cancellation/ Beam forming) |
| UL 294 Level | Destructive attack: Level I Line security: Level I Endurance: Level I Standby power: Level I |
| NDAA Compliant | Yes |
| Weight | 275 g (9.7 oz) |
| Enclosure Material | Aluminum |
| Mount Material | Wall mount: Stainless steel Gangbox mount plate: SGCC steel Gangbox mount cover: Polycarbonate Wedge mount: Aluminum |
| Mounting | Wall mount, Gangbox mount plate, 20° wedge mount (Included) Junction box (Optional) |
| Indoor and Outdoor Use | Yes |
| Networking Interface | GbE RJ45 port |
| Connectivity | BLE 4.1 NFC |
| Power Method | PoE+ UL 294 Power-limited Class 2 PSU UL 60950-1/62368-1 LPS/PS2 PSU (CAUTION: Only use with certified PSUs listed.) |
| Max. Power Consumption | 16W |
| Supported Voltage Range | 42—57V DC |
| Video: Image Settings | Color, brightness, sharpness, contrast, white balance, exposure control, 2DNR, 3DNR, NR by motion, masking, text overlay, HDR |
| Video: Max. Frame Rate | Main camera: 30 FPS Package camera: 3 FPS |
| Video: Resolution | Main camera: 5MP, 1920 x 2560 (3:4) Package camera: 8MP 3264 x 2448 (4:3) |
| Optics: Resolution | Main camera: 5MP CMOS Package camera: 8MP CMOS |
| Optics: Field of View | Main camera: H: 100°, V: 135°, D: 180° Package camera: H: 66°, V: 51.7°, D: 78° |
| Optics: Sensor | Main camera: 5MP CMOS Package camera: 8MP CMOS |
| Optics: Lens | Fixed focal length |
| Optics: Night Mode | Built-in IR LED illumination and IR cut filter |
| LEDs | R/G/B/W <a href="https://help.ui.com/hc/en-us/articles/25738084762775-Understanding-UniFi-Access-Device-LED-Status-Indicators" target="_blank" rel="noopener noreferrer">Learn More</a> |
| Button | (1) Ring button (1) Factory reset (1) Tamper switch |
| Processor | Quad-core Arm® Cortex®-A53 based chip |
| PoE Cabling Requirements | Cat 5e cabling is the minimum performance category recommended. The performance category utilized should match the transmission speed required at the installation site. The minimal conductor gauge permitted to connect between the PSE or power injector and the PD shall be 26 AWG (0.13 mm² ) for patch cords; 24 AWG (0.21 mm² ) for horizontal or riser cable. |
| UL 294 Statement | Compliance with IEEE 802.3 specifications was not verified as part of UL 294. The equipment is intended to comply with the section of the National Electrical Code, ANSI/NFPA 70, Article 725.121, Power Sources for Class 2 and Class 3 Circuits. |
| CAN/ULC-60839-11-1 Grade | Grade assignment: I |
| Certifications | CE, FCC, IC, UL 294, CAN/ULC-60839-11-1 |
| Document number, and issue date and/or revision level | UVC-G6-Entry, V01 |
| Ambient Operating Temperature | -30 to 50° C (-22 to 122° F) |
| Ambient Operating Humidity | 5 to 90% noncondensing |
